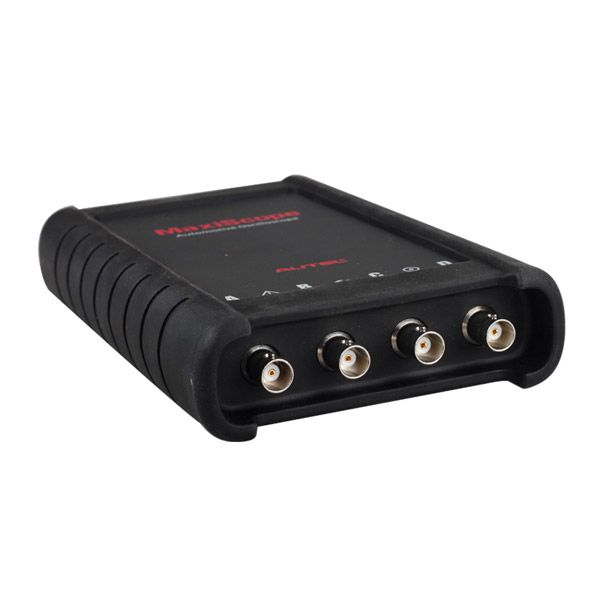

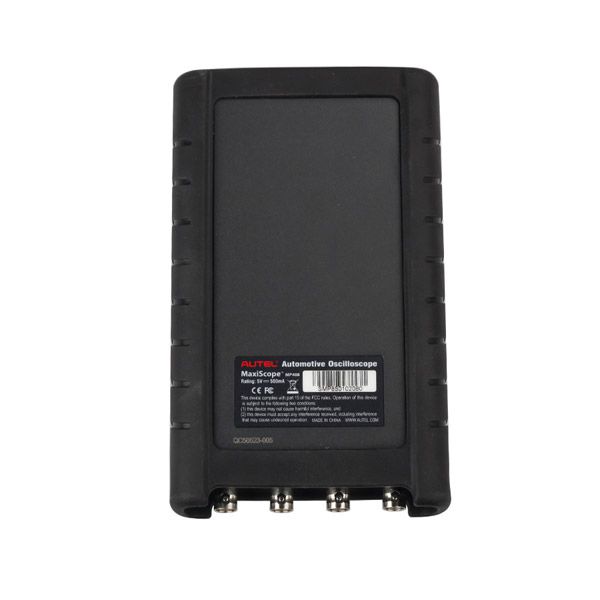

Autel MaxiScope MP408 4 Channel Automotive Oscilloscope Basic Kit Works with Maxisys Tool
Autel MaxiScope MP408 4 Channel Automotive OscilloscopeIt is a PC based 4-channel automotive oscilloscope.It works in combination with your PC or MaxiSys Tablet, which turns into a powerful diagnostic tool, providing you an insight to the inner workings of a vehicle’s electronic circuits.
Item No. COBD23479 Price Down Notice
Out of Stock
- Price:
- US$635.00/ piece
- Discount Price:
- US$506.20/ piece 20%
- Quantity:
-
- Shipping:
- Express Shipping Service
Estimated delivery time: 3-15 working days.See details » - Returns:
- Return for refund within 7 days,buyer pays return shipping.Read details »
- Support:
-
Online Chat
WhatsApp
Skype
Ask a question
US$84.99 / piece
US$122.55 / piece
US$47.49 / piece
US$2,599.00 / piece
US$249.00 / piece
US$489.00 / piece
US$79.90 / piece
US$37.99 / piece
US$599.00 / piece
US$71.24 / piece
US$244.00 / piece
US$118.00 / piece
US$99.00 / piece
US$648.10 / piece
US$1,227.00 / piece
US$1,899.15 / piece
US$599.00 / piece
- Product Details
- Product's Reviews
- Write a Review
- Related Products
Autel MaxiScope MP408 4 Channel Automotive Oscilloscope Basic Kit Works with Maxisys Tool
Top 5 Reasons to get Autel MaxiScope MP408
Top 5 Reasons to get Autel MaxiScope MP408
1.Featuring the user-friendly UI design combined with the unrivalled hardware specs
2.MP408 system is able to measure and test virtually all the electrical and electronic components and circuits in any modern vehicles
2.MP408 system is able to measure and test virtually all the electrical and electronic components and circuits in any modern vehicles
3.Power for the MaxiScope MP408 Module comes directly from the USB port of the connected PC
4.System is very versatile and portable to use
5.Free online software update through the Internet
4.System is very versatile and portable to use
5.Free online software update through the Internet
Autel MaxiScope MP408 4 Channel Automotive Oscilloscope Features and Functions:
Features one-click auto setup of voltage scale and time base
Works on all makes and models of modern vehicles
Compatible with LIN, CAN and FlexRay data bus standards
Reads and displays electrical signals in high resolution waveforms
Allows manual editing of measurement parameter display
Records and plays back waveform data
Features color coded 4-channel control panel
Intuitive UI design features easy trigger point adjustment and real time scale info display
Direct power supply through USB connection
Portable design with strong housing and protective rubber boot
Autel MaxiScope MP408 4 Channel Automotive Oscilloscope Specifications:
Vertical resolution:12 bits
Channels:4
Bandwidth:20MHz
Accuracy:1%
Sensitivity:10mV/div to 20V/div
PC Interface:USB 2.0 – Cable supplied
Power Requirements:Powered from USB port
Input Ranges (full scale):±v50mV to ±100V in 11 ranges
Input Impedance:1MΩ in parallel with 22pF
Input Type:Single-ended, BNC connector
Input Coupling:Software selectable AC/DC
Overload Protection:±200V on single input
Buffer Memory:32M samples shared among active channels
Waveform Buffer:Up to 1000 waveforms
Timebase Ranges:100ns/div to 1000s/div
Operating Temperature Range:0°C to 50°C (15°C to 40°C for quoted accuracy)
Storage Temperature Range:-20°C to +60°C
Storage Humidity Range:5% to 95%RH, Non-condensing
Dimensions:190X115X38mm
Weight:< 0.5kg
Maximum Sampling Rate (Single Shot):
-1 or 2 channels in use:80MS/s
-3 or 4 channels in use:20MS/s
Package Including:
1pcs x Autel MaxiScope MP408 Interface
1pcs x Compact Disc (CD)
1pcs x 1.5m USB Cable
4pcs x 3m (10ft) Screened Test Leads
1pcs x Secondary Ignition Pickup
1pcs x 2-pin Breakout Lead
2pcs x Attenuators 20:1
1pcs x Large Crocodile Clip Set
1pcs x Small Crocodile Clip Set
1pcs x Acupuncture Probe Set
1pcs x Multimeter Probes
