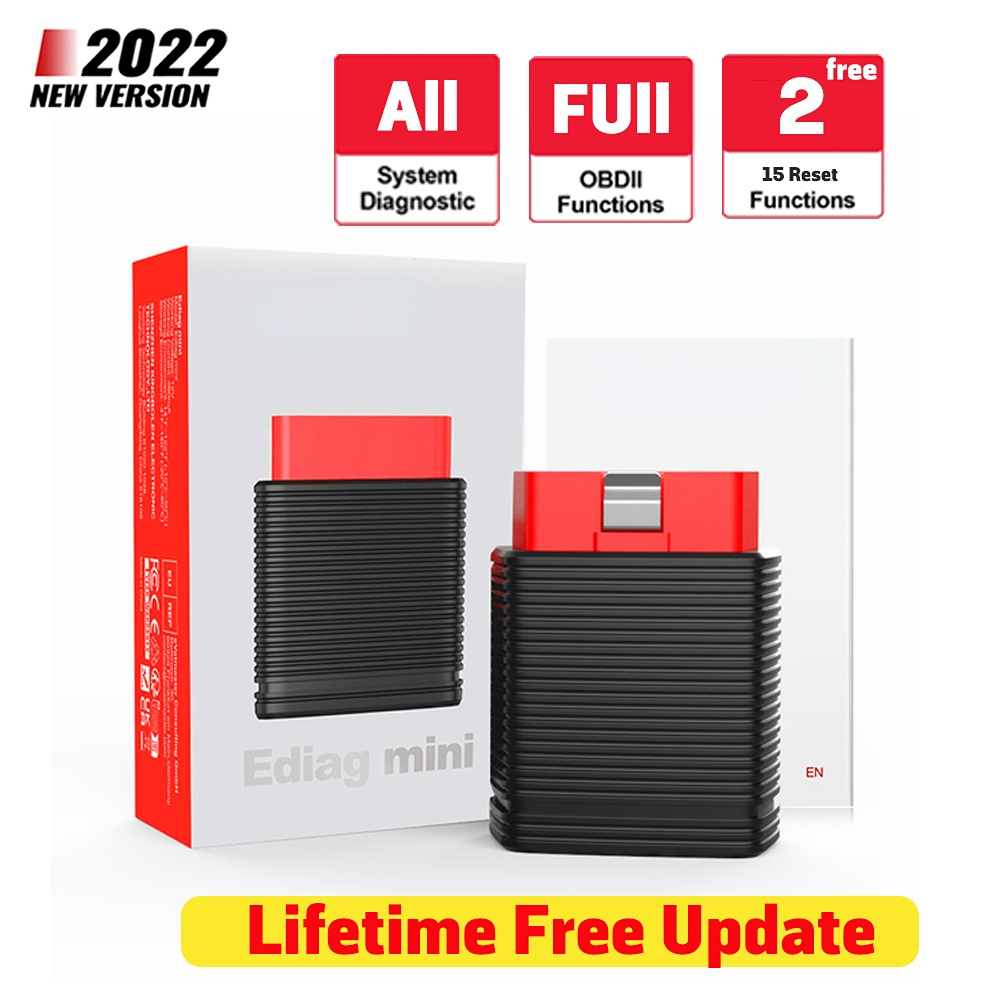

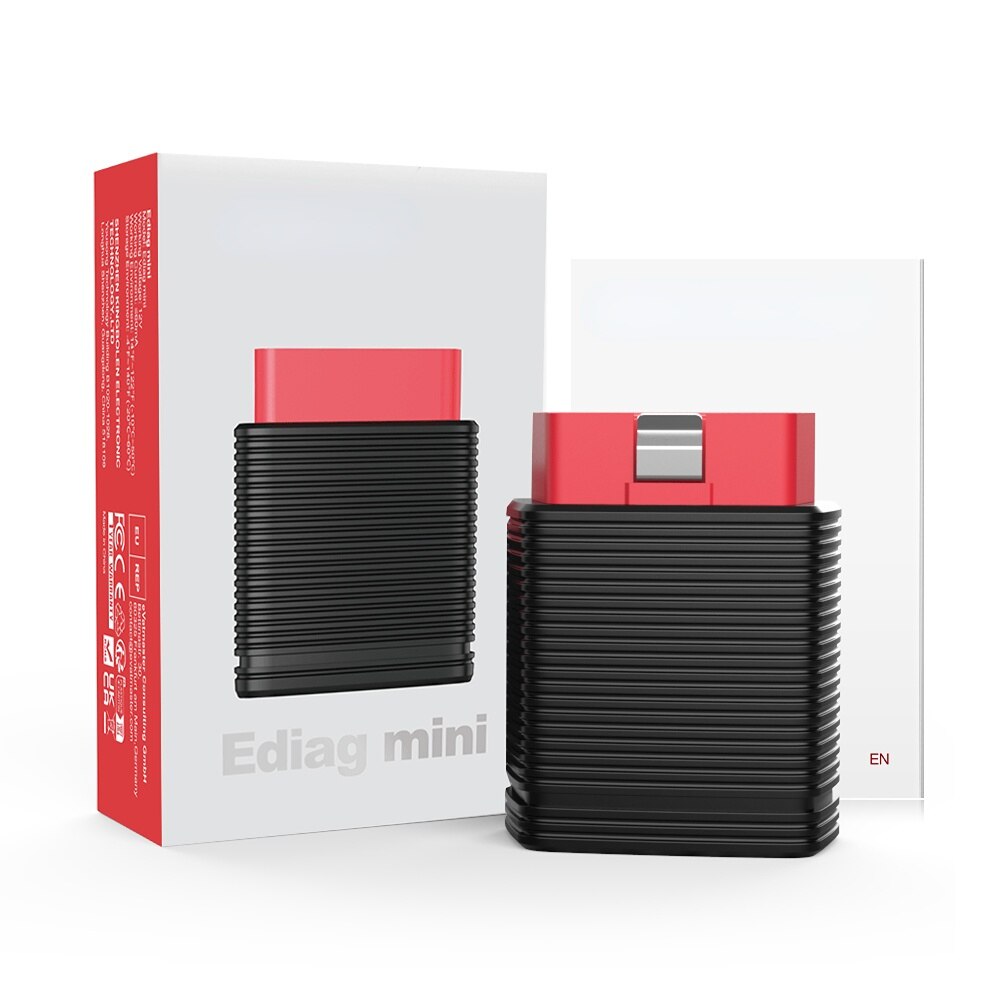

EDIAG MINI ALL System Car Diagnostic Tools 15 Resets FULL OBD2 Code Reader Read/Clear Code Error PK THINKDIAG BT200

Why Do You Need Ediag MINI OBD2 Scanner?

1. Mobile APP Bluetooth Connection, Lightweight And Convenient

2. System Diagnostic Function: All OBDII Cars Full System Diagnostic Lifetime Free, Version Upgrade Free

3. Resets Service: Support 2 Resets Services Free 1 Year, Especially Support IMMO Key Programming, TPMS Service, Gearbox Reset, Please Contact Customer Service To Ask If Your Car Model Supports.

4. OBDII Function: All 10 Mode OBDII/EOBD Protocol Functions After 1996 Lifetime Free.

5. Support 12 Languages: Russian, English, French, German, Spanish, Italian, Portuguese, Japanese, Polish, Turkish, Greek, Traditional Chinese.

6. Support Model: Support Diagnosis More Than 122+ Car Brand,Continuous Upgrade

Support 12 Languages

English, French, German, Russian, Spanish, Italian, Portuguese, Japanese, Polish, Turkish, Greek, Traditional Chinese

All Cars Lifetime Free Full System Diagnostic

The Diagnostics application enables a data link to the electronic control system of the test vehicle for vehicle diagnosis.The application performsfunctional tests, retrieves vehicle diagnostic information, such as trouble and event codes and live data for various vehicle control systems, such as ABS, SRS, Engine, Transmission, Brake System, Emission System, Fuel system, Light system, Wiper Systemetc.

15 Maintenance RESET Functions (2 Resets: Oil and SAS resets Free 1 Year)

This OBD2 scanner is specially designed to provide you with quick access to the vehicle systems for various scheduled service and maintenance performances.

There is some commonly-used special reset services are listed for your reference:

1. Oil Lamp Reset Service:

allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.

2. EPB service

it is important in the maintenance of electronic braking system safety and efficiency.

3. BAT battery service:

allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.

4. DPF service:

specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.

5. SAS service:

helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.

6. TPMS service:

makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.

7. IMMO Key Programming:

the unique car Key Programming and read pin code function, it is mainly used to disable the lost vehicle keys and program a new replacement key fob.

8. ABS Bleeding:

ABS brake bleeding to get a firm brake pad after air exhaustion after repair ABS pump system.

9. Sunroof Reset:

The sunroof memory generally needs to be reset when the vehicle's battery is replaced or the car dies.

10. Suspension Reset:

Try reset electronic suspension air ride with the massage system close all doors koeo flip through message system go to suspension reset or on off.

11. Gearbox Reset:

Procedure Reset Transmission Adaptive Learning DIY. Start the car and drive. Once you perform this procedure the Engine Control Unit (ECU) and Transmission Control Unit (TCU) will work together to learn how you drive by monitoring your driving pattern.After you follow this programing method of the TCU/ECU drive the car.

12. AFS Headlamp Reset:

'AFS' means Adaptive Front lighting System (at night with the Bi-Xenon headlights) it swivels either side,pressing that button means they stay pointing straight ahead and don't turn when you turn the steering wheel.

13. Injector Coding:

Leaking injectors and some dead injectors can be missed even when an injector is disabled. Other problems with the ignition system and mechanical components also may not show an rpm loss when an injector is turned off.

14. Throttle Adaptation

The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount of air entering an engine. In an electronically fuel injected car, a throttle position sensor and air flow sensor communicate with the computer, which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair.

15. Gear Learning:

The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount of air entering an engine. In an electronically fuel injected car, a throttle position sensor and air flow sensor communicate with the computer, which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair.

Lifetime free All 10 Mode OBDII/EOBD Functions

Supported models: compatible with all models supporting OBD II protocol after 1996

supporting agreement: ISO 14230-4(KWP2000)/IOS 15765-4(CAN)/ISO 9141-2(IOS)/ISO14229(UDS)/SAEJ 1850(VPW&PWM)"

Mode 1: Read live data stream
Mode 2: Read freeze frame data
Mode 3: Read DTCs(diagnostic trouble codes)
Mode 4: Clear dtcs
Mode 5: Oxygen sensor monitoring
Mode 6: System monitoring
Mode 7: Read pending DTCs
Mode 8: Control operation of on-board system
Mode 9: Read vehicle information
Mode 10: Request emissions-related diagnostic trouble codes with permanent status after a clear/reset emission-related diagnostic information.

Read Live Data Stream

Show the information of continuous data stream from a vehicle in live graphic (waveform) display.

Support Vehicles Diagnostic Report

1. Generate diagnostic report in MUCAR APP.
2. Download the diagnosis report and transfer it to the computer to print the diagnosis report.
3. Share your diagnosis report with your partner or car owner.

Support Mobile Phone & Tablet Computer

Android: 4.0, IOS: 9.0

Ediag Mini OBD2 Diagnostic Tool is suitable for Mobile phones, tablet computer that meet the above version information. When the adapter is connected to the car, you only need to detect and diagnose your vehicle through the mobile phone's Bluetooth 4.2 and APP. It is suitable for most DIY car owners and maintenance and repair car stores on the market.

How to use Ediag mini?

1. Download and install the APP "Kingbolen ediag mini" in Google Play or your smartphone and sign up for a new account And log in.

2. Activate the device in APP"Kingbolen ediag mini", binding serial number;

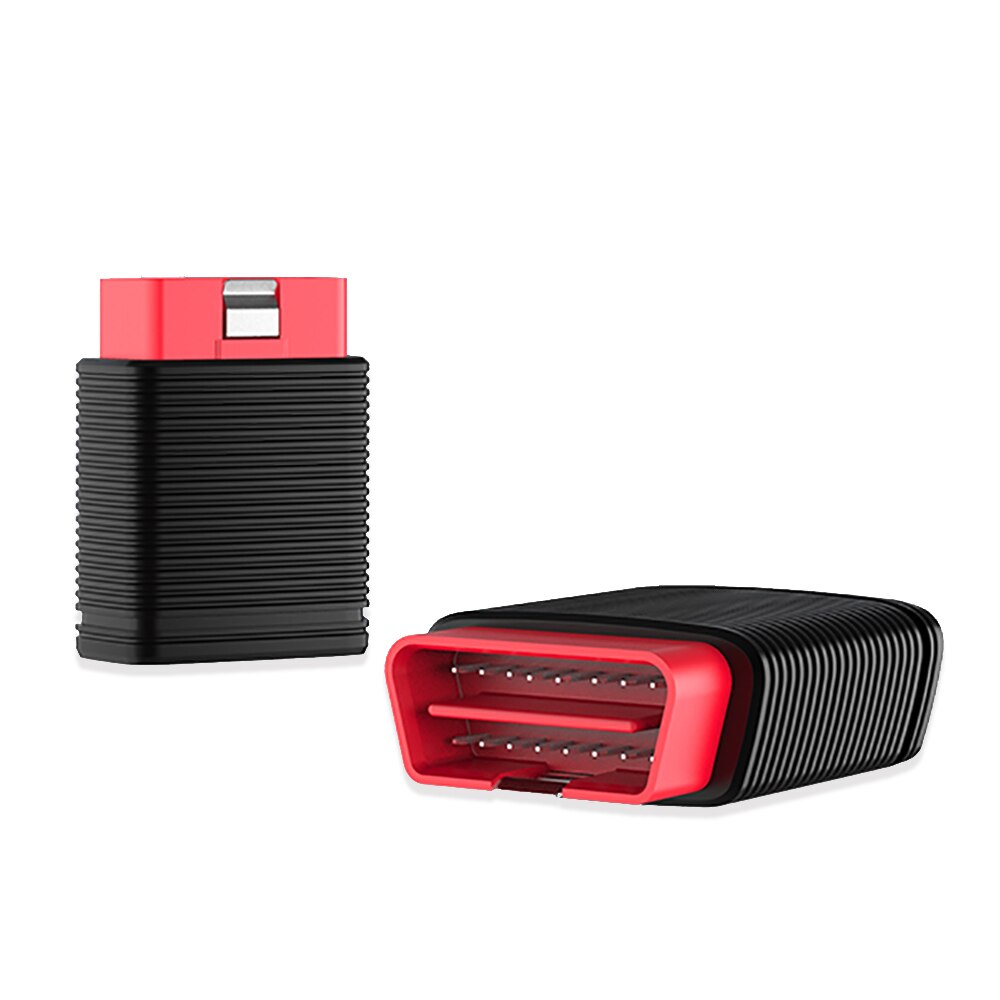

3. Plug the Ediag mini dongle into the vehicle's 16pin OBD2 Data Link Connector and then turn on your vehicle.

4. Tap Me/Setting button of your device to bluetooth pair the MUCAR BT200 Pro with your device.

5. Start to diagnosic your car.

Support Cover Up to Over 122 Major Vehicle Manufacturers From America, Europe and Asia

Ediag mini can be detect almost all vehicles in America, Europe, and Asia Pacific regions with OBD port.

Examples are as follows:

1. American Car List:

Need standard obd2 and release year from 1996-now

For Chrysler, For Ford, For GM, For Jeep, For Lincoln, For Buick, For Cadillac, For Chevrolet,For Dodge, For HM, ect...

2. European Car List:

Need standard obd2 and release year from 2000-now

For Mercedes, For Benz, For Smart, For Sprinter, For BMW, For Volkswagen, For Skoda, For Audi, For Opel, For Lamborghini, For Porsche, For Maybach, For Ford, For Land Rover, For Jaguar, For Aston Martin, For Bentley, For Rolls-Royce, For Rover, For Mini, For Vauxhall, For DR, For Ferrari, For Fiat, For Abarth, For Lancia, For Alfa Romeo, For Maserati,For Bugatti, For Peugeot, For Citroen, For Renault, For Saab, For Volvo, For GM, For GMSA, For Dacia, For Seat,ect ...

3. Asian Car List:

Need standard obd2 and release year from 2008-now

For Thailand Isuzu, For Acura, For Daewoo, For Jianghuai cars (GM), For Ssangyong, For Infiniti, For Proton, For Honda, For Mazda, For Perodua, For Jiangling Automobile, For Mahindra (MAHINDRA), For Isuzu, For Suzuki, For Byd auto, For Chery cars, For Toyota, For Nissan, For Kia, For The Car, For The Great Wall in cars, For Daihatsu, For Changan automobile, For Geely automobile, For Xiamen Jinlong, For Zhongxing automobile, For Hafei automobile, For New Kay, For Gonow automobile, For Changhe automobile, For Hyundai, For Liuzhou Wuling, For Subaru, For Xiali, For Australia ford, For Mitsubishi, For TATA, For Zhongtai automobile, For Horton, For MARUTI, For Lexus

Fee:

1. All Cars full OBDII diagnostic lifetime free
2. All Cars all systems diagnostic lifetime free
3. All Cars Oil and SAS resets free 1 year;
4.If you want to get more resets, $19.95 /year/reset/All Cars;

Package:

1* Ediag mini OBDII Connector
1* Manual
