PCMtuner ECU Programmer with 67 Modules

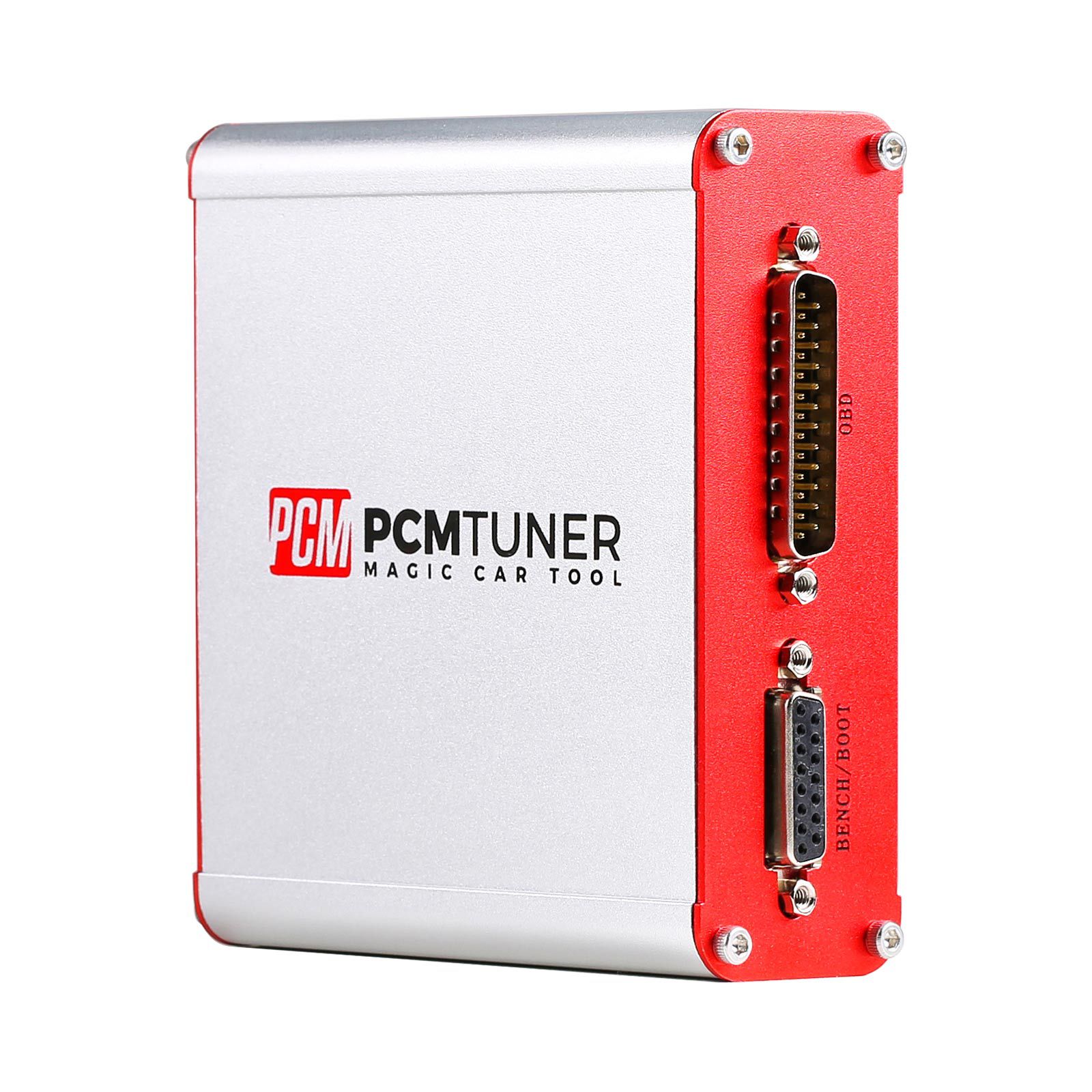

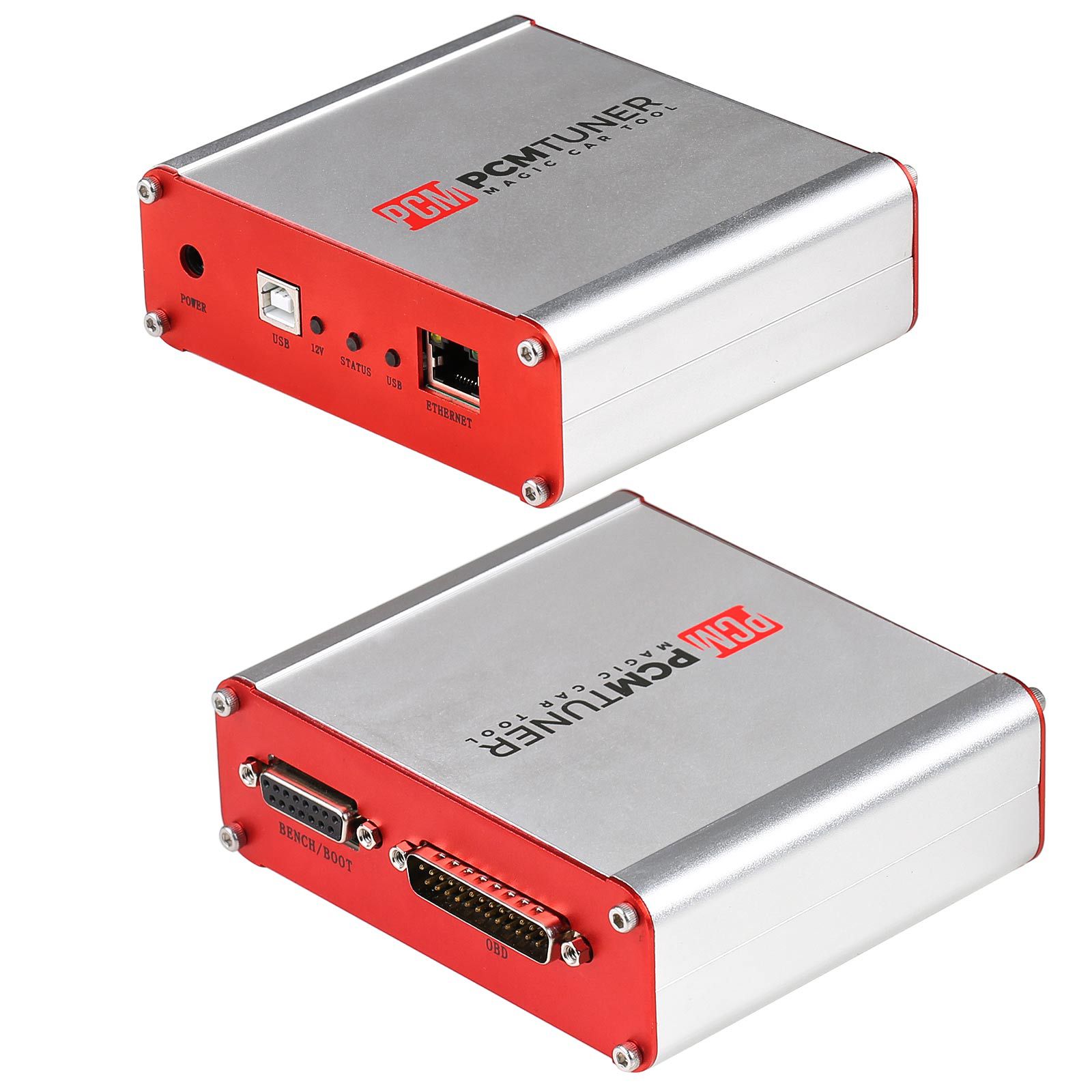

PCMtuner is a customized read-write device specifically designed for vehicle engine control units (ECU) and transmission control units (TCU). It supports OBO (bus reading and writing), BENCH (reading and writing with opened ECU or TCU housing), and BOOT (open mode reading and writing). The tool is compatible with a wide range of models across European, Japanese, American, and Chinese vehicles. It also supports select Volkswagen Audi gearboxes and vehicles equipped with Delphi control systems.

Key Features of PCMtuner

1. Master Version – Saves data in BIN format without encryption.
2. Supports ECU data reading and writing via OBD, BENCH, and BOOT modes.
3. Provides VR files for all legal users; Helpdesk offers free WinOLS Damos, A2L, MapPackage, and VR files.
4. Enables forced write (cloning) without verification and supports reading/writing unknown ECUs with supported chip models.
5. Free online updates with no annual subscription fee; includes 2-year warranty.
6. Integrated Scanmatik2 – Smart dongle compatible with the original Scanmatik2 Pro.
7. Official product from Tuner Group, ensuring enhanced support for legitimate users.
8. UOBDII is the official online dealer of PCMtuner. Verify authenticity on the official website under Distributor List (3).

PCMtuner Extension Modules (Sold Separately)

Enhance functionality with optional modules:

• MPM – For American ECU/TCU models including GM, Chrysler, and Ford.
• Fetrotech Tool – Supports MG1 MD1 ECU, BENCH reading of MED9, EDC16, and MEDC17 series ECUs.
• GODIAG GT105 Plus GT107 – Enables DSG gearbox data read/write.
• GODIAG OBD Breakout Cable – Allows OBD-to-bench connections.

Additional Free Tools Included

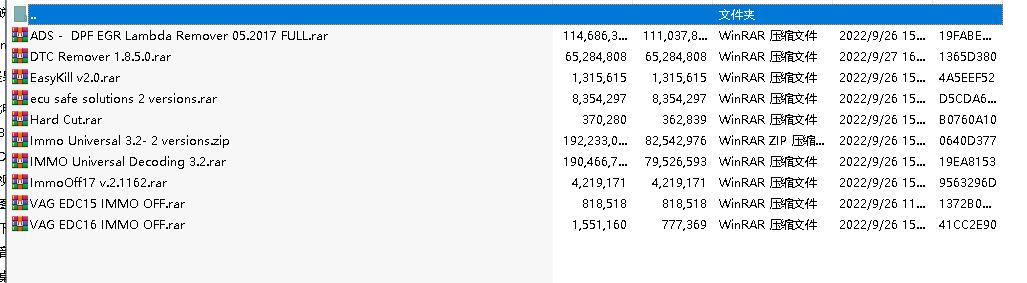

Receive complimentary access to IMMO Universal, DTC Remover, IMMO OFF, ECU Safe Solutions, and Keygen. Contact our online customer service for details.

Important Usage Notes

• Use only the software included in the default package. Unauthorized software may lock or damage the device, for which we assume no responsibility.
• We strongly recommend installing PCMtuner on Windows 10 for optimal performance.
• PCMtuner functions as a J2534 Passthru device compatible with Techstream. It can be tested with Ford IDS, BMW ISTA, VW ODIS, etc. This is a bonus feature; we are not liable for any resulting damage.
• Always use the original power supply provided. Third-party adapters may damage internal components such as transistors or chips.

PCMtuner Software & Resources Download

• PCMTuner Flash V1.2.7 Download
• PCM Suite Download
• PCMtuner Wiring Diagrams

How to Activate PCMtuner and Obtain VR Account

1. Download and install the software using the Online Instruction. Start with PCMtuner Flash V1.2.7 and PCM Suite.
2. After installation, click "Yes" when prompted to register the device, then follow on-screen instructions.
3. Email your device ID to [email protected] to receive a registration key.

PCMtuner can now be activated on multiple PCs—simply register each with a different email address; previous activations do not need to be canceled.

User Accounts Provided After Registration

• https://support.vz-performance.com: Username = Registered Email, Password = Software Serial NuMBer (used for tuner support, VR files, and Damos access).
• https://www.tuner-box.com: Username = Registered Email, Password = Software Serial NuMBer (for creating support tickets).

The VZ Performance account grants access to tuner support services, VR files, and professional tuning resources. The Tuner-Box account is used for technical support requests.

PCMtuner Functions and Capabilities

PCMtuner enables full ECU data backup, easy ECU cloning, and performance upgrades. It supports both ECU and TCU read/write operations. Based on extracted data, engineers can offer paid tuning services including Stage 1–3 tuning, popbangs, launch control (LC), sport display activation, IMMO OFF, Adblue OFF, DPF OFF, DTC OFF, VMAX adjustment, swirl valve deactivation, and factory reset restoration.

1. Read and write ECU data
2. ECU cloning
3. ECU parameter adjustment
4. ECU maintenance engineering
5. Chip tuning
6. Read ECU maps
7. Checksum correction
8. Stage 1–3, Gearbox Tuning, LC, Sport Display, IMMO OFF, Adblue OFF, DPF OFF, DTC OFF, VMAX, Swirl OFF (Paid Service – purchase tokens directly via VZ Performance)
9. Read flash and EP files
10. Powertrain adjustment
11. Supports online updates
12. VR file supply
13. Pinout comewith
14. Helpdesk and tuner account access
15. OBD2 reading
16. No-disasseMBly, cover-free, weld-free data reading (reduces ECU damage risk) – Bench Mode
17. Cover-opening data reading – Boot Mode

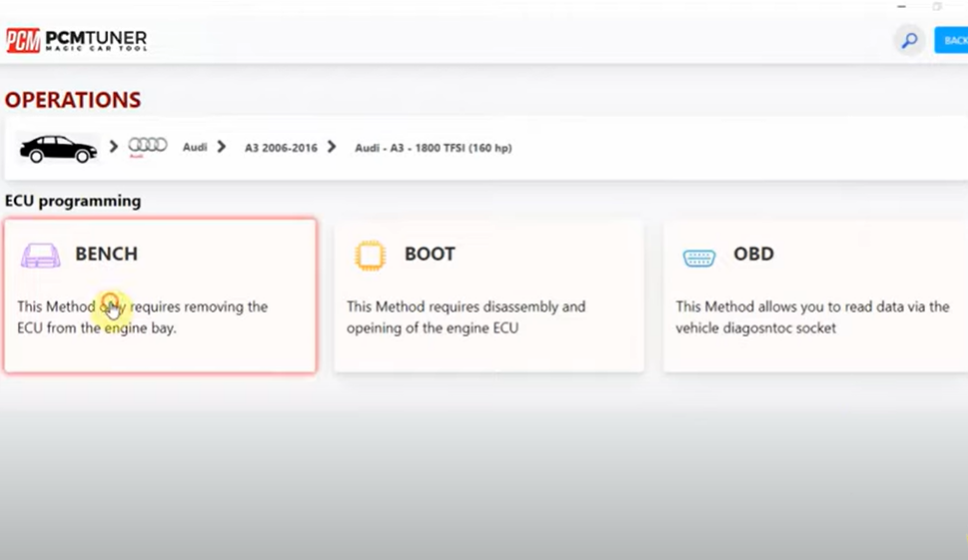

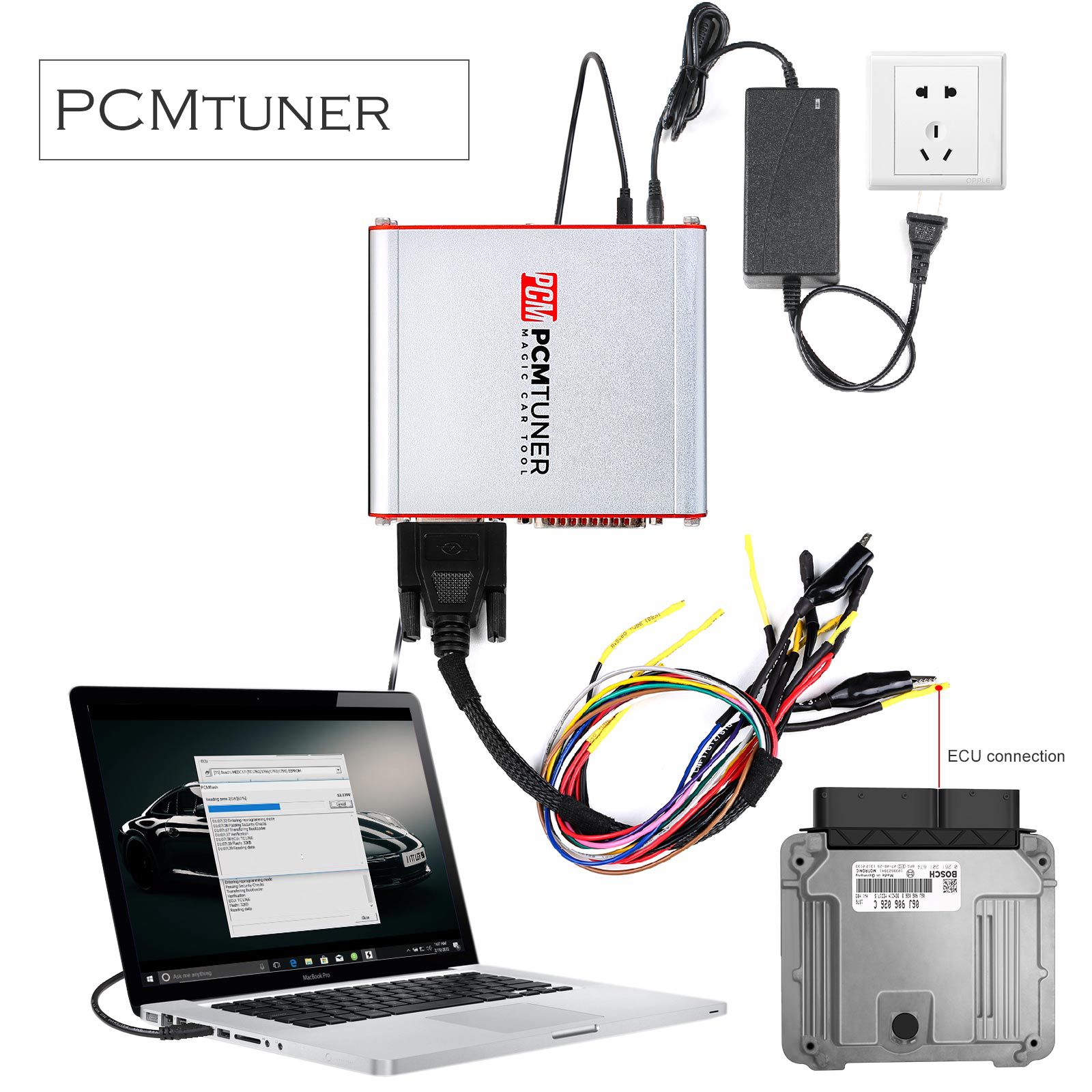

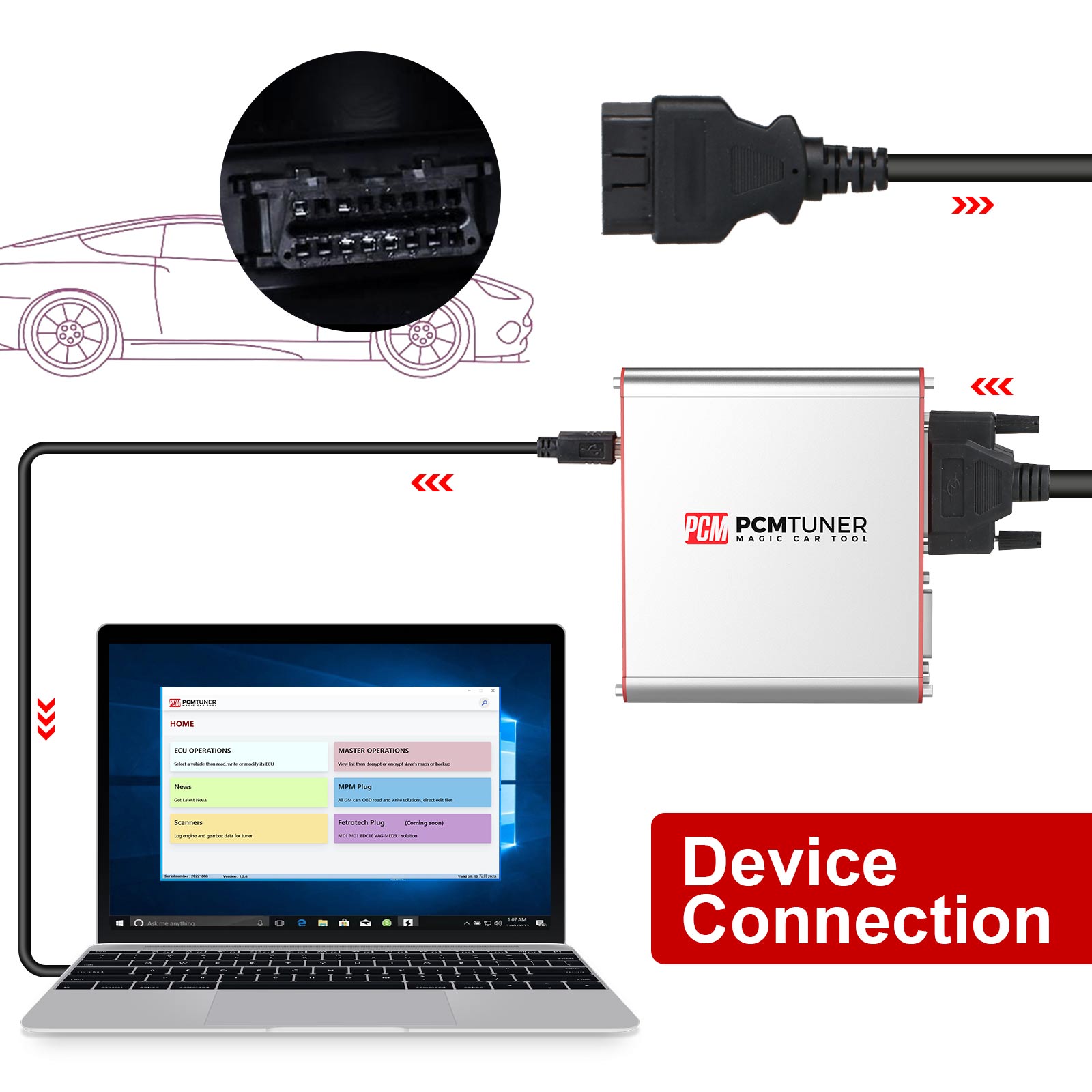

PCMtuner Connection Methods

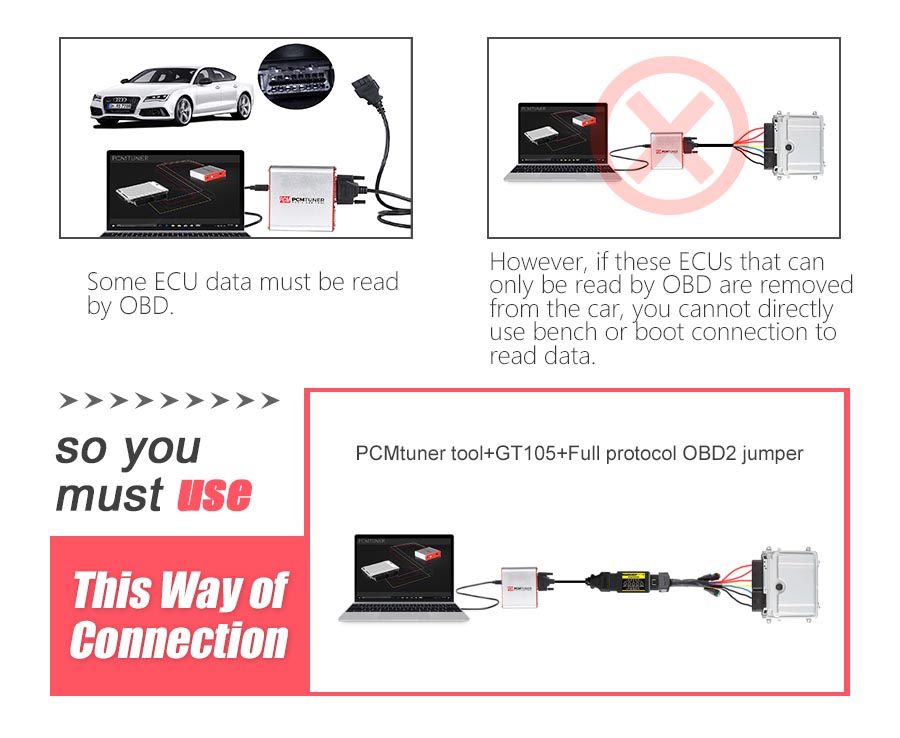

Note: Some ECUs must be read via OBD. If these units are removed from the vehicle, bench or boot methods won’t work directly. Use an OBD breakout cable for proper connection.

Newly Added Bosch MED/EDC17 Read/Write Protocols (No Cover Opening Required)

• VAG Simos PCR2.1
• FCA GPEC2, GPEC2A, GPEC4, GPEC4LM
• Hyundai/KIA SIM2K-240, SIM2K-241, SIM2K-250, SIM2K-251, SIM2K-260, SIM2K-305, MT86
• Ford/LR SID208 Flash read
• Scania EMS S8 BAM – 3-point PCB connection via VIA holes, possible without removing gel
• PSA SID208
• MB SID307, SID310
• Renault SID307, SID309, SID310
• Porsche SDI21.x
• Mitsubishi E6T83XXX, E6T32xxx
• Isuzu Transtron SH72544R
• Isuzu Transtron L4.3
• Hino EDC7UC31
• Hyundai, Greatwall DCM6.2AP

Coming Soon Support

• VAG Simos 18.1, 18.2
• VAG Simos 18.10
• FCA Marelli 8GMK/8GML, MJ9DF, 10GF
• FAL Marelli MJ8DF/8F2, 8GMB/8GMC/8GMF/8GMW/8GSF/8GSW
• BMW MSD80, MSV80, MSD81, MSD85.0/MSD85.4, MSD85.1/MSD85.3, MSD87.1/MSD87.2, MSV90

Benefits of Having a Tuner Account

• Access to extensive VR file library.
• Free download of professional WinOLS Damos, A2L, and Map Packages (normally expensive).
• Professional tuning assistance for users lacking expertise — available for $66 per service.
• Available services include: Stage 1–3 tuning, popbangs, IMMO OFF, BMW sport display, gearbox tuning (launch control, DTC off), Adblue OFF, DPF OFF, VMAX, 3-bar sensor map, torque off, MAF off, map switching, and sport exhaust valve control.
• Direct communication with tuners for chiptuning guidance.

Differences Between PCMtuner and KTM200

• Software Version: PCMtuner V1.26 vs. KTM200 V1.20
• Manufacturer: Different production sources
• Functionality: Currently identical; PCMtuner supports future online updates as confirmed by the manufacturer

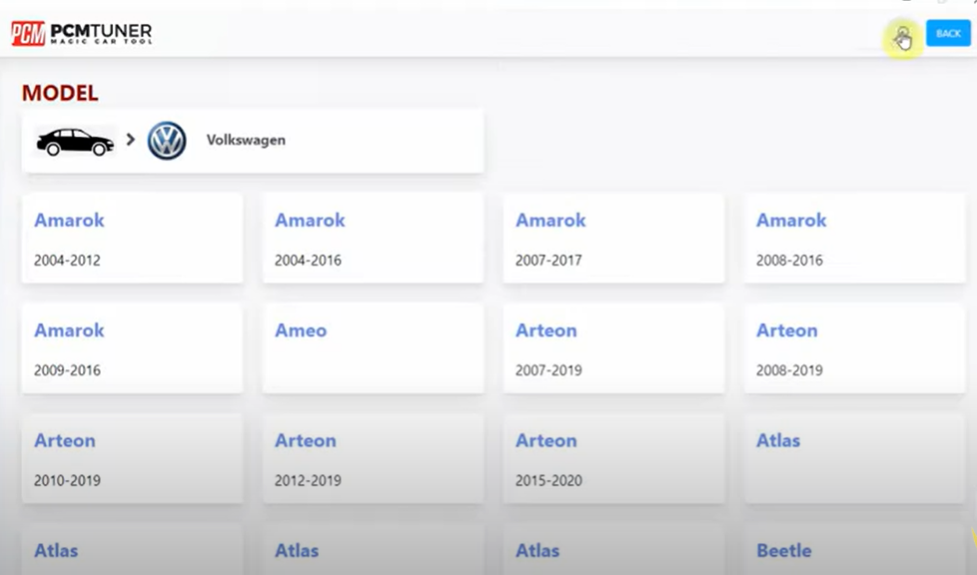

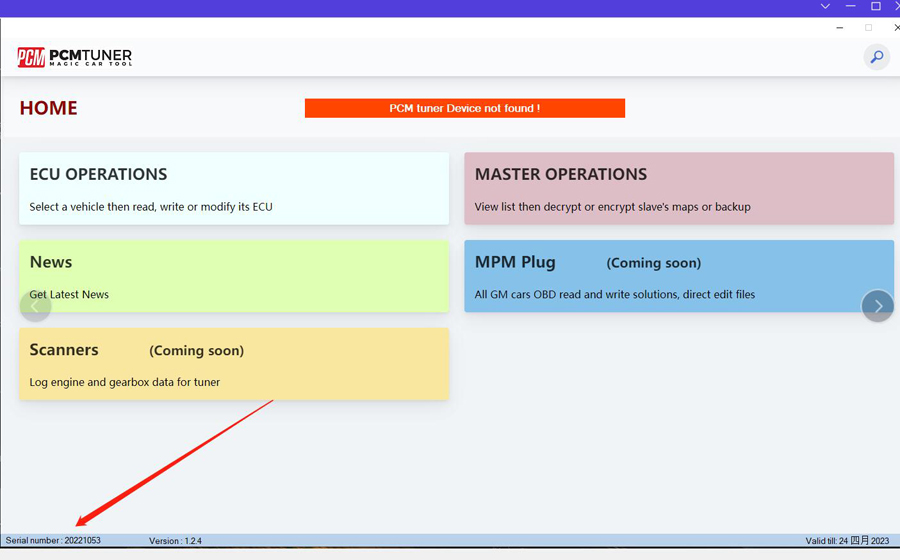

PCMtuner Software Interface

Supported Modules (67 Total)

PCMtuner (Software Version: 1.24) supports 67 vehicle-specific modules.

Module 1: Ford Focus 3

• Ford Focus 3: 1.6L Sigma Ti-VCT 85/105/125PS (EMS2204)
• Ford Focus 3: 1.6L, 2.0L PowerShift TCM (6DCT250)
• Ford Focus 3: 2.0L Duratec GDI Ti-VCT 150/170PS (MED17)
• Ford Focus 3 ST: 2.0L Ecoboost GTDI 250PS (MED17)

Functions: Virtual read/write, checksum correction, VBF writing, and VBF-to-BIN conversion.

Module 2: Ford Kuga 2, Ford Explorer 2011+

• Ford Focus 3: 1.0L Ecoboost 2015+ GTDI 100/125PS [FV6A] (MEDG17)
• Ford Kuga 2: 1.6L Ecoboost GTDI AWD 150/182PS (MEDG17)
• Ford Mondeo 5: 1.5L/2.0L Ecoboost GTDI (MEDG17)
• Ford Explorer 2011-: 3.5L Ecoboost V6 GTDI 360PS (MEDG17)

Functions: Reading, writing, checksum correction.

Module 3: Diesel Engines 2.0L (DCM3.5/DCM6.1/SID206)

• Ford Focus 3/Kuga 1/Kuga 2/Mondeo 4: 2.0L DW10C STAGE 5 140/163PS (DCM3.5)
• Ford Mondeo 5: 2.0L DW10F STAGE 5/6 150/180PS (DCM6.1)
• Ford Focus 2: 1.8L/2.0L Duratorq Lynx/DW10C (SID202/SID206)

Functions: Virtual read/write, checksum correction.

[Modules 4–74 continue with detailed vehicle, engine, ECU type, and supported functions as in original content]

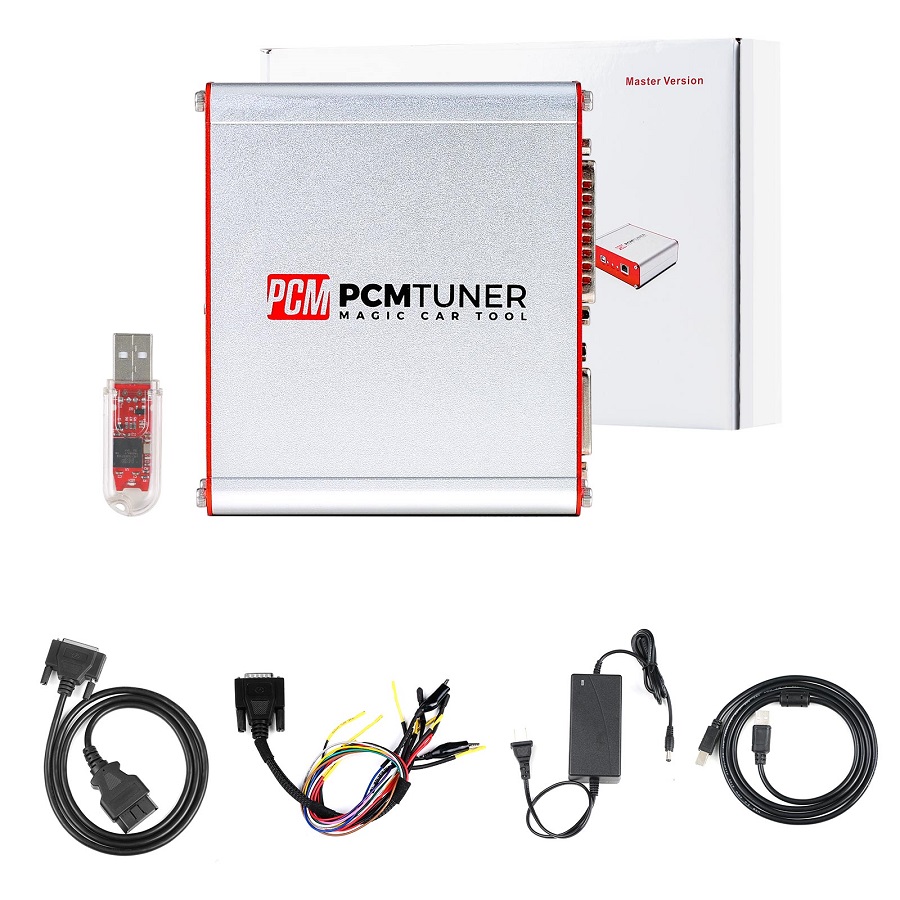

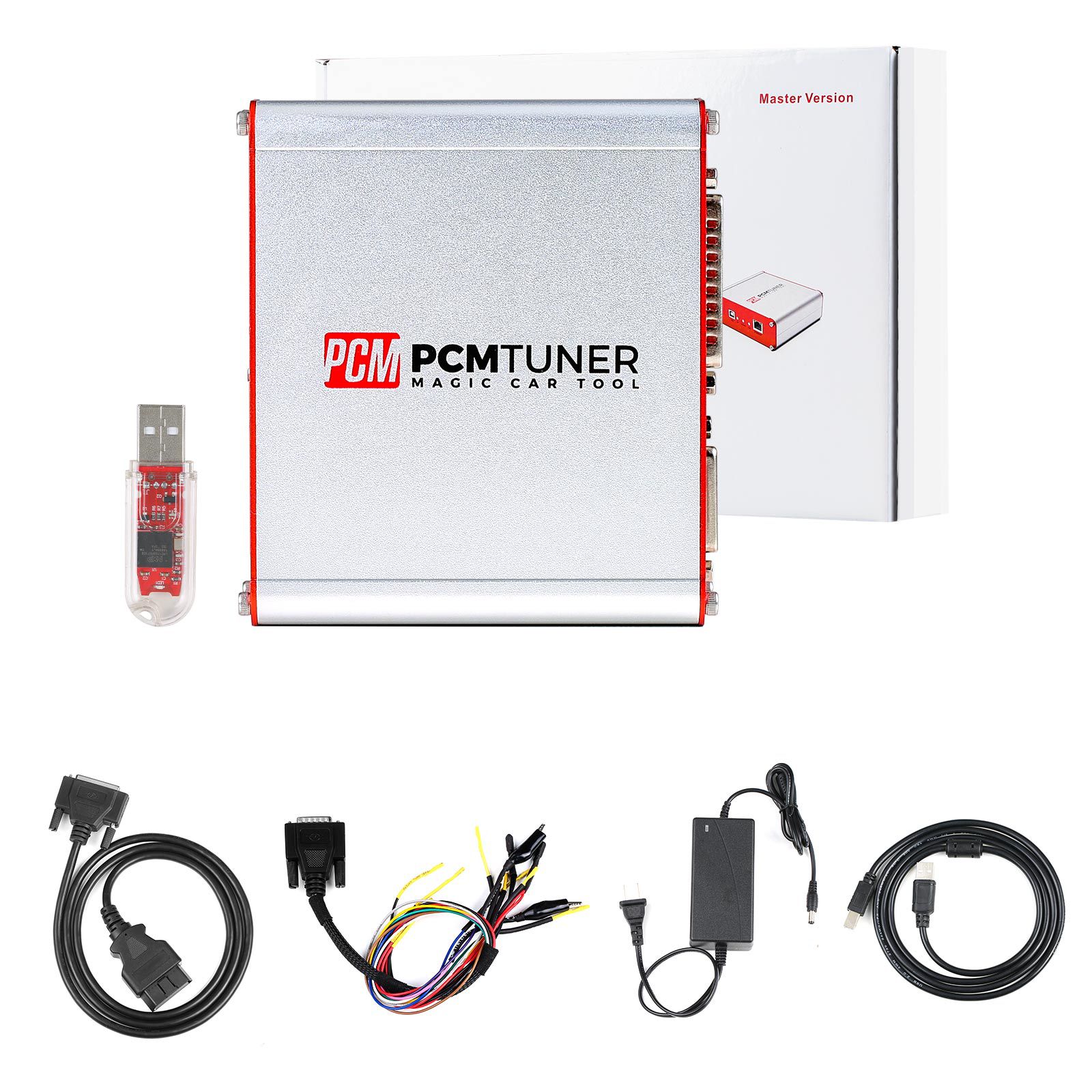

Included Package Contents

• 1 x PCMtuner Master Interface
• 1 x PCMtuner Dongle
• 1 x BENCH/BOOT Cable
• 1 x OBD Cable
• 1 x Power Adapter
• 1 x USB Cable
• 1 x Carton Box
• 6 x Repair Chip
