XTOOL KC501 Car Key Programmer Work with X100 PAD3

Product Description

Powerful in functions and fashionable in appearance, Xtool KC501 is a professional Key & Chip Programmer which can read & write keys, read key remote frequency, and generate dealer keys. It supports reading and writing MCU/EEPROM chips and Mercedes Infrared keys. Moreover, it supports PC connection for an enhanced user experience.

KC501 is compatible with X100 PAD3 (X100 PAD Elite). Compatibility with H6ELITE, H6EB, NITRO LT, NITRO XT, NITRO GT, AUTOPAD S, A80, A80 PRO, A80 PRO MASTER, H6 PRO, HU6 PRO MASTER, and AUTOPROPAD ELITE will be added within 3 months.

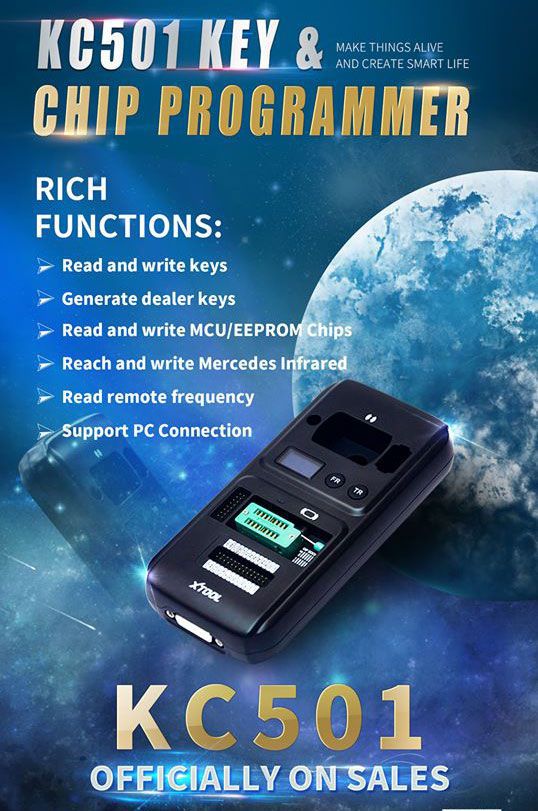

XTOOL KC501 Functions

Read and Write Keys

KC501 supports read and write keys, read key remote frequency, and generation of dealer keys.

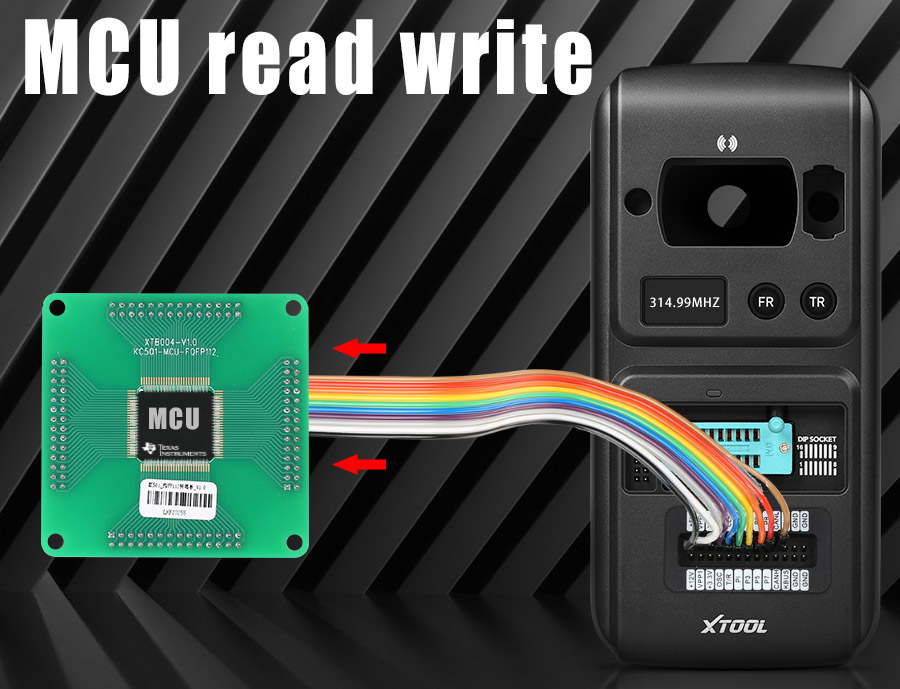

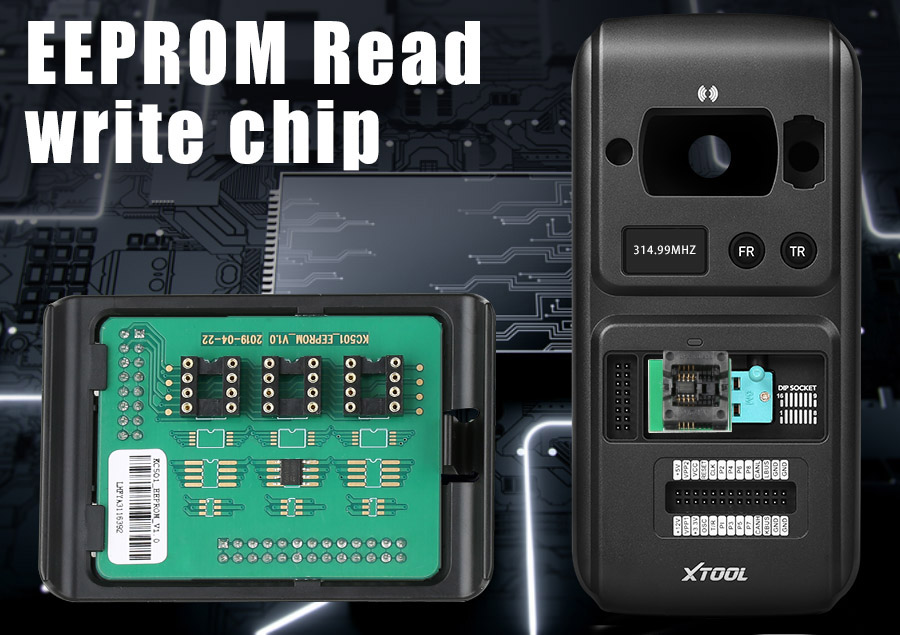

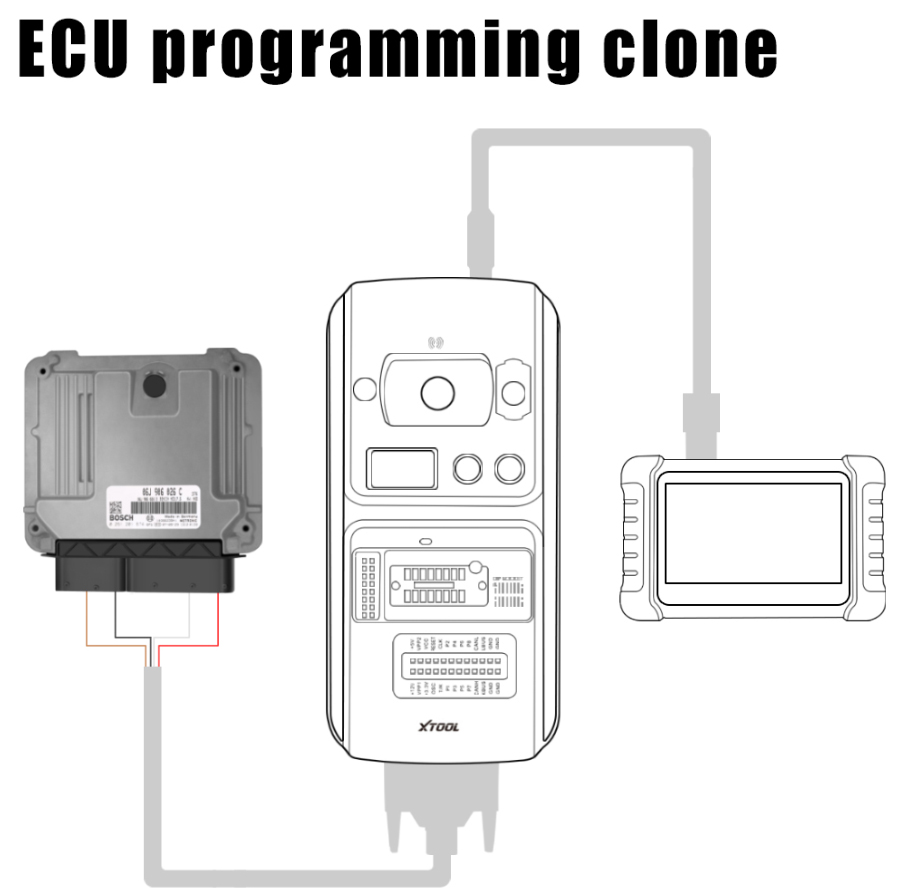

Read and Write MCU/EEPROM Chips

KC501 can read and write MCU/EEPROM chips.

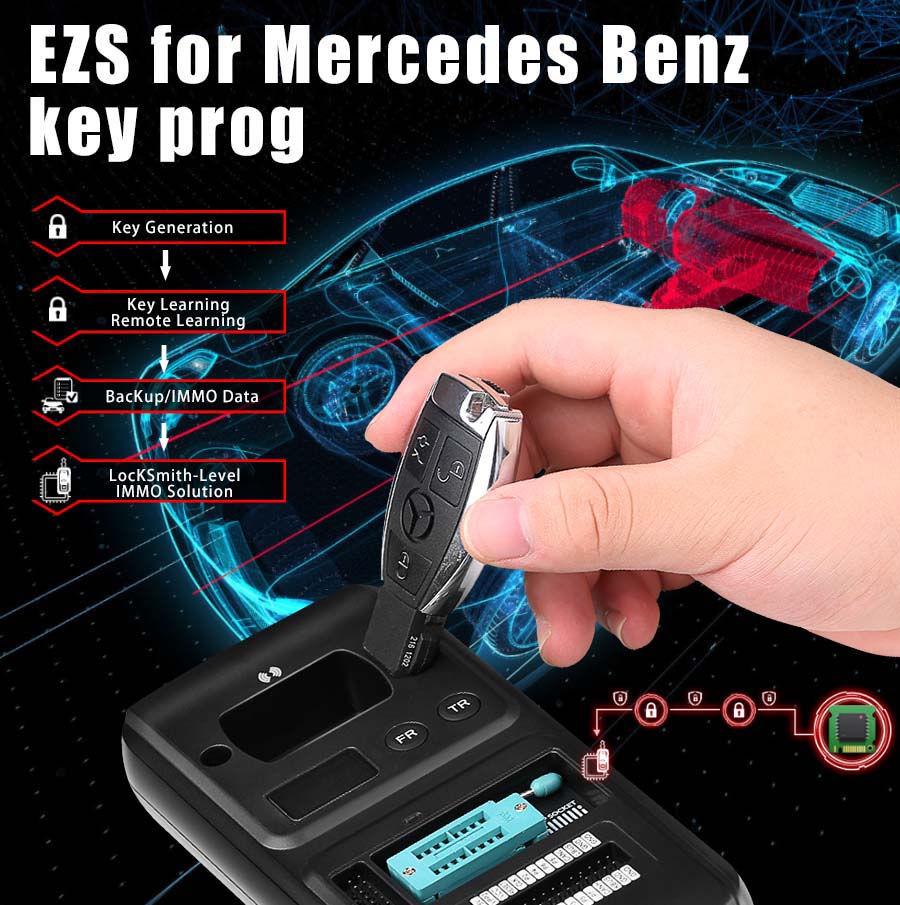

Read and Write Mercedes Infrared Keys

KC501 can read and write Mercedes Infrared Keys, making it a perfect Key Programmer for Mercedes car owners.

Support PC Connection

KC501 supports connection to a PC or tablet.

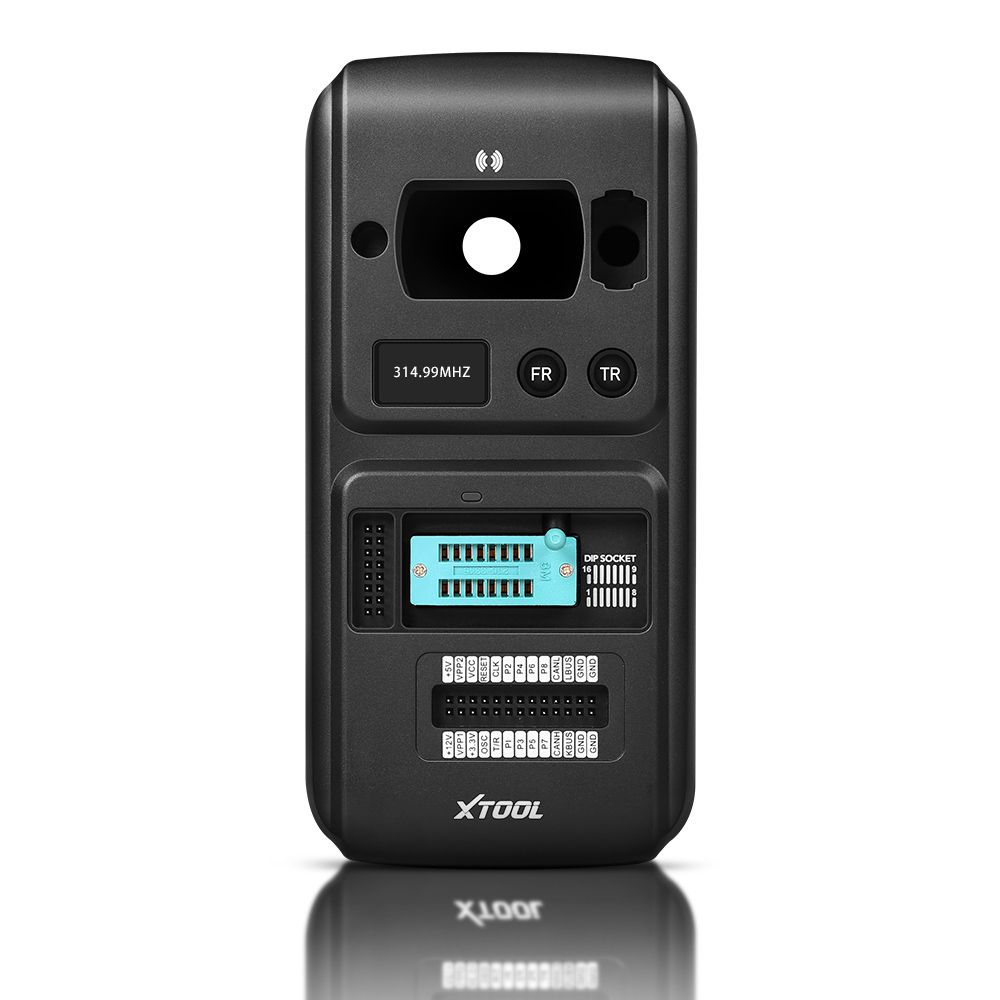

XTOOL KC501 Product Display

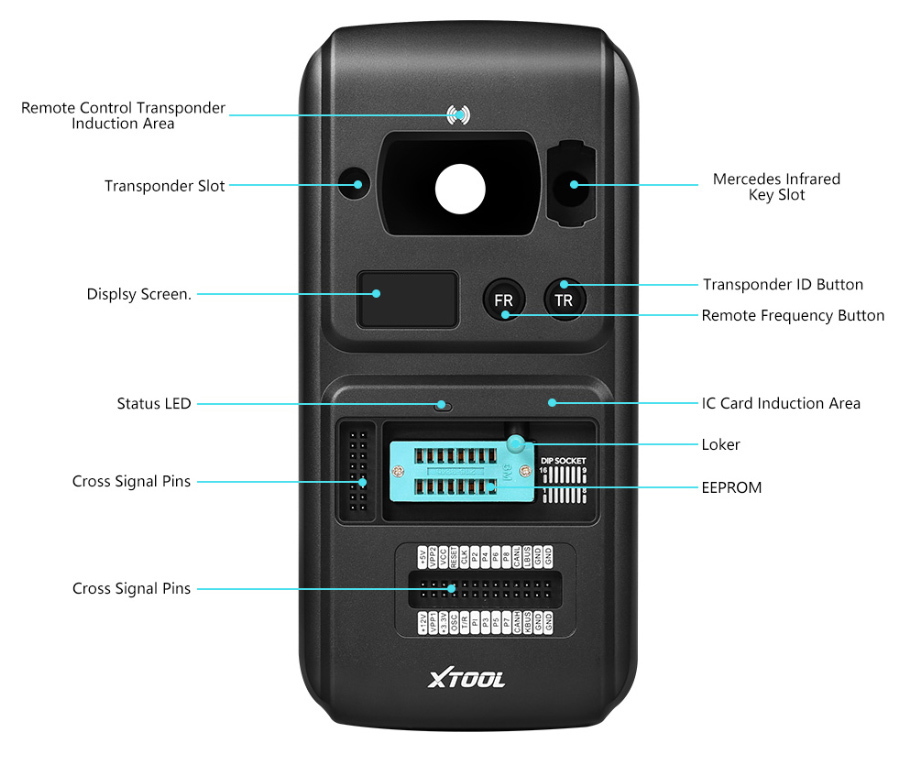

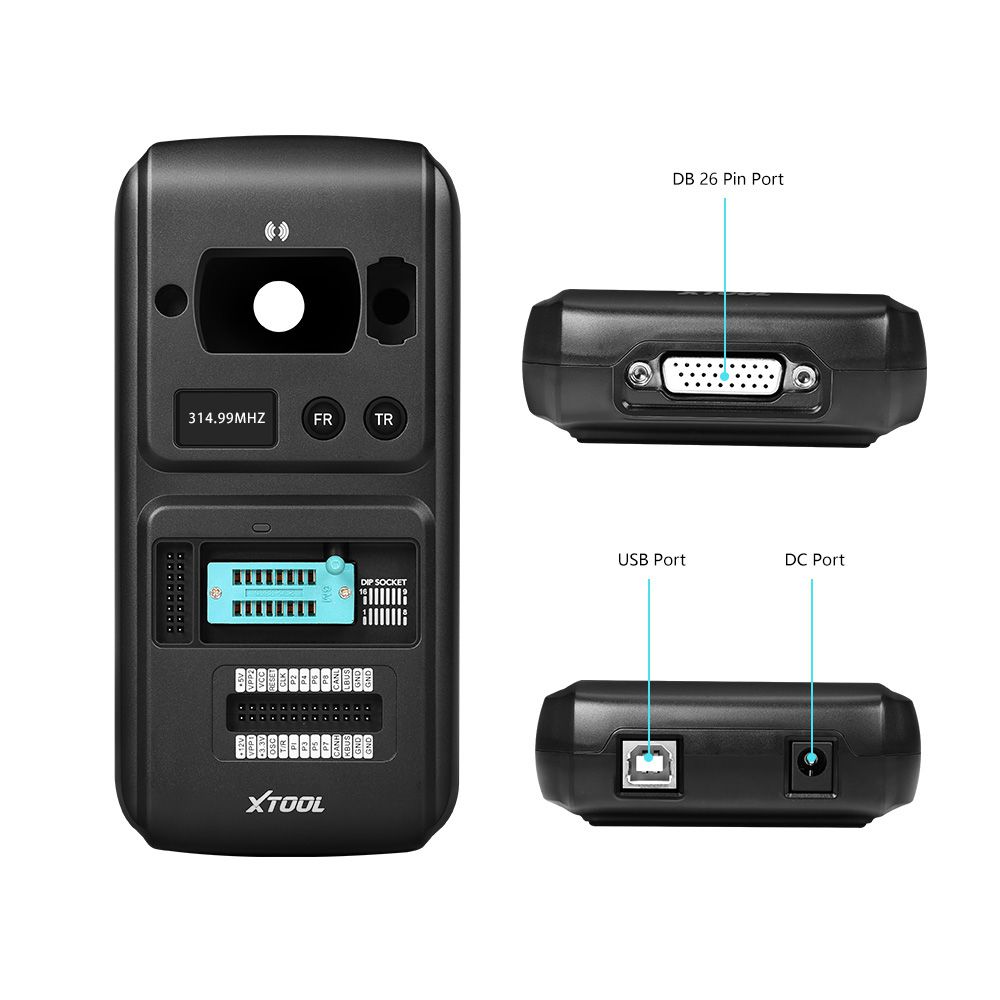

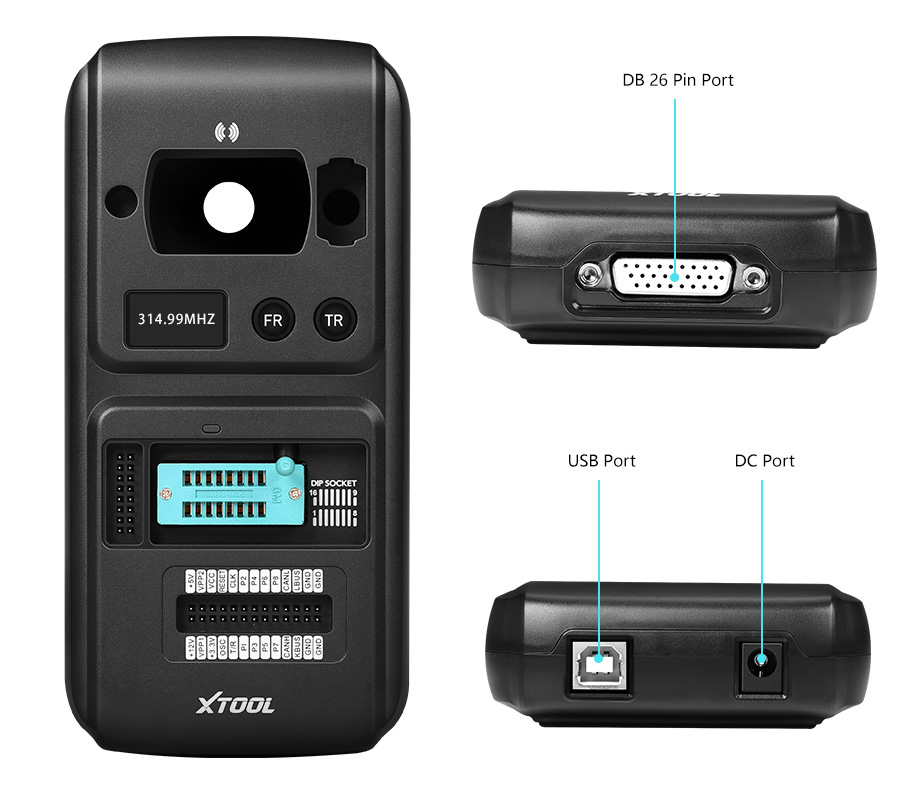

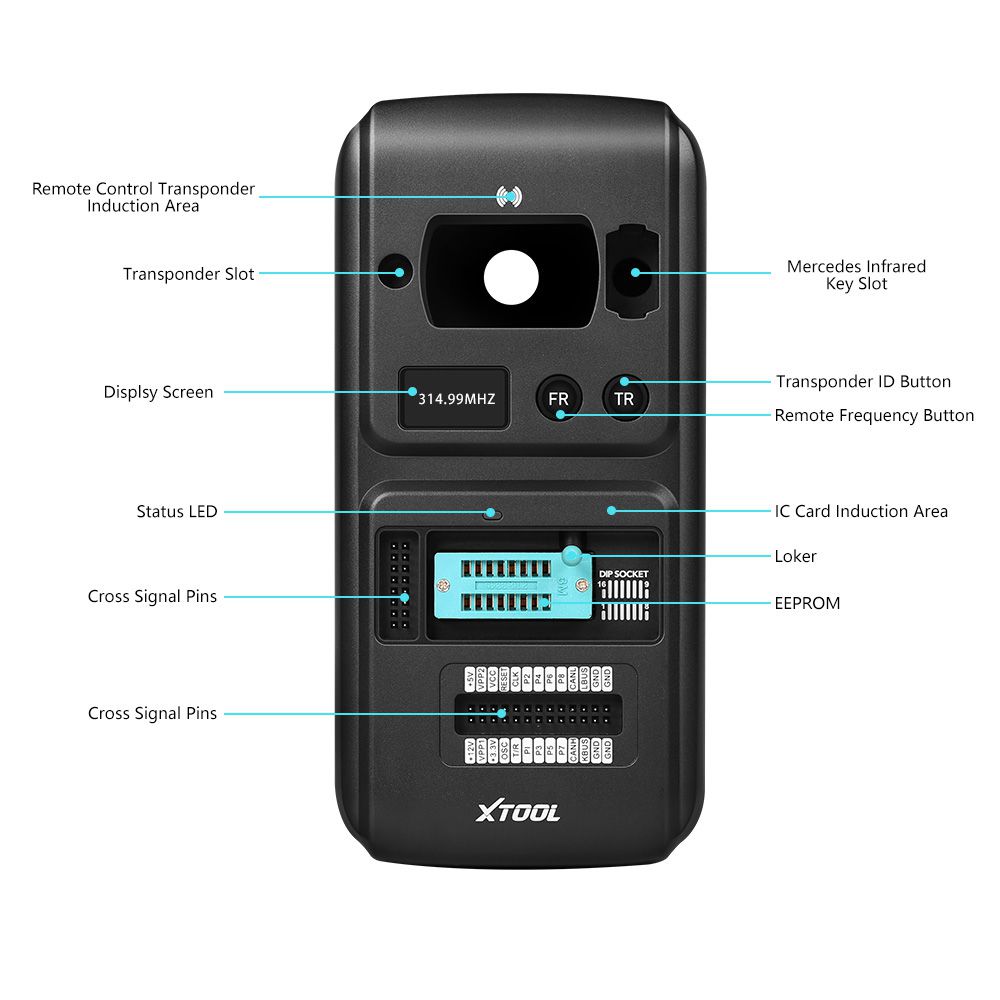

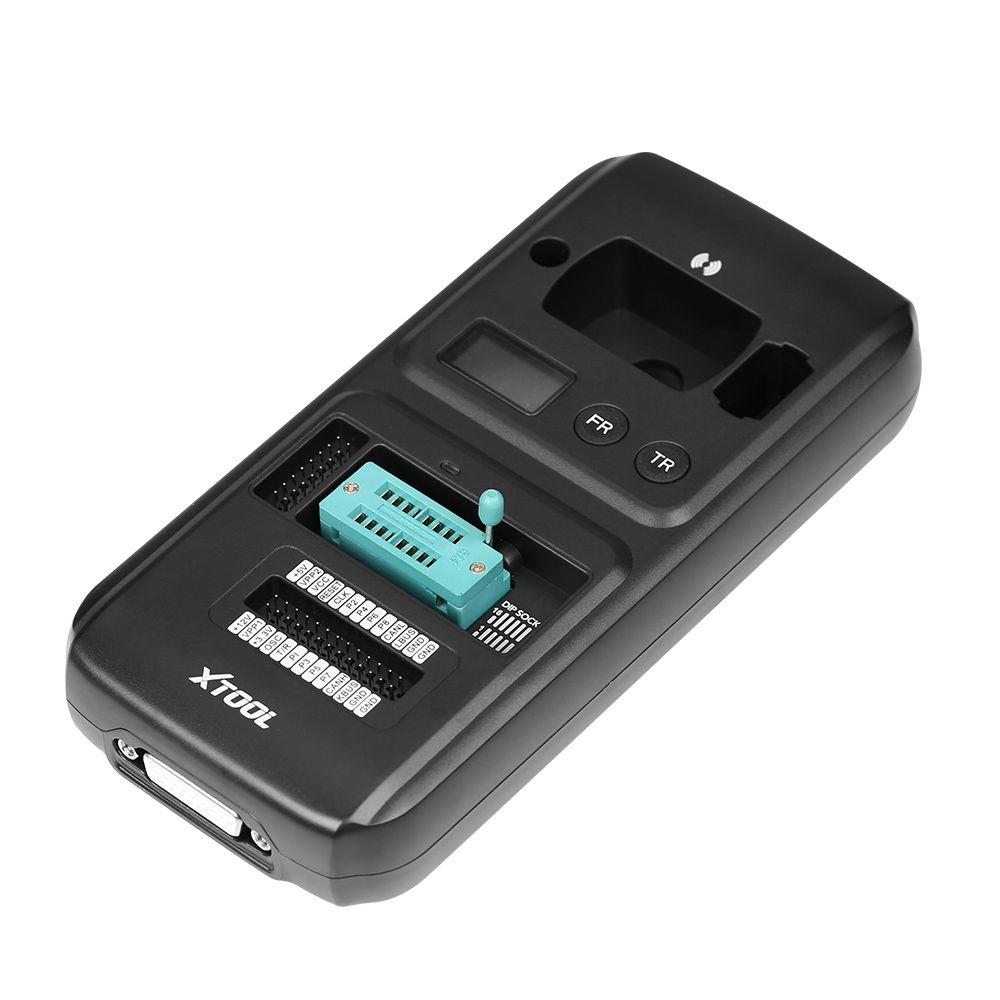

1. DC Port: Provides 12V DC power supply.
2. USB Port: Provides data communication and 5V DC power supply. (The Type B USB port provides data communication and power supply for the device, PC, and KC501.)
3. DB 26-Pin Port: Connects with the Mercedes Benz infrared cable, ECU cable, MCU cable, and MC9S12 cable.
4. Cross Signal Pins: Holds the MCU board, MCU spare cable, or DIY signal interface. (The cross-shaped signal pin is used to place MCU board, MCU spare cable, or DIY signal cable to read or write MCU and ECU chips.)
5. Locker: Locks the EEPROM component transponder slot to ensure proper functioning. (Used to place EEPROM chip or socket to read or write EEPROM data.)
6. EEPROM Component Transponder Slot: Holds the EEPROM plug-in transponder or EEPROM socket.
7. Status LED: Indicates the current operating status.
8. IC Card Induction Area: Used to read and write IC card data.
9. Display Screen: Shows remote frequency or transponder ID.

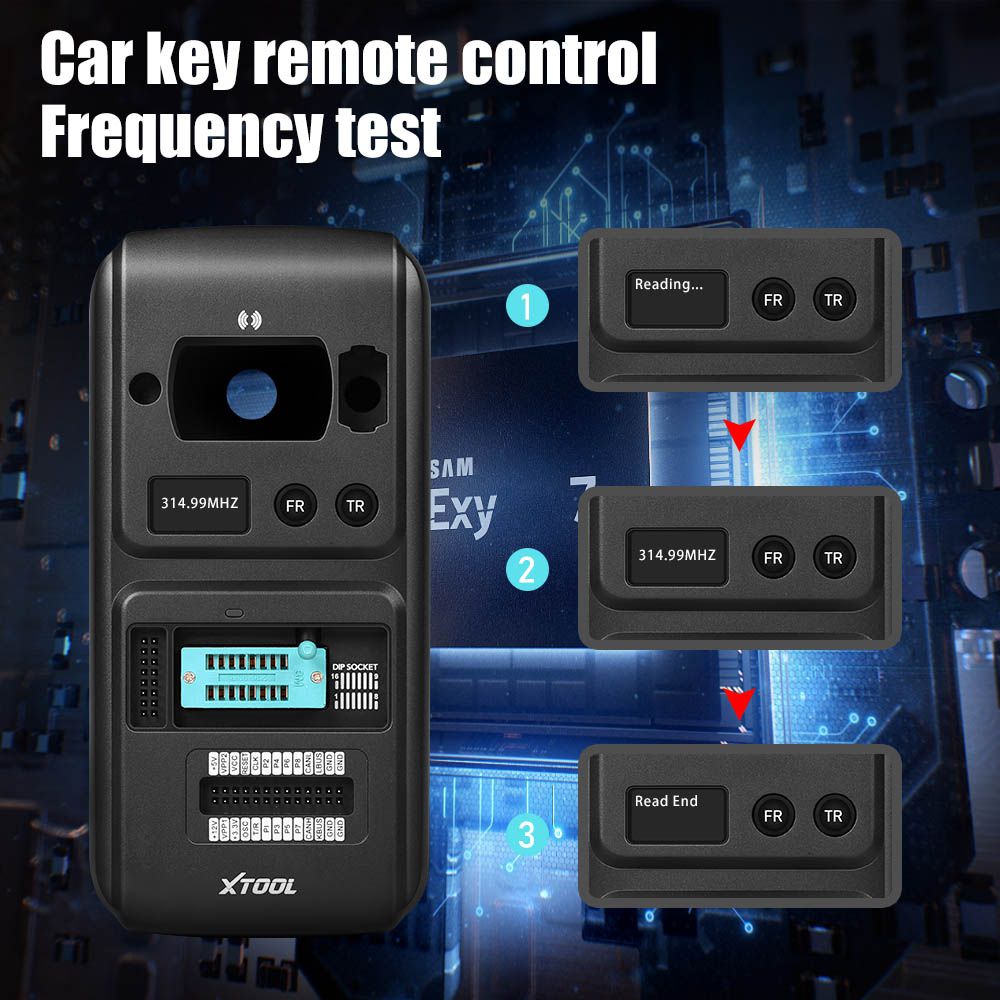

10. Remote Frequency Button: Press this button to show remote frequency on the display screen.
11. Transponder ID Button: Press this button to show transponder ID on the display screen.
12. Transponder Slot: Holds the transponder. (Used to hold the transponder to read or write transponder data.)
13. Vehicle Key Slot: Holds the vehicle key. (Used to hold the vehicle key to read or write vehicle key data.)
14. Remote Control Transponder Induction Area: Used to read and write remote control transponder data.
15. Mercedes Infrared Key Slot: Holds the Mercedes infrared key. (Used to hold Mercedes infrared key to read or write Mercedes vehicle key data.)

XTOOL KC501 Latest Update Information

Add Infrared Key Function List (July 30th, 2020)

• A Series: 2005–2013
• B Series: 2005–2014
• C/CLK Series: 2006–2014
• CLA Series: 2013–2016
• CL Series: 2006–2013
• CLS Series: 2006–2013
• E Series: 2005–2015
• G Series: 2015
• GL/CLG Series: 2006–2014
• GLC/GLK Series: 2008–2015
• M/ML Series: 2006–2013
• R Series: 2006–2017
• S Series: 2006–2017
• SLK/SLC Series: 2006–2016

Parameters

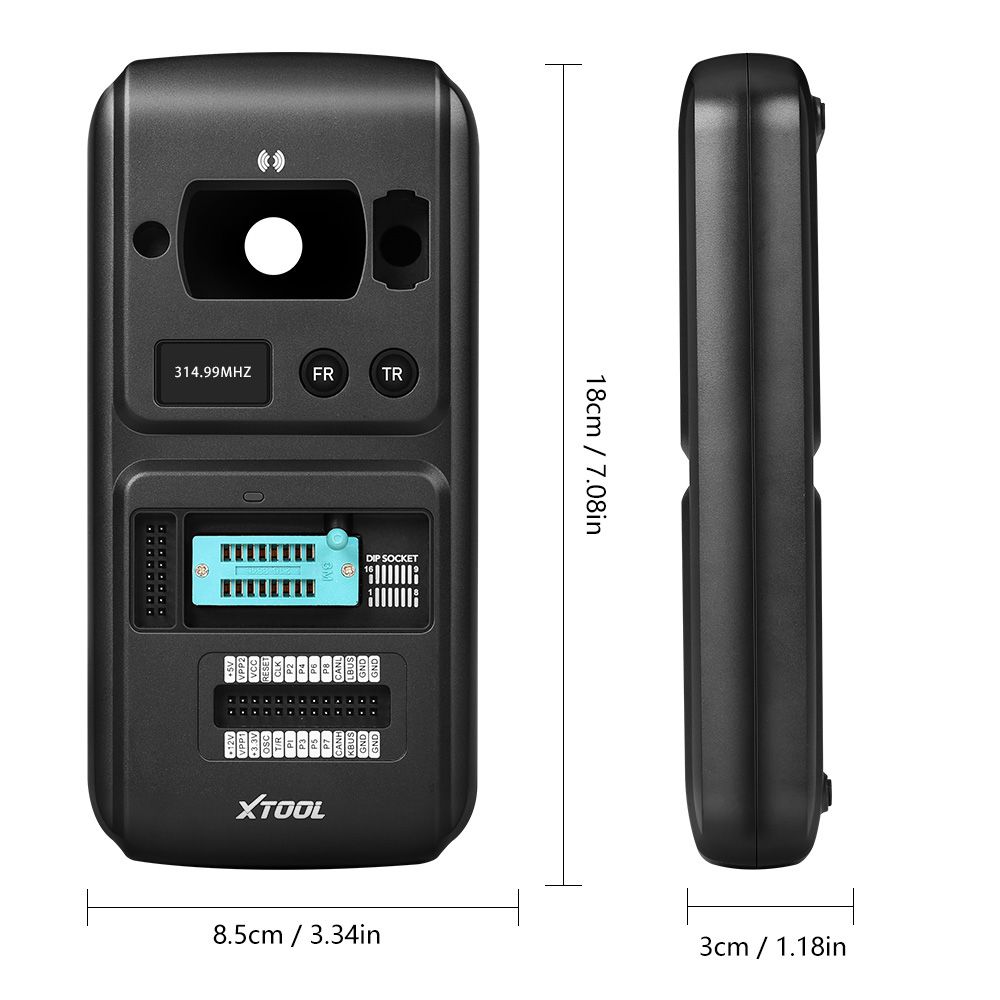

• Display Screen: 320x480 dpi TFT Colorful Screen
• Working Voltage: 9V–18V
• Working Temperature: -10℃–60℃
• Storage Temperature: -20℃–60℃
• Power Supply: 12V DC

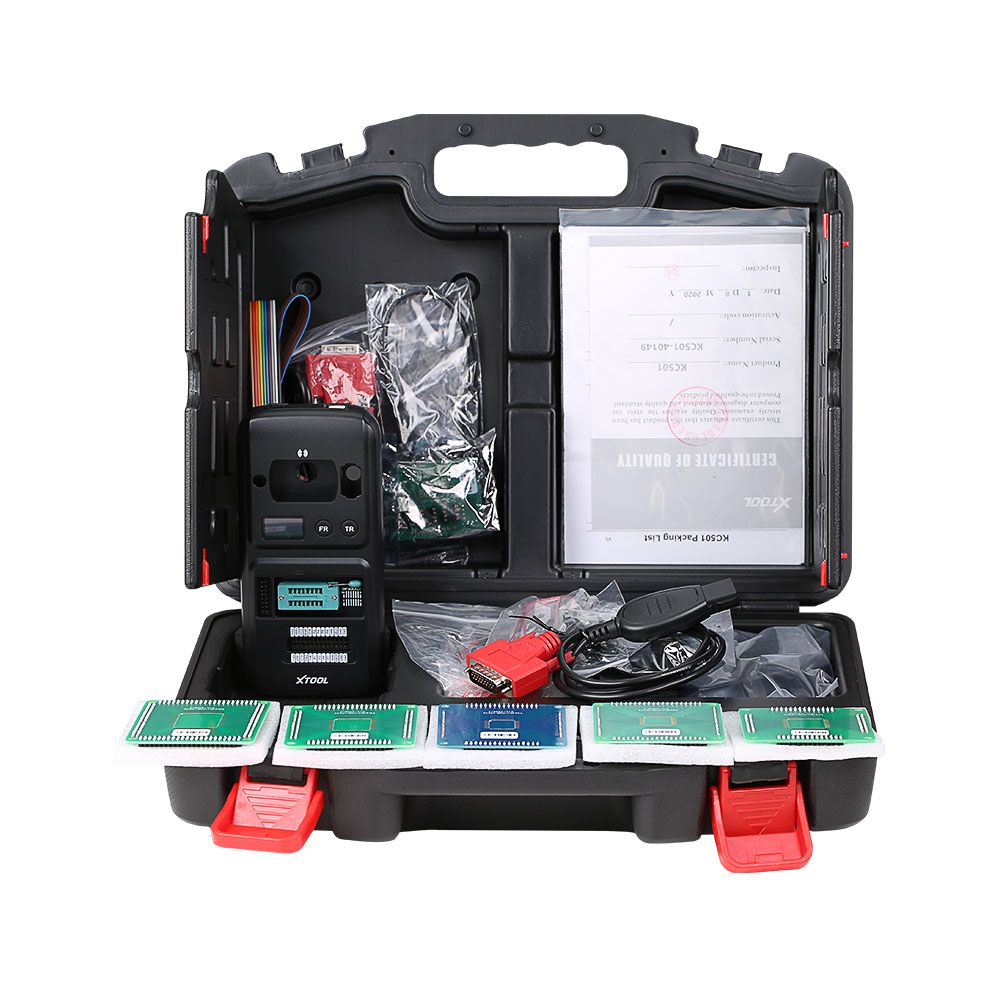

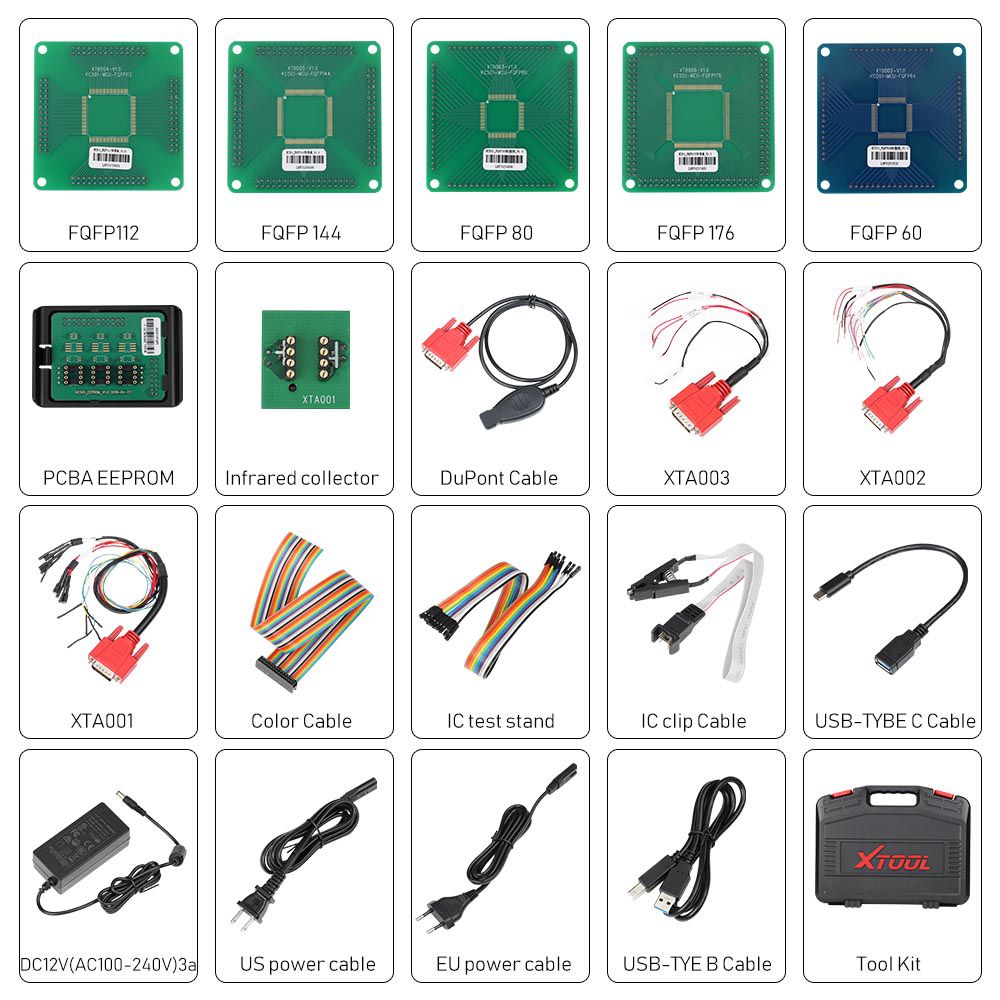

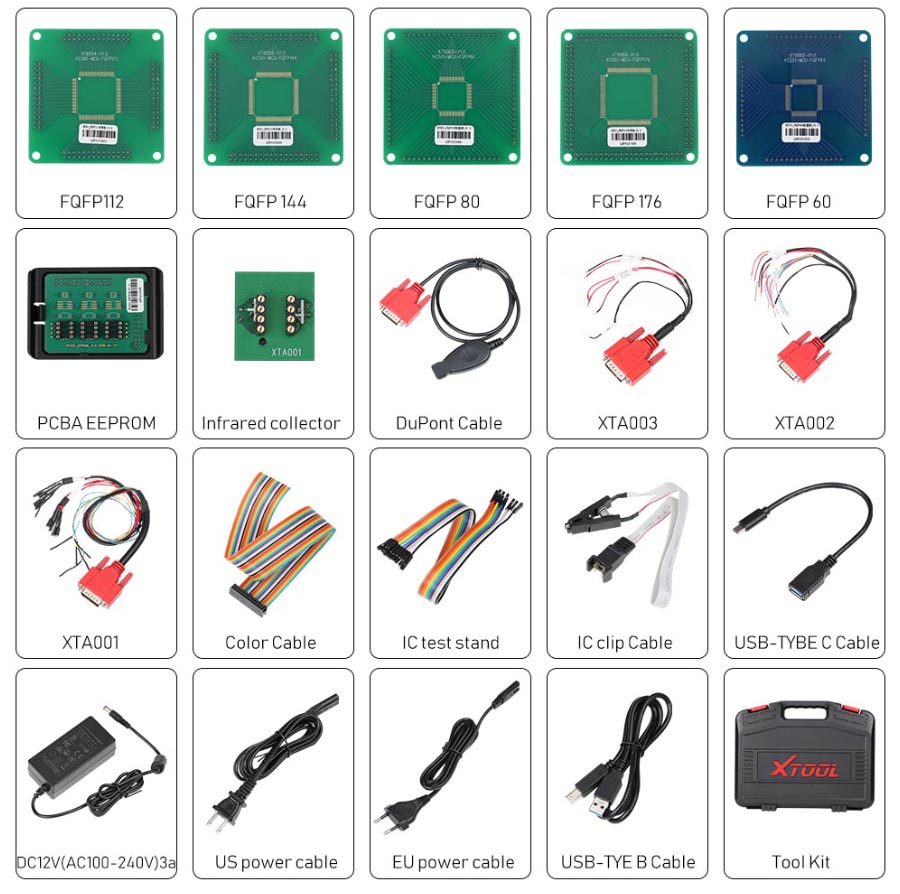

Package Includes

• 1pc x Accessories
• 1pc x Certificate Of Quality
• 1pc x Packing List
• 1pc x User Manual
• 1pc x Carton
• 1pc x Test Connectors
• 1pc x MCU FQFP176
• 1pc x MCU FQFP64
• 1pc x XTA001 Clamp
• 1pc x IC Clamp
• 1pc x MCU FQFP112
• 1pc x MCU FQFP144
• 1pc x MCU FQFP80
• 1pc x IC EEPROM Socket
• 1pc x EEPROM Adaptor (With bracket)
• 1pc x XTA002 Clamp
• 1pc x XTA003 Clamp
• 1pc x 26 PIN Cable
• 1pc x 24AWG Cable
• 1pc x Tool Case
• 1pc x Main Units
• 1pc x KC501 Key & Chip Key Programmer
• 1pc x USB_TYPE-B
• 1pc x USB_TYPE-C
• 1pc x Charger (With Power Supply Cable)
• 1pc x Benz Infrared cable
