Autel XP400 Key and Chip Programmer – Compatible with Autel MaxiIM IM608/IM508

Autel XP400 Key & Chip Programmer Functions

• Support PC
• MCU / EEPROM Chips Read / Write
• ECU Read / Write
• MC9S12 Encryption Chip Read / Write
• Key Read / Write
• Mercedes Infrared Key Read / Write
• Remote Frequency Detect
• IC Card Read/Write

XP400 Key & Chip Programmer Instructions

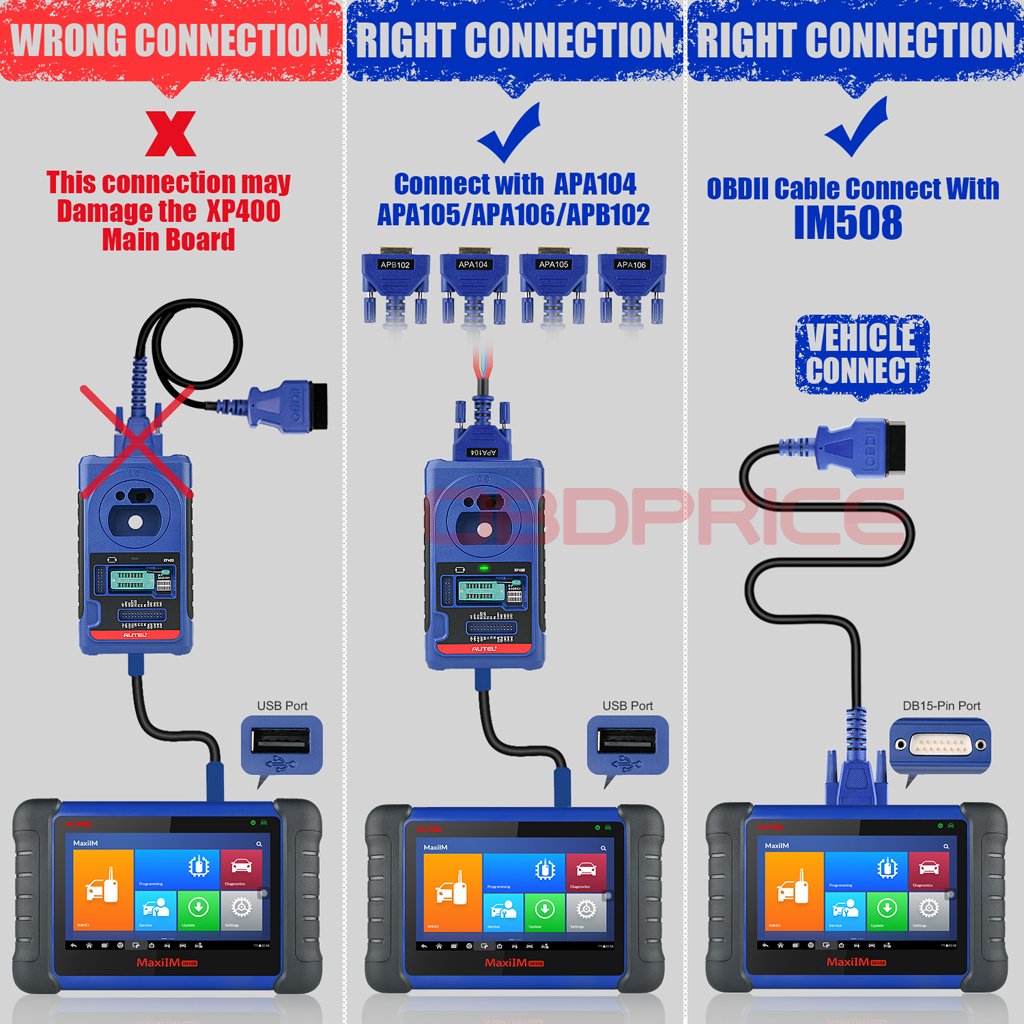

• Connect the IM608 tablet to the XP400 Key Programmer (no vehicle connection required) to access the key chip, read, retrieve and write key information, as well as other key-related functions.

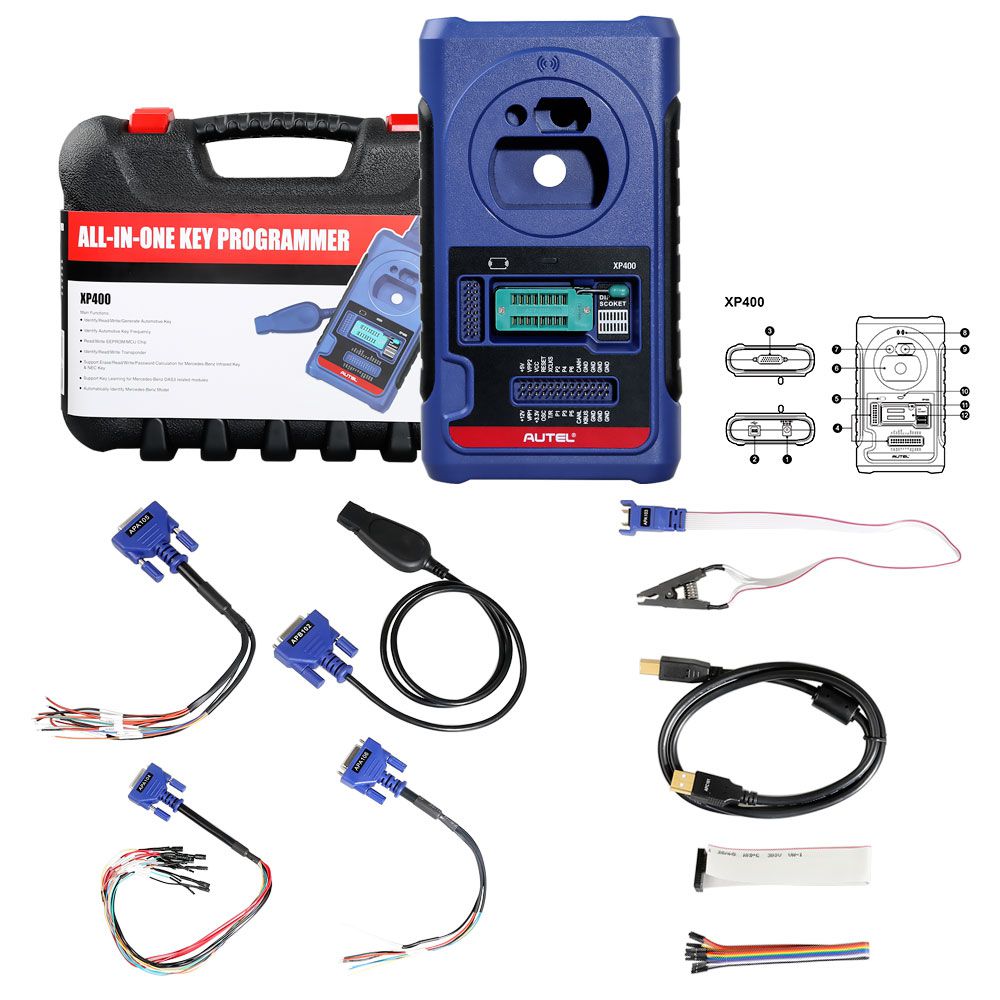

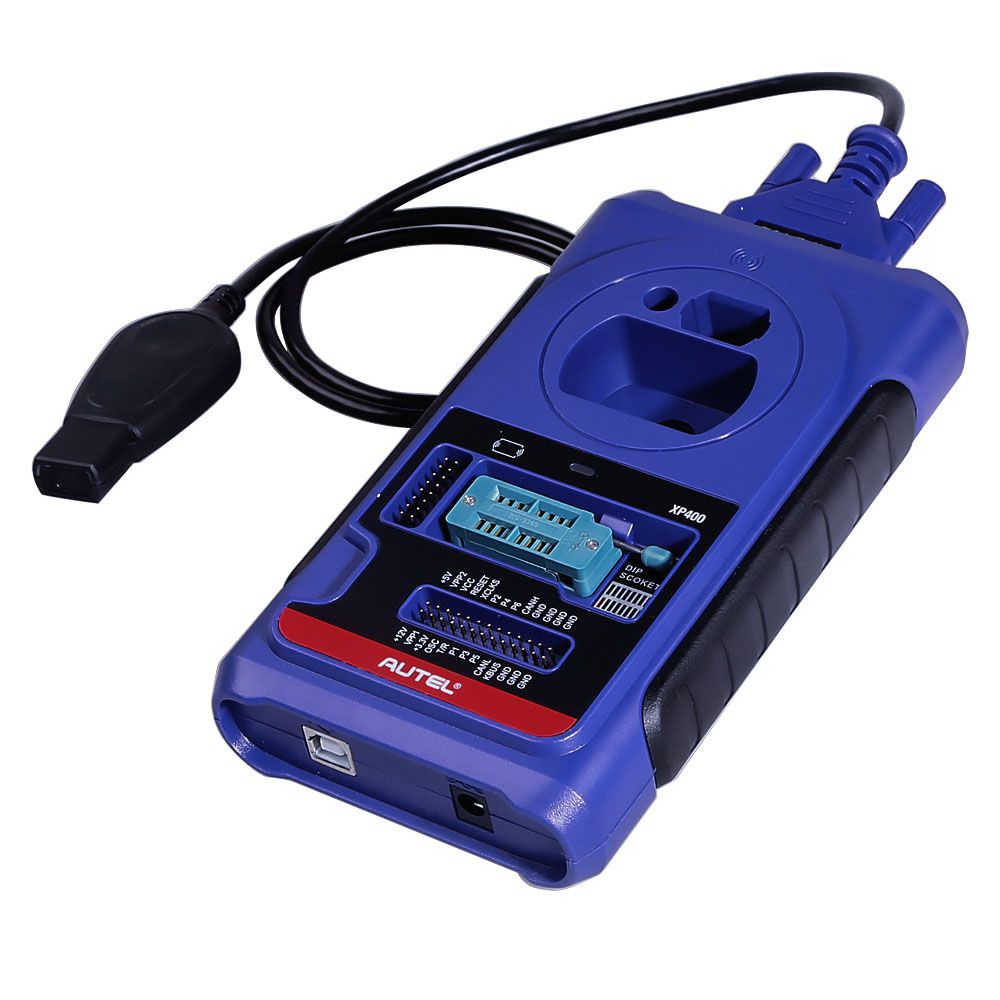

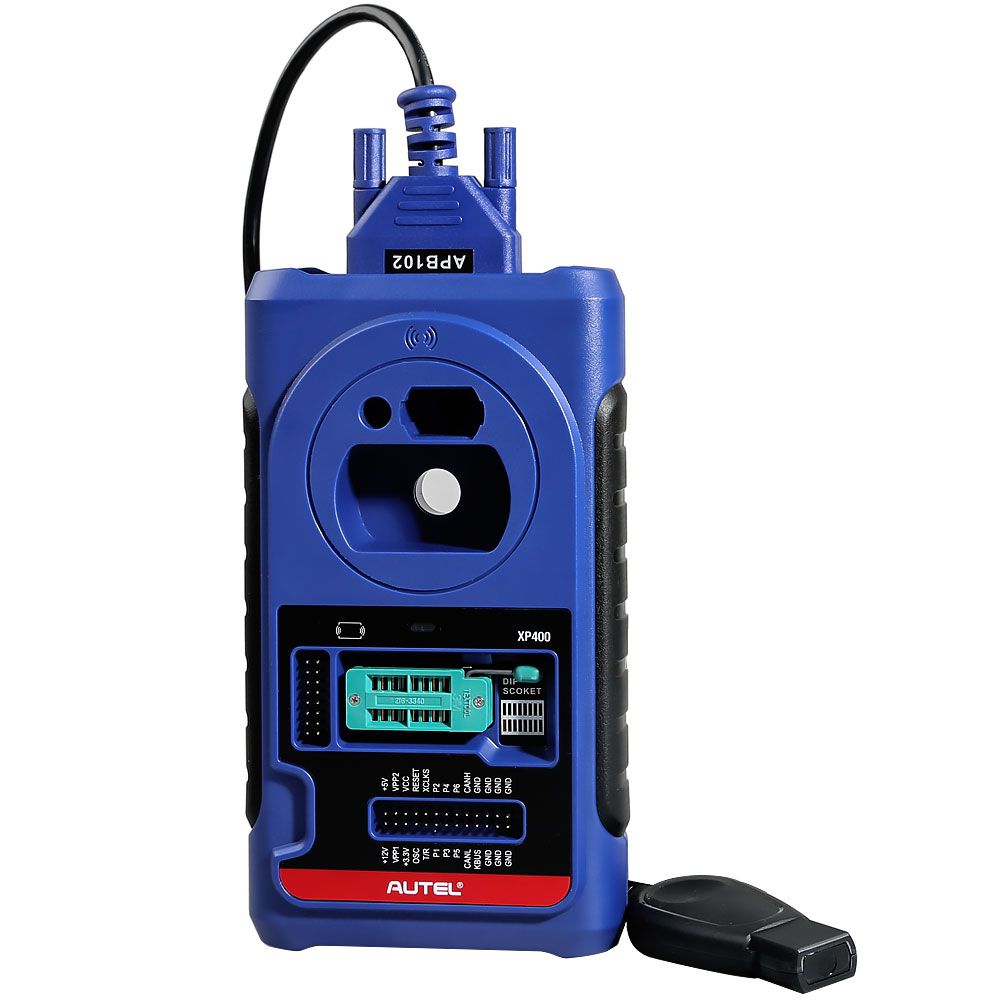

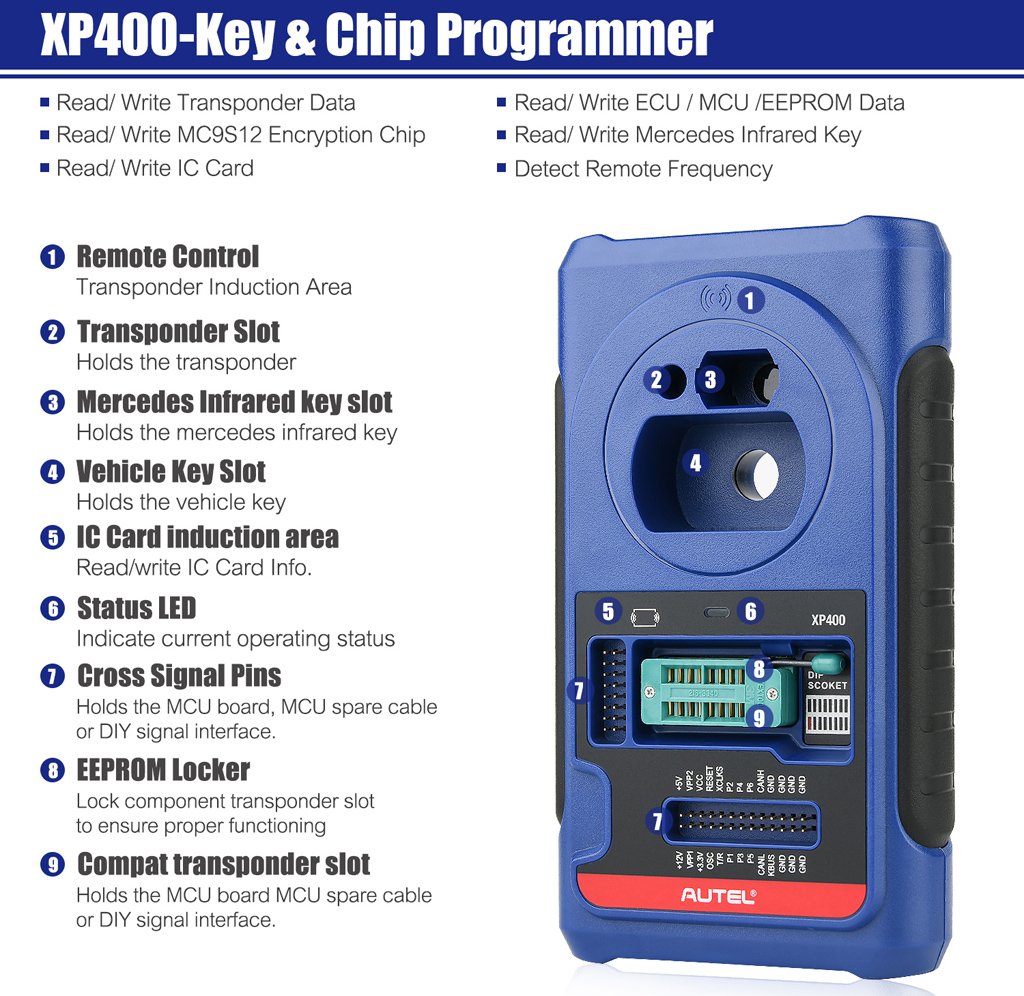

XP400 Device Components

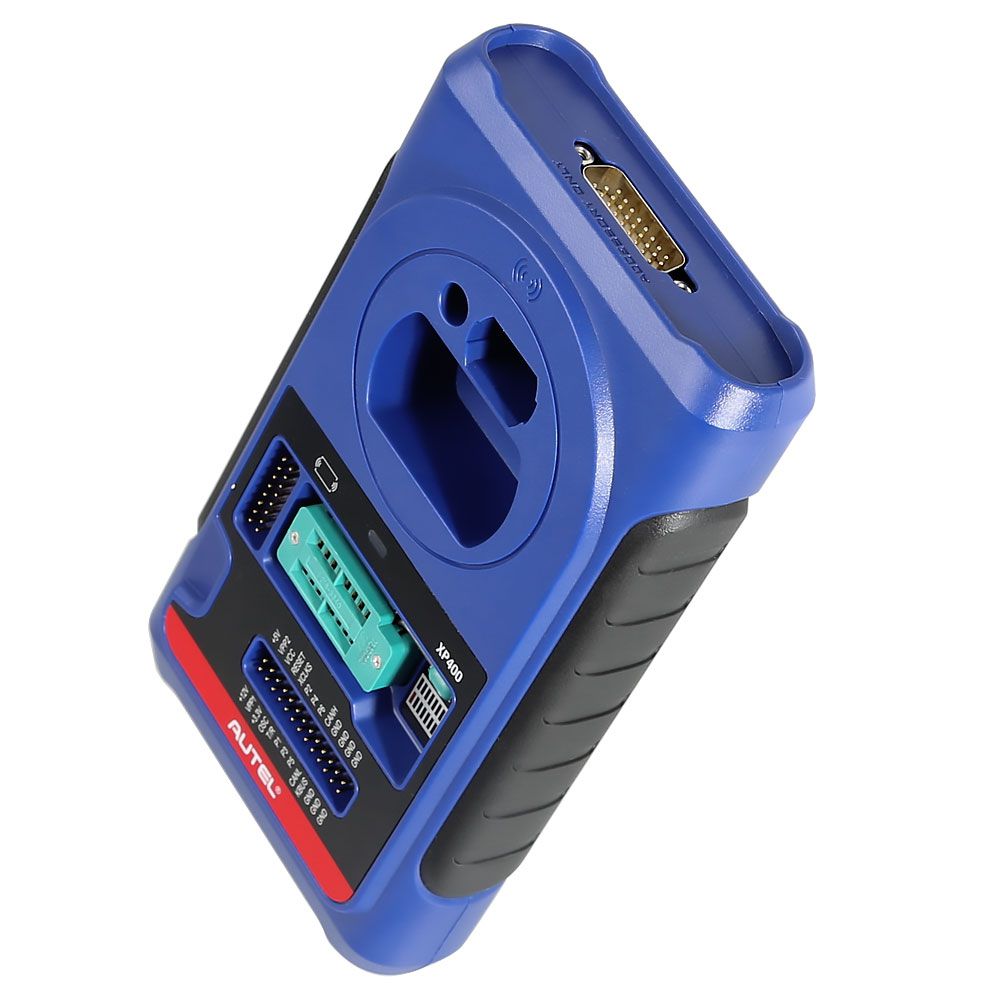

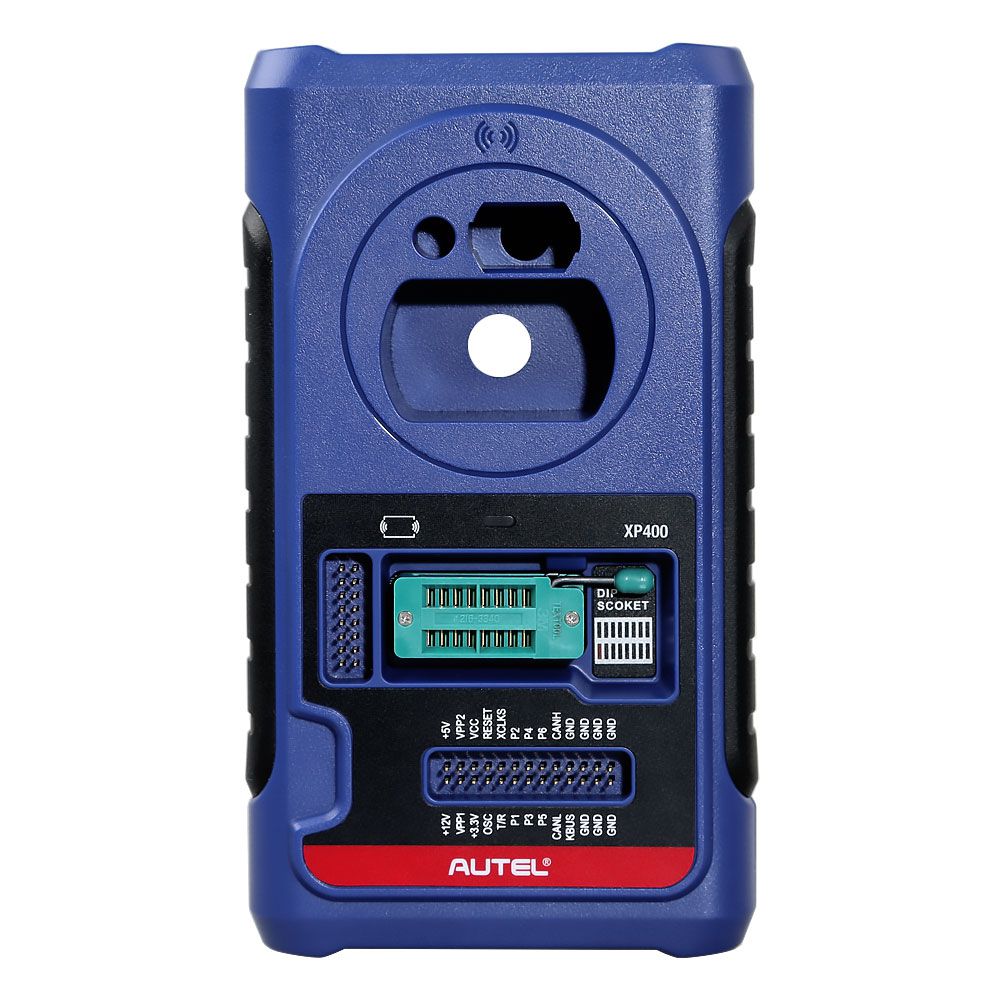

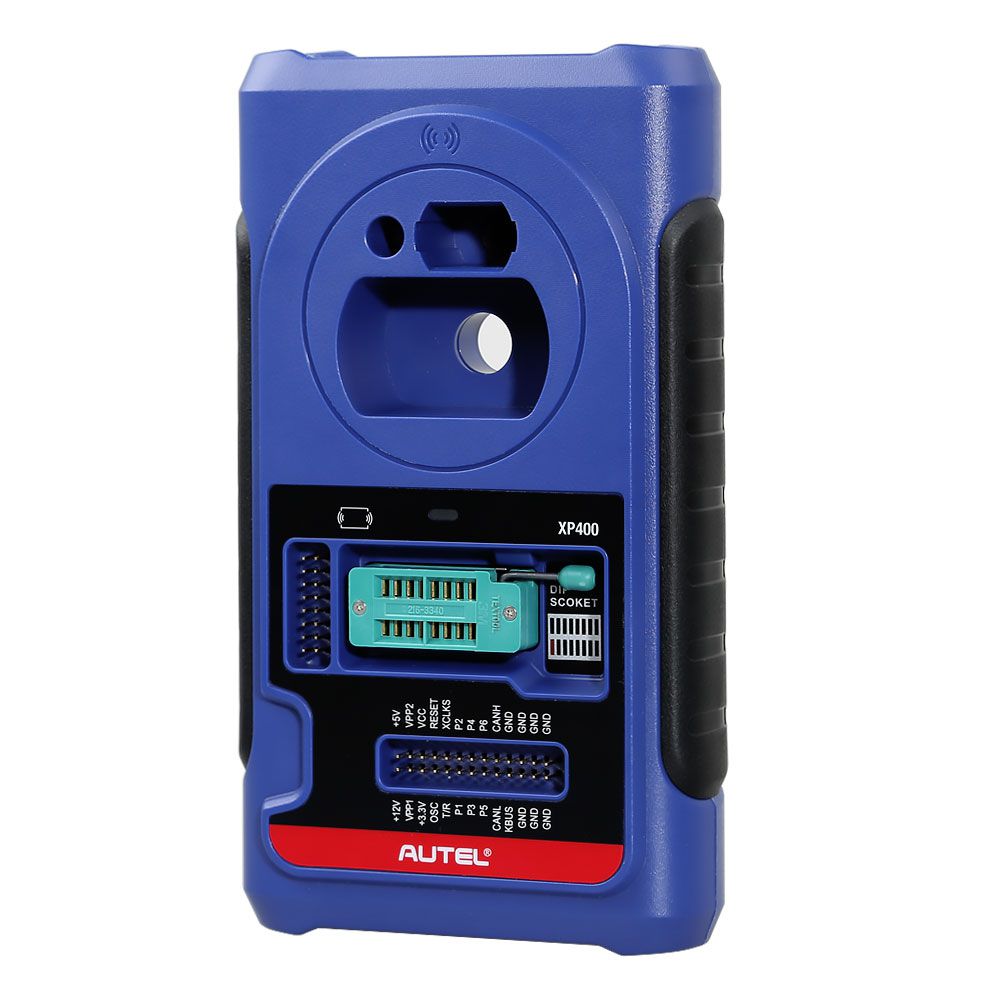

• 1. Remote Control Transponder Induction Area Figure 2-5 XP400 Views 11
• 2. Transponder Slot – holds the transponder.
• 3. Mercedes Infrared Key Slot – holds the Mercedes infrared key.
• 4. Vehicle Key Slot – holds the vehicle key.
• 5. IC Card Induction Area
• 6. Status LED – indicates the current operating status.
• 7. Cross Signal Pins – holds the MCU board, MCU spare cable or DIY signal interface.
• 8. EEPROM Locker – locks the EEPROM component transponder slot to ensure proper functioning.
• 9. EEPROM Component Transponder Slot – holds the EEPROM plug-in transponder or EEPROM socket.

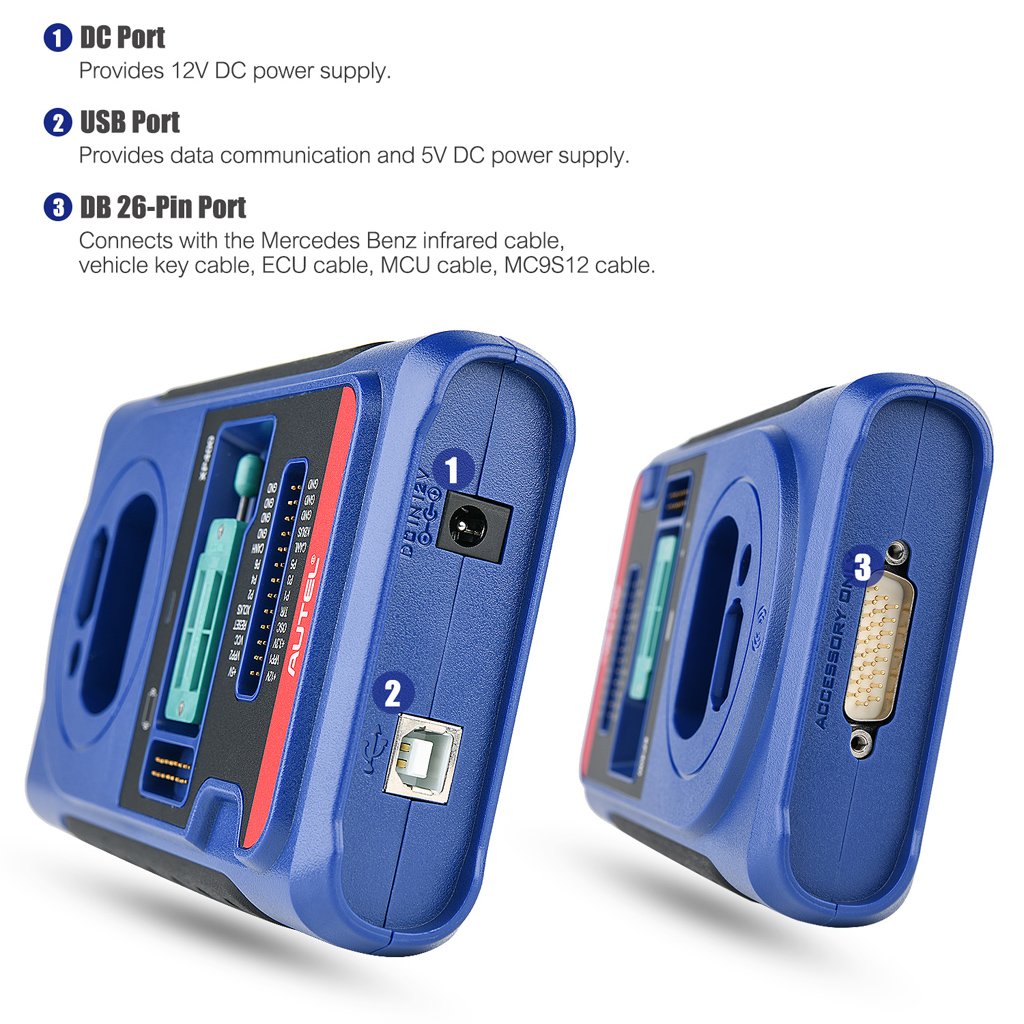

XP400 Ports and Connections

• 1. DC Port – provides 12V DC power supply.
• 2. USB Port – provides data communication and 5V DC power supply.
• 3. DB 26-Pin Port – connects with the Mercedes Benz infrared cable, vehicle key cable, ECU cable, MCU cable, MC9S12 cable.

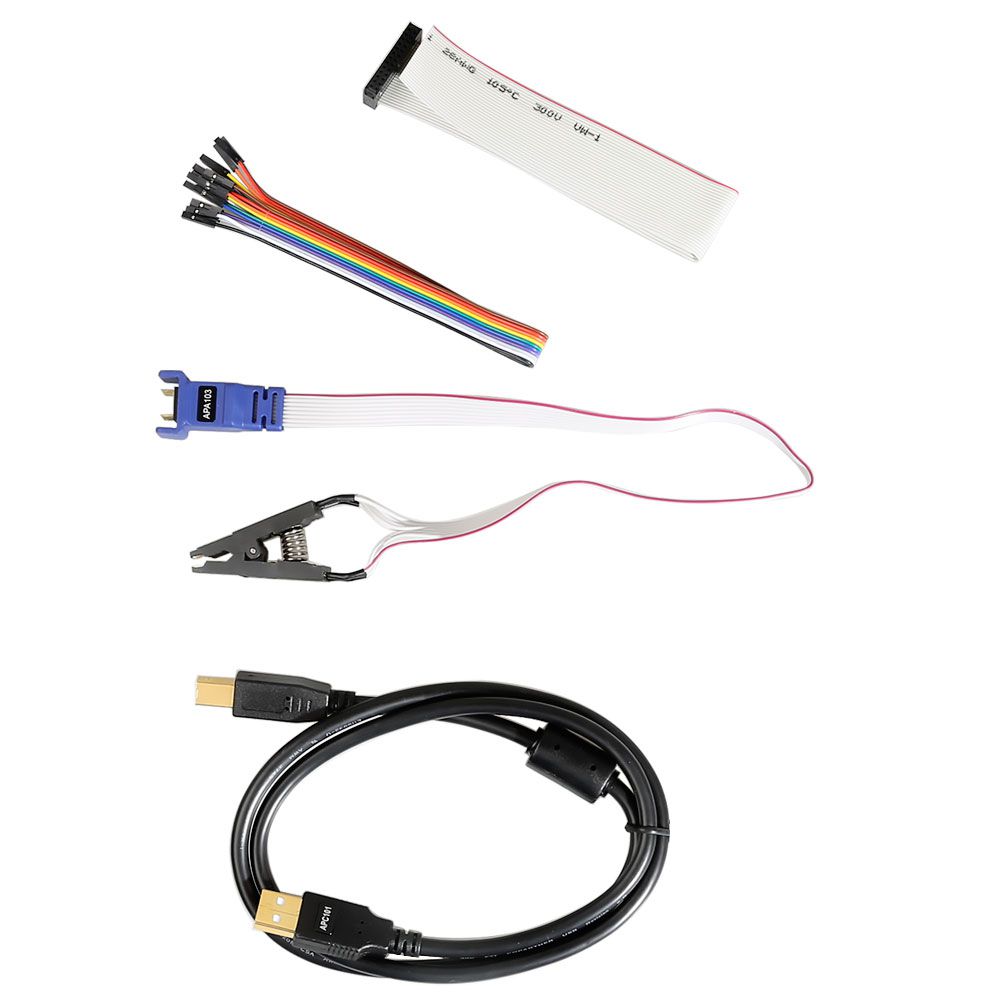

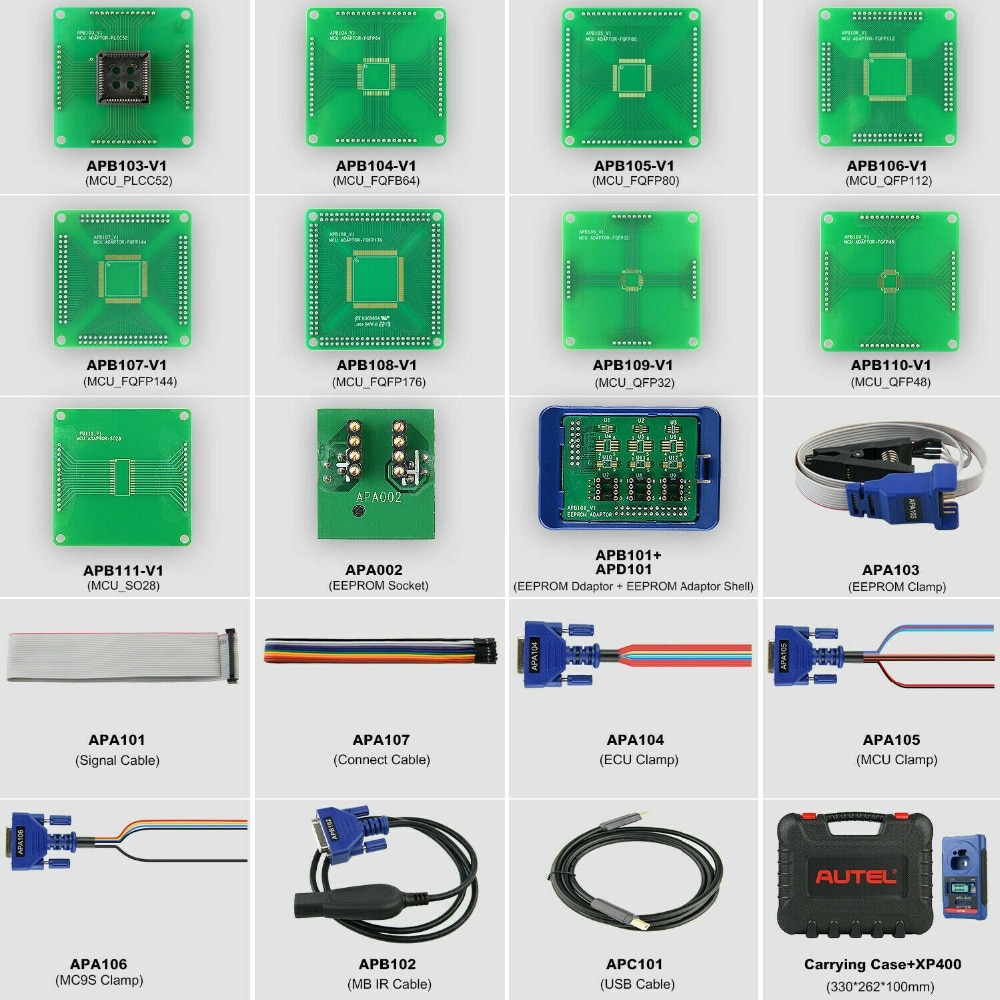

Compatible Cables for XP400

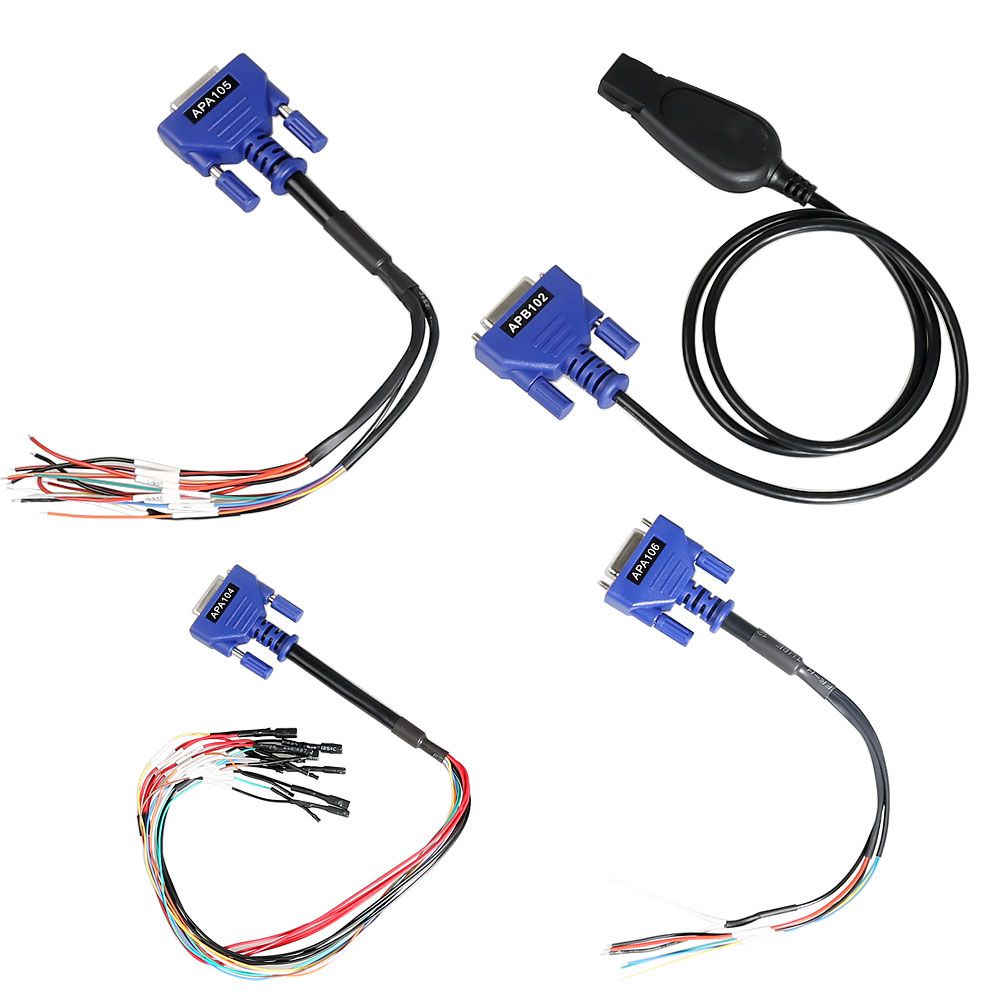

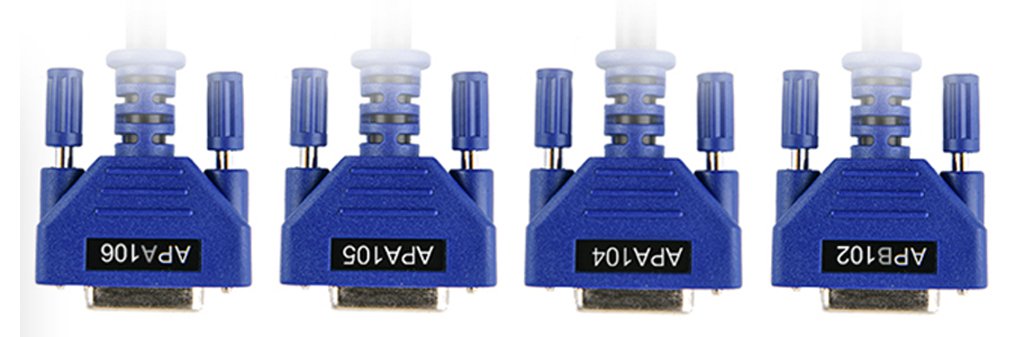

• Mercedes Infrared Cable

1. APA102 – Remote Match Cable (optional)
2. APA104 – ECU Cable
3. APA105 – MCU Cable
4. APA106 – MC9S12 Cable

Why Buy an XP400 Device?

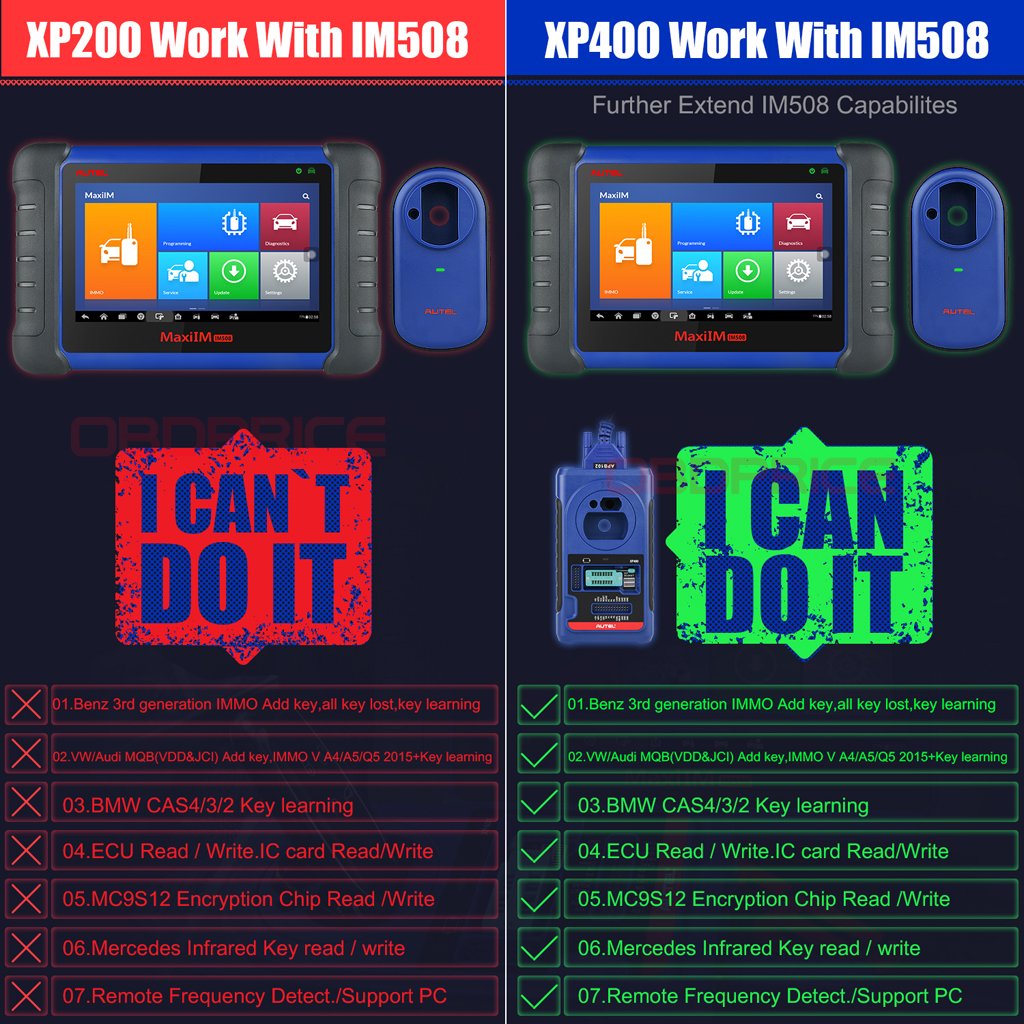

• If your Original XP400 for IM608 / IM600 is broken, you can buy this to replace the old one. Or if you have a MaxiIM IM508 or Otosys IM100 and want to perform advanced IMMO reprogramming like the IM608 / IM600, you can add an XP400 to your setup. It then enables IMMO functions equivalent to those of the IM608 / IM600. For a detailed comparison between XP400 and XP200 functions, please refer to the chart below.
