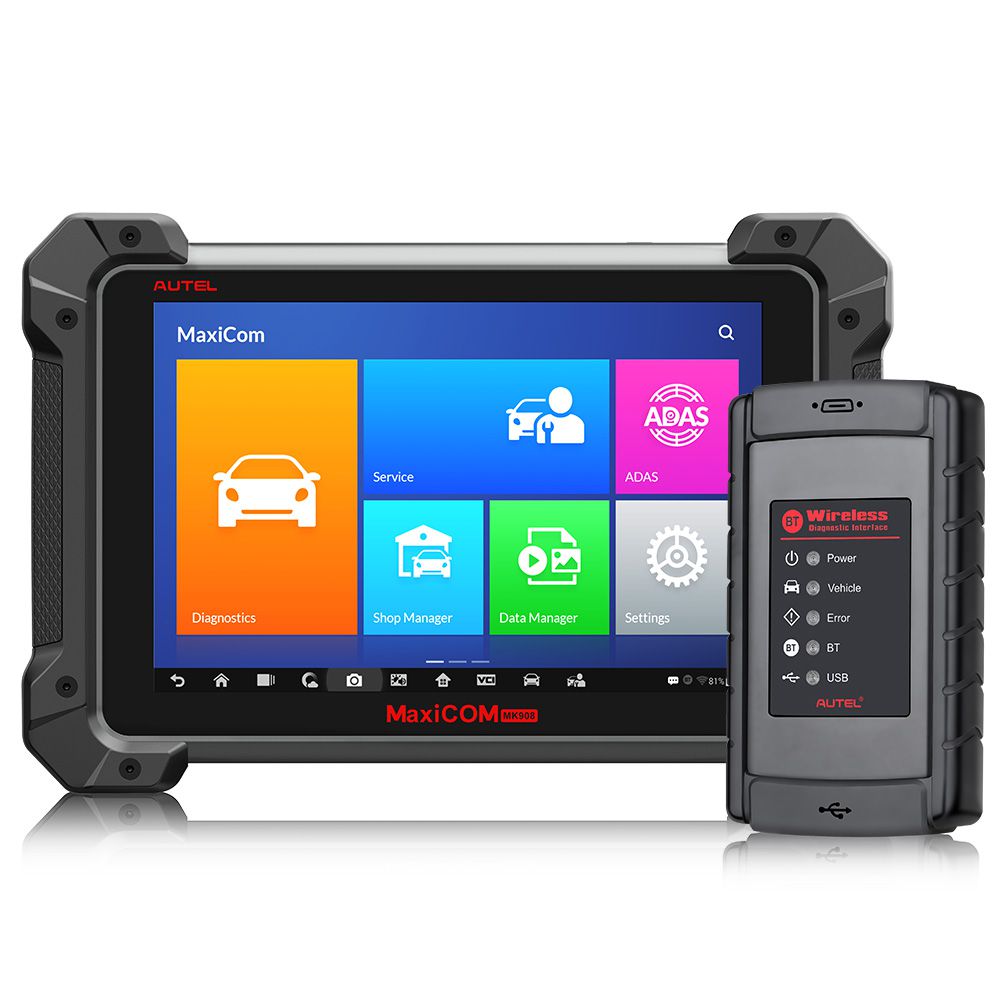

Autel MaxiCOM MK908 Scanner Diagnostic Tool Automotive Code Reader

Highlights of Autel MaxiCOM MK908

• Upgraded Version of MS908 MaxiSys
• Support All-Around Diagnoses and ECU Programming
• Ultimate Configurations for Super-Level Diagnosis
• Multiple Language Supported: English, Spanish, French, German, Polish, Italian, Japanese, Korean, Dutch, Portuguese, Turkish, Swedish, Thai, Arabic, Russian, Chinese

Description

Autel MaxiCOM MK908 Diagnostic Platform is an evolutionary smart solution for specialized automotive diagnosis. Utilizing the powerful A7 quad-core 1.30GHz processor, and a 10.1-inch capacitive touch screen, combined with the best possible coverage of OE-level diagnostics, and based on the revolutionary multitask-capable Android Operating system, the MaxiCOM organizes information with test instrumentation to help you diagnose symptoms, codes, and customer complaints easily, quickly and efficiently.

Features

1. Generic OBD II Operations for Retrieving OBD2 Vehicle Diagnostic Information

1. Read Codes – displays detailed information of DTC records retrieved from the vehicle control module.
2. Erase Codes – erases DTC records and other data from the ECM.
3. Live Data – retrieves and displays live data and parameters from the vehicle's ECU.


2. Special Functions for Various Scheduled Service and Maintenance Performances

• Oil Reset: Reminds you to change the oil when required.
• EPB: Reads, clears and offers electronic park braking on flat roads.
• BMS: Shows all the information related to the battery management system.
• ABS: Reads and clears anti-lock braking system problems.
• DPF: Shows errors in the DPF system (removes soot from exhaust system).
• TPMS: Monitors air pressure in the tires.
• IMMO: Used for enhancing car security by serving as a code that starts the engine.

3. Active Test for Verifying Subsystem or Component Functionality

Unlike conventional scanners, MK908 users can access vehicle-specific subsystems and component parts, and output commands to the related ECU, thus driving the actuators to perform a specific function. This helps determine the integrity of the system or parts by reading engine ECU data or by monitoring the operation of actuators—such as switching a solenoid, relay, or switch—between two operating states.

4. Ultimate Configurations for Super-Level Diagnosis

1) Super CPU & RAM

This Android OS-based, tablet-style scanner features an extremely powerful Hexa-Core 1.3GHz + 1.7GHz processor, 64GB solid-state drive, and 2GB of RAM for super speedy and smooth performance. In contrast, the MS908 only has a 1.4GHz Quad-Core Processor and a 32GB SSD drive.

2) More Intuitive Display

While the MS908 supports a 9.7" 1024×768 display, the MK908 offers superior image clarity with a 10.1", 1920×1200 resolution back-lit LED multi-touch capacitive display for better user experience. It also includes a built-in 8MP camera with flashlight and autofocus—compared to the 5MP camera in the MS908—for more detailed snapshots and deeper analysis. Saving diagnostic data and files is effortless thanks to 64GB of onboard memory (versus 32GB in the MS908).

3) Ergonomic Design

Designed for single-handed use—though not pocket-sized—the device features real rubber protection on both sides for enhanced ergonomics and durability against daily heavy use, ensuring maximum longevity.

4) Useful Multitasking

The diagnostic scanner integrates high-quality diagnostic protocols with multitasking-capable software, delivering not only impressive speed but also the ability to monitor impacts on other vehicle systems while focusing on a specific repair.

5. Autel MK908 ECU Programming & Coding

The diagnostic tool can replace existing software/firmware in the ECU, program new ECUs, and resolve software-controlled driving performance and emission issues. Since the introduction of OBD II and through modern hybrids and EVs, in-car software has expanded exponentially. Updating software is often the only solution for issues such as:

• Drivability
• Fuel Efficiency
• Power Loss
• Fault Codes
• Durability of Mechanical Parts

The Programming and Coding function re-flashes vehicle control modules, enabling you to update computer software to the latest version and reprogram adaptive data for certain components after repairs or replacements.

Notice

The programming function requires connection to a J2534 programming device (Autel MaxiFlash Elite), which acts as a Pass-Thru interface to communicate with and transfer data to the vehicle’s ECU.

What's the Difference Between Coding and Reprogramming?

A. Coding – also known as Teach-in Program or Component Adaptation – is used to reprogram adaptive data for vehicle control modules after repairs or replacements of vehicle parts.

B. Reprogramming Operations – automatically downloads the newest software version from the online server database via internet access (no manual subscription check needed) and installs it onto the vehicle's ECU.

6. Advanced Driver Assistance Systems (ADAS)

ADAS comprises vehicle systems that assist drivers through passive alerts or active vehicle control to enhance safety, awareness, and precision. These systems use cameras, sensors, ultrasound, radar, and LIDAR to capture environmental data—including positions of moving or stationary vehicles, pedestrian locations, road signs, lane and intersection detection, road curvature, and driving conditions like poor visibility or nighttime driving—and trigger predetermined vehicle responses. Cameras and sensors are typically located in the front and rear bumpers, windshield, front grille, and side and rearview mirrors.

7. Abundant User-Friendly Add-On Features

Extendable Feature: Enhance diagnostic capabilities by pairing with Autel MP408 or MV108 for deeper fault detection, or with MaxiTPMS TS501 for comprehensive TPMS diagnostics.

8. AutoVin Technology

Equipped with the latest AutoVIN technology and advanced Auto-Scan functions, the device identifies CAN-enabled vehicles with one touch and displays data as text, graphs, analog gauges, and digital gauges for efficient analysis.

9. Fast Data Transfer (VCI)

The package includes dual-band 802.11n Wi-Fi and long-range Bluetooth connectivity, providing an ultra-fast Vehicle Communication Interface. Simply plug into the OBD-II port, and diagnosis begins within seconds.

MaxiFix

The MaxiFix application provides access to an online troubleshooter database featuring a comprehensive collection of common diagnostic trouble codes (DTCs) for most vehicles. It also functions as a user forum, connecting you with other MaxiCOM users and offering a vast library of repair tips and proven field fixes.

10. Data Manager

The Data Manager application stores, prints, and reviews saved diagnostic files for future reference.

Wide Compatibility and Vehicle Coverage

Compatible Vehicle Brands

Chrysler, Dodge, Ford, GM, Jeep, Abarth, Alfa, Citroen, Fiat, Lancia, Opel, Peugeot, Porsche, Renault, Saab, Vauxhall, Volvo, Aston Martin, Audi, Bentley, Benz, Sprinter, BMW, Bugatti, Ferrari, Jaguar, Lamborghini, Land Rover, Maserati, Maybach, Mini, Rolls-Royce, Seat, Skoda, Smart, VW, VW CV, Dacia, Ford EU, LT3, Acura, Daewoo, Daihatsu, Honda, Hyundai, Hyundai CV, Infiniti, Kia, Lexus, Maruti Suzuki, Mazda, Mitsubishi, Nissan, Nissan GTR, Samsung, Scion, SsangYong, Subaru, Suzuki, Toyota, Isuzu, Mahindra, Perodua, Proton, TATA, HINO, UD, Fuso.

Supported Protocols

ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, High-speed, Middle speed, Low speed and Singlewide CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN

Technical Specifications

• Operating System: Android™ 4.4.2, KitKat
• Processor: Samsung Exynos hexa-core Processor (1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15)
• Memory: 2GB RAM & 64GB On-board Memory
• Display: 10.1-inch LED screen with 1920x1200 resolution
• Connectivity: Wi-Fi (802.11 a/b/g/n/ac); USB 2.0; Bluetooth v2.1 + EDR; SD Card (Support up to 32GB)
• Rear Camera: 8.0 Megapixel, AF with Flashlight
• Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)
• Input Voltage: 12 V (9–24 V)
• Power Consumption: 6.5 W
• Operating Temperature: 0 to 50°C (32 to 122°F)
• Storage Temperature: -20 to 60°C (-4 to 140°F)
• Housing: Strong plastic housing with protective rubber boot

Package Contents

• 1 pc × MaxiCOM MK908 Unit
• 1 pc × Bluetooth Diagnostic Interface
• 1 pc × AC/DC Adapter (12V)
• 1 pc × Adapter for Benz-14 (Europe Only)
• 1 pc × Adapter for Chrysler-16 (America Only)
• 1 pc × User Manual
• 1 pc × Carrying Case
• 1 pc × Quick Reference Guide
• 1 pc × Lighter Fuse
• 1 pc × Main Cable
• 1 pc × Adapter for GM/Daewoo-12
• 1 pc × Adapter for Audi-2+2
• 1 pc × Adapter for BMW-20
• 1 pc × Adapter for Benz-38
• 1 pc × Adapter for Kia-20
• 1 pc × Adapter for Mitsubishi/Hyundai-12+16
• 1 pc × Adapter for Nissan-14
• 1 pc × Adapter for Honda-3
• 1 pc × USB Cable
• 1 pc × Cigarette Lighter
• 1 pc × Soft Cloth
• 1 pc × Packing List
• 1 pc × Mini USB Cable
