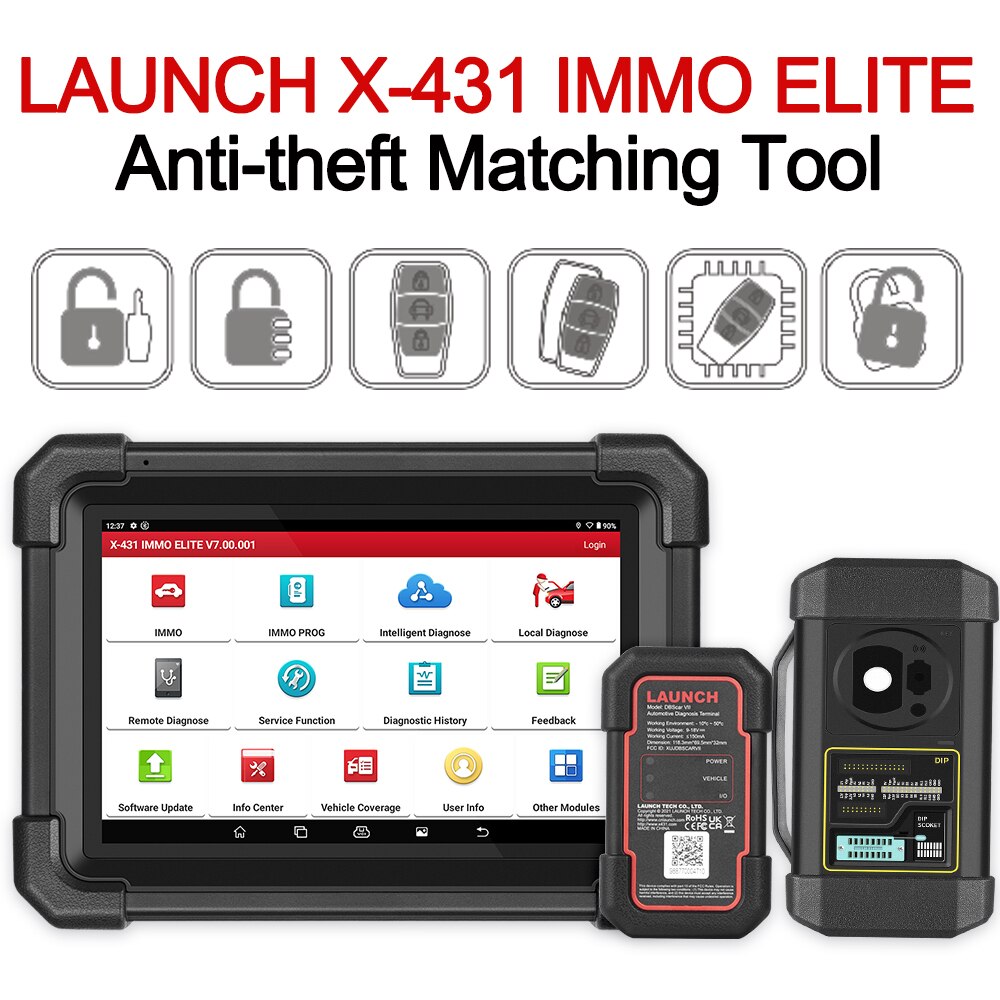

LAUNCH X431 IMMO ELITE Programmer Key Programming OBD2 All System Diagnostic Scan Tools Car Scanner Auto VIN 15+ Reset CAN FD

1. Strong core, large memory, super battery life

2. It integrates professional anti-theft matching, anti-theft programming, full-model system-wide diagnosis of basic functions and special functions. One machine with multiple functions and high performance cost ratio.

3. All-round anti-theft matching, fast and accurate reading of anti-theft data

4. Covering the anti-theft matching function of many models in Asia, Europe, and America, more brands continue to be Launched, up to 60+ brands

5. Support the full-model system-wide diagnosis of basic functions (read version information, read DTCs, clear DTCs, read data streams) for global 110+ brands

6. Support 15 special functions such as service lamp reset, throttle matching, steering angle reset, brake pad reset, tire pressure reset

7. Support the VIN intelligent identification function to quickly enter diagnosis

8. Fast and accurate diagnosis

9, Support CAN FD, DoIP Protocols

The best choice for intelligent maintenance of the anti-theft matching tool in repair shops

Support 60+ brands of independent anti-theft matching software for American, European, and Asian models. Support further in-depth development and coverage of anti-theft software for various models. Support more password reading, key adding, all keys losing and anti-theft related module replacement functions. Menus are optimized, the operation process is more convenient, and more brands continue to be Launched.

Support car key chip reading/writing, EEPROM chip reading/writing, MCU chip reading/writing, EEPROM and FLASH reading/writing of engine ECU and gearbox ECU

1. Independent anti-theft menu, more convenient operation

With the unique anti-theft matching and anti-theft programming modules, in-depth development and optimization have been carried out for the anti-theft software of American, European and Asian car models.

2. Powerful anti-theft function, support a wide range of models

Support anti-theft type identification, anti-theft password reading, remote control matching, key matching, key chip reading and writing, anti-theft parts replacement and other functions, support up to 60+ brands, and the coverage of models continues to increase

3. Anti-theft advantages

Support replacement or cloning of VW/Audi MQB platform engine ECU (no need for the original car engine ECU data, it can be read directly from the key).

Support replacement or cloning of VW/Audi MQB platform gearbox ECU.

Support replacement of Audi (0AW/0B5) fifth-generation gearbox ECU.

Support reading/writing and cloning of VW fourth-generation UDS engine ECU

Support the cloning in BENCH mode without disassembly for more than 170 types of Bosch engine ECUs, more than 10 types of Siemens engine ECUs, and 18 types of gearbox ECUs (covering various European, American and Asian models, and continuing to increase)

Support the erasing function for Mercedes-Benz engine, gearbox, EIS, and BMW gearbox.

Support the matching function and password calculation function for all models of Chery sedan and JAC passenger cars up to 2021

4. Anti-theft module replacement

Support the anti-theft module replacement function for models such as BMW, Mercedes-Benz, Volkswagen Audi, Porsche, Honda, Nissan, Hyundai, Kia, BYD, Changan Automobile, Wuling Baojun, GAC Trumpchi, SAIC Maxus, Great Wall Motor, Chery, Dongfeng Fengxing, and JAC passenger cars.

5. Anti-theft password reading

Support the anti-theft password reading function for models such as BMW, Mercedes-Benz, Volkswagen Audi, Peugeot Citroen, GM, Nissan, Hyundai, Kia, Chery, Dongfeng Fengxing, and JAC passenger cars.

WIith All System Diagnostic

Support system-wide diagnosis and basic function diagnosis (read version information, read DTCs, clear DTCs, read data streams) for 110+ brand models to help quickly diagnose vehicle faults.

Support 15 Reset Services

1. service lamp reset
Allows you to perform reset for a new calculation of Engine Oil life system once changed the oil.

2. throttle matching
To utilize the car decoder to initialize the throttle actuator so that the learning value of the ECU returns to the initial state.

3. steering angle reset
It helps clear the faulty steering angle sensor memories to reset the steering angle and plays an important role in the steering angle sensor calibration.

4. brake pad reset
To deactivating and activate the brake control systems, assist with brake fluid control, open and close brake pads, and set brakes after disc or pad replacement.

5. tire pressure reset
When due to the tire pressure is too low,tire leaks,tire pressure monitoring device is replaced or installed,tire is replaced and tire pressure sensor is damaged,The tire pressure resetting function must be performed to reset tire pressure and turn off the tire pressure MIL.

6. ABS bleeding
When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity.

7. battery matching
Enables you to perform resetting operation on the monitoring unit of battery,in which the original low battery fault information will be cleared.

8. tooth information learning
Perform gear learning for the car when the engine ECU, the crankshaft position sensor, or the crankshaft flywheel is replaced.

9. injector coding
After the ECU or injector is replaced, injector code of each cylinder must be confirmed or re-coded so that the cylinder can better identify injectors to accurately control fuel injection.

10. DPF regeneration
It is used to clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode. Specially works for Diesel Particulate Filter system with DPF.

11. Gearbox Relearn
This function enables you to complete the gearbox self-learning to improve gear shifting quality

12. EGR Adaption
This function is used to learn the EGR (Exhaust Gas Recirculation ) valve after it is clean or replaced.

13. Adblue Reset
After the diesel exhaust treatment fluid (car urea) is replaced or filled up, the urea reset operation is required.

14. Transport Mode
To lower vehicle power consumption, user may perform the following operations: limit vehicle speed, not wake up the network for door open and disable remote key, etc. In this case, deactivating the transport mode is needed to recover the vehicle being normal.

15. Windows Calibration.
This feature is designed to perform door window matching to recover ECU initial memory.

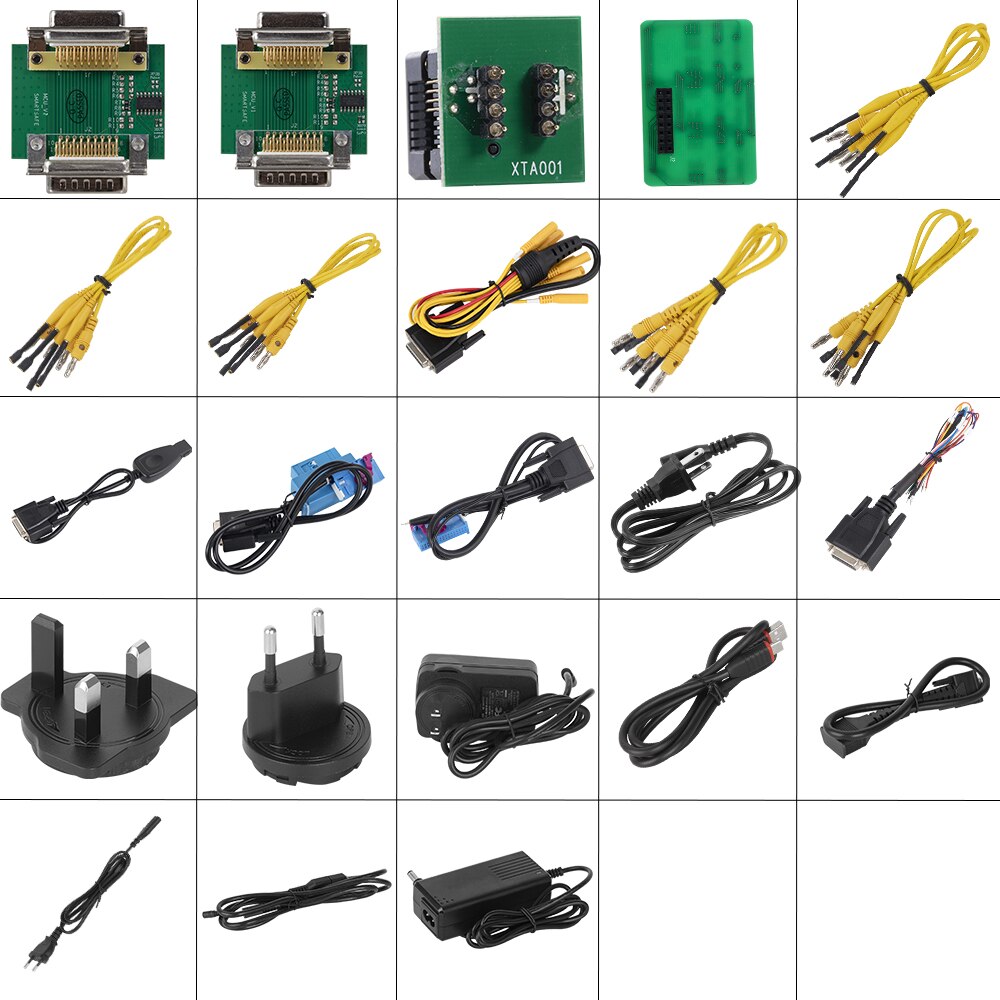

How to Connect X431 PROG 3

Connection method 1: Directly connect to OBD16 for key matching, data reading/writing, etc.

Connection method 2: Place the anti-theft EEPROM or MCU chip into the chip burn-in socket, and then insert the chip burn-in socket into the slot of the anti-theft matching programmer locker to realize the data exchange between the IC anti-theft chip and the diagnostic host.

Connection method 3: After removing the ECU from the car, connect the anti-theft ECU pin to the DIY slot of the anti-theft programmer through the connecting wire to realize the data exchange between the anti-theft ECU and the diagnostic host.

Connection method 4: After the ECU is removed from the car, it is directly connected in the BENCH mode to realize the data exchange between the anti-theft ECU and the diagnostic host.

Auto VIN Scan

you can quickly read the VIN, quickly enter the diagnosis, and check the historical diagnosis records

Remote diagnosis

can realize real-time communication between equipment and equipment or between equipment and computer, complete vehicle remote diagnosis, and make it a reality for repair technicians to diagnose vehicles thousands of miles away.

Diagnostic Feedback

When users encounter abnormal models and functions under special circumstances during use, they can provide opinions to Launch through diagnostic feedback, and special technical personnel will track and deal with the problems in time.

Diagnostic Records

During every diagnostic process, a vehicle diagnostic record is automatically generated, which is easy to view and compare at any time and help locate faults.

Technical Parameters

Operating system: Android
Memory: 4GB
Storage: 64GB
Screen: 8 inch capacitive touch screen with a resolution of 1280 x 800 pixels
Camera: Rear-facing 8.0MP camera
Connectivity : Wi-Fi (802.11a/b/g/n/ac)  Bluetooth
Working temperature:0℃ ~ 50℃
Storage temperature: -20℃ ~ 70℃

VCI Connector
Working voltage: 9 ~18V
Power consumption: ≤2.0W
Working temperature: -10℃ ~ 50℃
Relative humidity: 20% ~ 90%
