GODIAG V600-BM BMW Diagnostic and Programming Tool Support Wifi and Bluetooth

GODIAG V600-BM BMW Diagnostic and Programming Tool

GODIAG V600 is a BMW professional diagnostic & programming / coding tool, it will replace GT1, OPS, OPPS, ICOM, ICOM A2, ICOM A3, ICOM NEXT. GODIAG V600-BM CAN-FD J2534 can access to all systems of newest BMW car models to quickly read / clear fault codes, read dynamic data stream, active test, activation, components replacement, ECU replacement and upgrading, personalized settings, ECU programming , retrofitting and upgrading car configuration, SCN Coding, transmission initialization, enable the hidden features etc.

/>

Support OEM professional diagnostic function of all For BMW series:

1 series: 1'_E81/E81/E87/E88,1'_F20/F21
2 series: 2'_F22/F23,2'_F45/F46,2'_F87
3 series: 3'_E46,3'_E90/E91/E92/E93, 3'_F30/F31/F34/F35,3'_F80
4 series: 4'_F32/F33/F36,4'_F82/F83
5 series: 5'_E39,5'_E60/E61,5'_GT(F07), 5'_F10/F11/F18
6 series: 6'_E63/E64,6'_F06/F12/F13
7 series: 7'_E38,7'_E65/E66,7'_F01/F02/F03/F04, 7'_G11/G12
X series: X1_E84,X1_F48/F49,X3_E83,X5_E53,X5_70,X6_E71,
X6_E72,X3_F25,X5_F15/F85,X6_F16/F86,X4_F26
Z series: Z4_E85/E86,Z4_E89
I series: I'_I01/I02
MINI: MINI_R50/R52/R53, MINI_R55/R56/R57/R58/R59/R60, MINI_F55/F56

GODIAG V600 Features:

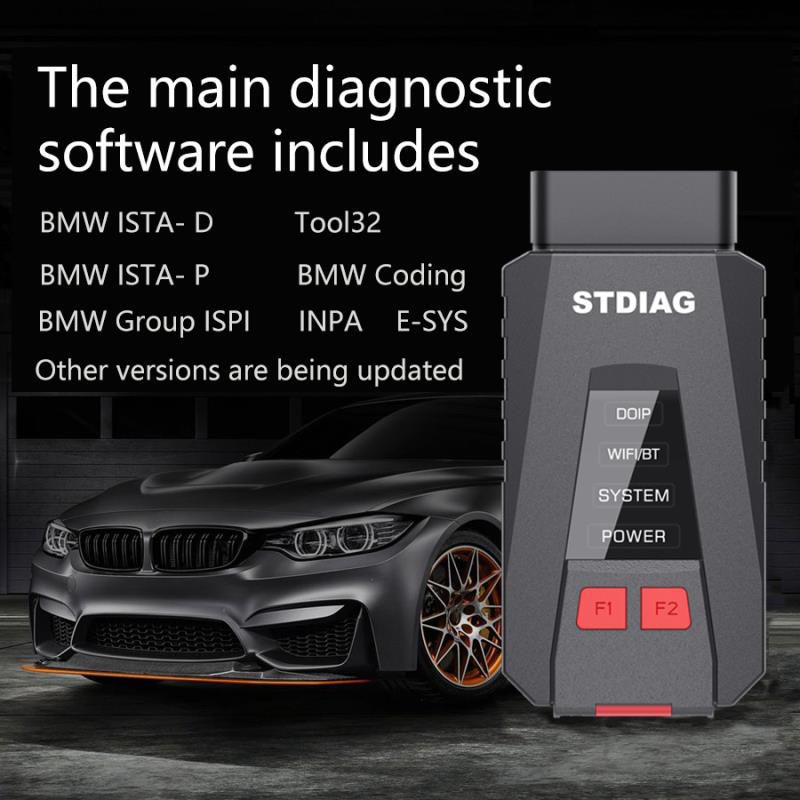

1. Contained with dedicated For BMW software (same as ICOM, ICOM A2 / A3 / NEXT etc, no need to install any driver.)

1) ISTA-D: used to read / erase fault codes, read the data flow, maintenance guidance, circuit diagram, wiring diagram and directly upgrade & program new models. It will activate the ignition switch without keys during diagnosis.



2). ISTA-P: an off-line programming and coding software system, including the latest database for programming E, F, G, K, I series models



3). Engineer programming & coding software for F series vehicles



4). WINKFP: engineer programming software for E series vehicles.
5). NCS-Expert Tool: engineer programming software for E series vehicles.
6). INPA: engineering diagnostic software for E series vehicles.



7). Tool32: engineer command execution software for E series vehicles.
8). For BMW Coding Tool: WINKFP NCS auxiliary software for importing engineer data for E series vehicles.



2. Provide a variety of communication modes:

USB 2.0
DoIP indicator
Ethernet 10/100MBps
WIFI/BT 802.11 indicator 150MBps
ETH indicator
System Indicator



3. Specifications

Suitable power: 7-32 V
About 300 mA when the power is 12V
High-speed processor: CPU 580 MHz MIPS, 32MB FLASH,128MByte RA, Built-in 32G TF card(optional)



4. Replace any of these For BMW diagnostic tools: For BMW ICOM, ICOM A2 / A3 / Next etc.

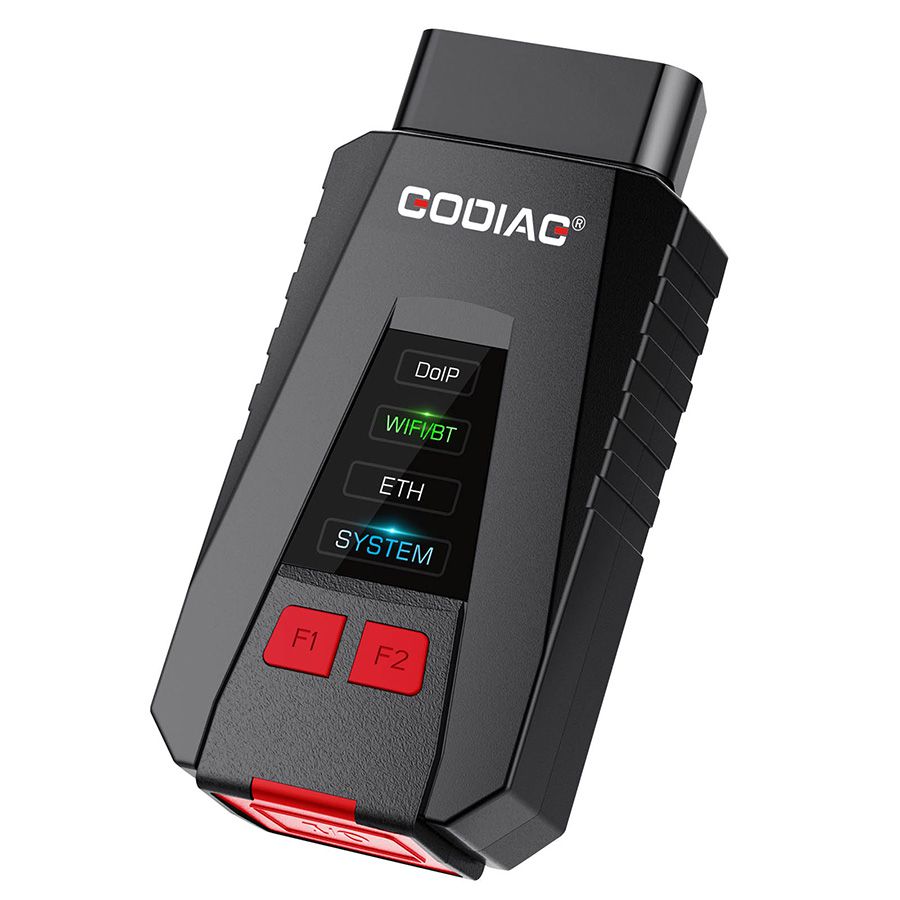

5. The Button Function:

F1-Press it for more than 3s to reset factory setting
F2-Press it to restart system



GODIAG V600-BM Parameters:

Shell	The shell is made of Polyamide. Size:108 x 52 x 27 mm
Power Supply	7-32 V
Current Consumption	About 300 mA when the power is 12V
CPU	580 MHz MIPS, 32MBFLASH, 128MByte RA, built-in 32G TF card(optional)
Operating System	Linux
WiFi	150Mbps Wi-Fi 1T1R 802.11bgn
Interface	USB 2.0 Ethernet 10/100Mbps
Indicator	DoIP indicator WIFI/BT indicator ETH indicator System indicator
Buzzer	Sound Pressure Level: MIN.80 dB
Temperature	Working：-20 ... +55°C, Storage：-20 ... +85°C
Protection Rating	Dust prevention and water resistance conform to IP52
Conform to Electromagnetic Compatibility	Noise emissions：EN 55011,EN 55022 Anti-interference：EN 61000-6-2, EN 61000-6-4

GODIAG V600-BM Package includes:

1pc x GODIAG V600-BM CAN-FD J2534
