OBDSTAR X300 DP Plus X300 PAD2 B Package Immobilizer+Special Function +Mileage Correction

OBDSTAR X300 DP Plus X300 PAD2 B Package Immobilizer+Special Function +Mileage Correction

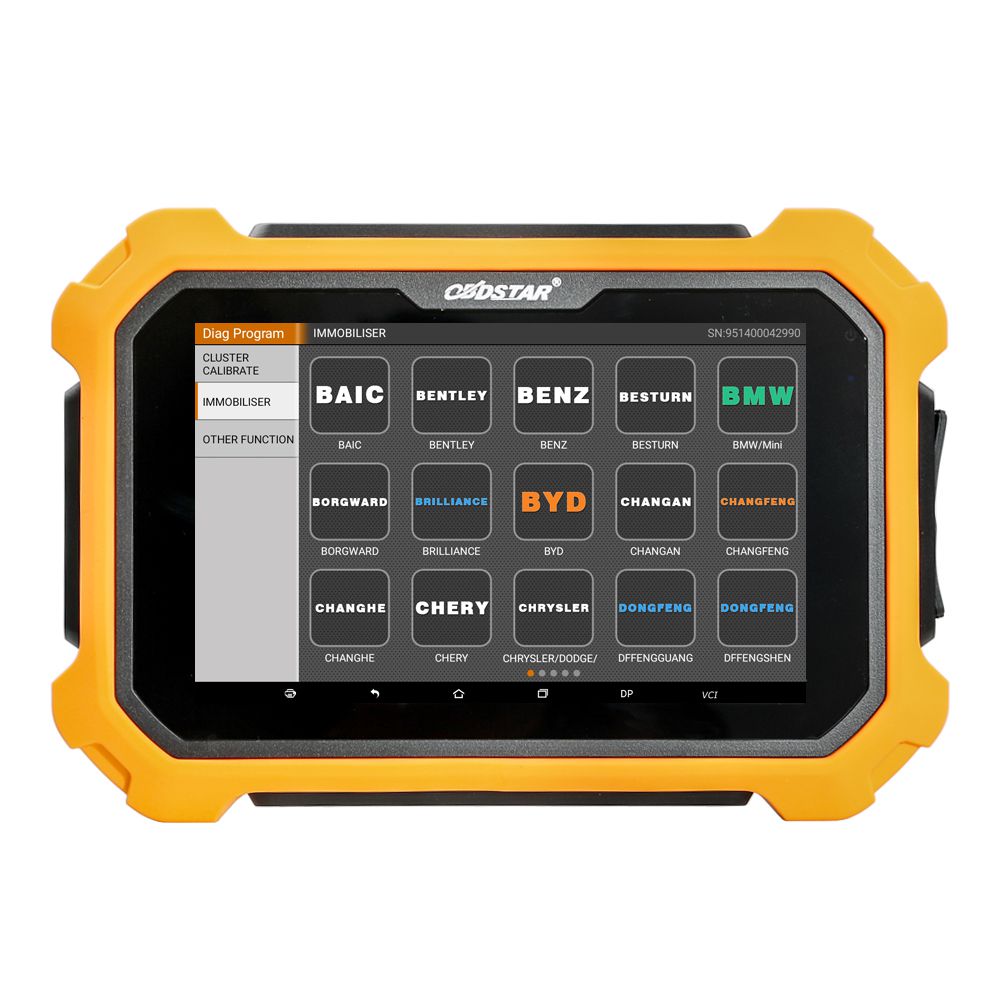

This device is a new Android-based vehicle trouble diagnostic device developed for internet applications. It inherits from OBDSTAR advanced diagnosing technology and it is characterized by covering wide range of vehicles, featuring powerful function, and providing precise result. Through vehicle diagnostic OBD connector and variant mobile intelligent terminals, it achieves vehicle trouble diagnosis for full car model and full system vehicle.

Meanwhile, taking advantage of mobile internet, this device integrates more application and service, such as Maintenance Database, remote assistant, One Key Upgrade etc.

Update: One Year Free Update Online, Update Cost is 439USD/year after first year.

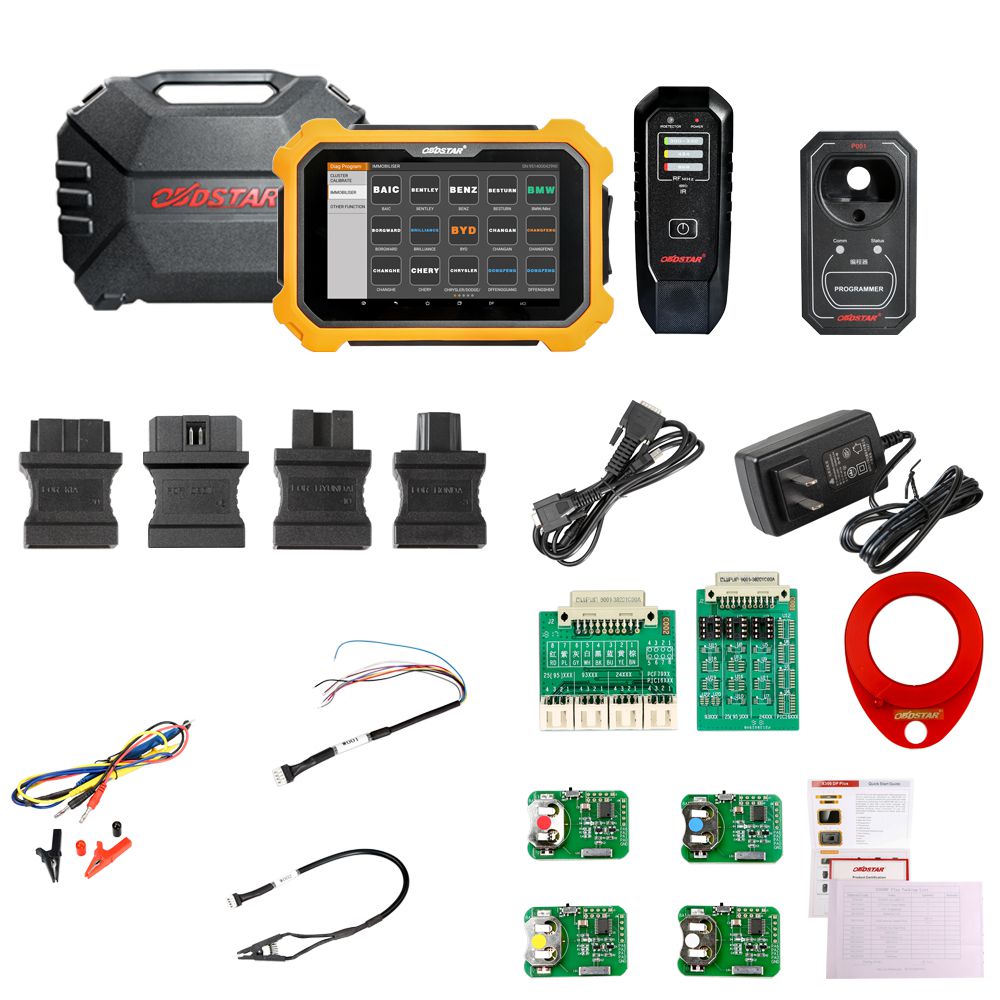

OBDSTAR X300 DP Plus X300 PAD2 B Package:

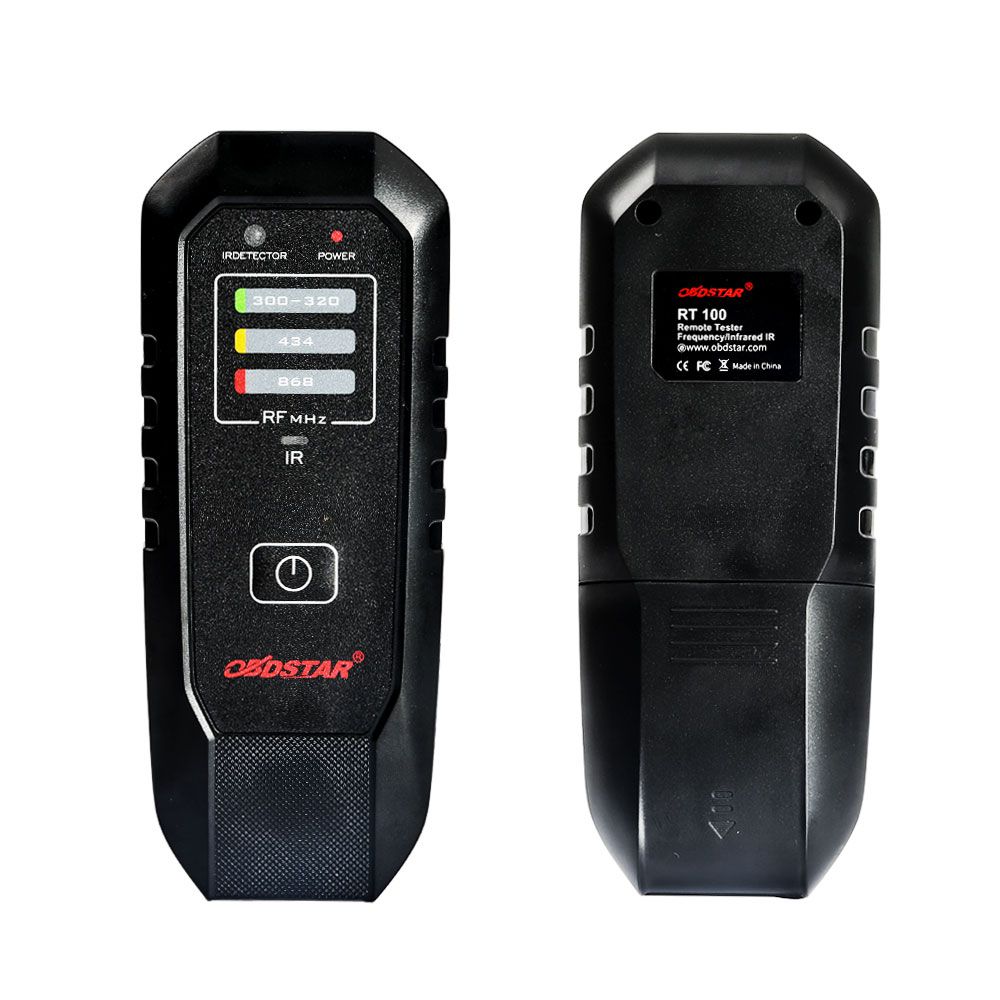

Immobilizer+Special function(EEPROM+Key Renewing)+Mileage correction+Adapter(P001 programmer+C001 circuit board+C002 circuit board+W001 data cable+W002 data cable+W003 data cable+Toyota smarkt key Emulator)+others(Ignition coil+Remote tester)

Hardware Advantages:

1. Built-in VCI box
2. 8-inch touchscreen
3. Charge directly via OBD interface

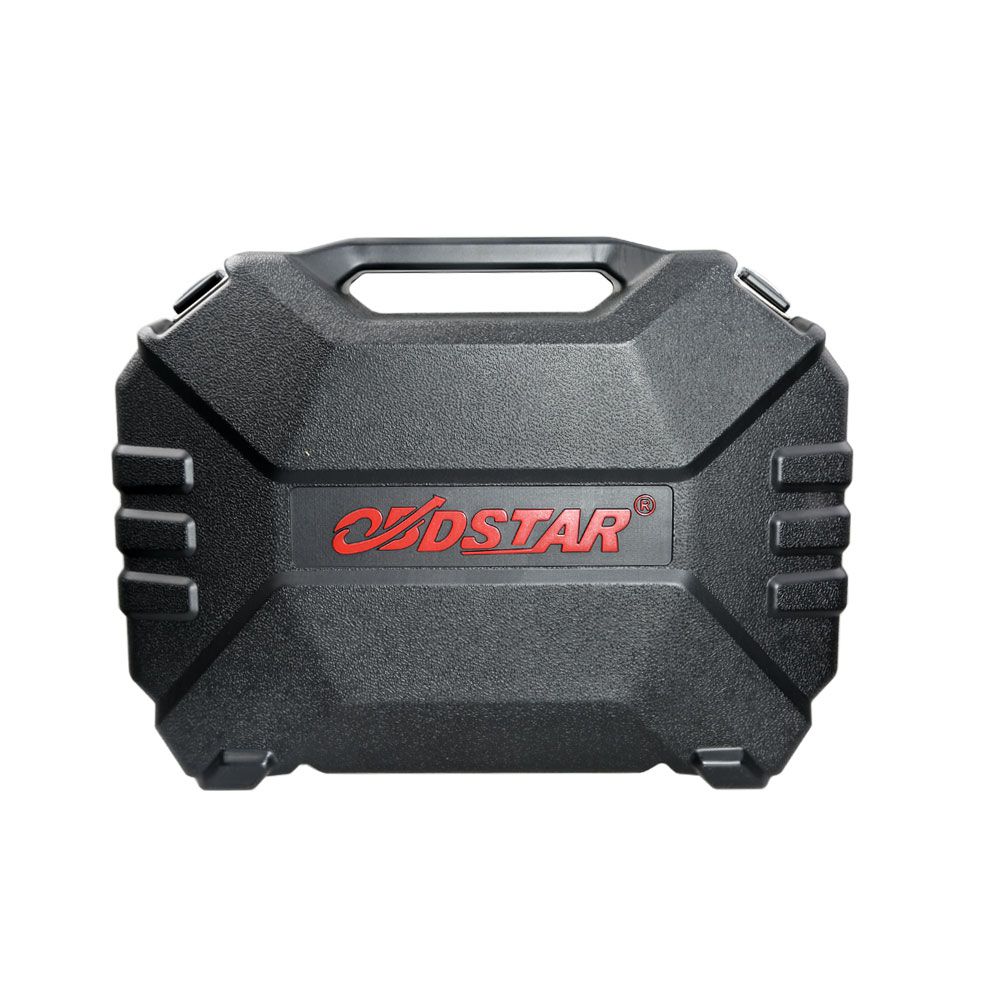

4. Practical and high-end gift box
5. Industrial design with silicone case

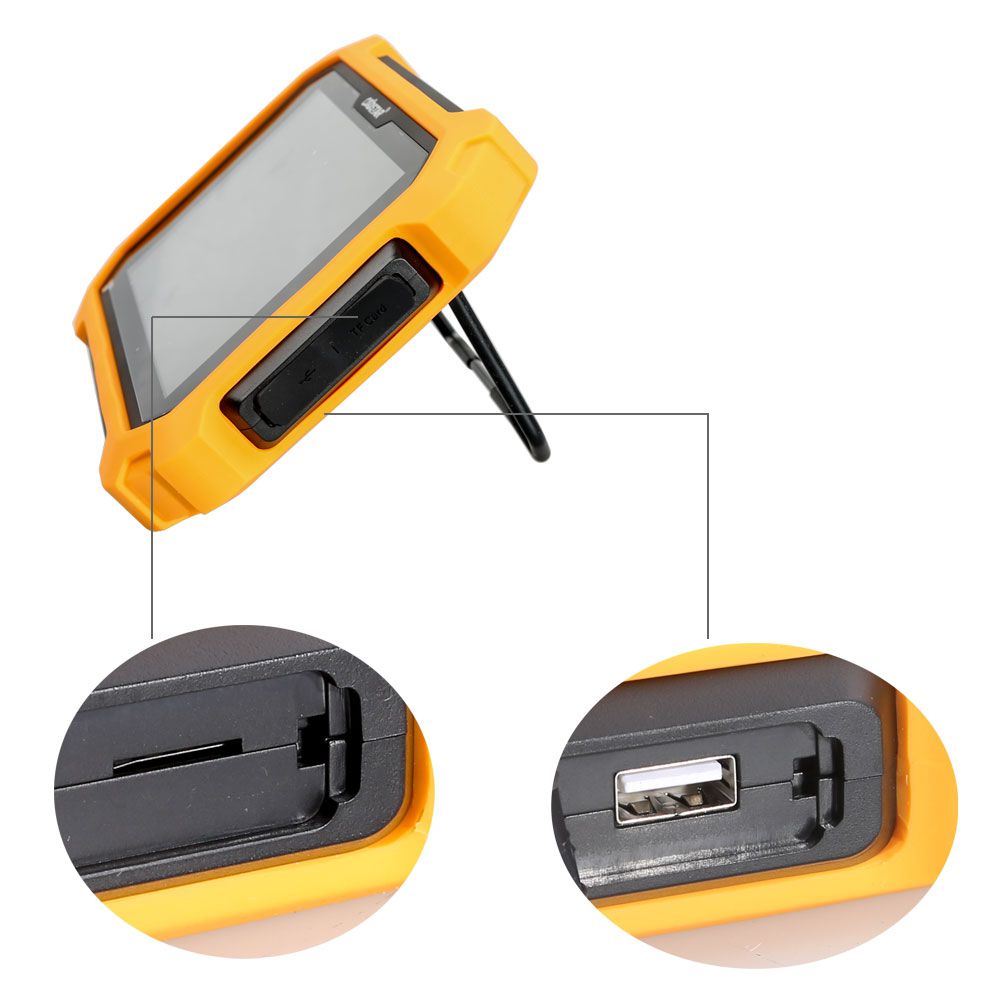

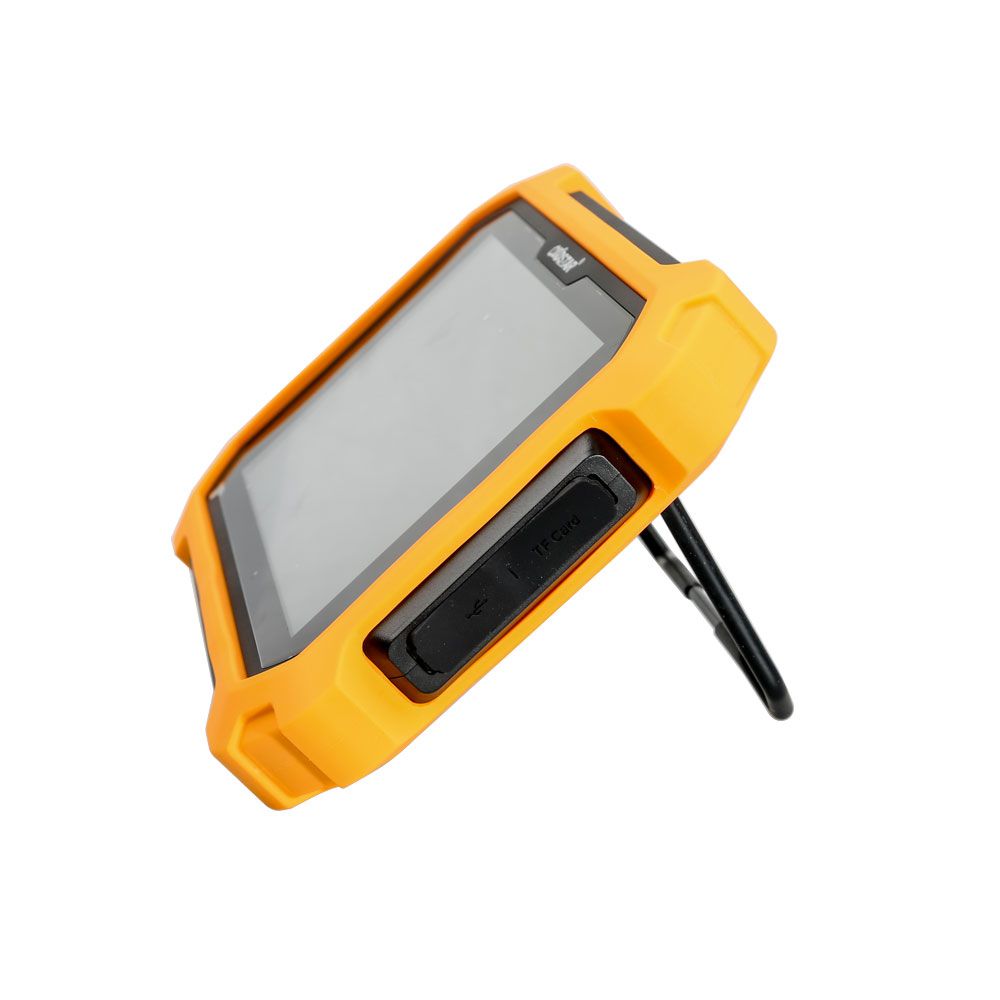

6. Back bracket design:prop on the steering wheel or stand on the table
7. With 4 Toyota simulation keys (the fifth is coming soon)

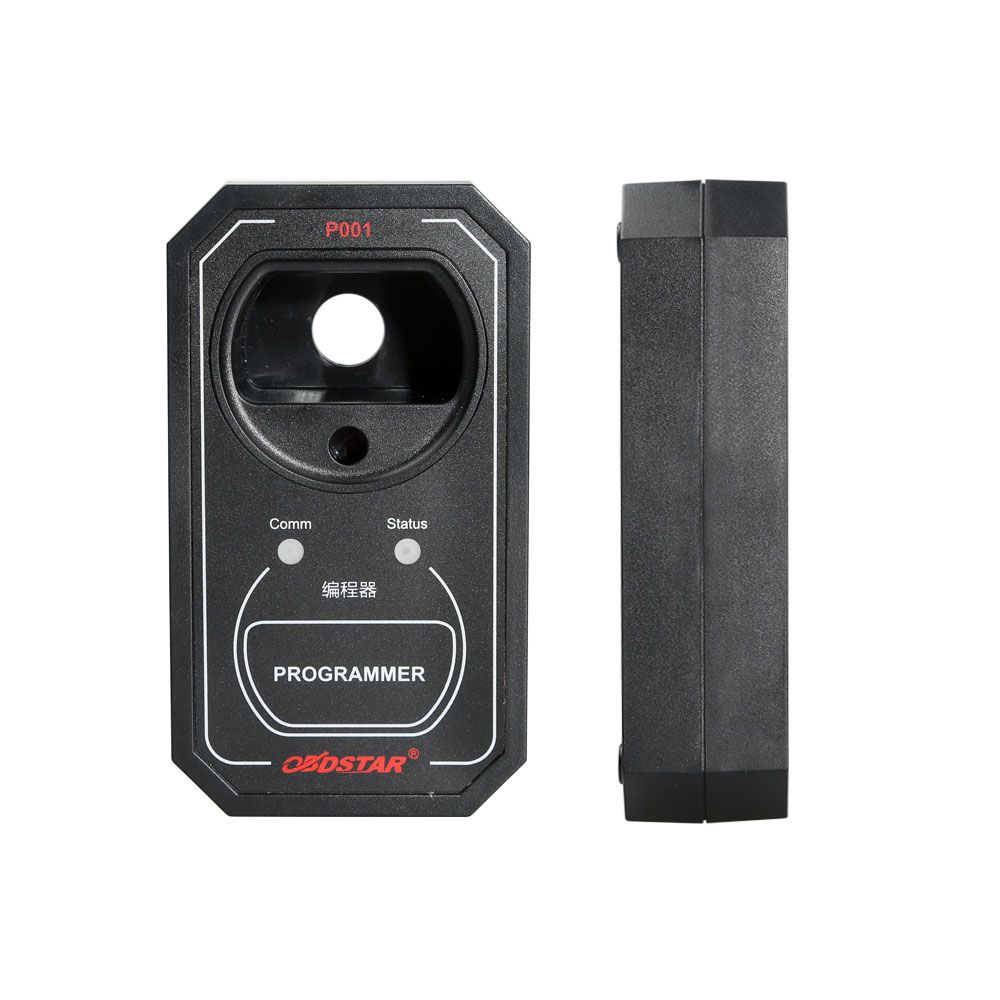

8. P001 programmer: EEPROM adapter + RFID adapter + Key Renew adapter
9. Add the clip of reading SOP 8PIN EEPROM

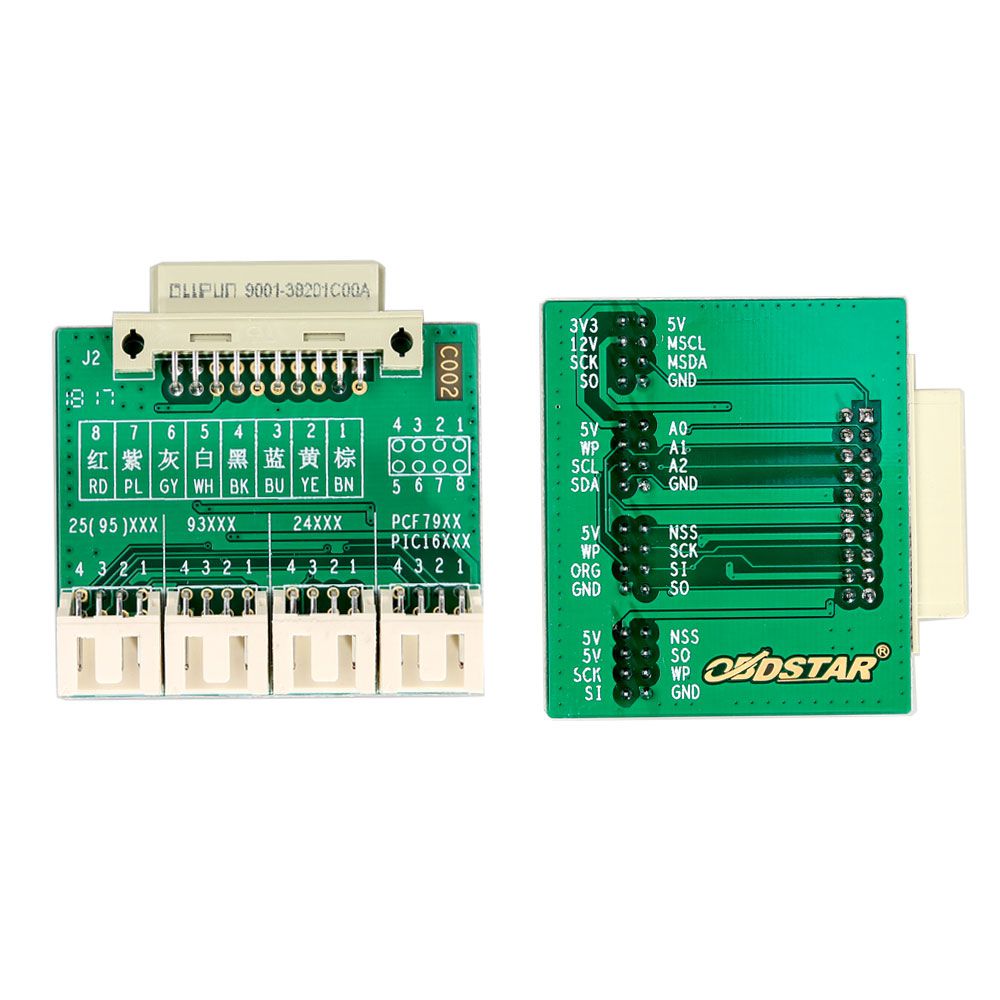

10. C001/C002 circuit board to read and write chip data with welding
11. IMMO induction coil to detect the key induction coil failure of the vehicle.
12. Add wiring harness of ECU reading by OBD (for ECU cloning and switch activation)

Software Advantages:

IMMO:
1. EEPROM
2. Renew Key
3. Key programming
4. Remote programming

Cluster Calibrate: wild vehicle coverage, pls check the carlist
Diagnosis: realize all vehicle systems diagnosis

Special Functions
TPS/ABS/EPB/DPF/TPMS/SRS Reset/Fuel Injector/Gear Learning/Battery Matching/ECU Programming/Throttle Matching/Oil/service reset/Steering Angle Reset/Remote Manual Setting/Electronic Steering Reset/CVT Learning/value Reset

ECU Clone
1. ECU Clone, means ECU duplication.
The device copies all the data from the original vehicle ECU, and then writes all
data copied into ECU with the same hardware to realize the same ECU function with the
original vehicle.

2. Clone directly when replacing a new or a used ECU!
Without online matching in 4S store or removal of ECU bonding wire for reading and writing! Directly write without dismantling OBD!

3. Three features for ECU Clone:
A. Free of 4S online: break monopoly from 4S, benefiting automobile maintenance industry
B. Simplified operation procedures: realize foolproof operation
C. Non-dismantling with zero risks: read and write data without dismantling ECU

Switch Activation Function

(Today many instruments or audio of vehicles activate secondary power supply to go into power-on status by relevant module CAN communication on the vehicle, but sometimes an instrument or an audio is separated from vehicle CANBUS network, causing startup failure when it needs to be repaired by an auto technician. This function can simulate CAN communication to activate secondary power supply, so the instrument or the audio enters into power-on status. In this way, it not only can test and verify the instrument or the audio, but also save an enormous cost for an auto technician to purchase a large number of startup platforms of various vehicles and wiring harnesses!)

Add“Help" Functions

1. including built-in testable vehicle models, upgrade announcement, features, help notes and wiring diagrams, etc.
2. Carlist and upgrade announcement, all details are available on the device
3. Customers can look up the features or uniquely support functions on the device
4. Help notes: built-in help notes for each model or function
5. Wiring diagrams: built-in ECU wiring diagrams, more intuitionistic and convenient

TECHNICAL PARAMETER

● Operation system: Android 5.1.1
● CPU: Exynos4418 Dual Core ARM Cortex A9 1.4GHz
● Battery: 3700mA, rechargeable polymer lithium battery
● Extension memory card: 32G Micro SD (TF) card supported
● Memory capacity:1GB
● Storage capacity: 32GB
● LCD: 8.0 inch
● LCD resolution: 1280*800
● Touch screen: Capacitive touch screen
● Camera: 5 mega rear view camera
● Wi-Fi: supported
● Working temperature: -10℃ ~ 55℃（14℉ ~ 131℉ ）
● Storage temperature: -20℃ ~ 70℃（-4℉ ~ 158℉ ）
● Weight: about 1.0 Kg
● Dimension: 254mm*174*mm*35mm

OBDSTAR Update Information:

Update Announcement on Aug 31st 2018 2018-08-31

GM/BMW ECU Programming
GM/Peugeot/Volvo ECU Clone
Toyota G&H chip/smart key all keys lost via OBDII
Benz S series cluster calibration (W221/W222/C216)
BMW FEM/BDC key programming (CAS coming soon)
Jeep Cherokee pin code reading & add key (2010-2016)
GM/Opel pin code reading via OBDII (most vehicles in 13-17)
Renault Dokker/Lodgy/Logan 2013-/Sandero 2013-/Koleos 11-16/Symbol 2013-2018 key programming
Hyundai/KIA new pin code reading (46/47/8A chip smart key)
Volvo pin code free & all keys lost via OBDII (non-proximity system)
Jeep challenger pin code reading & add key (smart key system 2014-)
FORD key programming for F150/Mondeo/Mustang/Explorer 2015- (within 2mins)
VW/Audi/Skoda/Seat MQB cluster calibration & NEC 24C64 2014- key programming
Peugeot/Citroen BSI & dashboard cluster calibration ( CONTINENTAL BSI-Q0X/ JC BSI04EV-K0X)

Update Announcement on Aug 24th 2018 2018-08-24

GM ECU Clone (Key Master DP Plus C Configuration)

1. Increased BOSCH 70F3558+24C32 read and write EEPROM、read and write FLASH
2. Increased BOSCH 70F3385+24C16 read and write EEPROM、read and write FLASH
3. Increased BOSCH 70F3469+24C16 read and write EEPROM、read and write FLASH
4. Increased DELPHI 70F3238+93C86 read and write EEPROM、read and write FLASH
5. Increased DELPHI 70F3379+93C86 read and write EEPROM、read and write FLASH
6. Increased CONTINENTAL 70F3469+95160(25160) read and write EEPROM, read and write FLASH
7. Increased CONTINENTAL 70F3558+95320(25320) read and write EEPROM, read and write FLASH

IMMO

Renault (Key Master DP/Key Master DP Plus)
Increased Koleos 11-16 key programming

Bentley (Key Master DP/Key Master DP Plus)
Support P001 programmer

GM Key Master DP/Key Master DP Plus
Support P001 Programmer

Key Master/Key Master DP/Key Master DP Plus
Optimize the text tips with‘obdstar’to be‘The third-party platform’

Porsche (Key Master/Key Master DP/Key Master DP Plus)
Solved the flash back in Cayenne type2 pincode reading and key programming

Changan (Key Master/Key Master DP/Key Master DP Plus)
Optimize Changan X70A car body system

FORD (F100/H100/Key Master/Key Master DP/Key Master DP Plus)
Solved the repeat request of security verification in FORD Explorer 11-15 key programming

BAIHC (Key Master/Key Master DP/Key Master DP Plus)
Increased Weiwang M50F 2017 smart key system

BMW (Key Master DP/Key Master DP Plus)
1. Solved the unstable problems in key learning
2. Updated the SWFL version to be ISTA64

Rongwei/MG (Key Master/Key Master DP/Key Master DP Plus)
1. Optimize the Rongwei I6 smart key system
2. Increased Rongwei 950(2012-) pincode reading

Nissan/Infiniti (F102/Key Master DP/Key Master DP Plus/Key Master
Optimize Nissan Note smart key system(cancel the byte judgement for 03 31 01 01)

VW/AUDI/SKODA/SEAT (Key Master DP/Key Master DP Plus)
Support P001 programmer

Toyota/Lexus (Key Master DP/Key Master DP Plus)
1. Released 4 Toyota simulation smart keys
2. Optimize the No.1 Toyota simulation smart key acquire IMMO data via internet(write key data)

Suzuki (F109/Key Master/Key Master DP/Key Master DP Plus)
Optimize the JIMNY menu in IM_JIMNY system

Opel (Key Master/Key Master DP/Key Master DP Plus)
1. Increased the pincode reading from BCM system
2. Increased Combo/Meriva remote system
3. Increased Astra G/Astra K/Cascada 2013/Combo 2012/Corsa-D 2005-/Frontera 1998-/Monteray 1996-/Signum /VX220/Zafira-B
Cavalier 1995-2004/Agila B -2009、2009-/Movano 2005-2010、2010- IMMO system

Baojun (Key Master/Key Master DP/Key Master DP Plus)
Optimize the text tips with‘obdstar’to be‘The third-party platform’

Mazda (F100/H100/Key Master/Key Master DP/Key Master DP Plus )
Optimize the text tips with‘obdstar’to be‘The third-party platform’

Traum (Key Master/Key Master DP/Key Master DP Plus)
Increased S70 car body system and smart key system

Lamborghini (Key Master DP/Key Master DP Plus)
Support P001 programmer

Key Renew (Key Master DP/Key Master DP Plus)

1. Support P001 programmer
2. Updated the ‘Help’text

Cluster Calibrate

VW (H110/VAG Pro/X300M/Key Master/Key Master DP/Key Master DP Plus B Configuration/C Configuration)
Increased security calculation types

GM (X300M/Key Master/Key Master DP/Key Master DP Plus B Configuration/C Configuration)
Optimize GMC Sierra 2015 communication time

Fiat / Ferrari (X300M/Key Master/Key Master DP/Key Master DP Plus B Configuration/C Configuration)
Increased the ‘Other’menu

Porsche (X300M/Key Master/Key Master DP/Key Master DP Plus B Configuration/ C Configuration)
Solved security verification problems in EEPROM reading of 2015 panamera

FORD
F100/H100/X300M/Key Master/Key Master DP/Key Master DP Plus B Configuration/ C Configuration
1. Increased Ranger2015-dashboard type SPC5645S+93C86
2. Optimize SPC5645S+93C86 type cluster calibrate

X300M/H100/Key Master DP/Key Master DP Plus B Configuration/ C Configuration
Increased KA R5F10 V1/KA R5F10 V2/KA R5F10 V3/Figo/Aspire 2016-2018 cluster calibrate

BMW (Key Master DP/Key Master DP Plus)
Increased FEM/BDC odometer reset

ECU Programming

BMW (Key Master DP Plus C Configuration)
1. First release EGS 8HP reset function
2. Increased FEM/BDC ECU programming

ECU Clone

Peugeot (Key Master DP Plus C Configuration)
1. Increased EOX EEPROM reading and writing
2. Increased H0X/K0X/KEX/N0X/P0X/Q0X/S0X/X0X BSI EERPOM and FLASH reading and writing

Switch Activation

Key Master DP Plus C Configuration
1. Increased Volvo S60 2011 and Land Rover Evoque 2016 dashboard activation
2. Revised all the wiring instruction
3. Improved ‘Help’section

EPB

VAG Pro/X200 Pro/Key Master Full Configuration/Key Master DP Full Configuration/Key Master DP Plus C Configuration
Increased vehicles as follow:
Bentley/Seat/Skoda/VW/FAW-VK/Shanghai Volkswagen
Zotye：SR9、SR7(2017)、E200、T300、T700、T600_COUPE、T600 sports
Changcheng：Hover H6 COUPE、Hover M6
JAC：Ruifeng A60、Ruifeng S7、Ruiying
Geely：Vision X6、EC7 series(emgrand、new emgrand)、emgrand EV、emgrand EV300、emgrand HEV、emgrand PHEV
Changan Ford： EDGE\GALAXY\S-MAX、Fiesta MY2013、Transit Connect、Transit Connect\Tourneo Connect、Transit\Courier
Citroen：C4、C4 SEDAN、C4 (B7)、C4 PICASSO、DS 4-DS 4 Crossback、DS 4S

APK Optimization

1. Solved the calculation bug
2. Clear login cache
