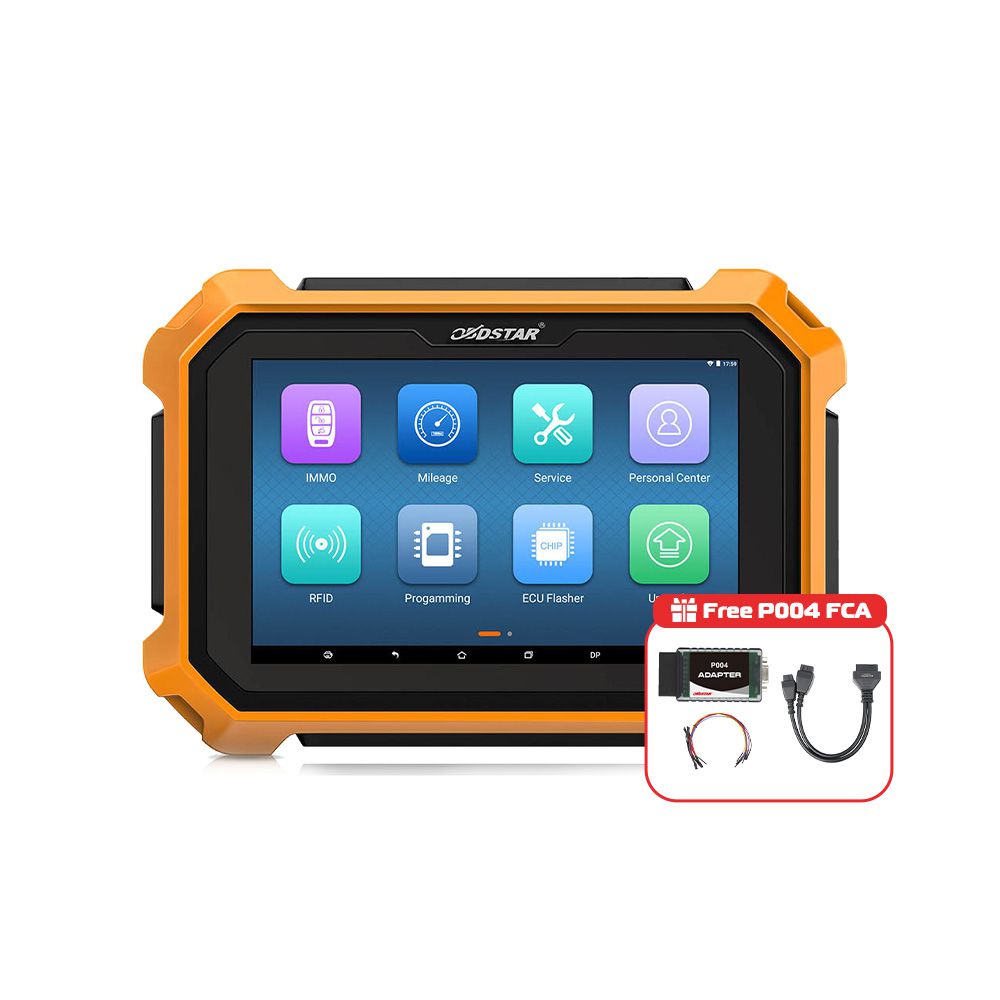

OBDSTAR X300 DP Plus X300 PAD2 C Package Full Version Get Free P004 Adapter and FCA 12+8 Adapter with 13 Months Free Update Online
Related Accessories/Similar Items
1. OBDSTAR X300 DP Plus X300 PAD2 C Package Full Version Functions:
Immobilizer+Mileage correction+Diagnosis+Special function (Oil rest +ABS+Battery matching+ECU programming+EPB+Throttle programming+Airbag rest+TPMS+Steering angle rest+OBDII+DPF+Injector code+Supension matching+Gear learning+CVT learning+EEPROM+Key renewing+ECU cloning)Adapter(P001 programmer+C001 circuit board+C002 circuit board+W001 data cable+W002 data cable+W003 data cable+TOYOTA smarkt key Emulator)+others(Ignition coil+Remote tester)
2. Support 2021 new GM system bypass pin code with a network connection.
3. It does a lot of 2021 Ford too with Ford AKL active alarm bypass cable.
4. Bypass TOYOTA Corrola 4A Promixty all keys lost 12 digit PIN.
5. Clone GM BCM.
6. You can buy the full adapter set and you get free motorcycle immo key learning. also PWC into.
7. Support mileage correction for wide coverage of cars.
8. With Free Renault Convertor in default package to make dealer key for Renault Talisman/Megane IV/Scenic IV/Espace V
9. Get Free Newest OBDSTAR P004 Adapter and Jumper to support airbag reset for various vehicles
10. Get Free FCA 12+8 Universal Adapter for new CHRYSLER, DODGE JEEP FIAT 2018+
11. Buy Now Get 13 Months Free Update Online, Limited 20pcs Only!!!
1. Language: English
2. Update: One Year Free Update Online, after the first year, it will cost $500 around for Update Service
3. If you had an OBDSTAR device and registered before, when you register a new OBDSTAR machine, please change another email.
Important OBDSTAR X300 DP Plus Update Information:
(2022-02) SUZUKI IMMO V30.83 and CHRYSLER/DODGE/JEEP V33.35 Update: Add Alivio Blade and Proximity\Program BCM\Program ECM\Clear Immobilizer information
(2022-03) Peugeot & Citroen & DS IMMO Upgrade to V32.51.
(2022-04) Nissan & Infiniti IMMO V32.28 Update: Support Nissan Kicks/Micra K14 proximity/Blade 22-Digit(Actually 20-Digit) Rolling Code Key Programming(Free Pincode)
Click here to View Latest Update Detail
OBDSTAR X300 DP Plus is a new Android-based vehicle trouble diagnostic device developed for internet applications. It inherits from OBDSTAR advanced diagnosing technology and it is characterized by covering wide range of vehicles, featuring powerful function, and providing precise result. Through vehicle diagnostic OBD connector and variant mobile intelligent terminals, it achieves vehicle trouble diagnosis for full car model and full system vehicle.Meanwhile, taking advantage of mobile internet, this device integrates more application and service, such as Maintenance Database, remote assistant, One Key Upgrade etc.
OBDSTAR X300 DP Plus Hardware Features:
1. The built-in VCI box offers more stable communication.
2. The 8" touch screen offers better vision experience.
3. Allow the user to charge by the OBD port of car. Not like the X300 DP 7" Pad, which need to be 100% charged before use.
4. With specialized toolkit, high grade and practical.
5. Industrial -grade design, comes with the silicone sleeve
6. The back bracket allows the user to hang it on the steering wheel or stand on the table, which brings great convenience to the operator.
7. Comes with TOYOTA Lexus Emulators (The first 4 pieces are already released, and the 5th one is under development)
8. The following 3 adapters are integrated into the X300 PAD plus: EEPROM /PIC 2-in-1 adapter, RFID adapter (VW Audi 4th / 5th IMMO programming and other cars e.g Porsche, BMW, Fiat etc.) and Renew Key PCF79XX adapter.
9. Adds the clip for reading SOP 8PIN EEPROM.
10. C001/C002 circuit board to read and write chip data with welding
11. IMMO induction coil to detect the key induction coil failure of the vehicle.
12. Adds the cables for reading ECU via OBD (Used to clone ECU and active the switch).
OBDSTAR X300 DP Plus Functions: (Software Keep Updating):
2. Renew Key
3. Key Programming
4. Remote programming
Cluster Calibrate: wild vehicle coverage
Diagnosis: realize all vehicle systems diagnosis
Obdstar X300DP PLUS Key Master support TPS/ABS/EPB/DPF/TPMS/SRS Reset/Fuel Injector/Gear Learning/Battery Matching/ECU Programming/Throttle Matching/
Oil service reset/Steering Angle Reset/Remote Manual Setting/Electronic Steering Reset/CVT Learning value Reset

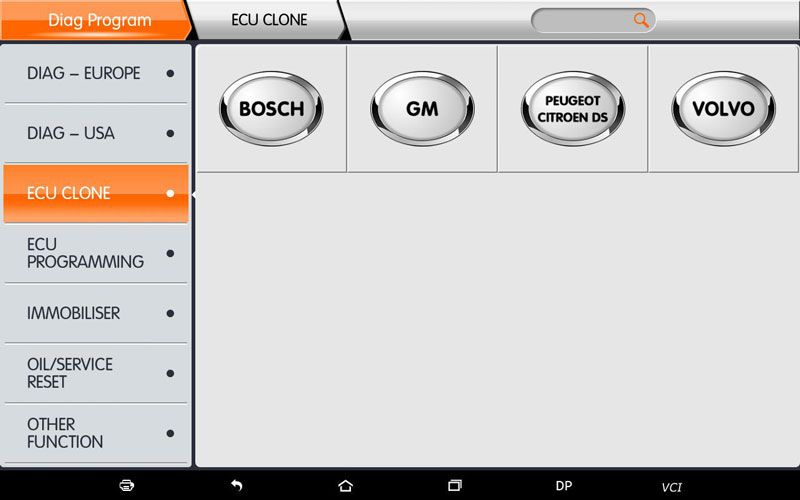

1. ECU Clone, means ECU duplication.
Obdstar key master copies all the data from the original vehicle ECU, and then writes all data copied into ECU with the same hardware to realize the same ECU function with the original vehicle.
2. Clone directly when replacing a new or a used ECU!
Without online matching in 4S store or removal of ECU bonding wire for reading and writing! Directly write without dismantling OBD!
3. Three features for ECU Clone:
A. Free of 4S online:
break monopoly from 4S, benefiting automobile maintenance industry
B. Simplified operation procedures: realize foolproof operation
C. Non-dismantling with zero risks: read and write data without dismantling ECU
Switch activation function
Nowadays, many car models' secondary power supply of the dashboard or audio equipment needs to be activated to enter the boot status through the related module CAN.
However, when the car technician maintains the dashboard / audio equipment, the main unit is out of the CANBUS network so it maybe won't boot. X300 DP plus " switch activation function" can emulate the CANBUS communication to active the power supply of dashboard / Audio so that it can enter the boot status, then it will test and verify the dashboard and the Audio, also the technician can save money avoiding to purchase many the boot platform and cables of kinds of car models.
Adds the "Help" function
including the testable car models, update notice, special features, help instruction, wiring diagram etc.
Testable car models: The user can read the testable car models and year.
Update notice: The user can read all of the update content.
Features: The user can read all of the special features and the functions that only X300 DP Plus supports.
Help instruction: Built-in the guide and instruction for each car model or function.
Wiring diagram: Built-in ECU wiring diagram, more intuitive and convenient.
OBDSTAR X300 DP Plus Software Update Instruction:
It is easy to update OBDSTAR X300DP Plus Software, Enter the main interface, you can find "Upgrade", Enter "Upgrade" and will show your local latest version and the latest version which you can update. Just choose the software you want to update or bulk update.
OBDStar X300DP Plus Lastest Update:

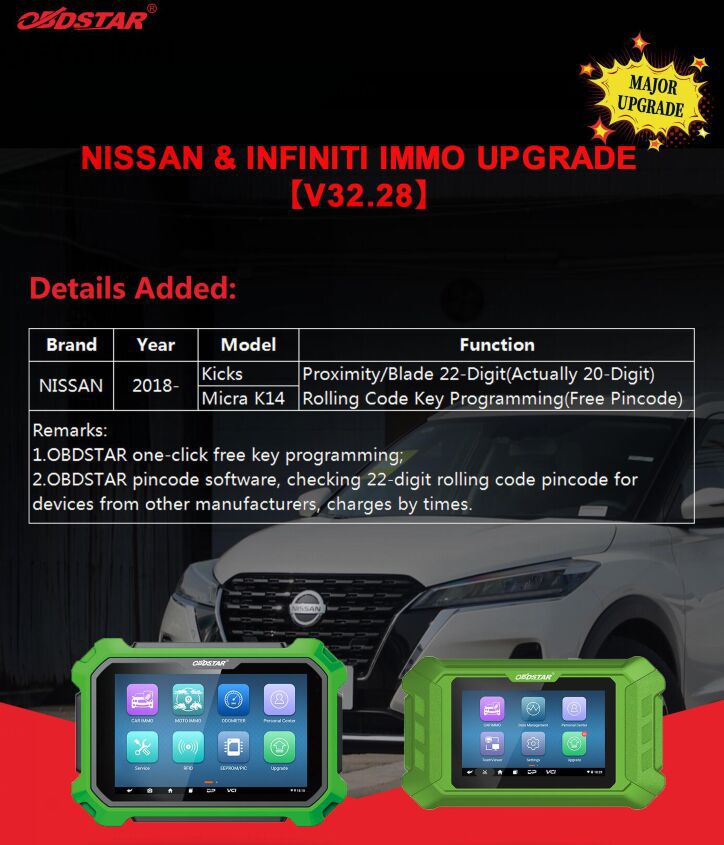

OBDSTAR NISSAN & INFINITI IMMO UPGRADE [V32.28] (2022-04)
Nissan & Infiniti IMMO V32.28 Update:
Support Nissan Kicks/Micra K14 proximity/Blade 22-Digit(Actually 20-Digit) Rolling Code Key Programming(Free Pincode)
OBDSTAR Peugeot & Citroen & DS IMMO V32.51 Update (Mar.2022)
1.Add PSA DCM7.1, MD1, MG1, EDC17C60, V56 Read pin code,Supports China VI, European VI, Delphi BSI mode all keys lost read pin code
2.Peugeot 2008 2019-2021 blade/proximity key programming
3.Citroen C3 Aircross 2017-2021 proximity key programming
4.Citroen C5 Aircross 2018-2020 proximity key programming
OBDSTAR SUZUKI V30.83 Update (Feb.2022)
1.SUZUKI:Add Alivio Blade and Proximity\Program BCM\Program ECM\Clear Immobilizer information; Add Swift 2011-2020 Program BCM\Program ECM\Clear Immobilizer information.
2.MARUTI:Add Program ECM/BCM.
3.Optimized GEELY, SMART software
CHRYSLER/DODGE/JEEP IMMO V33.35 Update (Feb.2022)
1. Add JEEP COMPASS 2021 proximity type 2 read pincode.Remarks: works with FCA 12+8 cable.
Different among OBDSTAR X300 DP Plus C Package (Full Version), A Package and B Package:
OBDSTAR TOYOTA IMMO UPGRADE V32.60 (Dec, 2021)
Add 4A proximity key programming (free pincode) , Read IMMO data(BENCH) , Make simulated card , Add keys , Erase keys , Reset smart box(all keys lost) , Program ID Box With Steering Lock for below models: COROLLA(Chassis：MZEA11、MZEA12、NRE210、ZRE) 2019-COROLLA CROSS 2021 COROLLA CROSS HV 2021COROLLA SPORT 2021 COROLLA SPORT HV 2021 COROLLA TOURING 2021 COROLLA TOURING HV 2021 COROLLA HV(Chassis：ZWE211) 2021 LEVIN(Chassis：MZEA11、NRE210、ZRE) 2019- LEVIN HV(Chassis ZWE211、ZWE) 2021 ALLION 2021 LIVIN 2021.
1. works with Key SIM & multi-functional jumper
2. Two Methods for all keys lost
Method 1 : Add a new key via Key SIM(no risk)
Method 2 : Reset smart box to program a new key ( the original key will be erased )
3. If remote control doesn't work after adding a new key , pls execute Program ID Box With Steering Lock.
OBDSTAR HYUNDAI IMMO UPGRADE【V31.30】
1.Add Sonata(DN8C) 2020- proximity(HITAG3/ID47 ) read pincode by OBD
2.Add Mistra(DU2) 2020- proximity(HITAG3/ID47 ) read pincode by OBD
OBDSTAR Toyota IMMO V32.45 Upgrade( June,2021)
OBDSTAR Toyota IMMO Upgrade to V32.45, Support 8A H non-smart transponder no need to disassemble or replace the immo box all keys lost programmming for RAV4, HILUX, CROWN, KLUGER, COROLLA, CAMRY, LEVIN, PRADO, REIZ.
Need to work with P002 Adapter,Key SIM, Toyota-1/2 Cable,multi-functional cable.
Ford/Lincoln/Mustang IMMO V34.45 Update ( June,2021)

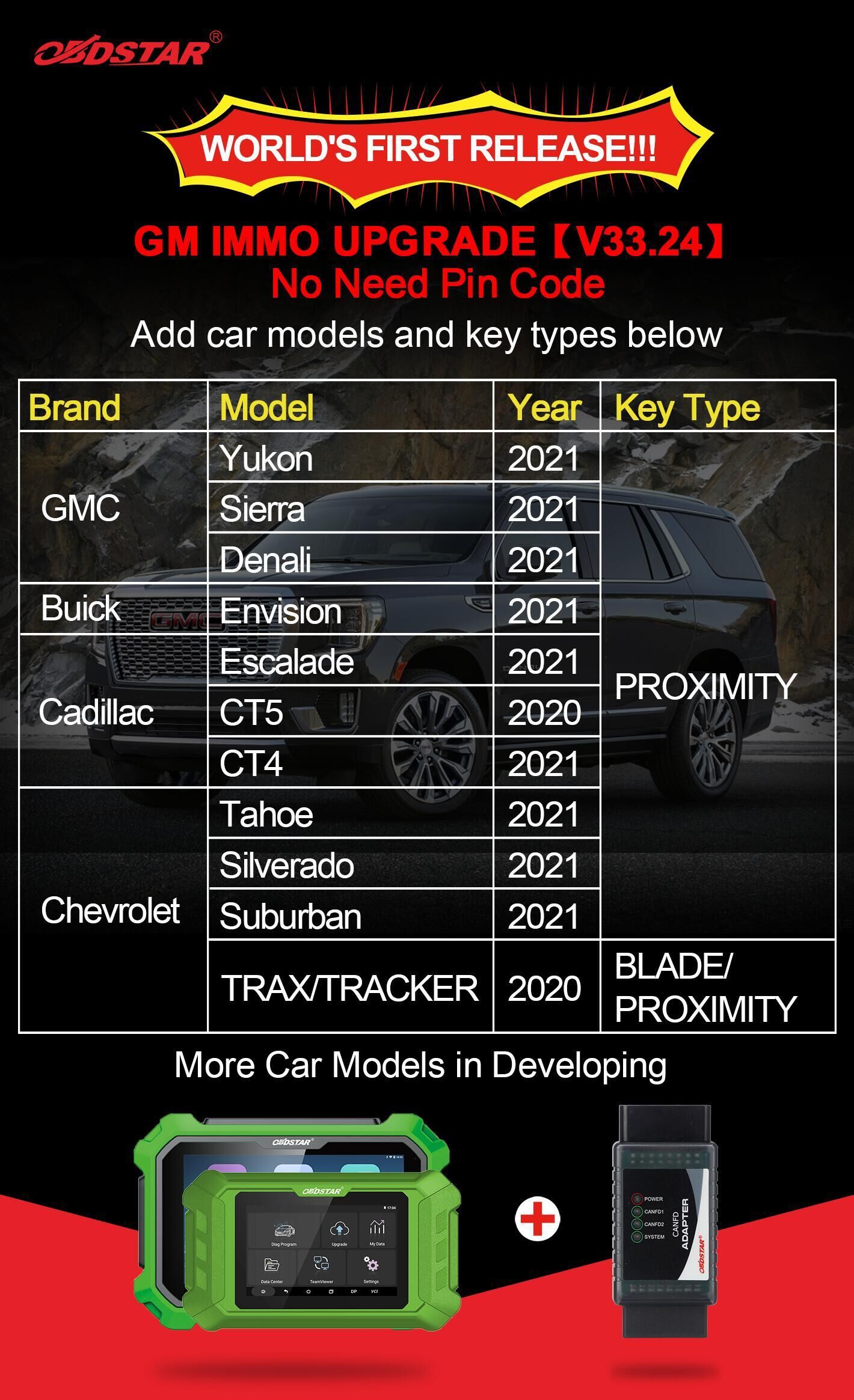

OBDSTAR World's First Relase GM IMM Upgrade V33.24, Support Lastest GM 2021 Vehicle, No need Pin Code
Please note that: It need work with OBDSTAR CAN FD Adapter
Key Type Proximity:
GMC Yukon/Sierra/Denali 2021
Buick Envision 2021
Cadillac Escalade/CT5/CT4 2021
Chevrolet Tahoe/Silverado/Suburban 2021
Key Type Proximity/Blade:
Chevrolet TRAX/TRACKER 2020
More Update History: Obdstar X300DP Plus Update
OBDSTAR X300 DP Plus vs OBDSTAR X300 DP PAD:
OBDSTAR X300 DP Plus have back holder, it can work separately without VCI and Charged by OBD2.
Wiring harness for new functions, such as ECU cloning and switch activation
ECU clone switch activation function
Help function-covers built in support car list,upgrade announcement,help notes and wiring diagrams
|OBDSTAR X300DP Plus||A package||B package||C package|
|Immobilizer / Remote programming||European cars||VW/Audi/Skoda/Seat (Standard)||√||√||√|
|VW/Audi/Skoda/Seat (Advanced)||√||√||√||add NEC 24C64 2014-key programming.|
|BMW (Advanced)||√||√||√||Add FEM/BDC key programming, ISN code reading etc.|
|The other European cars||√||√||√|
|Asian cars||Hyundai /Kia (Standard)|
|Hyundai /Kia (Advanced)||√||√||√||Add 47/8A/46 smart key pin code reading|
|Toyota /Lexus (Standard)|
|Toyota /Lexus (Advanced)||√||√||√||For Middle east cars, it adds H chip all keys lost (Immo box reset)|
|The Asian cars||√||√||√|
|North American cars||Ford(Standard)|
|Ford (Advanced)||√||√||√||Add Ford after 2015 key programming functions, I.E: Mobdeo,Edge,Taurus,Escort,EVEREST,Explorer,F-150 SVT Raptor,Mustang,Lincoln MKZ, MKC and Continental 2015 - etc.|
|The other American & Chinese cars||√||√||√||Can perform BMC pin code reaing on these cars: -2017 Lacrosse,Lacrosse, Trax,Envision, GL8,MALIBU,AVEO,Excelle before 2015,Cruze etc.|
|Cluster Calibration||All cars cluster calibration||√||√|
|4-system diagnosis||Engine, Transmission, ABS, airbag reset|
|OBDII Diagnosis||Full functions diagnosis||√||Full-system all-cars diagnosis|
|Special function||Oil service reset||√||Reset the Oil Service Light on|
|Manual remote setting||Some cars only supports manual remote setting.|
|ABS bleeding||√||After replace the ABS pump and related components.|
|Battery matching||√||After the battery is changed, you need to match the battery.|
|The car with EPB replace brake pads||√||Electronic Parking Brake release|
|Throttle programming||√||Used to clear the learning value after cleaning the throttle, otherwise it will cause high idle speed.|
|Airbag reset||√||Used to clear airbag ECU collision data after a vehicle collision, otherwise the ECU cannot be reused|
|TPMS reset||√||Used for reset after tire pressure alarm|
|Steering angle reset||√||Replacement of data lost after steering angle change or power off|
|OBDII Engine||√||Used to diagnose the car with OBD protocol.|
|DPF Regeneration||√||Diesel Particulate Filter Operational|
|Injector coding||√||Used to match and code the injector after replacement|
|Suspension match||√||Used to match and set the suspension after adjusting.|
|Gear learning||√||Used to learn the crankshaft position sensor after power off (only the domestic vehicle equipped with the Delphi system has this function)|
|CVT learning||√||Used to reset the learning value after maintenance of CVT transmission|
|EEPROM||√||Read and write the eeprom; read 8-pin IC chip password and reset some models anti-theft|
|Key Renew||√||Renew the used keys to solve the problem that used keys cannot be matched to other models|
|Steering angle repair||√||Used for the repair of lost data of vehicle steering angle sensor|
|ECU Clone||√||Used for copying the program when replacing the new/second-hand computer.|
|Hardware||P001 Programmer unit||√||√||√|
|C001 circuit board||√||√||√|
|C002 circuit board||√||√||√|
|W001 data cable||√||√||√|
|W002 data cable||√||√||√|
|W003 data cable||√||√||√|
|Toyota smart key emulators||√||√||√|
|Anti-theft Induction coil||√||√||√||Used to test if the coil can send out the transmit signal.|
OBDSTAR X300 DP Plus Technical Parameter:
● Operation system: Android 5.1.1
● CPU: Exynos4418 Dual Core ARM Cortex A9 1.4GHz
● Battery: 3700mA, rechargeable polymer lithium battery
● Extension memory card: 32G Micro SD (TF) card supported
● Memory capacity: 1GB
● Storage capacity: 32GB
● LCD: 8.0 inch
● LCD resolution: 1280*800
● Touch screen: Capacitive touch screen
● Camera: 5 mega rear view camera
● Wi-Fi: Supported
● Working temperature: -10℃ ~ 55℃（14℉ ~ 131℉ ）
● Storage temperature: -20℃ ~ 70℃（-4℉ ~ 158℉ ）
● Weight: about 1.0 Kg
● Dimension: 254mm*174*mm*35mm
OBDSTAR X300 DP Plus FAQs:
A1: Is your device expired 1 year free update?
Q2: And how much the price if the subscription was already expired?
A2: You can get this subscription service here: OBDSTAR X300 DP Plus One Year Update Service
Q3: If we can use the adapter rfid, instead of the adapter p001 with obdstar x300dp
A3: P001 adapter= EEPROM adapter + RFID adapter + Key Renew adapter
OBDSTAR X300 DP Plus X300 PAD2 Package List:
1pc x Key Master DP Plus Unit
1pc x Main Wire
1pc x 12V2A DC Charger
1pc x KIA-20
1pc x OBD II-16 Connector
1pc x HONDA-3
1pc x HYUNDAI/KIA-10
1pc x IMMO Induction Coil
1pc x Muti-functional Jumper
1pc x P001 Programmer Unit
1pc x C001/C002 Circuit Board
1pc x W001/W002/W003/RT100
1pc x Configuration List/Certificate/Quick Start Guide Fold
1pc x Renault Convertor
- Related Items
- Recommond Tools
- Hot Sale
- On Sale
- New Arrivals
- Freeshipping Items
US$999.00 / piece
US$519.00 / piece
US$229.00 / piece
US$749.00 / piece
US$79.00 / piece
US$1,499.00 / piece
US$249.00 / piece
US$89.00 / piece
US$579.00 / piece
US$38.96 / piece
US$599.00 / piece
US$819.00 / piece
US$69.99 / piece
US$1,760.00 / piece
US$929.00 / piece
US$69.99 / piece
US$589.00 / piece
US$1.90 / piece
US$16.99 / piece
US$169.00 / piece
US$94.00 / piece
US$135.00 / piece
US$2,279.00 / piece
US$679.00 / piece
US$298.00 / piece
US$1,690.00 / piece
US$49.99 / piece
US$459.00 / piece
US$2,054.00 / piece
US$289.00 / piece
US$12.99 / piece
US$40.99 / piece
US$39.00 / piece
US$15.99 / piece
US$32.99 / piece
US$129.00 / piece
- US$999.00 / piece
- US$799.00 / piece
- US$649.00 / piece
- US$55.00 / piece
- US$139.00 / piece
- US$1,479.00 / piece
