2024 Autel MaxiCOM MK908 PRO II Automotive Diagnostic Tablet Support Scan VIN and Pre&Post Scan

Autel MaxiCOM MK908 PRO II is an advanced 10.1-inch touchscreen diagnostic tablet powered by a octa-core processor with storage memory of 128GB and runs on Android 10. The MK908 PRO II can read/erase codes on all available systems, perform bi-directional active tests, view freeze frame, view and graph live data, and perform adaptations and coding on U.S., Asian and European vehicles, 1996 and newer.

Autel MaxiCOM MK908P II Highlights:

1) Upgraded version of Autel MK908/MS908SP/MK908P
2) Global Version, No Area Restriction, 1 Year Free Online Update
3) 13+Language Supported: English, German, Spanish, French, Traditional Chinese, Japanese, Polish, Portuguese, Russian, Italian, Korean, Dutch, and Swedish

4) Advanced Diagnostic Scanner for ECU Programming: Autel MK908P II has been designed to perform some of the most complicated engine diagnostics and reprogramming in BMW and Mercedes Benz.

5) Bi-Directional Control & Broad Vehicle Coverage: Autel MK908P II is an advanced bi-directional scan tool that can access and scan all available systems on 80+ makes and models to perform OE level diagnostics.

7) AutoAuth Access & Cloud Service: Autel MK908P II scanner supports "AutoAuth" gateway access on 2018 and newer Fiat Chrysler vehicles, such as Chrysler, Dodge, Jeep, etc, still growing.

8) Share reports easily via email and text and Wi-Fi printing
9) Compatible with Some Add-ons: Combination with Oscilloscope Maxi Scope MP408 and Digital Inspection Cameras MV108, Affordable combination of MS908P and TS601 supports TPMS programming.
10) Support Australia Holden and Ford

* Software: MK908P II comes with online ECU Programming+ ECU Coding+ Matching+ Bidirectional Control (Active test)+ 36 service functions + Module Replacement+ Customization+ Personalization+ Guided Functions+ Programmable Module Installation+ Power Balance+ Component Matching+ Online Parameterization+ Online Account Loging Service.
* Hardware: 128GB on board storage capacity+ 15000 mAh battery + 10.1-inch LED screen with 1920x1200 resolution +Open source Android 10.0 Operating System+Powerful Qualcomm 660 Octa-core Processor



Autel MaxiCOM MK908P II Functions:

Enhanced ECU Coding

MK908P II advanced diagnsotic tool comes with advanced ECU coding & online ECU coding capability (on the majority of Volkswagen) to make full use of the hidden features like auto park, tilting rear-view mirrors, unfolding mirrors, customizing daytime running light, disabling auto engine start-stop and etc depending on the electronic features already built-in.

Bi-Directional Control/Functional Tests/ Active Tests/ Actuation Tests

- Unlike conventional scanners, MK908P II users can get access to the vehicle-specific subsystem and component parts, and output commands to the related ECU, thus driving the actuators to perform a specific function for determining the integrity of the system or parts by reading the engine ECU data, or by monitoring the operation of the actuators, such as switching a solenoid, relay, or switch, between two operating states.

OE-Level Diagnosis, Read & Clear Codes on All Available Modules

Autel MaxiCOM MK908P II, as a professional scan tool and upgraded version of Autel MK908/MS908SP/MK908P, it can access wirelessly via VCI connection ALL available vehicle modules including but not limited to PCM, ECM, EPS, PDM, BCM, TPM, SCCM, RADIO and etc. With complete capability for codes, it can read and clear codes on all systems and subsystems and be able to show live PID data of multiple sensors in graph or text.

MK908P II car diagnostic tool can perform OE-Level diagnosis on all car electronic systems like ABS, SRS, Engine, Transmission, Brake System and etc that you can find only on most sophisticated scan tools.With complete capabilities for codes, live data, active test, ECU information, adaptation, matching and etc.

IMMO Keys/ Key Fob Programming

Autel MaxiCOM MK908P II car diagnostic tool has IMMO Keys function(Key Fob Programming). It can clear information of lost keys, key relearn and perform key fob/remote programming to add new keys for a family and perform key button tests to test key functions, so as to prevent your cars from being stolen.

36+ Service Functions

Autel MK908P II provides mechanics/ technicians/ repair shops/ workshops with various daily auto maintenance, such as Resets, Relearns, Adaptations, Initializations, Matching, Calibrations, Adjustments, etc. Cover 99% maintenance needs in workshops.

1. Oil Reset: Reset the oil life system.
2. EPB Reset: Help replace and reset the brake pad.
3. TPMS (Indirect) Reset: Reset the tire pressure.
4. BMS Reset: register the battery after replacement.
5. ABS Bleeding: Help exhaust the air in the Anti-lock Braking System (ABS).
6. Anti-theft Matching: Disable, delete, or match keys. *ONLY for vehicles with low-grade anti-theft systems.
7. Injector Coding: Write the new injector code into the ECU of the Engine for the correct cylinder injection quantity.
8. SAS Reset: Perform zero calibration for the steering angle sensor to solve the problem of vehicle deviation.
9. Suspension Calibration: Adjust the vehicle body height sensor for level calibration.

Other maintenance functions include Throttle Matching, Windows Calibration, Seat Calibration, Odo Reset, Language Change, AFS Reset, Tire Reset, Tooth Learning, ABSSRS (Security System Functions), Cylinder Power Balance, VGT Learning, Speed & PTO, Clutch Learning, A/T Learning, Airbag Reset, A/F Reset, VIN, ACC, HV Battery, Transport Mode, A/C, Rain/Light Sensor … (Updating for more)

Comparison Sheet of MK908PRO vs MK908PRO II:

	Autel MaxiSys MS906BT	Autel MaxiCOM MK906Pro	Autel MaxiCOM MK908P	Autel MaxiCOM MK908P II	Autel MaxiSys Elite II
Operating System	Android 4.4.2, KitKat	Android 7.0	Android 4.4.2, KitKat	Android 10.0	Android 7.0
Memory	2 GB RAM & 64 GB ROM	4GB RAM & 128GB On-board Memory	2GB RAM & 64GB On-board Memory	4GB RAM & 128GB On-board Memory	4GB RAM & 128GB On-board Memory
Processor	Samsung Exynos T5260 6-Core Processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15)	Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)	Samsung Exynos hexa-core Processor (1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15)	Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)	Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
Display	8.0" LED capacitive touch screen with 1024x768P resolution	8 inch TFT-LCD with 2732 x 2048 resolution & capacitive touch screen	10.1-inch LED screen with 1920x1200 resolution	10.1-inch LED screen with 1920x1200 resolution	9.7 inch LED capacitive touch screen with 2048x1536 resolution
Camera (rear)	Rear-facing, 8.0 Megapixel AF with Flashlight	Rear: 16 Megapixel, Autofocus with Flashlight Front: 5 Megapixel	8.0 Megapixel, AF with Flashlight	16 Megapixel, AF with Flashlight	Rear: 16 Megapixel, Autofocus with Flashlight Front: 5 Megapixel
Battery	10000mAh	11600mAh	15000mAh	15000mAh	15400mAh
Service Functions	36+	36+	36+	36+	38+
All System Diagnostics	√ Read/Clear Codes, ECU Info., Live Data, Active Tests (Bi-Directional Control), Special Functions…	√ Read/Clear Codes, ECU Info., Live Data, Active Tests (Bi-Directional Control), Special Functions…	√ Read/Clear Codes, ECU Info., Live Data, Active Tests (Bi-Directional Control), Special Functions…	√ Read/Clear Codes, ECU Info., Live Data, Active Tests (Bi-Directional Control), Special Functions…	√ Read/Clear Codes, ECU Info., Live Data, Active Tests (Bi-Directional Control), Special Functions…
Coding	Online Coding for BMW, Porsche, VW, Nissan, Nissan-GTR, Infiniti, Hyundai; Refresh Hidden Features for BMW, VW, Audi, Skoda; Offline Coding for Ford, Mazda, Jaguar, Vauxhall, Opel	Online Coding for BMW, Porsche, VW, Nissan, Nissan-GTR, Infiniti, Hyundai; Refresh Hidden Features for BMW, VW, Audi, Skoda; Offline Coding for Ford, Mazda, Jaguar, Vauxhall, Opel	Online Coding for BMW, Audi, Porsche, VW, Nissan, Nissan-GTR, Infiniti, Hyundai; Online SCN for Benz; Refresh Hidden Features for BMW, VW, Audi, Skoda; Offline Coding for Ford, Mazda, Jaguar, Vauxhall, Opel	Online Coding for BMW, Audi, Porsche, VW, Nissan, Nissan-GTR, Infiniti, Hyundai; Online SCN for Benz; Refresh Hidden Features for BMW, VW, Audi, Skoda; Offline Coding for Ford, Mazda, Jaguar, Vauxhall, Opel	Online Coding for BMW, Audi, Porsche, VW, Nissan, Nissan-GTR, Infiniti, Hyundai; Online SCN for Benz; Refresh Hidden Features for BMW, VW, Audi, Skoda; Offline Coding for Ford, Mazda, Jaguar, Vauxhall, Opel
Programming			Online Programming for BMW & Benz	Online Programming for BMW & Benz	Online Programming for BMW & Benz

Product Specifications:

Operating System	Android™ 10.0
Processor	Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)
Memory	4GB RAM & 128GB On-board Memory
Display	10.1-inch LED screen with 1920x1200 resolution
Connectivity	Wi-Fi (802.11 a/b/g/n/ac) USB 2.0 (2 USB TYPE-A ports and a Mini USB port) BT V5.0 + BR/EDR SD Card (Support up to 64GB) HDMI
Camera (rear)	16 Megapixel, AF with Flashlight
Sensors	Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output	Microphone Dual Speakers 3-Band 3.5 mm stereo/standard headset jack
Battery	11000mAh
Input Voltage	12V (9-24V)
Power Consumption	6.5 W
Operating Temp	0 to 50°C (32 to 122°F)
Storage Temp	-20 to 60°C (-4 to 140°F)
Housing	Strong plastic housing with protective rubber boot
Protocols	ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN

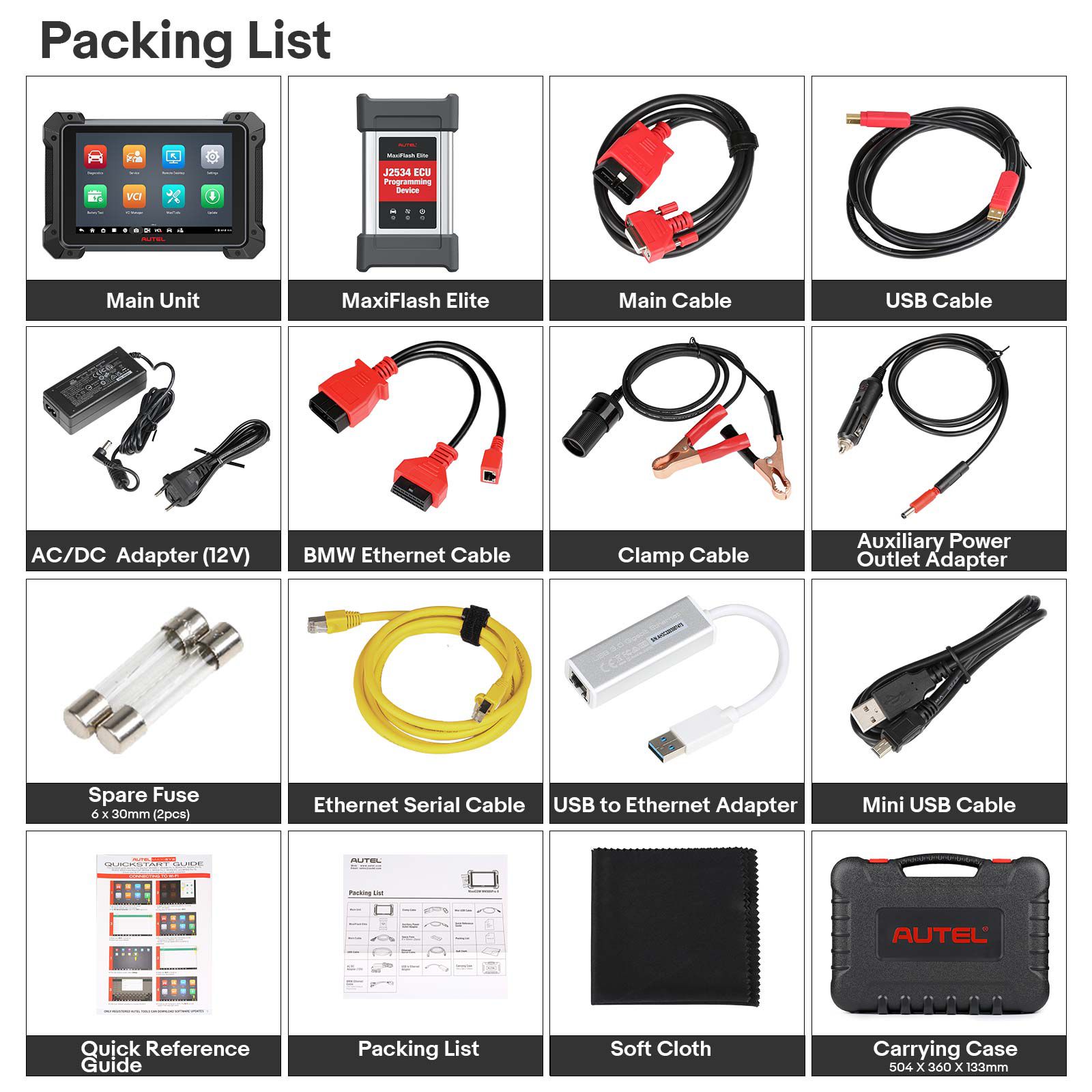

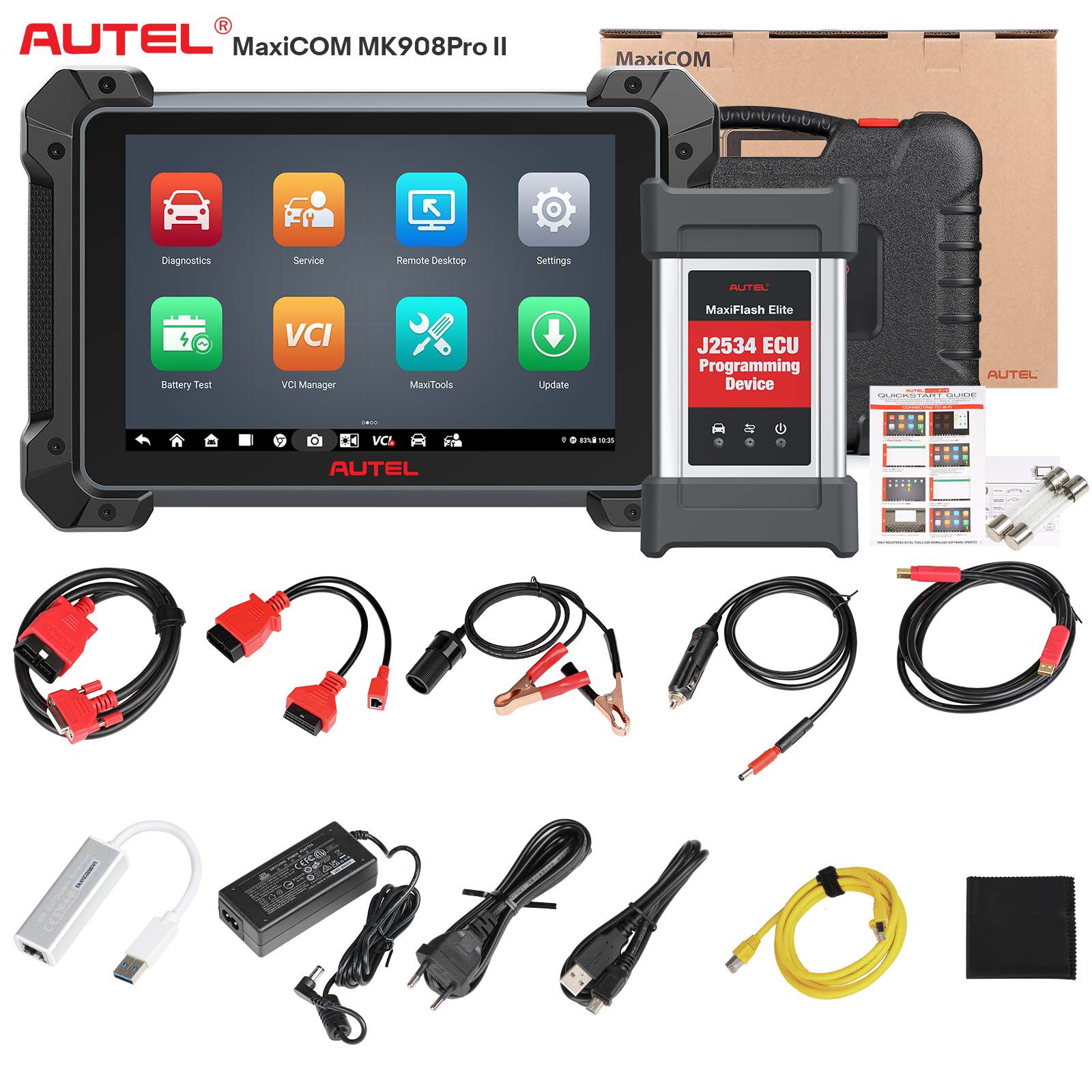

1pc x main unit,

1pc x clamp cable,

1pc x mini USB cable,

1pc x MaxiFlash Elite,

1pc x auxiliary power outlet adapter,

1pc x quick reference guide,

1pc x main cable,

2pcs x spare fuse(6*30mm),

1pc x packing list,

1pc x usb cable,

1pc x Ethernet serial cable,

1pc x soft cloth,

1pc x 12V AC/DC adapter,

1pc x USB to Ethernet adapter,

1pc x Carrying Case(504*360*133mm)

1pc x BMW Ethernet cable(For series coding&programming)
