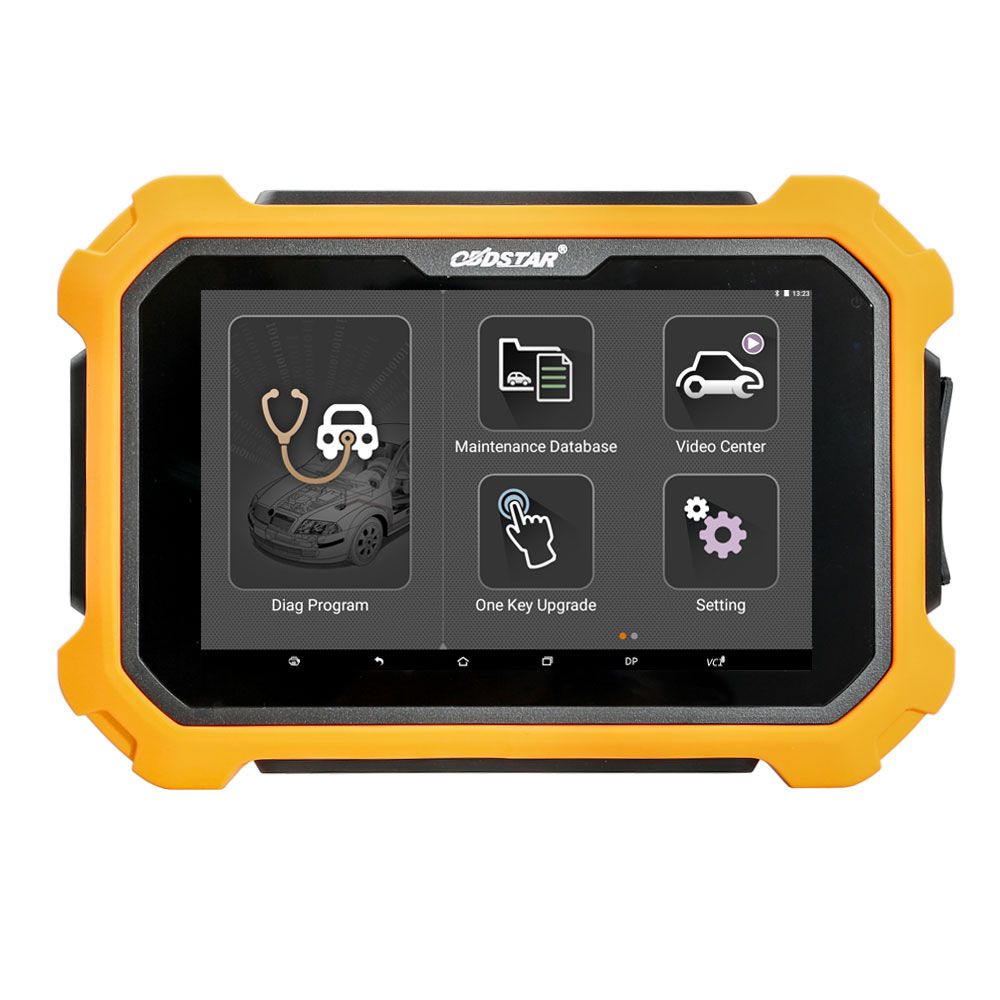

OBDSTAR X300 DP Plus X300 PAD2 A Package Basic Version – Immobilizer + Special Functions

This device is a new Android-based vehicle diagnostic tool developed for internet-connected applications. It builds on OBDSTAR’s advanced diagnostic technology and offers wide vehicle coverage, powerful functionality, and precise results. Using the vehicle’s OBD connector and compatible mobile intelligent terminals, it delivers full-system diagnostics across all supported car models.

Leveraging mobile internet connectivity, the device integrates additional services such as a Maintenance Database, Remote Assistant, and One-Key Upgrade features.

Update Policy: One year of free online updates included. After the first year, update cost is $379 USD/year.

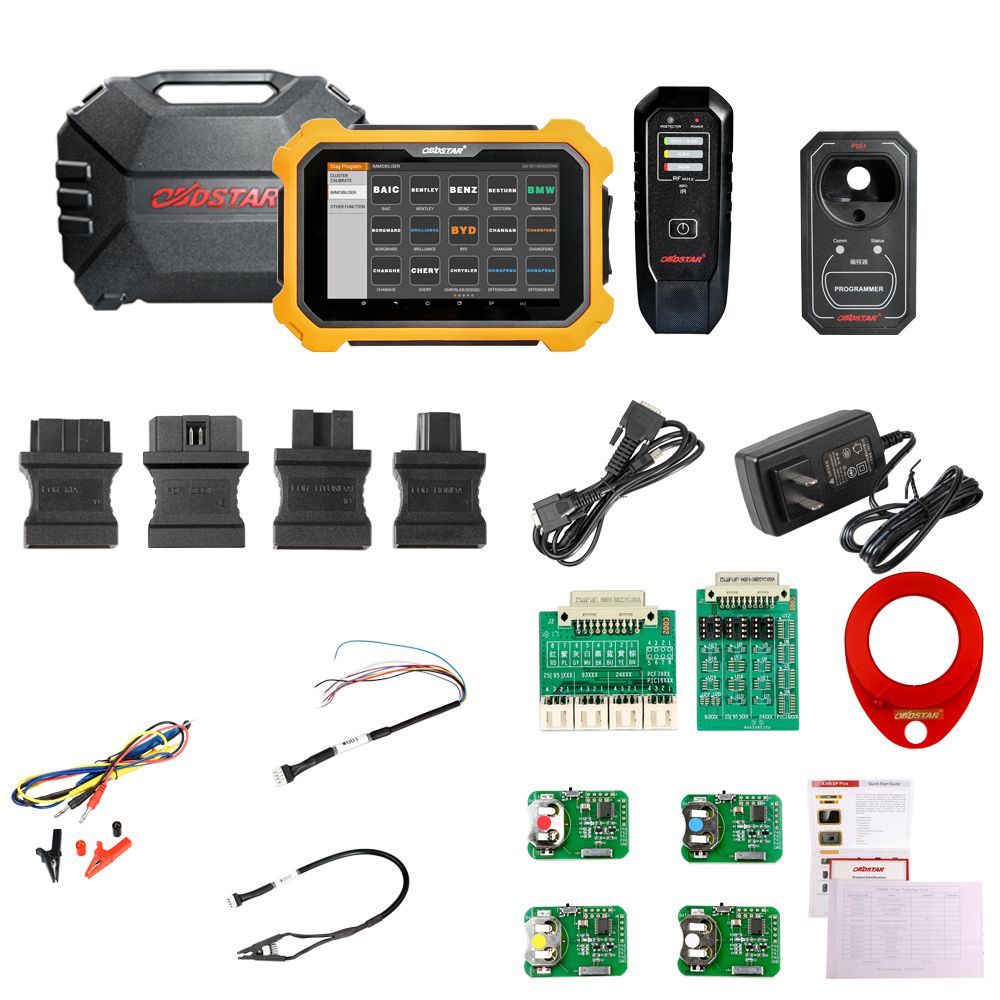

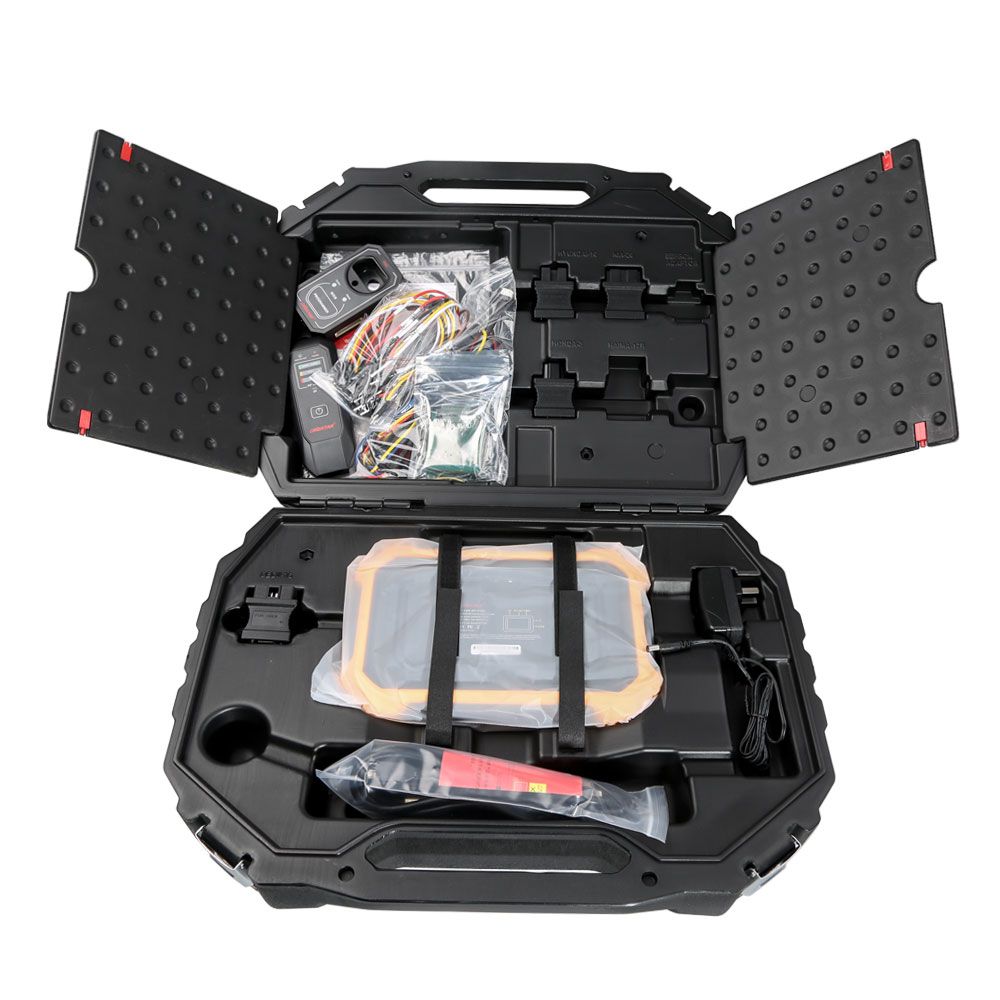

OBDSTAR X300 DP Plus X300 PAD2 A Package Contents

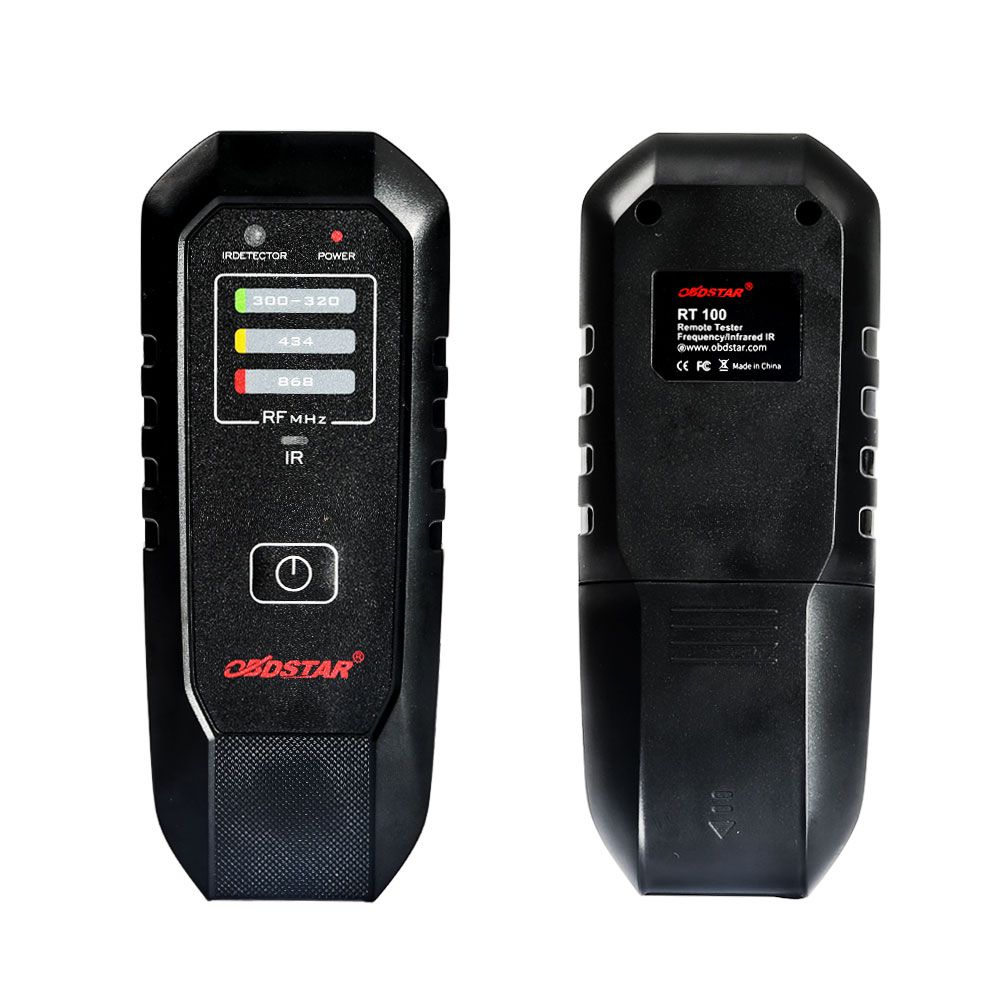

Immobilizer + Special Function (EEPROM + Key Renewing) Adapter (P001 Programmer + C001 Circuit Board + C002 Circuit Board + W001 Cable + W002 Data Cable + W003 Data Cable + Toyota Smart Key Emulator) + Others (Ignition Coil + Remote Tester)
Click for OBDSTAR X300 DP Plus User Manual

Hardware Advantages

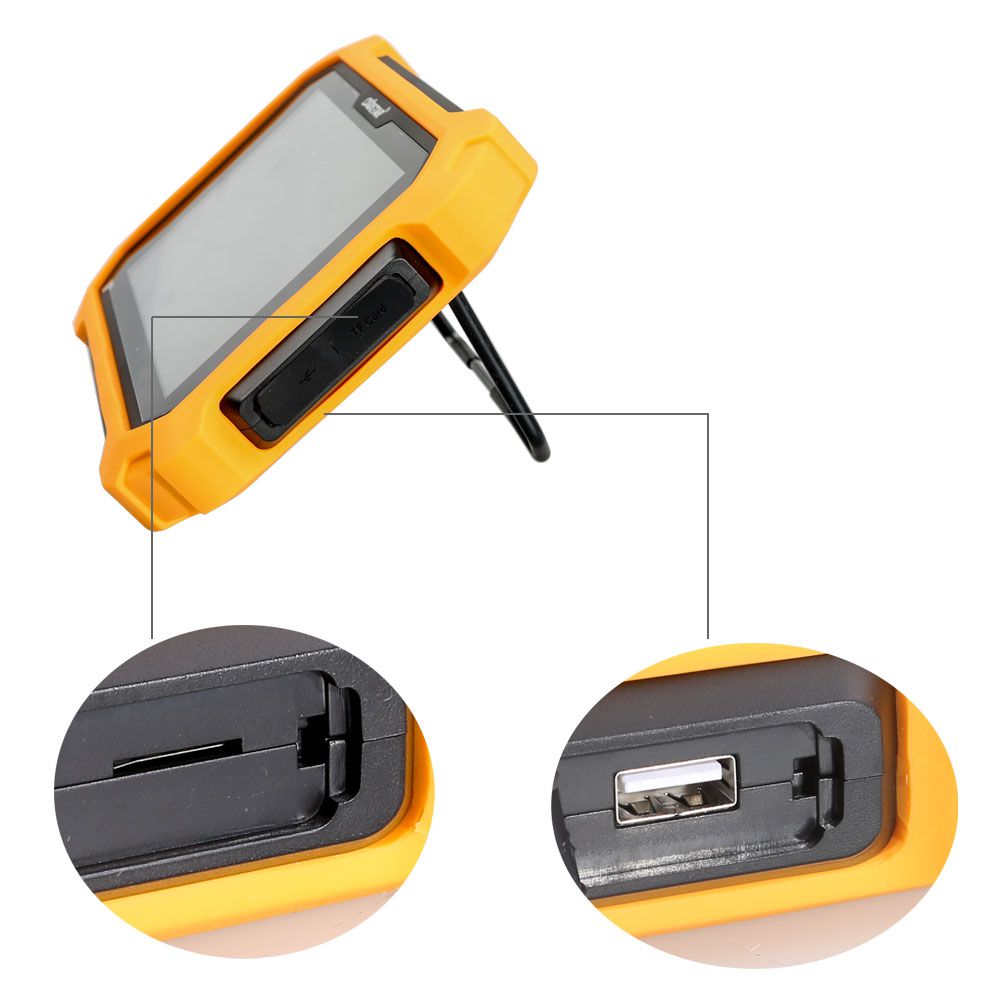

1. Built-in VCI box

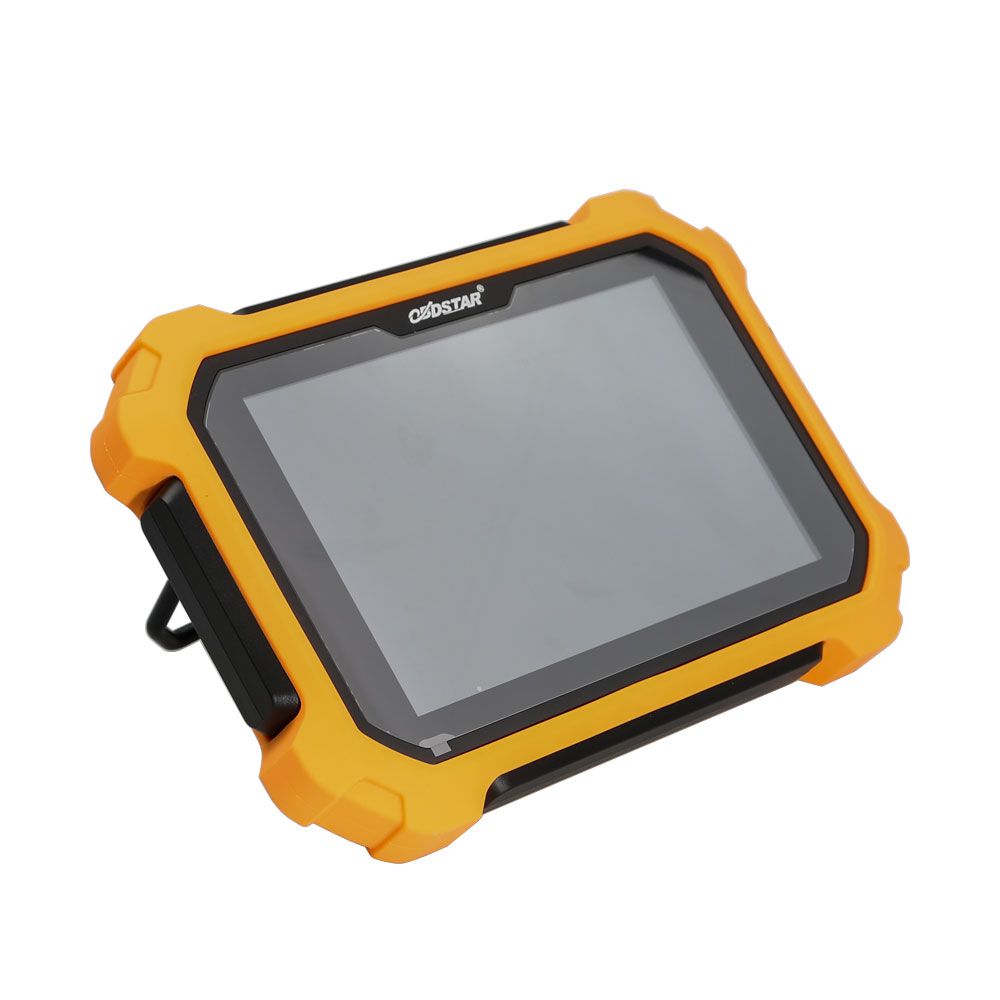

2. 8-inch touchscreen
3. Charge directly via OBD interface

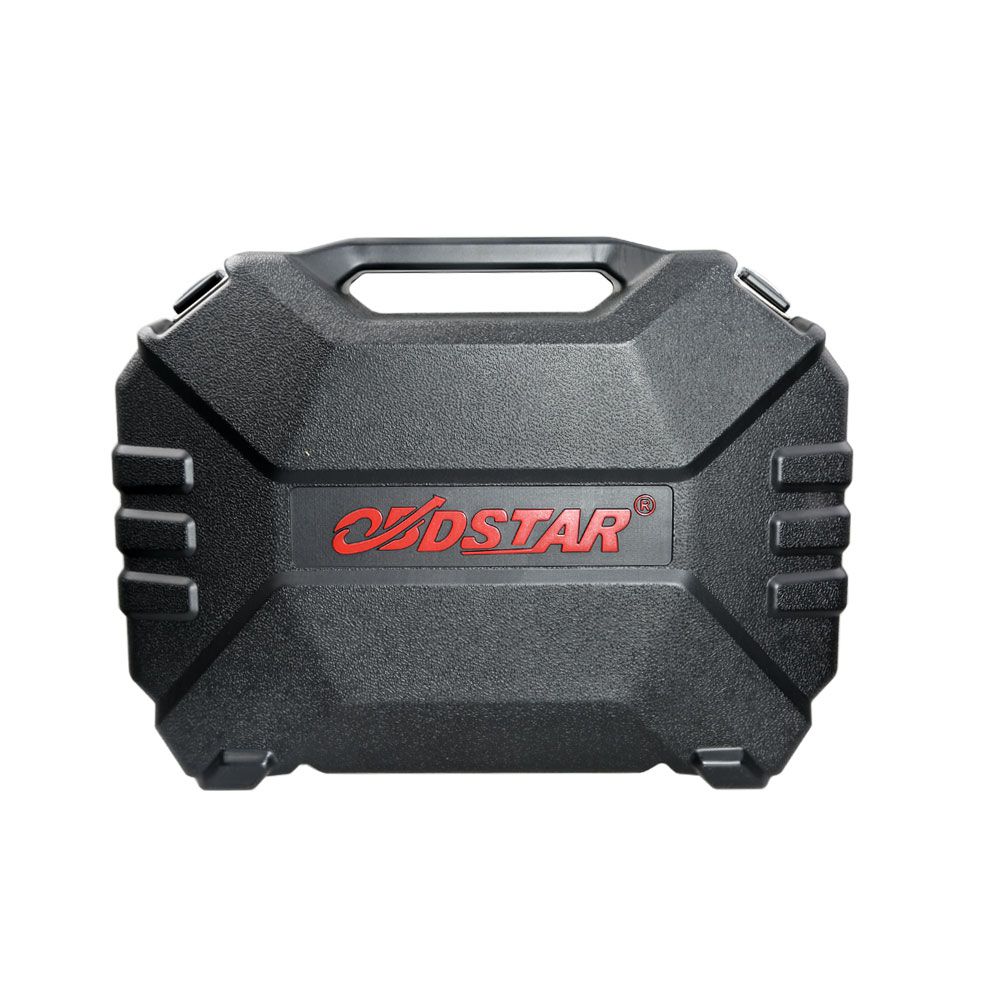

4. Practical and high-end gift box
5. Industrial design with silicone case

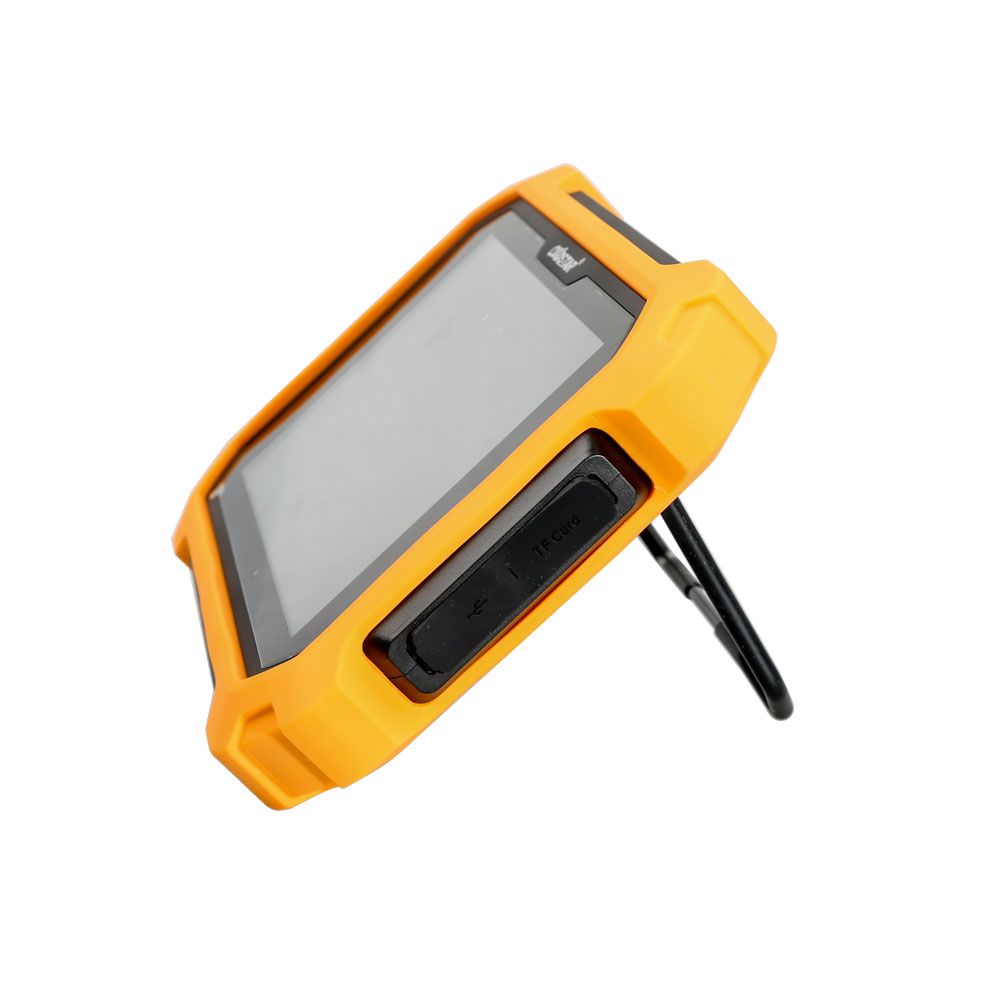

6. Back bracket design: prop on the steering wheel or stand on the table

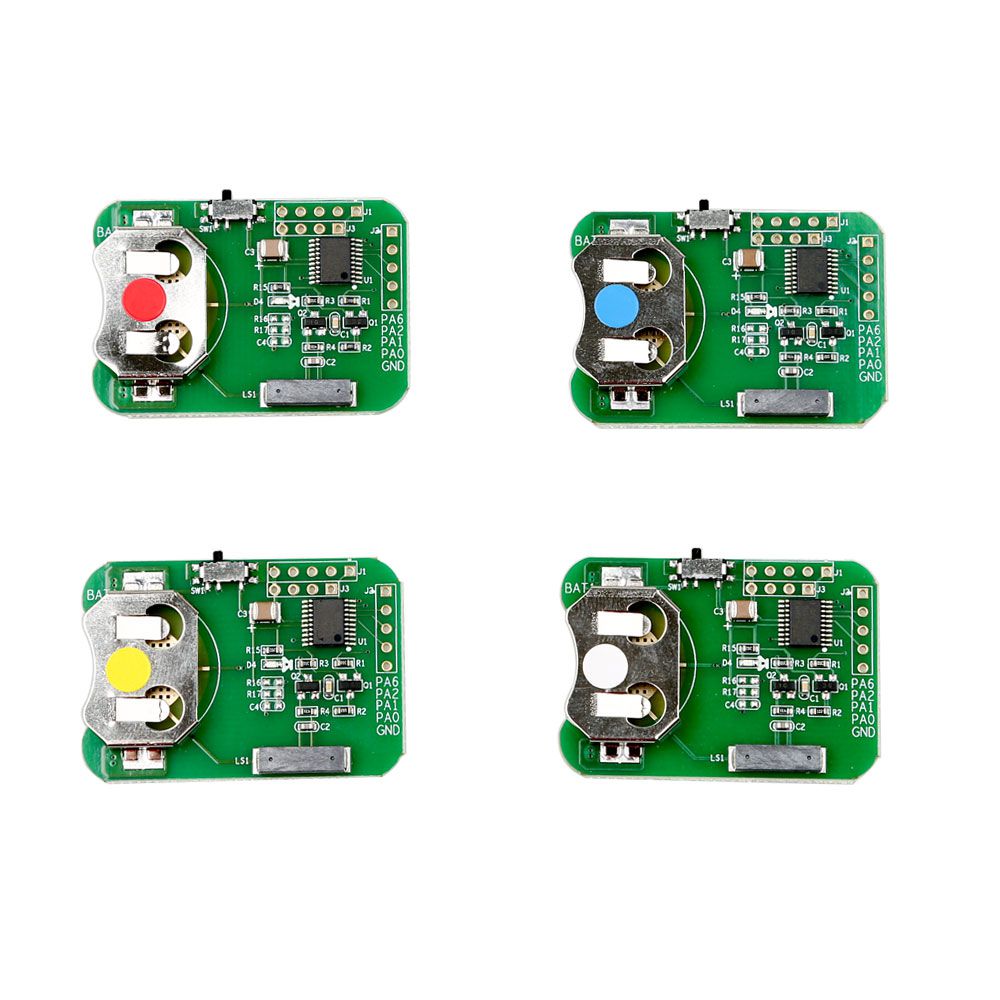

7. Includes 4 Toyota simulation keys (the fifth is coming soon)

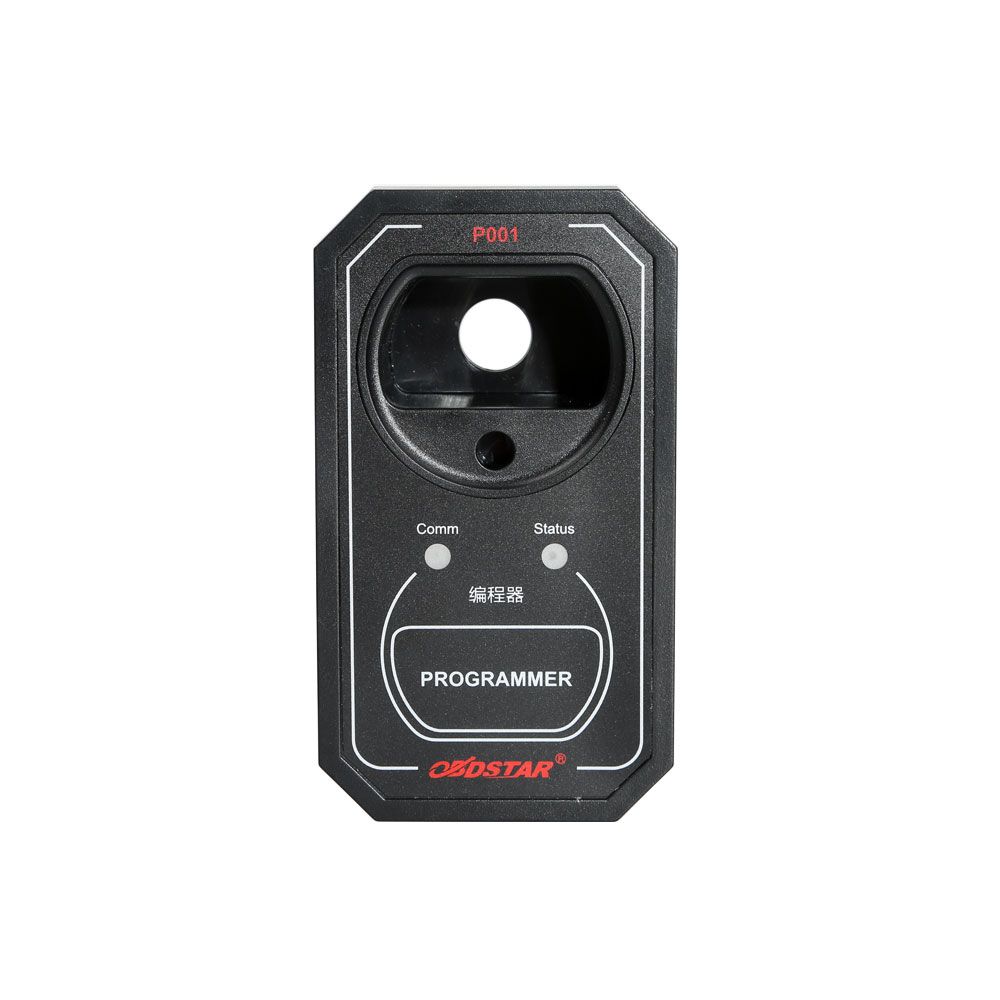

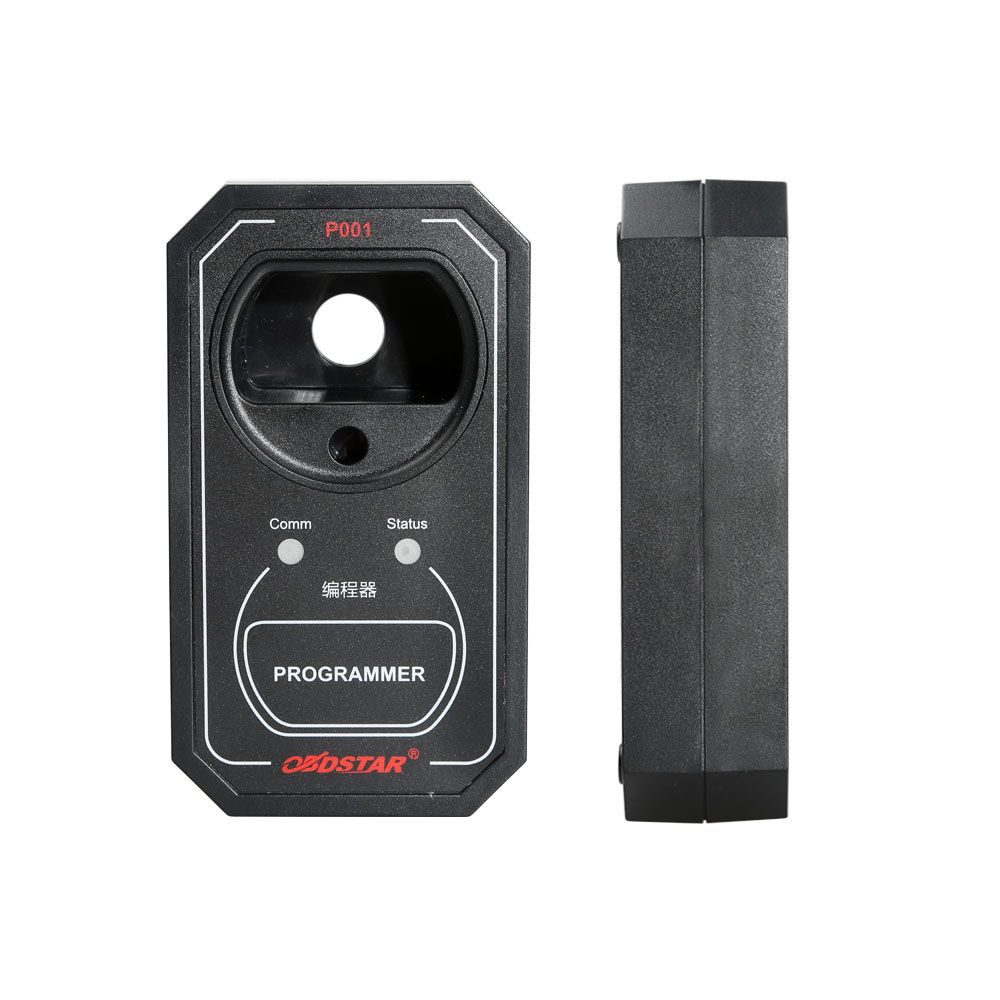

8. P001 programmer: EEPROM adapter + RFID adapter + Key Renew adapter
9. Adds clip for reading SOP 8PIN EEPROM

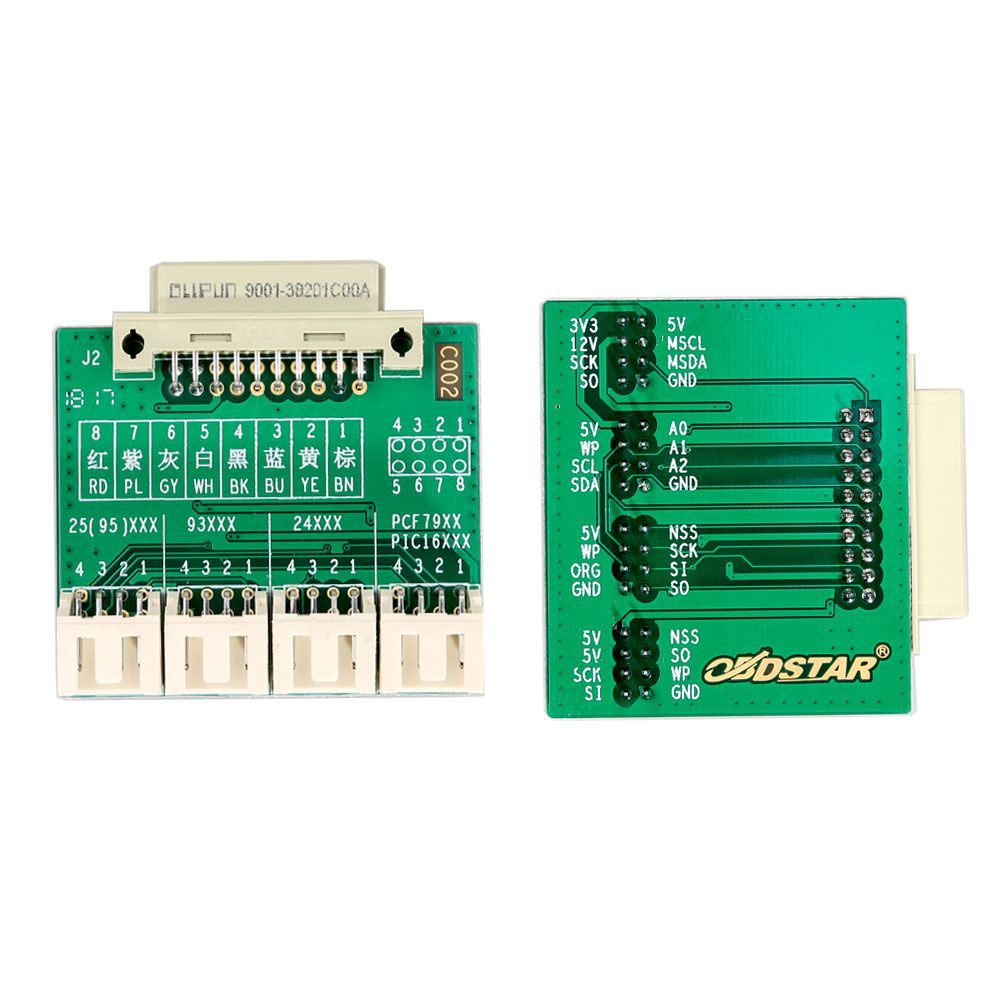

10. C001/C002 circuit boards for reading and writing chip data with welding

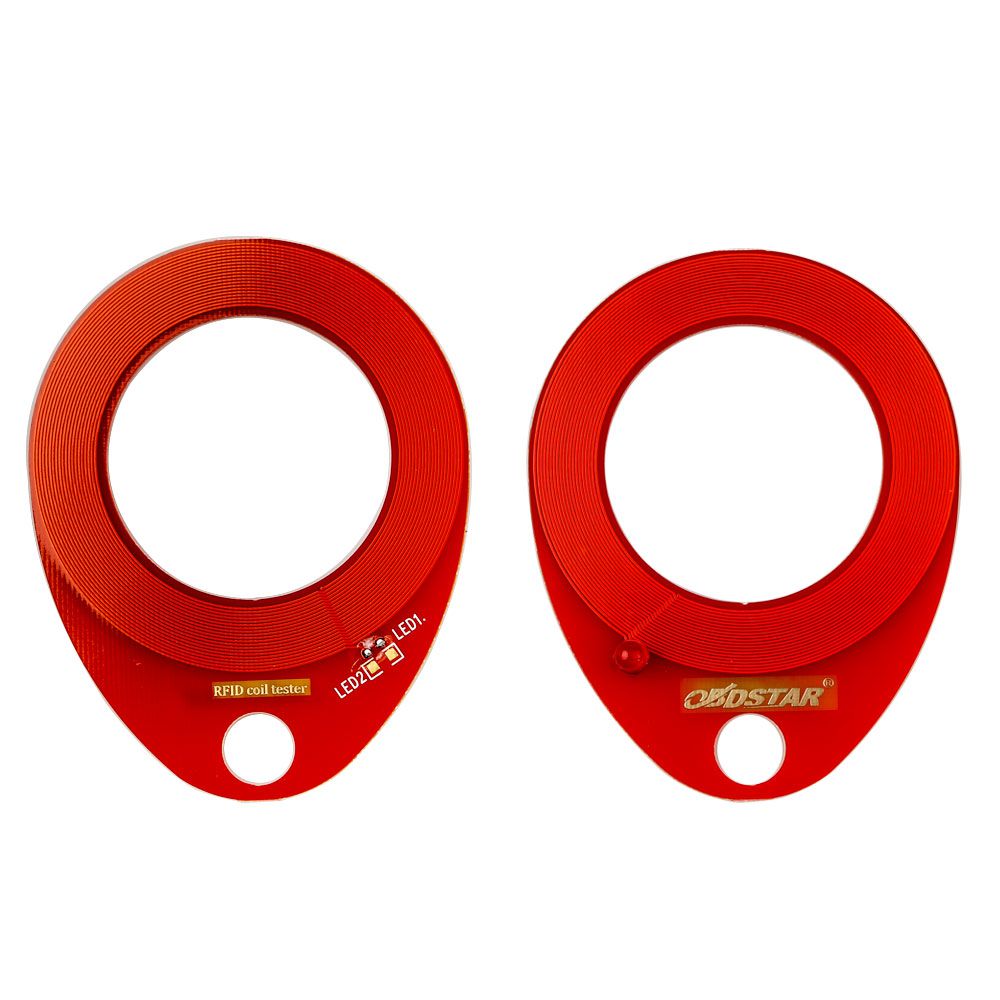

11. IMMO induction coil to detect key induction coil failure in vehicles
12. Includes wiring harness for ECU reading via OBD (for ECU cloning and switch activation)

Software Advantages

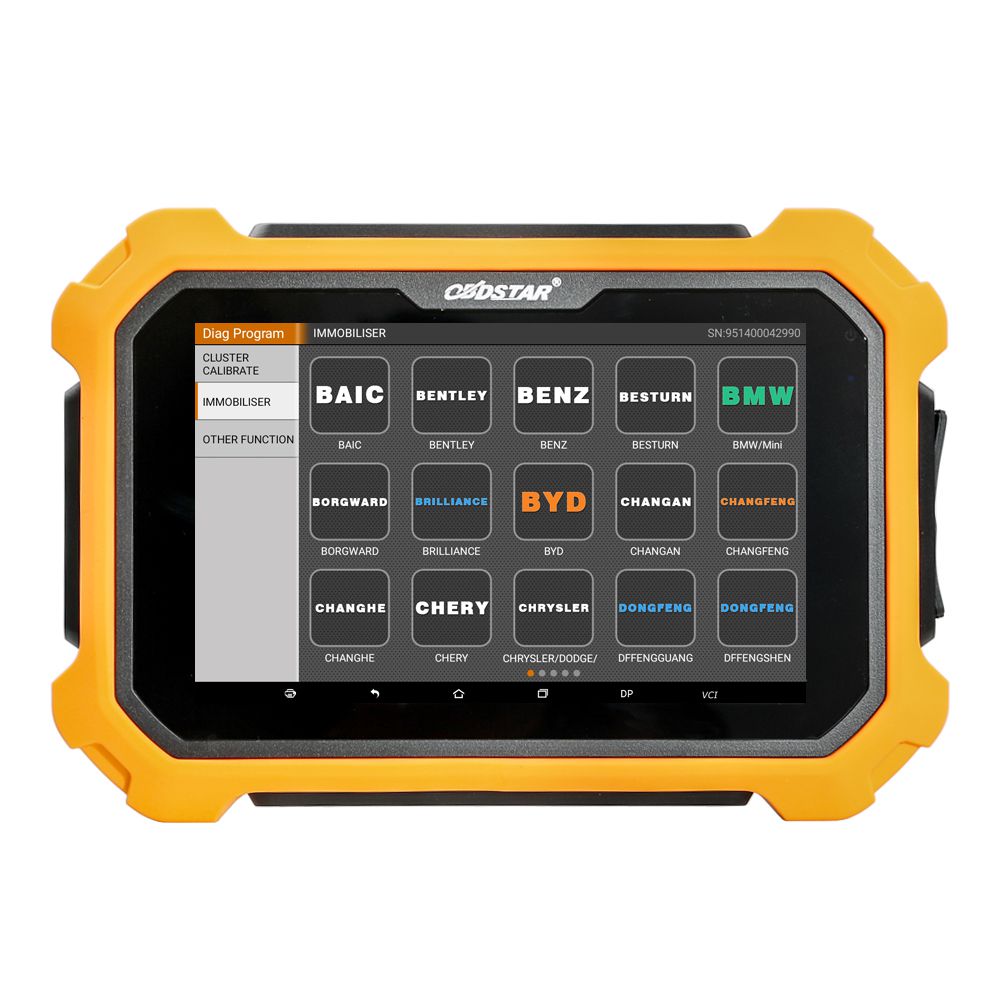

Immobilizer (IMMO) Functions

1. EEPROM
2. Renew Key
3. Key Programming
4. Remote Programming

Cluster Calibration

Wide vehicle coverage—please check the supported car list.

Full-System Diagnosis

Comprehensive diagnostics for all vehicle systems.

Special Functions

TPS / ABS / EPB / DPF / TPMS / SRS Reset / Fuel Injector / Gear Learning / Battery Matching / ECU Programming / Throttle Matching / Oil & Service Reset / Steering Angle Reset / Remote Manual Setting / Electronic Steering Reset / CVT Learning / Value Reset

ECU Clone

1. What is ECU Clone?
ECU Clone refers to ECU duplication. The device copies all data from the original vehicle ECU and writes it into another ECU with identical hardware, replicating the original ECU’s full functionality.

2. Direct Cloning Capability
Clone directly when replacing a new or used ECU—no need for online matching at a 4S store or removal of ECU bonding wires. Write data directly through the OBD port without dismantling.

3. Key Benefits of ECU Clone:

• Free of 4S Online Dependency: Breaks the 4S monopoly, benefiting the auto repair industry.
• Simplified Operation: Enables foolproof, user-friendly procedures.
• Non-Dismantling with Zero Risk: Read and write ECU data without removing the unit.

Switch Activation Function

Many modern vehicle instruments or audio systems require secondary power activation via CAN communication from related modules. When these components are disconnected from the vehicle’s CAN bus during repair, they may fail to power on. This function simulates CAN communication to activate secondary power, allowing the instrument or audio unit to power up. This enables testing and verification while eliminating the need for technicians to invest in numerous vehicle-specific startup platforms and wiring harnesses.

Built-in “Help” Features

1. Includes built-in testable vehicle models, upgrade announcements, feature guides, help notes, and wiring diagrams.
2. Car list and upgrade announcements are accessible directly on the device.
3. Users can look up supported features or unique functions on the device itself.
4. Help Notes: Built-in contextual help for each model or function.
5. Wiring Diagrams: Integrated ECU wiring diagrams for intuitive and convenient reference.

Technical Specifications

• Operating System: Android 5.1.1
• CPU: Exynos4418 Dual Core ARM Cortex A9 1.4GHz
• Battery: 3700mAh rechargeable polymer lithium battery
• Memory Card Support: 32GB Micro SD (TF) card
• RAM: 1GB
• Internal Storage: 32GB
• Display: 8.0-inch LCD
• Resolution: 1280 × 800
• Touchscreen: Capacitive
• Camera: 5MP rear camera
• Wi-Fi: Supported
• Operating Temperature: -10℃ to 55℃ (14℉ to 131℉)
• Storage Temperature: -20℃ to 70℃ (-4℉ to 158℉)
• Weight: Approximately 1.0 kg
• Dimensions: 254mm × 174mm × 35mm

OBDSTAR Update Information

Update Announcement – August 31, 2018

• GM/BMW ECU Programming
• GM/Peugeot/Volvo ECU Clone
• Toyota G&H chip / smart key – all keys lost via OBDII
• Mercedes-Benz S-Class cluster calibration (W221 / W222 / C216)
• BMW FEM/BDC Key Programming (CAS support coming soon)
• Jeep Cherokee pin code reading & key addition (2010–2016)
• GM/Opel pin code reading via OBDII (most models 2013–2017)
• Renault Dokker / Lodgy / Logan (2013–) / Sandero (2013–) / Koleos (2011–2016) / Symbol (2013–2018) Key Programming
• Hyundai/KIA new pin code reading (46/47/8A chip smart keys)
• Volvo pin code free & all keys lost via OBDII (non-proximity systems)
• Jeep Challenger pin code reading & key addition (smart key system, 2014–)
• Ford key programming for F-150 / Mondeo / Mustang / Explorer (2015–, within 2 minutes)
• VW/Audi/Skoda/Seat MQB cluster calibration & NEC 24C64 key programming (2014–)
• Peugeot/Citroen BSI & dashboard cluster calibration (CONTINENTAL BSI-Q0X / JC BSI04EV-K0X)

Update Announcement – July 2, 2018 (Initial Release)

GM ECU Clone (Key Master DP Plus C Configuration)

1. Added BOSCH 70F3558 + 24C32: read/write EEPROM and FLASH
2. Added BOSCH 70F3385 + 24C16: read/write EEPROM and FLASH
3. Added BOSCH 70F3469 + 24C16: read/write EEPROM and FLASH
4. Added DELPHI 70F3238 + 93C86: read/write EEPROM and FLASH
5. Added DELPHI 70F3379 + 93C86: read/write EEPROM and FLASH
6. Added CONTINENTAL 70F3469 + 95160(25160): read/write EEPROM and FLASH
7. Added CONTINENTAL 70F3558 + 95320(25320): read/write EEPROM and FLASH

Immobilizer (IMMO) Updates

• Renault (Key Master DP / Key Master DP Plus): Added Koleos (2011–2016) key programming
• Bentley (Key Master DP / Key Master DP Plus): Supports P001 programmer
• GM (Key Master DP / Key Master DP Plus): Supports P001 Programmer
• Key Master / Key Master DP / Key Master DP Plus: Updated text references from ‘obdstar’ to ‘The third-party platform’
• Porsche (Key Master / Key Master DP / Key Master DP Plus): Fixed crash issue in Cayenne Type 2 pin code reading and key programming
• Changan (Key Master / Key Master DP / Key Master DP Plus): Optimized Changan X70A body control system
• Ford (F100 / H100 / Key Master / Key Master DP / Key Master DP Plus): Resolved repeated security verification prompts in Ford Explorer (2011–2015) key programming
• BAIC (Key Master / Key Master DP / Key Master DP Plus): Added Weiwang M50F (2017) smart key system
• BMW (Key Master DP / Key Master DP Plus):
  1. Fixed unstable key learning issues
  2. Updated SWFL version to ISTA64
• Rongwei / MG (Key Master / Key Master DP / Key Master DP Plus):
  1. Optimized Rongwei I6 smart key system
  2. Added Rongwei 950 (2012–) pin code reading
• Nissan / Infiniti (F102 / Key Master DP / Key Master DP Plus / Key Master): Optimized Nissan Note smart key system (removed byte check for 03 31 01 01)
• VW / Audi / Skoda / Seat (Key Master DP / Key Master DP Plus): Supports P001 programmer
• Toyota / Lexus (Key Master DP / Key Master DP Plus):
  1. Released 4 Toyota simulation smart keys
  2. Optimized No.1 Toyota simulation smart key to acquire IMMO data via internet (write key data)
• Suzuki (F109 / Key Master / Key Master DP / Key Master DP Plus): Optimized JIMNY menu in IM_JIMNY system
• Opel (Key Master / Key Master DP / Key Master DP Plus):
  1. Added pin code reading from BCM system
  2. Added Combo / Meriva remote system
  3. Added Astra G / Astra K / Cascada (2013) / Combo (2012) / Corsa-D (2005–) / Frontera (1998–) / Monterey (1996–) / Signum / VX220 / Zafira-B / Cavalier (1995–2004) / Agila B (–2009, 2009–) / Movano (2005–2010, 2010–) IMMO systems
• Baojun (Key Master / Key Master DP / Key Master DP Plus): Updated text references from ‘obdstar’ to ‘The third-party platform’

Vehicle and Feature Support by Brand

Mazda

Supported devices: F100 / H100 / Key Master / Key Master DP / Key Master DP Plus
Optimized text tips with ‘obdstar’ to be ‘The third-party platform’

Traum

Supported devices: Key Master / Key Master DP / Key Master DP Plus
Added support for S70 car body system and smart key system

Lamborghini

Supported devices: Key Master DP / Key Master DP Plus
Supports P001 programmer

Key Renew

Supported devices: Key Master DP / Key Master DP Plus

• Supports P001 programmer
• Updated the ‘Help’ text

Cluster Calibrate

Volkswagen (VW)

Supported devices: H110 / VAG Pro / X300M / Key Master / Key Master DP / Key Master DP Plus (B Configuration / C Configuration)
Increased security calculation types

General Motors (GM)

Supported devices: X300M / Key Master / Key Master DP / Key Master DP Plus (B Configuration / C Configuration)
Optimized GMC Sierra 2015 communication time

Fiat / Ferrari

Supported devices: X300M / Key Master / Key Master DP / Key Master DP Plus (B Configuration / C Configuration)
Added ‘Other’ menu option

Porsche

Supported devices: X300M / Key Master / Key Master DP / Key Master DP Plus (B Configuration / C Configuration)
Resolved security verification issues in EEPROM reading for 2015 Panamera

Ford

Supported devices: F100 / H100 / X300M / Key Master / Key Master DP / Key Master DP Plus (B Configuration / C Configuration)

• Added Ranger 2015 dashboard type SPC5645S + 93C86
• Optimized cluster calibration for SPC5645S + 93C86 type

Supported devices: X300M / H100 / Key Master DP / Key Master DP Plus (B Configuration / C Configuration)
Added cluster calibration support for:
KA R5F10 V1 / KA R5F10 V2 / KA R5F10 V3 / Figo / Aspire (2016–2018)

BMW

Supported devices: Key Master DP / Key Master DP Plus
Added FEM/BDC odometer reset functionality

ECU Programming

BMW

Supported device: Key Master DP Plus (C Configuration)

• Initial release of EGS 8HP reset function
• Added FEM/BDC ECU programming support

ECU Clone

Peugeot

Supported device: Key Master DP Plus (C Configuration)

• Added EOX EEPROM read/write support
• Added BSI EEPROM and FLASH read/write support for H0X / K0X / KEX / N0X / P0X / Q0X / S0X / X0X

Switch Activation

Supported device: Key Master DP Plus (C Configuration)

• Added dashboard activation for Volvo S60 (2011) and Land Rover Evoque (2016)
• Revised all wiring instructions
• Improved ‘Help’ section

EPB (Electronic Parking Brake)

Supported devices: VAG Pro / X200 Pro / Key Master (Full Configuration) / Key Master DP (Full Configuration) / Key Master DP Plus (C Configuration)

Added support for the following vehicles:

• Bentley, SEAT, Škoda, Volkswagen, FAW-VK, Shanghai Volkswagen
• Zotye: SR9, SR7 (2017), E200, T300, T700, T600 COUPE, T600 Sports
• Great Wall (Changcheng): Hover H6 COUPE, Hover M6
• JAC: Ruifeng A60, Ruifeng S7, Ruiying
• Geely: Vision X6, EC7 series (Emgrand, New Emgrand), Emgrand EV, Emgrand EV300, Emgrand HEV, Emgrand PHEV
• Changan Ford: Edge, Galaxy, S-MAX, Fiesta MY2013, Transit Connect, Transit Connect / Tourneo Connect, Transit, Courier
• Citroën: C4, C4 Sedan, C4 (B7), C4 Picasso, DS 4 – DS 4 Crossback, DS 4S

APK Optimization

• Fixed calculation bug
• Cleared login cache
