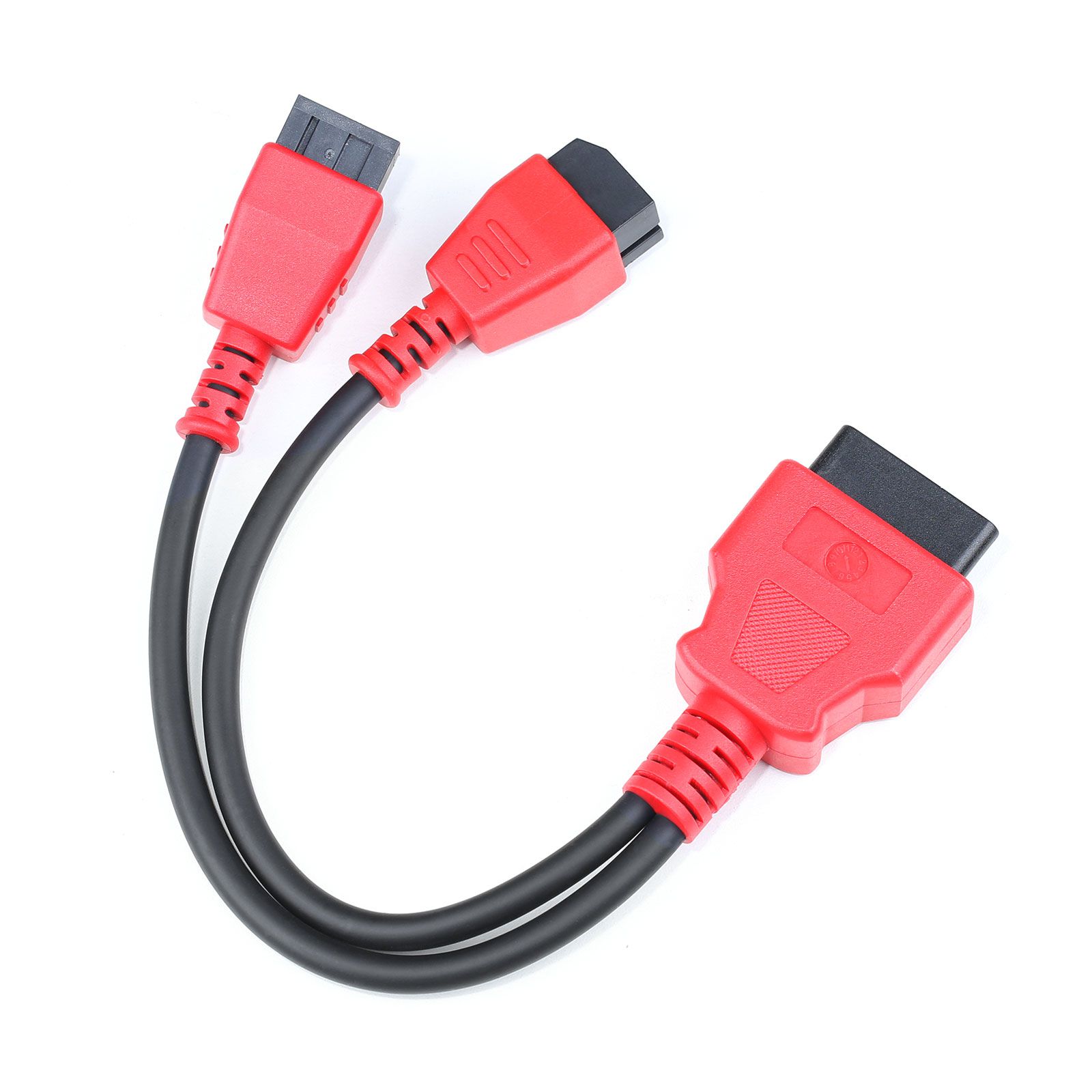

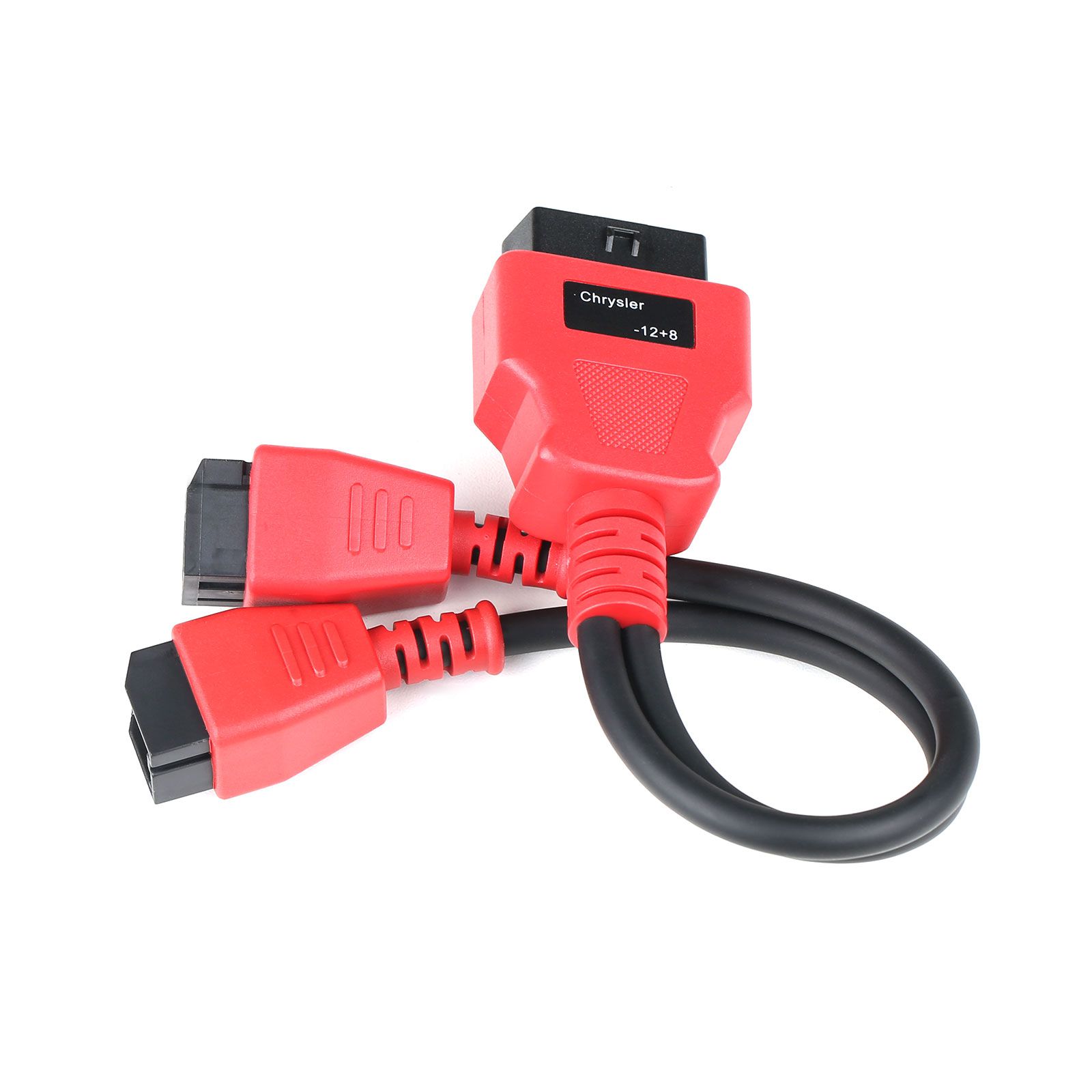

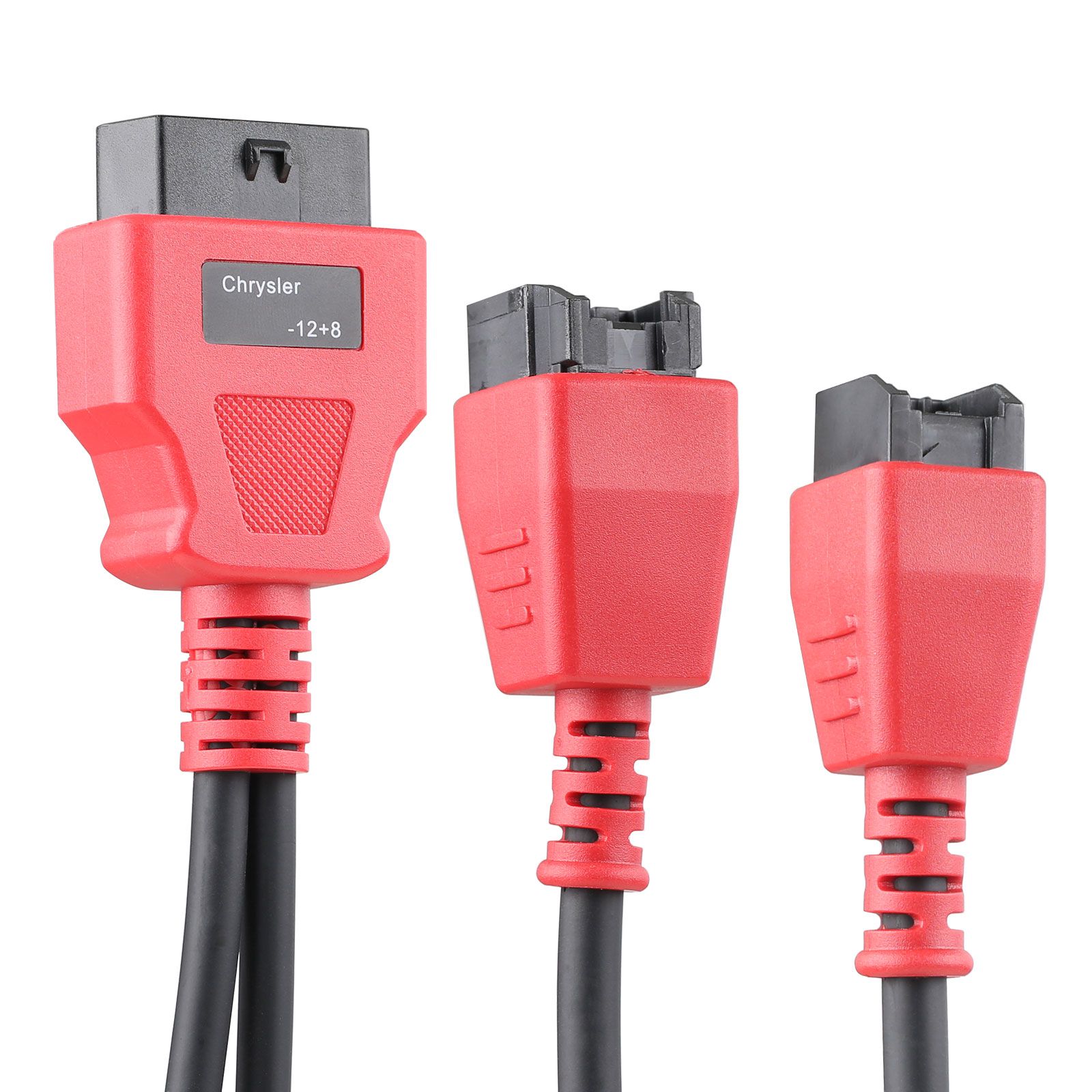

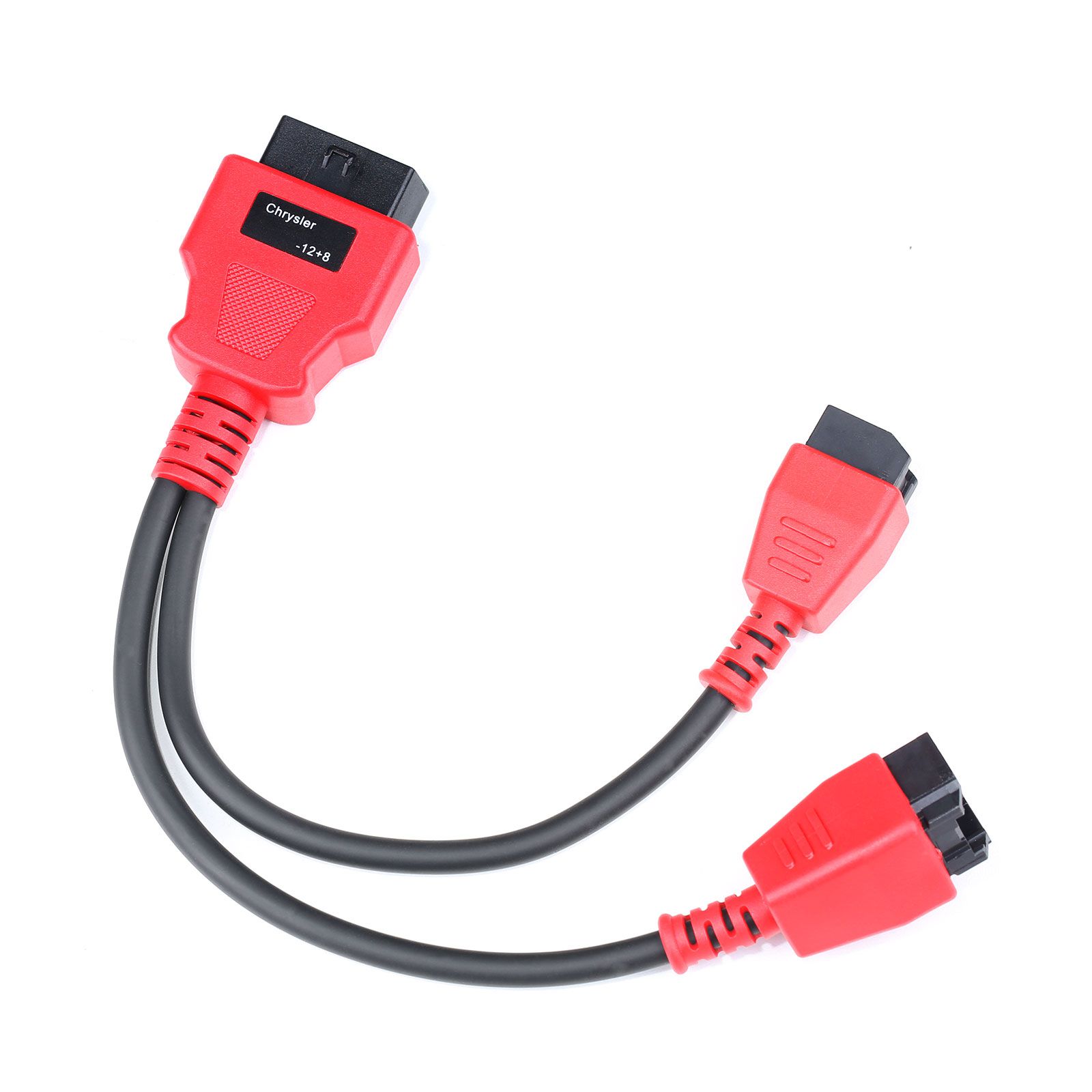

FCA 12+8 Adapter for Chrysler Work on MaxiSys/IM608 /Launch X431 V/ OBDSTAR

FCA 12+8 Adapter for Chrysler Work on Autel MaxiSys/IM608 /Launch X431 V/ OBDSTAR

FCA 12+8 Adapter is used for Chrysler's Security Gateway Module (SGM) which limits an aftermarket scan tool to only reading DTCs and viewing data.

2018 and newer Chrysler, Dodge, Ram, Jeep, and Fiat now have a secure gateway module or SGM. This SGM will not allow your scan tool to do bidirectional controls on the vehicle.The new Chrysler 12+8 Diagnostic Cable allows communication with latest model Chrysler, Dodge, Jeep, Fiat & Alfa vehicles.

Suitable for:

The 12+8 Adapter can be used with Maxisys Series Scanners MS906BT+ like MS906BT, MS906S, MS908, MS908S, MS908S PRO, Maxisys Elite and IM608.
OBDSTAR devices like OBDSTAR X300 DP Plus
Launch devices like Launch X431 V, Launch X431 V+ etc.

What is it used for?

1. It's used to diagnose on Chrysler Jeep Renegade Wrangler 300C after 2018 year
2. Most 2018 and newer FCA vehicles include a Security Gateway Module.

Expect to see this message when scanning a Chrysler with the Security Gateway Module:
DEVICE UNABLE TO COMMUNICATE WITH THE CONTROL UNIT
Placement of the SGM varies, but it is often located in the side kick panel, passenger side near the glove box, or behind the radio.

Please Note:
YOU MUST USE THE APPROPRIATE CONVERTER. NO RETURNS WILL BE ACCEPTED FOR DAMAGE CAUSED BY USING THE WRONG POWER TYPE.

Features and Functions:

1. Read/ Clear Codes
2. Perform Active Tests
3. View Generic & Manufacturer Live Data
4. Perform TPMS OBDII Relearn
5. Coding and Adaptation with Maxisys Tablet Tools MS906BT+
6. ADAS calibrations (Requires Maxisys ADAS Software)

Chrysler 12+8 Adapter needed on Vehicles with Secure Gateway Module:

2013+ RAM Promaster
2015+ Fiat 500x
2015+ RAM Promaster City
2016+ Jeep Renegade
2017+ Alfa Romeo Giulia
2017+ Jeep Compass
2017+ Jeep Cherokee
2018+ Jeep Wrangler
2018+ Ram Trucks
2018+ Dodge Durango
2018+ Jeep Wrangler (JL Body only, not JK)
2018+ Dodge Journey
2018+ Jeep Grand Cherokee
2018+ Chrysler Pacifica
2018+ Chrysler 300
2018+ Dodge Charger
2018+ Dodge Challenger
2019+ Most Fiat/ Chrysler/ Jeep/ Ram vehicles
2020+ ALL FCA vehicles

Package List:

1pc x FCA 12+8 Adapter
