2024 OBDSTAR P50 Airbag Reset Tool Covers 86 Brands and 11600+ ECU Part No. by OBD/Bench Support Battery Reset/ SAS Reset

OBDSTAR P50 is the new generation of intelligent airbag reset equipment. With powerful functions and wide coverage, it covers 38 brands and over 4600+ ECU part No., some MCU. OBDSTAR P50 is based on RK3128 quad-core processor, extremely fast and smooth; equipped with 5-inch capacitive touch sensitive screen.

1. Support one-click airbag reset for 38 brands and over 6600+ECU part No.

2. Support fuzzy search for ECU part No.

3. Contain clear BENCH mode wiring diagram

4. Contain powerful and complete description files for fault code
5. P50 comes with P004 Adapter: P004 adapter is designed for ECU programming, reading or writing data in bench mode.

Notice:
1. Language: English Only.
2. If you also need Cluster Calibration & Oil Light/ Service Reset Function , you can buy the OBDSTAR P50 Authorization to get the same function as the Odo Master

All by OBD or BENCH

ECU Info.

Read DTC

Erase DTC

Read EEPROM

Write EEPROM

Read FLASH

Write FLASH

Erase Crash

Write VIN

P004 Adapter is designed for ECU programming, reading or writing data in bench mode. It has merits below:

1. Programming devices keep in normal communication no matter turn on or off 12V power button;
2. Turn on or off 120Ω resistance at any time for CANBUS ECU;
3. Support 6&14 and 3&11 CANBUS communication at the same time;
4. Support GM Single CAN(GM SCAN);
5. Support K communication;
6. P004 jumper can connect with multiple wires at the same time, make wiring clearer and easier;
7. DB15 connector can communicate with any OBDII-16 I/O interface.

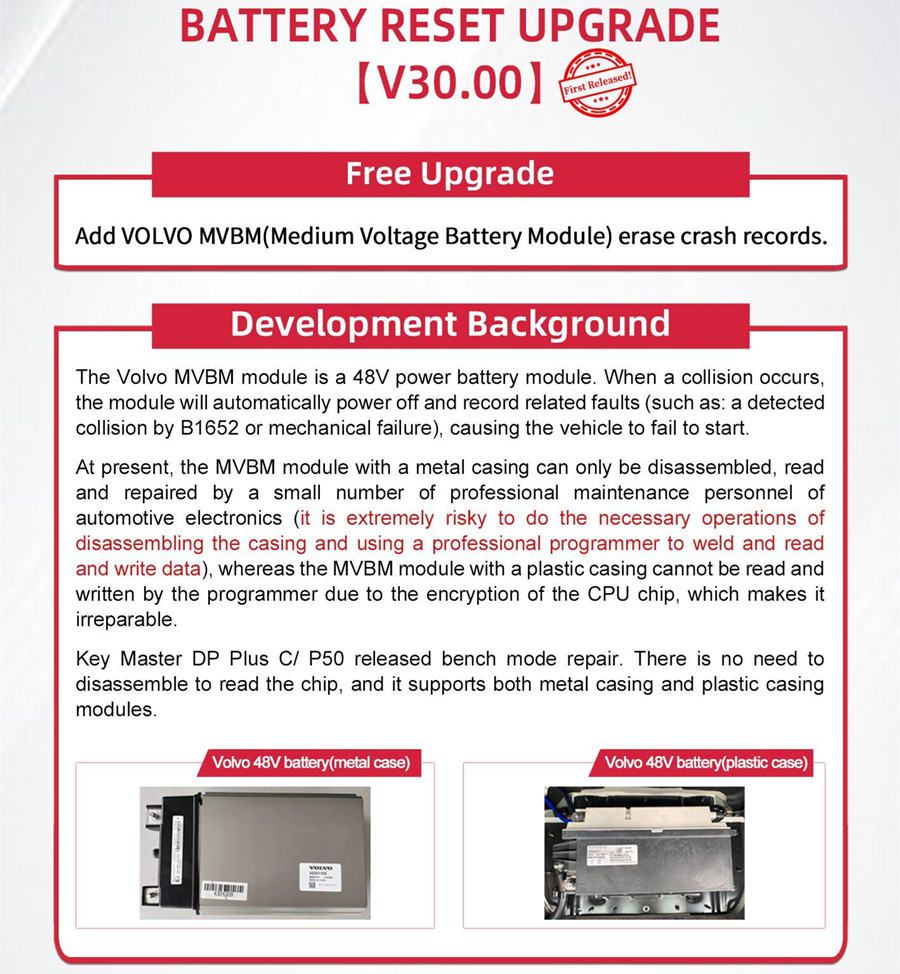

P50 BATTERY RESET UPGRADE【V30.00]

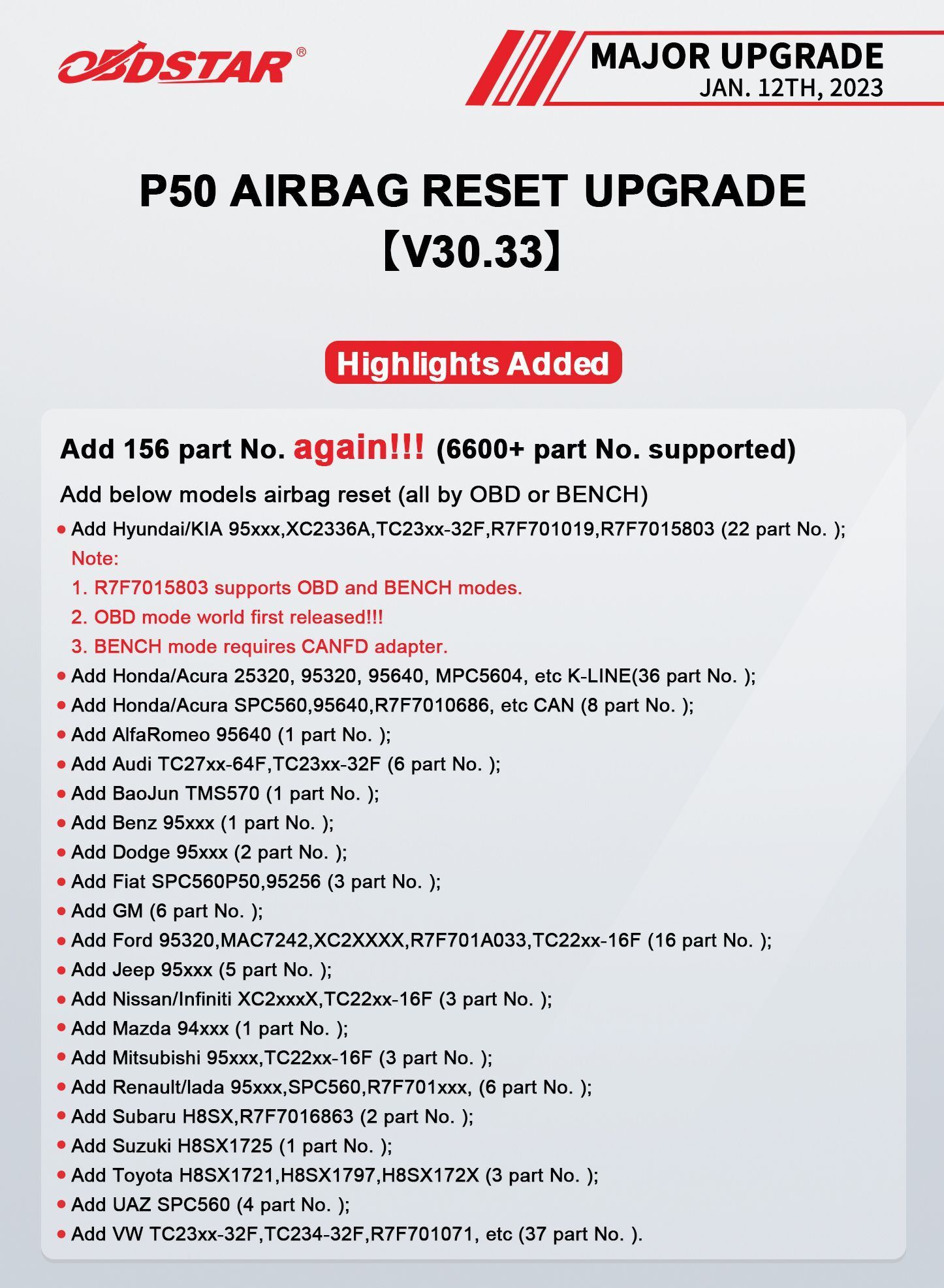

P50 Airbag Reset Upgrade [V30.33]




OBDSTAR P50 Vehicle Coverage：

1. Supported Brands(38 Brands)
Acura, Audi, Benz, Buick, Cadillac, Chevrolet, Chrysler, Citroen, Dacia, Dodge, Ford, GMC, GreatWall, Honda, Hyundai, Infiniti, Jaguar, Jeep, KIA, Land Rover, Lincoln, Maserati, Mazda, Mitsubishi, Nissan, Opel, Peugeot, Porsche, Renault, Seat, Skoda, Smart, Subaru, Suzuki, Tesla, Toyota, VW, Volvo

2. Over 4600+ ECU part No.(supporting fuzzy search)

3. MCU types: H8SX, RH850, SPC, XC2XXX, TC2XXX, TMS570...

OBDSTAR P50 Specifications:

Operation system	Android 5.1.1
CPU	RK3128 quad-core ARM cortex A7
Battery	2600mA, rechargeable polymer lithium battery
Extension memory card	32G micro SD (TF) card supported
Storage capacity	16GB
LCD	5.0 inch
LCD resolution	800*480
Touch screen	Capacitive touch screen
Wifi	Supported
Working temperature	-20℃ ~ 55℃(14℉ ~ 131℉)
Storage temperature	-20℃ ~ 70℃(-4℉ ~ 158℉)
Weight	About 700g
Dimension	198mm*115*mm*31mm

1pc x P50 Main Unit

1pc x Main Cable

1pc x P004 Adapter

1pc x P004 Jumper

1pc x 12V2A Charger
