KEYDIY KD-X2 Remote Maker Unlocker and Generator – Transponder Cloning Device

The KEYDIY KD-X2 is a multi-function auto key programmer widely used by locksmiths due to its compact size and powerful capabilities. More than just a cloner, the KD-X2 can copy transponders, read from and write to transponders, perform frequency tests, and generate various transponder types—all in just a few simple steps.

Equipped with a built-in snoop device, the KD-X2 notifies you when sufficient snoop data has been gathered for ID46 and ID48 transponders. Its phone-sized design makes it highly portable—easily fitting in your pocket. To ensure uninterrupted operation, it features a 1600mAh lithium battery, enabling hundreds of decoding operations on a full charge.

KEYDIY KD-X2 Introduction

1. Power supply: 2600mAh lithium battery; Charge method: USB 5V/1A
2. 0.91-inch OLED display screen
3. Built-in Bluetooth BLE 4.0 for connection with the mobile KD app
4. Compatible with PC software via USB-B connection and works with iOS/Android phones or tablets via OTG connection
5. PS-2 interface for connecting remotes during generation
6. Three functional shortcut buttons: chip identification, remote identification, and frequency detection
7. Free Activation of 96 Bits ID48 Transponder Copy (No Token Required)

Please refer to our official blog: How to get KEYDIY KD-X2 ID48 96bit clone coins

KEYDIY KD-X2 Features

1. No tokens required for use
2. Continuous free updates
3. Compatible with most manufacturer chips on the market, such as Handy Baby, JMD, CN, VVDI, etc.
4. Copies 96-bit (only) ID48 chips (not the full range like Keyoline Mini/884)
5. Works with PC software via USB for online-only functions
6. Eliminates the need to purchase multiple other devices
7. Transponder chip identification to help select the correct chip for programming
8. Remote identification to remove guesswork when choosing a remote to program
9. Frequency detection—also verifies if remote buttons are functioning correctly
10. Ignition coil detection to check if the vehicle is transmitting a signal for fault testing
11. Plus many more additions and updates coming soon

KEYDIY KD-X2 Basic Functions

1. Wired Generation
2. Wireless Generation
3. Mobile Phone Simulation
4. Garage Door Generation
5. Proximity Key Unlock
6. Frequency Detection
7. Infrared Detection
8. Access Card Copy
9. Fixed Code Remote Copy
10. Online HCS Remote Copy
11. Online Chip Copy (96-bit ID48, ID46, ID4D, Toyota chips, etc.)
12. Chip Generation
13. Chip Editing
14. Chip Simulation
15. Ignition Coil Detection
16. Remote Data Backup
17. Additional Functions Will Be Available in Succession

KEYDIY KD-X2 New Version 5.0.0 with Enhanced Options

1. Upgraded remote data service
2. Improved stability of remote upgrades
3. Faster and more stable downloading speed for third-party remotes
4. Earn KD-coins when generating remotes
5. Earn KD-coins when using KD NB remotes to copy chips
6. Support for garage door remote generation

KEYDIY KD-X2 Supported Vehicle List

Audi, Baojun, Bcahy, Benjin Auto, Benz, Besturn, BMW, BYD, Cadillac, Chang an, Changfeng Motors, Changhe, Chevrolet, Chrysler, Citroen, Daihatsu, Dongfeng, Faw, Fiat, Ford, Garage, Geely, GMC, Great Wall Automobile, HaiMa, Hawtai Motor, Honda, Hyundai, Isuzu, Iveco, Jaguar, Jianghua, Kia, Land Rover, Lincoln, Mahindra, Mazda, MG, Mitsubishi, Nissan, Opel, Peugeot Citroen DS, Porsche, Proton, Renault, Saipa, Samand, Seat, Skoda, Ssangyong, Subaru, TATA, Toyota for Lexus, Volvo, VW, Zhongxing

Current Coverage of the KD-X2

Transponder Identification

The KD-X2 can read and identify the following transponder types:

• Fixed code: ID11, ID12, ID13, ID33, and ID4C
• Philips Crypto: 40, 41, 42, 44, 45, 46, 47, 49, and 4A
• Megamos: ID48, ID48 Canbus
• Texas Crypto: 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 6A, 6B, 70, 71, 72, 82, 83, 8C, and 8E
• Most smart keys

Transponder Cloning

The KD-X2 offers extensive cloning capabilities with built-in snoop support for ID46 and ID48.

Currently, the KD-X2 can clone keys for:

• ID4D / ID4C / ID46 / ID11 / ID12 / ID13 / ID33 transponder clone
• ID48 (96 Bit) Only
• Fixed code (T5) – ID11, ID12, ID13 & ID33 using a carbon T5 chip
• Texas TX ID4C
• Texas Crypto TX/CR ID4D
• Philips Crypto PH/CR ID46
• Toyota 80 Bit
• Megamos Crypto

Transponder Production

The KD-X2 includes robust transponder production (image generator) functionality.

Transponder production coverage includes:

• ID4D / 60 / Epica60 / 61 / 62 / 63 / 64 / 65 / 66 / 67 / 68 / 69 / 6A / 71 / 72G ID4C transponder
• ID48 type: Seat TP22 / VAG TP23 / Skoda TP24 / Audi TP25 / Seat TA22 / VAG TA23 / Skoda TA24 / Audi TA25 / Fiat ID48 / Jetta ID48
• ID46 type: Great Wall (STEC) / Zotye (STEC) / Haima (STEC) / Maple (STEC) / Geely (SETC) / Cherry (STEC) / Zhonghua230 / Zhonghua530 / VW46 (2007–2008) / X-Trail (2008–2009)
• Renault (Master II) / Renault (Trafic II) / Opel (Vivaro) / Opel (Movano) / Renault (Espace IV) / Renault (Laguna II) / Renault (Velsatis) / Renault (Twingo) / Citroen / Fiat / Lancia / Peugeot (206/307)

Transponder Production Coverage (Continued)

• Mitsubishi / Cruze / Siemens / Changhe / Suzuki / GM / Beidouxing
• T5 type: ID11 / ID12 / ID13 / ID33
• ID47 type: Honda
• ID63 Ford 80 bit

Signal Test

The KD-X2 can check a remote's frequency and identify its signal type (ASK or FSK), including:

• Frequency Test (remote, ASK/FSK)
• ECU signal test (verifies ignition coil functionality)

Simulator

The KD-X2 allows simulation of a key before cloning to verify functionality on:

• ID46
• ID4D

Transponder Edit

The KD-X2 supports reading, writing, and editing chip data for ID4D / ID46 / ID48 / ID47 / ID4D DST / ID8A, and more.

ID48 Activation Is FREE and Ready to Use on Your New KD-X2 Machine

To use the ‘Copy’ function, this is FREE* or packs can be ordered**.
FREE* (150 KEYDIY Coins are needed to clone 1 x ID48 chip).
To use the ‘Copy’ ID48 (96-bit) function for FREE, you must use KD Coins, which are earned each time you generate a remote with the machine.

• The more you use the machine, the more FREE KD Coins you receive to copy ID48 (96-bit).
• Every first-time generation of a “B” remote earns 20 FREE KD Coins.
• Every first-time generation of an “NB” remote earns 10 FREE KD Coins.
• Example 1: 7 × “NB” + 1 × “B” first-time generations = 150 FREE Coins = 1 FREE ID48 (96-bit) copy.
• Example 2: 8 × “NB” first-time generations = 160 FREE Coins = 1 FREE ID48 (96-bit) copy + 10 spare KD Coins.
• Example 3: 15 × “B” first-time generations = 150 FREE Coins = 1 FREE ID48 (96-bit) copy.

Packs can be Ordered** (150 KEYDIY Coins required per ID48 chip clone)
If you need immediate access to the ID48 copy function without waiting to accumulate coins through remote generation, you may purchase KD Coins:

• Purchase 1 × ID48 (96-bit) copy for £9.99 each + VAT (equivalent to 150 KEYDIY Coins)
• For more information on KD-X2 Coins, please contact the office at 01902 366 448.

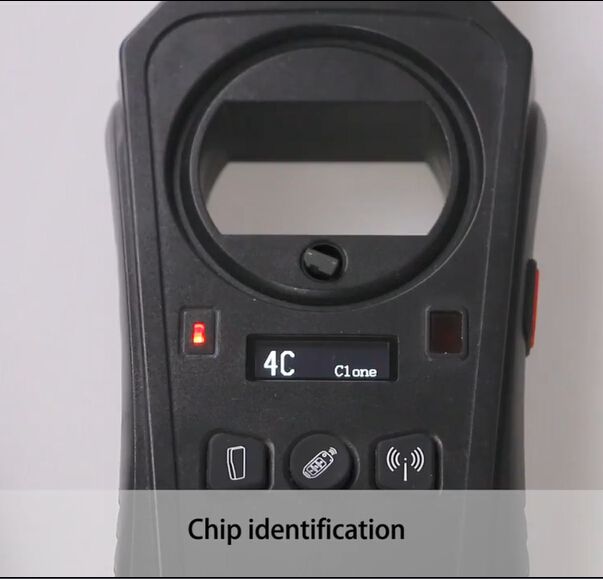

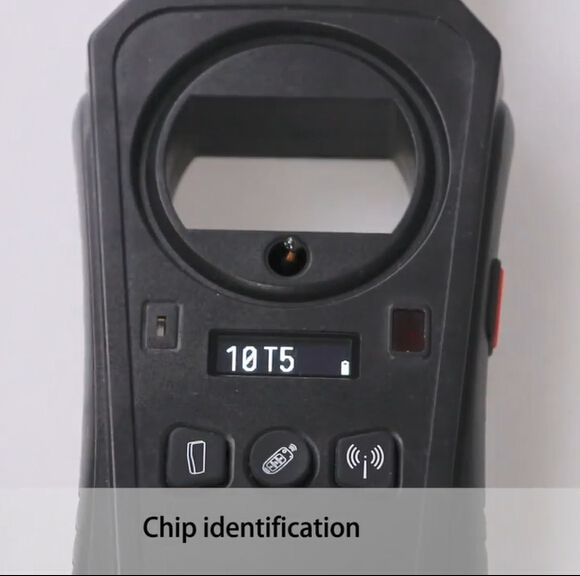

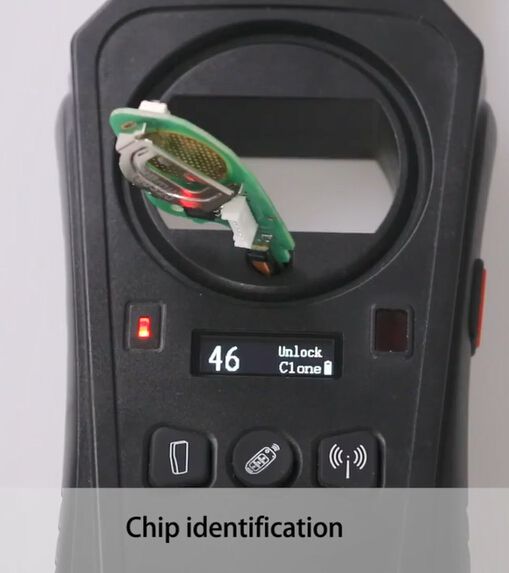

How to Use KEYDIY KD-X2 to Identify Chip Type?

Insert the chip you want to identify into the chip slot, then press the "Chip Identification" button.

Customer Feedback

“I just updated to version 4.6.2 and the REMOTE UNLOCK option is now available. Unlock key means in this case unlocking used keys so they can be reused, thus cutting costs on new keys by unlocking and using second-hand keys.”

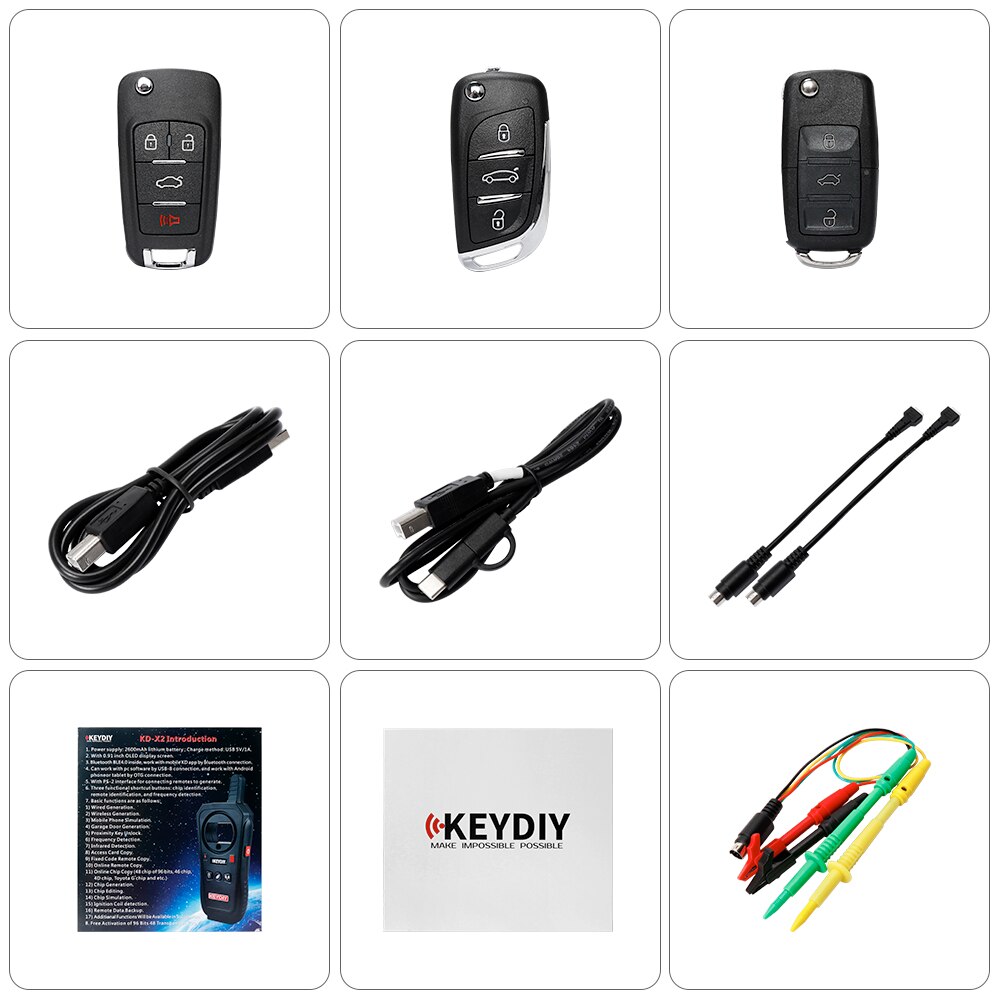

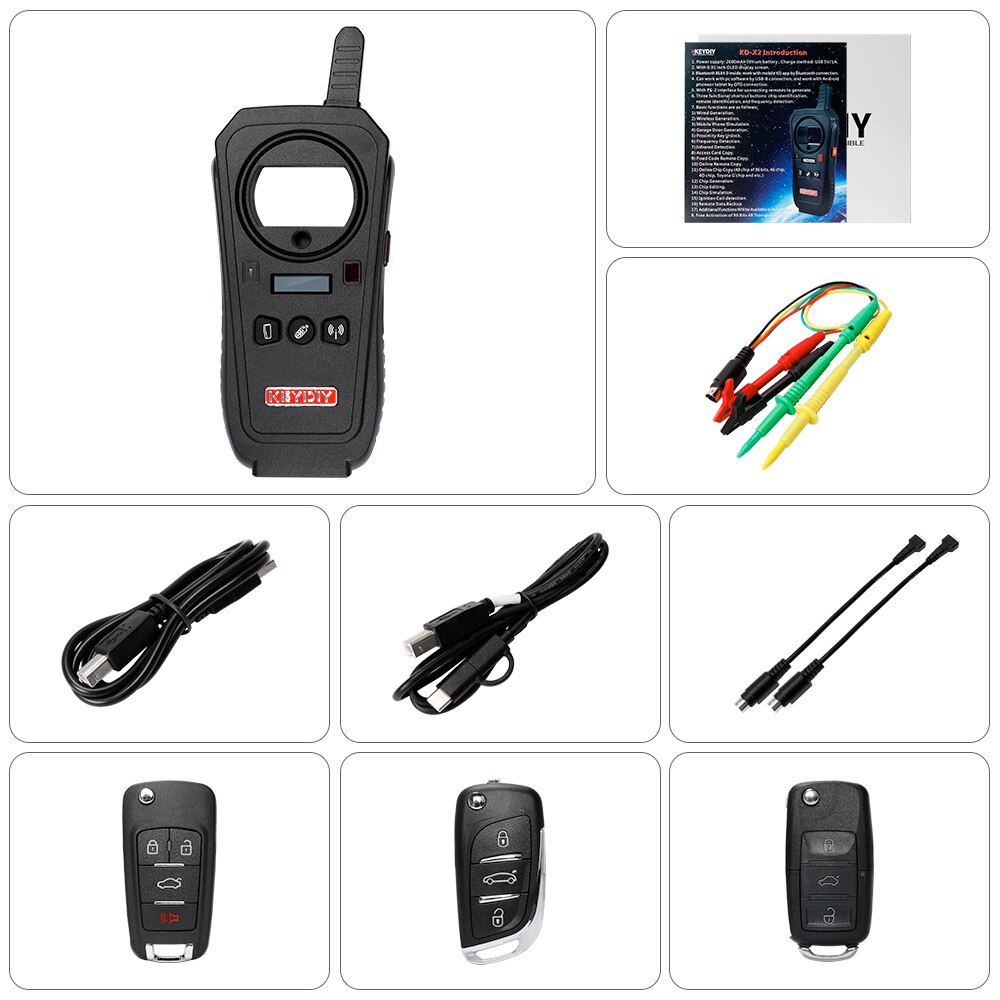

KEYDIY KD-X2 Remote Maker Package List

What's Included in the Package

• 1pc x KEYDIY KD-X2 Main Unit
• 1pc x PC Data Cable
• 1pc x 3 Commonly Used Remotes
• 1pc x Remote Data Cable
• 1pc x Spare Remote Data Cable
