1000W 30V/36V MPPT Solar Grid Tie Inverter Function Pure Sine Wave 110V Or 230V Output 60 72 CELLS Panel Input On Grid Tie Inversor

1000W 30V/36V Grid Tie Inverter MPPT Function Pure Sine Wave 110V Or 230V Output 60 72 CELLS Panel Input On Grid Tie Inverter

Note:For the Inverter,we have110Vand220Voutput voltage,US,AU,EU,UK,4 types plugs. please leave a message to tell me the output AC voltage and Socket type you want,thanks!

DC input: 30V/36V 60 72Cells Panels
AC output: 110V or 230VAC
Power:1000W
Plug:EU,AU,US,UK Plug.

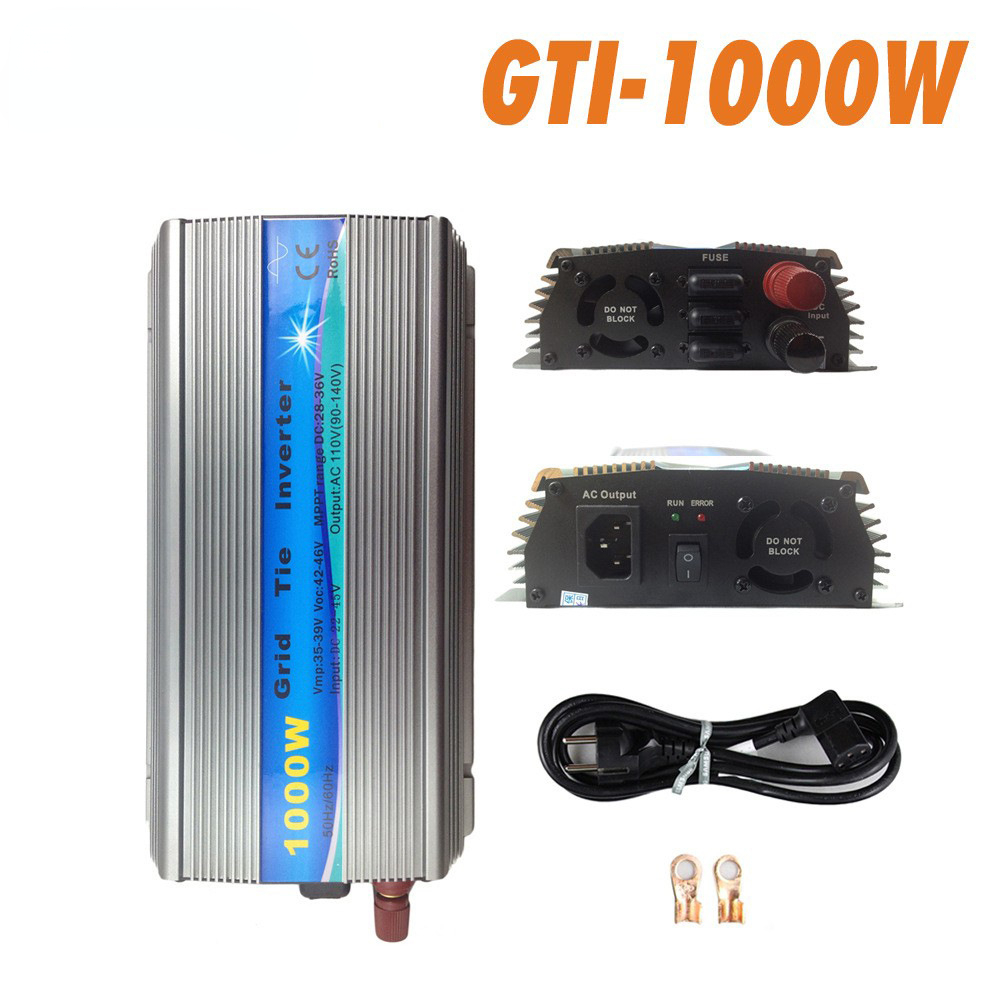

Package List:

1. 1pcs Micro inverter

2. 1pcs user manual(English)

3. 1pcs AC Cord

Description:

Smart Grid Tie inverter is a compact unit,which directly converts direct current into alternating current for powering appliances and/or office equipments and connecting to utility grid.The AC output from Smart Micro inverter is synchronized and in-phase with the utility grid.It is a key device of power generation systems such as PV power generation system.

Smart Micro inverter specially optimized design to work with modularization of DC power supplies which includes the mainstream solar modules,18V(36cells),24V(60 cells) and 36V (72cells)Moncrystal and/or polycrystalline solar panels and batteries.Smart Micro inverters are stabliation,reliable and high conversion efficiency items.It is the best choice for PV power generation system.

YSmart Micro inverter can be easily placed and attached to the rack underneath of PV module.No need sapces for independent installation and low voltage DC wre connects from the PV module to smart Micro inverter can eliminate the risk of high DC voltage.Distributed modularization design philosophy for smart micro inverter insures the productiveness of the whole system and will not affect by a single point of failure.Each Smart Micro inverter is individually connected to each PV module in the array.This unique configuation means that an individual Maximum Peak Power Point Tracker(MPPT) controls each PV modules in the array which may be affected by shading,soiling,orientation or mismatch,etc.

Smart Micro inverter insures top performance for maximizing energy production from the whole PV system and gets return on investment in less time

Technical Parameters:

Features:

1.Unique circuit design,choice of import industrial electronic components,higher efficiency,more stable performance.

2.Creative MPPT technology,efficiency more than 99%,faster and more sensitive reaction,more reliable.

3.Parallel type design for DC input and modularization design for inverter,small volume,distributed installation easy for system configuration,flexible for combination,strong expansibility of system.

4.Adopting high-frequency isolation transformer type,high efficiency,and high security.

5.Perfect electrical protection function.

6.Aluminum alloy housing,not rust,heat-resisting and cold-resistant as well as anti-corrosion.

LED indicator:

1. Red LED indicator lights up under any conditions as listed below:
a. Low-voltage protection(DC input voltage lower than Min. input voltage of inverters )
b. Over-voltage protection(DC input voltage higher than Max. input voltage of inverters)
c. Over-temperature protection (inverters will be shut down for power output when the temperature of body of inverters higher than 65-75.)

And inverter will be automatically restart up when the temperature of body of the inverter down to 40-50.

d. Power grid fault protection (when 110VAC or 220VAC grid power outage and/or tripped.
e. Islanding protection: inverter will be automatically shut down for power output when disconnect with power grid.

Warranty Conditions:

Warranty Period: 15-year limited warranty period.

Warranty Time Start: From the date of bill of lading

Warranty Evidence: The B/L, Product(s) series number(s), Product(s) model, and a completed warranty card.

If your device has a defect or malfunction during the warranty period, please contact your retailer or installer.
