Foxwell i70 Pro Premier Diagnostic Platform – Supports Key Coding, Diagnosis, WiFi and Bluetooth

The Foxwell i70 Pro is the latest tablet-style diagnostic scanner designed to deliver faster, smarter, and more accurate vehicle diagnostics for professional workshops and technicians. Built with an IP67-rated waterproof, dustproof, and shockproof design, the i70 Pro withstands harsh workshop conditions and rugged road testing environments. Enhanced through comprehensive hardware and software upgrades, it enables technical staff to diagnose issues efficiently and generate detailed, professional diagnostic reports.

One-Touch Updates & Technical Support

If any issue arises with the device, simply upload the debug file and problem description using the built-in debug log collection feature. The Foxwell technical team will analyze the data and provide the most suitable solution in minimal time, ensuring continuous support for vehicle and system diagnostics.

Equipped with advanced processing capabilities, the i70 Pro enhances diagnostic speed and accuracy, empowering technicians to resolve vehicle issues quickly and produce comprehensive service reports.

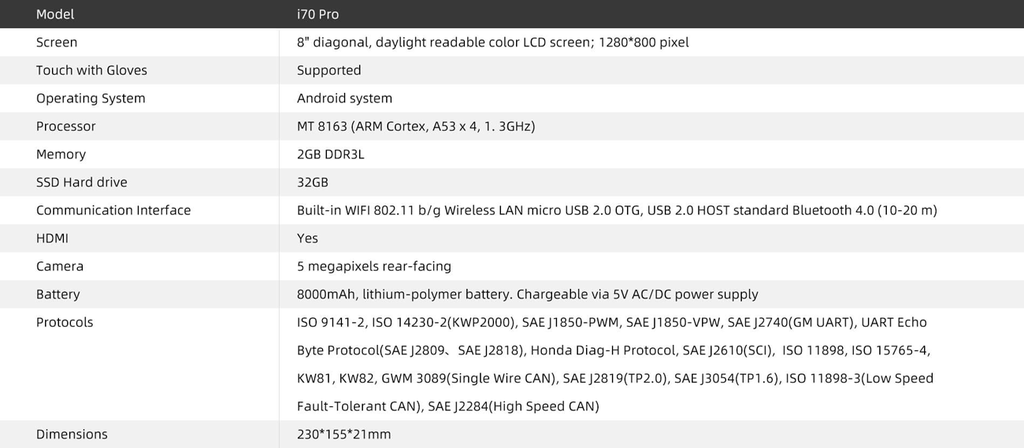

Specifications

The Foxwell i70 Pro supports wireless connectivity up to 10 meters. Communication between the tablet and the VCI dongle can be established via Bluetooth or USB connection.

Key Benefits and Features

• Extensive Vehicle Coverage: Full OBD2 compatibility with OE-level diagnostics for over 80 American, European, and Asian vehicle models.
• Generic OBD II Functions: Retrieve standard OBD2 diagnostic information from compatible vehicles.
• Read DTCs: View detailed diagnostic trouble code records from vehicle control modules.
• Erase Codes: Clear DTCs and related data from the engine control module (ECM).
• Live Data Monitoring: Access real-time sensor data and parameters directly from the vehicle’s ECU.
• USB or Bluetooth Connection: Connect via USB cable or Bluetooth using the included VCI dongle for reliable data transmission.
• Fast Wireless Diagnostics: Utilizes Wi-Fi and long-range Bluetooth technology with a communication range up to 230 meters, enabling ultra-fast vehicle communication. Simply plug into the OBD-II port for instant diagnostics.
• Multi-Language Support: Available in English, Spanish, French, German, Polish, Italian, Japanese, Dutch, Portuguese, and Russian.
• Warranty & Software Updates: Backed by a two-year warranty against manufacturing defects and three years of free online software updates.

Full System Diagnosis – Quickly Identify Any Issue

The Foxwell i70 Pro performs complete diagnostics across all major vehicle systems, including:

• Engine System
• Powertrain System
• Airbags System
• ABS System
• Transmission System
• Brake System
• Alarm System
• Air Conditioning System
• Door & Window System
• Keyless Entry System
• TPMS System
• Steering System
• Wheel System
• Fuel System
• And other computer-controlled systems

By analyzing DTCs, freeze frame data, and real-time live data, the i70 Pro helps pinpoint vehicle problems within minutes.

Auto VIN Scan – Fast Vehicle Identification

The Auto VIN Scan function automatically reads and identifies the vehicle identification number, allowing for quick and accurate model-specific diagnostics.

22+ Common Service & Maintenance Functions

Beyond full-system diagnostics, the i70 Pro offers extensive service and maintenance functions such as Key Fob Programming, Oil Reset, EPB, TPS, TPMS, BRT, DPF, SAS, CVT, Odometer Adjustment, Gear Learning, and Injector Coding.

Detailed Service Functions:

1. Oil Service Reset: Resets maintenance reminder lights on the instrument cluster after oil changes.
2. EPB (Electronic Parking Brake): Perform activation/deactivation, brake bleeding, pad reset, and system calibration on vehicles equipped with electronic parking brakes.
3. BRT (Battery Replacement): Register new batteries and clear associated fault codes from the dashboard display.
4. TBA/TPS (Throttle Body Alignment): Calibrate throttle position sensors across idle, partial throttle, and wide-open throttle states.
5. SAS (Steering Angle Sensor Calibration): Recalibrate the steering angle sensor after alignment or component replacement.
6. DPF (Diesel Particulate Filter) Regeneration: Initiate active regeneration cycles to burn off accumulated soot and clear blockages in the DPF filter.
7. TPMS Programming: Read sensor IDs, program new tire pressure sensors, and reset the TPMS system after tire rotation or sensor replacement.
8. Odometer Adjustment: Modify odometer readings and write original values to new Odometers when necessary.
9. A/F Adjust: Adjust fuel supply to maintain optimal air-fuel ratio during combustion.
10. CVT Function: Reset compensation codes and initialize the electronic control transmission (ECT) after replacing solenoids or valve bodies.
11. Injector Coding: Re-match and reset engine control unit data after replacing fuel injectors.
12. Gear Learning: Perform crankshaft position sensor adaptation for proper gear recognition.
13. ABS & SRS Diagnostics: Includes ABS motor/solenoid tests, version checks, actuator testing, and auto-bleed functionality to remove air from brake lines after service.

Additional functions are available for further exploration.

Actuation, Adaptation & Control Module Coding

The i70 Pro supports component actuation and system control, allowing temporary activation of vehicle systems or components for testing and calibration purposes.

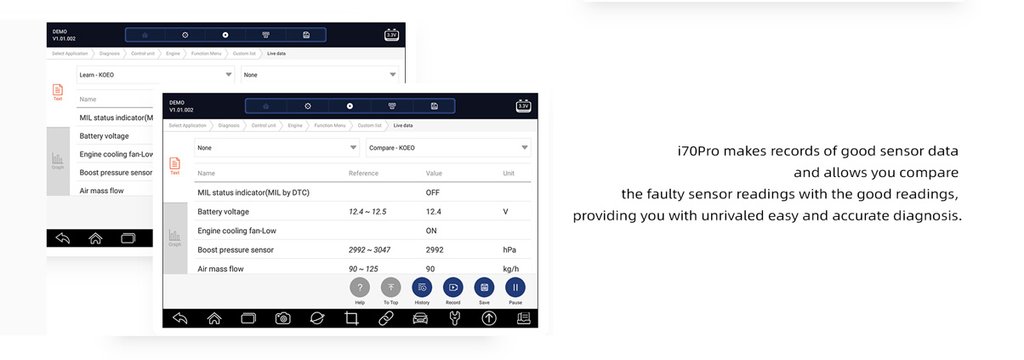

Precise Problem Detection with Advanced Live Data Tools

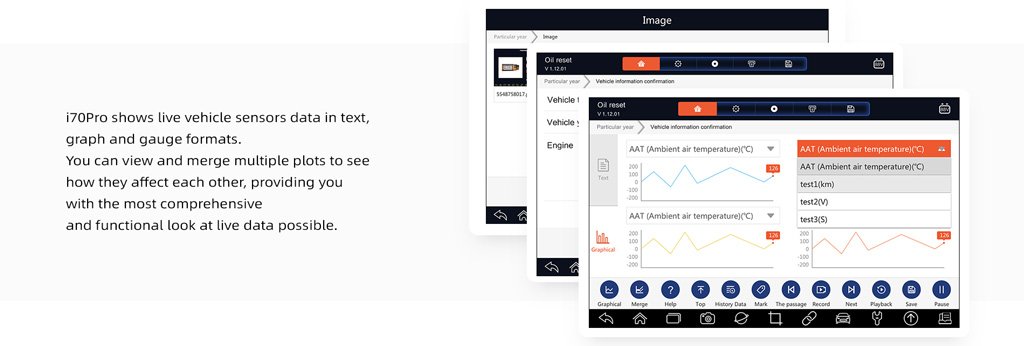

• View live sensor data in text, graph, and gauge formats to focus on symptom-related parameters.
• Merge interactive live data graphs for intuitive analysis of how different sensors influence each other.
• Live data self-learning with alarm alerts when values exceed normal operating ranges.

Record and Playback Data Logs for Intermittent Faults

Capture and replay data logs to detect intermittent faults that may not appear during standard diagnostics.

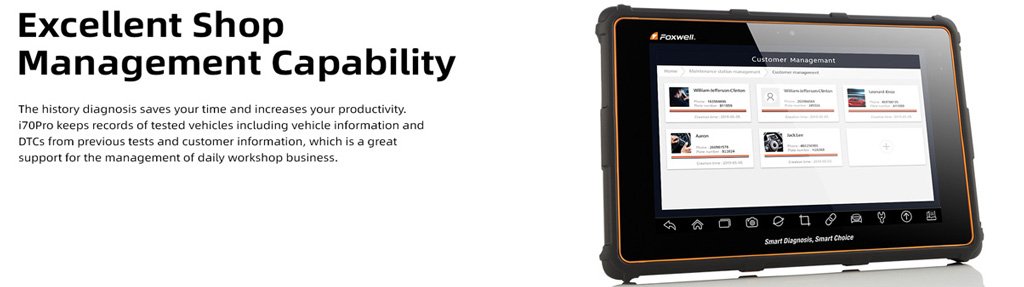

Workshop Management Capabilities

The i70 Pro stores historical data including vehicle details, diagnostic trouble codes, and customer information—ideal for managing daily workshop operations and tracking recurring issues.

Remote Technical Support via TeamViewer

Foxwell’s technical team can provide remote assistance using TeamViewer, enabling real-time troubleshooting and guidance.

One-Touch WiFi Updates

Keep your device up to date with seamless over-the-air software updates via WiFi, ensuring access to the latest vehicle coverage and features.

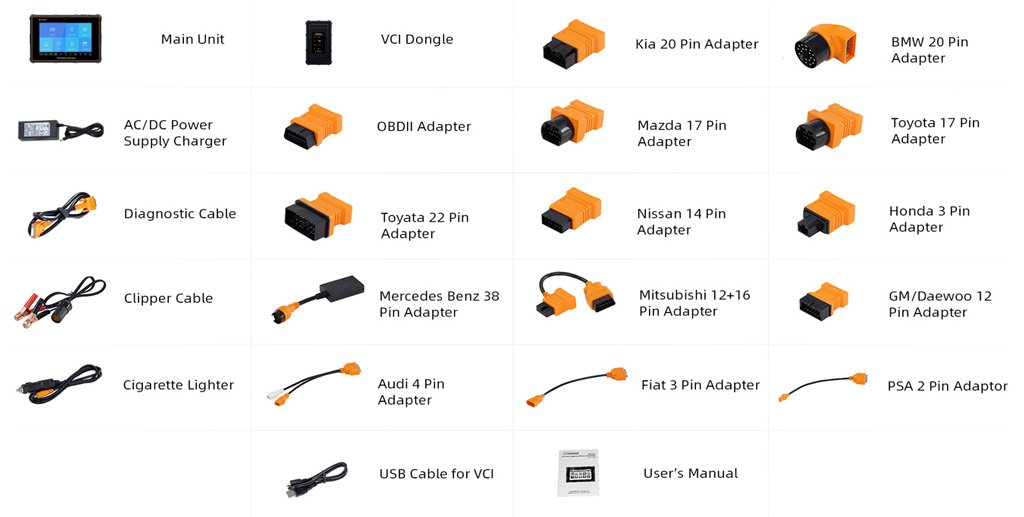

What's in the Box?
