IPower series is a pure sine wave inverter which can convert 12/24Vdc into 110/120Vac 220/230Vac. It has the characteristics of concise outline, compact size, high reliability, high efficiency, easy to install and operate and so on.
Item No. COBD211098 Price Down Notice
In Stock
Price:
US$254.00/ piece
Discount Price:
US$149.00/ piece 41%
Input Voltage:
Output Voltage:
Quantity:

Shipping:
Express Shipping Service
Estimated delivery time: 3-15 working days.See details »
Returns:
Return for refund within 7 days,buyer pays return shipping.Read details »
Support:
Online Chat WhatsApp Skype Ask a question
EPever 1500W Pure Sine Wave Inverter 12V/24V Input 110VAC 120VAC 220VAC 230VAC Output 50HZ 60HZ High Efficiency Converter IPower

Overview:

IPower series is a pure sine wave inverter which can convert 12/24Vdc into 110/120Vac 220/230Vac. It has the characteristics of concise outline, compact size, high reliability, high efficiency, easy to install and operate and so on. The inverter applicable to household emergency lighting system, vehicle mounted system and small field power supply, etc

Features:

Complete isolation-type inverter technology

Adoption of advanced SPWM technology, pure sine wave output

Dynamic current loop control technology to ensure inverter

reliable operation

Wide DC input voltage range

Low output harmonic distortion (THD≤5%)

Optional output voltage and frequency at 110/120VAC,50/60Hz

High conversion efficiency up to 93%~ 95%

USB output 5VDC/1A*

RS485 communication port*

Extensive Electronic protection

Only the model of the USB output port or RS485 port.

Product Features:

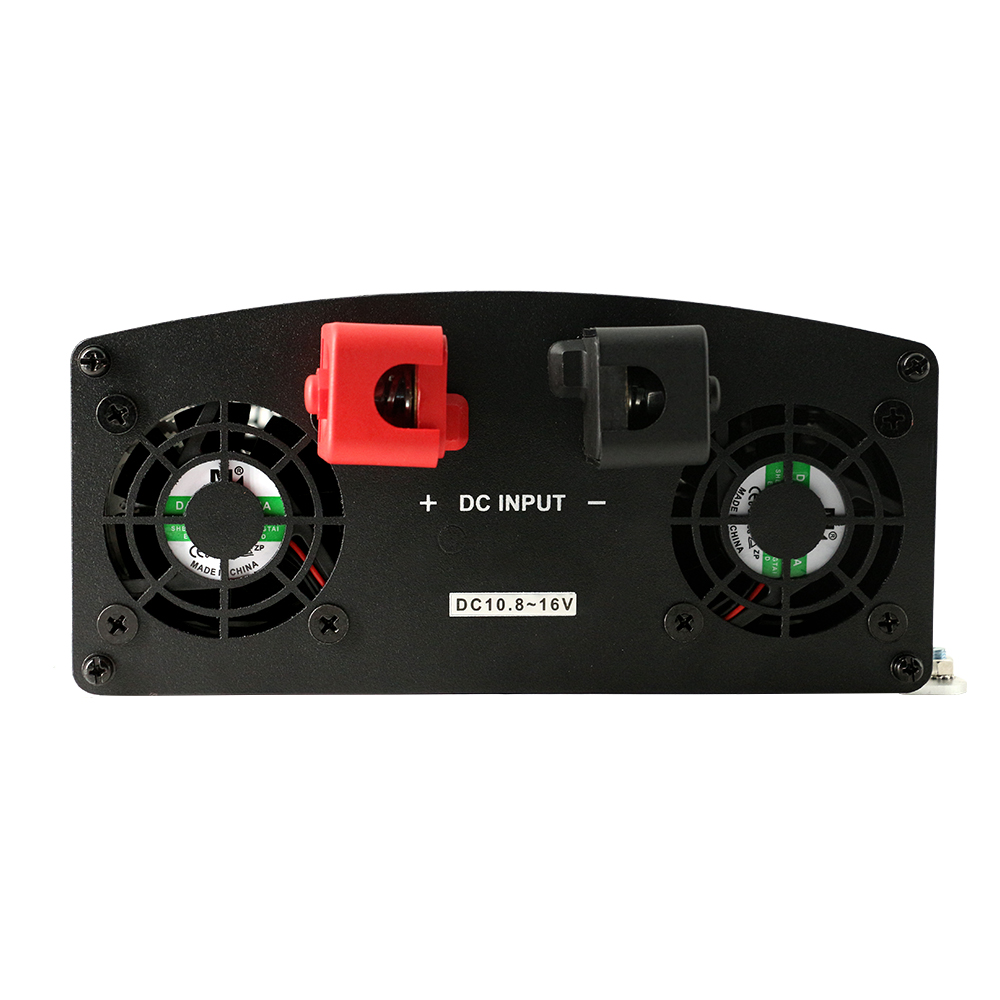

DC Input Terminal Positive

RS485 communication port(4)

DC input voltage range(1)

USB output port (5VDC/1A)

DC Input Terminal Negative

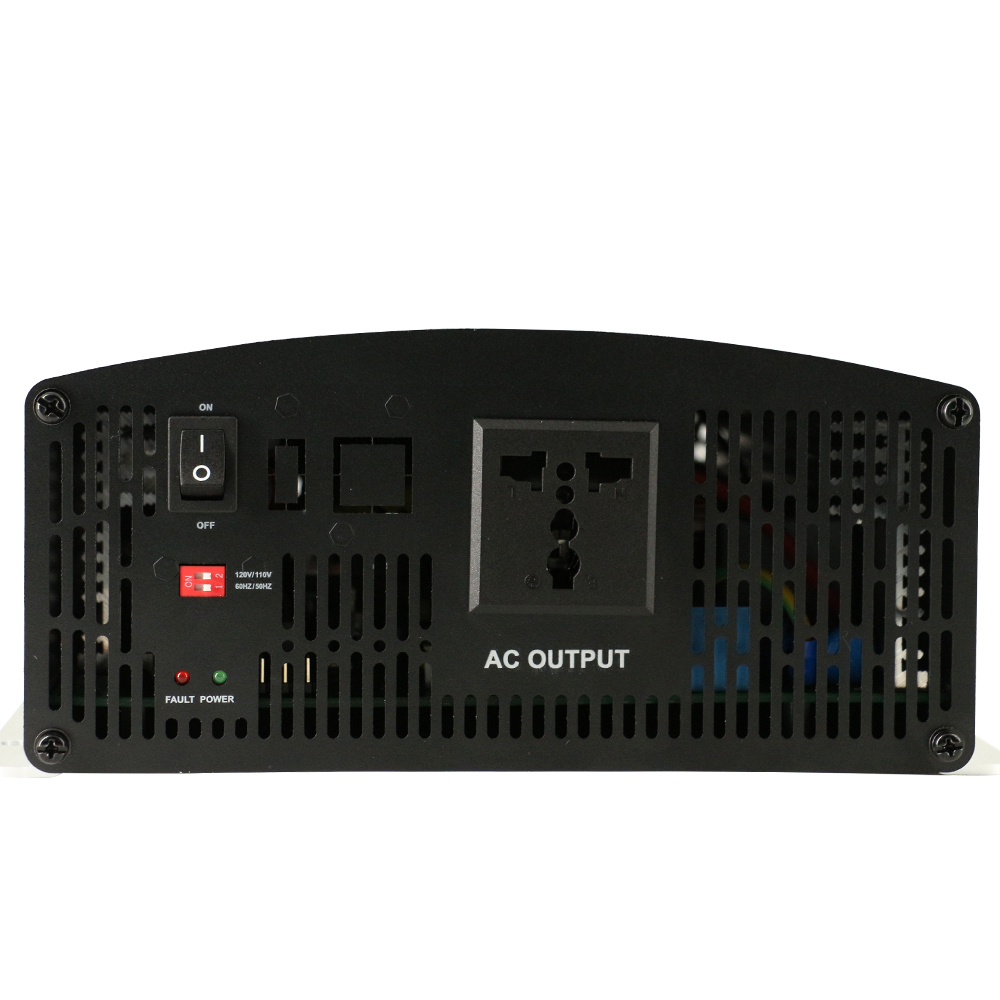

AC output switch

Ventilation Fan(2)

Mode switch(5)

Grounding Terminal

Fault indicator(red)(6)

AC Outlet(3)

Working indicator(green)(6)

Note:12V system input voltage range is 10.8 ~16V; 24V system input voltage range is 21.6 ~32V.

1) Fan Ventilation

When the heat sink temperature is more than 50°Cor internal temperature is more than 50°C, the fan will turn on automatically.When the heat sink temperature is lower than 40℃ and internal temperature is lower than 40°C, the fan will turn off automatically.

2) Mode Switch

The output mode can be changed by the mode switch. This mode can be switched online.

When the switch No.1 is on the ON side, output frequency is 60Hz, otherwise is 50Hz.
When the switch No.2 is on the ON side, the output voltage is 230Vac,otherwise is 220Vac.
same in 110Vac/120Vac

3)AC Outlet

Protection:

Protection

and recover

Condition

Phenomenon

Parameter

IPower-12

IPower-22

IPower-42

Over voltage protection

and recover

Input Voltage

Ui

Ui>16V

Ui>32V

Ui>64V

Output is OFF

Green indicator fast flashing

Buzzer sounds

Ui≤14.5V

Ui≤29V

Ui≤58V

Green indicator on solid

The output is on

Low voltage protection

and recover

Input Voltage

Ui

Ui<10.8V

Ui<21.6V

Ui<43.2V

Output is OFF

Green indicator slowly flashing

Buzzer sounds

Ui≥12.5V

Ui≥25V

Ui≥50V

Green indicator on solid

The output is on

Over tem. protection

and recover

Tem.(T)

Heat sink T>80℃

or Internal T>60℃

Inverter turns OFF

Heat sink T≤70℃

and Internal T≤50℃

Inverter turns ON

Overload protection

and recover

Output power S

Rated power Pe

S=1.2Pe

Output is OFFafter15min

Red indicator slowly flashing

Buzzer sounds

S=1.5Pe

Output is OFFafter1min

Red indicator slowly flashing

Buzzer sounds

S=1.8Pe

Output is OFFafter10s

Red indicator slowly flashing

Buzzer sounds

S>2Pe(Rated input voltage)

Output is OFFafter5s

Red indicator slowly flashing

Buzzer sounds

Load short circuit protection

Output is OFFimmediately

Red indicator fast flashing

Buzzer sounds

①When appear output overload protection or load short circuit protection, it has three times auto-recover output function (The first time delay 5s, the second time delay 10s and the third times delay 15s).

Technical Specifications:

Model

IP1500-11

IP1500-12

IP1500-21

IP1500-22

Input Rated Voltage

12VDC

24VDC

Input Voltage Range

10.8~16VDC

21.6~32VDC

Input surge voltage

<20V

< 40V

No-load current

<1.0A

< 0.6A

Output Voltage

110VAC(±5%)
120VAC(-7%~+5%)

220VAC(±5%)
230VAC(-7%~+5%)

110VAC(±5%)
120VAC(-7%~+5%)

220VAC(±5%)
230VAC(-7%~+5%)

Output Continuous Power

1200W

Output Power 15 min.

1500W

Instantaneous impact power

2400W

Output way

Single phase

Output Wave

Pure sine wave

Output Frequency

50/60Hz(±0.2%)

Distortion THD

THD≤5%(Resistive load)

Max. Efficiency

93%

93%

94%

94%

Max. USB Output

5VDC/1A

Working environment temperature

-20°C~+45°C

Storage temperature range

-35°C~+70°C

Humidity range

≤95%(N.C.)

Enclosure

IP20

Altitude

<5000m(Derating to operate according to IEC62040 at a height exceeding 1000 m)

Binding post

Φ 10mm

Overall dimension

326.12×231.5×98.5mm

284.7×231.5×98.5mm

Mounting dimension

208×220mm

163×220mm

Mounting hole size

Φ5.5mm

Net weight

3.90kg

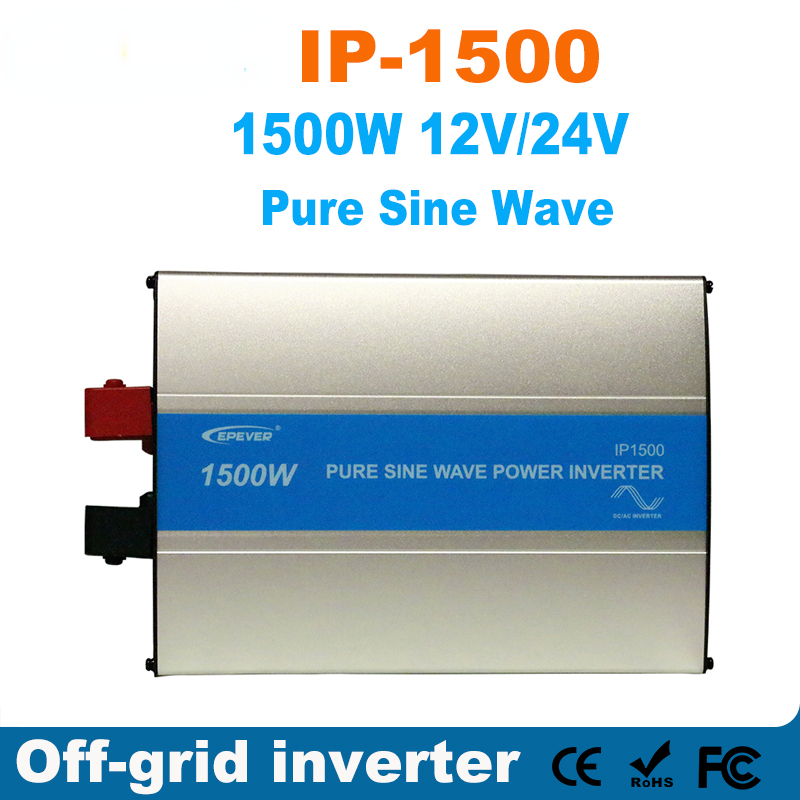

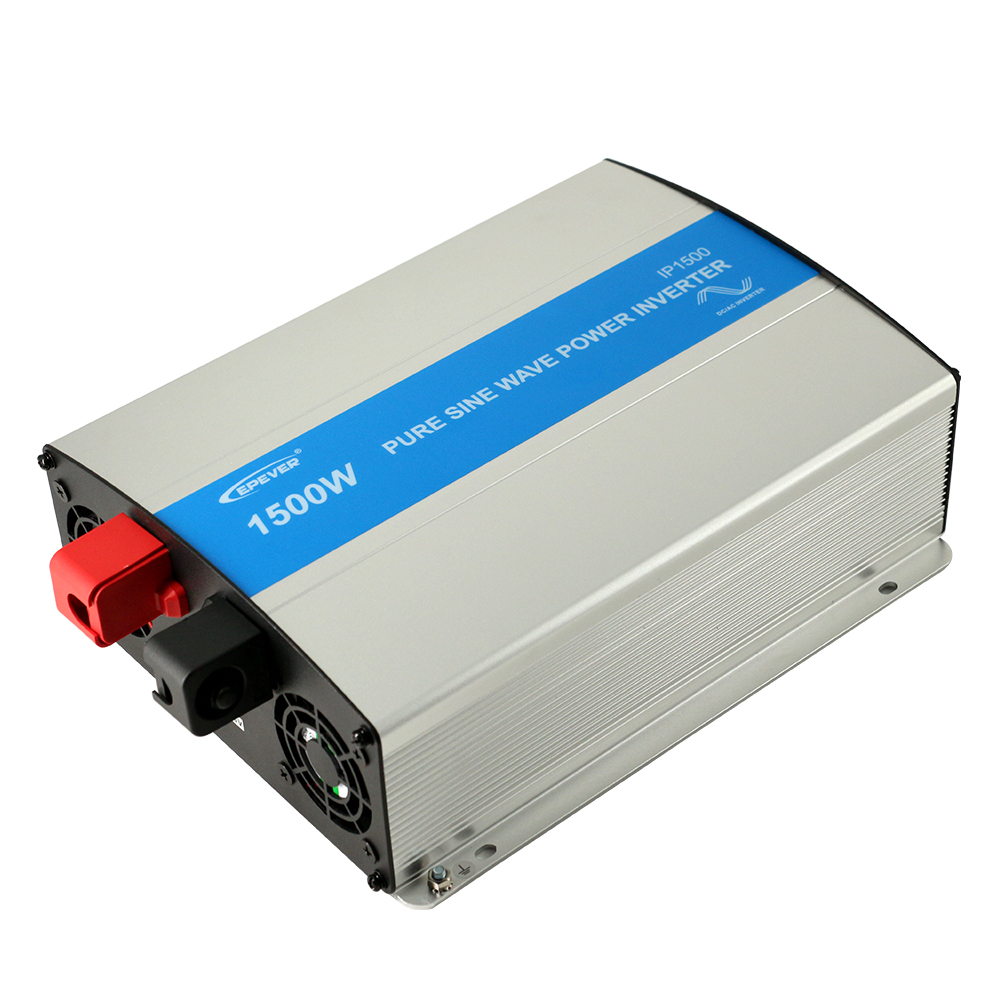

Photo:
