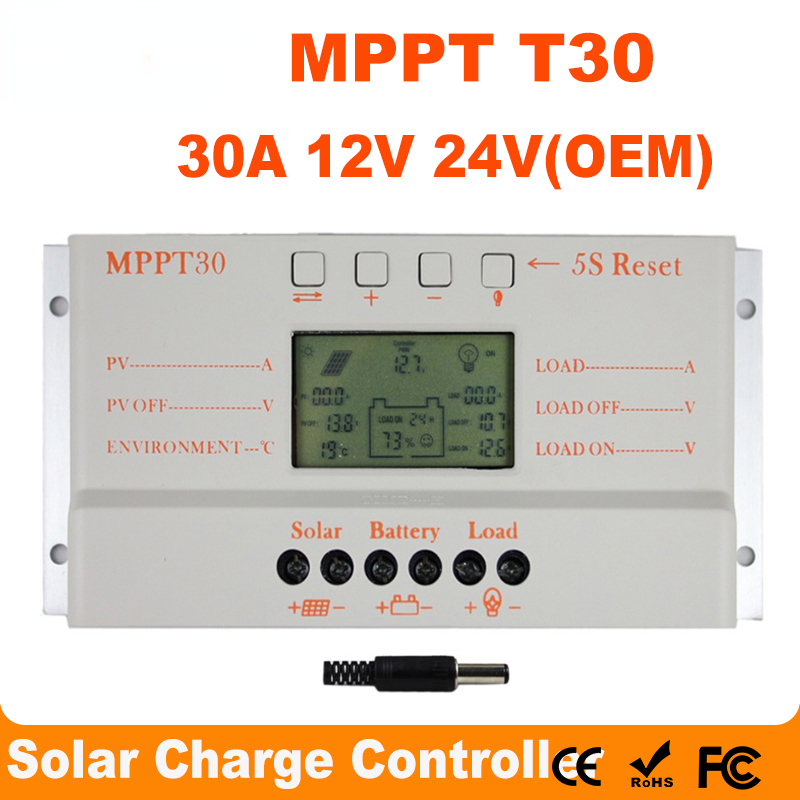

MPPT T30 Solar Charge Controller 30A 5V USB Charger 12V 24V Auto Solar Panel Battery LCD Charger Regulator MPPT 30Amps PV System
- Price:
- US$56.96/ piece
- Discount Price:
- US$29.99/ piece 47%
- Quantity:
-
- Shipping:
- Airmail Post
Estimated delivery time: 7-45 working days.See details» - Returns:
- Return for refund within 7 days,buyer pays return shipping.Read details »
- Support:
-
Online Chat
WhatsApp
Skype
Ask a question
- Product Details
- Product's Reviews
- Write a Review
- Related Products

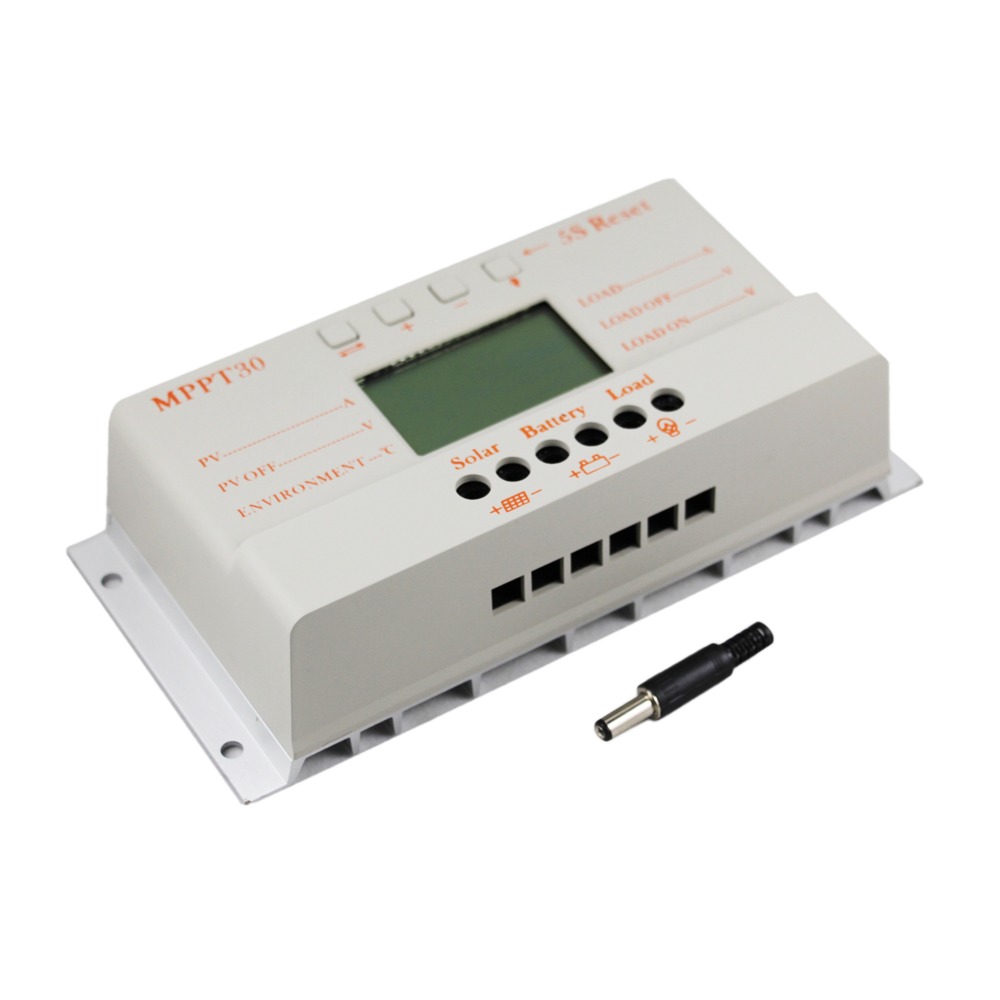

MPPT 30A Solar Charge Controller 5V USB Charger 12V 24V Auto Solar Panel Battery LCD Charger Regulator MPPT M30 30Amps PV System One page screen 0 Layer
This is a compatible MPPT charge controller PWM intelligent / efficient / energy saving, he not only has efficient MPPT controller charging function to automatically track the maximum power point, 10% -30% higher than the ordinary controller charging efficiency, also has standby energy saving, more than 30% energy than ordinary controller, the standby power consumption of only 10mA-15mA.
Package including:
1. 1pcs mppt30 30a controller
2. 1pcs user manual
3. 1pcs temp sensor
Solar LCD series a kind of intelligent, multi-purpose solar charge and discharge controller
| LCD screen display | Battery reverse discharge protection |
| Easy operation interface | Battery reverse polarity protection |
| MPPT+ PWM charging mode | Battery under voltage protection |
| Parameter user can reset | Overload, short-circuit protection |
| A key to open and close the load | Automatic temperature compensation function |
| A key to restore the factory settings | USB 5V charging (for 500mA) for mobile phone |
notice: Not True MPPT,there is no large transformer coil inside.
Features:
Solar LCD series a kind of intelligent,multipurpose solar charge and discharge controller

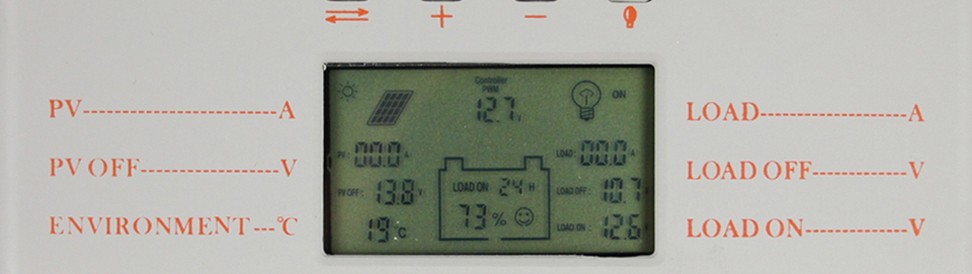

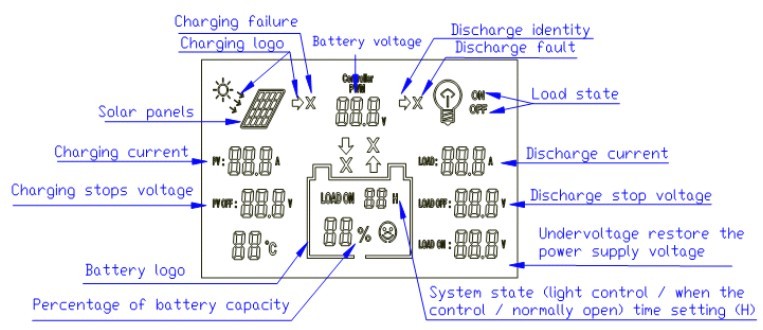

1, LCD screen display
2, Easy operation interface
3, PWM charging mode
4, Parameter user can reset,
5, A key to open and close the load,
6, A key to restore the factory settings,
7, Battery reverse discharge protection,
8, Battery reverse polarity protection
9, Battery under voltage protection,
10, Overload, short-circuit protection,
11, Automatic temperature compensation function,
12, USB 5V charging (for 500mA) for mobile phone.
| Parameters / Model | MPPT10 | MPPT20 | MPPT30 | MPPT40 |
| Maximum power current | 12A | 20A | 30A | 40A |
| Installation Lin(mm2) | 4mm2 | 8mm2 | 10mm2 | 12mm2 |
| Installation Line(AWG) | 10(AWG) | 8(AWG) | 7(AWG) | 6(AWG) |
| Weight | 280g | 300g | 475g | 480 |
| Dimensions | 143×89×46(mm) | 187*97*61(mm) | ||
| System load loss | ≤13mA | |||
| Loop Buck | ≤100mV | |||
| Battery float voltage | 13.8V(12V system)/27.6V(24V system) |
| Battery(under voltage) protection | 10.6V(12V system)/21.2V(24V system) |
| Battery (under voltage) recovery voltage | 12.6V(12V system)/25.2V(24V system) |
| Charge mode | MPPT+PWM MODE |
| Operating Temperature | -10°C~60°C |
| Storage Temperature | -30°C~70°C |
| Humidity requirements | ≤90%, No condensation |
| Temperature compensation | -4mV/Cell/°C |
| Temperature Probe (built components) | NTC 100K thermistats |
| Maximum open circuit voltage of the solar panel | 18V-24V(12V system)36V-48V(24V system) |
| Solar panels maximum open circuit voltage (V) | ≤48V |
(Cases) 12V system standard configuration
| The peak voltage of the solar cell panel | 18V-25V | 18V-25V | 18V-25V | 18V-25V |
| Peak power of solar cell panel | 50W-130W | 100W-260W | 200W-380W | ≤500W |
| Model | MPPT10 | MPPT20 | MPPT30 | MPPT40 |
| Battery standard voltage | 12V | 12V | 12V | 12V |
| Battery capacity | ≥100AH | ≥200AH | ≥300AH | ≥400AH |
| Installation Lin(mm2) | 4mm2 | 8mm2 | 10mm2 | 12mm2 |
| Installation Line(AWG) | 10(AWG) | 8(AWG) | 7(AWG) | 6(AWG) |
