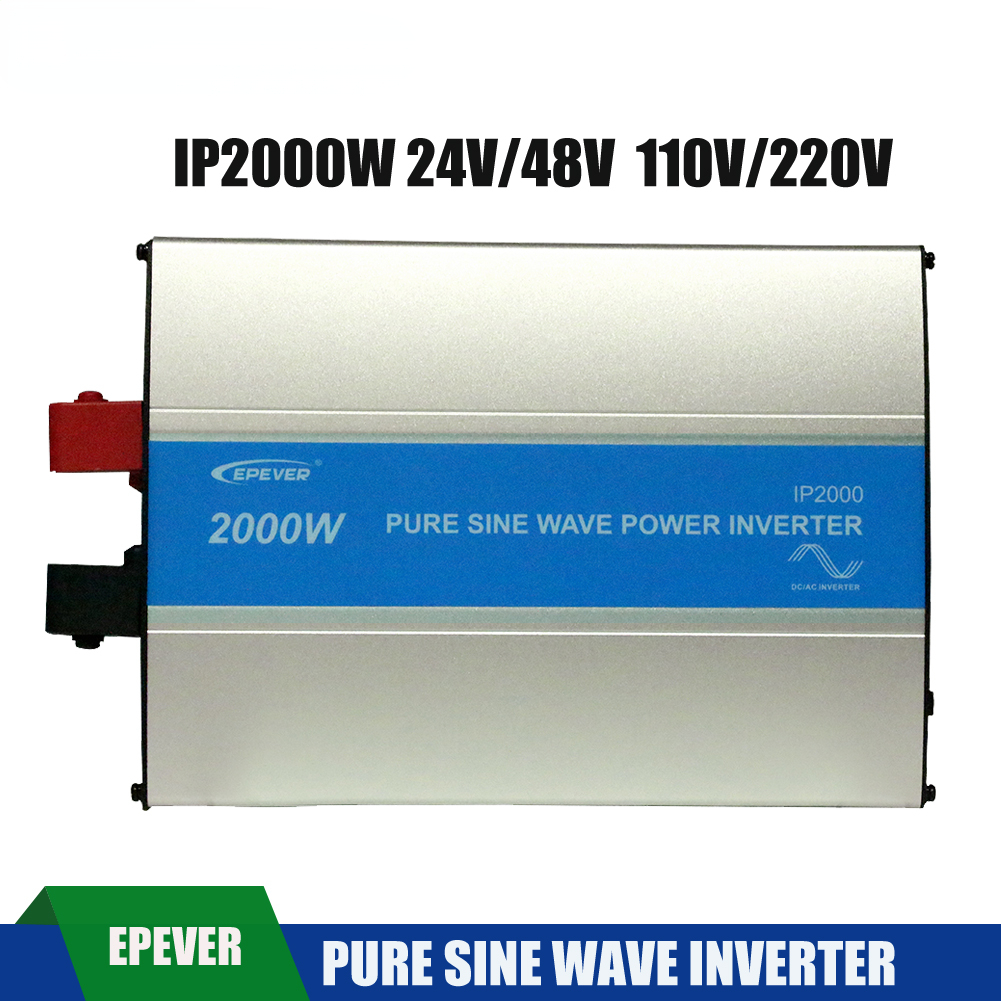

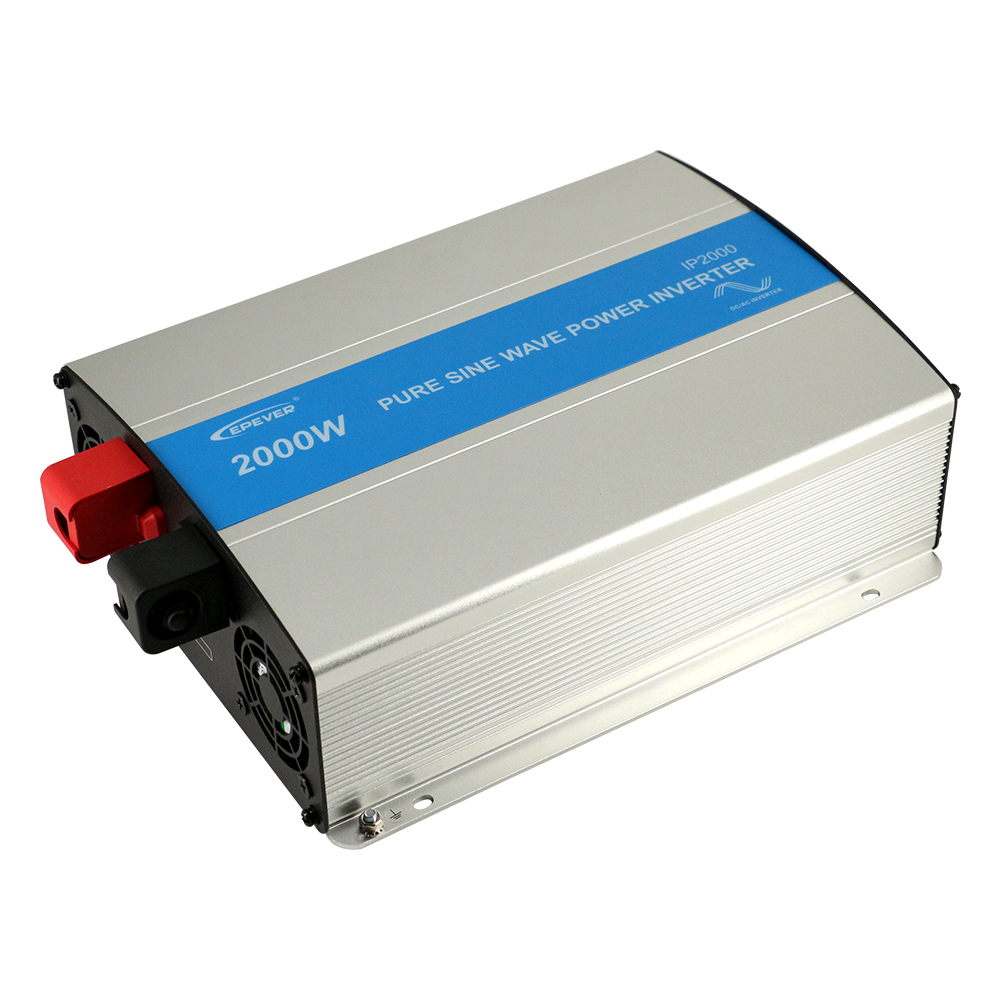

2000W IPower Pure Sine Wave Inverter 24V/48V Input 110VAC 120VAC 220VAC 230VAC Output 50HZ 60HZ High Efficiency Converter

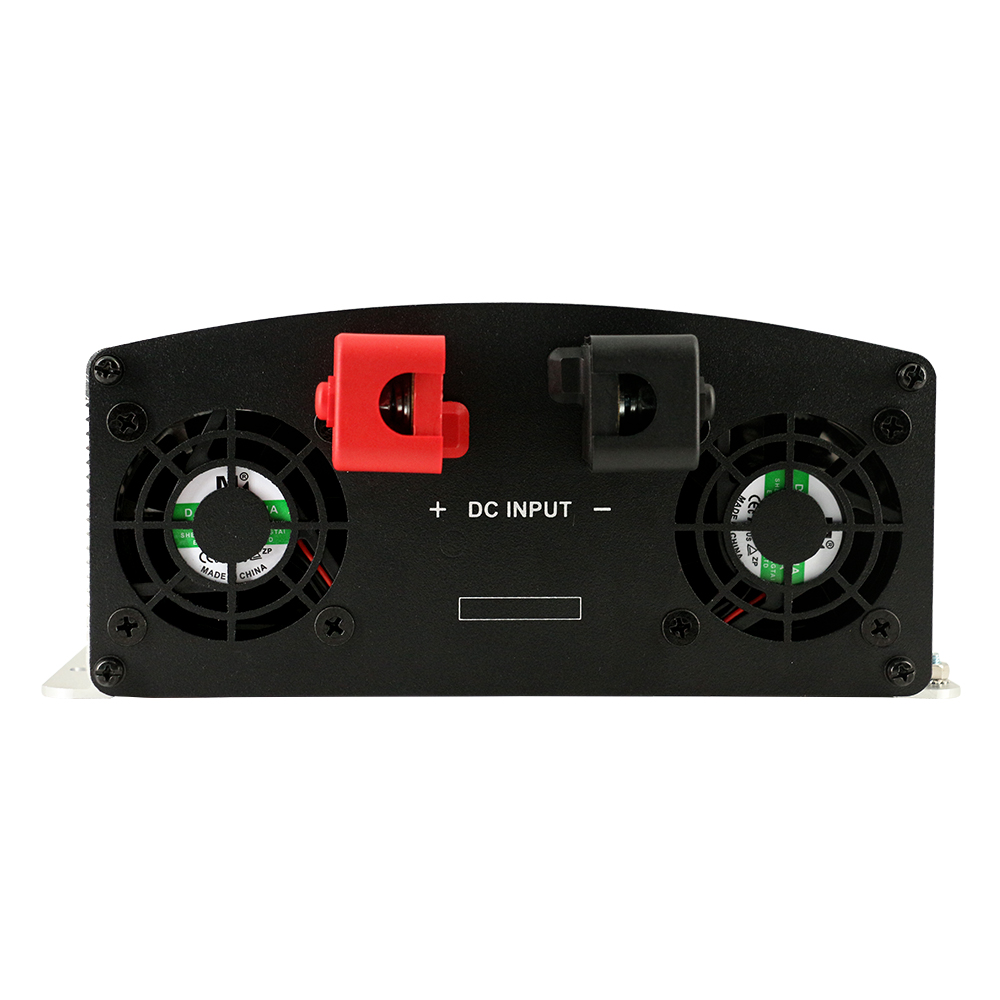

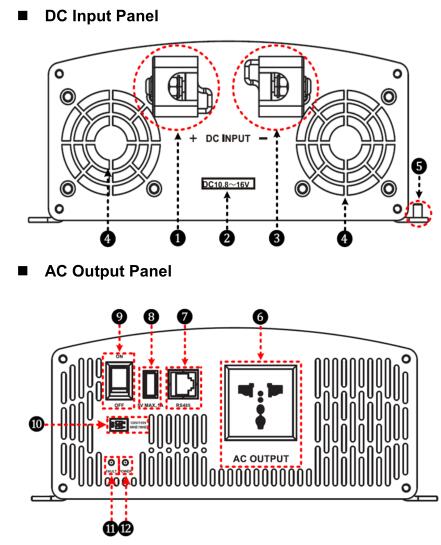

DC Input Terminal Positive

RS485 communication port(4)

DC input voltage range (1)

USB output port (5VDC/1A)

DC Input Terminal Negative

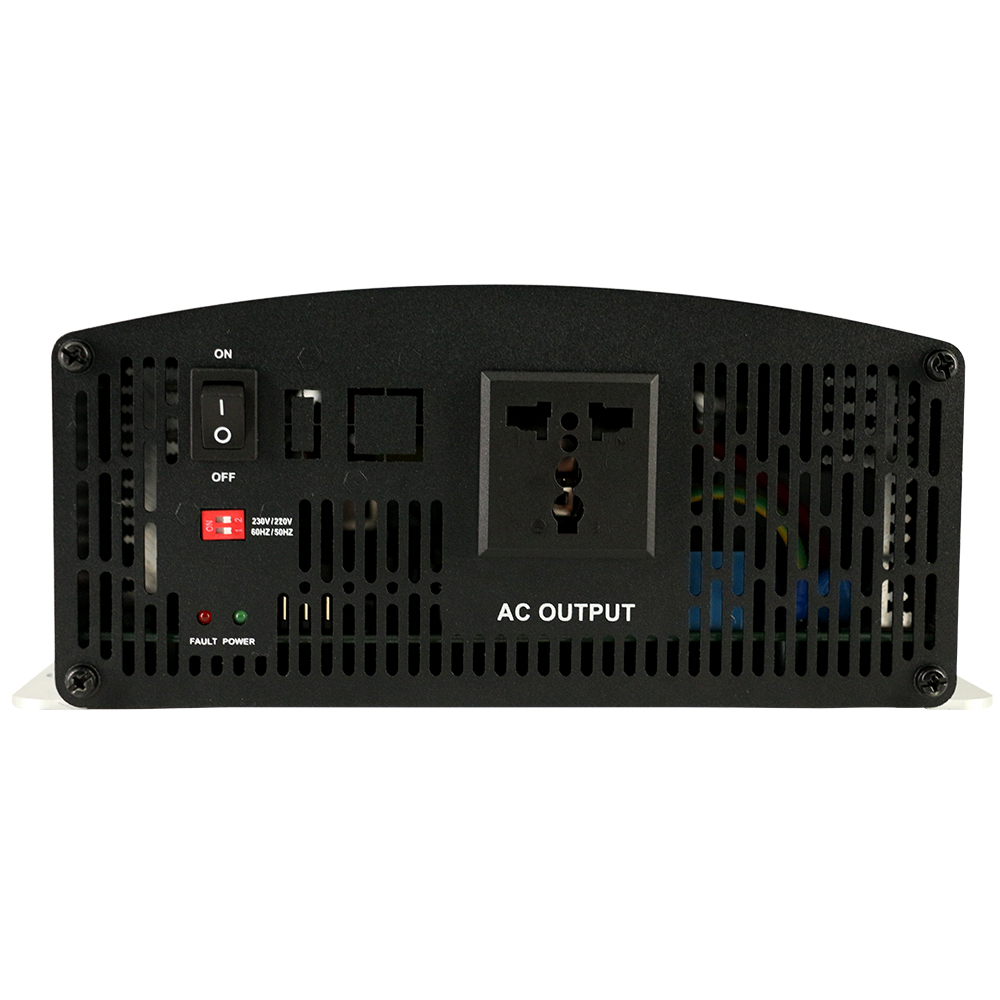

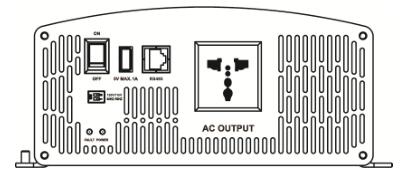

AC output switch

Ventilation Fan (2)

Mode switch(5)

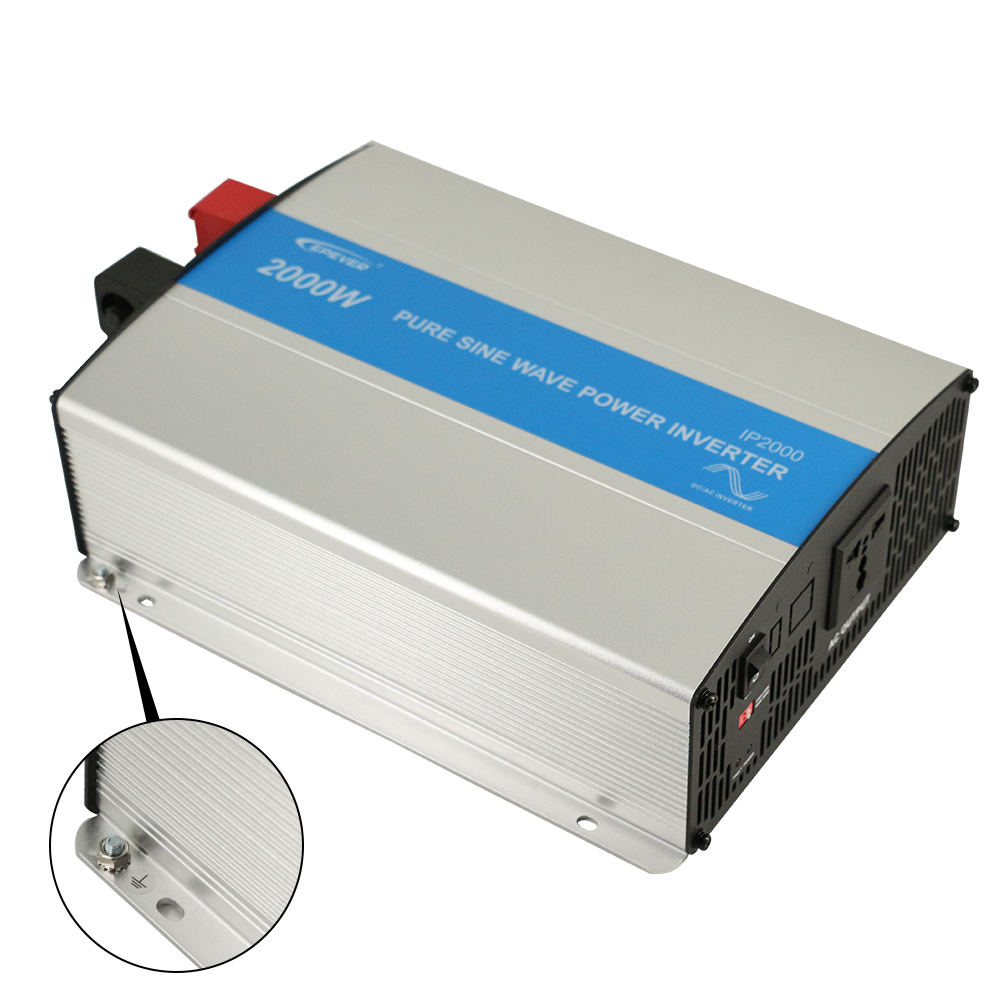

Grounding Terminal

⓫

Fault indicator(red) (6)

AC Outlet (3)

⓬

Working indicator(green) (6)

Model

IP2000-21

IP2000-22

IP2000-41

IP2000-42

Input Rated Voltage

24VDC

48VDC

Input Voltage Range

21.6~36VDC

43.2~60VDC

Input surge voltage

<40V

< 80V

No-load current

<0.6A

< 0.4A

Output Voltage

110VAC(±5%)
120VAC(-7%~+5%)

220VAC(±5%)
230VAC(-7%~+5%)

110VAC(±5%)
120VAC(-7%~+5%)

220VAC(±5%)
230VAC(-7%~+5%)

Output Continuous Power

1600W

Output Power 15 min.

2000W

Instantaneous impact power

3200W

Output way

Single phase

Output Wave

Pure sine wave

Output Frequency

50/60Hz(±0.2%)

Distortion THD

THD≤5%(Resistive load)

Max. Efficiency

95%

95%

95%

95%

Max. USB Output

5VDC/1A

Working environment temperature

-20°C~+45°C

Storage temperature range

-35°C~+70°C

Humidity range

≤95%（N.C.）

Enclosure

IP20

Altitude

<5000m(Derating to operate according to IEC62040 at a height exceeding 1000 m)

Binding post

Φ 10mm

Overall dimension

326.12×231.5×98.5mm

326.12×231.5×98.5mm

Mounting dimension

208×219.5mm

163×219.5mm

Mounting hole size

Φ5.5mm

Net weight

4.0kg
