UNI-T ut204+series True RMS Digital clamp meter AC / DC Clamp ammeters temperature capacitance resistance Voltage tester LCD NCV

pecifications

Range

UT201+

UT202+

UT202A+

UT203+

UT204+

AC current (A)

400A

±(2%+10)

±(2%+10)

±(2.5%+5)

600A

±(2%+10)

±(2.5%+5)

AC current frequency (Hz)

50Hz~100Hz

±(1%+5)

±(1%+5)

±(1%+5)

DC current (A)

400A

±(2.5%+5)

600A

±(2.5%+5)

AC voltage (V)

600V

±(0.8%+5)

±(0.8%+5)

±(0.8%+5)

±(0.8%+5)

±(0.8%+5)

AC voltage frequency(Hz)

10Hz~10kHz

±(1%+5)

±(1%+5)

±(1%+5)

10Hz~60kHz

±(0.5%+2)

±(0.5%+2)

DC voltage (A)

600V

±(0.5%+2)

±(0.5%+2)

±(0.5%+2)

±(0.5%+2)

±(0.5%+2)

Resistance (Ω)

40MΩ

±(0.8%+2)

±(0.8%+2)

±(0.8%+2)

60MΩ

±(0.8%+2)

±(0.8%+2)

Capacitance (F)

4mF

±(4%+5)

40mF

±(4%+5)

60mF

±(4%+5)

±(4%+5)

Temperature (℃)

-40℃~1000℃

±(1.5%+5)

±(1.5%+5)

Frequency (Hz)

10Hz~10MHz

±(0.1%+4)

±(0.1%+4)

±(0.1%+4)

Features

Display count

4000

4000

6000

4000

6000

Auto range

√

√

√

√

√

Jaw opening

28mm

28mm

28mm

28mm

28mm

True RMS

√

√

√

√

√

NCV

√

√

√

√

√

Live wire test

√

√

Continuity test

√

√

√

√

√

Diode

√

√

√

√

√

MAX/MIN

√

√

√

√

√

Relative mode

√

√

√

√

Zero mode

√

√

Data hold

√

√

√

√

√

Low battery indication

√

√

√

√

√

Auto power off

√

√

√

√

√

General Characterisitics

Power

1.5V battery (R03) x 2

Display

37mm x 25mm

Product color

Red and grey

Product net weight

UT201+/UT202+/UT202A+：248g; UT203+/UT204+:235g

Product size

215mm x 63mm x 36mm

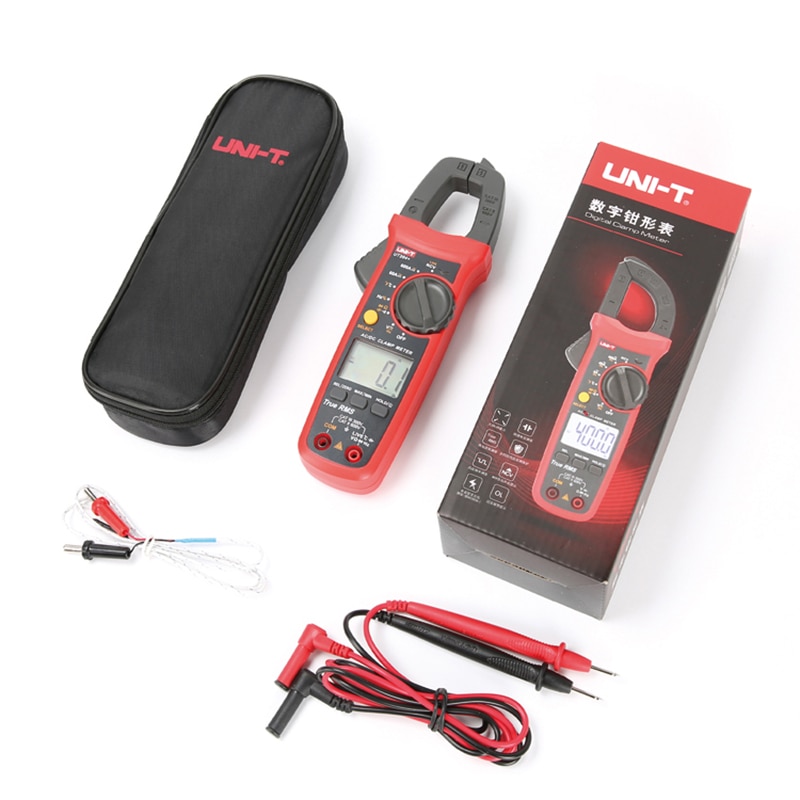

Standard accessories

Batteries, test leads, Themocouple (UT202+/UT204+)

Standard individual packing

Gift box, Carring bag, English manual

Standard quantity per carton

40pcs

Standard carton measurement

485mm x 295mm x 385mm

Standard carton gross weight

UT202A+: 17.8kg; UT203+: 16.8kg; UT201+/202+/204+: 17.3kg
