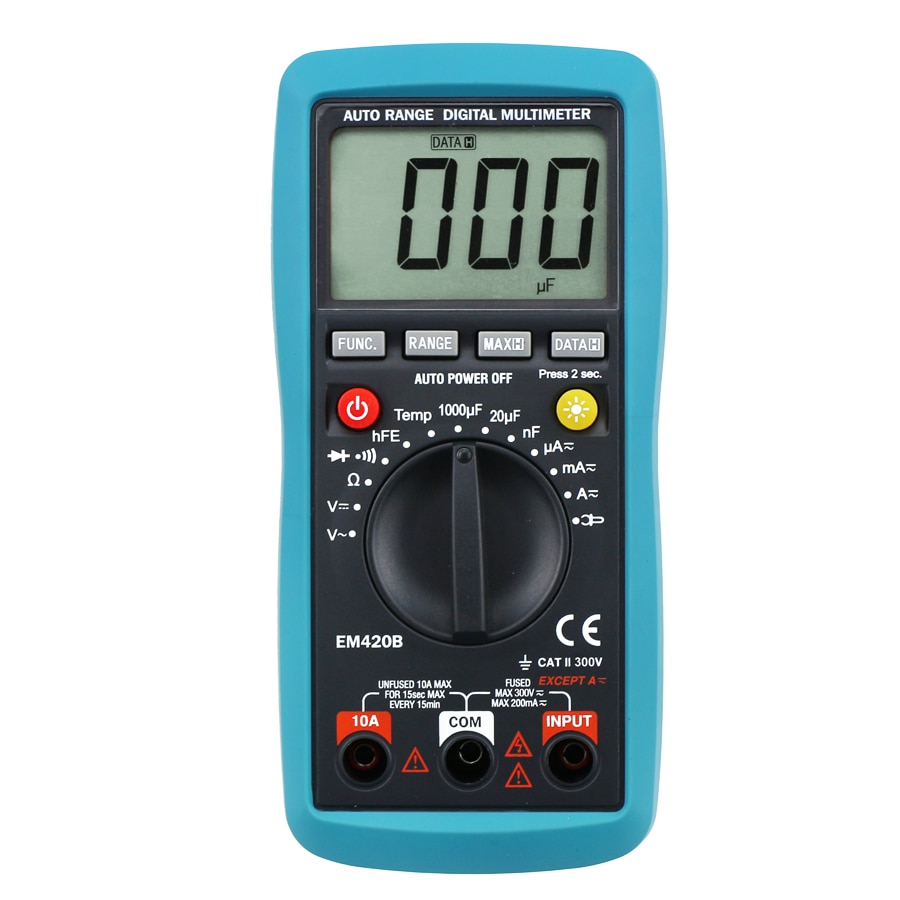

AC/DC Ammeter Voltmeter Ohm Portable Meter voltage meter EM420B

EM420B Digital Multimeter Continuity Diode Transistor

Battery Tester Measuring Current with AC/DC Multimeter

Note :
This package does not include batteries.
Due to new rules of China Post Air, parcels must not include batteries,
otherwise it will not get through the custom.

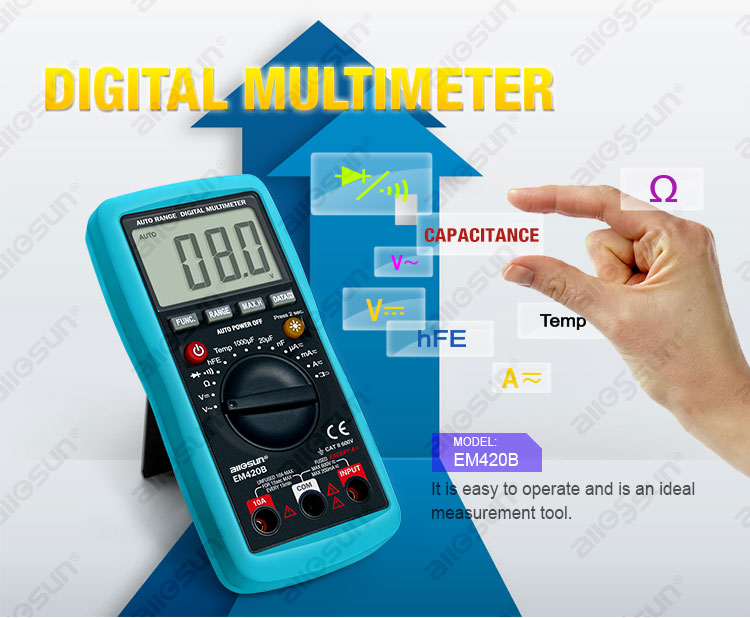

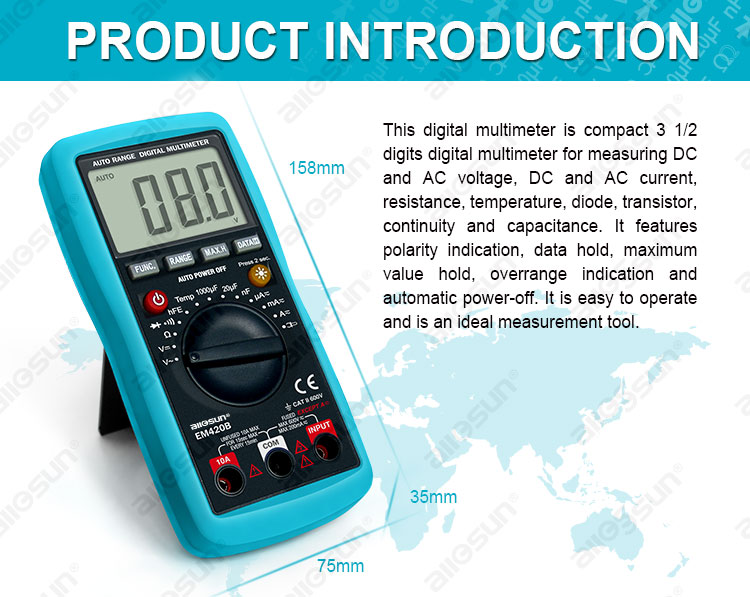

> It is compact 3 1/2 digits digital multimeter for measuring DC and AC voltage,
DC and AC current, resistance, temperature, diode, transistor, continuity,
capacitance.
> It has polarity indication, data hold, MAX mode, overrange indication and auto
power off.
> It is easy to operate and is a ideal instrument tool.

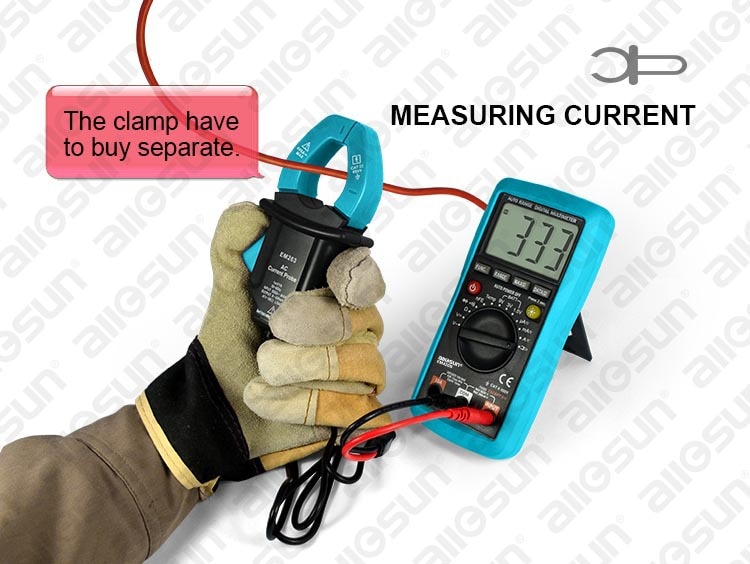

Measuring AC/DC current >>>
Connect the negative(-) output lead of the selected clamp to the "COM" jack,
Connect the positive(+) output lead of the clamp to the "INPUT" jack.
Clamp the circuit to be measured with the clamp.
Read the reading on the display.

Features >>>
> Max.1000A AC/DC current measurement with current clamp 3 1/2-digit backlight
> LCD which has a max. reading 1999
> Manual/ auto range mode
> Maximum value hold mode
> Autoatic polarity indication
> Data-hold mode
> Overload protection
> Low battery indication
> Low power consumption

Specification>>>
Voltage DC: 200m/2/20/200/600V
Voltage AC: 2/20/200/600V
Current DC: 200u/2000u/20m/200m/2/10A
*Current DC: 200/1000A(with clamp)
Current AC: 200u/2000u/20m/200m/2/10A
*Current AC: 200/1000A(with clamp)
Resistance: 200/2k/20k/200k/2M/20MΩ
Temperature: -20~1000° /0~1800°
hFE: Vce approx.1.0V, Ib approx.2uA
Continuity: Less than 30Ω
Diode Check: approx.1.5V
Capacitance: 20n/200n/2u/20u/200u/1000uF
Display: LCD,1999 counts, updates 2-3 times/ sec
Overrange Indication: "OL" shown on the display
Negative Polarity Indication: "-"shown on the display

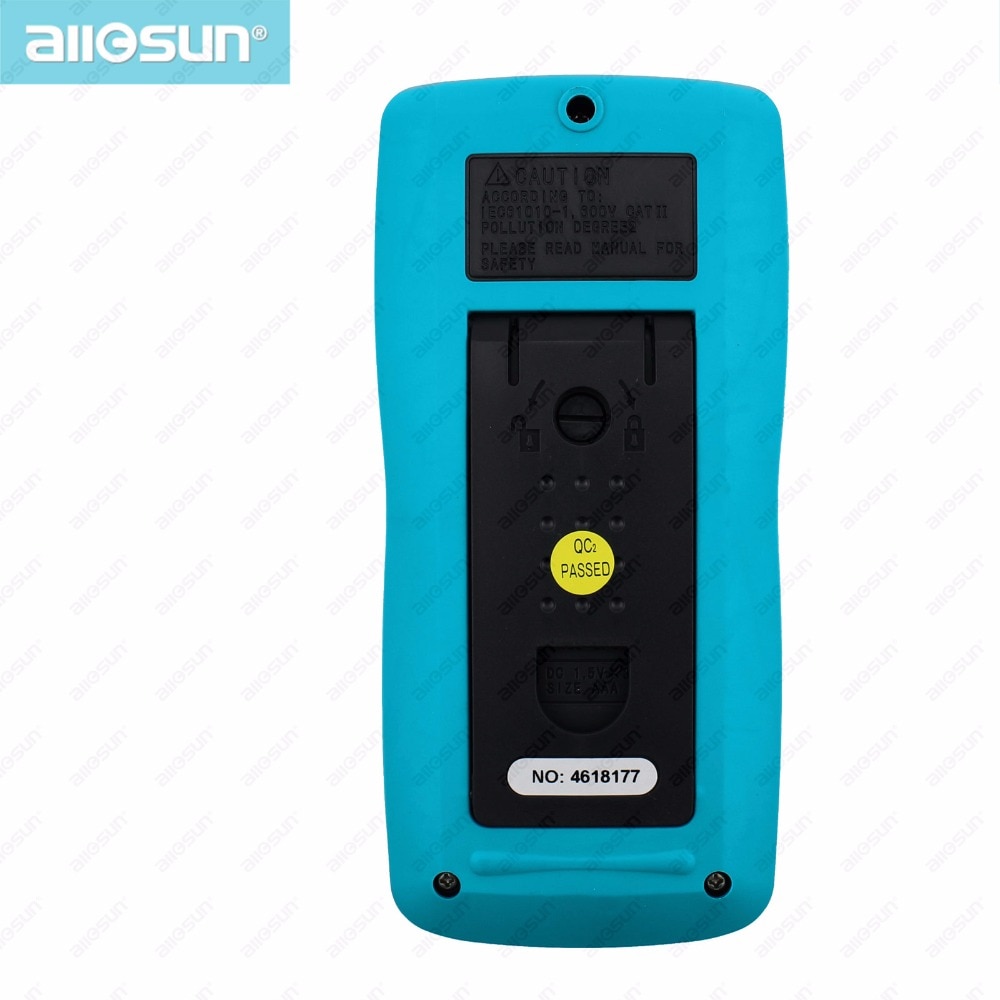

Battery:1.5V.AAA or equivalent,3 pieces (Not include in the package)
Operating Temperature:0-40°, <75% RH
Storage Temperature:-10-50°, <85% RH
Demensions:158X75X35mm
Weight: about 200g(include batteries)
1. Test leads

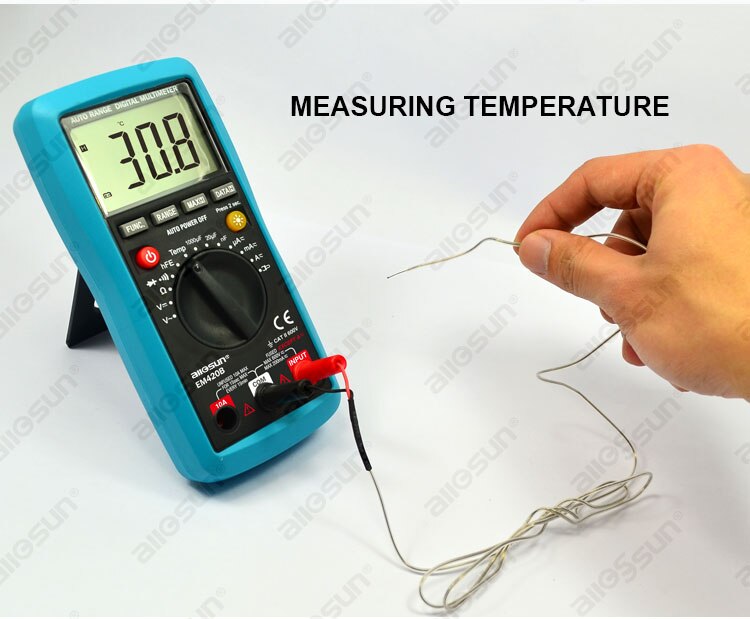

2. K type thermocouple

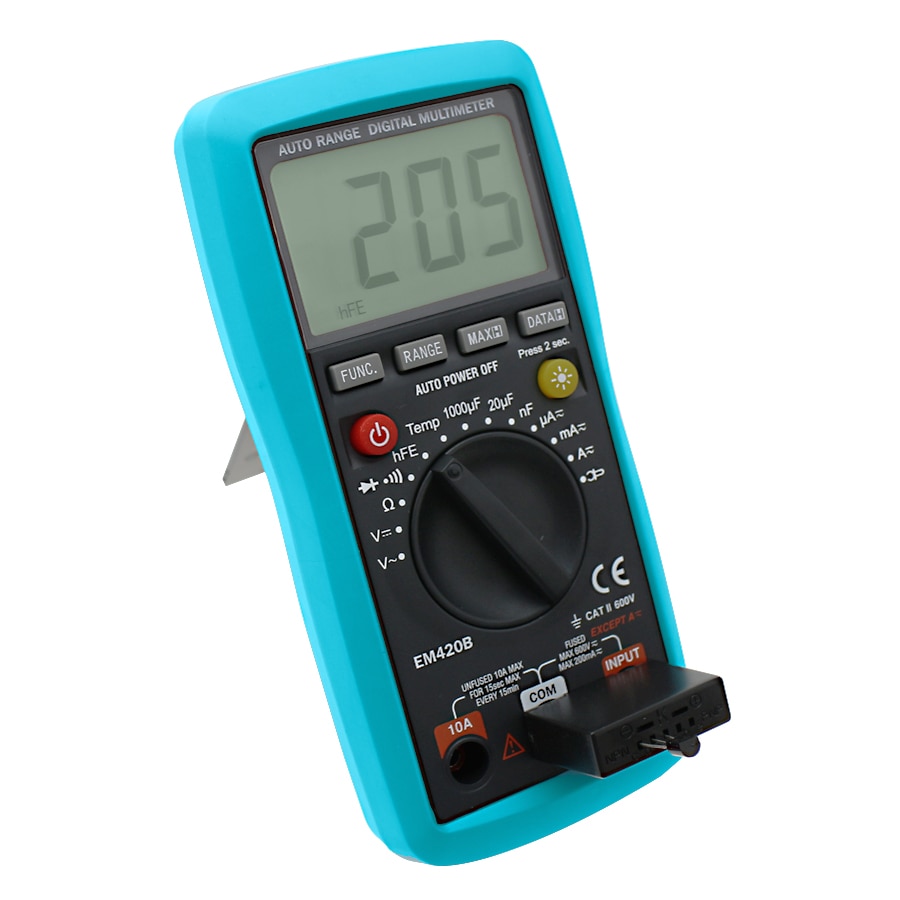

3. Transistor test socket
