EM5511 3in1 Auto Range Digital Multimeter Voltmeter Ammeter Ohmmeter DC AC EMF Multimeter Automotive Tester

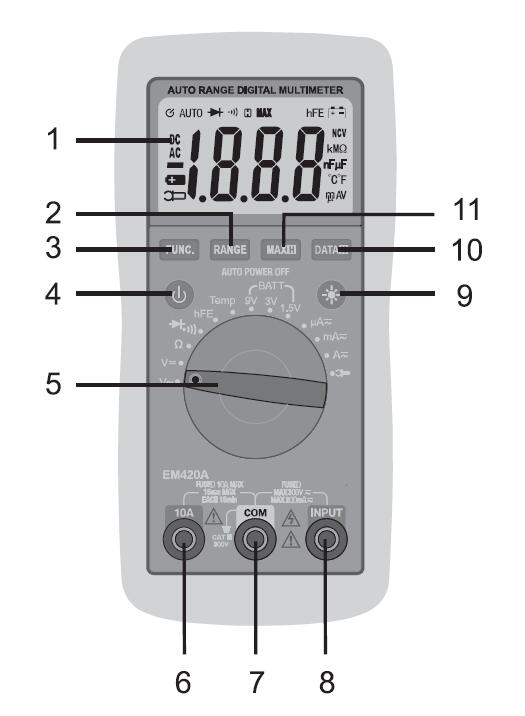

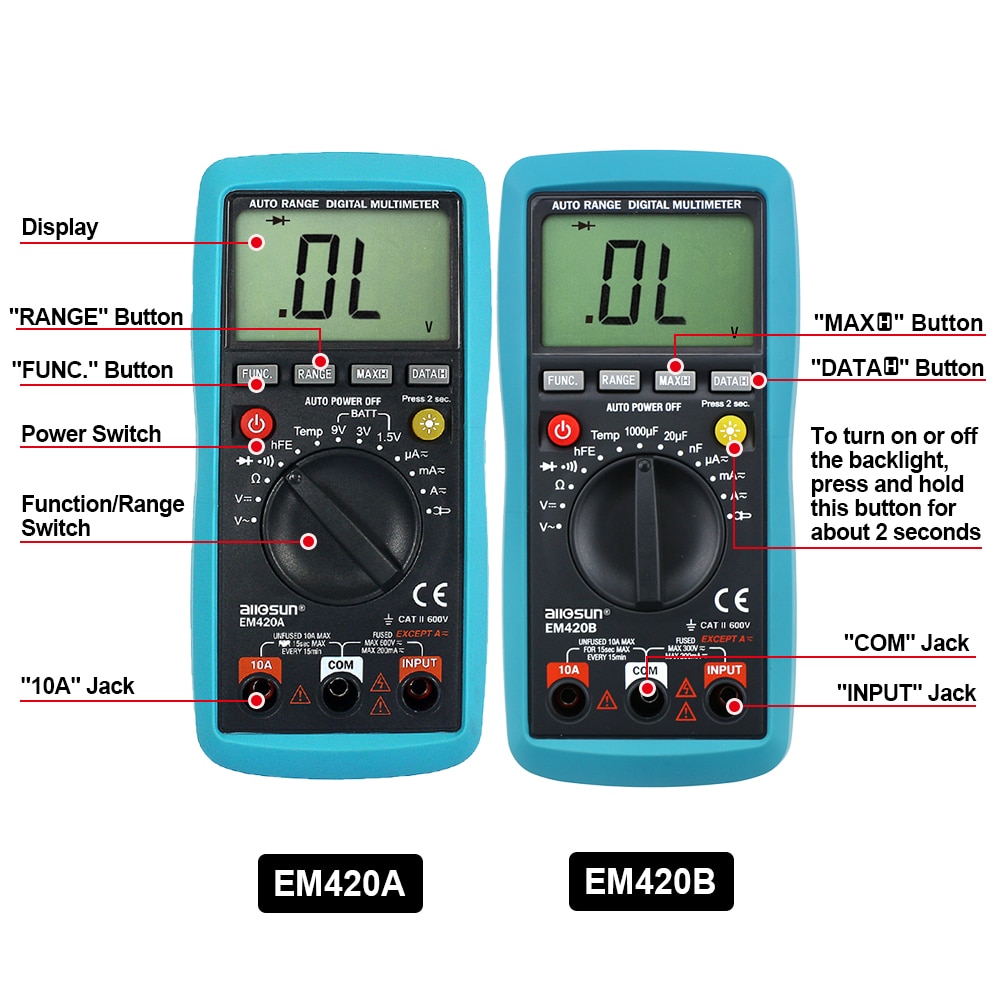

1.Display

3 1/2 digit LCD, with a max.reading of 1999

2.”RANGE” Button

Used to switch between autorange mode and manual range mode as well as to select desired manual range.

3.”FUNC.” Button

Used to switch the meter between: 1.DC current and AC current measurement; 2.Celsius and Fahrenheit measurement;3.Diode and continuity test function.

4.Power Switch

Used to turn on/off the meter

5.Function/Range

Switch

Used to select desired function and/or range.

6.”10A” Terminal

Plug-in connector for the red test lead for current ( 200mA – 10A ) measurements.

7.”COM” Terminal

Plug-in connector for the black test lead for voltage, current, resistance, diode, continuity, capacitance and battery measurements, also for the adapter for transistor hFE measurements. For temperature measurements, it is a plug-in connector for the negative plug of the K type thermocouple.

8.”INPUT” Terminal

Plug-in connector for the red test lead for voltage, current ( < 200mA ), resistance, diode, continuity, capacitance and battery measurements, also for the adapter for transistor hFE measurements. For temperature measurements, it is a plug-in connector for the positive plug of the K type thermocouple.

9.Backlight Button

Turn on/off the backlight. The backlight will turn off automatically about 15 seconds later after it is turned on.

10.”DATAH” Button

Used to enter/exit Data hold mode

11.”MAXH” Button

Used to enter/exit MAX recording mode.
