QUICKLYNKS T85 OBDII/EOBD/JOBD Code Scanner for Audi/VW and Japanese Cars

1. T85 supports most of JOBD cars & light truck after 2000 includingTOYOTA.HONDA.DAIHATSU.MITSUBISHI.MAZDA\NISSAN.SUZUKI.SUBARU
2. Language: English
3. 2.8” TFT color screen
4. Updateable via USB cable online .Find and clean the trouble code
5. Turn off the Check Engine Light
6. View Vehicle Identification #, I/M Reading Status,Freeze Frame Data,Live Data and test monitor
7. Display Live Data by graph mode
8. Printable via computer
9. Record trouble history

Control Unit Information

Read Fault Codes

Clear Fault Codes

Code Modes

Support newest AUDI/VW cars, used UDS protocols

support the following systems:

Engine

Transmission

Airbag

ABS, etc.

there are more than 140 systems available.

T86 Code Reader work on JOBD Japanese cars. Available Functions:

works all JOBD cars s & light truck after 2000 including the brands

TOYOTA\HONDA\DAIHATSU\MITSUBISHI\MAZDA\NISSAN\SUZUKI\SUBARU

Read Fault Codes

Clear Fault Codes

Turn off the Check Engine Light

Dimensions:
Length Width Height
209 mm (8.22") 107 mm (3.74") 37 mm (1.38")
NW: 0.73kg (1.611b), GW: 0.98kg(2.161b)

Basic Unit Qty Per Inner: 16

Measurement in MM (LxWxH): 400x335x475

Basic Unit Qty Per Master: 16

Measurement in MM (LxWxH): 400x335x475

Gross Weight(kg 3 decimals): 17.000

Net Weight(kg 3 decimals): 16.000

Master Qty Per Container: 20': 400 40': 800

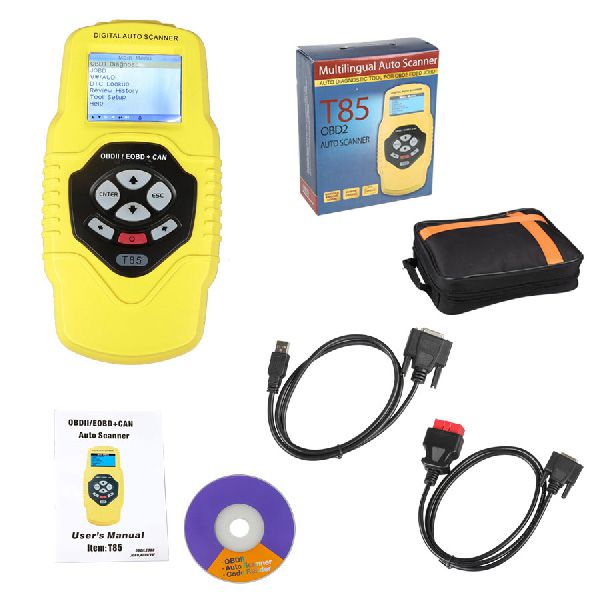

1pc x T85 Scan tool
1pc x User's Manual

1pc x CD

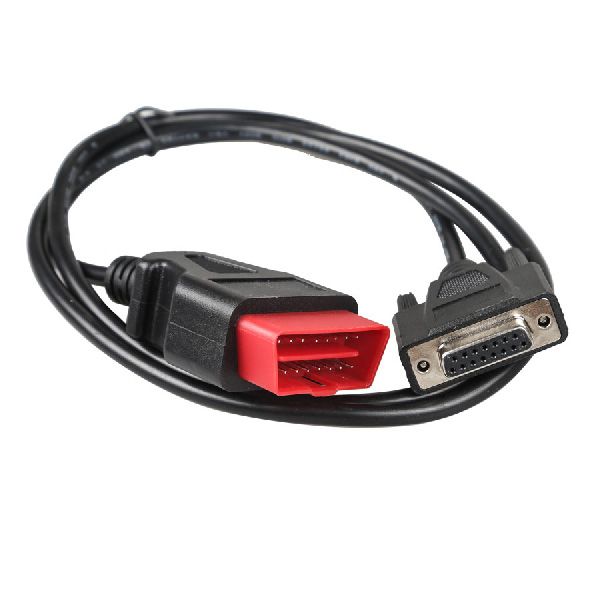

1pc x OBD2 Cable

1pc x USB Cable
