ZT-Y/1/2 Digital Multimeter True-RMS 9999 Counts 3-Line Display Analog Tester Voltmeter Capacitor Temp VFC Meter Ammeter

Product introduction:

This a handheld True RMS digital multimeter,high reliability and portability,a perfect tool for the laboratory,factory and home.

Product Advantages :

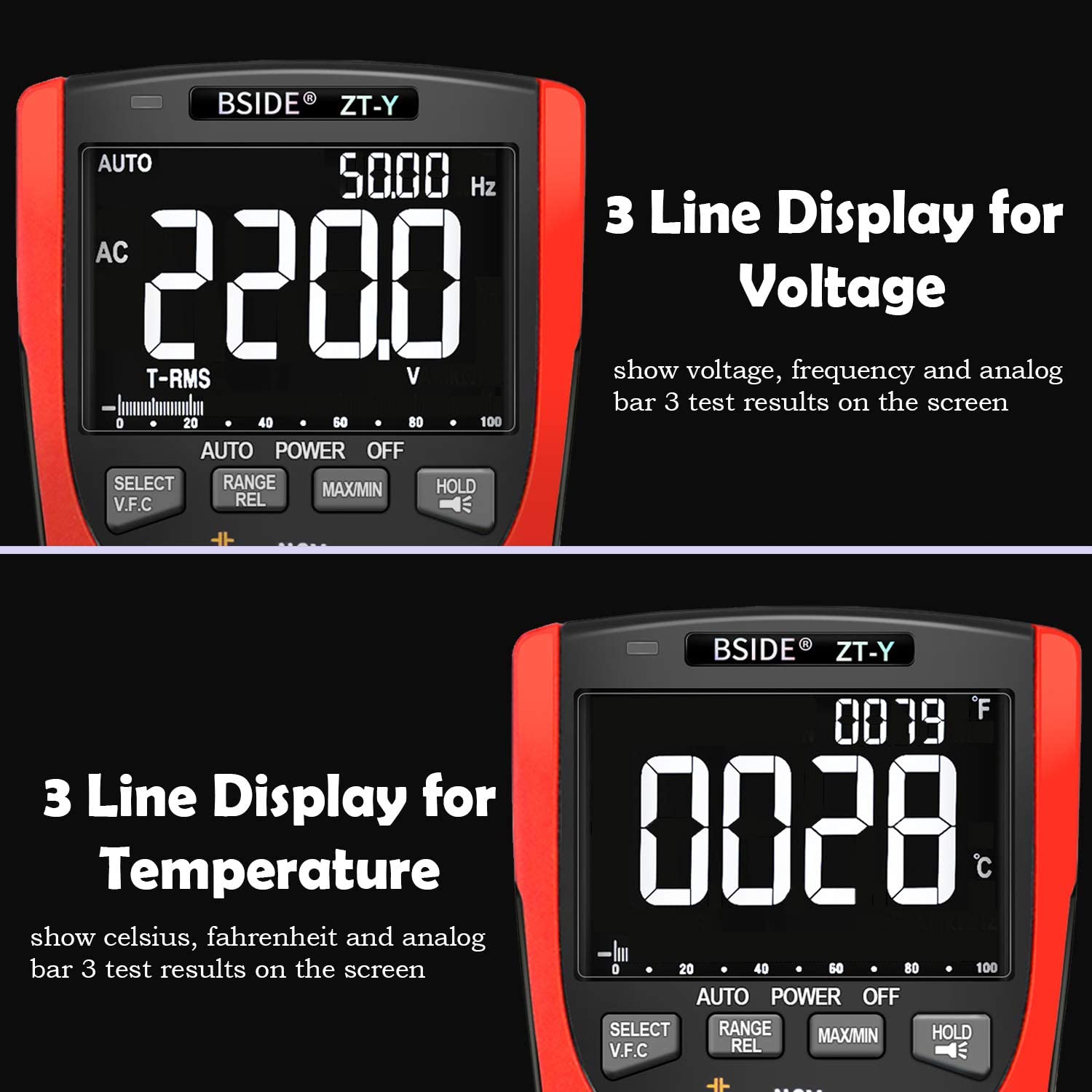

1. [ 9999 Counts / True RMS Multimeter ] : This 9999-count TRMS auto-ranging digital multimeter has high accuracy, stability and reliability. Is the best choice for professional electricians and electronics enthusiasts. 2. [ EBTN LCD Display ] : This product uses the latest EBTN (enhanced background twisted nematic) display technology. Can greatly improve the reading experience. the lighted up numbers & letters with black background make it very easy to read, even in bright sunlight or poor light. 3. [ Large Screen 3 Line Display ] : Large screen triple line display can show 3 test results on the screen, such as voltage, frequency and analog bar.Convenient and fast. 4. [ Multifunction-Multimeter ]：Can measure DC/AC Voltage, DC/AC Current, Resistance, Capacitance, Frequency, Duty Cycle, Diode, Continuity, NCV and temperature. etc. 5. [ Insulation protective Case ] : It features a Insulation protective Case for protection against shocks, friction and bumps. And more secure. 6. Portable Design : It's small and handheld,there is a back bracket for supporting multimeter. 7. More advantages : Auto range,true RMS,auto power off,low battery indication and over range indication.

Test Range:

Display: 9999 counts. MAX/MIN function: Yes. DC Voltage: 9.999mV/99.99mV/999.9mV/9.999V/99.99V/999.9V ±(0.5%+3) AC Voltage: 9.999mV/99.99mV/999.9mV/9.999V/99.99V/750.0V ±(1.0%+3) DC Current: 99.99μA/999.9μA/9.999mA/99.99mA/999.9mA/9.999A ±(1.0%+3) AC Current: 99.99μA/999.9μA/9.999mA/99.99mA/999.9mA/9.999A ±(1.2%+3) Resistance: 99.99Ω ±(1.0%+3); 999.9Ω/9.999kΩ/99.99kΩ/999.9kΩ ±(0.5%+3); 9.999MΩ ±(1.5%+3); 99.99MΩ ±(3.0%+3) Capacitance: 9.999nF ±(5.0%+20); 99.99nF/999.9nF/9.999μF/99.99μF/999.9μF ±(2.0%+5); 9.999mF ±(5.0%+5) Frequency: 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/5.000 MHz ±(0.1%+2) Duty Cycle: 1%~99% ±(0.1%+2) Temperature: (-20~1000)℃/(-4~1832)℉ ±(2.5%+5) Square wave output: Yes. Flashlight lighting: Yes. V.F.C function: Yes. Diode: show the forward voltage. NCV: alarm beep sounds if detect AC voltage Continuity: alarm beep sounds if there is a short circuit Power: 1.5V (AAA) x 3 Size: 147mm * 76mm * 37mm Weight: 209g

Package includes:

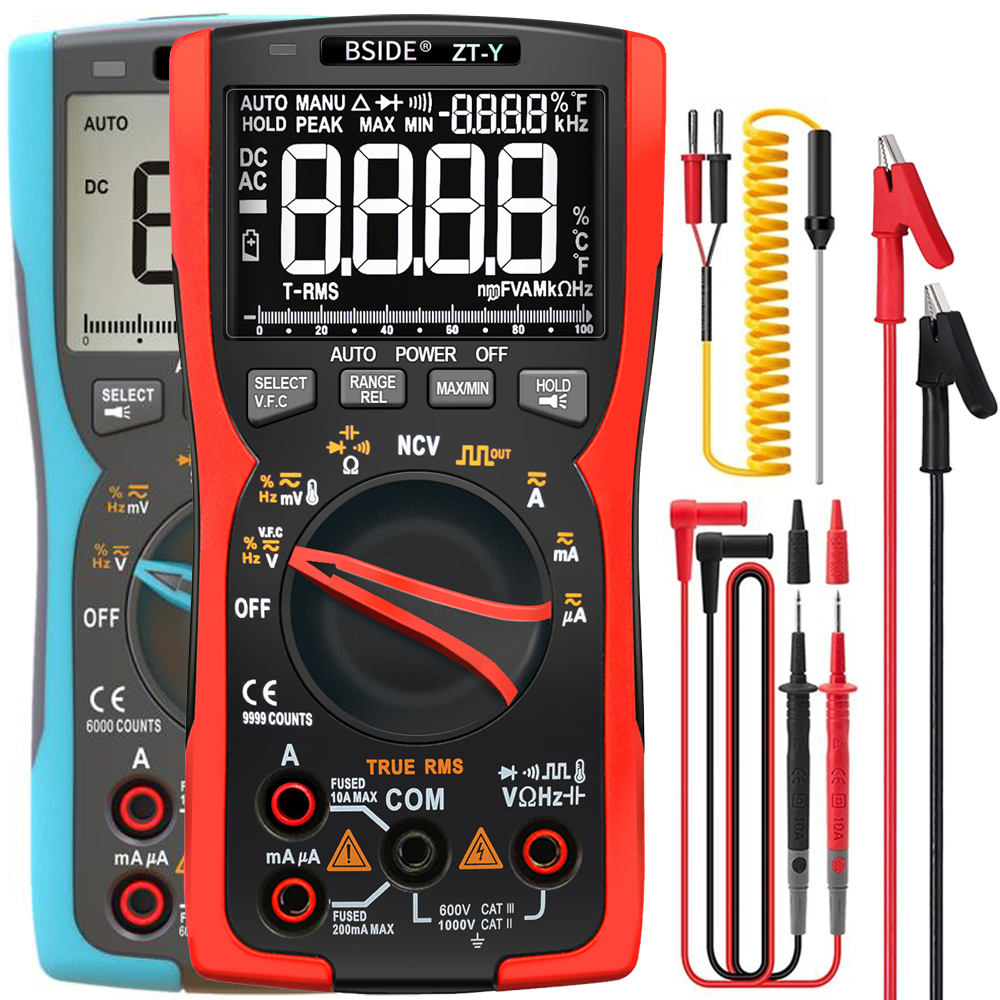

1*Multimeter. 2*Test lead. 1*Portable cloth bag. 1*Color box. 1*High quality thermocouple. 1*English manual.
