MaxiDiag Elite MD802 for All System(Including MD701, MD702, MD703, MD704) 4 in 1 Code Reader

MaxiDiag Elite MD802 for all system (Including MD701, MD702, MD703, MD704) 4 in 1 Code Reader

Features

One tool can do it all-reads and clears trouble codes on either the basic 4 systems (engine, transmission, ABS and airbag) or all the systems
Turns off warning lights for all major Asian vehicle
Reads live datastream
Supports all 10 test modes of the latest J1979 OBD II test specs,including Read Codes, Erase Codes, Live Data, Freeze Frame,I/M Readiness, O2 Mon.Test, On-Board Mon.Test, Component Test and Vehicle Information
Enhanced OBD II Mode 6
OBD II code tips guide technicians to the root cause of trouble code faster
Data graphing
One year free software upgrade
Prints data via PC

Specifications

Display TFT color display (320 x 240 dpi)
Operating Temperature 0 to 60°C (32 to 140 °F)
Storage Temperature -20 to 70°C (-4 to 158°F)
External Power 12.0 to 18.0 V power provided via vehicle battery or adapter
Length\Width\Height 212 mm (8.35'')\110.5 mm (4.35'')\37.5 mm (1.48'')
Weight 0.28kg(without wire) 0.484kg(with wire)

Accessories

Carry case
SD Card
CD
USB Cable
OBDII Cable
User's Manual

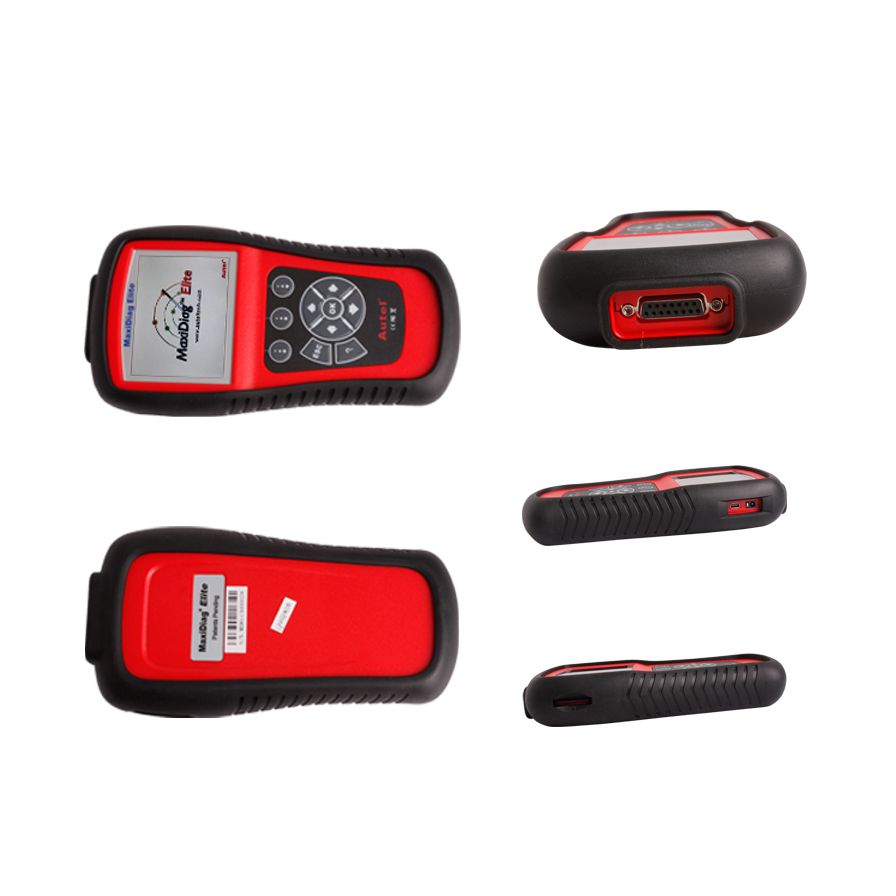

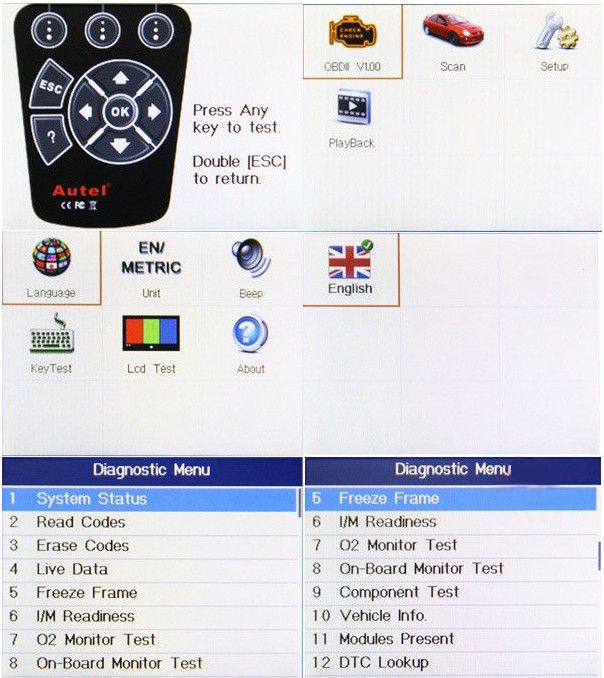

MaxiDiag Elite MD802 for all system Related Pictures:
