Launch X431 Pro Mini Bluetooth With 2 Years Free Update Online OBD2 Diagnostic Scanner Automotive

Launch X431 Pro Mini Bluetooth With 1 Year Free Update Online Powerful Than Diagun

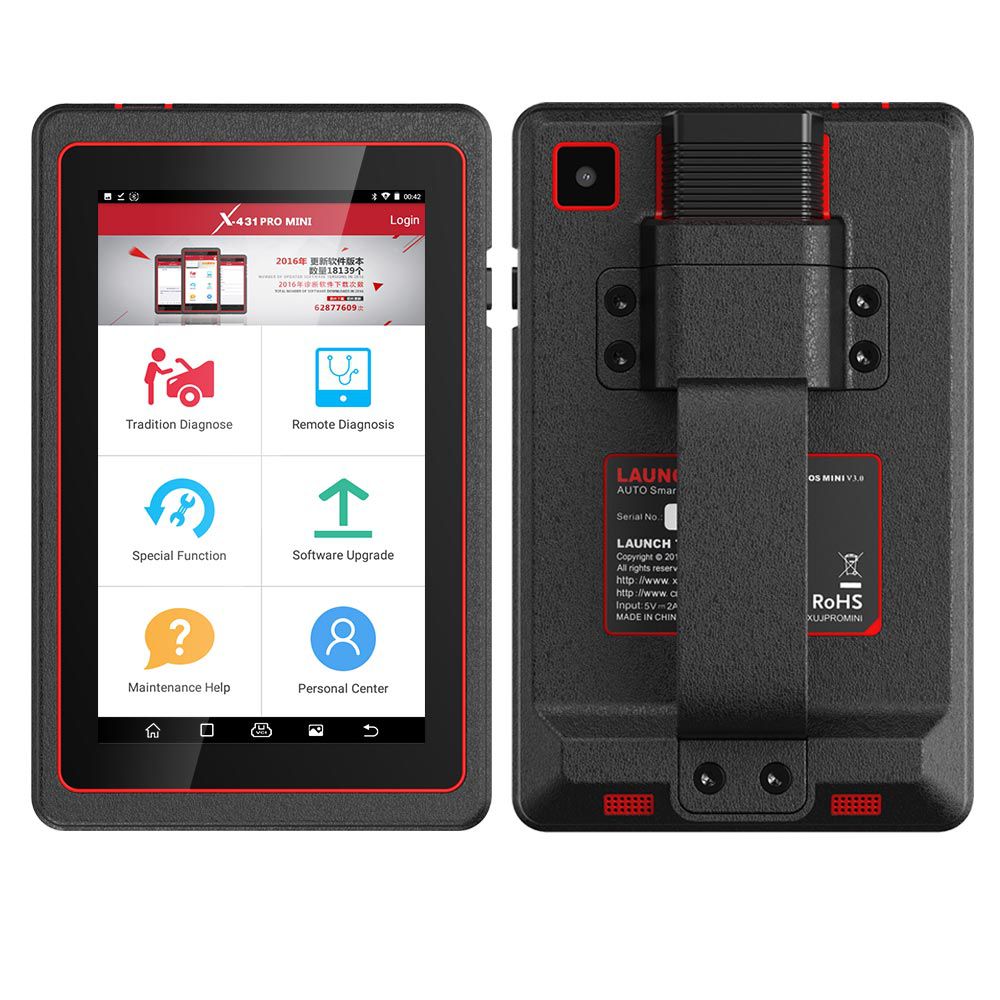

What is Launch X431 Pro Mini？

Launch X431 PRO MINI is a brand-new high-end car fault diagnostic device developed by Launch based on Android 7.1 system. It inherits many advantages such as wide coverage of special functions and car models, powerful and a large number of diagnostic functions, and accurate test data, realizing full car model and system fault diagnosis. It supports the diagnostic functions including Read DTCs, Clear DTCs, Read Data Streams, Actuation Test, Special Functions, and Matching.It combines mobile internet application advantages and can share Launch's a large number of maintenance data and case library. In addition, X-431 PRO MINI provides remote diagnosis to facilitate real-time interaction among repair enterprises and car owners, and achieve accurate, quick, and remote diagnosis and share. The one-click upgrade function enables diagnostic devices to upgrade online at any moment.



Launch X431 Pro Mini Features:

1. Many Special Functions: suppport 16 special functions
2. Wide Car Model Coverage: support all ECUs of 12V EFI car models, covering more than 150 car series and ten thousands of car models.
3. Accurate Diagnosis: X-431 PRO MINI functions (such as DTCs, data streams, actuation test) reach the level of original factories.
4. Quick Test: Support quick diagnosis and one-click DTC clearing for all car systems.
5. Data Stream and Waveform Recording and Playback
6. Remote Diagnosis
7. Online Help: Provide detailed DTC online help so that maintenance technicians can quickly rectify faults and improve diagnosis efficiency.
8. Software One-click Upgrade: Free Update online for 1 year
9. Multi-language: support more than 20 languages

Launch X431 Pro Mini Functions:



All System Diagnosis:

Launch X431 PRO MINI achieves full car model and full system vehicle trouble diagnosis, which includes Reading DTCs, Clearing DTCs, Reading Data Stream, Actuation Test , Special Functions and matching Engine system, steering system, SRS system, Security system, Air conditions system, brake system, battery system, EPB system, TPMS system, Chassis system, ABS system, transmission system.

Launch X431 Pro Mini Special Functions:

Oil Reset Service
Steering Angle Calibration
Electronic Parking Brake Reset
Battery Register / Battery Maintenance
ABS Bleeding
Electronic Throttle Position Reset / Learn
Diesel Particulate Filter (DPF) Regeneration
Tire Pressure Monitor System Reset
Gear Learning
Immobilizer Matching
Fuel Injector Coding

Add 5 More Reset Functions
You can check the 5 reset functions in the car diagnostic software.
1. Air Suspension Reset
2. Gearbox Reset
3. Sunroof RESET
4. AFS Reset (Adaptive Front lighting System)
5. EGR Reset

Bi-Directional / Active test: This diagnostic tool supports active test (Bi-directional control) to request information or command a module to perform specific tests and functions. such as turning the fuel pump on and off, cycling the a/c clutch on and off.
Key FOB Programming: Matching used to disable the lost vehicle keys and programing a new replacement key fob.
ECU Coding: Every automobile actuator has a record code in ECU, which is the basis for automobile computer to mobilize their work. LAUNCH pro mini is equipped with advanced ECU coding function for addressing the following issues:
1. After you change the bad actuators or certain parts, you need to use this function to make a new code and recognize the new actuators.
2. ECU coding enables multiple car systems to recognize each other and then the actuators can start to work.

Launch X431 Pro Mini Vehicle Models List:

Luanch X431 PRO MINI supports all electronic control systems on 12V EFI models, incl. more than 150 European, American and Asian models like Maserati, Ferrari, Rolls Royce, Bentley, Mercedes-Benz, BMW, Audi.Diagnose the electronic control system of prevailing vehicle models covering Asian, European, American and Chinese. It achieves full car model and full system vehicle trouble diagnosis.

Software	Car Brand	Software	Car Brand	Software	Car Brand	Software	Car Brand
1	CHANGCHENG	28	BXGM	55	KIA	82	CHANGHE
2	DAEWOO	29	SPARK TY	56	RENAULT	83	FIAT
3	HUACHEN	30	USAFORD	57	SKODA	84	SAICMG
4	FORD(AU)	31	PEUGEOT	58	SPRINTER	85	MAZDA
5	ZHONGXING	32	SUZUKI	59	ROVER	86	ZHONGTAI
6	AUTOSEARCH	33	RESETOIL	60	WEILI	87	JAGUAR
7	RESETSAS	34	PROTON	61	INDIANMARUTI	88	OPEL
8	BAIC	35	AST ONMARTIN	62	INDIANMAHINDRA	89	VOLVO
9	INDIANTATA	36	RESETIMMO	63	PERODUA	90	CHRYSLER
10	SAIPA	37	UAZ	64	AUSTHOLDEN	91	DAIHATSU
11	DEMO	38	ZAZ	65	RESETINJEC	92	FLYER
12	JACTY	39	PAZ	66	BUGATTI	93	HMAZDA
13	MARUTI	40	LUXGEN	67	RESETTPMS	94	HYUNDAI
14	PERODUA	41	TOYOTA	68	EOBD2	95	PROTON
15	VAZ	42	VW	69	HAFEI	96	SUBARU
16	PORSCHE	43	CHANGAN	70	HAOQING	97	SSANGYONG
17	QIRUI TY	44	AUDI	71	LIFAN	98	JOYLONG
18	RESETBRAKE	45	CITROEN	72	MAHINDRA	99	FERRARI
19	SAMSUNG	46	DFXK	73	NISSAN	100	SEAZ
20	ECUAID	47	FUTIAN	74	XIALI	101	HOLDEN
21	MASERATI	48	HONDA	75	ZHONGHUN	102	MITSUBISHI
22	RESETGEAR	49	LANDROVER	76	TATA	103	SAAB
23	BMW	50	LIUWEI TY	77	TRUMPCHI	104	GAZ
24	GM	51	XINKAI	78	RESETBMS	105	JIAO
25	SEAT	52	BXFIAT	79	AUSTFORD	106	RESETBLEED
26	ISUZU	53	SMART	80	IZH	107	RESETET

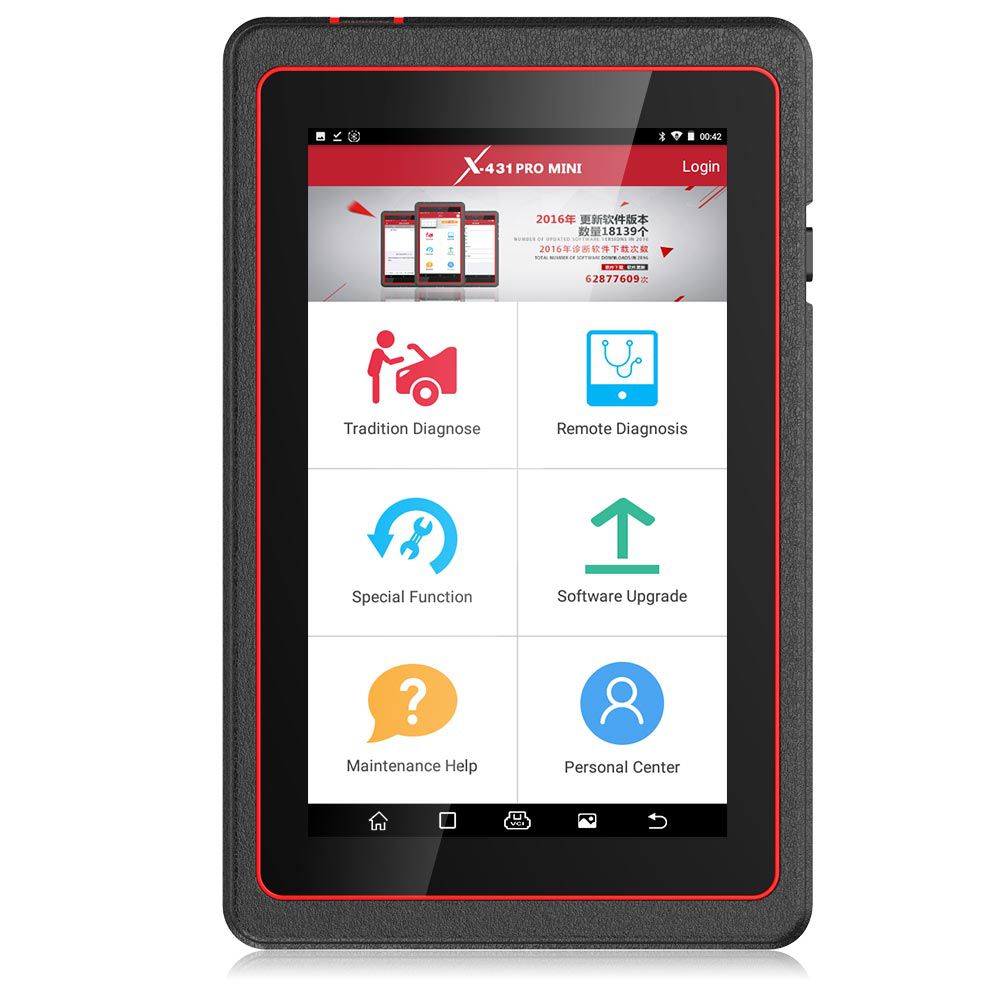

Launch X431 Pro Mini Technical Parameters:

Operating system: Android 7.0
Processor : Quad core 1.3 GHz
Memory: 2 GB
Storage: 32GB

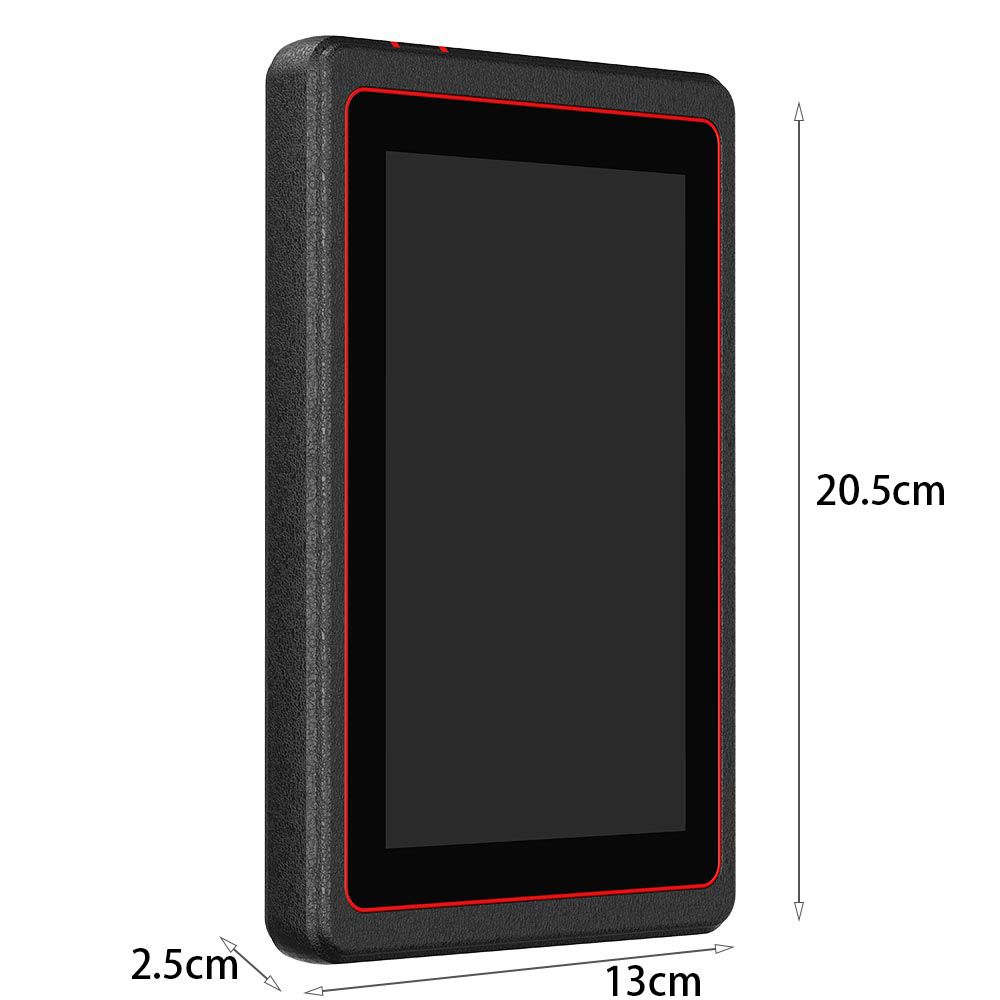

LCD screen: 6.9 inch with a resolution of 1024 x 600 pixels
Camera : Rear-facing 5MP camera
Battery : 3.7V/3000mh rechargeable polymer lithium battery
Connectivity : Wi-Fi: WLAN 802.11b/g/n ，Bluetooth: Bluetooth 4.1
Working temperature: 0℃ ~ 45℃
Storage temperature: -10℃ ~ 50℃

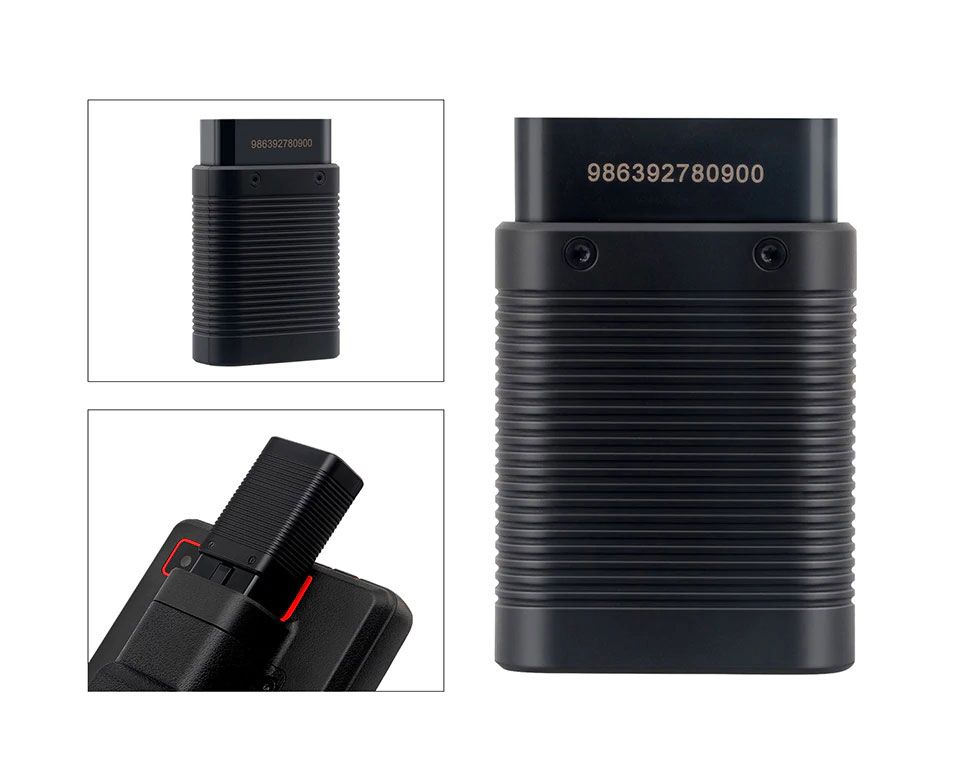

DBScar Adapter:

Size: 69 × 40 × 18 mm
Operating voltage: 9V DC - 18V DC
Test voltage: DC12V
Typical power consumption: ≤2W
Bluetooth distance: 100 m
Connectivity: Bluetooth + wired
Operating temperature: -10℃to 50℃
Red Indicator: Turns red when connected to power supply;
blue Indicator: Turns blue then wireless Bluetooth work;
USB work: Turns green when the connector is connected to the USB cable

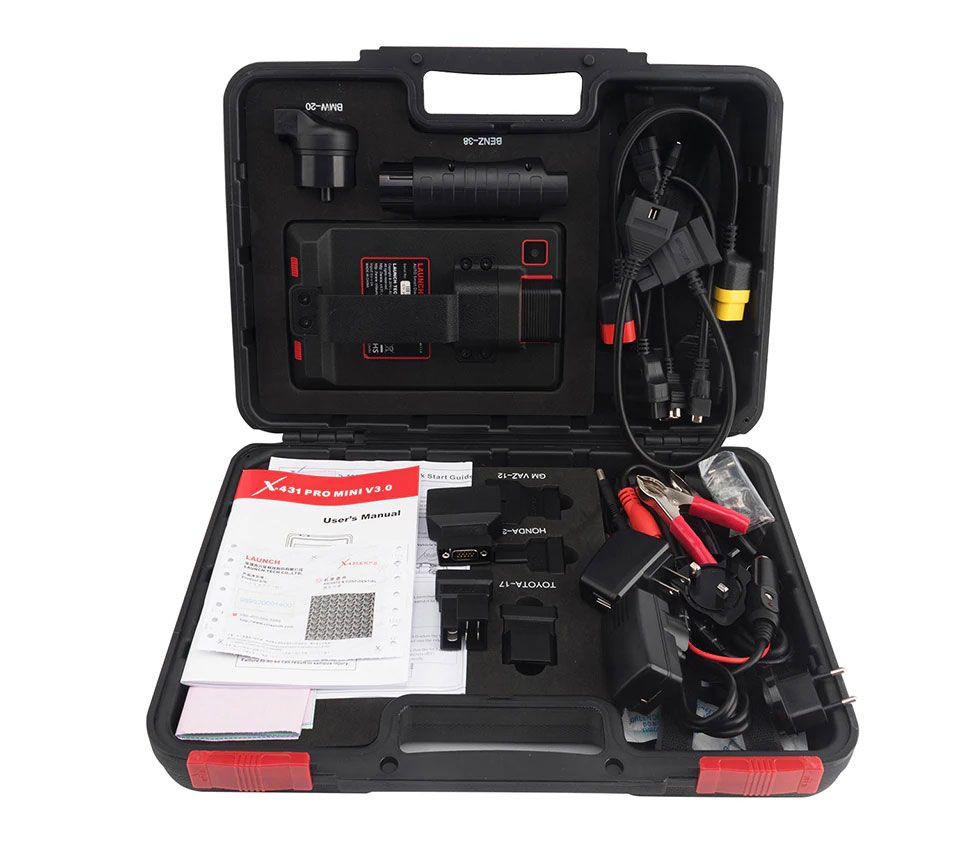

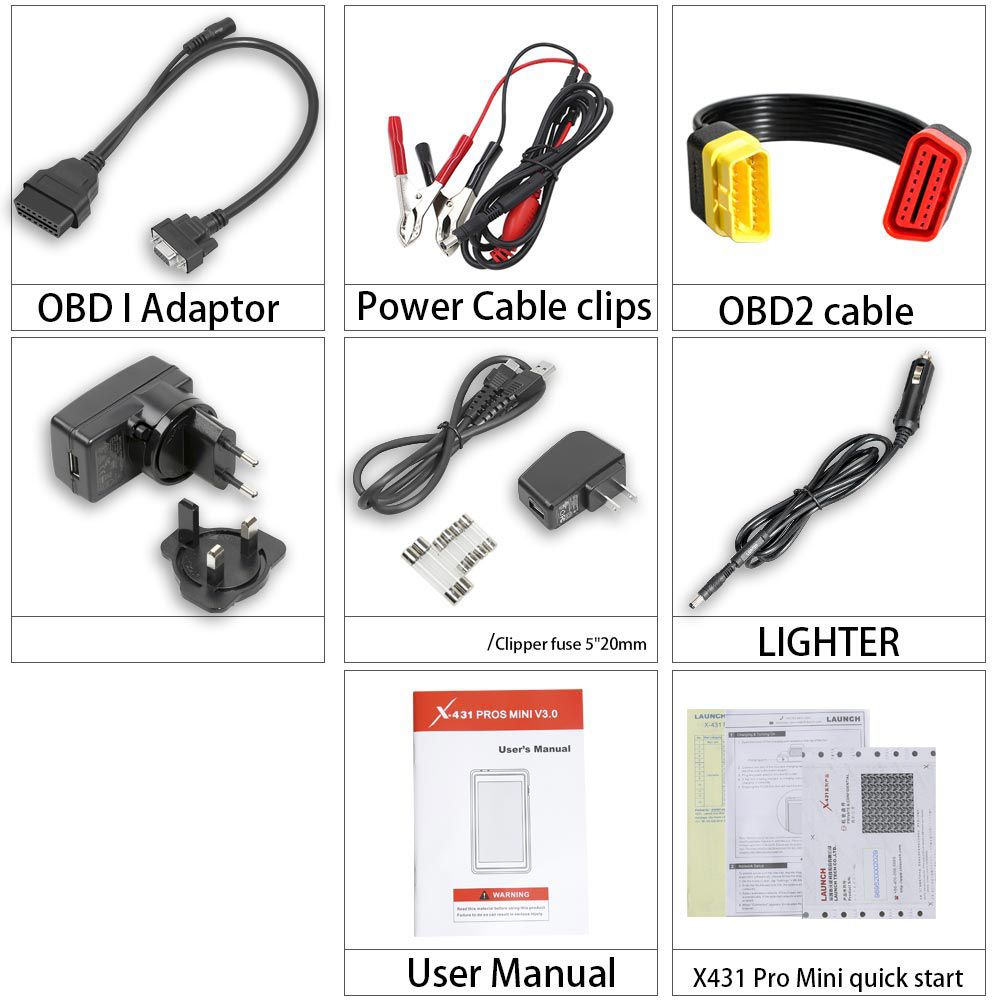

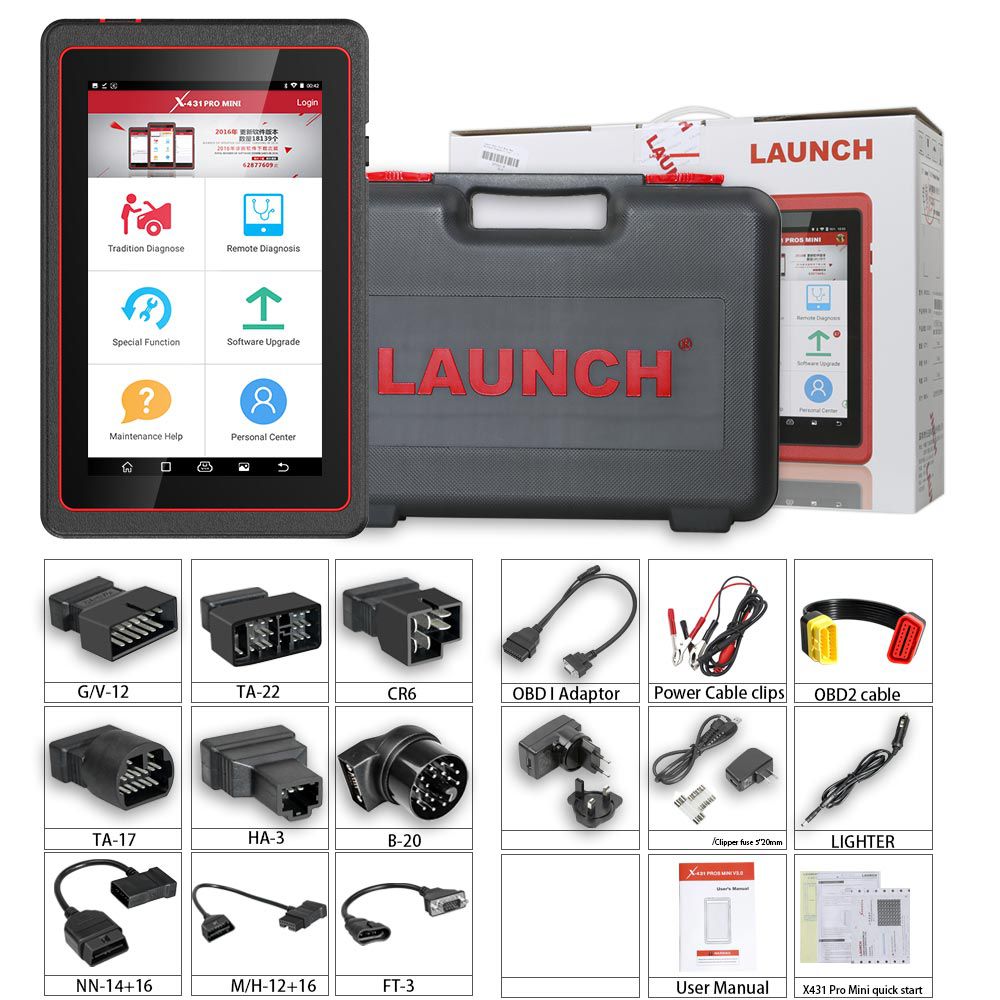

Launch X431 Pro Mini Package Includes:

1pc x X-431 PRO MINI tablet
1pc x Password envelope

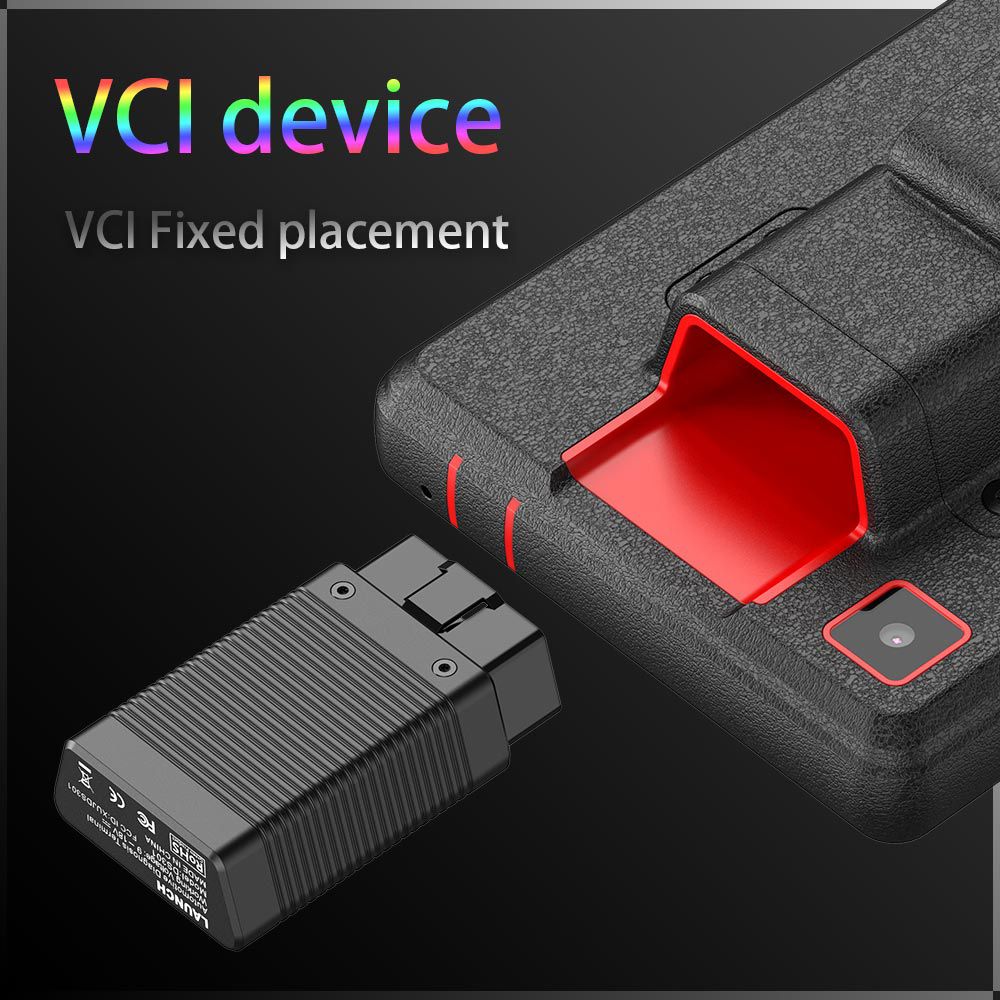

1pc x VCI module (For connecting OBD II vehicles)
1pc x OBD II extension cable
1pc x OBD I adaptor (For connecting the non-16pin diagnostic connector and the VCI module)
1pc x Battery clamps cable
1pc x Power adaptors
1pc x Non-16pin connectors (For connecting non-OBD II vehicle)
