Launch X431 Diagun V Full System Scan Tool with 2 Years Free Update Online
Launch X-431 Diagun V is a cost-effective product independently developed by Launch, It inherits many advantages of X-431 Diagun IV, such as wide coverage of car models, powerful diagnostic functions, and accurate test data.
Item No. COBD25771 Price Down Notice
5 stars, 9 reviews.
Related Accessories/Similar Items
€367.84 / piece
€46.91 / piece
€269.99 / piece
€155.90 / piece
€217.50 / piece
€48.88 / piece
€67.95 / piece
€19.49 / piece
€185.31 / piece
€219.25 / piece
Launch X431 DIAGUN V Bi-Directional Full System Scan Tool with 2 Years Free Update
Top Reasons to choose Launch X431 Diagun V
1. Full systems diagnosis
2. 30+ special services.
3. 2 years free update online.
English,French,Spanish,German,Italian,Portuguese,Turkey,Polish,Dutch,Greek,Hungarian,Danish,Persian,Romanian,Serbian,Finnish,Swedish,Czech,Arabic,Russian,Japanese,Korean,Traditional Chinese and Simplified Chinese.
Launch X-431 Diagun V is a diagnostic tool specially designed for automotive maintenance technicians. Tiny body, powerful diagnostic function , convenient online upgrade and integrated multifunctional connector are all the preferable choices for a technician
Launch X431 Diagun V Features:

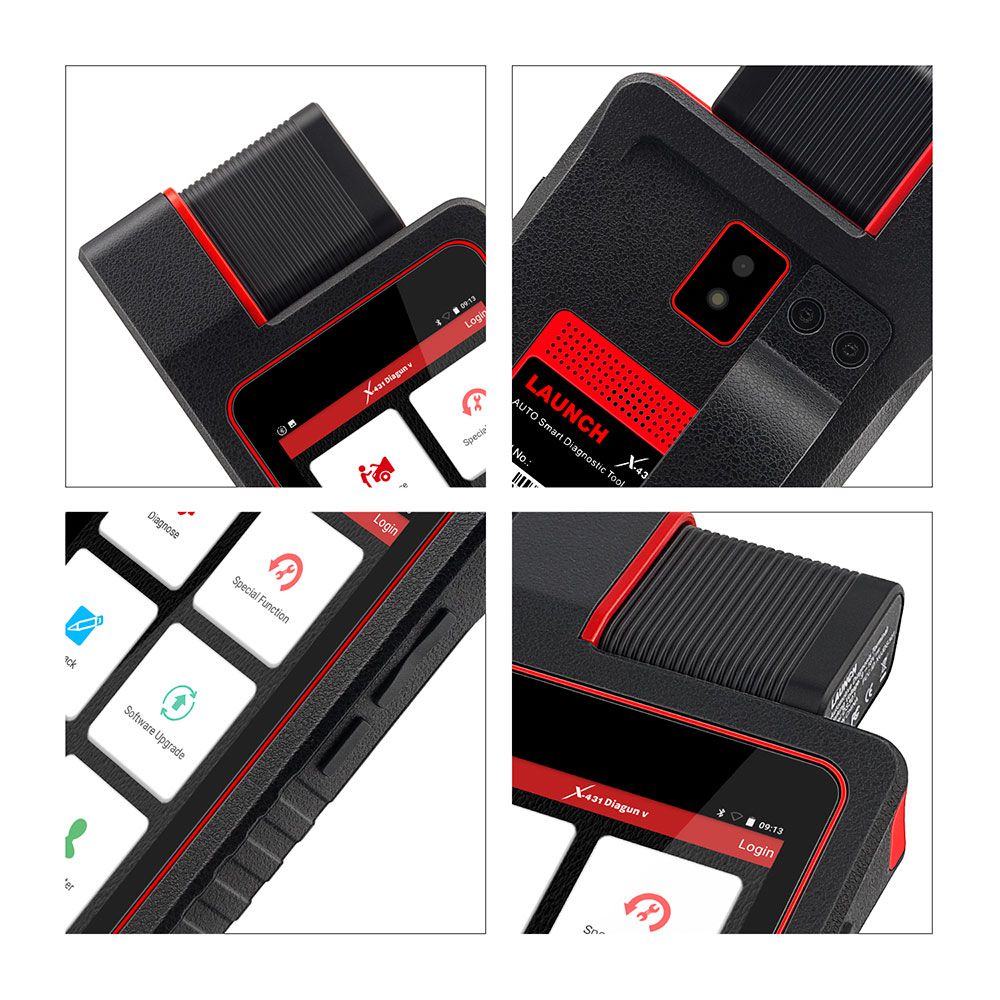

New Design: New UI ,compact and lightweight, easy to carry ; dedicated compartment set for the diagnostic connector on the main unit to prevent from losing
Wide Car model coverage:Support most of the car models from Asia, Europe and America, such as for Maserati , for Ferrari, for Rolls-Royce, for Bentley, For BENZ, For BMW, for Audi…
30+ Kinds of Special Reset Service Functions:
You can find 15 kinds of commonly used reset functions in the reset menu, and other special functions in the car brand diagnostic softwares menu.
Note : These special function NOT for all car models
This option allows you to detect whether the system parameters are normal or not. It mainly includes: Injector test, fuel pump test, purge control solenoid and so on. In addition to amazing & powerful diagnostic function, X-431 V also features various service functions. The most commonly performed service functions contain：
Oil Reset:allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.
EPB Reset: is important in the maintenance of electronic braking system's safety and efficiency.
BMS Reset: allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.
DPF Reset: specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.
SAS Reset: helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.
TPMS Reset:makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.
IMMO reset: it is mainly used to disable the lost vehicle keys and program a new replacement key fob.
ABS Bleeding: ABS brake bleeding to get a firm brake pad after air exhaustion.
Throttle reset: The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount ofair entering an engine. In an electronically fuel injected car, a throttle position sensor and air flow sensorcommunicate with the computer, which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair
Gear Learning: The scan tool monitors certain camshaft position sensors signals to determine if all conditions are met to continue with the procedure for Engine running
Injector Coding: Leaking injectors and some dead injectors can be missed even when an injector is disabled. Otherproblems with the ignition system and mechanical components also may not show an rpm loss when aninjector is turned off
Air Suspension Reset
AFS Reset (Adaptive Front lighting System)
Remote diagnosis: Remote diagnosis between workshop
Once there is a new software version , the system will promptly remind the user to upgrade the version , for which one-key upgrade operation is supported.
Launch X431 Diagun V Main parameter:
System: Android 7.0
CPU: 1.1 GHz 4 cores
Battery: 2500mAh lithium polymer battery
Display: 5.5”touch capacitive screen
Size :215 x89.5 17(37)mm
Working Temperature :-10 ℃ to 50 ℃
Power Voltage: DC 12V
Bluetooth: Within 10 meters
Diagnostic Method: Bluetooth + Wired
Size: 72 x 47 x 24 mm
Launch X431 Diagun V Vehicle connection:
A. The method used to connect the VCI connector to a vehicle’s DLC depends on the vehicle’s configuration as follows:
• A vehicle equipped with an OBD II management system supplies both communication and 12V power through a standardized DLC.
• A vehicle not equipped with an OBD II management system supplies communication through a DLC connection, and in some cases supplies 12V power through the cigarette lighter receptacle or a connection to the vehicle battery.
B. For non-OBDII vehicle,proceed as follows:
1. Locate vehicle’s DLC socket.
2. Plug the VCI connector into the vehicle’s DLC socket (It is suggested to use the OBD II extension cable to connect the VCI connector and DLC socket).
3. Choose one of the two ways to obtain power from:
A. Power adaptor: Connect one end of the included power adaptor to DC IN port of X-431 Diagun V handset, and the other end to AC outlet.
B. Internal battery pack
C. For non-OBDII vehicle, proceed as follows:
1. Locate vehicle’s DLC socket.

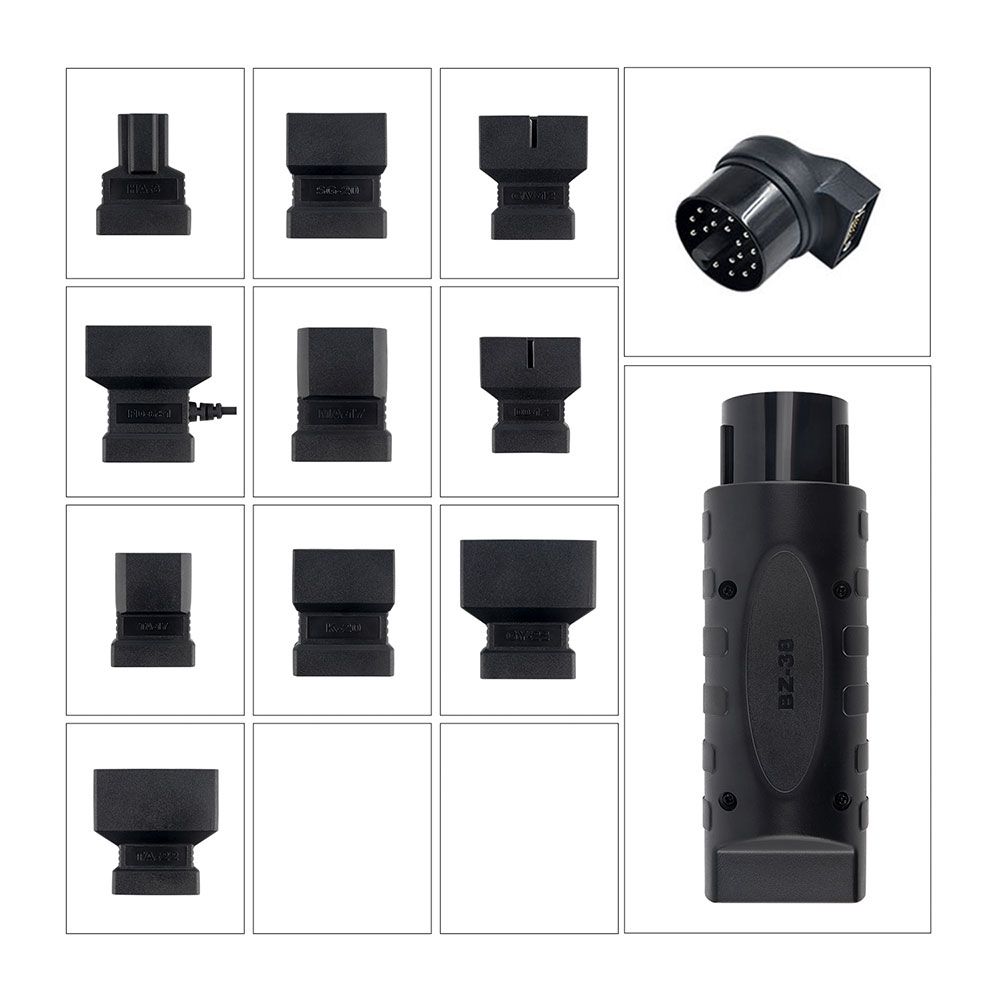

2. Select the corresponding non-16pin connector.
3. Plug the non-16pin end of the connector into the DLC socket, then connect the other end to the OBD I adaptor, and then tighten the captive screws.
4. Connect the other end of the adaptor to the included VCI connector.
5. To supply power to OBD I adaptor from:
A. Cigarette Lighter cable(optional): Connect one end of the cigarette lighter cable to vehicle’s cigarette lighter receptacle, and the other end to the power jack of OBD I adaptor.
B. Battery Clamps Cable(optional): Connect one end of the battery clamps
D. Reset function:
The Reset section is specially designed to provide you quick access to the vehicle systems for various scheduled service and maintenance performances. All resetting operations are driven by executive commands. Just by following the on-screen prompts to select appropriate execution options, input correct values or data, and perform necessary actions, the system will guide you through the complete performance.

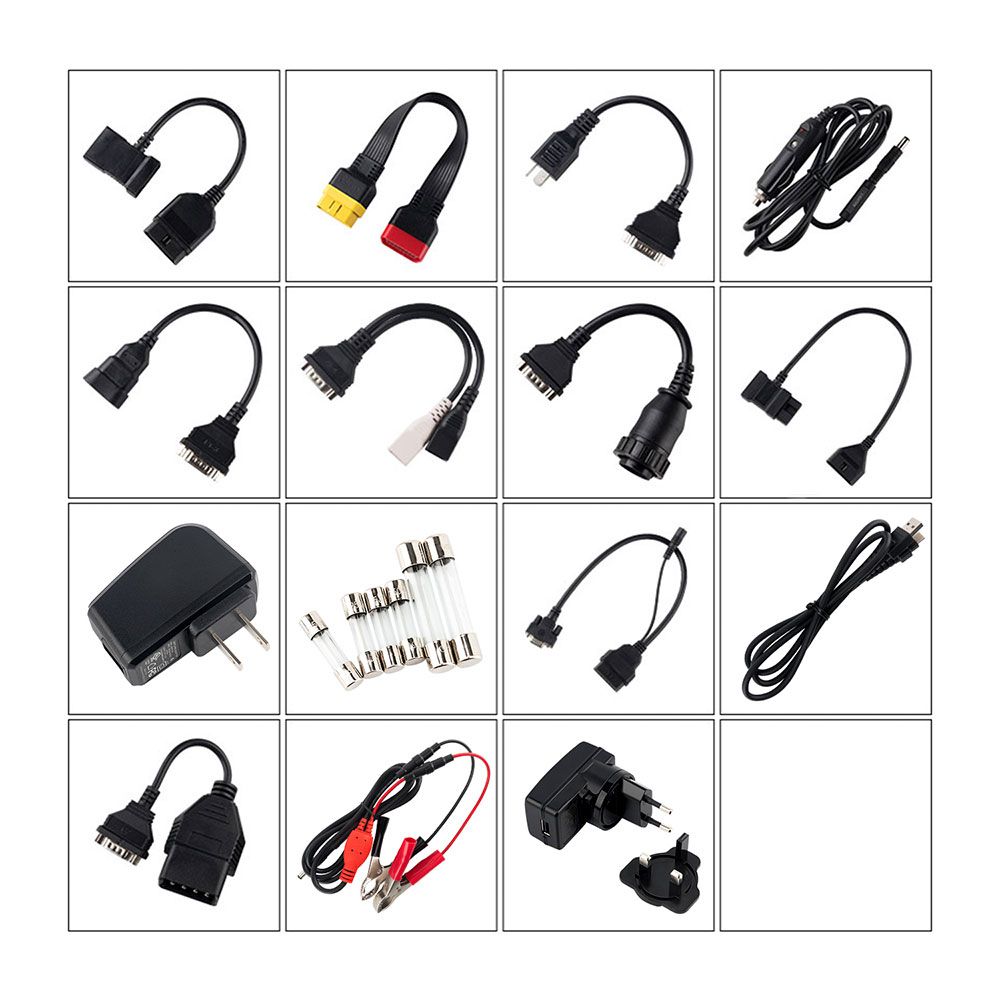

Launch X431 Diagun V Package List:

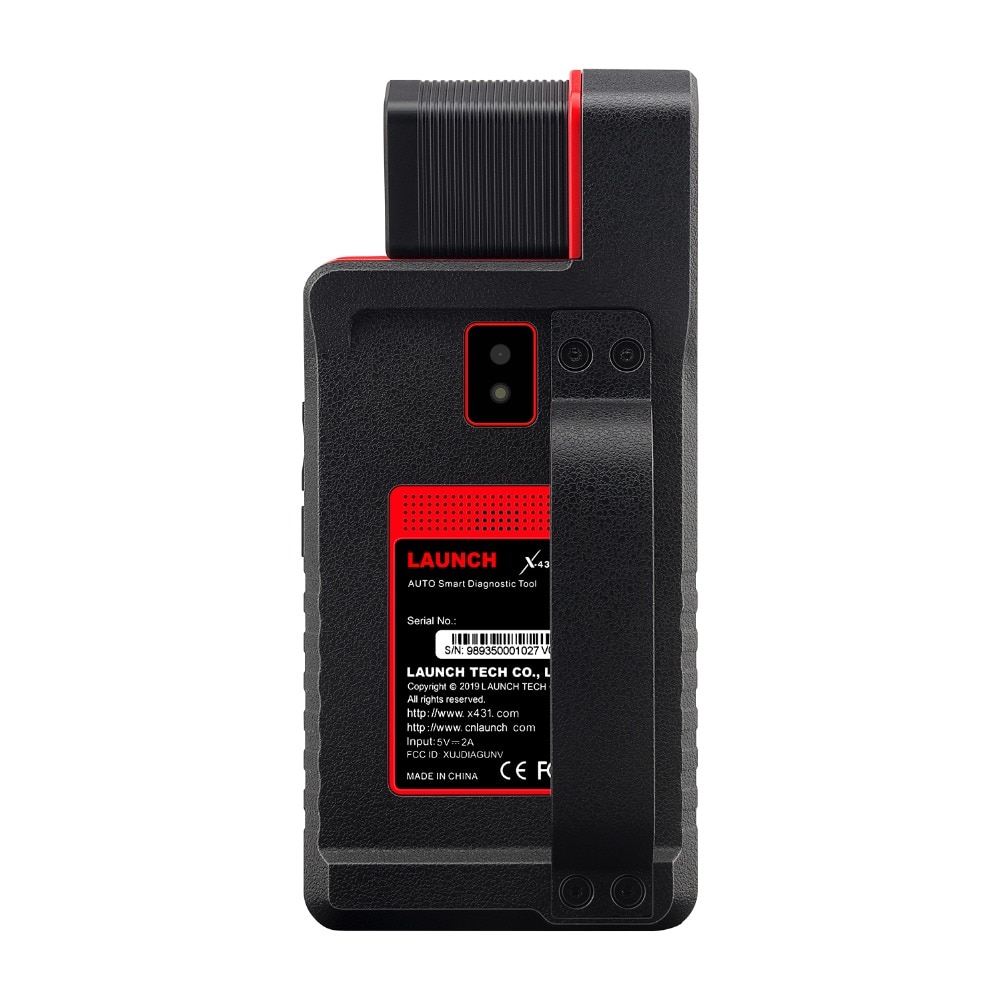

X-431 Diagun V handset
VCI connector(Bluetooth connector)
Launch X431 Diagun V Car list:
Note: Software with red font is required to be purchased separately.
