Handheld POS Terminal Mobile Smart PDA Built-in Label Sticker Thermal Printer Android 8.1 1D 2D Barcode Scanner

Structural Parameter

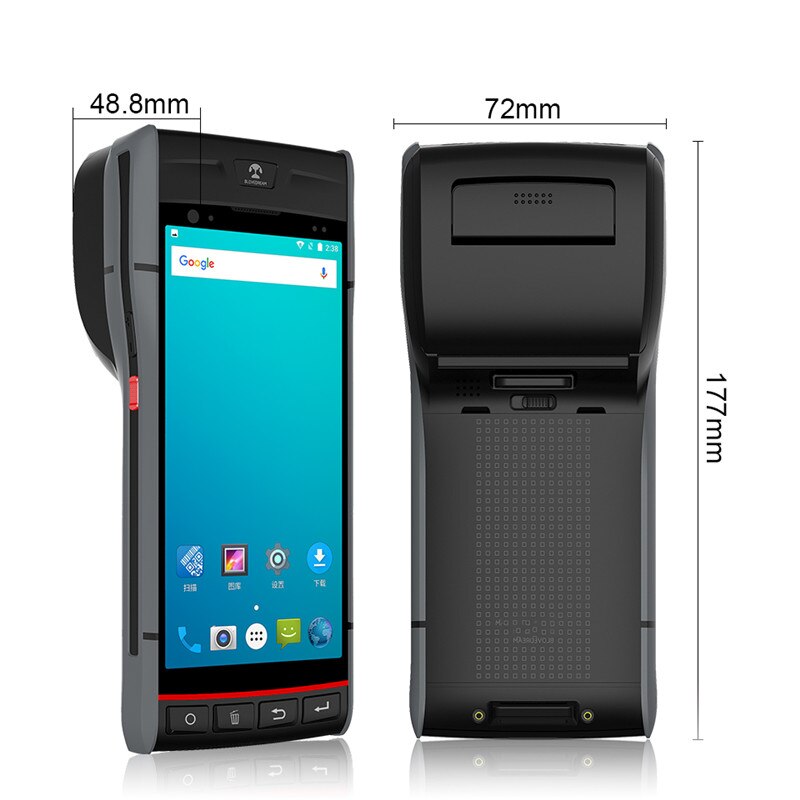

Dimensions

Dimensions 177mm×72mm×(23.7-48.8)mm

Weight

<500g

Display Screen

5.5 inch IPS color display with resolution 720*1440

Expand Port

SIM card, micro SD (TF) Card

Communication Interface

Type-C USB

Input Mode

Standard Stylus, Handwriting, touching input or keyboard input,Function key×4

Battery Capacity

Rechargeable polymer battery (3.8V 4200mAh) removable

Frequency

8ohm 1W speaker

Key

Silicone button

Performance Parameter

OS

Android 8.1, 9.0

CPU

Cortex-A53 Quad-core 64-bit 2.0GHz high-performance processor

RAM

2G/3G/4G RAM

Flash ROM

Standard 16G/32G/64G NAND Flash Storage

micro SD/TF port (Max up to 128G)

Data Communication

WI-FI

Dual-band 2.4GHz / 5GHz, Supporting IEEE 802 a/b/g/n/ac protocol

FDD/TDD-LTE 4G

FDD:B1/B3/B4/B7/B8/B12/B20 TDD:B38/B39/B40/B41

WCDMA 3G

WCDMA(850/900/1900/2100MHz)

GSM 2G

GSM(850/900/1800/1900MHz

Bluetooth

Support Bluetooth 2.1+EDR/3.0+HS/4.1+HS Transmission distance 5-10 meters

Standard Modules

Rear camera

13MP HD camera,Support auto focus, Flash, Anti-shake, Macro shooting

Front camera

2MP color camera

GNSS

Support GPS, Galileo, Glonass, Beidou

Operating Environment

Operating

-20°C to 55°C

Storage Temperature

-40°C to 70°C

Environment Humidity

5%RH-95%RH(no condensation)

Drop Specifications

6 sides Supports 1.5 meters drops and 30 times to the concrete within the operating temperature

Roll Specifications

500×0.5m rolling for 6 sides

Sealed Environment

IP66

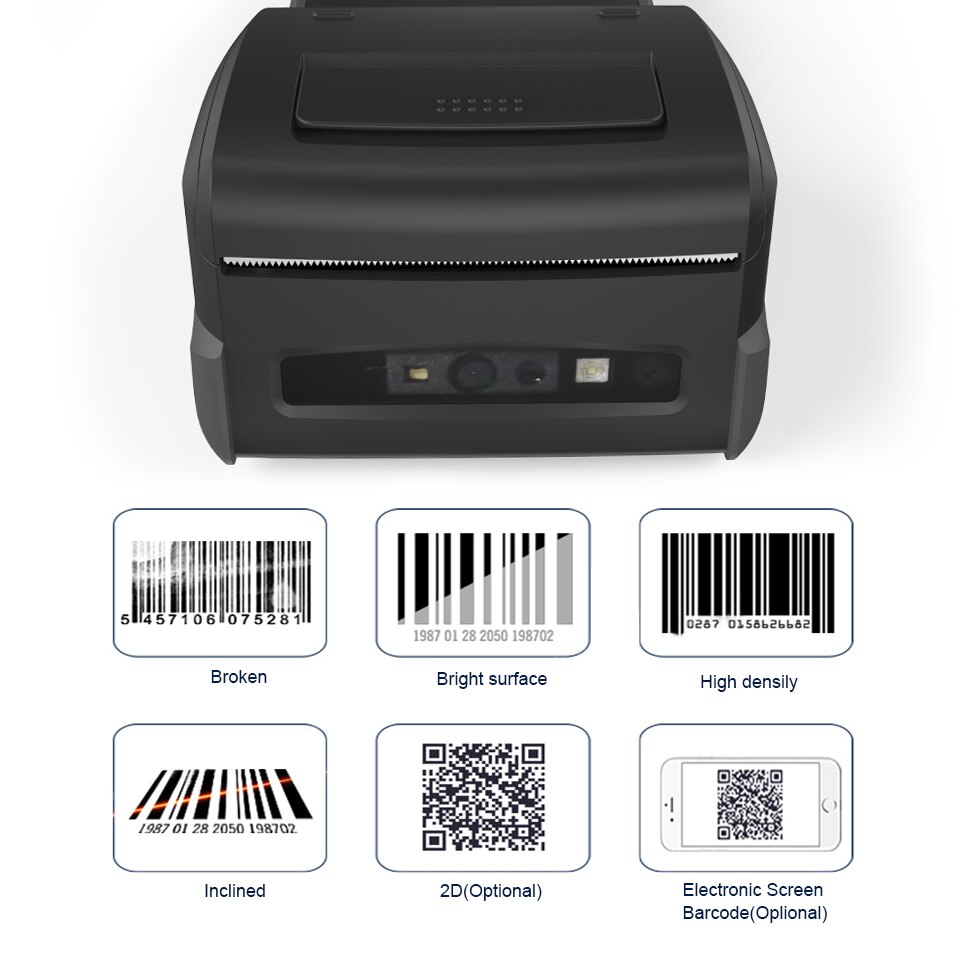

2D CMOS (OPTIONAL)

CMOS Scanner

Honeywell N3601 Honeywell N6603

The Sensor Resolution

752(level)×480(vertical)pels(gray level)

Ambient Light

All dark 9000ft.candles/96900 lux

focus element (VLD)

655nm ± 10nm

Support bar code type

PDF417,MicroPDF417,Composite, RSS,TLC-39, Datamatrix, QR code, micro QR code,Aztec, MaxiCode; Postal Codes: US PostNet,US Planet, UK Postal, Australian Postal, JapanPostal Dutch Postal (KIX)3

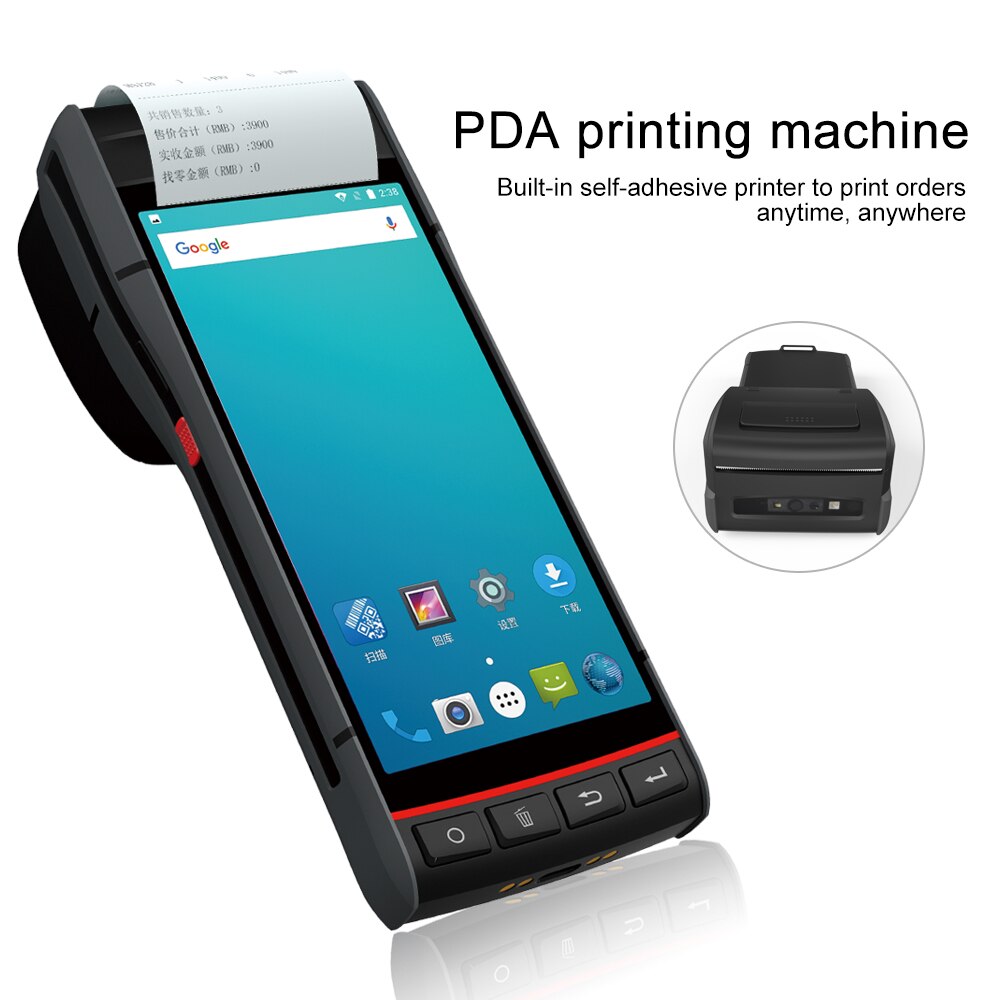

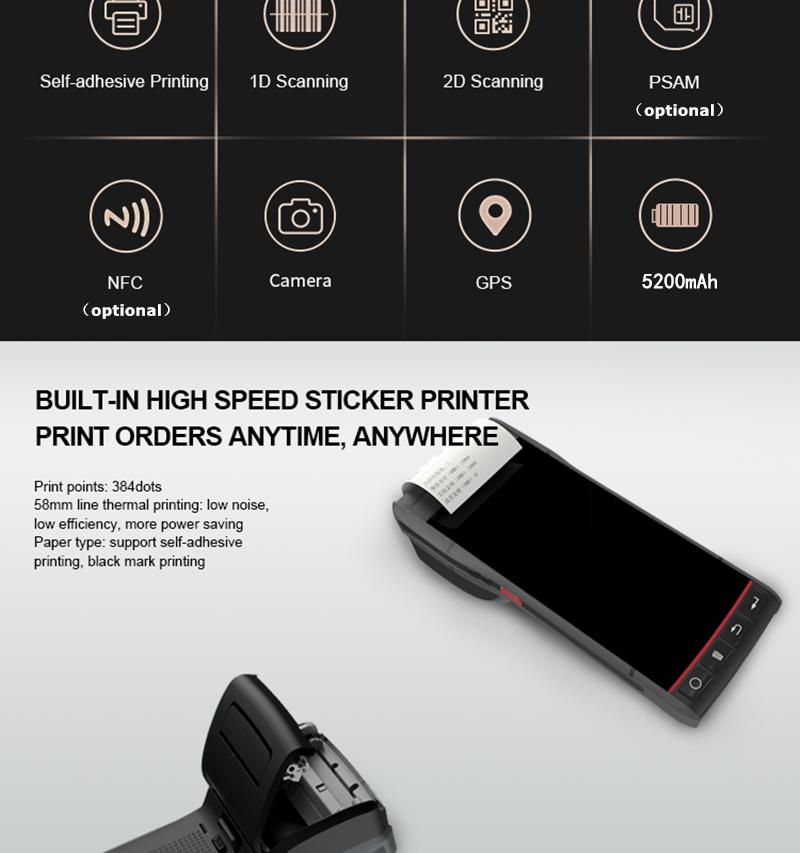

Thermal sticker printer

Printing speed

70mm/s

Print points

384 dots

Paper width

58mm

Paper diameter

35mm

Paper type

Support for Sticker / label Black mark printing

NFC Reader (Optional)

Frequency

13.56MHz

Protocol

Support ISO14443A/B, 15693 agreement

Range

2-5cm
