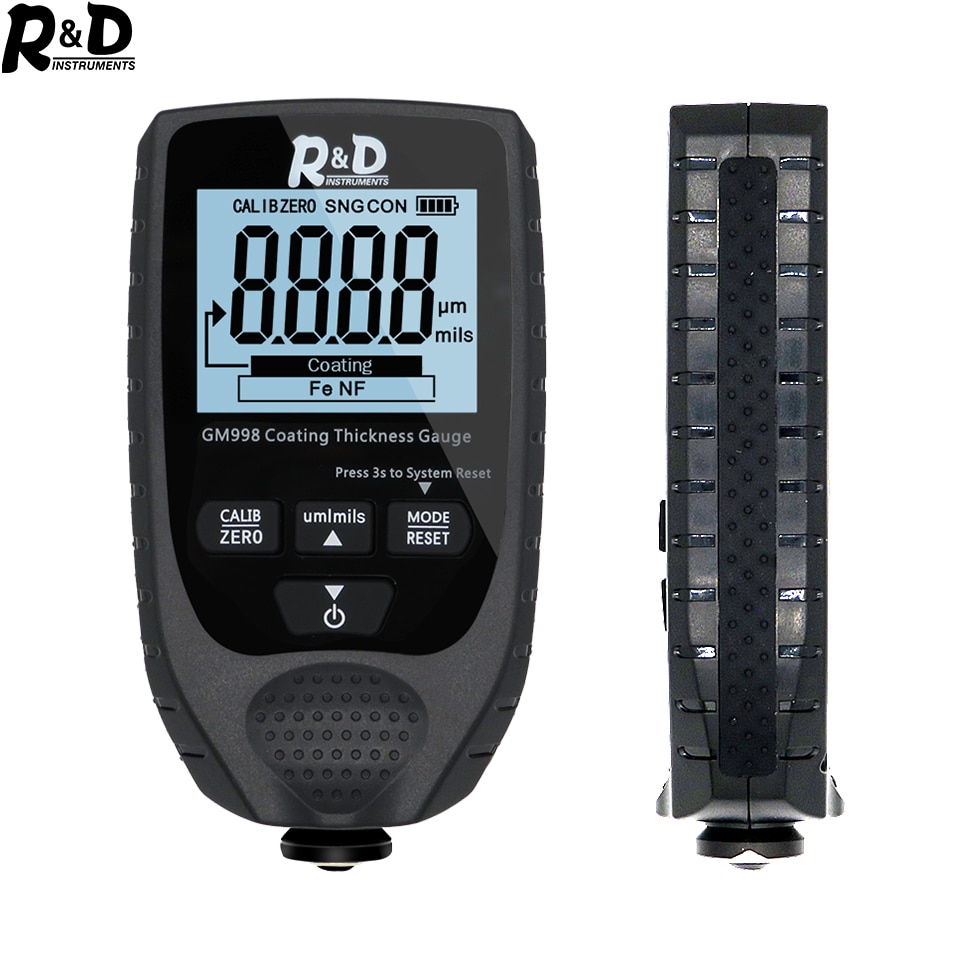

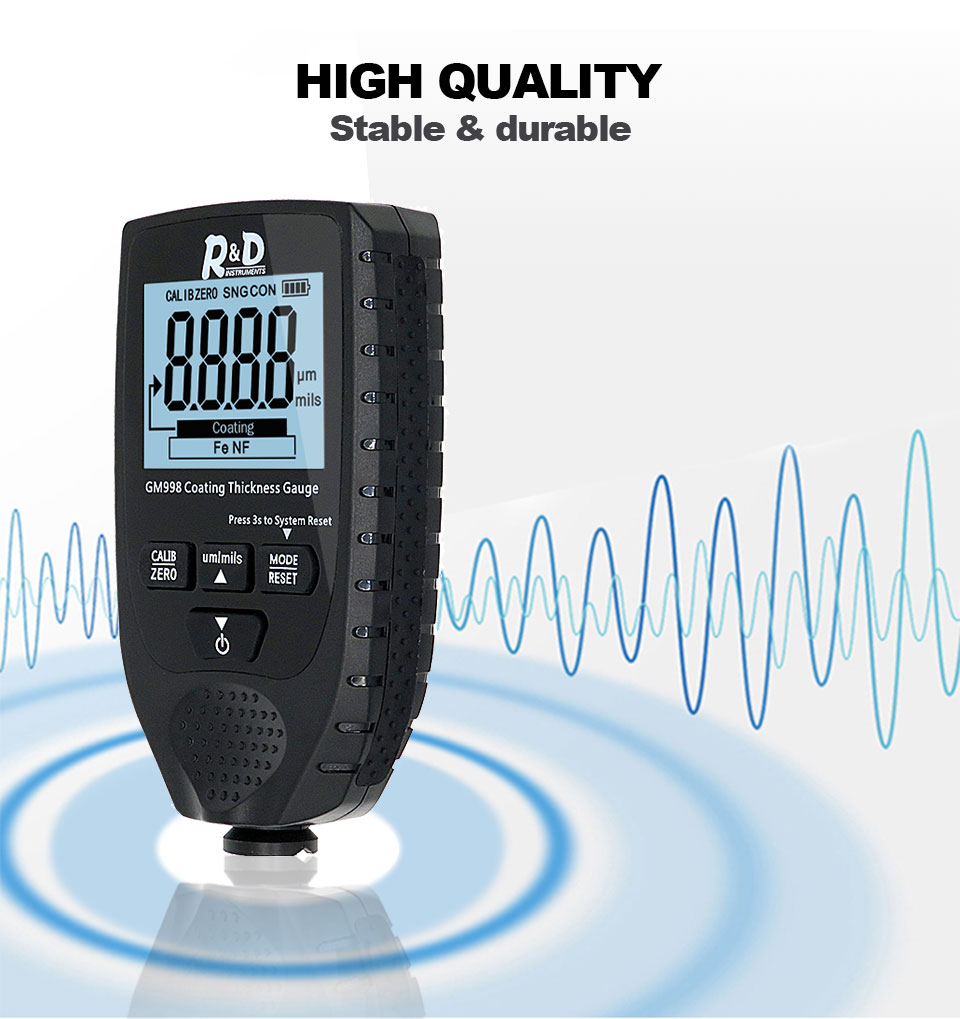

GM998 Car Paint Coating Thickness Gauge electroplate metal coating thickness tester meter 0-1500um Fe & NFe probe

GM998 Digital Backlight LCD Film Thickness Meter Car Paint Thickness Tester Coating Thickness Gauge

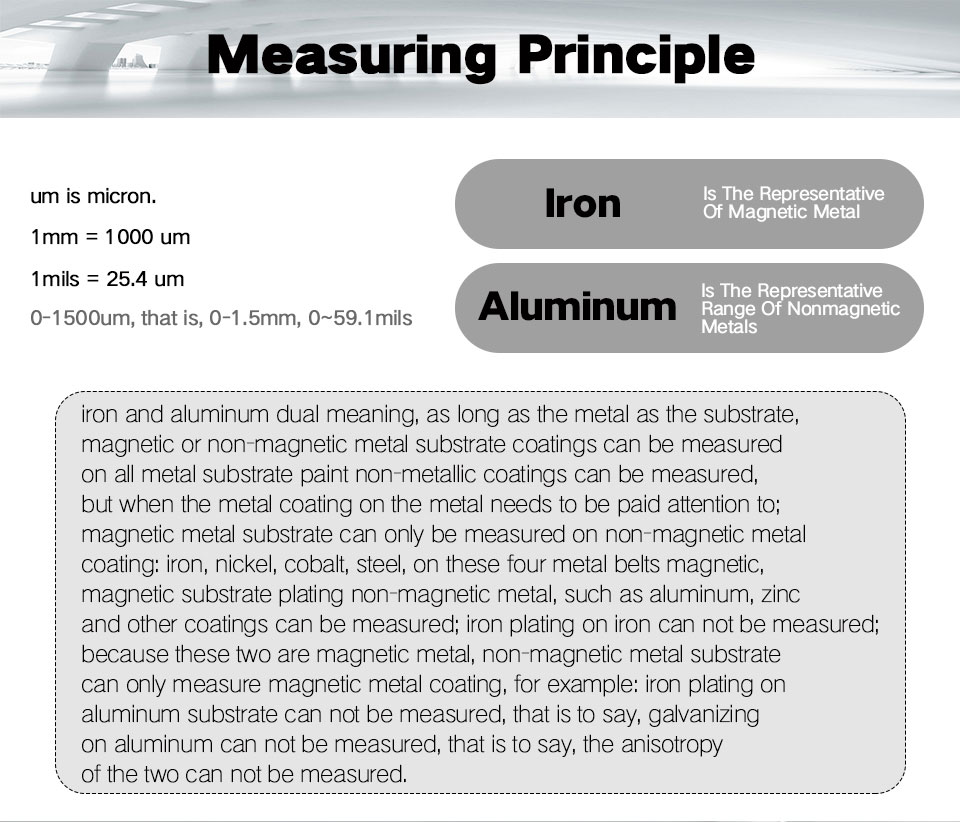

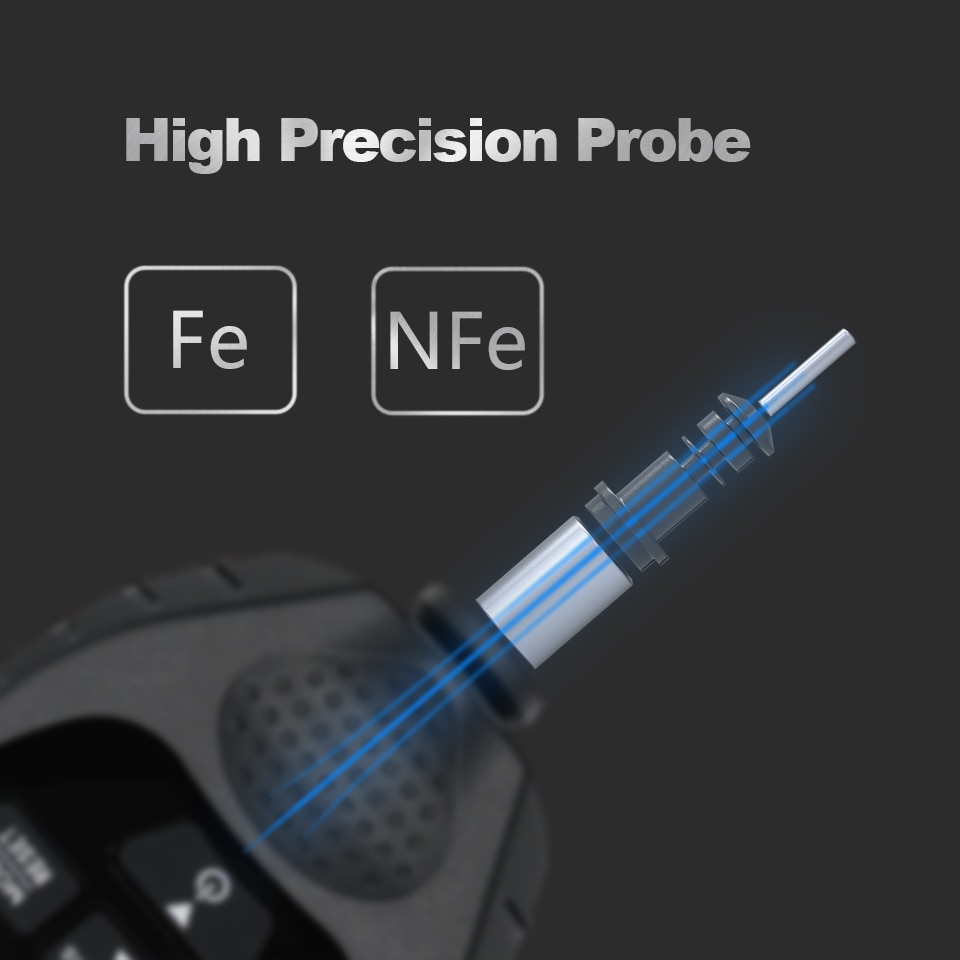

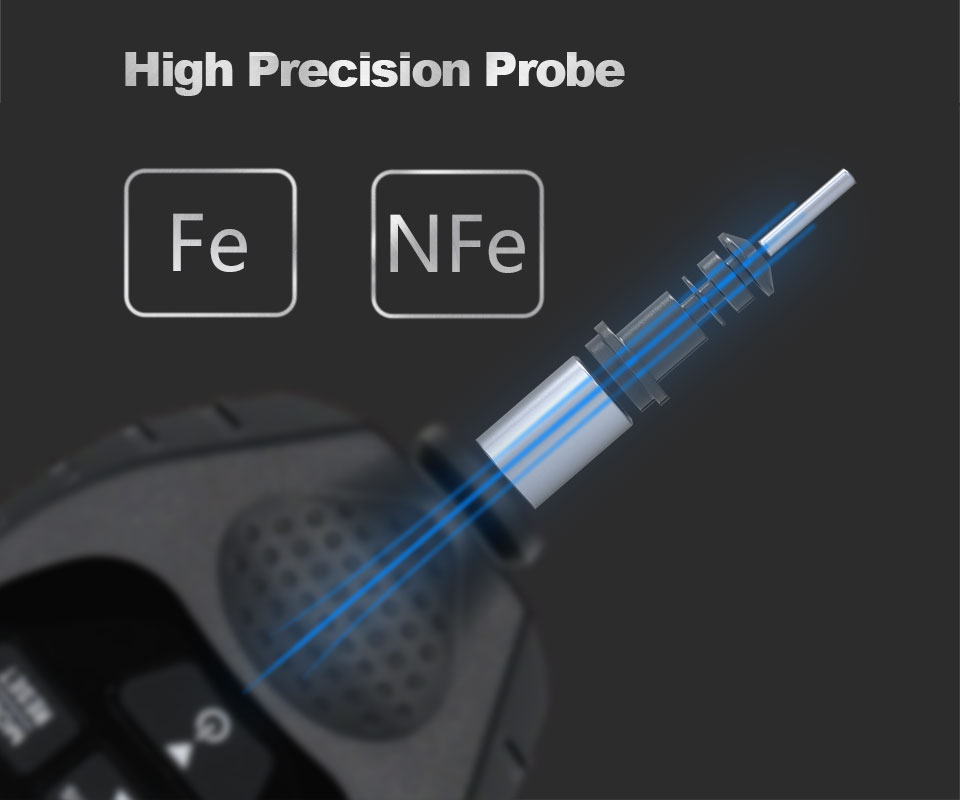

Note: The batteries(2pcs 1.5V AAA batteries) will not come with the package. Introductions: The thickness gauge is used to measure the thickness of the plated and coated sheet on metal, e.g. paint/enamel/ chrome on steel, paint and anodizing coating on aluminum/copper. The gauge takes the precision integrated probe, and uses principles of electro-magnetic induction and the eddy current effect, which automatically detects the attribute of substrates. Application Field: The Gauge is designed for non-destructively measuring the thickness of coating and painting. It is essential for material surface treatment and widely used in manufacturing industry, metal-processing industry, chemical industry, commodity inspection area, and also able to work steadily in the laboratory, workshop and outdoor.

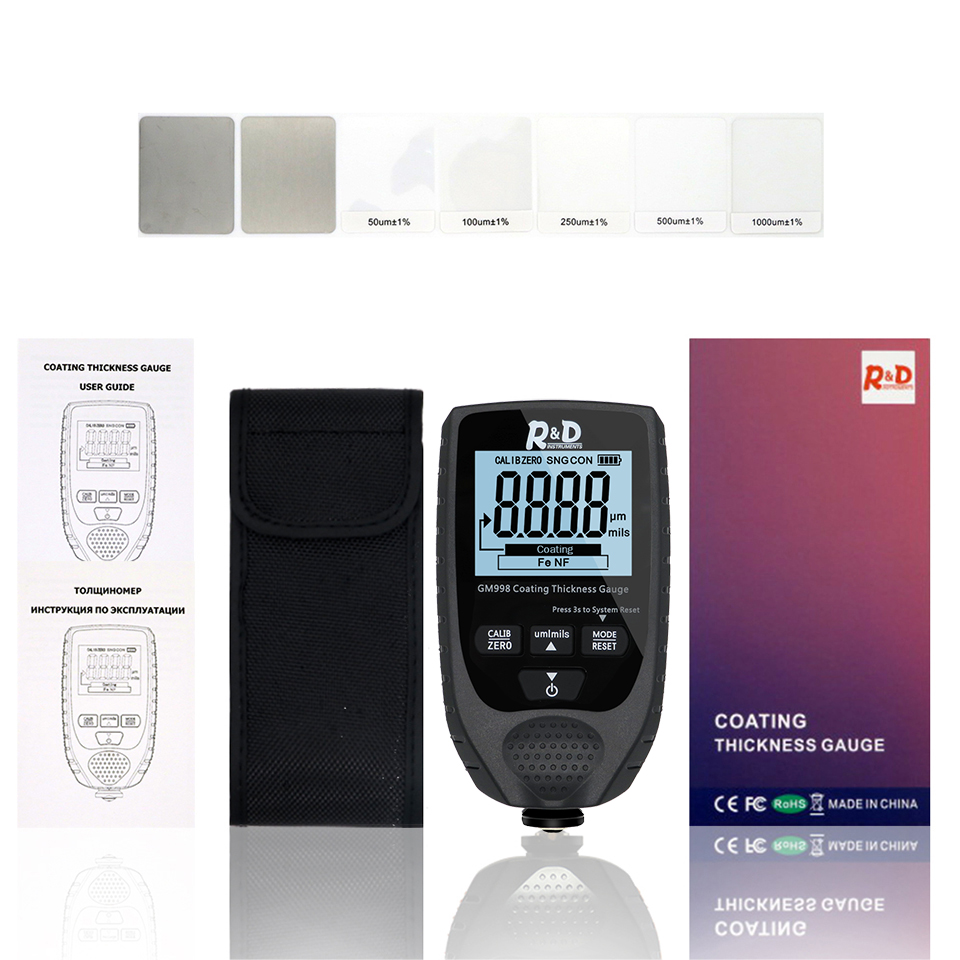

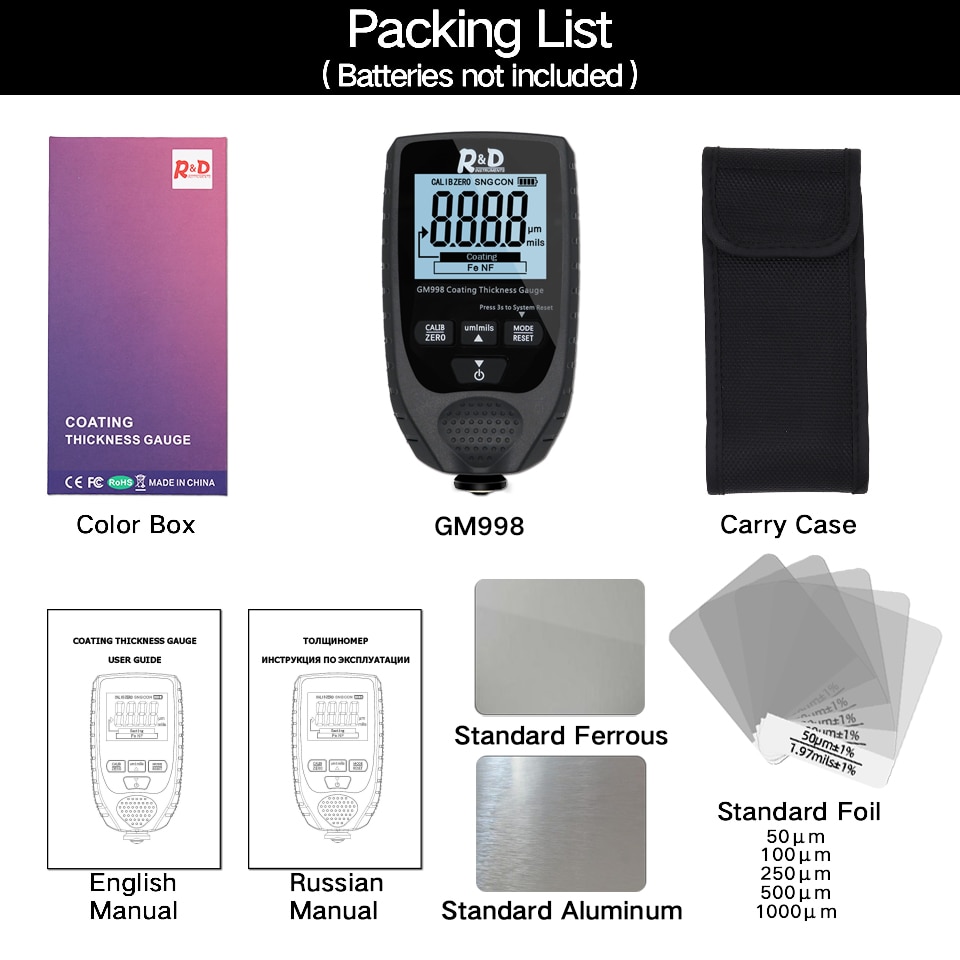

Packing List: （Batteries not included）

1*GM998 Coating thickness gauge 1*Protective case 1*Aluminum substrate 1*English manual & Russian manual 5*Standard foil 1*Lron substrate

Question 1: Are the TC100, GM998, and TC200 thickness gauges iron and aluminum dual-purpose models?

Answer: Yes, it can automatically identify the iron or aluminum substrate, the screen quickly displays the substrate material, Fe stands for ferromagnetic substrate, and NF stands for non-ferromagnetic materials, such as aluminum, aluminum alloy, copper, etc.

Question 2: Can TC100, GM998, TC200 thickness gauges measure the thickness of metallic paint

Answer: Yes, whether it is ordinary paint or metallic paint, the paint thickness can be accurately measured.

Question 3: What is the resolution and range of the TC100, GM998, and TC200 thickness gauges?

Answer: The minimum resolution is 0.1um, and the resolution above 100um is 1um. Range: 0.1 ~ 1500um.

Question 4: Does the TC100, GM998, TC200 thickness gauge have a backlight function?

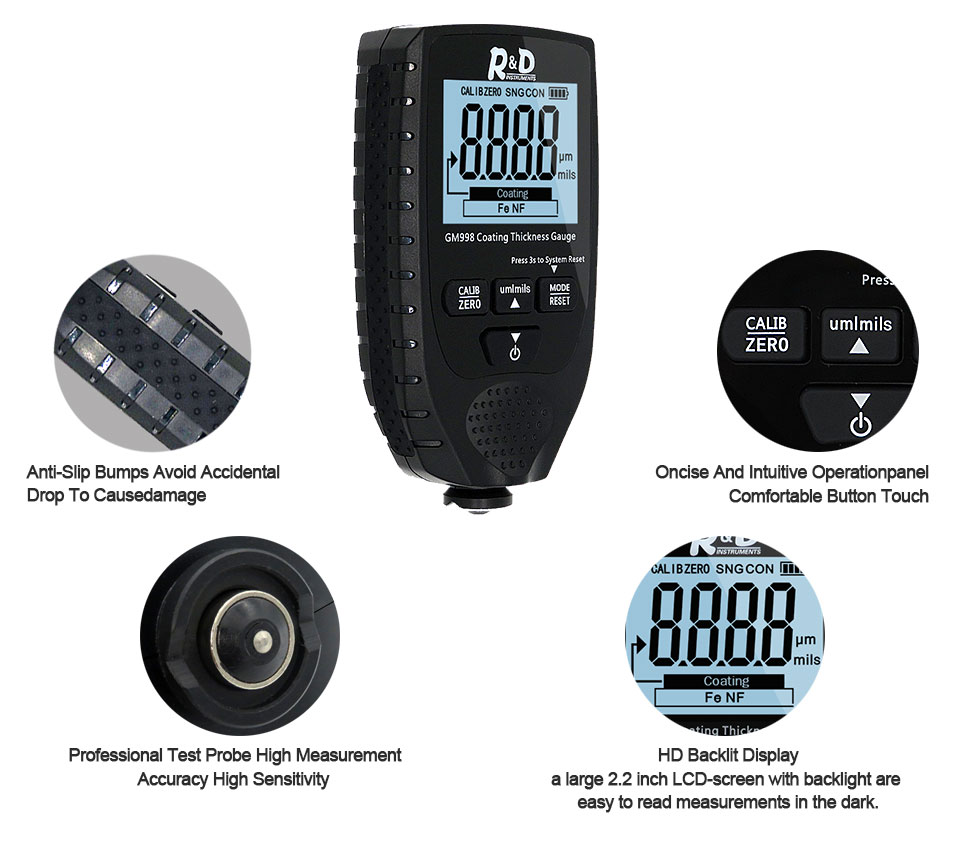

Answer: TC100 does not have backlight, GM998 and TC200 have backlight function.

Question 5: Are the TC100, GM998, and TC200 thickness gauges equipped with dry batteries?

Answer: Due to the restrictions of international logistics, there is no battery, and the battery needs to be purchased by the customer.

Question 6: Can TC100, GM998, TC200 thickness gauges measure the thickness of galvanized layer, nickel plated layer, gold plated layer, metal oxide layer, anodized layer, etc.?

Answer: Yes, please rest assured to buy.

Question 7: Can TC100, GM998, TC200 thickness gauges measure the thickness of paint on plastic surfaces?
