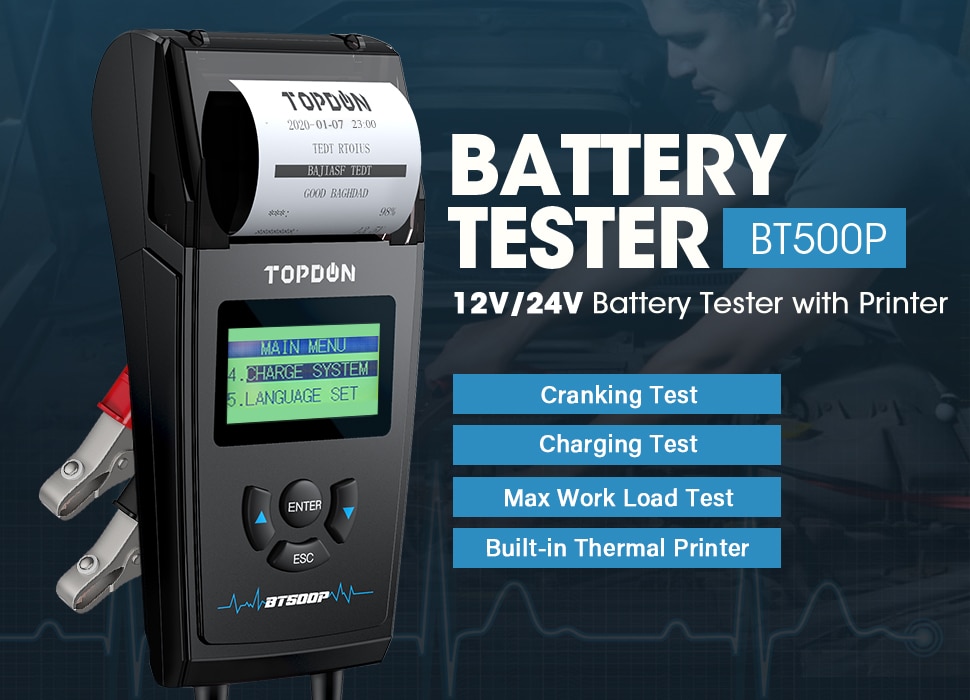

TOPDON BT500P 12V 24V Car Battery Tester with Printer Battery Load Test for Motorcycle Auto Charging Cranking Battery Analyzer

Specification：

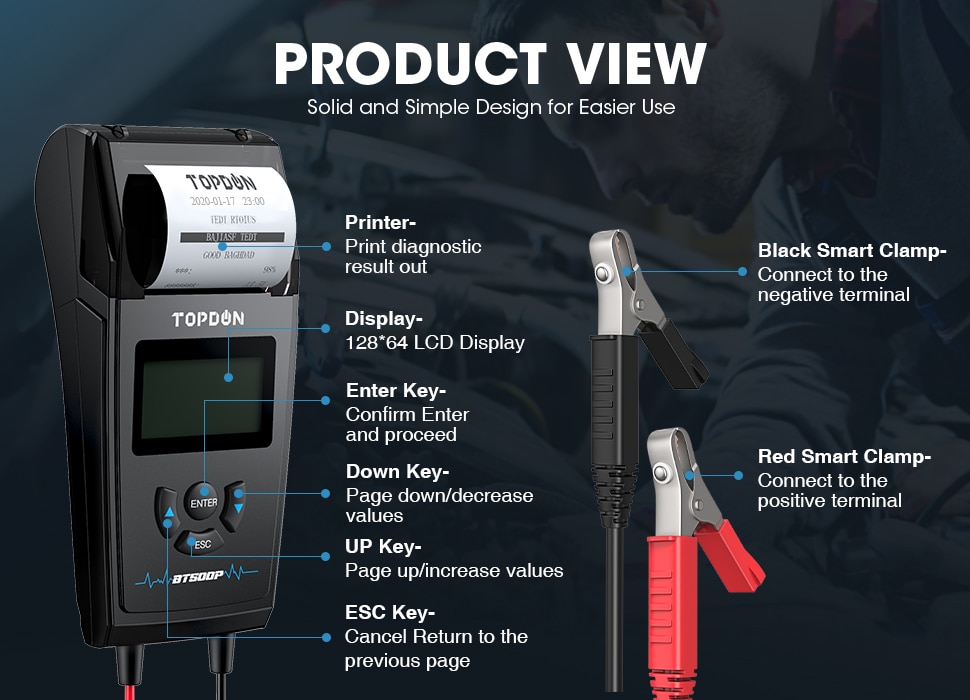

Display: 128*64 LCD display

Working Temperature: -20°C~65°C (-4°F~140°F)

Storage Temperature: -20°C~70°C (-4°F~158°F)

Dimensions: 310mm*93mm*55mm

Weight: 500g

System voltage: 12V&24V

Input voltage range: 12~24V

Power requirements: No internal batteries required. Power on when hooked up during testing

Testing range: 100 ~ 1700 CCA, 100 ~ 1200 DIN, 100 ~ 1200 IEC, 100 ~ 1700 EN

AH range: 30-250AH

Tips: CCA100-2000, 30-220Ah, which is the highest CCA in the market.

Features:

1.Test all kind of 12V & 24Vautomotive cranking lead acid battery including ordinary lead acid battery, AGM flat plate battery, AGM spiral battery,Gel battery and deep cycle batteries etc.

2. Directly detect bad cell battery.

3. Polarity reverse connect protection,reverse connection will not damage the tester of affect the vehicle and battery.

4. Directly test the battery with loss of electricity, no need to full charge before testing.

5. Testing standards include currently the world’s majority of battery standards:CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, GB

6. Support multi-languages

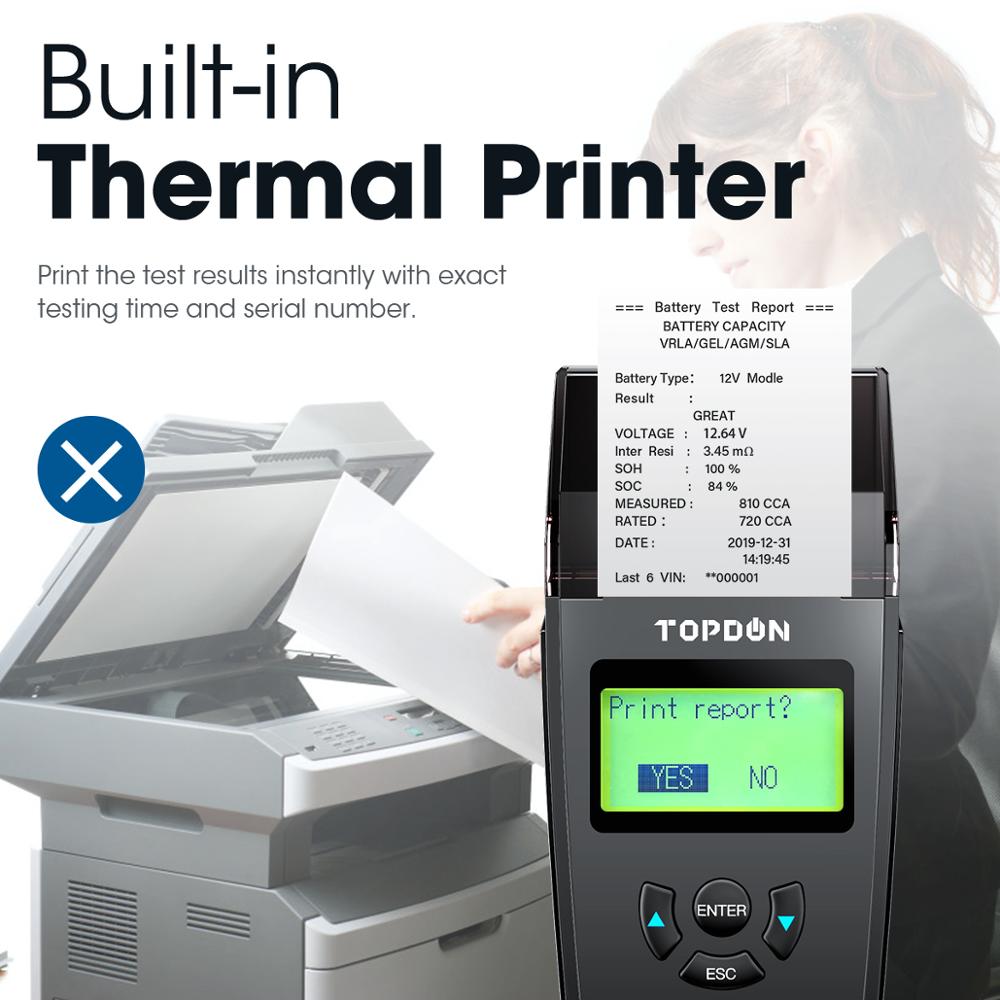

7.Built-in Printer,for enjoying the comfort of accessing the data in hard-copy form, for better analysis and rectification

8.Easy to use and will enable you to check the battery status with ease and simplicity.

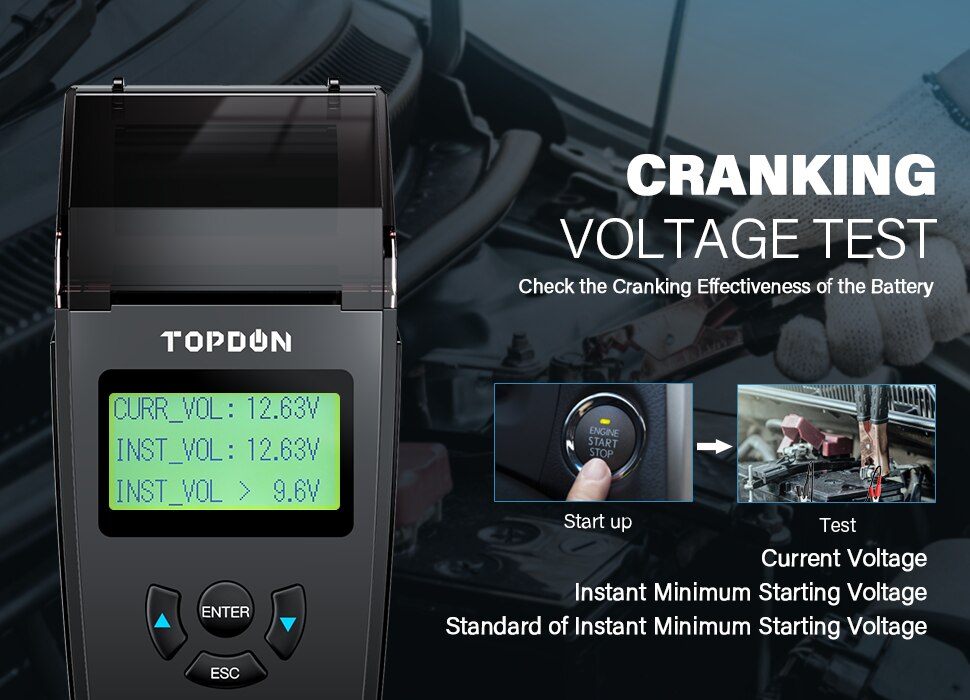

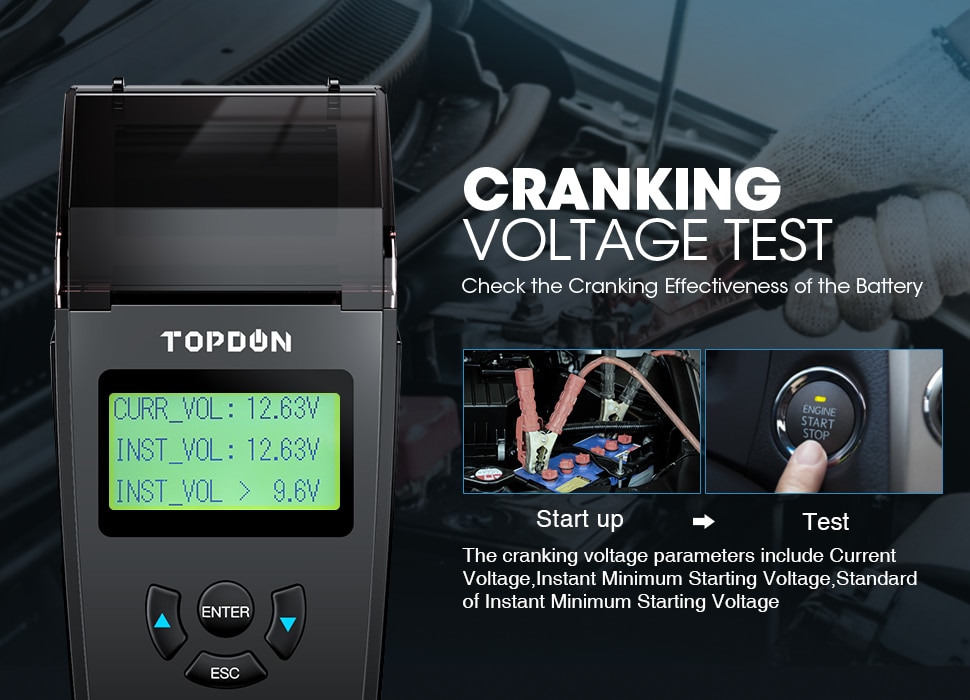

9.Provide functions to check battery health, alternator’s charging and starter’s cranking conditions.

10.Much wider test range (100-1700 CCA) and more accurate test results compared to others

11.Small and compact. The tester is a handy device and a brilliant addition to any automotive toolbox.

12.Premium quality copper clip and wire keep guarantee to maintain a stable communication all throughout the testing process.

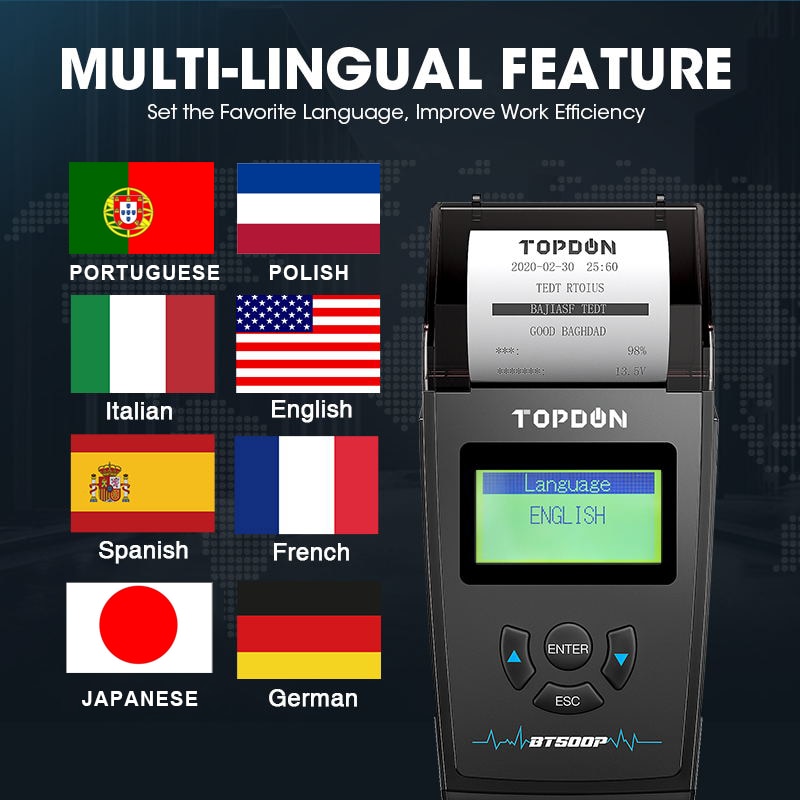

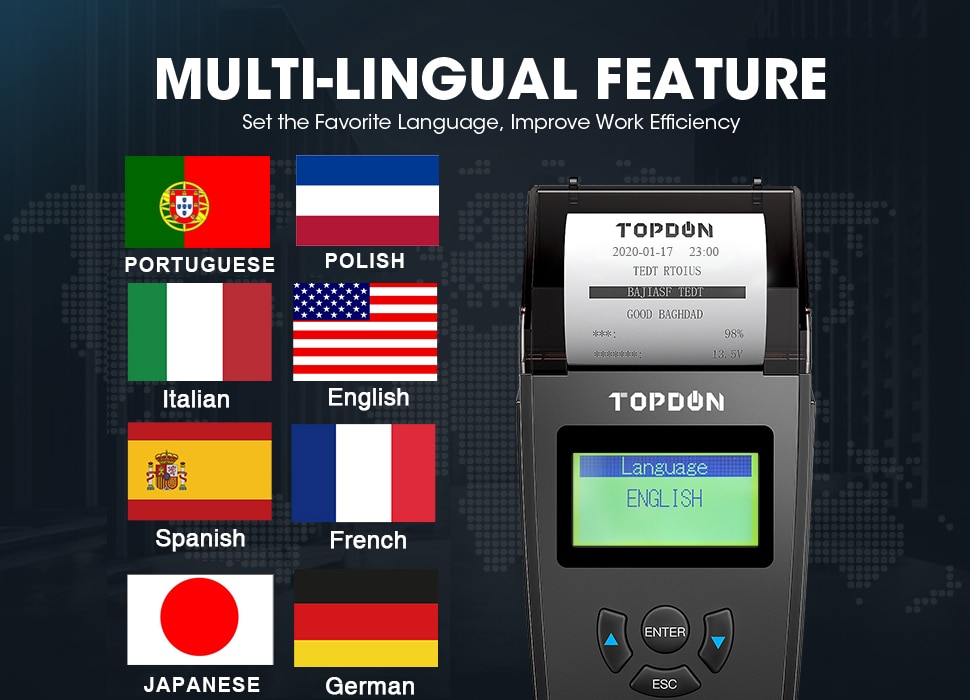

Language Support: English，Japanese ,Polish，Portuguese，Italian，Spanish，German，French
