ANENG ST182
Digital Clamp Meter AC Current Multimeter
Features:

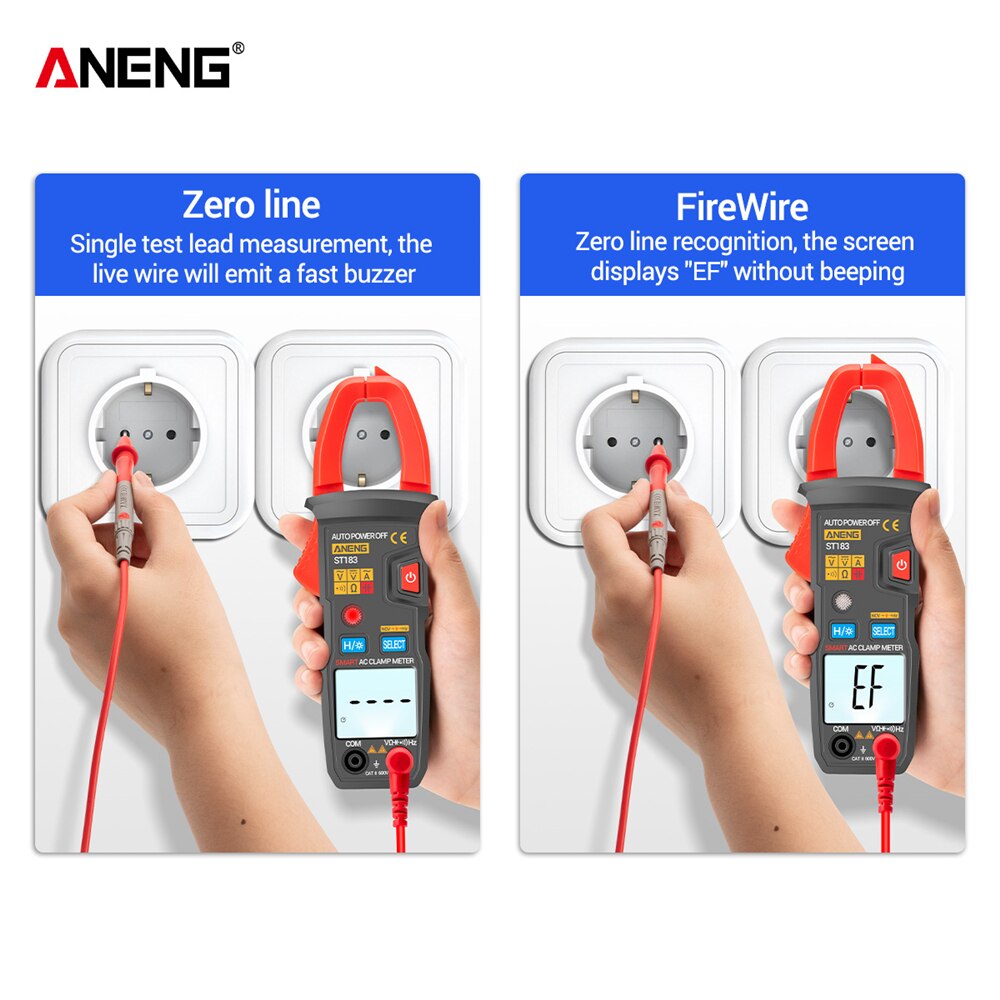

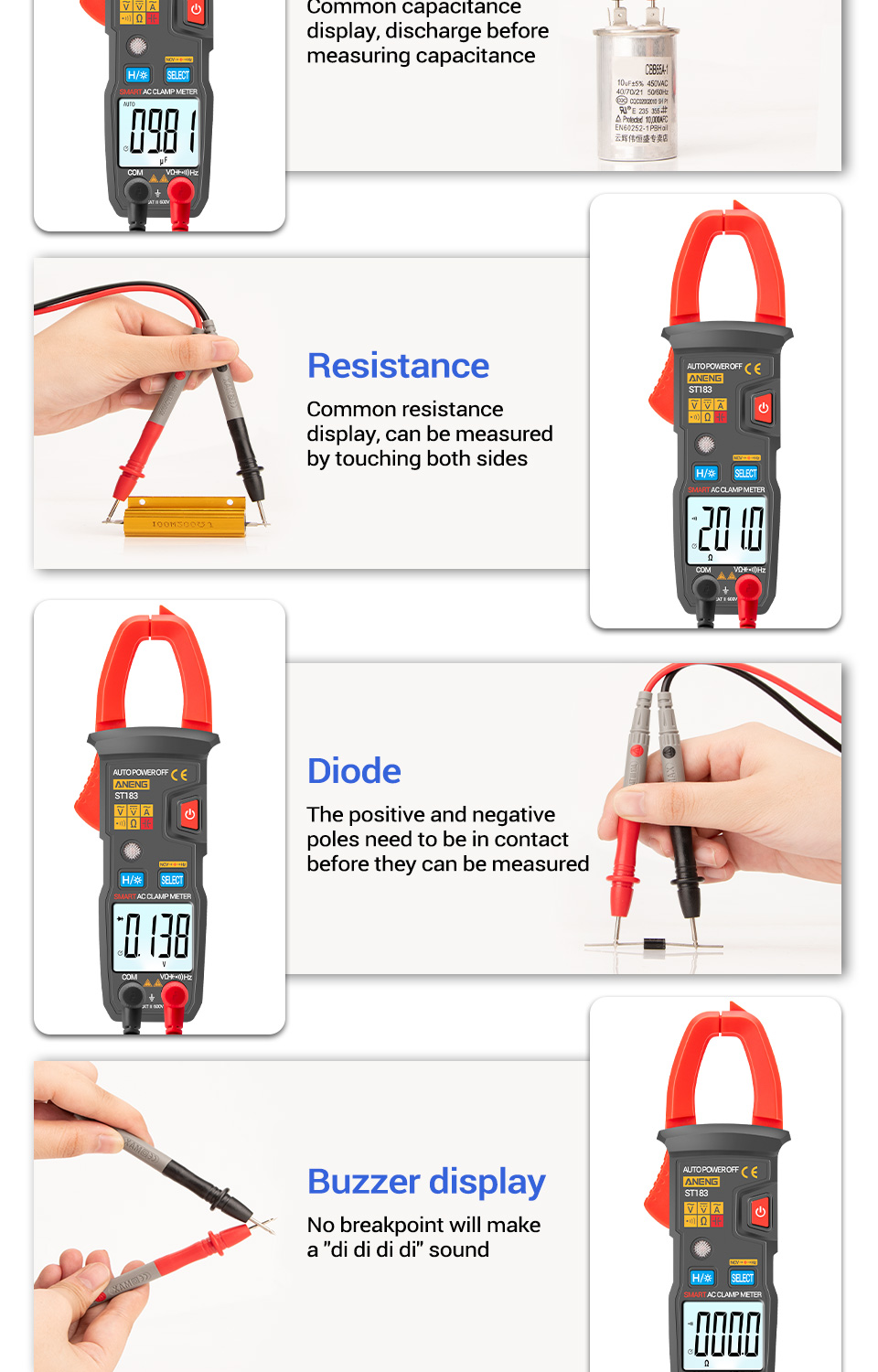

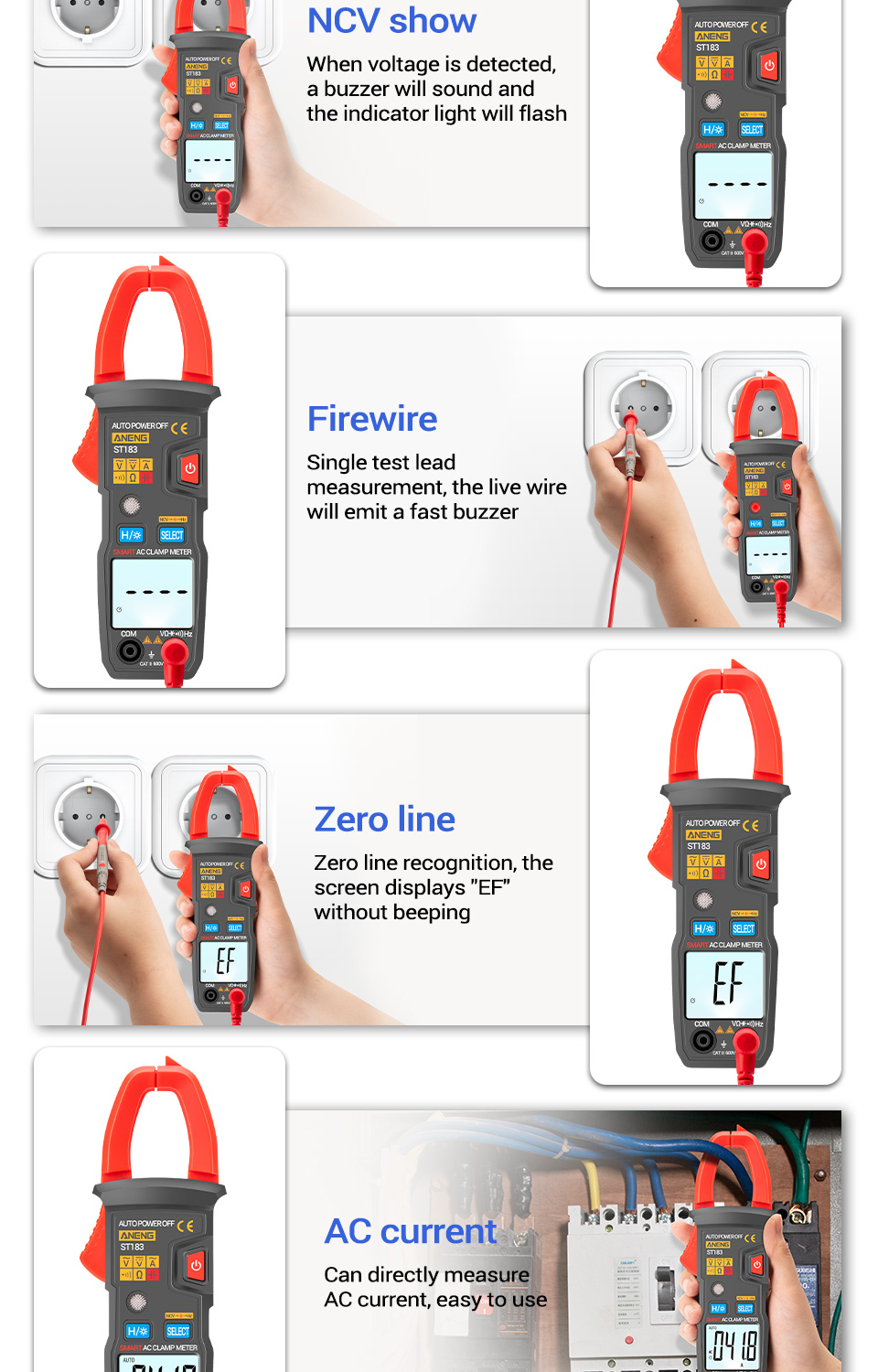

This instrument performs AC/DC voltage, AC Current, Resistance, Audible Continuity, Diode, Temperature measurements and Non-Contact ACV Detect (NCV) as well as Capacitance, Hz etc. It is an auto ranging DMM with AC current clamp meter function.
Specifications:
This instrument performs AC/DC voltage, AC Current, Resistance, Audible Continuity, Diode, Temperature measurements and Non-Contact ACV Detect (NCV) as well as Capacitance, Hz etc. It is an auto ranging DMM with AC current clamp meter function.
Specifications:
| MT88A | ST181 | ST182 | ST183 | |
| AC Voltage | 200mV~600V | 4V~600V | 4V~600V | 6V~600V |
| DC Voltage | 200mV~600V | 400mV~600V | 400mV~600V | 6V~600V |
| Resistance(omh) | 200~4M | 400~4M | 400~40M | 600~60M |

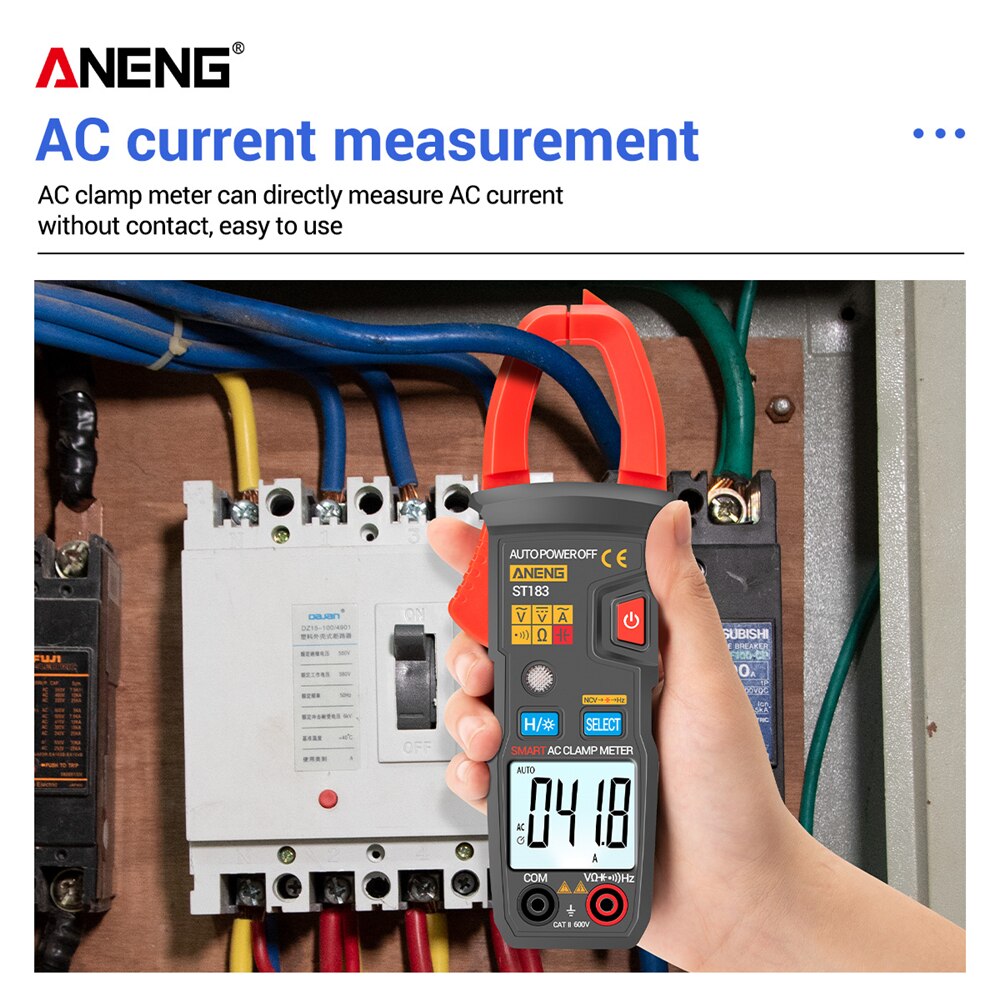

| AC Current | 2A~400A | 40A/400A | 40A/400A | 60A/600A |
| Frequency | 10~10M Hz | 10~4M Hz | 10~4M Hz | 10~20M Hz |
| Capacitance | 5nF~200uF | 1nF~4mF | 1nF~4mF | 6nF~60mF |
| Temperature | - | - | 0℃~750℃/32℉~1382℉ | - |
|
|
|
|
|
|

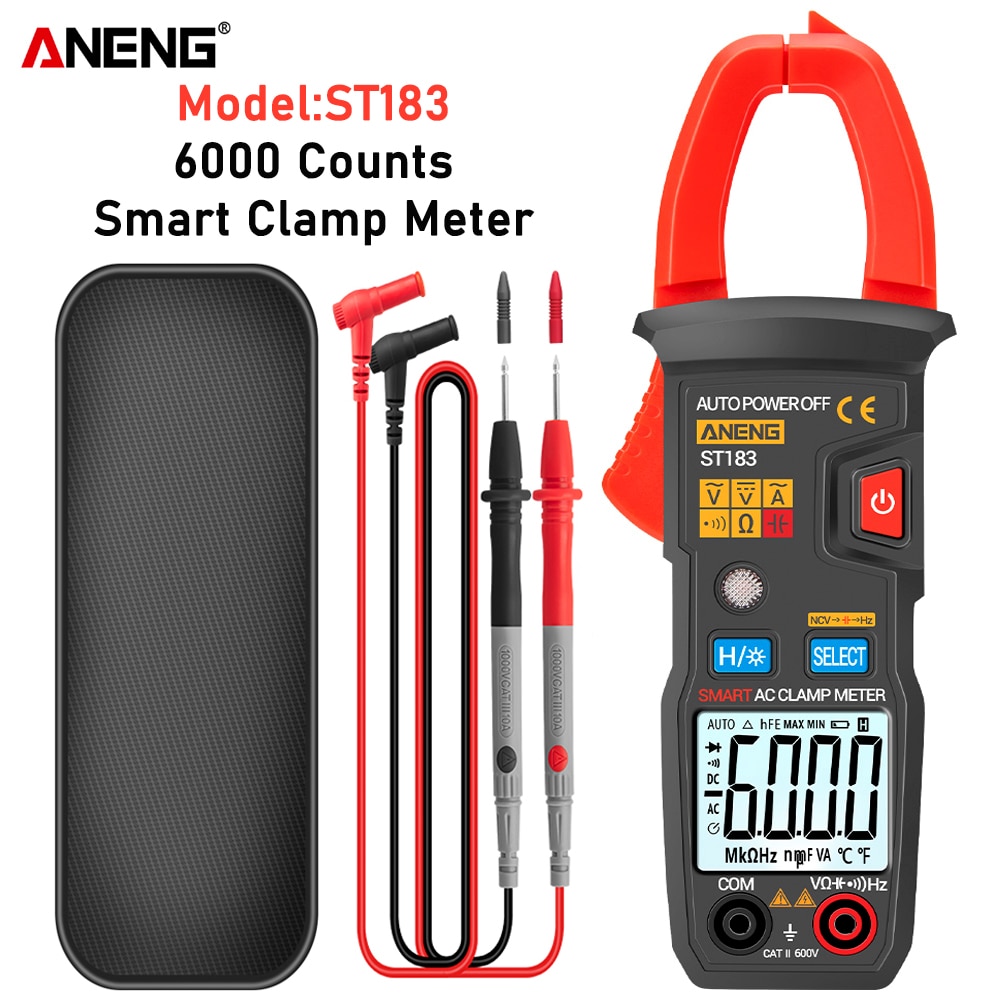

Package List:
1 * ANENG Clamp Multimeter
1 * Black Packing Bag
1 * Test Pen
1 * Temperature line(ST182 only)
1 * User Manual
1 * Packing Box (ST182/ST183 Pro only)
