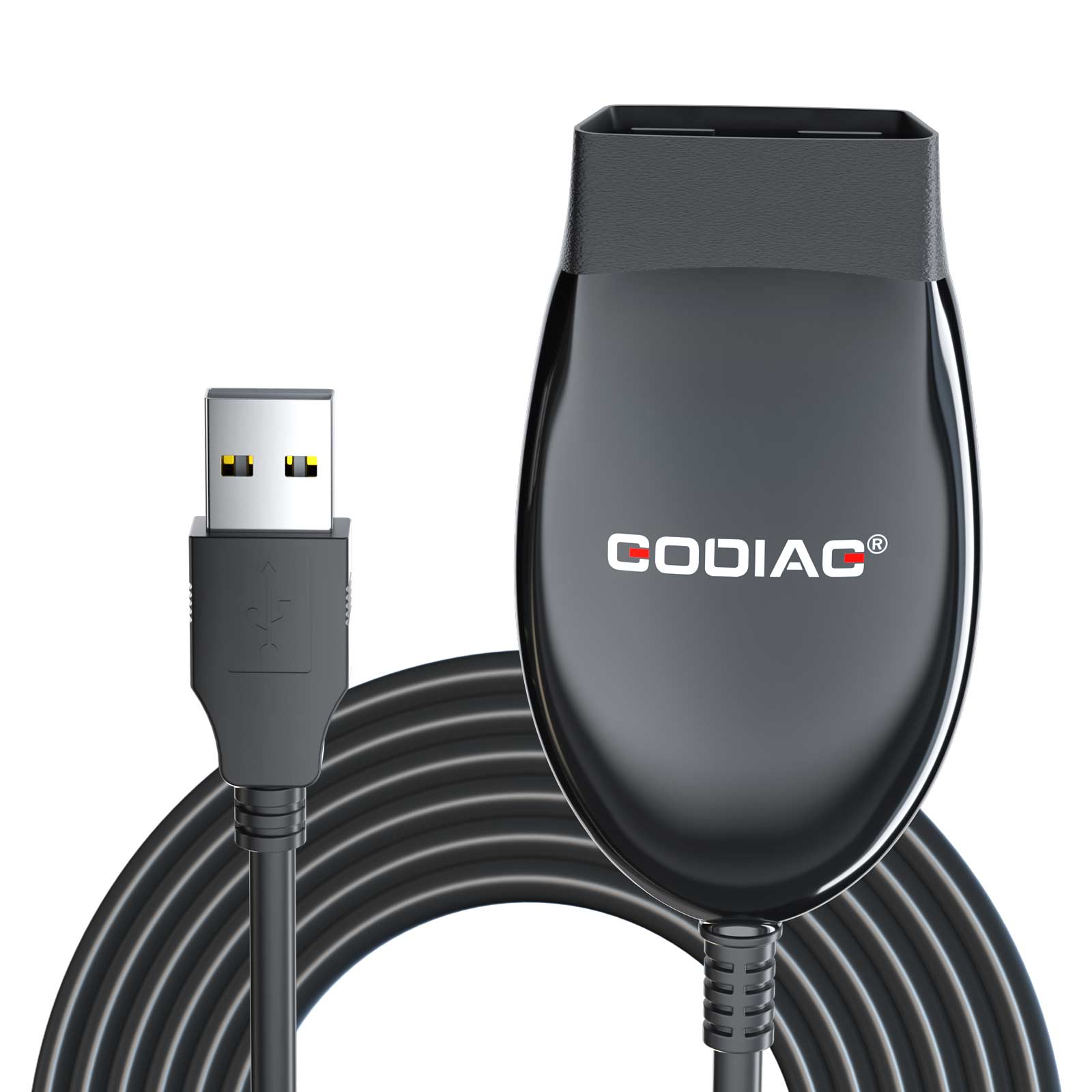

GODIAG GD101 J2534 Diagnostic Cable Support J2534 & ELM327 Diagnose J1979 Compatible Vehicles for Toyota/ Honda Acura/ ODIS/ Ford Mazda etc
GODIAG GD101 J2534 is a device that works between diagnostic software and vehicle. It is compatible with J2534 Passthru and ELM327
Highlights:
1. Support J2534 and ELM327 mode in one device. Switch mode automatically.
2. More speedup. Faster communication and reprogramming.
3. More stability. Never let you down while reprogramming.
4. Portable and convenient. Small package and easy to carry.
Product Functions:
1. Support most all of J2534 compatible software (HDS, TIS, ODIS, JLR SDD, PCMFLash...).
2. Support most all of ELM327 software (ELMConfig, Forscan, ScanMaster...).
3. Support ECU reprogramming in J2534 mode with programming voltage.
4. Supply free software for diagnosing J1979 compatible vehicles.
5. Support Windows 8/10/11, 32/64bit
6. Supported languages:
ODIS: English, Japanese, Portuguese, Romanian, Korean, Dutch, Polish, Turkish, Spanish, French, Italian, Croatian, Danish, German, Swedish, Finnish, Slovenian, Czech ,
Russia, Greece, Chinese
Toyota: English, French, Spanish, Japanese, German, Italian, Russian, Turkish, Chinese
Honda: English, German, Czech, Dutch, Finnish, French, Greek, Hungarian, Italian, Norwegian, Polish, Portuguese, Russian, Slovenian, Spanish, Swedish, Turkish, Japanese ,Chinese
JLR SDD: German, English, Spanish, French, Italian, Dutch, Portuguese, Russian, Japanese, Chinese, Korean
Forscan: English, Russian, Polish, Italian, German, Hungarian, Turkish, French, Latvian, Bosnian, Finnish, Romanian, Portuguese, Traditional Chinese, Simplified Chinese, Czech, Lithuanian, Slovak , Ukrainian
Scanmaster elm 327: English, Czech, German, Spanish, French, Hungarian, Italian, Polish, Serbian, Turkish, Danish, Croatian
Pcmflash: English, Russian
Note for pcmflash 1.20: Customers need to buy a dongle (pcmtuner dongle ), and only supports the OBD part. It does not support bench, boot, vag, dsg and gearboxes.
GODIAG GD101 J2534 Protocol Configuration:
1. ISO15765 (Standard/Extended frame).
2. ISO9141.
3. ISO14230.
4. J1850 PWM (Support IFR and 2X speed mode).
5. J1850 VPW (Support 4X speed mode).
6. Programming voltage.
7. Short to ground.
8. ELM327 with command set version 1.5a
GODIAG GD101 J2534 Hardware Configuration:
1. ISO11898-2 high speed CAN (OBDII PIN 6 and PIN 14. Speed up to 1000Kbps).
2. ISO9141 and ISO14230 K line (OBDII PIN 7 and PIN 15).
3. J1850 PWM (OBDII PIN 2 and PIN 10).
4. J1850 VPW (OBDII PIN 2).
5. Programming voltage (OBDII PIN 12 or PIN 13. Programming voltage up to 20V).
6. Short to ground (OBDII PIN 9. Short to OBDII PIN5).
7. Dimension(L*W*H): 95mm*55mm*23mm
8. Environmental:-20℃-45℃(-4℉-113℉)
9. Vehicle voltage requirements: 8-18V DC
10. Vehicle connection: Molded DLC3(OBDII-16)
11. Host connection: USB 2.0
GODIAG GD101 J2534 Function List:
Package Includes:
1pc x GODIAG GD101 J2534
Highlights:
1. Support J2534 and ELM327 mode in one device. Switch mode automatically.
2. More speedup. Faster communication and reprogramming.
3. More stability. Never let you down while reprogramming.
4. Portable and convenient. Small package and easy to carry.
Product Functions:
1. Support most all of J2534 compatible software (HDS, TIS, ODIS, JLR SDD, PCMFLash...).
2. Support most all of ELM327 software (ELMConfig, Forscan, ScanMaster...).
3. Support ECU reprogramming in J2534 mode with programming voltage.
4. Supply free software for diagnosing J1979 compatible vehicles.
5. Support Windows 8/10/11, 32/64bit
6. Supported languages:
ODIS: English, Japanese, Portuguese, Romanian, Korean, Dutch, Polish, Turkish, Spanish, French, Italian, Croatian, Danish, German, Swedish, Finnish, Slovenian, Czech ,
Russia, Greece, Chinese
Toyota: English, French, Spanish, Japanese, German, Italian, Russian, Turkish, Chinese
Honda: English, German, Czech, Dutch, Finnish, French, Greek, Hungarian, Italian, Norwegian, Polish, Portuguese, Russian, Slovenian, Spanish, Swedish, Turkish, Japanese ,Chinese
JLR SDD: German, English, Spanish, French, Italian, Dutch, Portuguese, Russian, Japanese, Chinese, Korean
Forscan: English, Russian, Polish, Italian, German, Hungarian, Turkish, French, Latvian, Bosnian, Finnish, Romanian, Portuguese, Traditional Chinese, Simplified Chinese, Czech, Lithuanian, Slovak , Ukrainian
Scanmaster elm 327: English, Czech, German, Spanish, French, Hungarian, Italian, Polish, Serbian, Turkish, Danish, Croatian
Pcmflash: English, Russian
Note for pcmflash 1.20: Customers need to buy a dongle (pcmtuner dongle ), and only supports the OBD part. It does not support bench, boot, vag, dsg and gearboxes.
GODIAG GD101 J2534 Protocol Configuration:
1. ISO15765 (Standard/Extended frame).
2. ISO9141.
3. ISO14230.
4. J1850 PWM (Support IFR and 2X speed mode).
5. J1850 VPW (Support 4X speed mode).
6. Programming voltage.
7. Short to ground.
8. ELM327 with command set version 1.5a
GODIAG GD101 J2534 Hardware Configuration:
1. ISO11898-2 high speed CAN (OBDII PIN 6 and PIN 14. Speed up to 1000Kbps).
2. ISO9141 and ISO14230 K line (OBDII PIN 7 and PIN 15).
3. J1850 PWM (OBDII PIN 2 and PIN 10).
4. J1850 VPW (OBDII PIN 2).
5. Programming voltage (OBDII PIN 12 or PIN 13. Programming voltage up to 20V).
6. Short to ground (OBDII PIN 9. Short to OBDII PIN5).
7. Dimension(L*W*H): 95mm*55mm*23mm
8. Environmental:-20℃-45℃(-4℉-113℉)
9. Vehicle voltage requirements: 8-18V DC
10. Vehicle connection: Molded DLC3(OBDII-16)
11. Host connection: USB 2.0
GODIAG GD101 J2534 Function List:
| Software | Brand | Year | NOTE |
| Toyota TIS Techstream | Toyota, Lexus | 1995-2022 | Free download and activate software, update by link |
| Honda HDS 3.102 | Honda Acura | 1995-2022 | Does not support non-#7 K-line, update by link |
| ODIS-S, ODIS -E | VW Audi Skoda Seat | 1995-2022 | For J2534 VAG only. Don’t support CAN FD protocol, Don’t support Ignition switch voltage detection |
| Forscan 2.3.48 | Ford Mazda Lincoln | 1996-2022 | Cannot do 3, 11 medium speed CAN |
| Scanmaster V2.0 | 1996-2022 | Free download and activate software | |
| PCMFlash V1.2.0 | 67 modules | 1996-2022 | Yes, test by your side |
| J1979Tester | 1996-2022 | Free Honda immo code calculation | |
| ELMConfig | 1996-2022 | Yes, test by your side | |
| Volvo VI-DA | Volvo | 1996-2022 | Yes, test by your side |
| JLR SDD2 | Jaguar Land rover | 2006-2016 | Yes, test by your side |
| GDS2 | GM Buick Cadilac Chevlert | 1995-2022 | Yes, test by your side |
| Xentry Passthru | Benz, Smart | 1995-2022 | Yes, test by your side |
| ISTA-D, ISTA-P | BMW, Mini | 1995-2022 | Yes, test by your side |
| Consult III-R2R | Nissan, Infiniti | 1995-2022 | Yes, test by your side |
Package Includes:
1pc x GODIAG GD101 J2534
