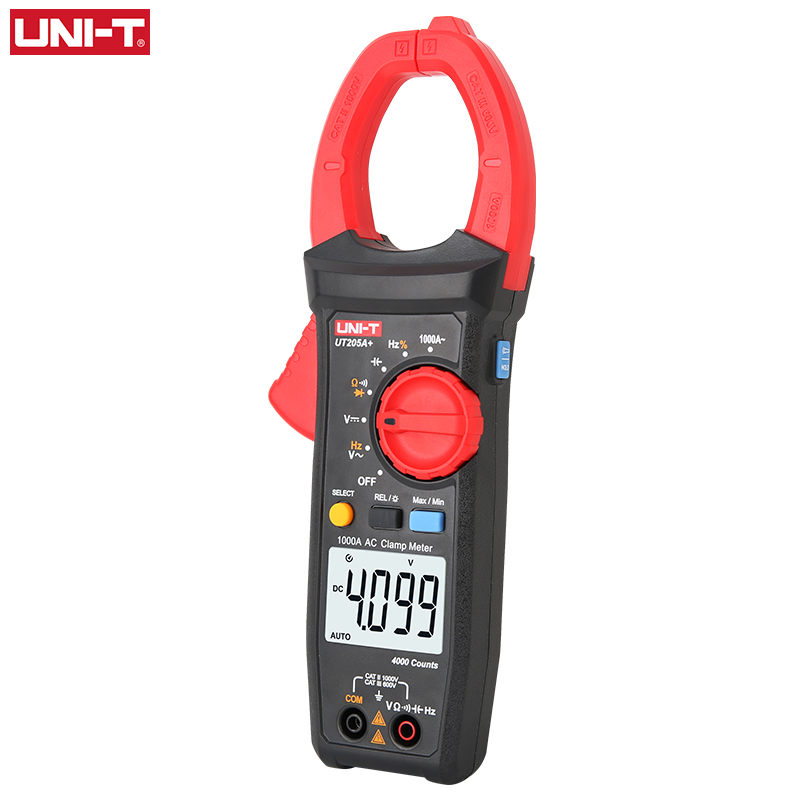

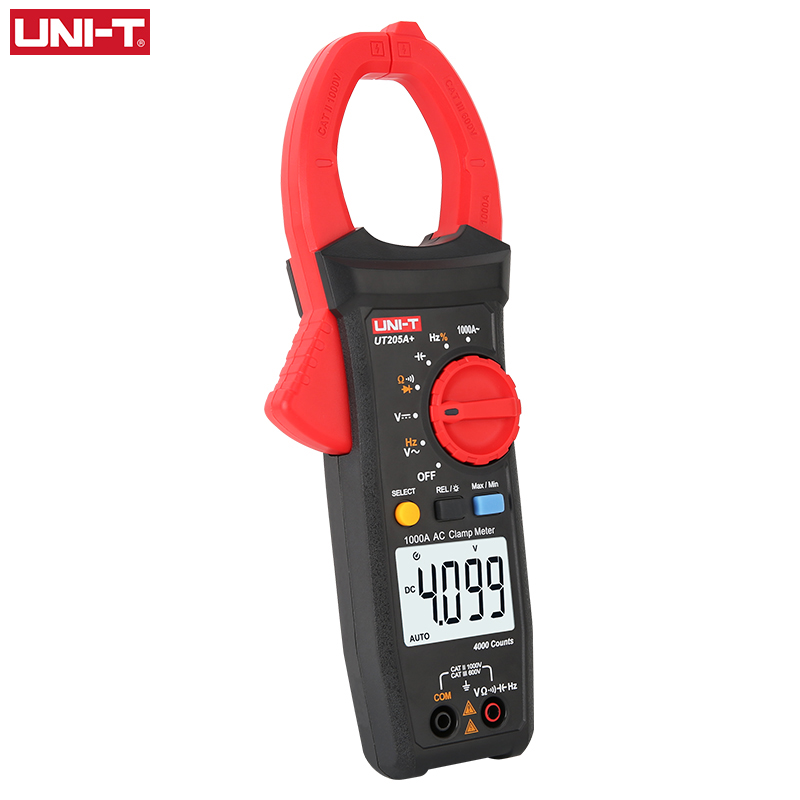

UT205A+/UT206A+ are hand-held auto-ranging AC clamp meters, designed according to the safety standard EN61010-2010 CAT III 600V/CAT II 1000V, with full-function anti-burn protection, which can meet the requirements of high reliability and high safety operation; the product includes The basic functions of electrical measurement, the current profile has high-precision measurement, the UT206A+ has both inrush current and temperature, and NCV measurement functions. It is the preferred electrical measurement tool for electronic electricians.
1. The body is light in weight, easy to operate with one hand and high-altitude operations
2. AC current 1000A measurement, frequency response up to 45Hz~1kHz
3.600A surge measurement (only for UT206A+);
4. Temperature measurement (only for UT206A+)
5. NCV non-contact electrical inspection function
6. The product sets overvoltage and overcurrent alarm prompts
7. Circuit setting automatic power saving function
8. Equipped with flashlight/backlight;
9. Relative value / maximum value / minimum value

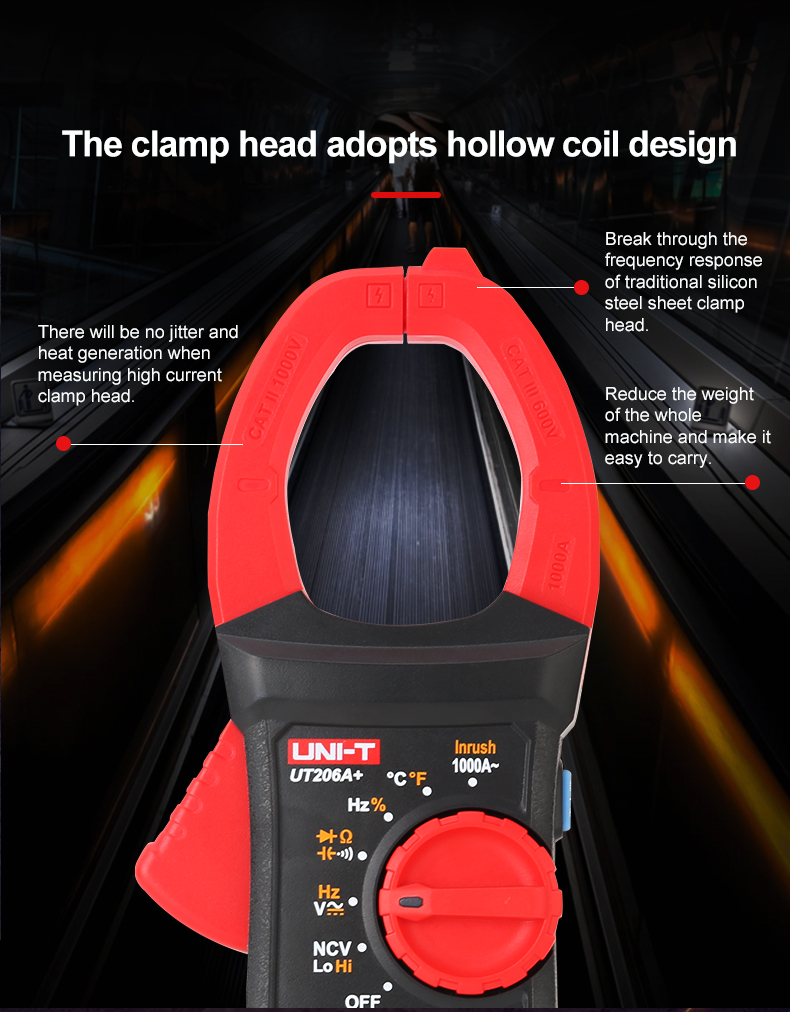

Breaking through the frequency response of the traditional silicon steel sheet clamp head, avoiding the jitter and heating of the high current clamp head.

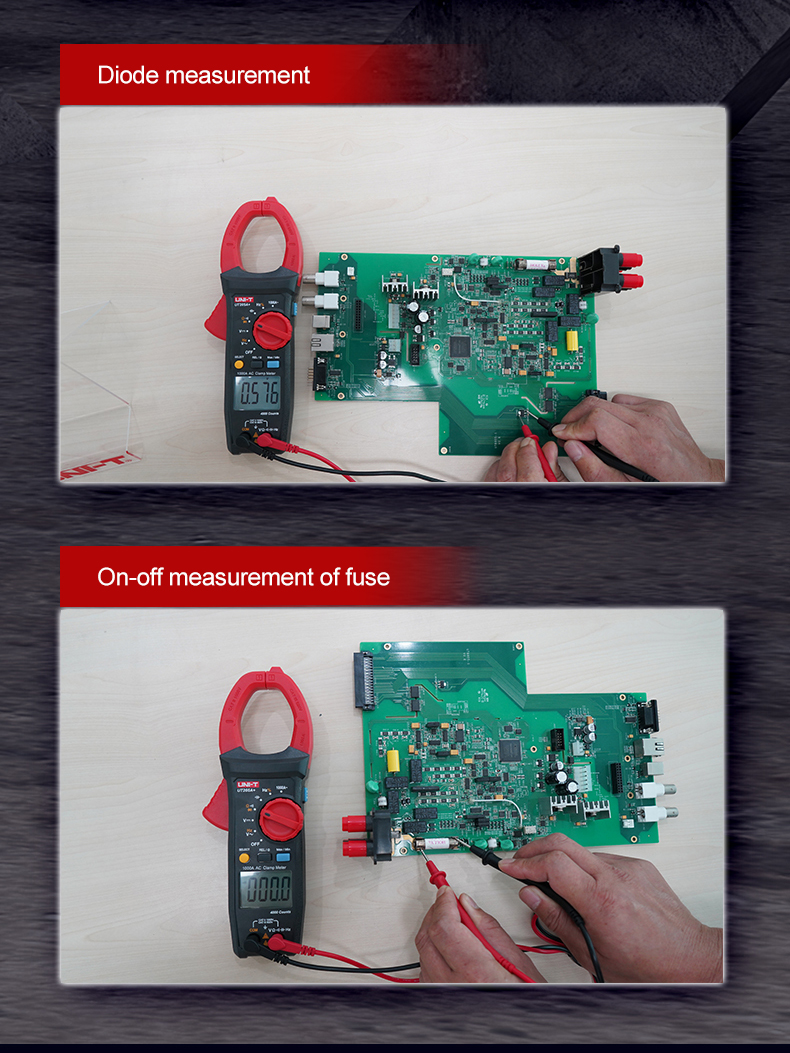

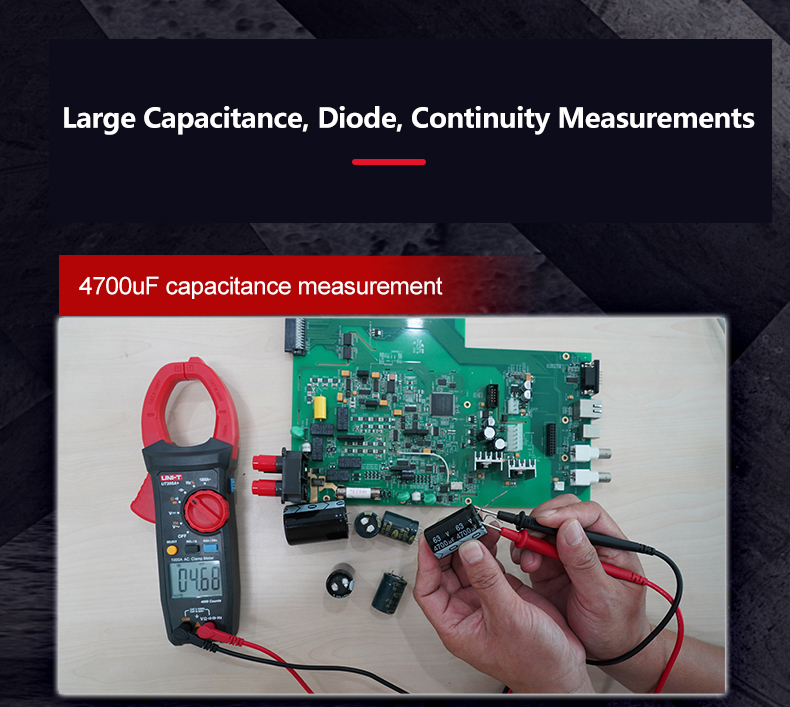

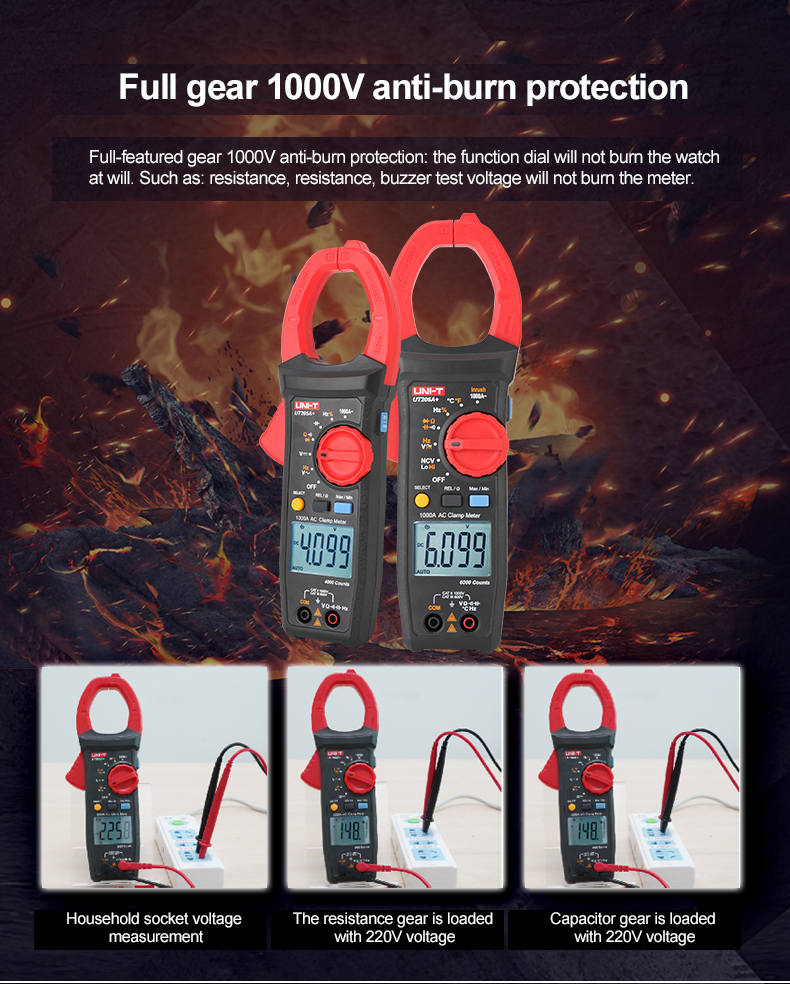

When testing voltage in resistance, capacitance and buzzer gears, don't worry about burning the meter due to wrong gears.

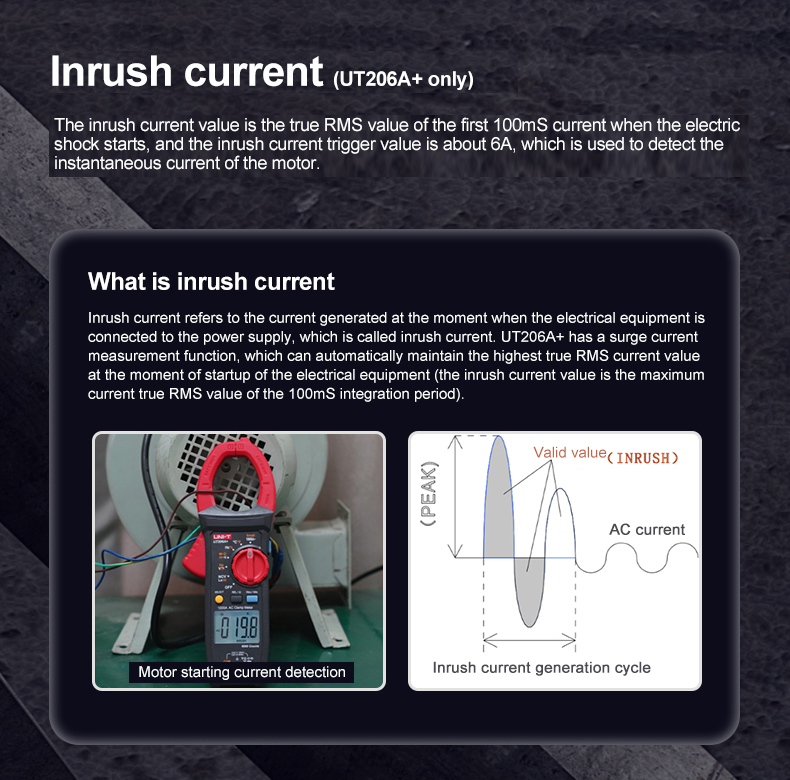

UT206A+ has inrush current measurement function, which can automatically maintain the highest true RMS current value at the moment of startup of the electrical equipment (the inrush current value is the maximum current true RMS value of the 100mS integration period).
Two sensitivity modes:
1: EFLo measurement conditions (110V), no sensing display EFLo, sensing electric field display --L
2: EFHi measurement conditions (220V), no induction display EFHi, with induction electric field display --H

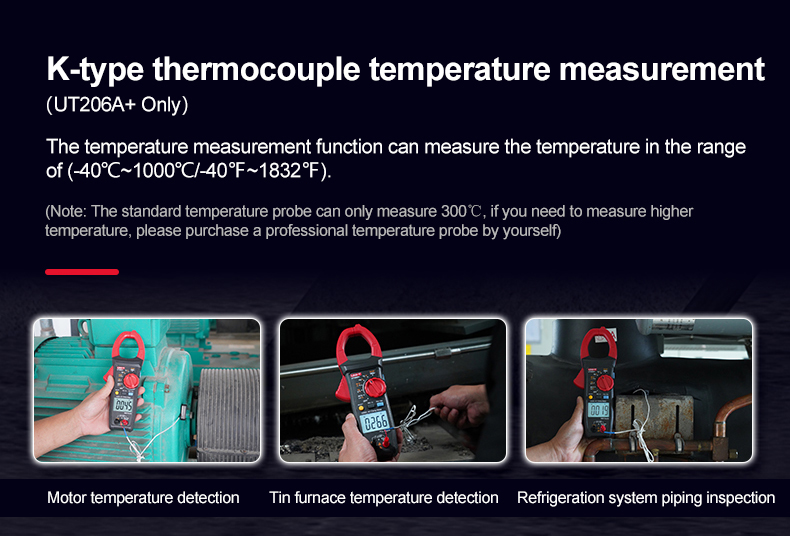

The temperature measurement function can measure (-40°C~1000°C/-40°F~1832°F), which can be applied to the temperature test of HVAC, monitor the operating status of the temperature sensor, and troubleshoot the system in time.
Note: The standard temperature probe can only measure 300℃.
