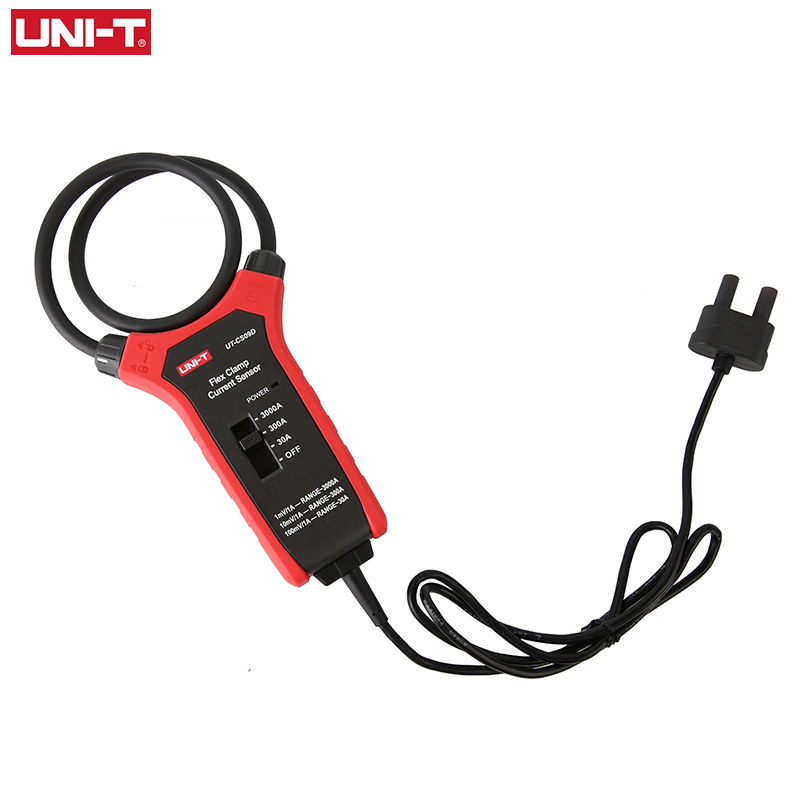

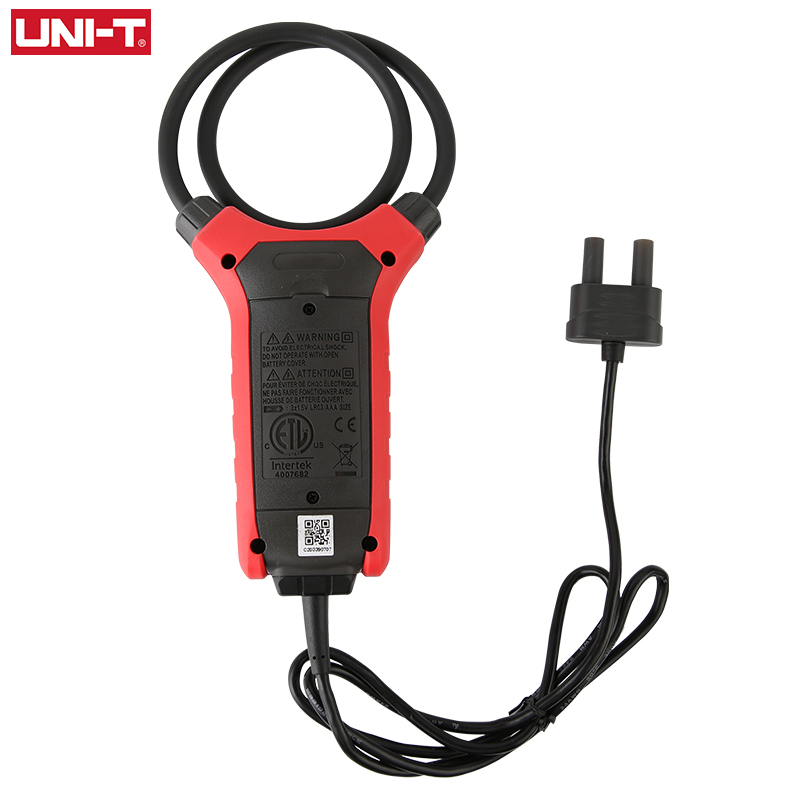

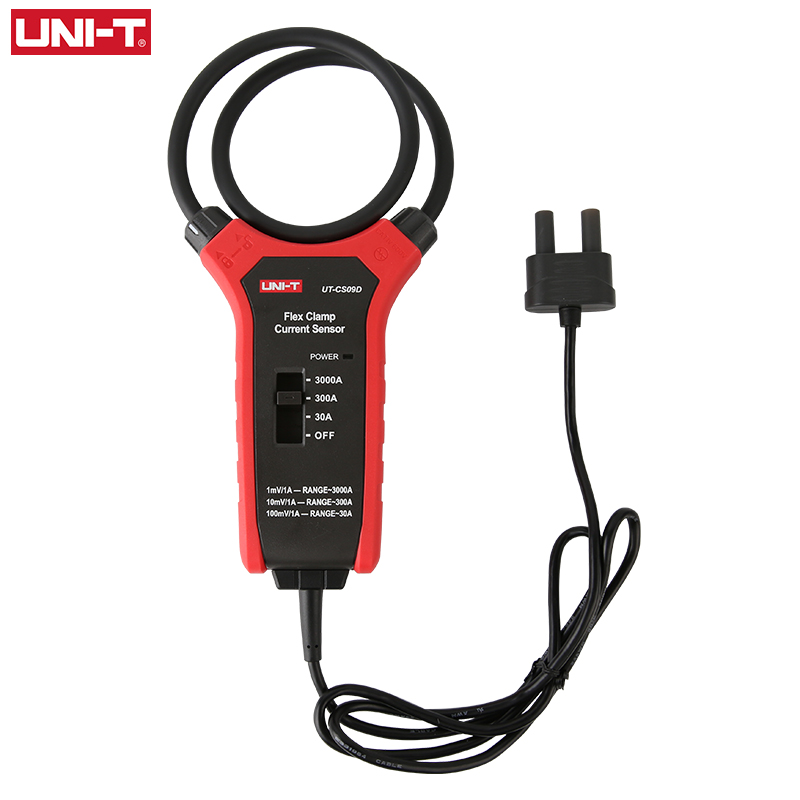

UT-CS09D flex clamp sensor solves problems in measuring high current conductors in tight spaces. Its Rogowski coil based current sensor provides stable, safe, and high reliable measurements up to 3000A. This unique design and lightweight feature make it a great choice for professional electricians.
● Flex clamp can measure from 1.5A to 3000A current
● 1m drop proof
● Robust terminal connection
● Directly displays current when connected to UT206B/208B
Parameter
| Specifications | Range |
| Certifications | CE, RoHS, cETLus |
| Safety rating | CAT IV 600V |
| AC current (A) | 30A/300A/3000A |
| Frequency response | 45Hz~500Hz |
| Flex clamp size | 45.7cm (18 inches) |
| Operating temperature | 0℃~50℃ |
| Storage temperature | -20°C~60°C |
| Storage humidity | ≤80%RH |
| Low battery indication | About 3.3V |
| Category rating | CAT IV 600V |
| General Characterisitics | |
| Power | 1.5V battery (R03) x 3(no include) |
| Product net weight | 260g |
| Product size | 267mm x 119.4mm x 34mm |
| Standard accessories | BNC adapter, English manual |
