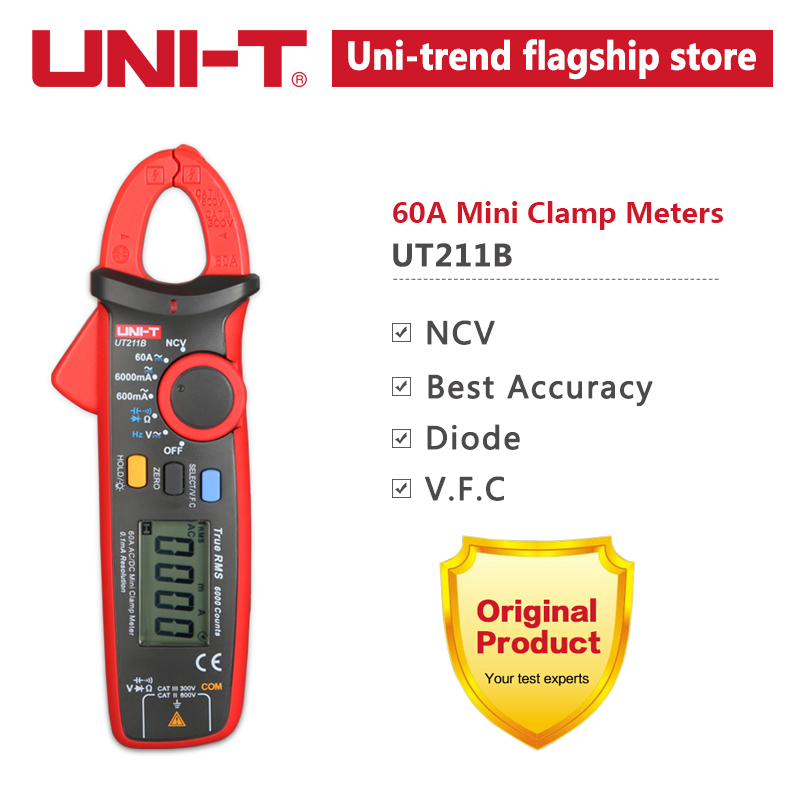

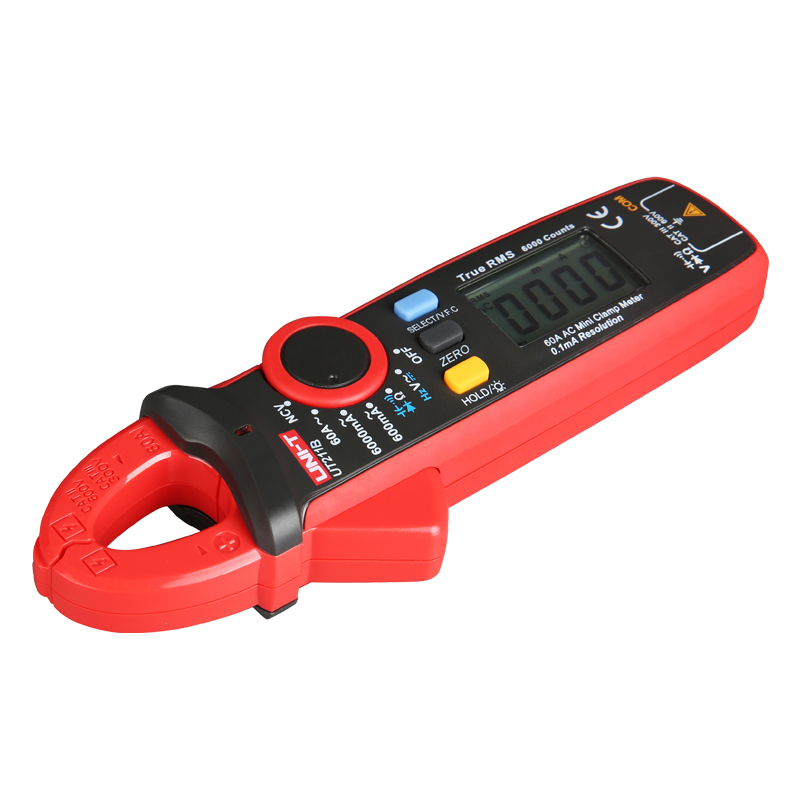

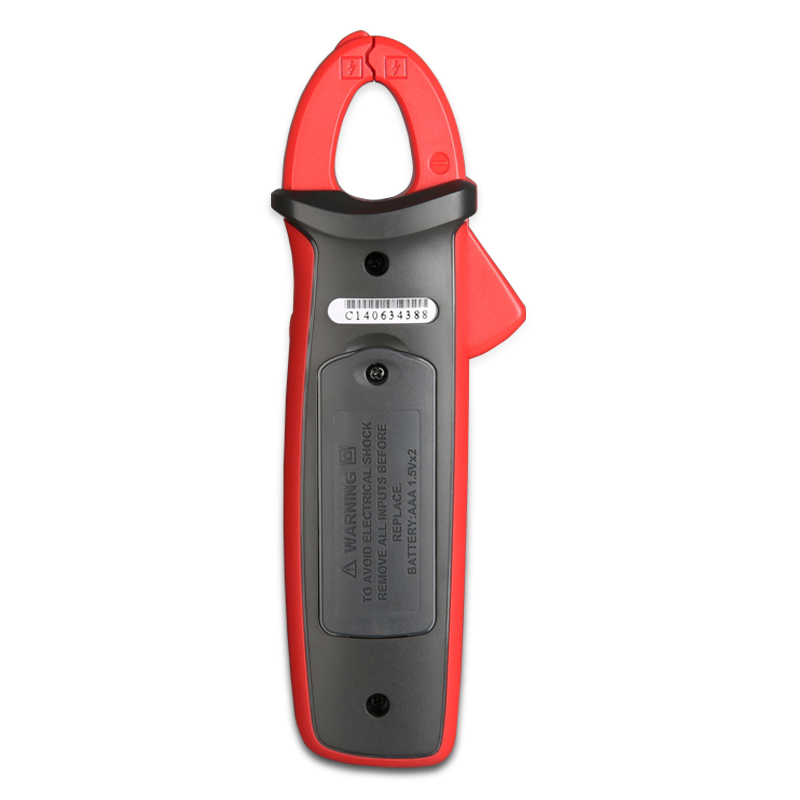

UT211B 60A mini clamp meter is a high precision tool designed with the resolution of 0.1mA. UT211B is perfect for anyone requiring high precision and accurate results when working with electronics, such as troubleshooting solar power systems current load, electrical cars, etc. It is ergonomically designed and also lightweight, making it a convenient tool for working in tight spaces.
1.60A AC and DC current measurement (AC with True RMS response)
2. 600mA AC current range at 0.1mA resolution
3. 600V AC and DC voltages
4. Diode test at 3.2V open circuit voltage
5. 62mF capacitance measurement
6. Data Hold, and data ZERO
7. Build-in non-contact voltage detection feature
Parameter
| Specifications | Range | UT211B |
| AC current (A) | 60A (0.1mA resolution) | ±(1.5%+10) |
| DC current (A) | 60A | ±(2%+3) |
| AC voltage (V) | 600V | ±(0.8%+3) |
| DC voltage (V) | 600V | ±(0.7%+3) |
| Resistance (Ω) | 60MΩ | ±(0.8%+2) |
| Capacitance (F) | 62mF | ±(4%+5) |
| Features | ||
| Display count |
| 6000 |
| Auto range |
| √ |
| True RMS |
| √ |
| Diode test | Around 3.0V | √ |
| V.F.C. |
| √ |
| NCV |
| √ |
| Data hold |
| √ |
| Zero mode |
| √ |
| LCD backlight |
| √ |
| Auto power off | Around 15 minutes | √ |
| Continuity buzzer |
| √ |
| Low battery indication | ≤2.5V | √ |
| Input protection |
| √ |
| Input impedance for DCV | ≥10MΩ | √ |
| General Characteristics | ||
| Power | 1.5V battery (R03) x 2(No include) | |
| Display | 39.3mm x 26.5mm | |
| Product net weight | Red and grey | |
| Product color | 170g | |
| Product size | 175mm x 60mm x 33.5mm | |
