Orange5 Super Pro Full Function V1.35/V1.36 Programmer with USB Dongle for Airbag and Dashboard Modules

Product Highlights

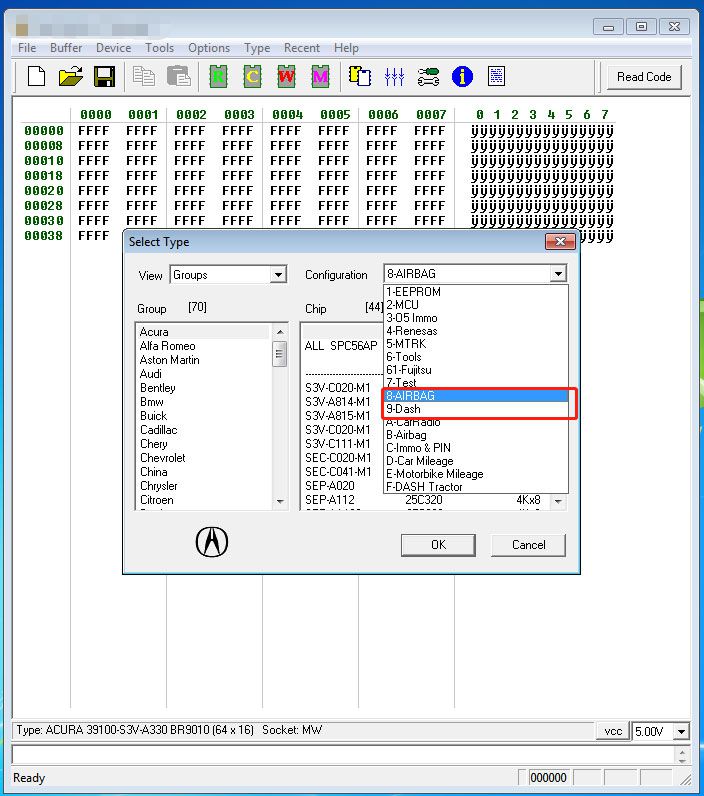

• Adds new licenses: 08-airbag, 09-dashboard, A-car radio, B-airbag, C-immo&pin, D-car mileage, E-motorbike mileage, F-dash tractor
• Adds more Renesas licenses for H8SX, HD64F, V850 UART, V850 SPI, RH850 V3, RL78 than competing models
• Includes Orange5 V1.36 software (approximately 60MB) as a gift—supports more scripts and wiring diagrams. Note: Super Pro software is ~2GB.

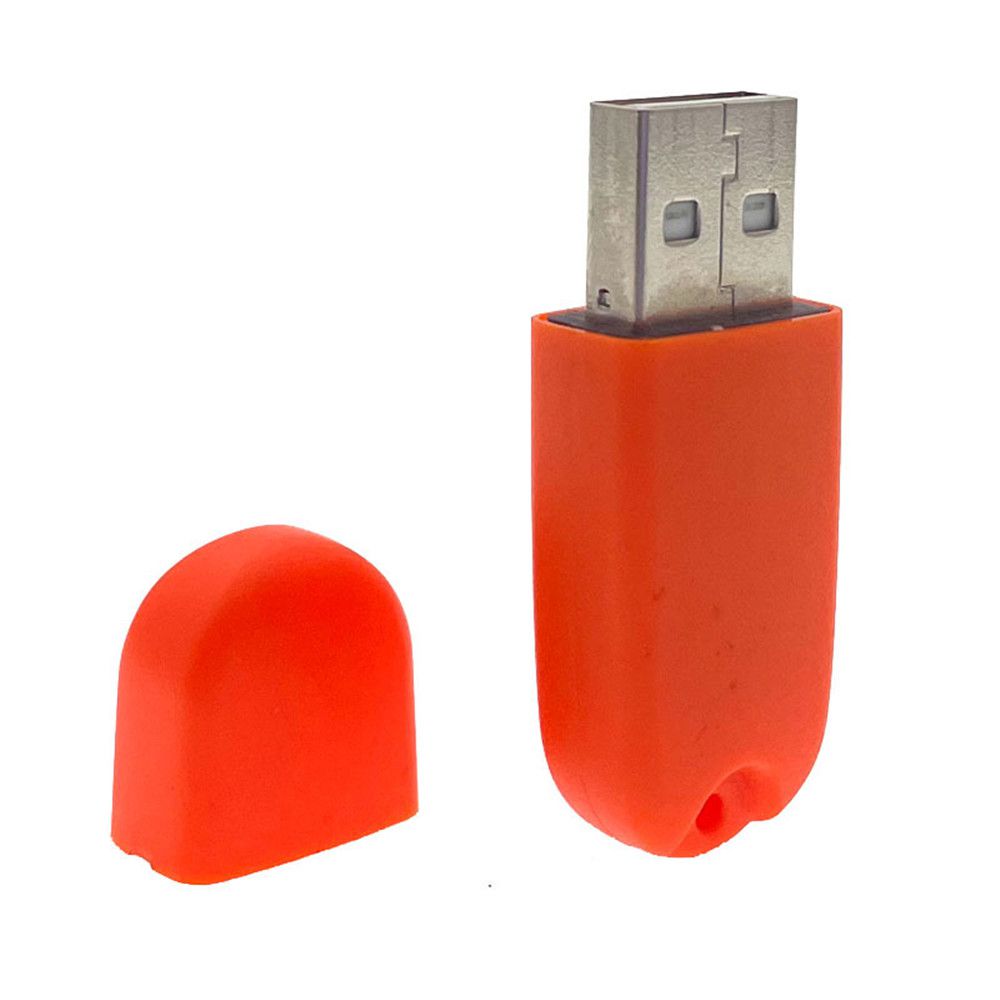

• Comes with USB Dongle that enables 08-airbag and 09-dashboard modules.

Important Notices

• Software Version: V1.36 and Orange5 Super Pro V1.35 Full Function
• Languages: English and Russian
• Compatible Systems: Windows XP, Windows 7 (32-bit and 64-bit)

What Is the Orange5 Super Pro?

A professional programming device for memory chips and microcontrollers. A unique feature of this series is its built-in macro language for protocol scripting, enabling fast and easy addition of new microcontroller types while precisely meeting manufacturer specifications for read/write algorithms.

Included Software Licenses

• MTRK (included in Orange-5 base)
• TMS (included in Orange-5 base)
• M08V NEW
• Immo HPX 9V0
• NEC V850ES/SJ3, V850ES/SG3 UART
• NEC V850E2 NEW

Newly Added Licenses

• MCU (Infineon, ST, MicroChip)
• Renesas: H8SX, HD64F, V850 UART, V850 SPI, RH850 V3, RL78
• Special_05
• AIRBAG
• Dash
• Fujitsu
• F-DASH Tractor
• EEPROM
• A/B/C/D/E modules

Differences Between Orange5 Super Pro and Orange5 Plus

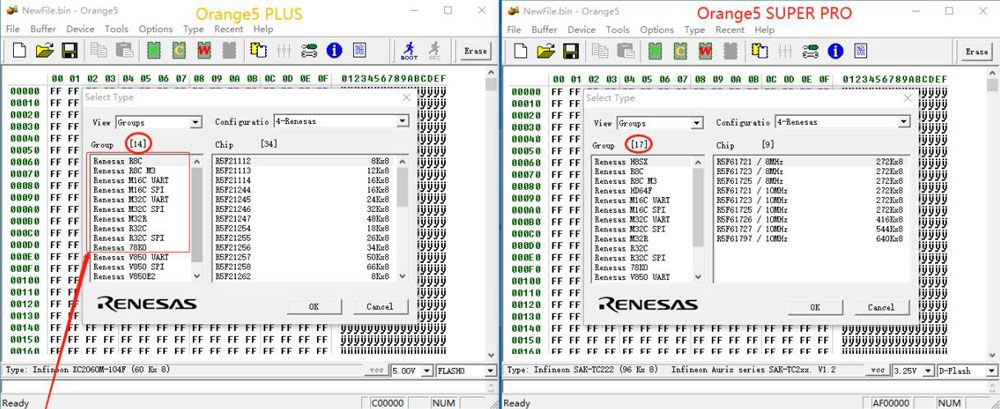

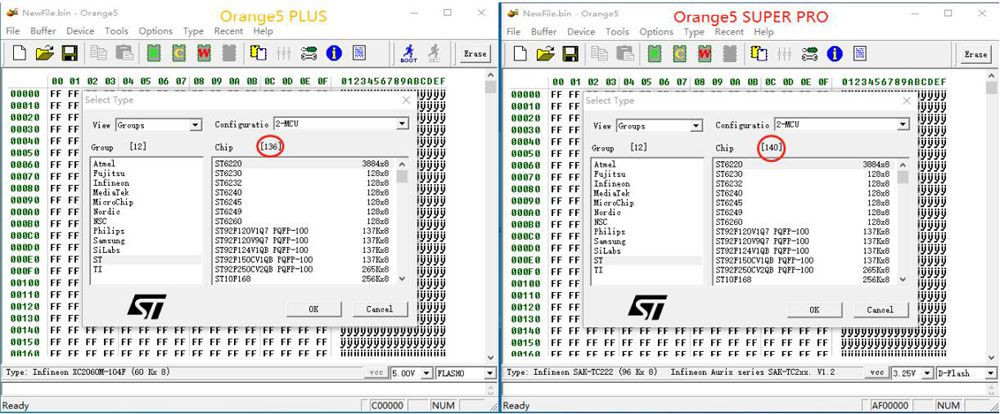

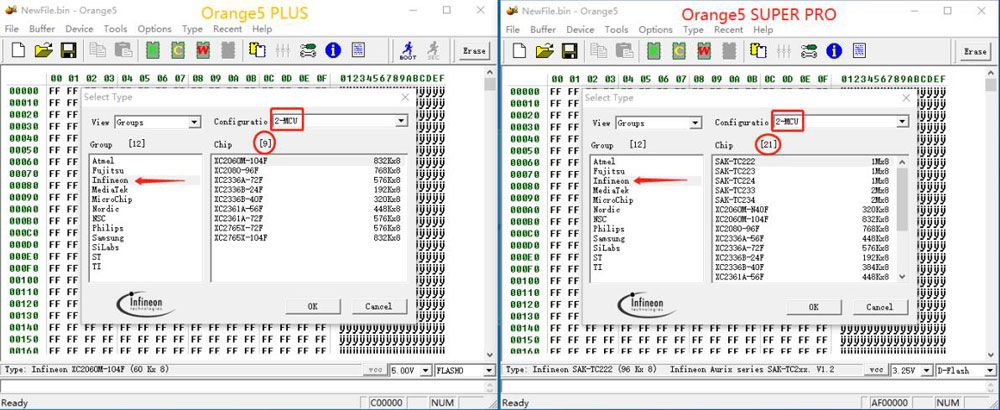

More supported chip models in Infineon, ST, and MicroChip MCU families:

• MCU: Super Pro supports 11 more models than Orange5 Plus

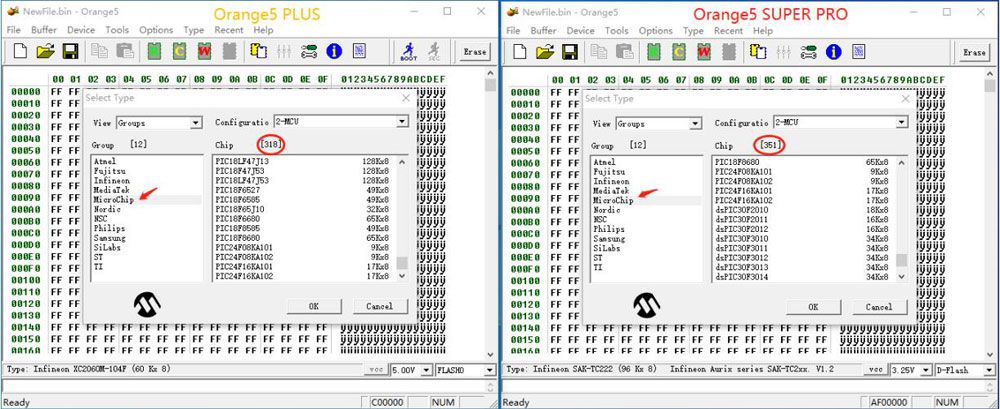

• Microchip: Adds 30 additional models

• Renesas: More licenses for H8SX, HD64F, V850 UART, V850 SPI, RH850 V3, RL78 than other versions

• Orange5 Plus: Although it lists 14 models, only the 10 within the red frame are functional.

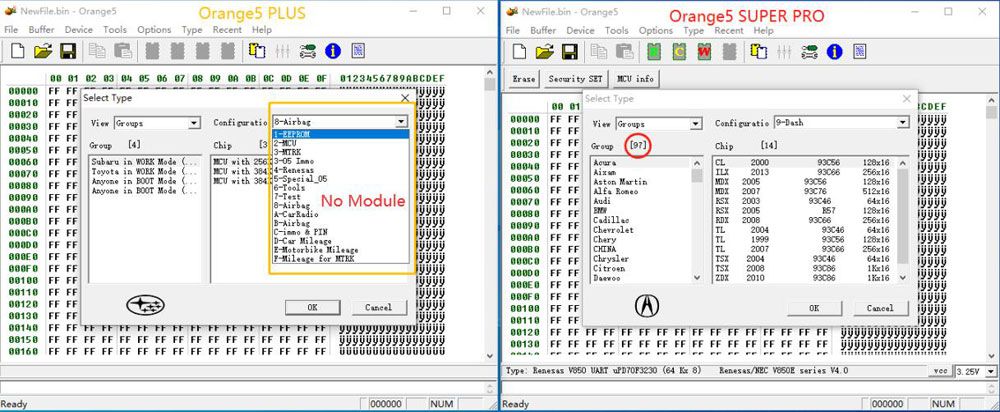

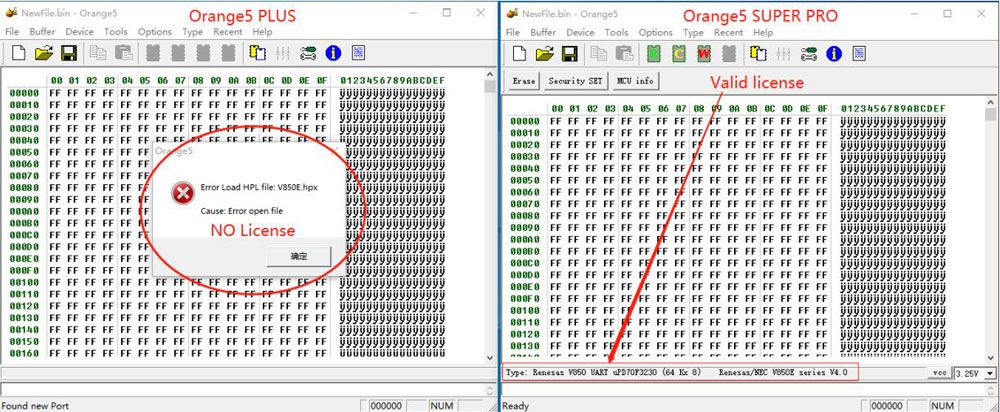

• Orange5 Super Pro: All 17 listed models have activated licenses and work reliably—including H8SX, V850 UART, V850 SPI, RH850, etc.

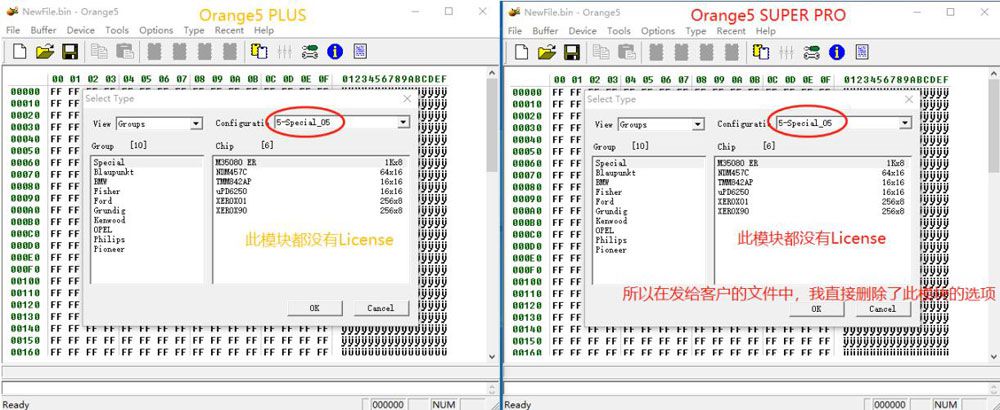

• Special_05: We guarantee all displayed features are fully functional. Fake or non-working options (like Special_05) are not included in customer software files.

Key Advantages

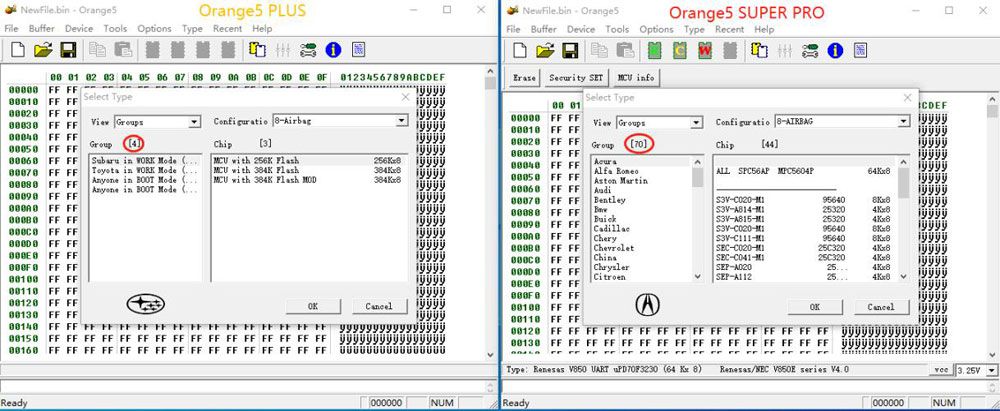

• AIRBAG Module: 2020 database covering 70 car brands, most with help files including wiring diagrams

• Dash Module: 2020 database covering 70 vehicle types—including cars, trucks, motorcycles, snowmobiles, tractors, and construction machinery—with most entries including wiring diagrams and help documentation

Orange5 Technical Information

Installation and operation supported on Windows 7 and Windows 8.1.

CnCterm – Terminal Program for COM Port Communication:

• Supports any COM port (physical or virtual), ports 1–20
• Operates in text (ASCII) and HEX modes
• Command list creation with editing and quick-send capability
• Precise baud rate configuration
• Saves files with command and port settings
• Logs incoming data to binary files
• Enables file transfer via serial port
• Configurable byte and block transmission delays
• “Echo” mode support
• Adjustable delay between incoming data packets
• Control and visualization of DTR, RTS, DSR, CTS, CD, and RI signals
• Portable—no installation required
• Supports Orange5 programmer in emulation mode

Supported Chip List

Immo: HPX 9V0

EEPROM Manufacturers: MicroWire, 4Wire, Adesto, AKM, Altera, Amic, Atmel, BOSCH, Catalyst, Chingis, Dallas/Maxim, EON, ESMT, EXEL, Fairchild, Fujitsu, GI, GigaDevice, Grundig, HOLTEK, Hynix, ITT, KHIC, Macronix, MicroChip, Micron, Mitsubishi, Motorola, NEC, NSC, Numonyx, OKI, PCT, Philips, Pioneer, PMC, Ramtron, Rohm, Samsung, Seiko, Siemens, Sony, Spansion, SST, ST, Winbond, Xicor, XUSSR, YMC

MCU Manufacturers: Atmel, Infineon, MediaTek, MicroChip, Nordic, NSC, Philips, Renesas, Samsung, SiLabs, ST, TI, Motorola, Freescale

Specific MCUs: MC68HC11, MC68HC12

Packing List

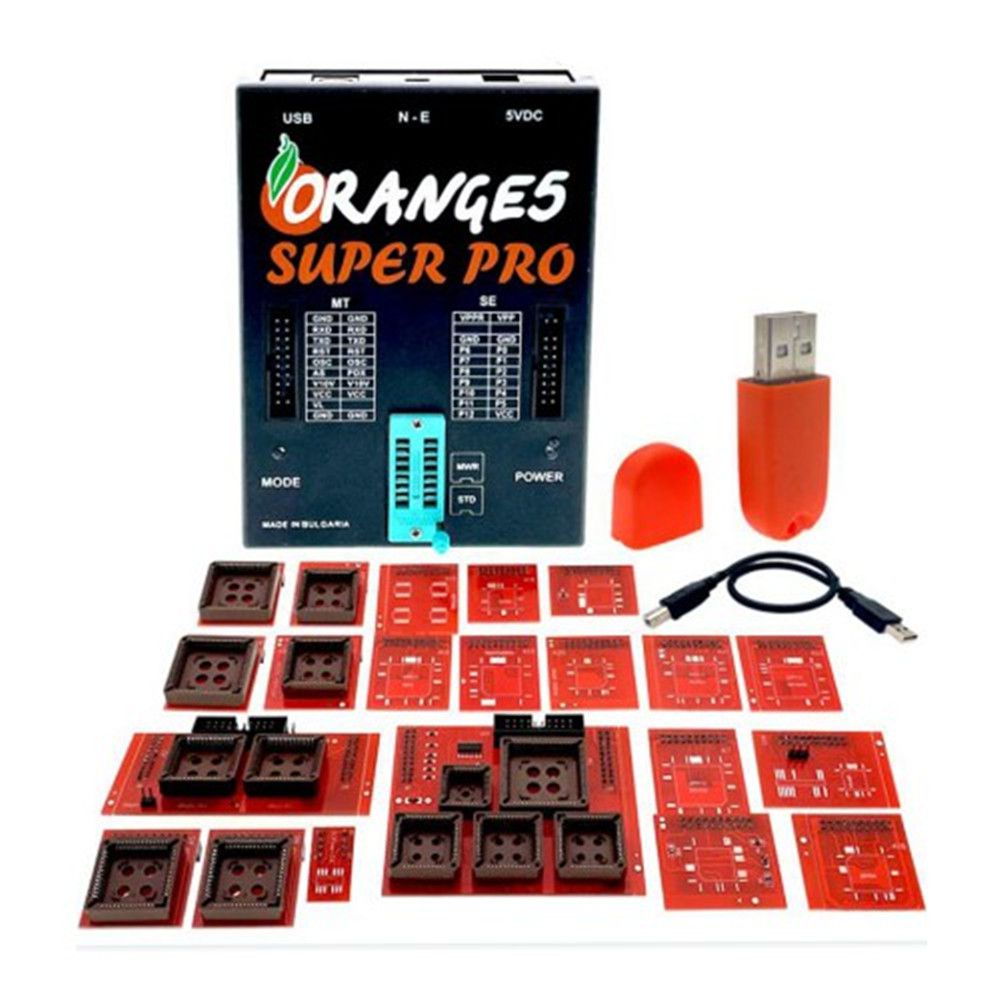

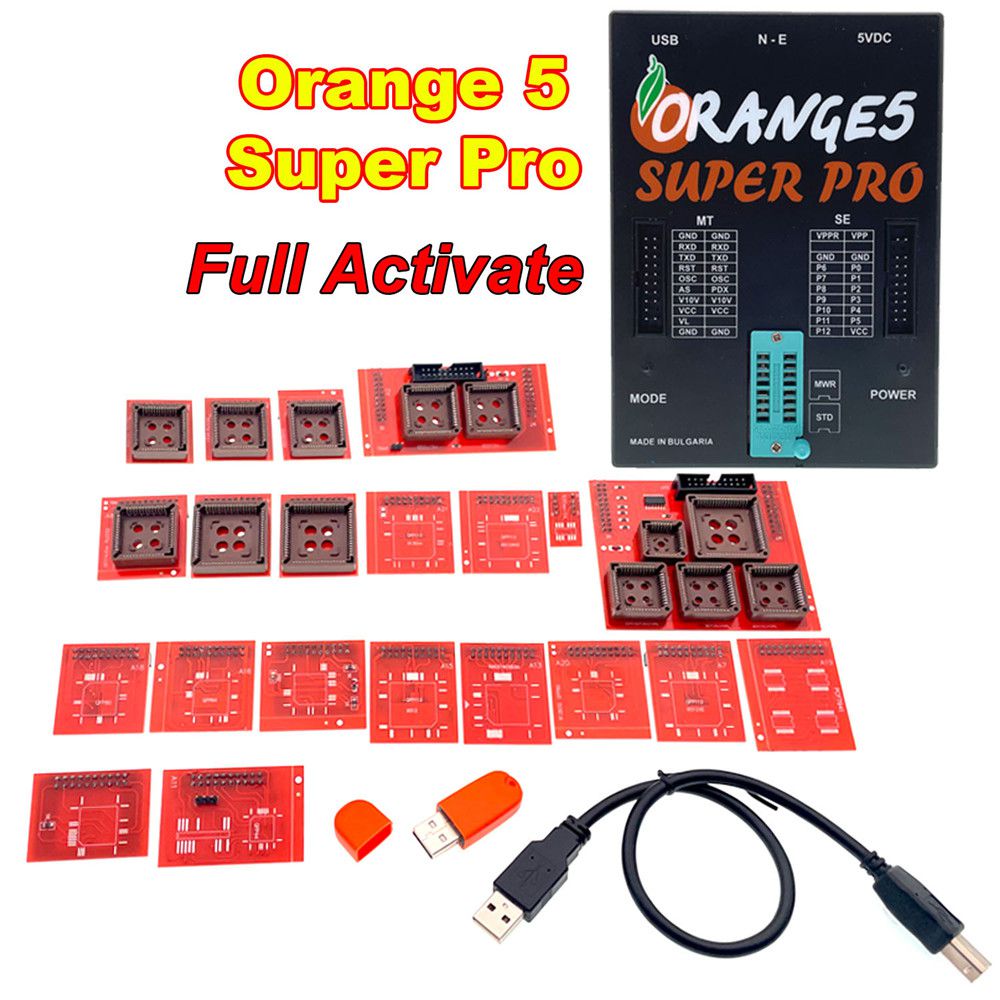

• 1 x Orange5 Super Pro Programmer
• 1 x TMS375C006/TMS370CX36/TMS370CX32/X42 A1
• 1 x HC05B/HC705B A2
• 1 x Adapter 11EA9/PLCC52 A5
• 1 x Adapter 908AS60 PLCC52 A6
• 1 x Adapter QFP112/9S12XE QFP80/9S12XE/9S12XS A7
• 1 x HC11A/EXX PLCC52 A8
• 1 x Adapter HC11F1 A9
• 1 x Adapter 908AS60/AZ60 QFP64 A10
• 1 x 705E6/705P3/05P3 A11
• 1 x Adapter 68HC11L6 A12
• 1 x Adapter TMS374C003A A13
• 1 x Adapter 05B/X_705B/X QFP64 V2 A14
• 1 x Adapter QFP112/9S12 QFP80/9S12DXX A15
• 1 x Adapter QFP64 A16
• 1 x Adapter 68HC05H12 A17
• 1 x Adapter QFP64/QFP80 A18
• 1 x Adapter PCF7941 A19
• 1 x Adapter 912B32 QFP80 A20
• 1 x Adapter 912Dxx A21
• 1 x Adapter 9S12HZ/QFP80, 9S12XHZ/QFP112 A22
• 1 x Adapter 93CXX-14
• 1 x USB cable

Why Choose Us

• USB power supply (USB 2.0/3.0 compatible)
• Universal ZIF16 socket panel for EEPROM—easy plug-and-play
• Contact integrity monitoring in sockets
• Two expansion slots compatible with Orange4 and Omega MTRK
• Overcurrent protection
• Overvoltage protection
• Dual power modes: Standard (USB only) and Enhanced (USB + external power)
• Three independently adjustable power outputs:
  • Main supply voltage: 2.0–5.0V
  • Programming voltage: 2.0–21.0V
  • Static 10V auxiliary supply for microcontrollers
• High-speed bidirectional pin drivers with 2.0–5.0V adjustable voltage
• Programmable waveform generator (up to 24 MHz frequency, 2.0–5.0V output)
• Functional emulation of CDC-class USB devices
• Built-in 32-bit virtual machine
• Supported interfaces: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter)
• Housed in a durable functional enclosure; compatible with Windows XP, Windows 7 (32-bit), and Windows 8.1
