UT219 series is 600A true RMS professional clamp meter with CAT IV 600V rating. It is industrially designed with IP54 rating and able to withstand 2 meters drop test for measurement in harsh environments. This series is suitable for professional electricians, HVAC/R and motor service technicians.

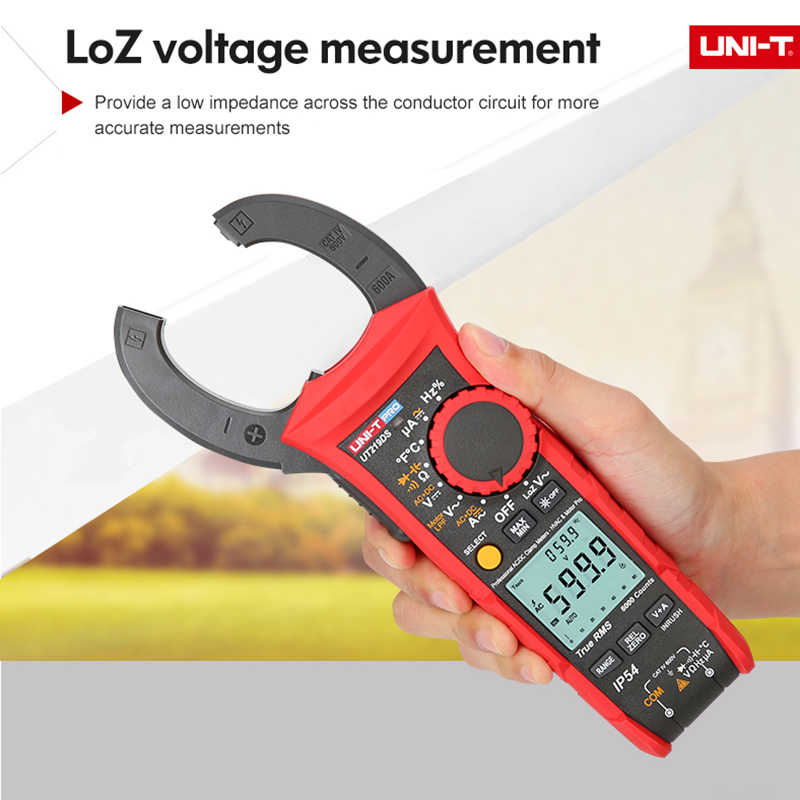

1. LoZ input for ghost voltage measurement
2. Flashlight and auto backlight
3. 3-phase motor sequence test
4. Temperature and μA measurements (flame sensor)
5. Inrush current

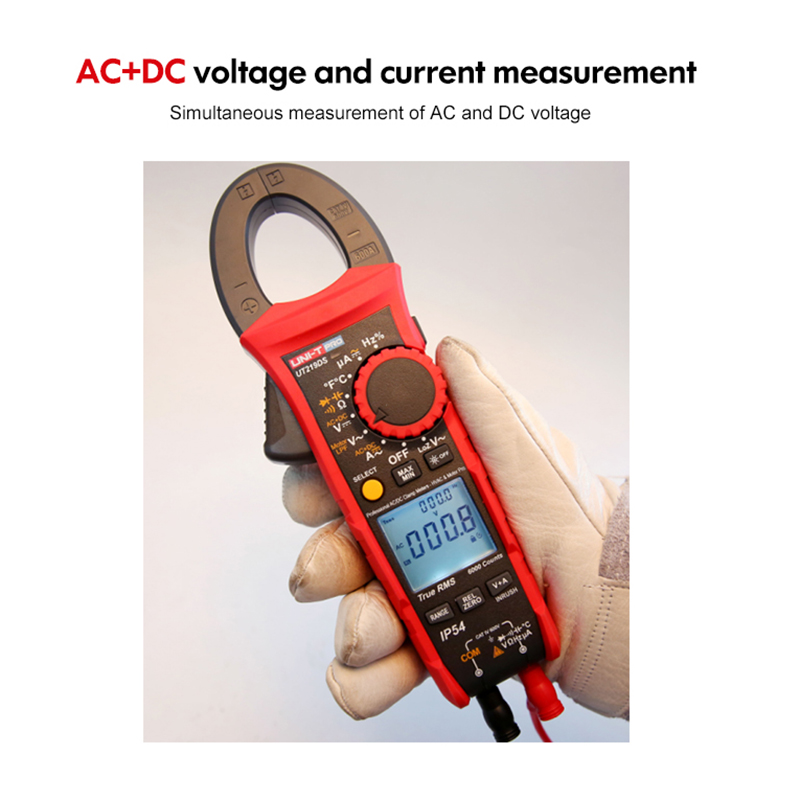

6. AC+DC voltage
7. V+A dual display
Specifications | Range | UT219E | UT219M | UT219DS |
AC current (A) | 600A | ±(1.8%+6) | ±(1.8%+6) | ±(1.8%+6) |
DC current (A) | 600A |
|
| ±(1.8%+6) |
AC voltage (V) | 600V | ±(1%+6) | ±(1%+6) | ±(1%+6) |
DC voltage (V) | 600V | ±(0.6%+3) | ±(0.6%+3) | ±(0.6%+3) |
LoZ ACV | 600V | ±(2.5%+6) | ±(2.5%+6) | ±(2.5%+6) |
Resistance (Ω) | 60MΩ | ±(1%+3) | ±(1%+3) | ±(1%+3) |
Capacitance (F) | 60mF | ±(4%+7) | ±(4%+7) | ±(4%+7) |
Frequency (Hz) | 10Hz~10MHz | ±(0.1%+6) |
|
|
600Hz~40MHz |
| ±(0.1%+5) | ±(0.1%+6) | |
Duty cycle | 0.1%~99.9% | ±(2.6%+7) |
| ±(2.6%+7) |
Temperature | -40~1000℃ |
| ±(2%+5℃) | ±(2%+5℃) |
-40~1832℉ |
| ±(2%+9℉) | ±(2%+9℉) | |
Features | ||||
Display count |
| 6000 | 6000 | 6000 |
Auto/Manual range |
| √ | √ | √ |

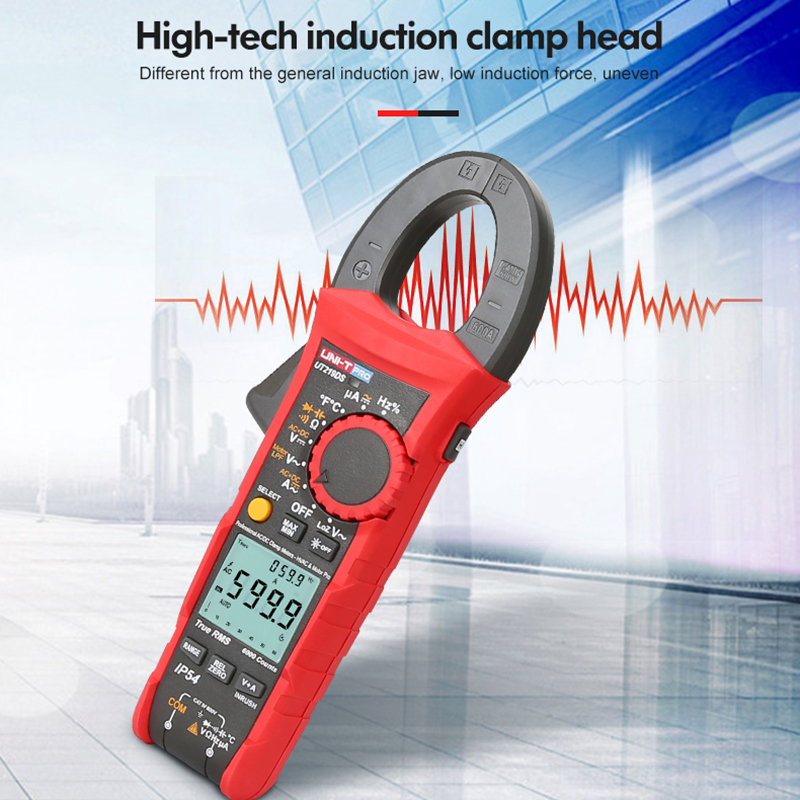

Jaw opening |
| 33mm | 33mm | 33mm |
True RMS |
| √ | √ | √ |
AC current frequency response |
| 40Hz~400Hz | 40Hz~400Hz | 40Hz~400Hz |
AC voltage frequency response |
| 40Hz~400Hz | 40Hz~400Hz | 40Hz~1kHz |
3-phase motor sequence test | 600V |
| √ | √ |
Low pass filter | 1kHz, 3db attenuation |
|
| √ |
V+A displays voltage and current at the same time |
|
|
| √ |
Diode test |
| 3V | 3V | 3V |
Measurement sampling rate |
| 3 times/s | 3 times/s | 5 times/s |
Analog bar sampling rate |
| 10 times/s |
| 20 times/s |
Analog bar |
| 31 segment |
| 31 segment |
Display interface (LCD) |
| Single | Single | Dual |
Auto power off/MAX/MIN |
| √ | √ | √ |
Low battery indication |
| √ | √ | √ |
Data hold (H)/Relative mode (REL) |
| √ | √ | √ |
ZERO mode |
| √ | √ | √ |
Function selection (SELECT) |
| √ | √ | √ |
Auto backlight/2m drop test |
| √ | √ | √ |
IP rating |
| IP54 | IP54 | IP54 |
Input impedance | ≥10MΩ | √ | √ | √ |
General Characterisitics | ||||
Power | 1.5V battery (R03) x 3(No include) | |||
Display | 35mm x 31mm | |||
Product color | Red and grey | |||
Product net weight | 310g | |||
Product size | 234.6mm x 82mm x 47mm | |||

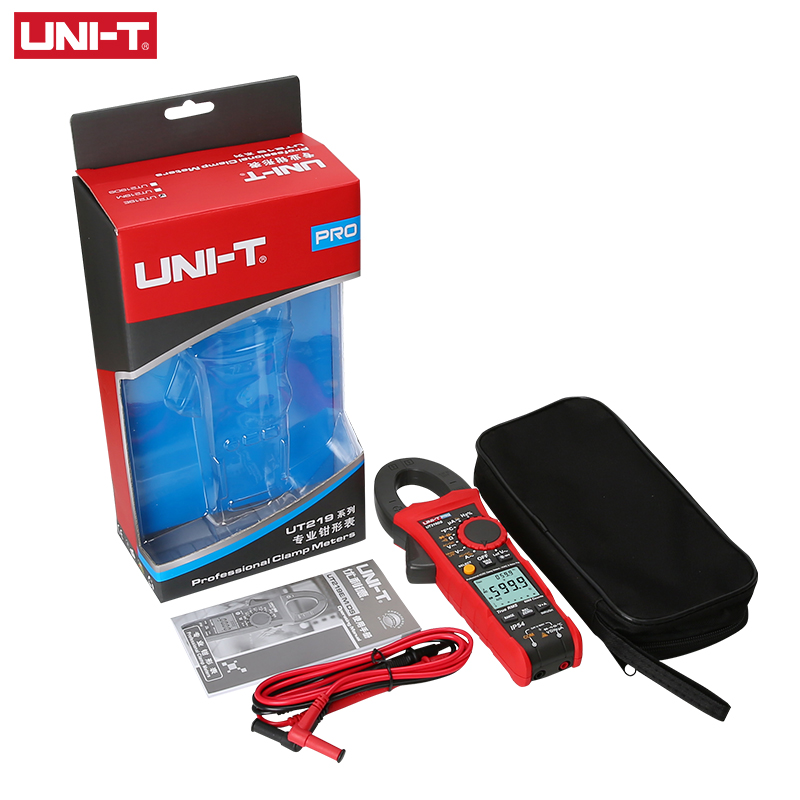

Standard accessories | Test leads, batteries, carrying bag, point contact temperature probe |
