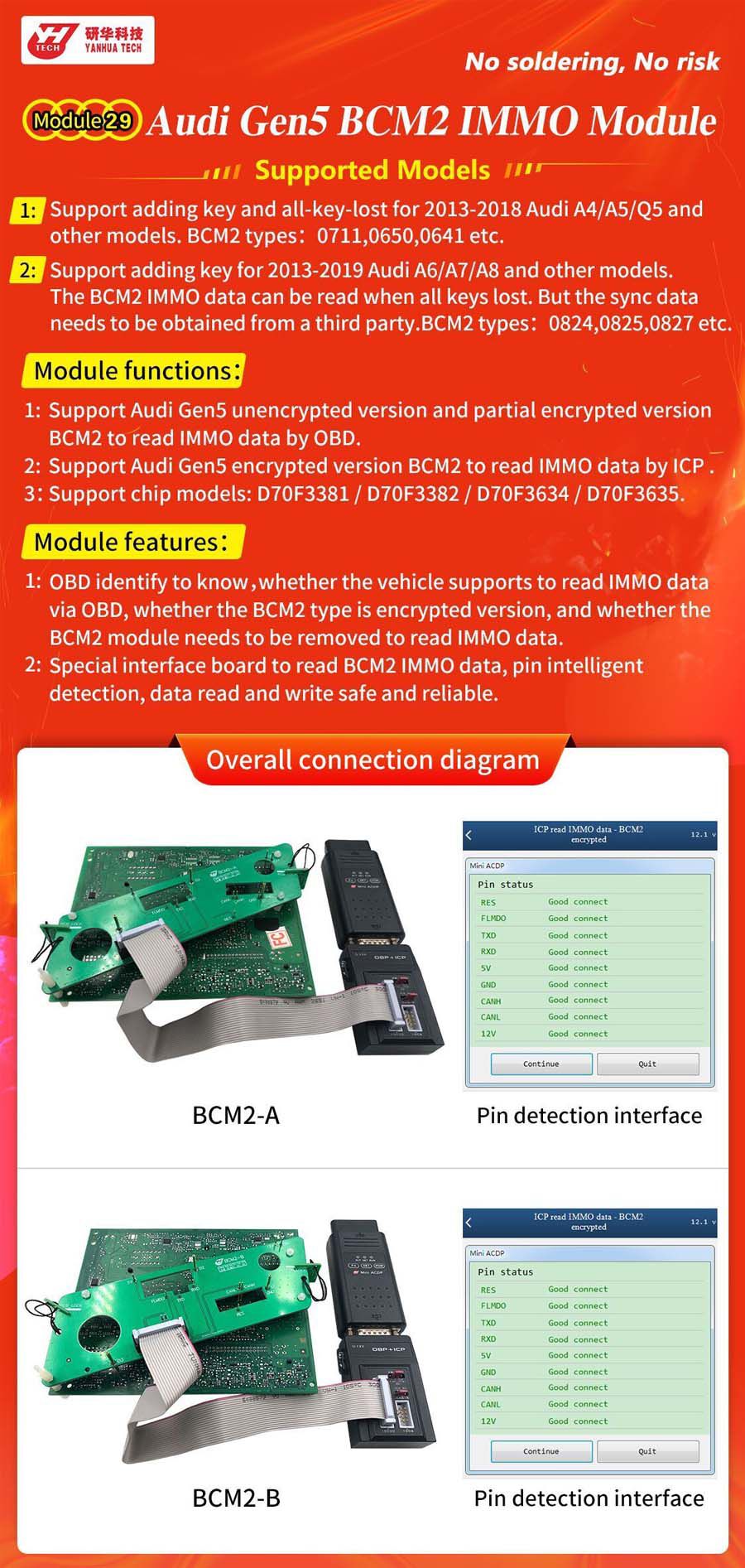

Yanhua ACDP ACDP-2 Module29 AUDI Gen5 BCM2 IMMO Module for A4/ A5/ Q5/ A6/ A7/ A8

Yanhua ACDP Module29 AUDI Gen5 BCM2 IMMO Module for A4/ A5/ Q5/ A6/ A7/ A8

Audi Gen5 BCM2 IMMO Module realize no soldering and no risk data reading and writing.

Supported models:

1. Support adding key and all-key-lost for 2013-2018 Audi A4/A5/Q5 and other models. BCM2 types：0711,0650,0641.
2: Support adding key for 2013-2019 Audi A6/A7/A8 and other models. BCM2 types：0825,0824,0827. The BCM2 IMMO data can be read when all key lost. But the sync data needs to be obtained from a third party.

Module Functions:

1: Support Audi 5th non-encrypted version and partial encrypted version BCM2, read IMMO data by OBD.
2: Support Audi 5thencryption version BCM2, read IMMO data by ICP .
3: Support chip models: D70F3379 / D70F3380 / D70F3381 / D70F3382 / D70F3634 / D70F3635
Module Features:

1: OBD identification function can help users know whether the vehicle supports OBD to read IMMO data, whether the BCM2 type is encrypted version, and whether the BCM2 module needs to be removed to read IMMO data.

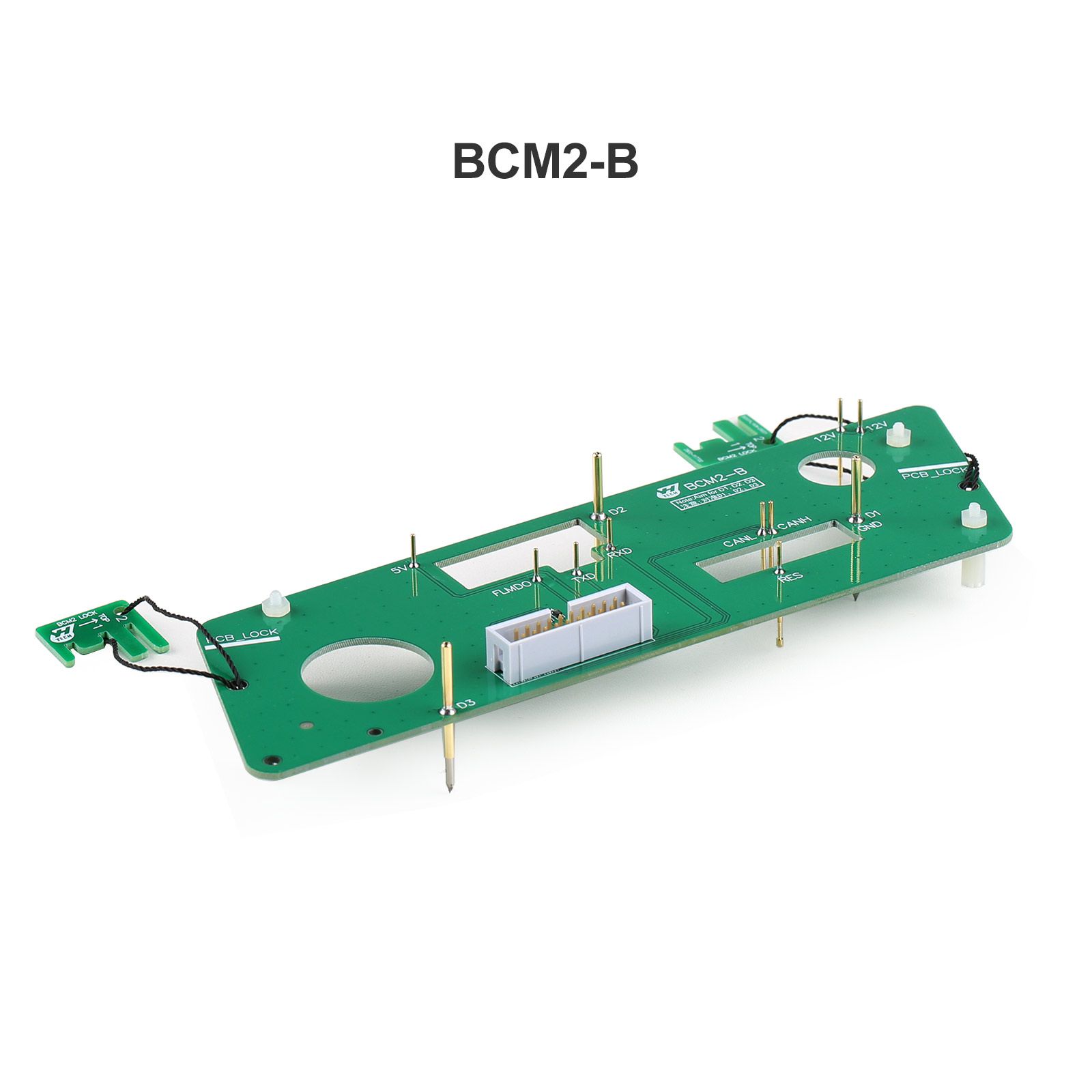

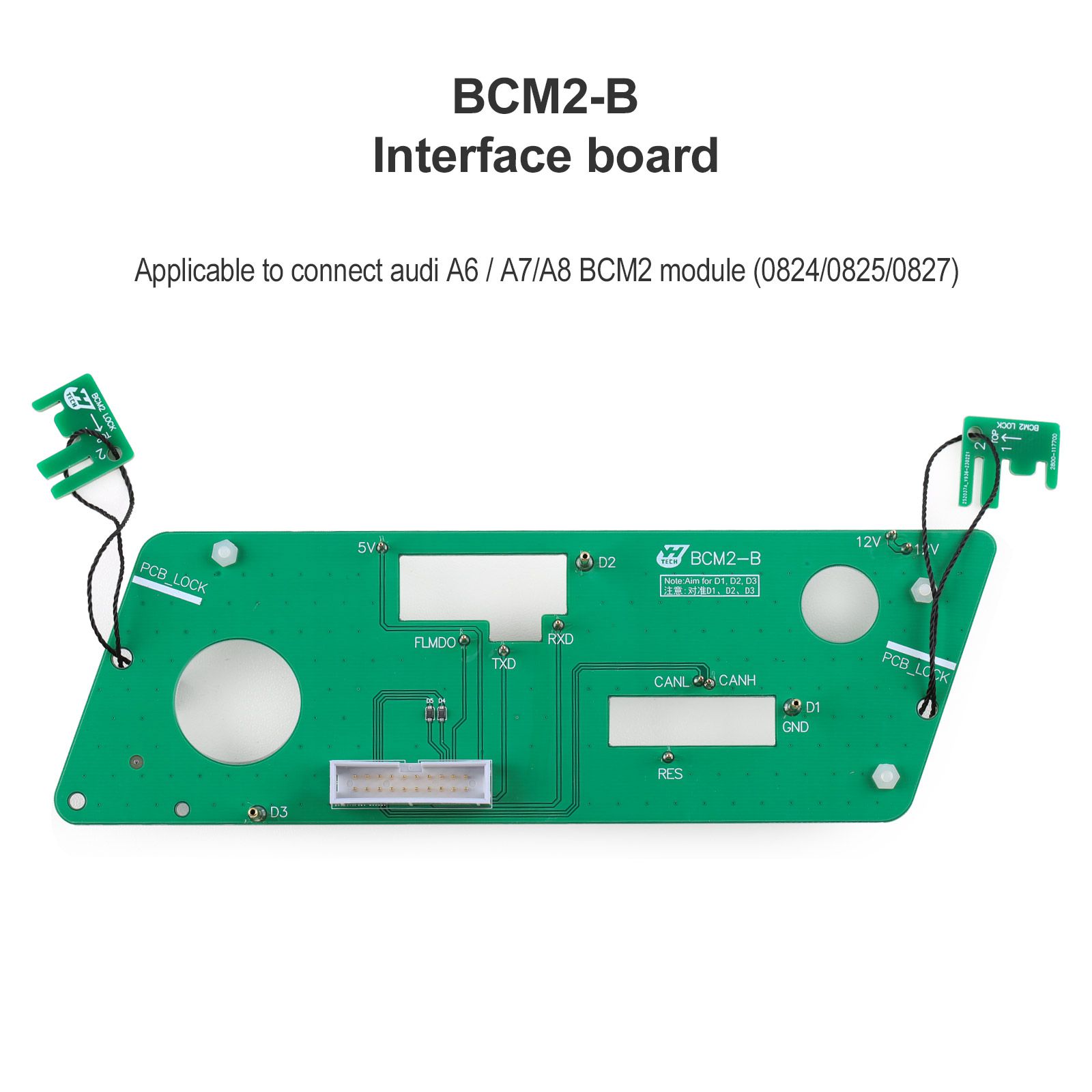

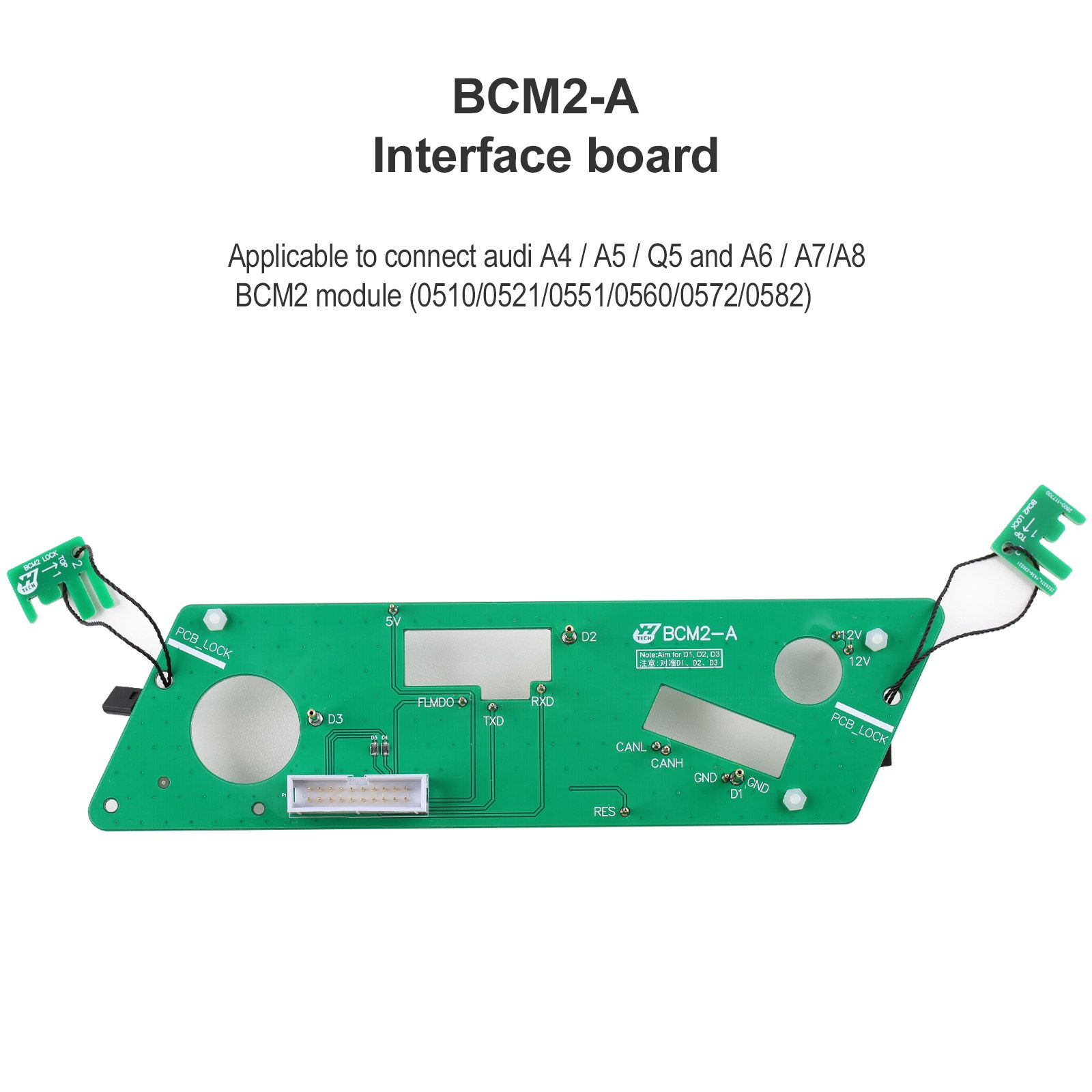

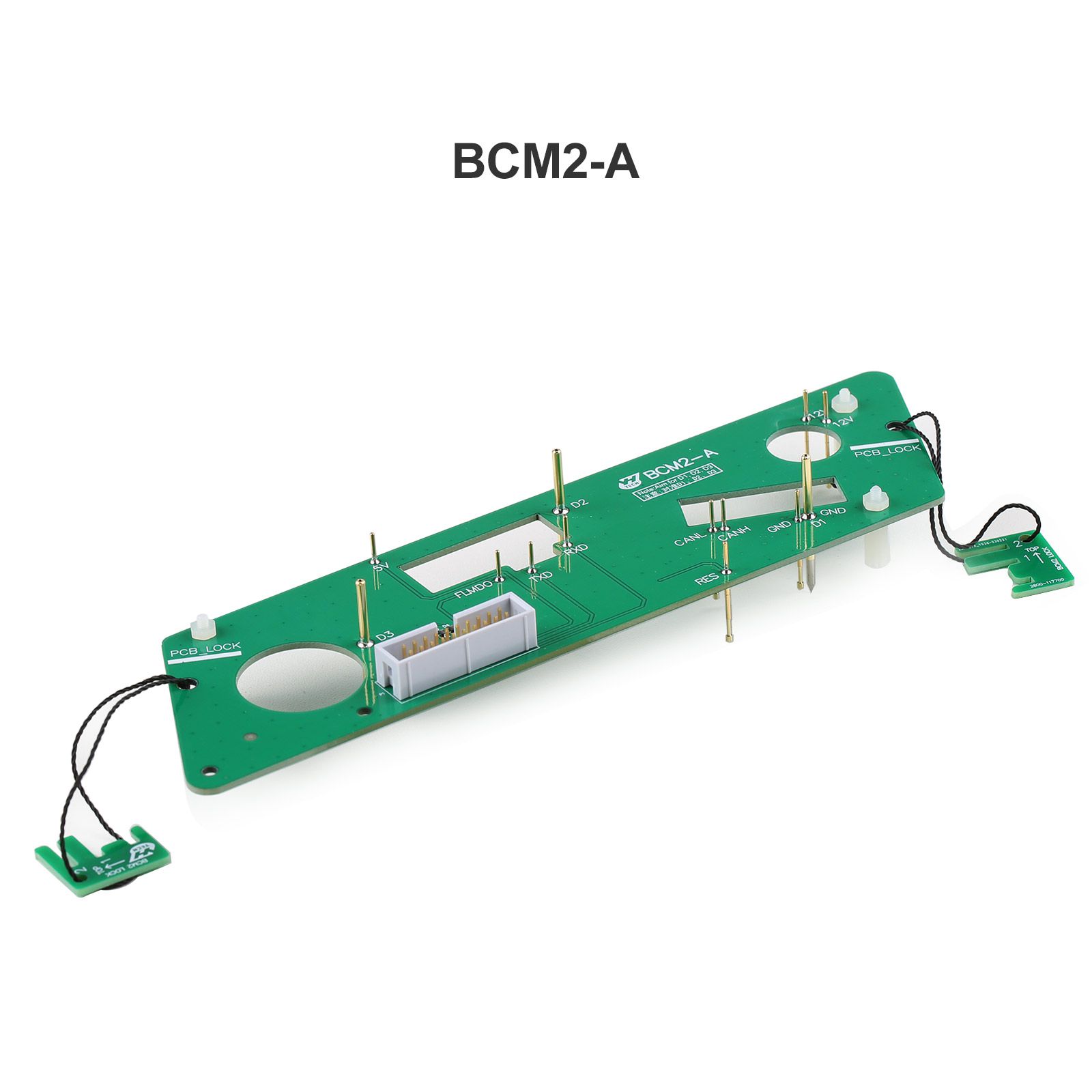

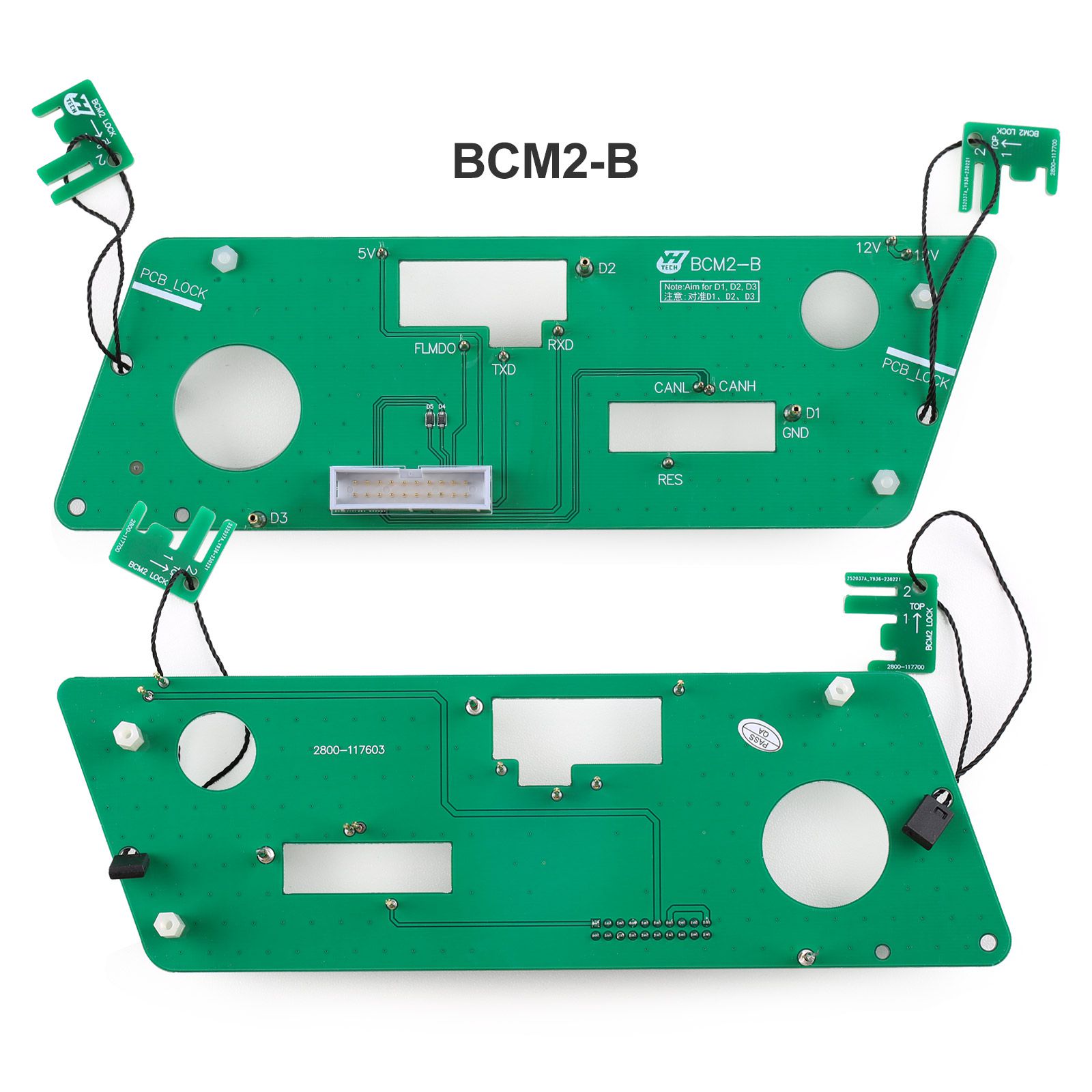

2: Special interface board to read BCM2 IMMO data, pin intelligent detection, data reading and writing are safe and reliable.



Package Includes:

1pc x YANHUA ACDP Module 29
