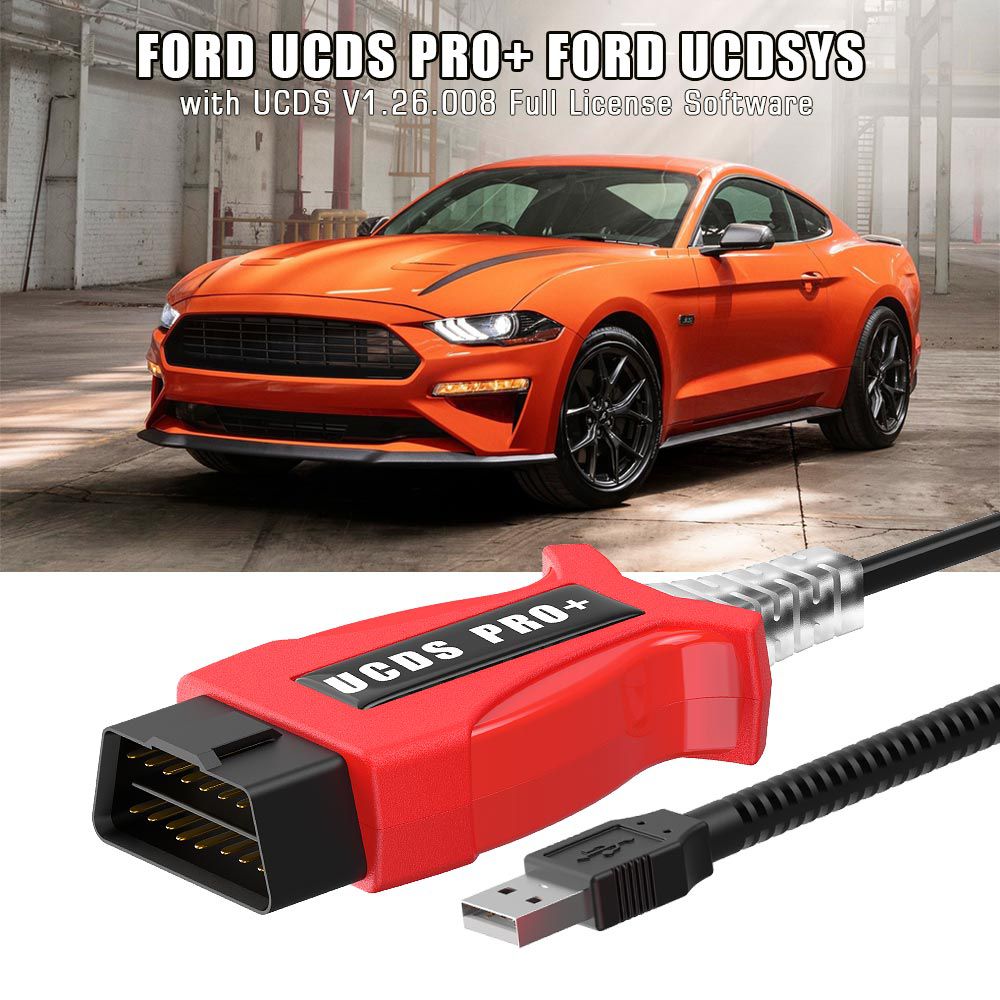

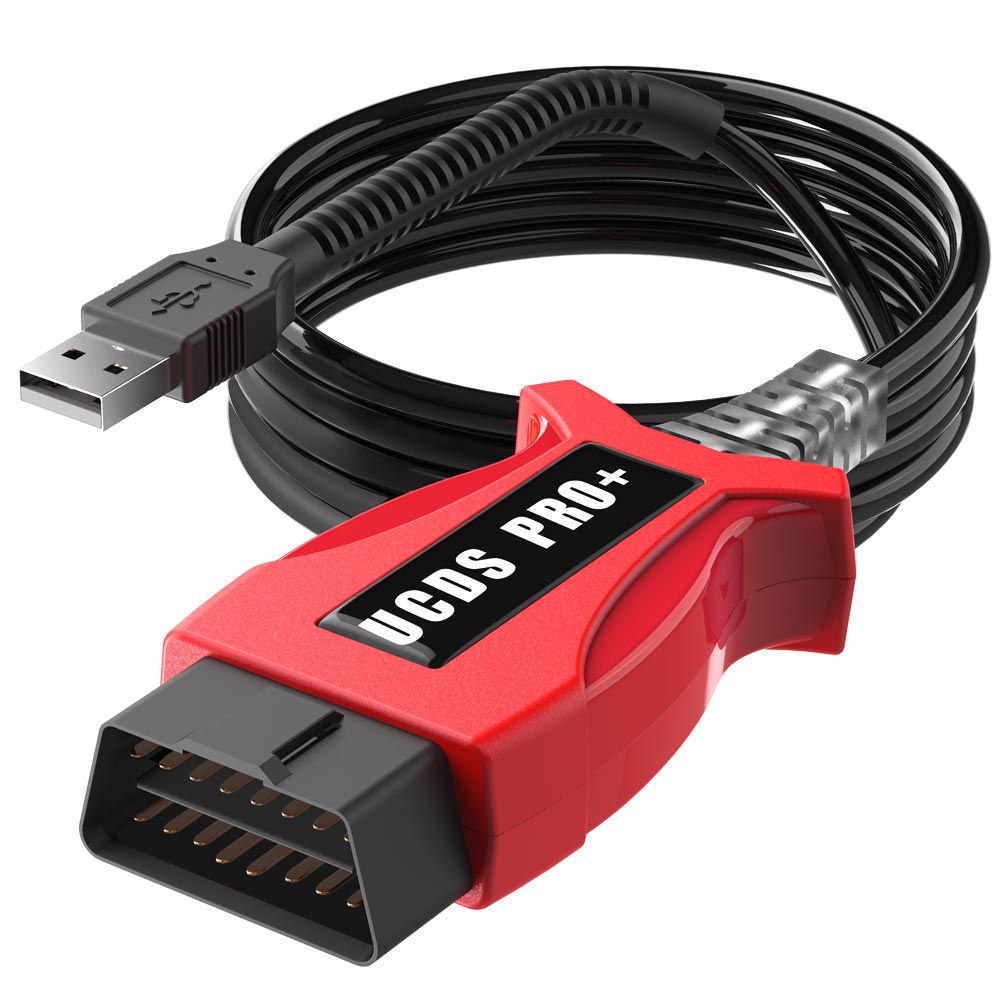

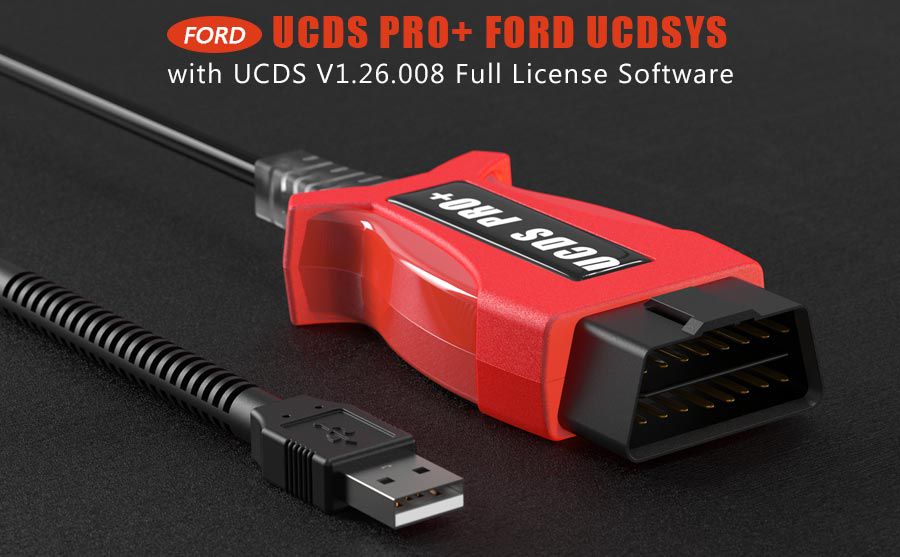

Ford UCDS Pro+ Ford UCDSYS with UCDS V1.27.001 Full License

Ford UCDS Pro+ Ford UCDSYS with UCDS V1.27.001 Full License



Highlights:

1. UCDS Software: V1.27.001
2. Ford UCDS full license adapter: full mode activated, access to existing sections of the software, such as: VBF Loader, Update Wizard and Direct Config.
3. With 35 tokens: token only need for mileage programming & ECU chip tuning function (tokens use up, send back to add token, 35usd for 35 tokens).
4. UCDS support odometer correction.
5. UCDS support both online and offline programming.
6. UCDS support the reconfiguration of the car, the engine firmware stock firmware.
7.UCDS support special functions like: VBF LOADER, UPDATE WIZARD, DIRECT CONFIG.

Notice:
1. Please install the software from the CD provided by us, if you install from other download link, we are not responsible for the consequences.
2. Please do not update the software. If updated, the UCDS cable will be locked and cannot be connected.

Description:

Ford UCDS is a newly released diagnostic adapter in 2017 with the latest software V1.26.008. It is a full-featured type with 35 tokens, supporting VBF LOADER, UPDATE WIZARD, DIRECT CONFIG and other special features.

VBF Loader - section UCDS design software, allowing yourself to load the modules in the Ford brand vehicles, the various files in the format .

Update Wizard - part of the UCDS design software that allows software for different brands of Ford car modules to be updated based on the latest IDS software database, depending on the availability of files on the server.
Attention! Not all modules can be updated via the data section.

Direct Configuration - part of the UCDS design software that allows direct configuration of Ford's various modules. A distinctive feature of the car Ford Mondeo 5.
For information - Car Ford Mondeo 5 can only be configured via this section.

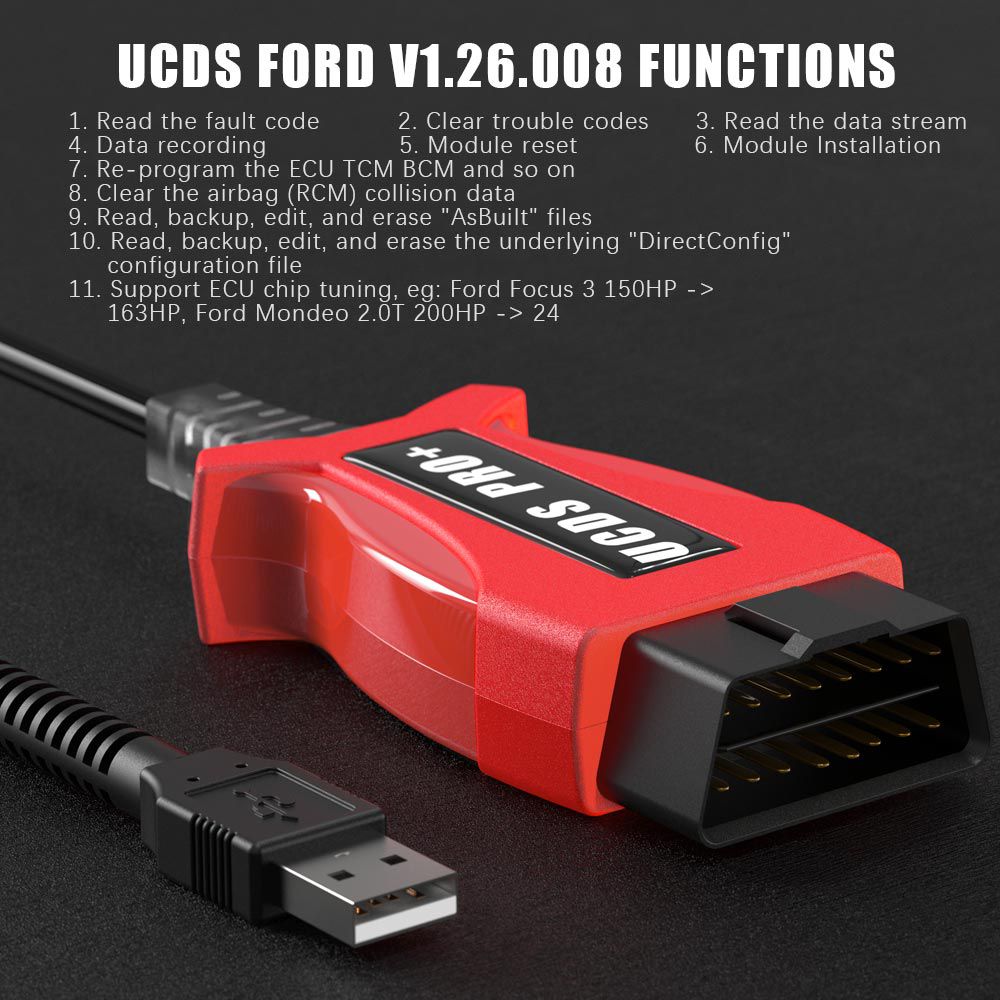

Functions:

1. Read the fault code
2. Clear trouble codes
3. Read the data stream
4. Data recording
5. Module reset
6. Module Installation
7. Re-program the ECU TCM BCM and so on
8. Clear the airbag (RCM) collision data
9. Read, backup, edit, and erase AsBuilt files
10. Read, backup, edit, and erase the underlying DirectConfig configuration file
11. Support ECU chip tuning, eg: Ford Focus 3 150HP -> 163HP, Ford Mondeo 2.0T 200HP -> 240HP, Focus 2012 Year 85HP -> 105HP, 150HP -> 163HP
12. Support VBF file directly to write
13. Support BIN file directly to write
14. Support online update of the entire vehicle module (Update Wizard)
15. Support Focus MK2, 2012 Focus MK3, Mondeo, S-Max and other models mileage programming

Vehicle Coverage:

-Focus MK2 (2004-2014) C307
-New Focus MK3 (2012-2017) C346
-KUGA/15 KUGA/17 KUGA
- Mondeo/S-Max/Galaxy
-New Mondeo 13 (Mondeo5)
-Explorer
-Transit
-Fiesta/B-Max
-eco sport
-And other new models

Comparison of UCDS Ford and Ford VCM II:

Similarities:
1.UCDS V1.27.001 has the same data as the ids v102.
2.Both UCDS and VCMII can support online and offline programming.

Differences:
1. UCDS supports special functions such as: VBF LOADER, UPDATE WIZARD, DIRECT CONFIG.
2. UCDS supports more vehicles than VCMII.
3. UCDS supports odometer correction, while VCMII does not.
4. UCDS supports car reconfiguration, engine firmware inventory firmware, chip adjustment, VCMII cannot.
5. VCMII supports key programming, while UCDS does not.

UCDS Software Features, Allow the Users:

1. Diagnose the majority of car parts and components that are connected to a central electrical module (GEM, BCMii) through the data bus (CAN);
2. Receive data embedded in the car components and modules, including their part number, version, calibration, serial number;
3. Make the necessary changes to the central configuration of the car, and change the configuration of the modules and components if necessary;
4. Update the calibration (firmware) of the modules and components of the vehicle, including the engine (the so-called chip tuning);
5. Perform regular language adaptation of the audio modules manufactured by SONY (Russian language only);
6. Upgrade (replacement) of the door modules software to activate the automatic folding door mirrors.
7. Other
The UCDS consists of drivers of the serial bus USB-serial (recommended drivers FTDI), hardware adapter and the actual UCDS-programm.
The software interface of the UCDS interface has a main window mode.
You need to select the type of the vehicle or select the service mode for adapter`s firmware update or other service functions.
UCDS is currently available for the following platforms:Focus II 2004-2011; Focus III 2011, 2015 ; Kuga I, Kuga II; C-MAX; S-MAX; MONDEO IV; Mondeo 2015 ; Galaxy ; Tansit; Fiesta 2008, 20015 etc..

Ford UCDS Application on FOCUS2 KUGA/Focus 3/S-MAX

UCDS Ford Detailed Features for FOCUS2 KUGA:

Support Models:
FOCUS2 KUGA after 2004 year.

Support Functions:
Scan and clear the fault code, read and modify the parameters of the following modules, PCM refresh KAM reset, IPC refresh and clear, RCM reconfiguration. ST power refresh

Support Modules: ABS, DCCU, EATC, HEC, PAM, GEM, VRM, ACM, RCM

Common Functions:
Automatic lock, cruise control, refresh PCM, KAM reset, tire modification settings, seat belt alarm settings, RCM crash datreset,
light locks personalized settings, instrument economic mode, instrument average fuel consumption, ultrasonic anti-theft monitoring

Ford UCDSYS Application on Focus 3:

Support Models: Focus 3

Support Functions:
scan and clear the fault code, As-built file to modify the instrument to update and clear the refresh, PCM refresh and power upgrade (200P brush 240P, etc.),
TCM upgrade refresh SONY CD head upgrade, ABS upgrade, RCM programming and reset, direct configuration IPC BCMII APIM.

Support Modules: BCMII, PCM, TCM, IPC, ABS, RCM, APIM (SYNC I, SYNC II)

Common Functions: DDS tire pressure monitoring, cruise control, automatic headlights, automatic wipers, blind spot monitoring, automatic lock,
tire modification, audio system upgrade, PCM programming, TCM programming A, ABS programming, instrument clear, mileage write

UCDS Ford Application on S-MAX:

Support Models: Ford Mondeo, S-MAX and Ford Transit

Support Functions: Scan and clear the trouble code (all modules), As-built file to modify the instrument upgrade and refresh,
PCM refresh and power upgrade (200P brush 240P, etc.), SONY CD head upgrade

Support Modules: BCMII, PCM, IPC

Common Functions: Modify the automatic lock, auto headlamps, xenon headlamps mode, cruise control, navigation activation, speeding alarm,
tire modification, body configuration parameter changes, instrument upgrades, engine power upgrade.

UCDS Ford Application on KUGA:

Support Models: KUGA

Support Functions:
Scan and clear the fault code, As-built file to modify the instrument to update and refresh, PCM refresh and power upgrade (200P brush 240P, etc.),
TCM upgrade refresh, SONY CD head upgrade ,, ABS module programming, RCM programming And reset, direct configuration IPC BCMII APIM, CAN-BUS monitoring log.

Support Modules: BCM II, PCM, TCM, IPC, ABS, RCM

Common Functions:
DDS tire pressure monitoring, folding reversing mirror, cruise control, automatic headlights, automatic wipers,
tire modification, navigation activation, ABS module installation, RCM crash datremoval, instrumentation mileage reset

UCDS V1.26.008 Update Information:

1. Support the new version UCDS V3.
2. Database Synchronization IDS 102.00.
3. Focus Classic TCM programming: can use the BIN file for 1.6 / 2.0 TCM
4. Focus Classic PCM Programming: save and load VID information suitable for all PCM.
5. Focus Classic PCM programming by using binary BIN file.
6. Focus Classic PCM programming fixes the errors of 1.8 / 2.0 / 2.0 ST data.
7. Mondeo S-MAX addition. You can program the 1.6 / 2.0 / 2.3 / 2.0 Diesel PCM firmware data block using the binary file.
8. Mondeo S-MAX clear BCM II collision data.
9. New Focus calibrates 1.6 / 2.0 dual-clutch transmission.
10. Add the latest dual-clutch calibration programming file for New Focus
11.Carnival increases RCM collision data removal function.
12.Carnival increases wiper calibration function.
13. "UPDATE WIZARD" fixes the error after a part of modules refresh.
14.Mondeo wins the S-MAX 2.0T to increase the DPS450 dual clutch clutch calibration.
15.DIRECT CONFIG Direct Set-up Added supports for Visteon ACM.
16. "DATA LOGGER” repairs some of the functions.
17. "DIRECT CONFIG" adds SYNC2 option.
18. "DIRECT CONFIG" adds SYNC3.
19. C391 New Mondeo RCM collision data clear function.
20. C391 New Mondeo RCM module initialization function.
21. "ASBUILT EDITOR" modifies part of errors.
22. "DIRECT CONFIG" adds C391 new Mondeo 2.0 engine.
23. NEW Focus and KUGA adds ABS bleeding function.
24. C391 New Mondeo 2.0T Chinese adds the PCM calibration file.
25. MOTORSOFT tuning procedures increased:
-New KUGA adds EV4A-14C204-B
-New Mondeo adds FS7A-14C204-ECA
-V5 engines 2.5-5 KUGA and Mondeo
26. Optimize most applications.
27. Complete revision of the J2534-2 database for UCDS V1 / V2 / V3.

UCDS V1.27.001 Software Display:

UCDS Software Status before connecting UCDS Cable

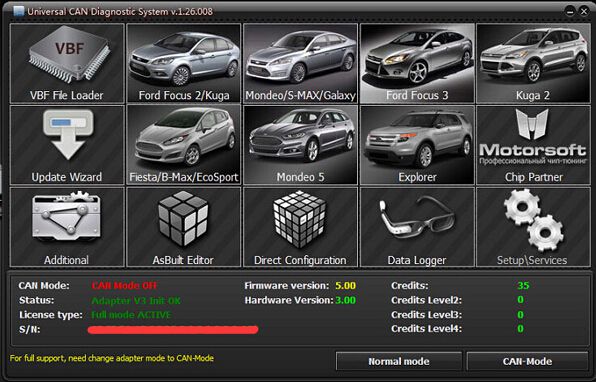

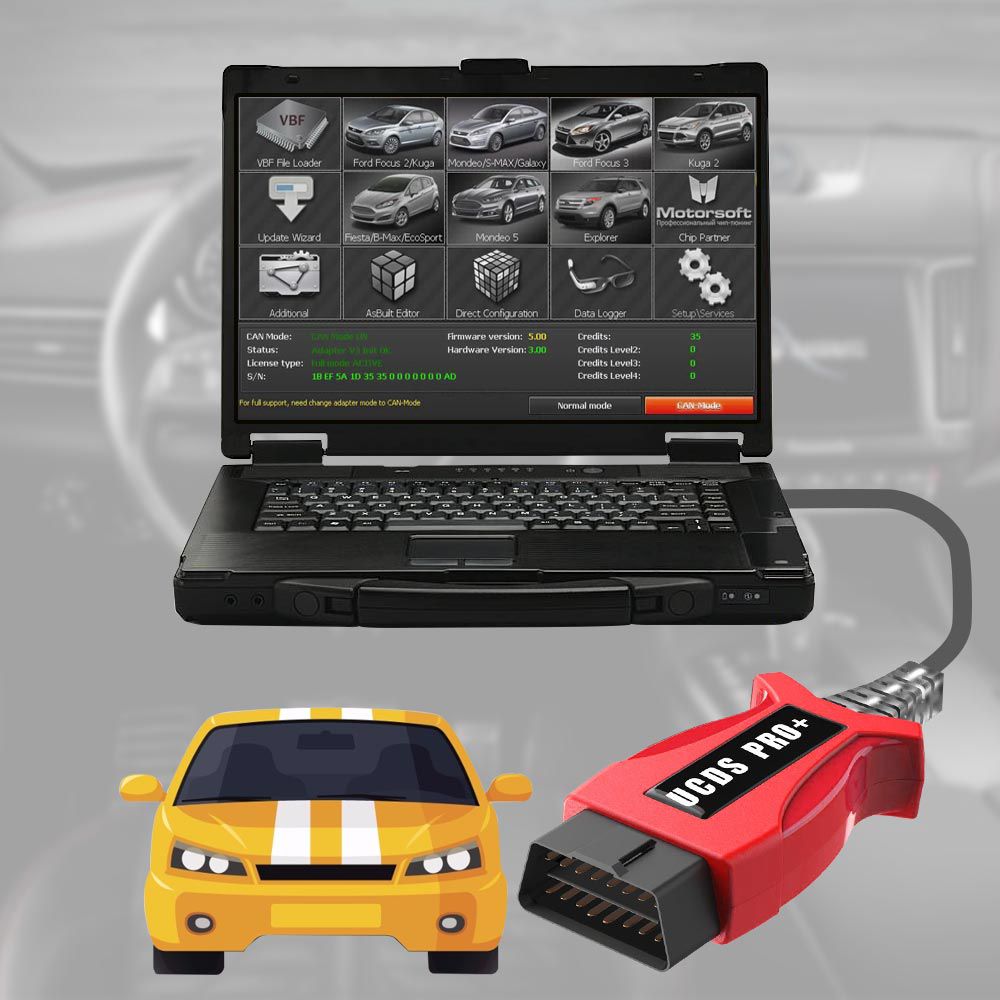

UCDS Software Status after connecting UCDS Cable

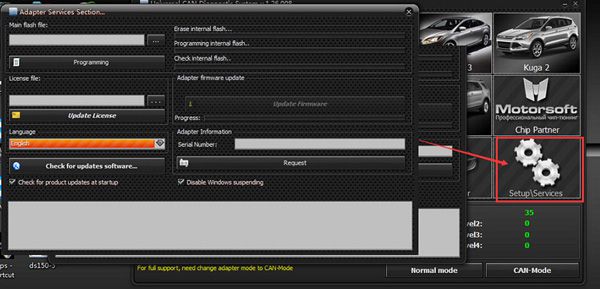

UCDS Adapter Services Section

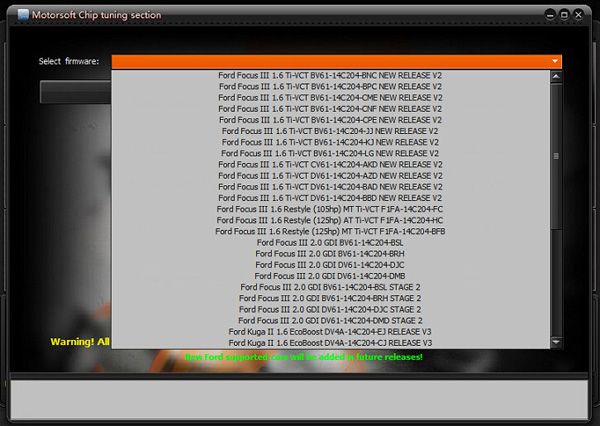

UCDS Motorsoft Chip Tuning Section




UCDS Direct Configuration

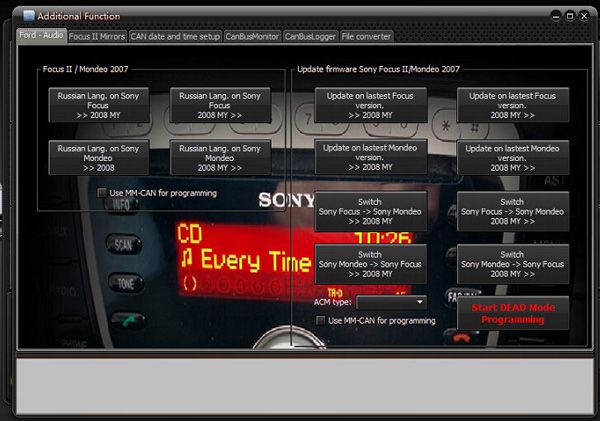

UCDS Additional Function

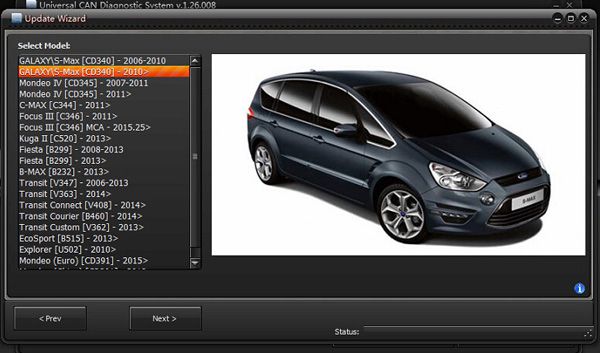

UCDS Update Wizard



UCDS Basic Functions for cars Ford Focus III

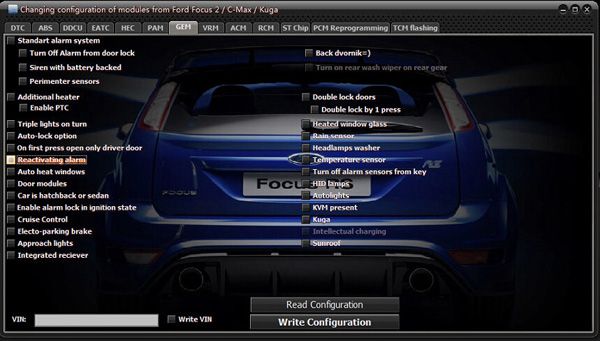

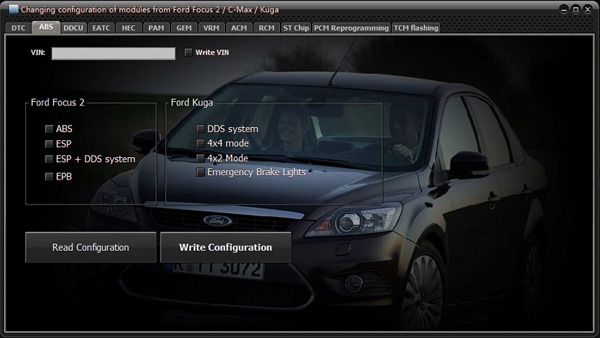

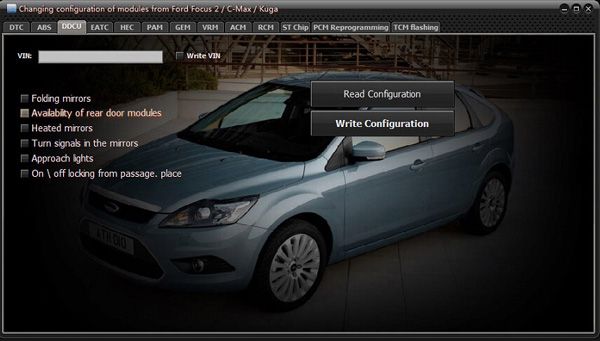

UCDS Changing configuration of module’s from Ford Focus 2/C-Max/Kuga

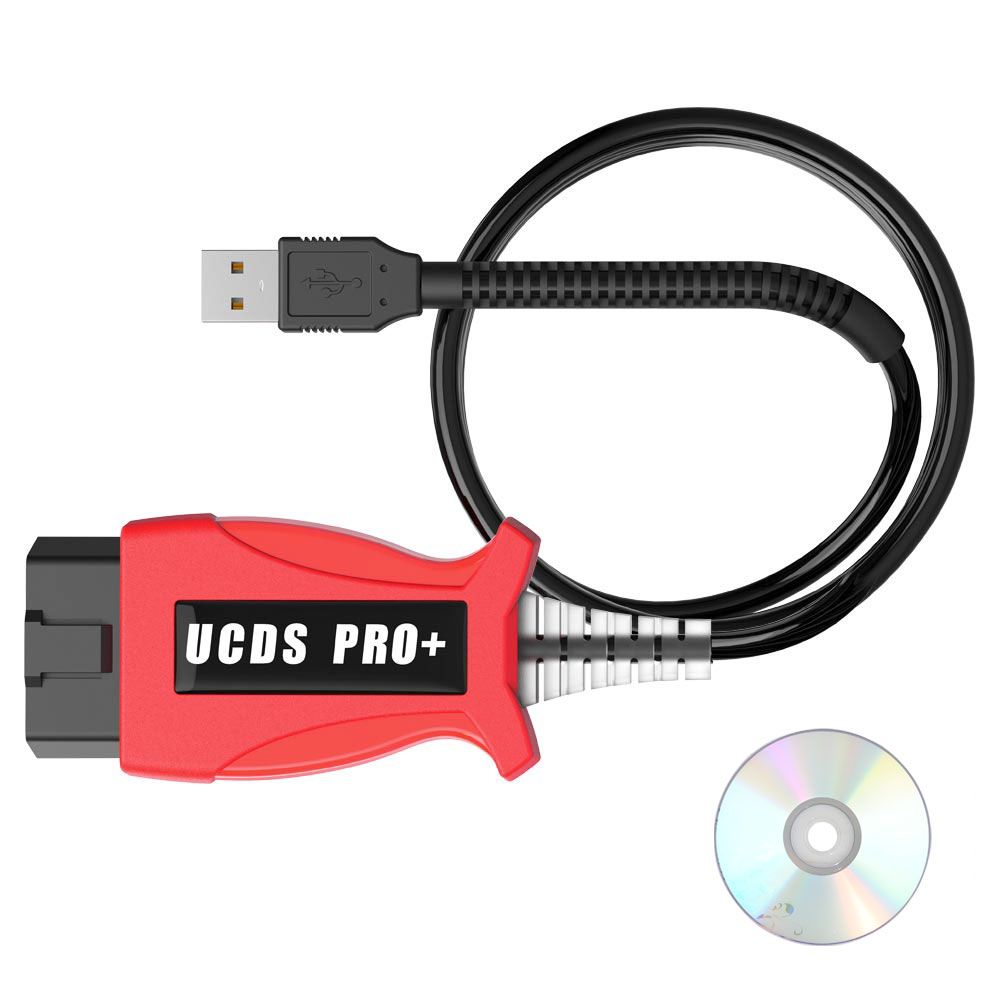

Package Includes:

1pc x UCDS PRO+
1pc x UCDS V1.27.001 Software CD
