Original RY-F600 Fusion Splicer with Optical Fiber Cleaver automatic focus function 5.6" LCD
Item No. COBD24257 Price Down Notice
Out of Stock
Price:
US$2,258.00/ piece
Quantity:

Shipping:
Airmail Post
Estimated delivery time: 7-45 working days.See details»
Returns:
Return for refund within 7 days,buyer pays return shipping.Read details »
Support:
Online Chat WhatsApp Skype Ask a question

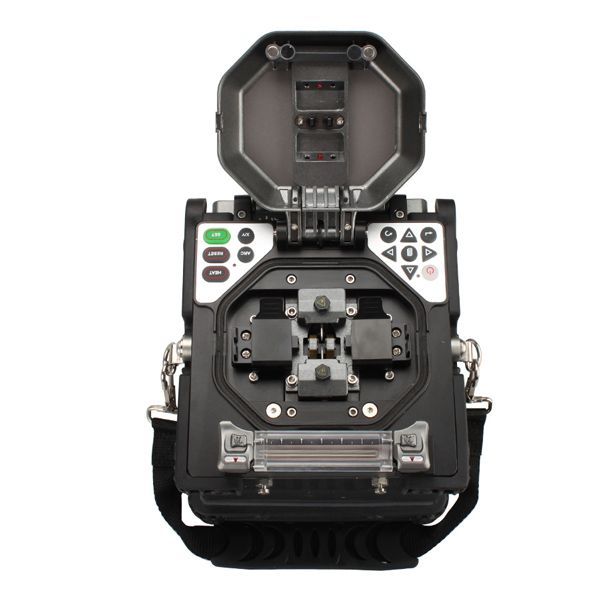

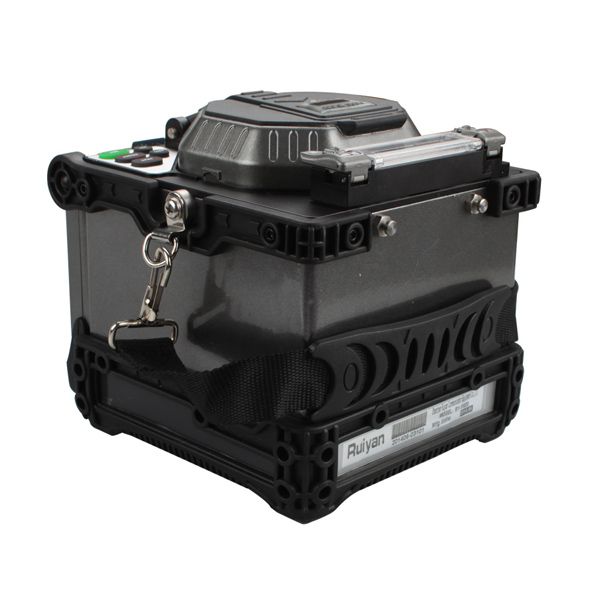

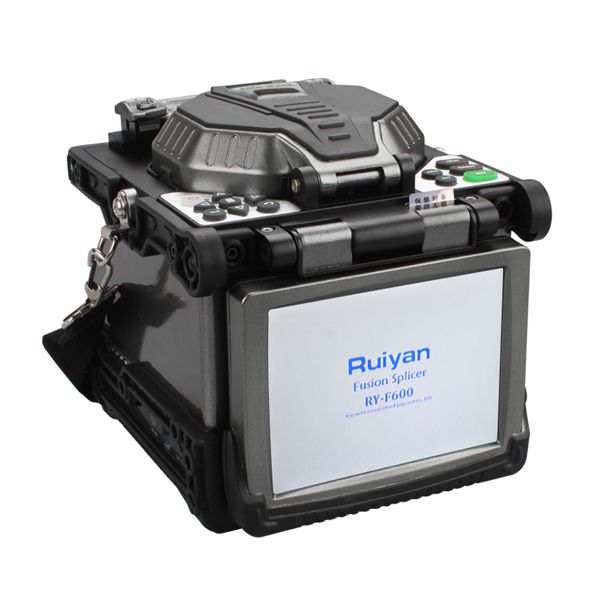

Original RY-F600 Fusion Splicer with Optical Fiber Cleaver automatic focus function 5.6" LCD

Features:


Digital fusion splicer with automatic focus function
Fiber core can be display clearly
Single X or Y view and X & Y view simultaneously
Auto detect cleaved endface fault
Display fiber cleaved and offset angle
Display core and clad offset
5.6 inch TFT color LCD monitor with clear digital image display
USB & VGA interface
Software upgrade via USB interface.

Specefications:
Model RY-F600
Applicable fibers SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-T G.655)
Fiber cleaved length 10 ~16mm (Coating diameter<250µm);16mm(Coating diameter250~1000µm)
Fiber diameter Cladding diameter:80 ~150µm , Coating diameter:100 ~1000µm
Auto focusing Available
Fiber aligning method Core aligning, clad aligning, manual aligning
Average splice loss 0.02dB (SM), 0.01dB (MM), 0.04dB (DS), 0.04dB( NZDS)
Splicing time Typical 9 sec,with standard SM fiber
Heating time Typical 36 sec
Applicable sleeves 60mm, 40mm and a series of micro sleeves
Tension test 2N(option)
Electrode life 5000
Battery capacity Typical 400 cycles (splice and heat)
Monitor 5.1 inch TFT color monitor
Terminal USB 1.1 and VGA , software upgrade via USB interface
Operating condition 0 ~ 5000m above sea level, 0 ~ 95%RH and -10~50oCC, respectively, Max. wind velocity of 15m/s
Splicing mode Auto ,normal
Fiber cleaved angle threshold set 0.1 ~ 10.0 oC , 0.1oCstep
Power supply Li-battery 11.8V , AC100-240V DC12.6V/5.0A
Dimension L169*W152*H155mm
weight 2.4kg 2.9kg(battery)

Package Include:
1 x Fusion Splicer Machine
1 x Fiber Stripper

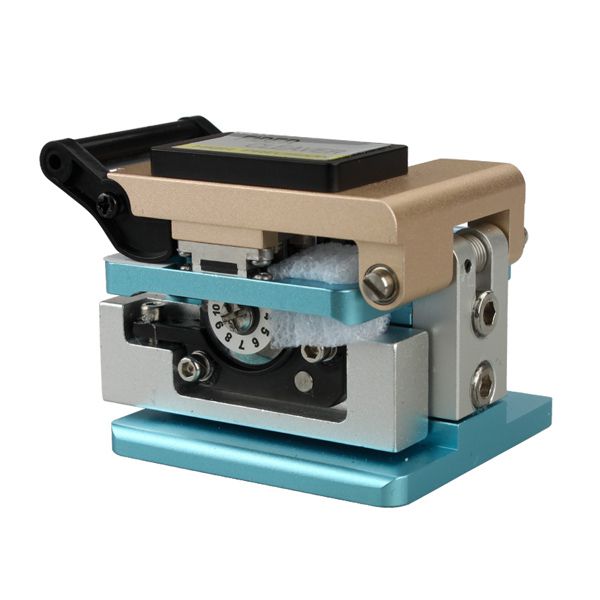

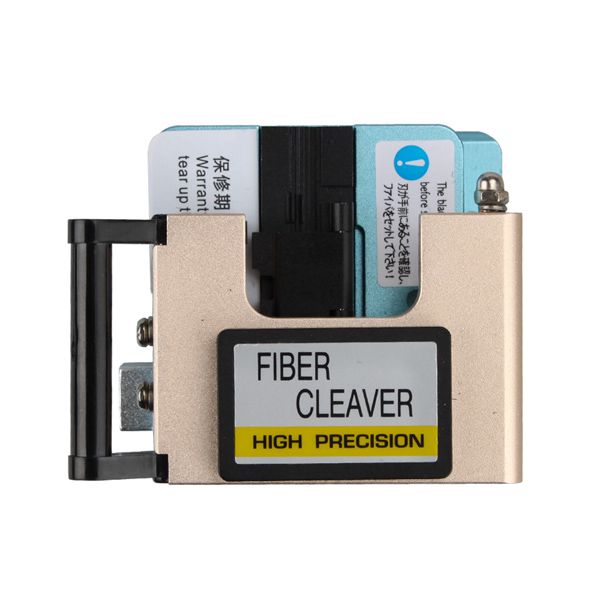

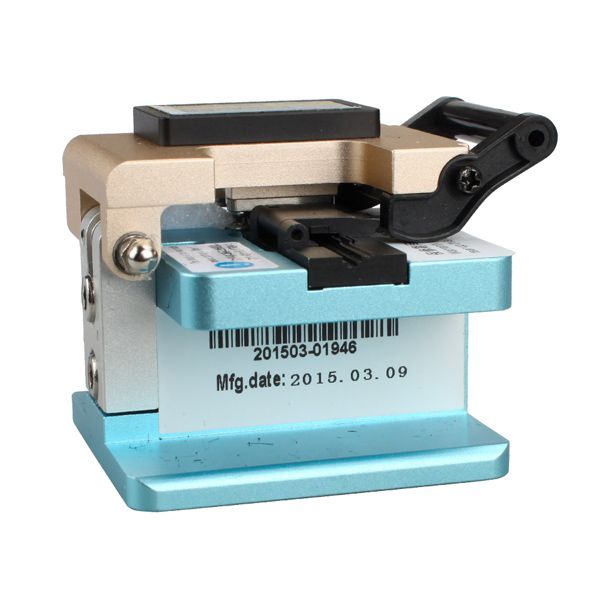

1 x Optical Fiber Cleaver
1 x Alcohol box
1 x Tweezers
1 x Charger
1 x Spare Electrodes
1 x Cotton swab
1 x Hairbrush
1 x Bellows
1 x Cooling Tray
1 x Product qualification certificate
1 x Warranty card
1 x User's manual
