Launch X431 VSP-600 Video Scope Supports LAUNCH X-431 Scanners and All Android and IOS Device

Launch VSP-600 Inspection Camera Videoscope/Borescope 5.5mm

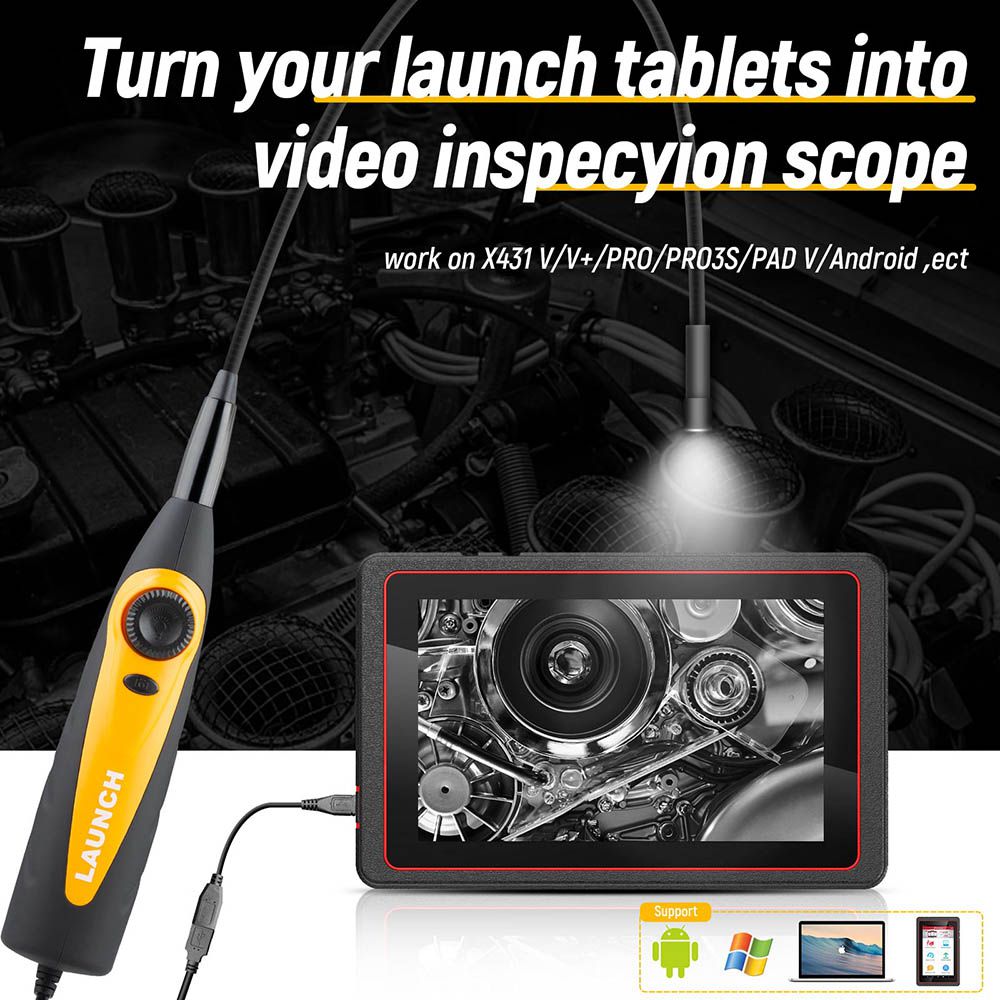

LAUNCH VSP600 video scope helps technicians to check issues on unreachable area in a vehicle. With 6 levels light strength, technicians can easily adjust the brightness according to the environment. It will work with Launch X-431 scanners or any Android device and streams live video on it. Technicians can view, record and save images and videos.

Launch VSP-600 is widely used in:

Automobile:

Used to check engine, oil pressure parts, quality inspection and assembly inspection of nozzle part Measurement.

Tap water pipe:

It is also used to check the rust and blockage of the drain pipe.

Industrial machinery:

Used for inspections, boilers, heat exchangers; mechanical equipment and manufacturing devices.

Electricity:

Used in various heat exchangers, pipelines, turbines, etc. in nuclear power, thermal power, and hydro power stations Inspection and maintenance.

Petrochemical industry:

Used for technological configuration of pipelines, pressure vessels, boilers, heat exchangers, etc. Prepared inspections.

Electronics and electrical workers:

Used for mechanical operation inspection. Parts inspection and research and development areas. Gas: Help to check whether there is rust, corrosion and water in the gas pipe, and whether the exhaust pipe mouth is damaged and so on.

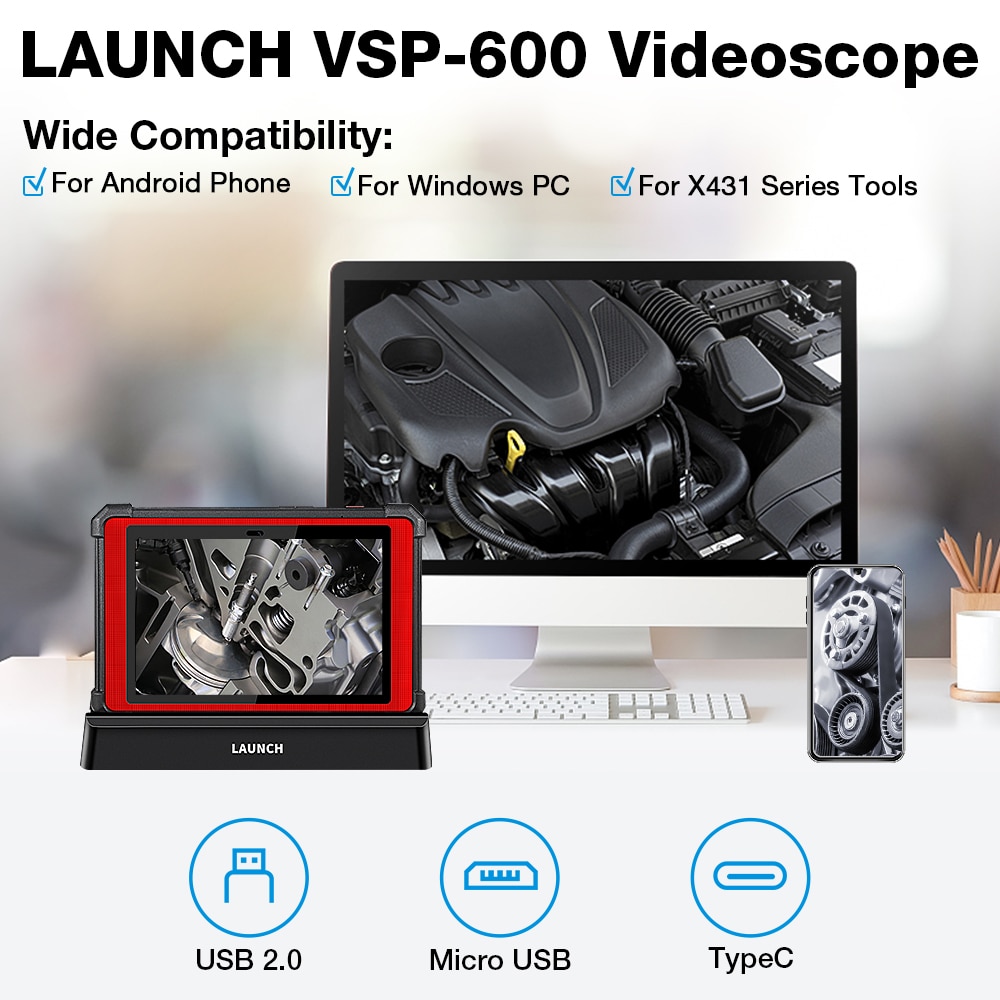

Apply for device :

1. Works with Launch X431 Pad, X431 PAD II, X431 PAD V, X431 V, X431 PRO, X431 PRO3S+, X431 V+, X431 PRO3, MacTools ETX431 Pad & ETX431 TAB10 & Matco MDMax & MAX 2.0.

2. Works with Adroid Phone.

3. Works with Computer .

The Advantage of LAUNCH VSP600 :

1. 6 adjustable LED lights provide HD videos and snapshot images for the snake camera. lt greatly helps to improve image brightness and clarity even in dark or low-light condition.

2. LAUNCH VSP-600 is IP67 Standard, it is Waterproof, also can Adjustable LED lights.

Features & Technical Parameters

View, record and save images and videos

Take images easily with one-click snap shot button

Easy to adjust the strength of light (6 levels)

View & save images/videos on Launch X-431 scanner

Viewable angle: 60℃-65℃

Cable length: 2M

Product Parameters

Len O.D. (mm): 5.5mm

Tube O.D. (mm): 4.8mm

Tube Length: 800mm

USB Cable Length: 1/9”

Resolution: 1280x720

Operating Temperature: 0℃~65℃

Power Supply: 5V

USB Port: USB2.0/Type C/Micro USB

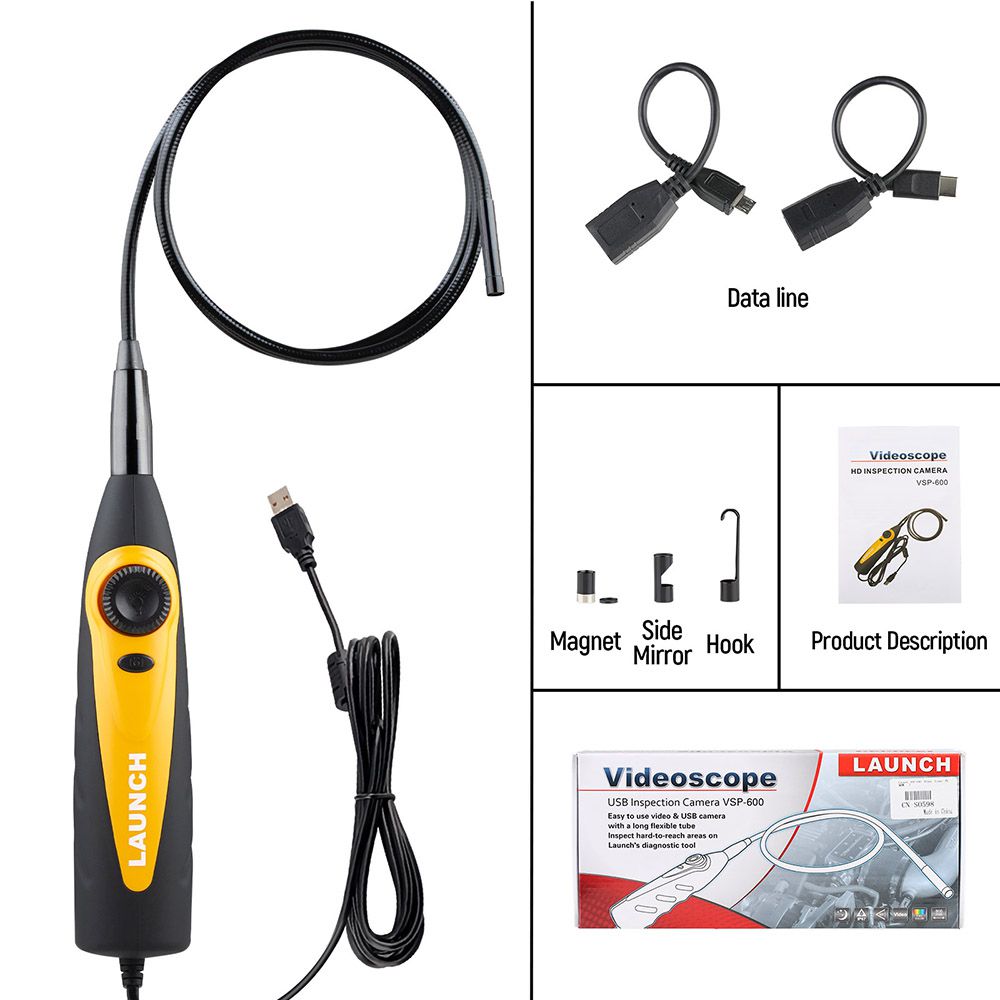

Packing List :

1 x USB Data Cable (1*USB 2.0, 1*Micro USB, 1*Type C Converter)

1 x Accessories (Hook, Magnet, Side mirror)

1 x USB Endoscope

1 x User Manual

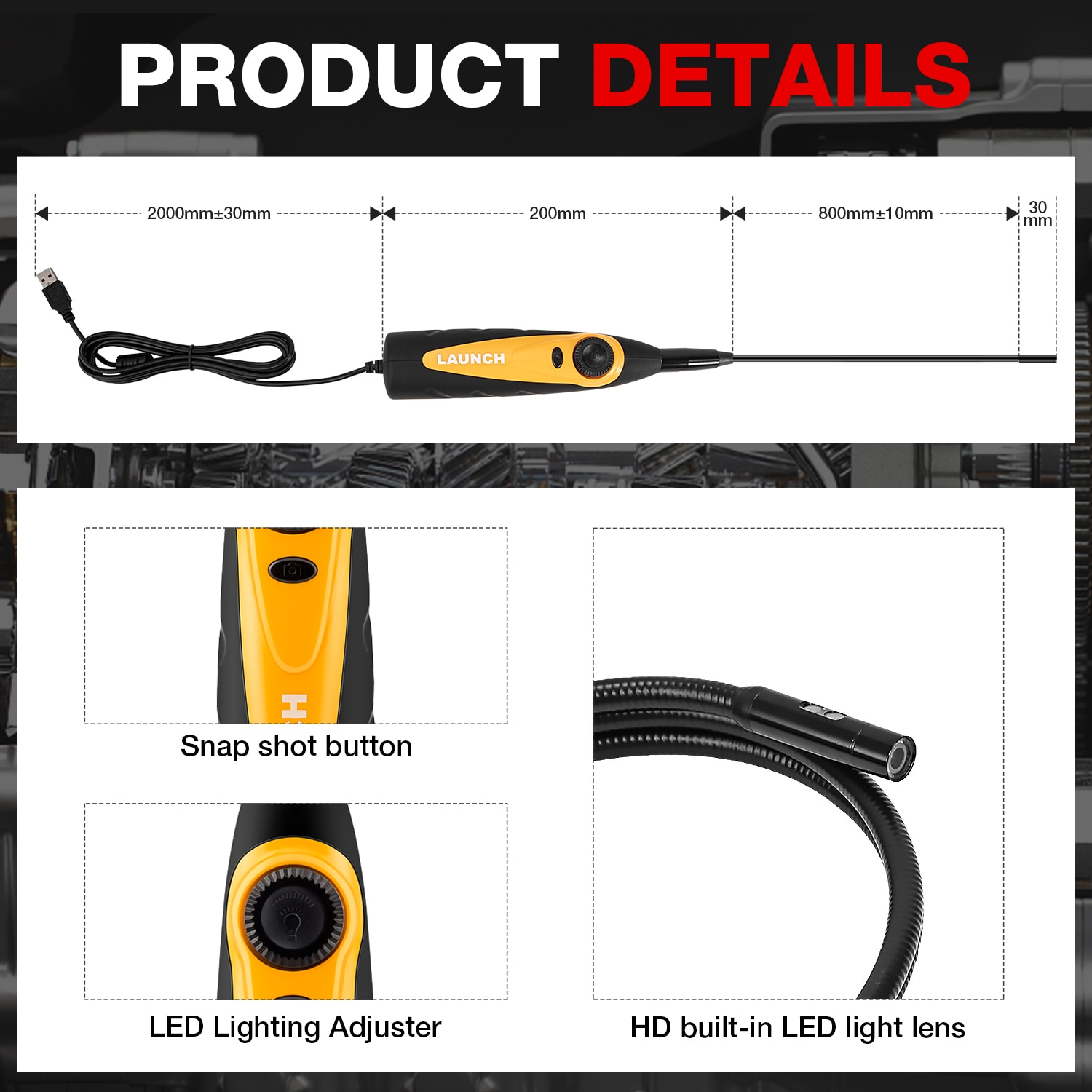

Product detail
