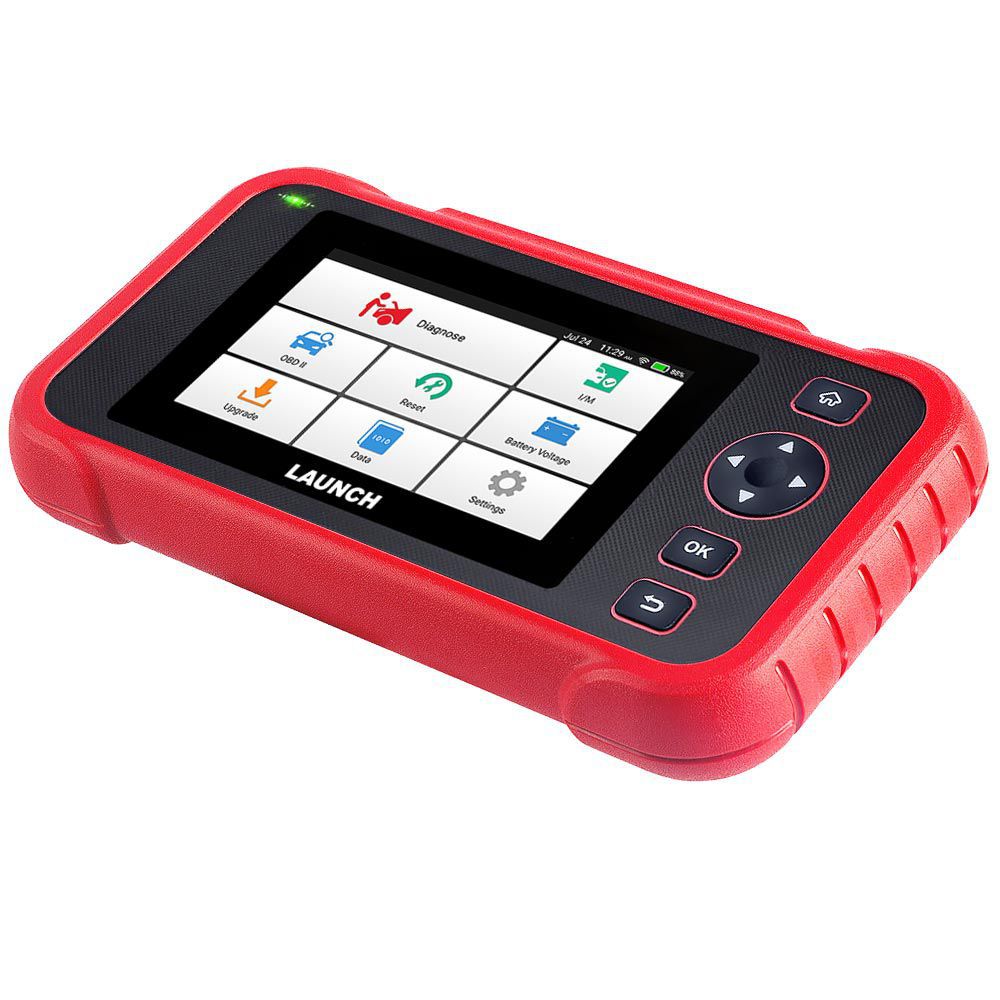

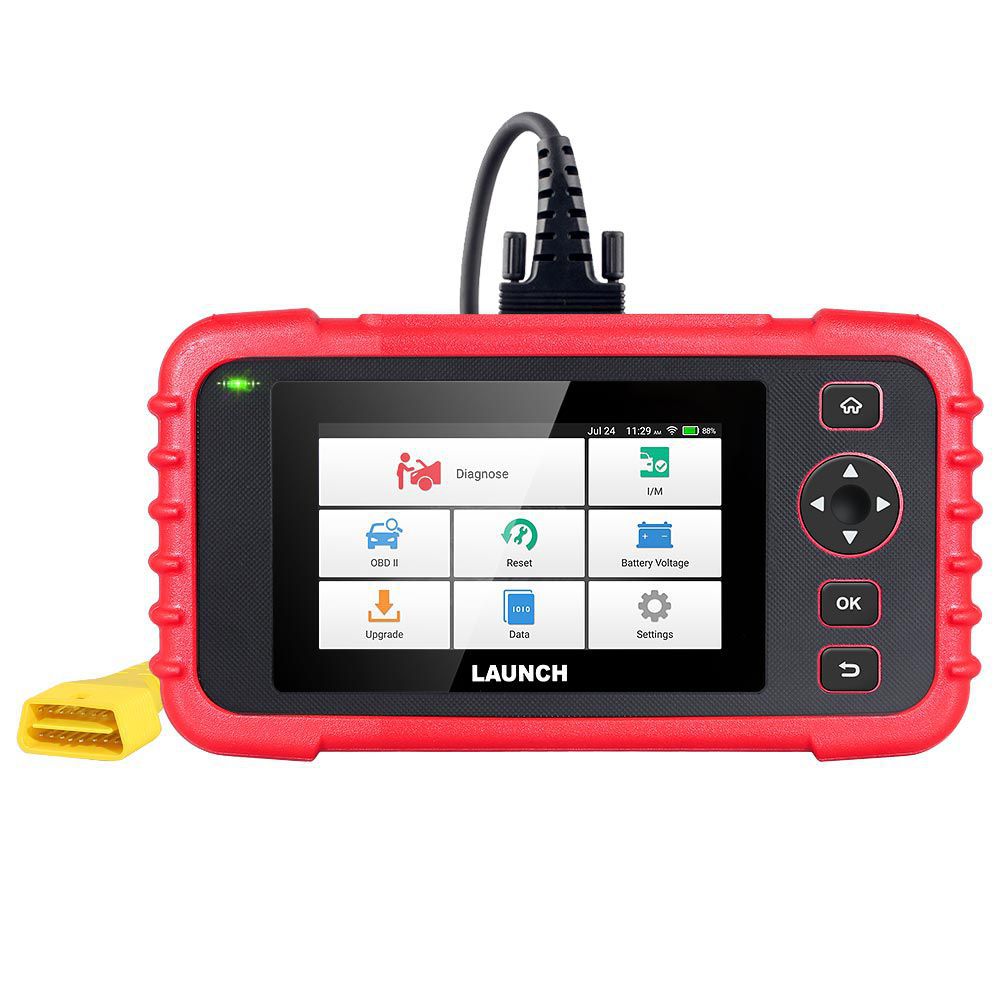

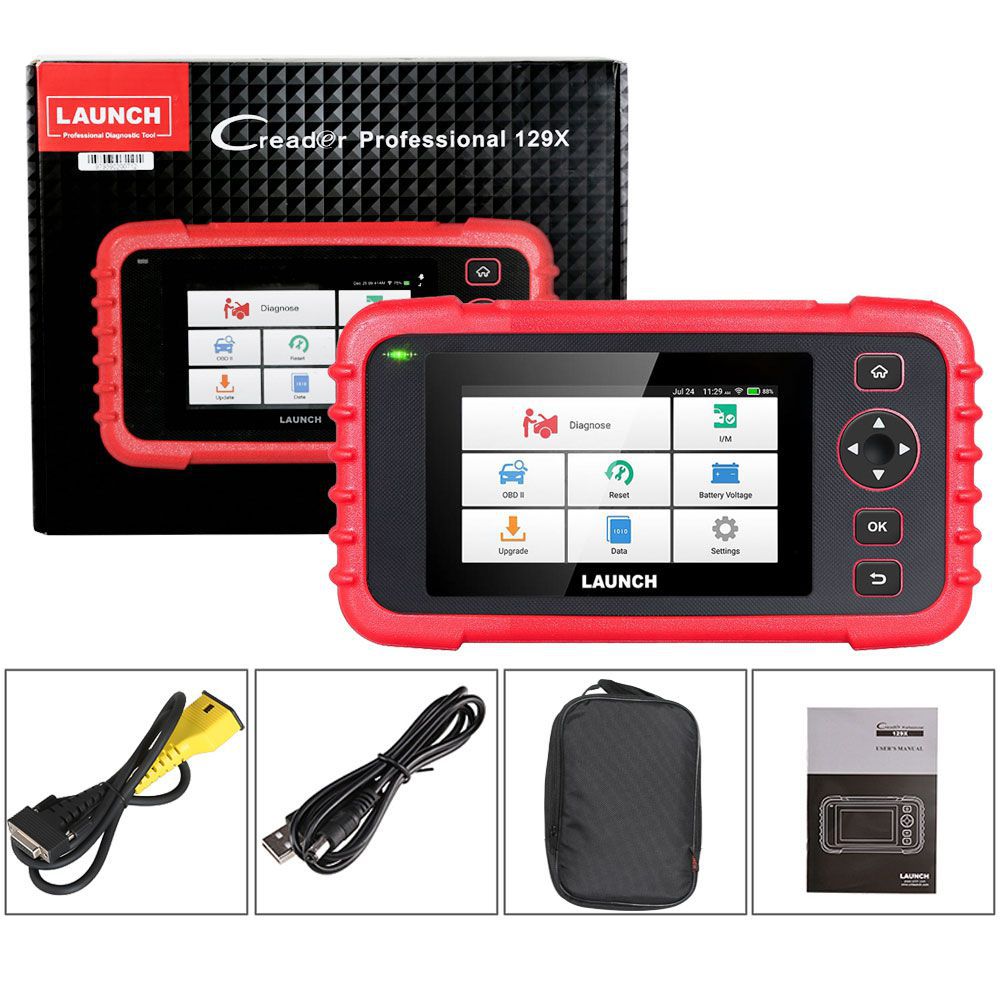

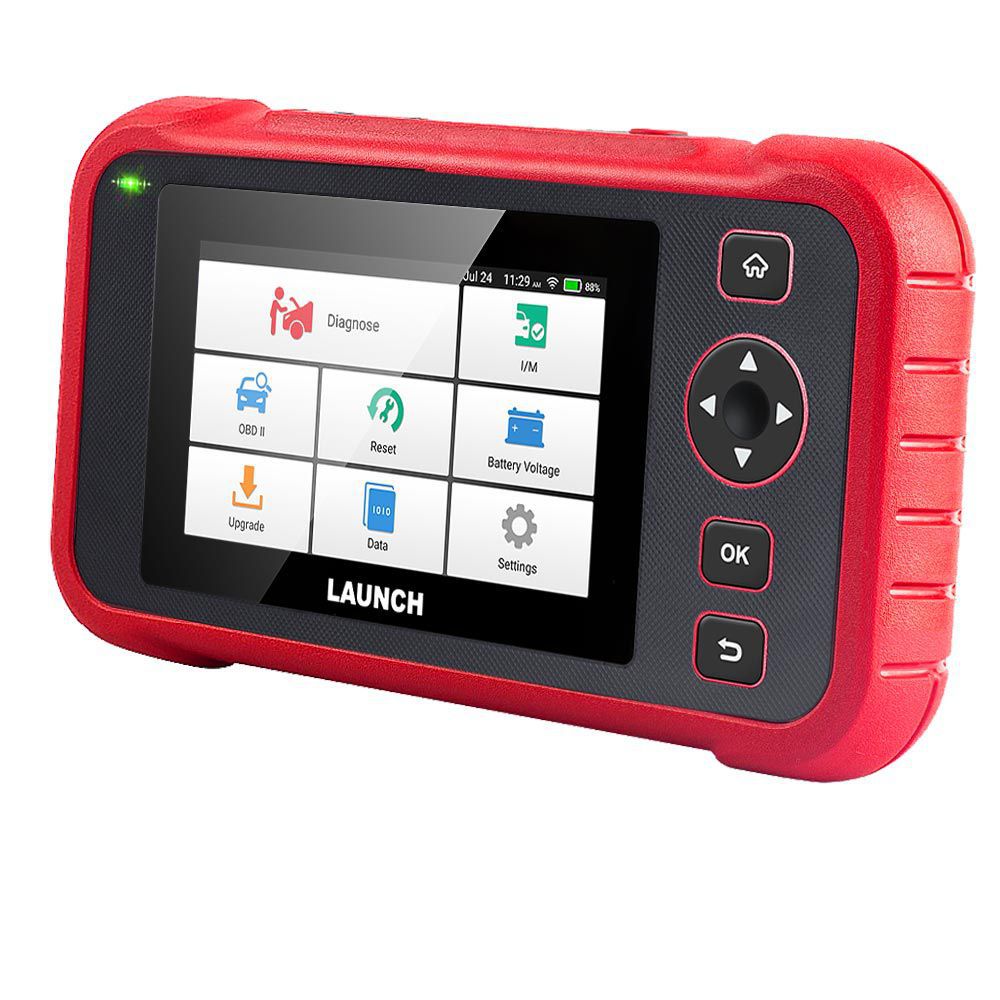

LAUNCH Creader CRP129X 4-System Automotive Code Reader with Oil Reset, EPB, SAS, TPMS, and Throttle Service – Advanced Version of CRP129

The Creader Professional CRP129X, based on the classic and multifunctional diagnostic tool CRP129, is ingeniously designed for technicians to troubleshoot four systems with its state-of-the-art hardware and software, plus multiple useful features such as five reset capabilities, in most of the major vehicles on the road today.

Supported Languages

English, Spanish, French, German, Italian, Russian, Portuguese, Japanese, Korean

The Upgraded Version of Classic Scanner CRP129

The newly released LAUNCH scanner CRP129X, as the advanced version of CRP129 sharing the same four-system diagnosis feature, is equipped with:

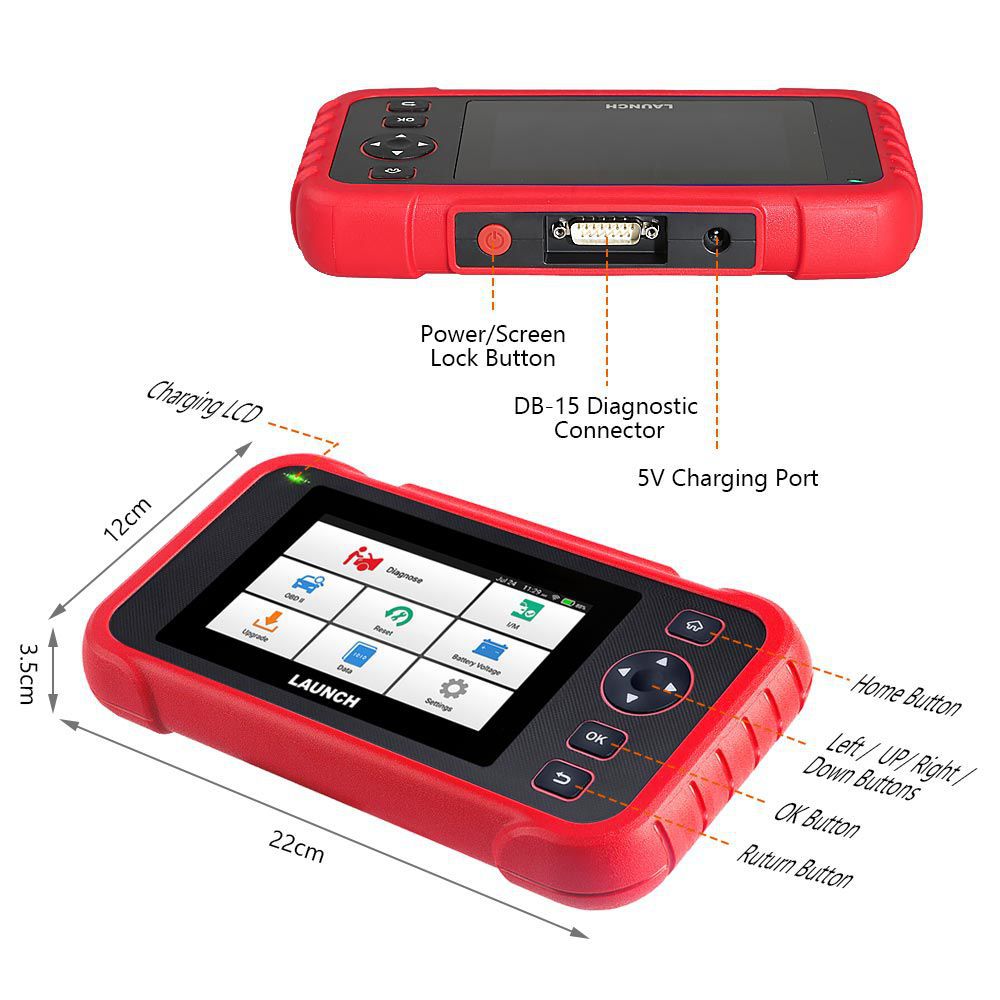

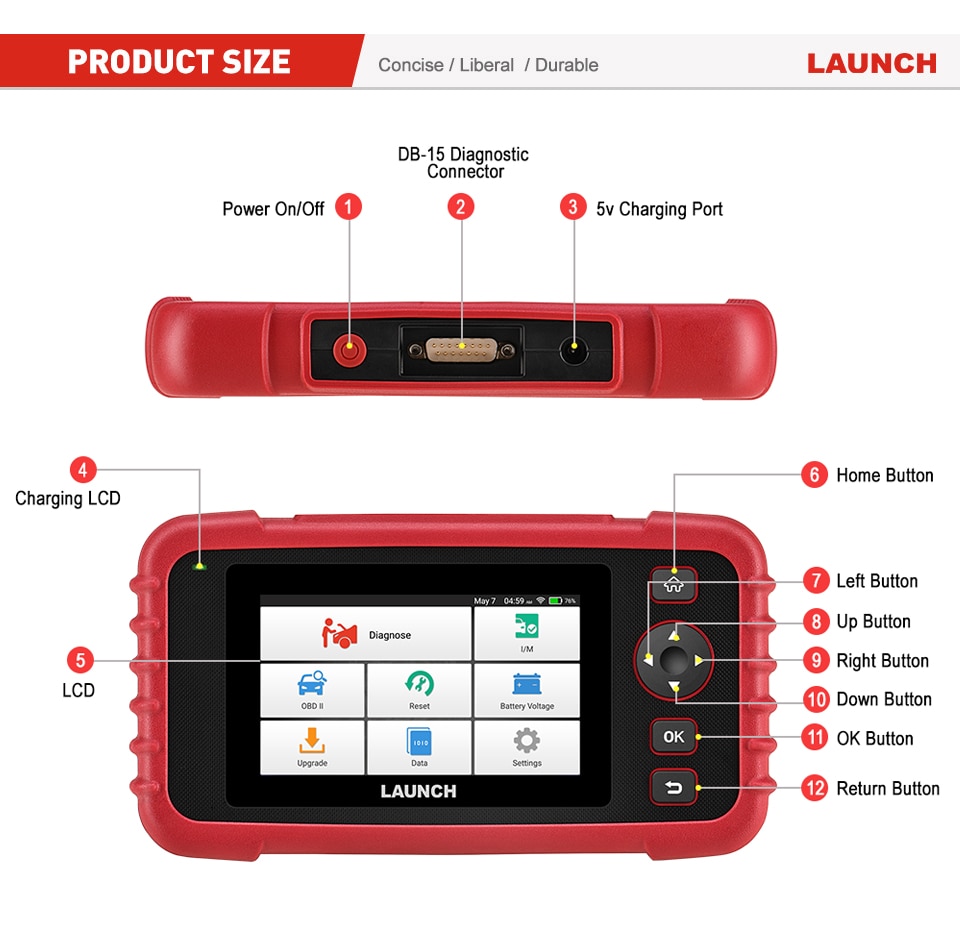

• A larger 5” display screen
• Two additional special services: TPMS Service and Throttle Adaptation
• AutoVIN technology
• Automatic Inspection Report

Four System Diagnoses

1. Engine System

The diagnostic tool can help detect the engine ignition, fuel injection, air and fuel ratio, and exhaust emission conditions in the Engine system to enhance vehicle performance, save energy, and reduce exhaust emissions.

2. Transmission System

It makes great sense for safe driving when your car is slipping or difficult to shift. This diagnostic scanner can identify problems by reading codes in the Transmission system or checking the health status via live data viewing.

3. ABS System

Diagnosing an ABS problem should always start with a visual inspection of all brake components. Next, you will need to retrieve ABS codes to determine where the problem lies—and this is exactly what this scanner does for you.

4. SRS System

SRS (Safety Restraint System) consists of impact sensors, a control module, and the airbags themselves. This diagnostic device can detect every electronic parameter to check its health status.

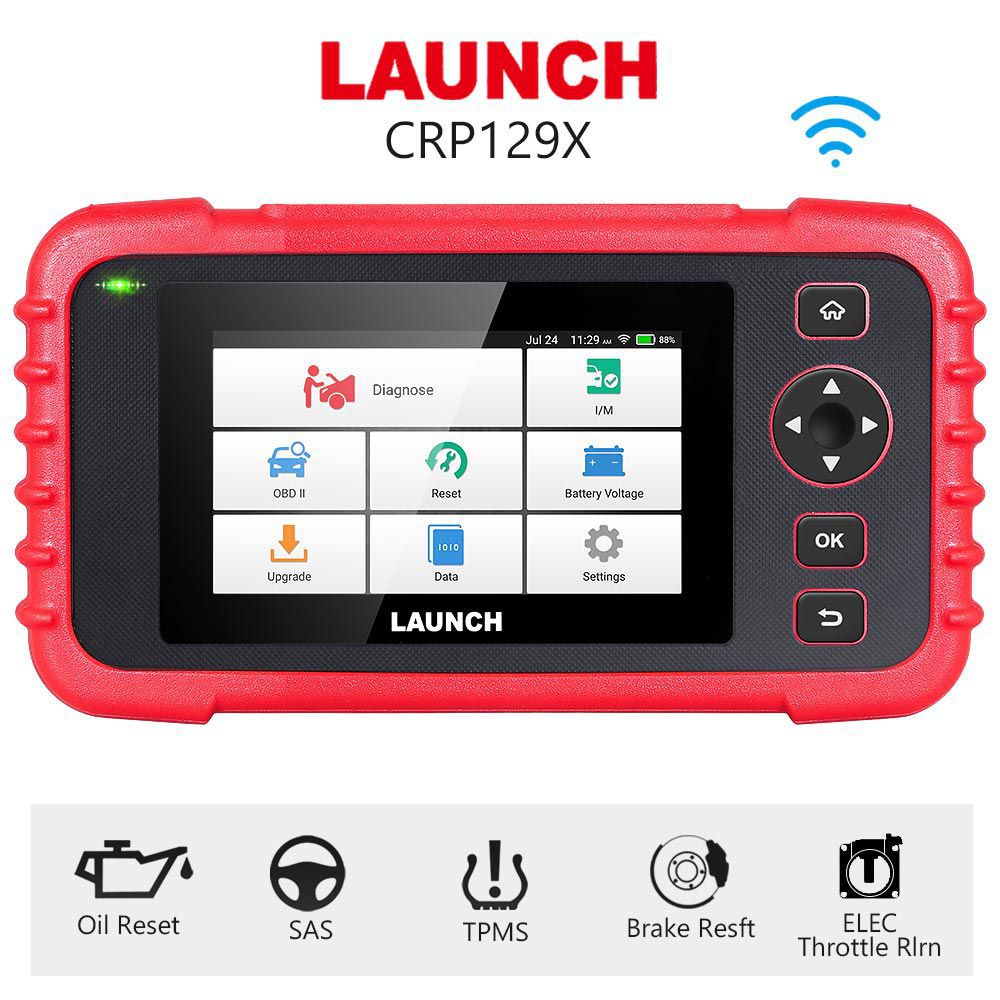

Five Most Commonly Used Services

1. Oil Reset

It is also enabled with an oil service and lamp reset mechanism—a function that ensures the vehicle engine is maintained in its rightful healthy condition.

2. SAS Reset

It helps clear faulty steering angle sensor memories and plays an important role in steering angle sensor calibration.

3. EPB Service

Resets the brake pad after repairs in the electronic parking brake system are completed. Using this system makes the braking process much simpler and easier.

4. TPMS Service

Looks up tire sensor IDs from the vehicle’s ECU and performs TPMS programming and reset procedures after tire sensors are replaced.

5. Throttle Adaptation

Initializes the throttle actuators to the default state for regulating throttle (or idle engine) operations accurately.

All Modes of OBDII Functions for Repair Work

This scanner supports all 10 test modes for OBD-II cars, which are ideal for daily repair work. The table below describes the purpose of each mode of operation:

• $01 – Request Current Powertrain Diagnostic Data
• $02 – Request Powertrain Freeze Frame Data
• $03 – Request Emission-Related Diagnostic Trouble Codes
• $04 – Clear/Reset Emission-Related Diagnostic Information
• $05 – Request Oxygen Sensor Monitoring Test Results
• $06 – Request On-Board Monitoring Test Results for Specific Monitored Systems
• $07 – Request Emission-Related Diagnostic Trouble Codes Detected During Current or Last Completed Driving Cycle
• $08 – Request Control of On-Board System Test or Component
• $09 – Request Vehicle Information
• $0A – Request Emission-Related Diagnostic Trouble Codes with Permanent Status

Battery Voltage Functions

This menu displays real-time graphing of the car’s battery voltage.

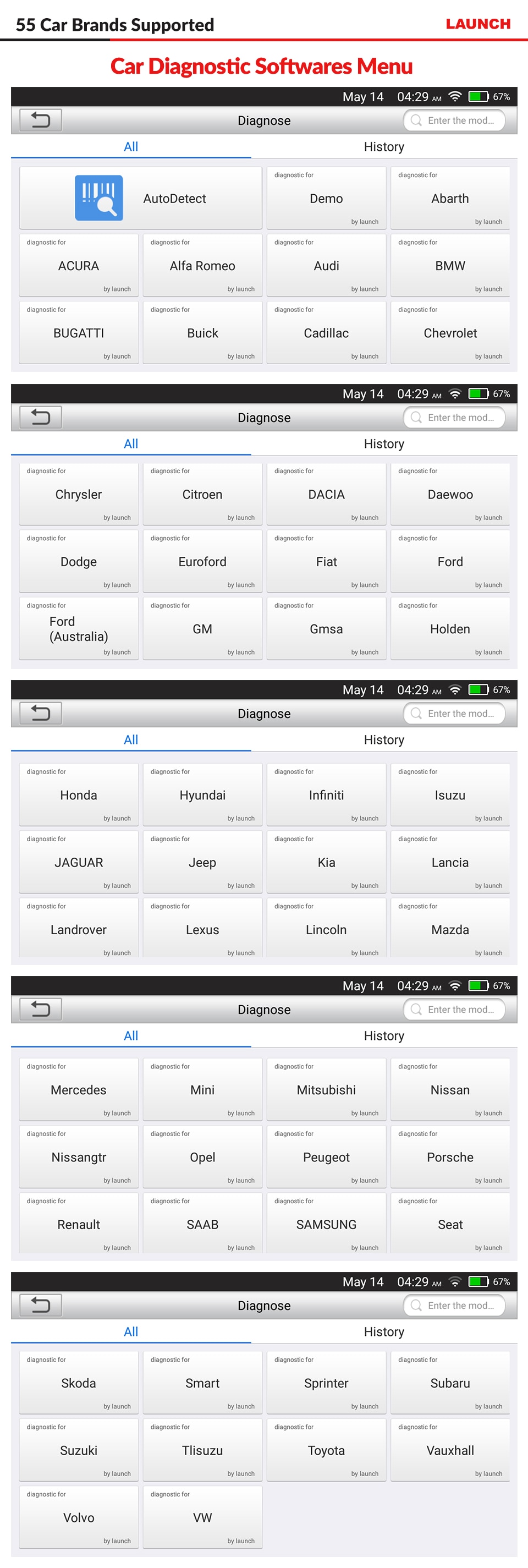

55 Car Brands Supported

LAUNCH CRP129X has wide compatibility with various OBD2 motor vehicles. The scanner works on virtually any car manufactured from 1996 onward, as long as the car has a 16-pin OBD-II port:

• Asia: Acura, Daewoo, Honda, Hyundai, Infiniti, Isuzu, Kia, Lexus, Mazda, Mitsubishi, Nissan, Nissan GT-R, Samsung, Subaru, Suzuki, Toyota, Tlisuzu
• Europe: Abarth, Alfa Romeo, Audi, BMW, Bugatti, Dacia, Eu Ford, Fiat, Jaguar, Lancia, Mercedes, Mini, Opel, Peugeot, Porsche, Renault, Saab, Seat, Skoda, Smart, Sprinter, Landrover, Citroen, Volvo, VW, Vauxhall
• South America: GMSA
• USA: Buick, Cadillac, Chevrolet, Dodge, Ford, GM, Chrysler, Jeep, Lincoln
• Australia: Au Ford, Holden

In addition, this diagnostic device also supports vehicles within the Controller Area Network (CAN) category and can retrieve both generic and manufacturer-specific codes, making it widely applicable. If you regularly work on different vehicles, this scanner is an excellent choice.

AutoVIN Technology

The diagnostic tool features AutoVIN technology, which automatically reads and stores your vehicle’s VIN number with a single touch. It instantly identifies your car without requiring manual input of year, make, engine, etc.

Automatic Inspection Report Uploaded for Convenience

Certain diagnostic issues may be beyond your level of understanding. The LAUNCH CRP129X allows you to save the Inspection Report and transfer it to the Cloud Server or print the data via a PC.

Update and Warranty

Lifetime free online updates. One-year warranty for any quality-related issues.
