LAUNCH DIY Code Reader CReader 6001 Full OBDII OBD2 functions Support O2 Sensor Test

Launch DIY Code Reader CReader 6001 Full OBDII OBD2 functions Supports O2 Sensor Test

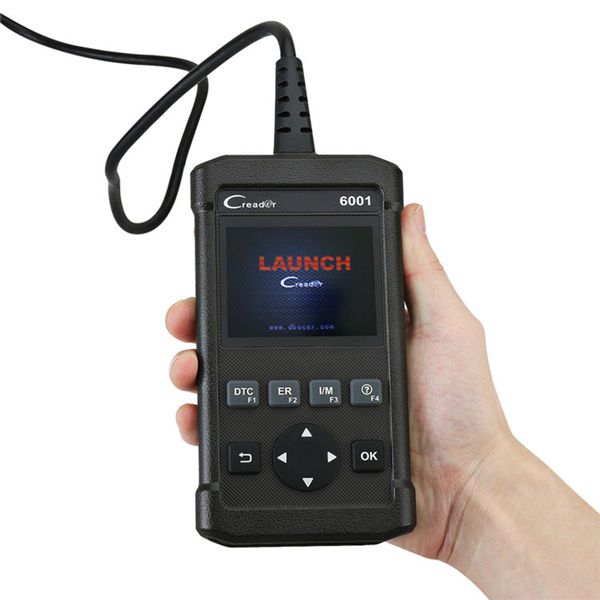

CReader 6001 is a small-size color CReader with complete functions. It provides full OBDII/EOBD diagnostic functions and meets protocols such as ISO9141-2, ISO14230-4, SAEJ1850, and ISO15765-4. It features a 2.8-inch color display, graphical data streams, USB interface internet update, as well as records and replays data.

Launch X431 CReader 6001 Functions:

1. OBD full functions
•Read dynamic data streams
•Read readiness status
•Turns off Malfunction Indicator Light (MIL)
•Query freeze frame data
•Read current DTCs
•Clear DTCs
•O2 sensor test
•On-board monitor test
•Read pending DTCs
•On-board system or component control
•Read vehicle information
•Read permanent DTCs
2. Color and graphical display of data streams
3. Query DTCs
4. Free update via internet
5. Multilingual support
6. Data record and replay
7. Print data via PC

The main difference between the CReader CR6001 and CReader CR5001: CR6001 provides the data record and replay function.

CReader 6001 Specifications:

Screen: 2.8" TFT 320*240 dpi
Voltage range: 9-18V
Operating Temperature: 0℃~ 50℃(32℉-122℉)
Environment Temperature: -20℃~70℃(-4℉-158℉)
Dimension: 142mm*85mm*30 mm (5.6 " *3.4" *1.2"
Weight: <320g (0.7lb)

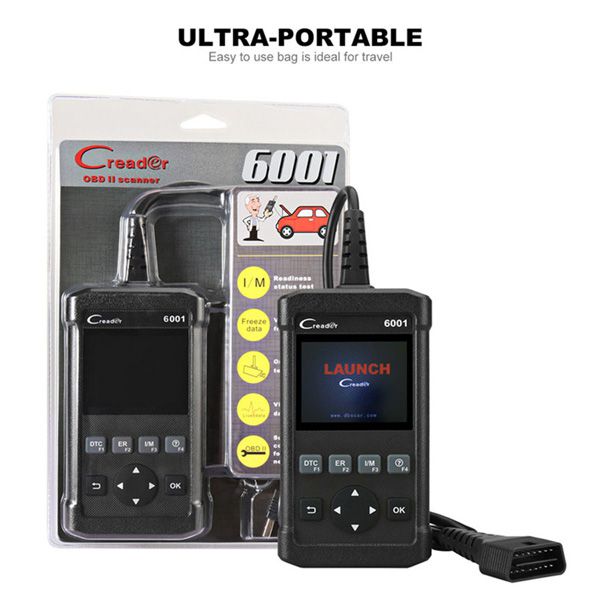

CReader 6001 Package Includes:

1pc x Launch DIY Code Reader CReader 6001
