Yanhua Mini ACDP Module 12 – Volvo Key Programming

New Update (August 26, 2019)

Now supports up to 6-button smart keys!

• Supports 5-button remote key: add key and all keys lost scenarios
• Supports 6-button smart key: add key and all keys lost scenarios

Supported Volvo Models

• Volvo S60 (2010–2018)
• Volvo S80 (2009–2016)
• Volvo XC60 (2009–2018)
• Volvo V60 (2011–2017)
• Volvo V70 (2009–2016)
• Volvo XC70 (2010–2016)

Yanhua Mini ACDP Volvo Connection

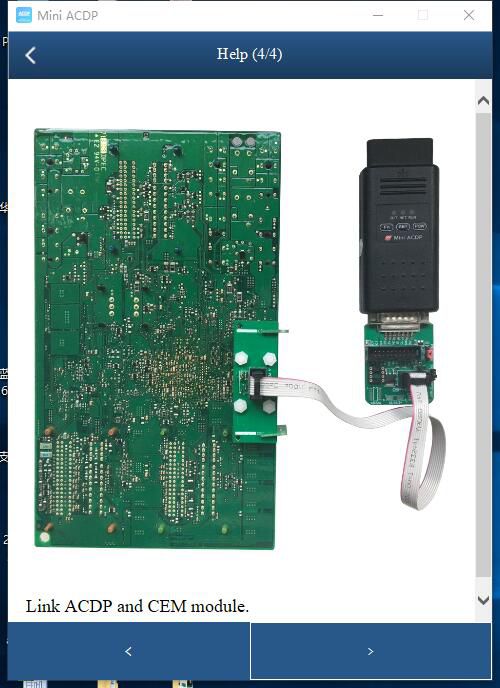

Yanhua Mini ACDP Volvo Module 12 – Latest Connection Diagram

Extra Package Required for Existing Module 12 Owners (Before August 29)

If you already own the Volvo Module 12 (produced before August 29) and wish to program Volvo smart keys via ICP, you will need to purchase this Extra Package, which includes:

• VOLVO CEM2 V1 Interface Board
• VOLVO KVM V1 Interface Board
• Double CAN Adapter
• VOLVO Copper Pillar Package: (M2.5*12+6mm) × 2, (M2.5*20+6mm) × 1

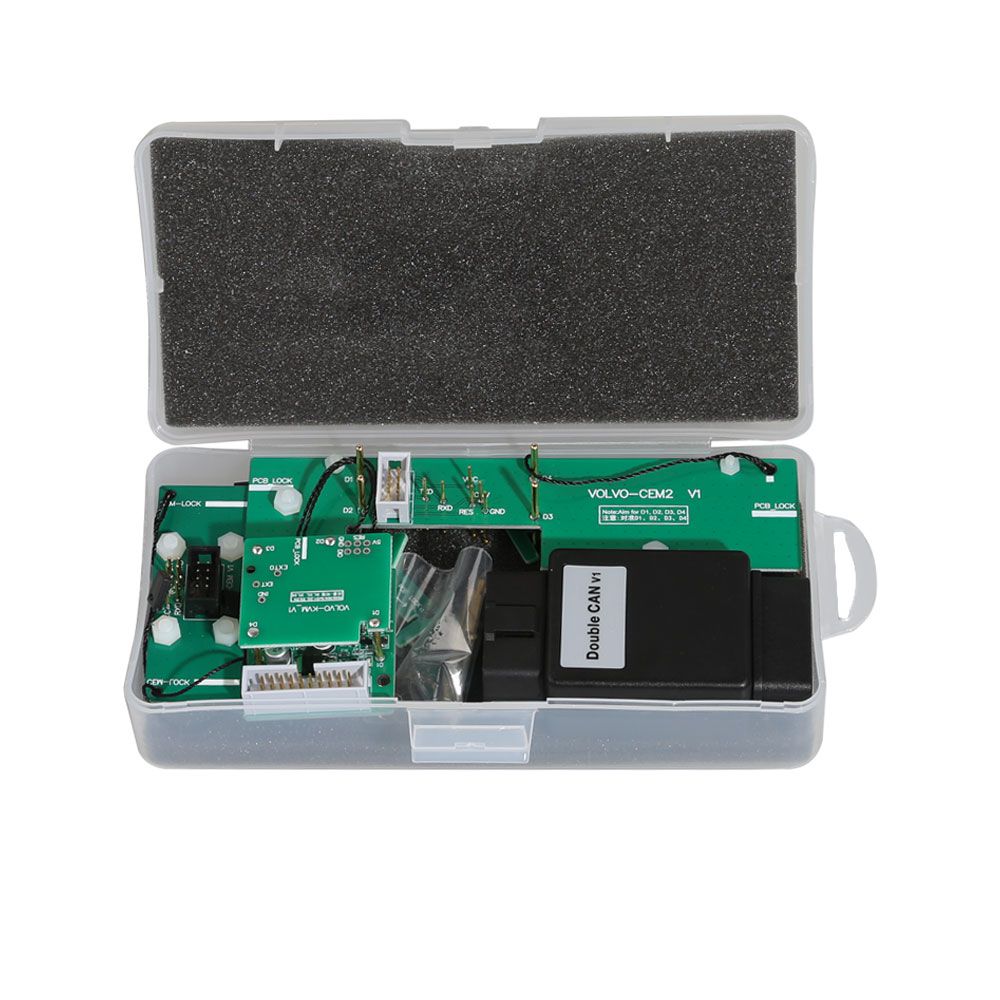

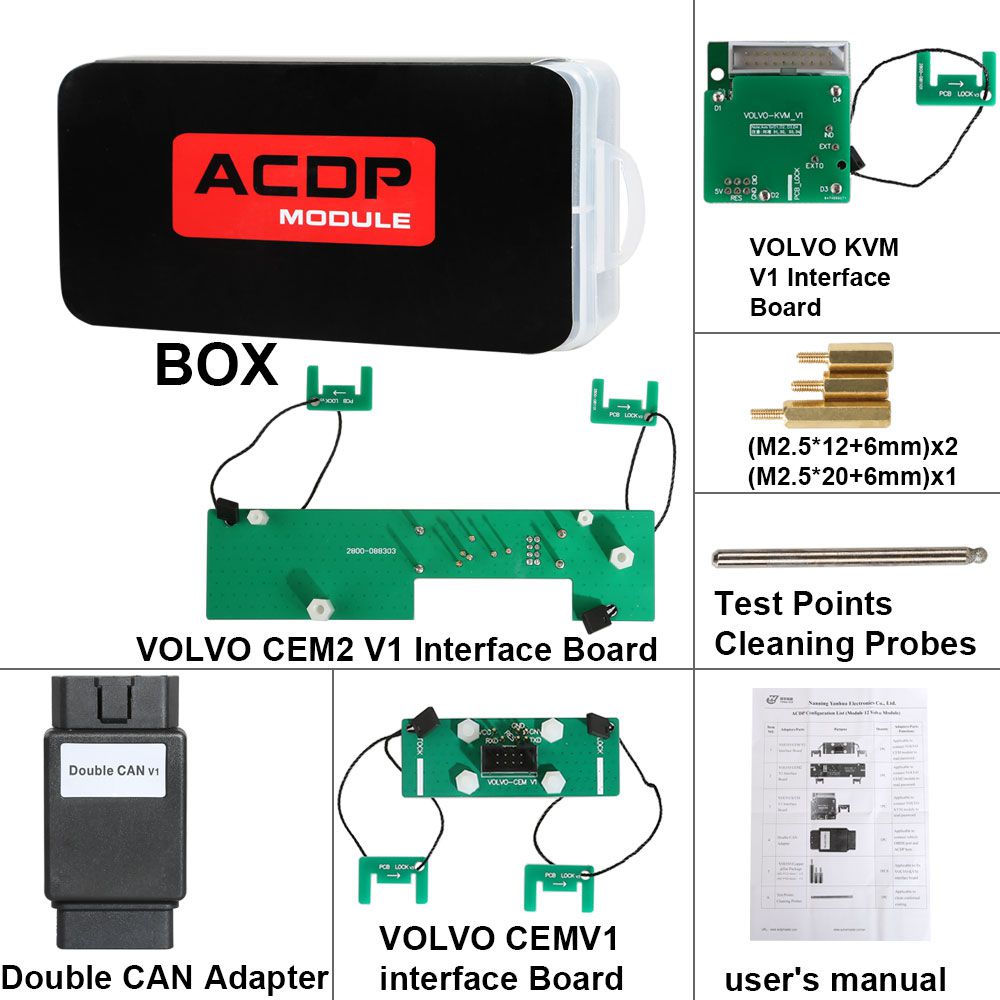

Package Contents

Item No.	Adapters/Parts	Pictures	Quantity	Functions
1	VOLVO CEM V1 Interface Board		1 PC	Applicable to connect VOLVO CEM module to read password.

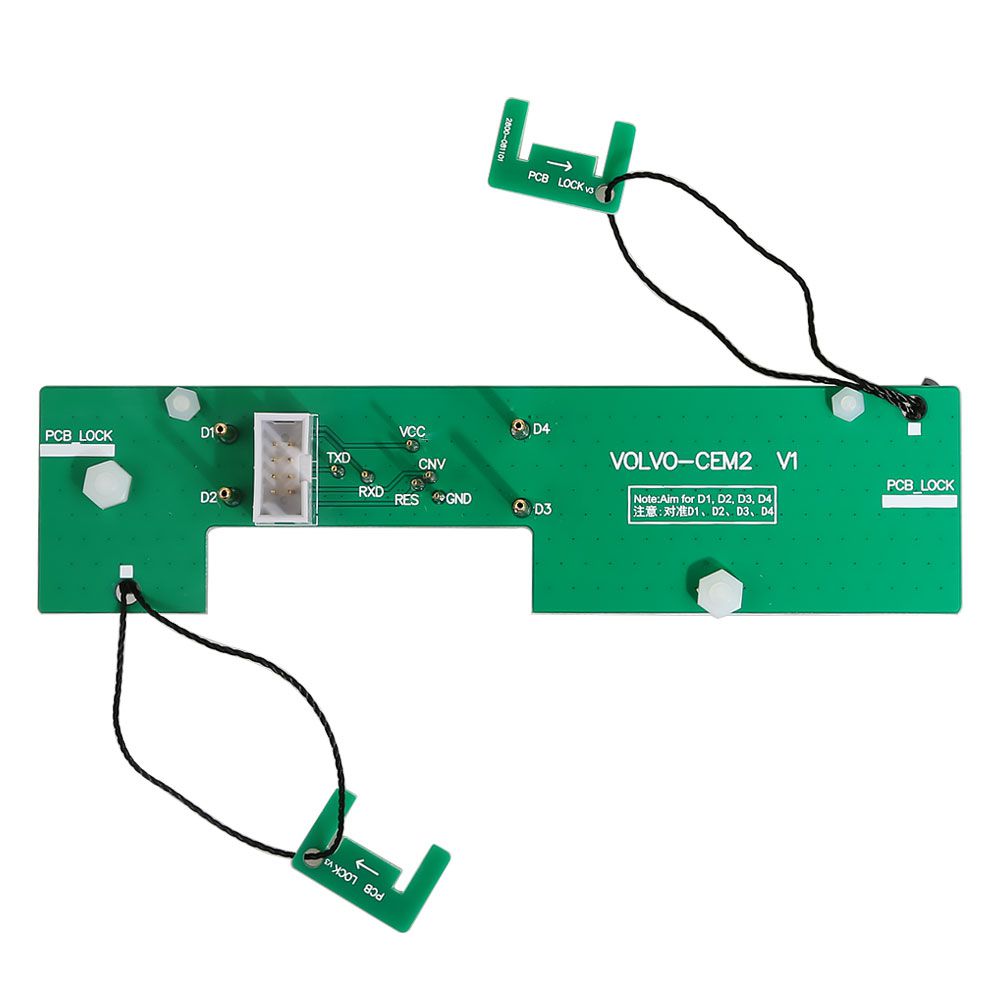

2	VOLVO CEM2 V1 Interface Board		1 PC	Applicable to connect VOLVO CEM2 module to read password.
3	VOLVO KVM V1 Interface Board		1 PC	Applicable to connect VOLVO KVM module to read password.

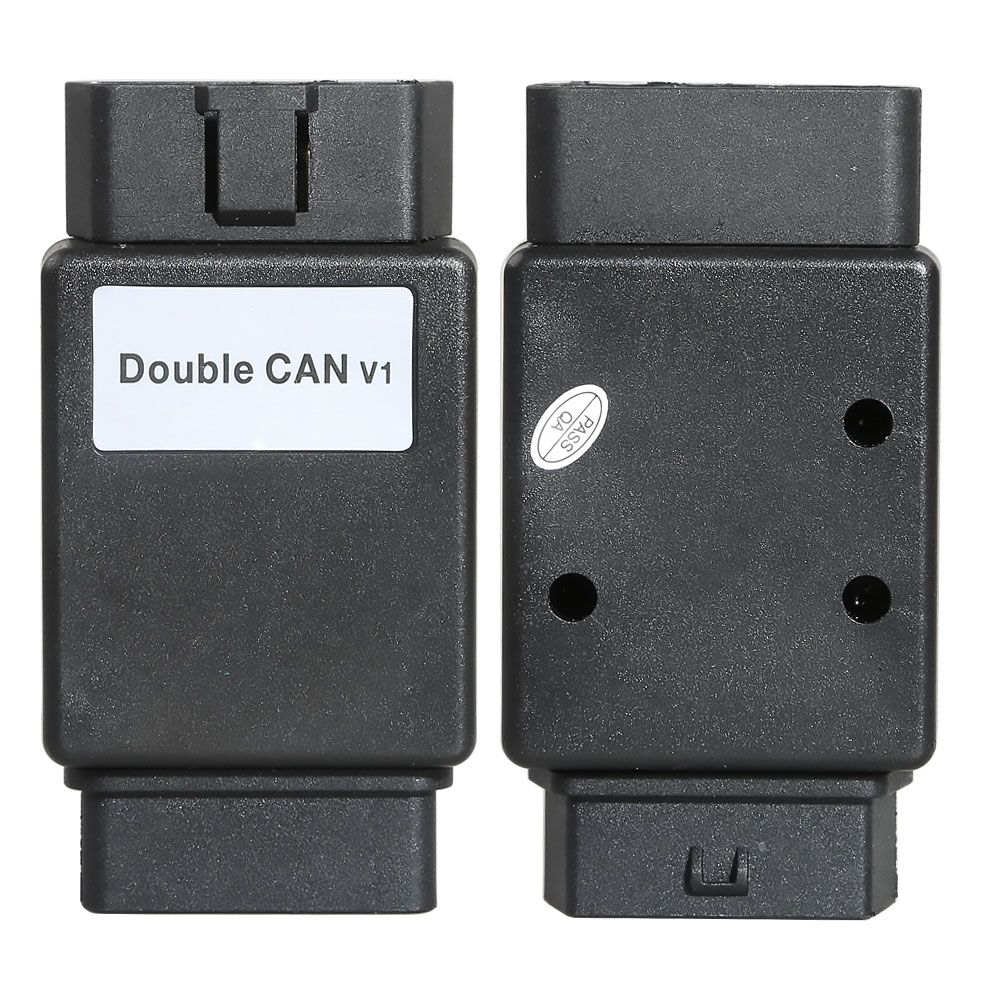

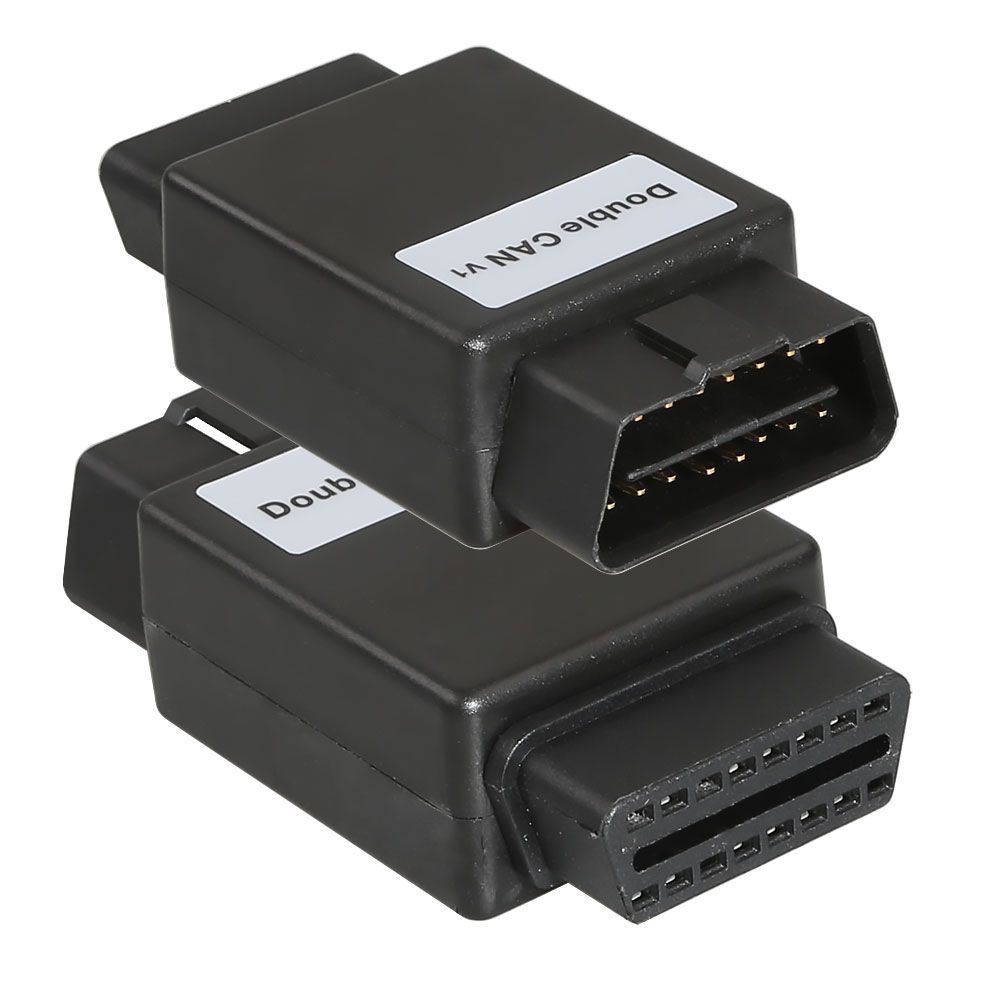

4	Double CAN Adapter		1 PC	Applicable to connect vehicle OBDII port and ACDP host.
5	VOLVO Copper pillar Package (M2.5*12+6mm) × 2, (M2.5*20+6mm) × 1		3 PCS	Applicable to fix VOLVO-KVM interface board.
6	Test Points Cleaning Probes		1 PC	Applicable to clean conformal coating.
