Automobile ECU Sensor Simulation Tool for Car ECU Reparing Tool

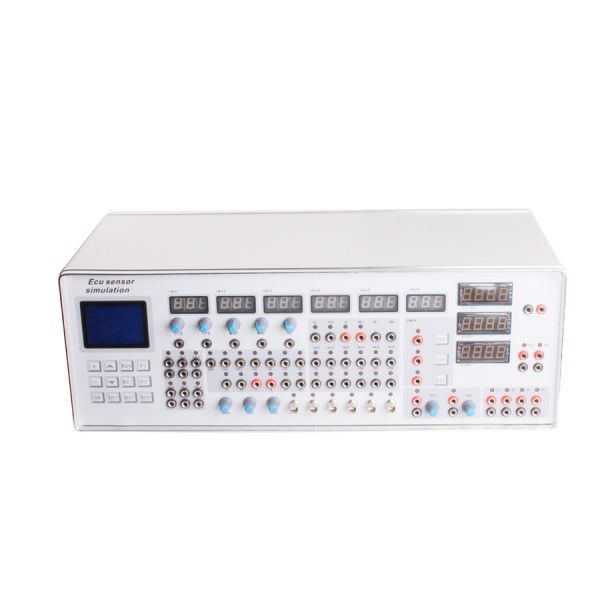

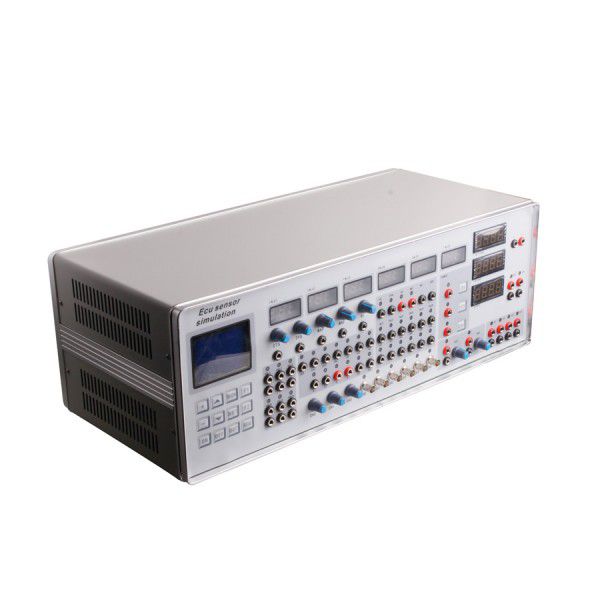

Automobile ECU Sensor Simulation Tool

Description:

The Automobile ECU Sensor Simulation Tool is a tool to use for car ECU repairing & programming. It is an indispensive tool for car ECU repairing and with more stable function.

Application range:

Diagnosis/engine/transmission/ABS/air-condition/IMMO etc. for ECU repairing, auto teaching aid model driver, automobiles R&D. It fit for multi-brands cars made in Asia, Europe, and USA.

Function:

1. Users can set the engine control system, independent of different types of crank signal output

2. Engine speed signal output

3. Speed output (Hall signal, magnetic signal)

4. Automatic transmission input and output shaft signal simulation

5. Set the waveform data is written directly

6. Three, four-channel ABS wheel speed signal output

7. PC board working current test

8. Injector simulation

9. Idle stepper motor simulation (four-lane, six-lane)

10. A \ C relay simulation, Pump relay simulation, Radiator fan relay simulation

11. Audio signal outputs, power amplifier driver

12. Automatic Shift Valve, shift quality valves, hydraulic control valve simulation

13. EGR solenoid valve drive

14. Carbon can clear the solenoid valve drive or valve simulation

15. Tachometer drive

16. Blower Control Module Driver

17. Idle valve driver

18. Stepper motor drive (4, 6 lines)

19. Injector Driver

20. Ignition coil driver, module drive

21. Parking sensor (ultrasound) probe drive

22. Automatic Shift Valve Drive, Shift quality valve drive, hydraulic valve drive

23. Water temperature, intake air temperature, outdoor temperature, evaporation temperature sensor signal simulation box

24. Oxygen sensor signal simulation (manual/ auto signal), Throttle signal simulation, EGR solenoid valve simulation

25. Air flow sensor, intake air pressure sensor (analog, digital) signal simulation

26. Ignition coil simulation

27. Fuel injection pulse width measurement

28. Central lock server simulation

29. Burglar resistance simulation

Output signal: magnetic signals, Hall signals, optical signals

Special Feature:

Sensor simulation experts:

It can be set arbitrary waveform output, can produce all the models of today's engine crankshaft, camshaft signals (Hall, magnetic, optical signals), waveform memory card from the long-term preservation, waveform data for free online updates.

Crank simulation experts:

ABS wheel speed signal, speed signal (Hall, magnetic, optical signals), the oxygen sensor signal, throttle signal, air flow, inlet pressure sensor (analog, digital) and other signal simulation

Actuator experts:

Tachometer, odometer, blower control module, injector, ignition coil, ignition module, frequency and pulse width control solenoid valve, stepper motor drive (four-lane, six-lane), car audio amplifiers, etc.

Actuators simulation for Ignition coil, injectors, idle speed stepper motor, ultrasonic generators etc

Strong domestic first-line five-channel editing functions crank signal

1. Actuator
Drive current: 3A

1% ~ 99% duty cycle continuously adjustable frequency continuous adjustment

2. Sensor Signal Simulation:
Resistance: 100ω ~ 10000ω

Voltage: 0V ~ 5V × 2 0V ~ 1.5V 0V ~ 12V

3. The implementation of simulated driving:
69-channel simultaneous output

4. Stepper motor drive:
Current: 1A

5. Ammeter maximum test current: 5A

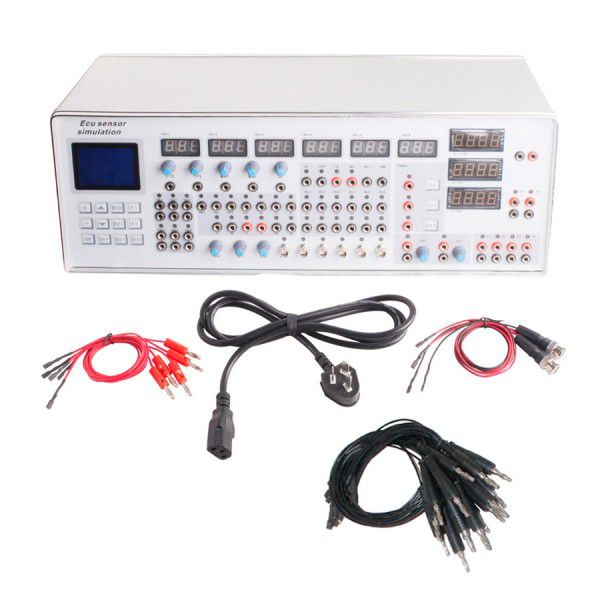

Packing List:

1 x sensor simulation main

2 x signal line

1 x power cable

ECU connector cable
