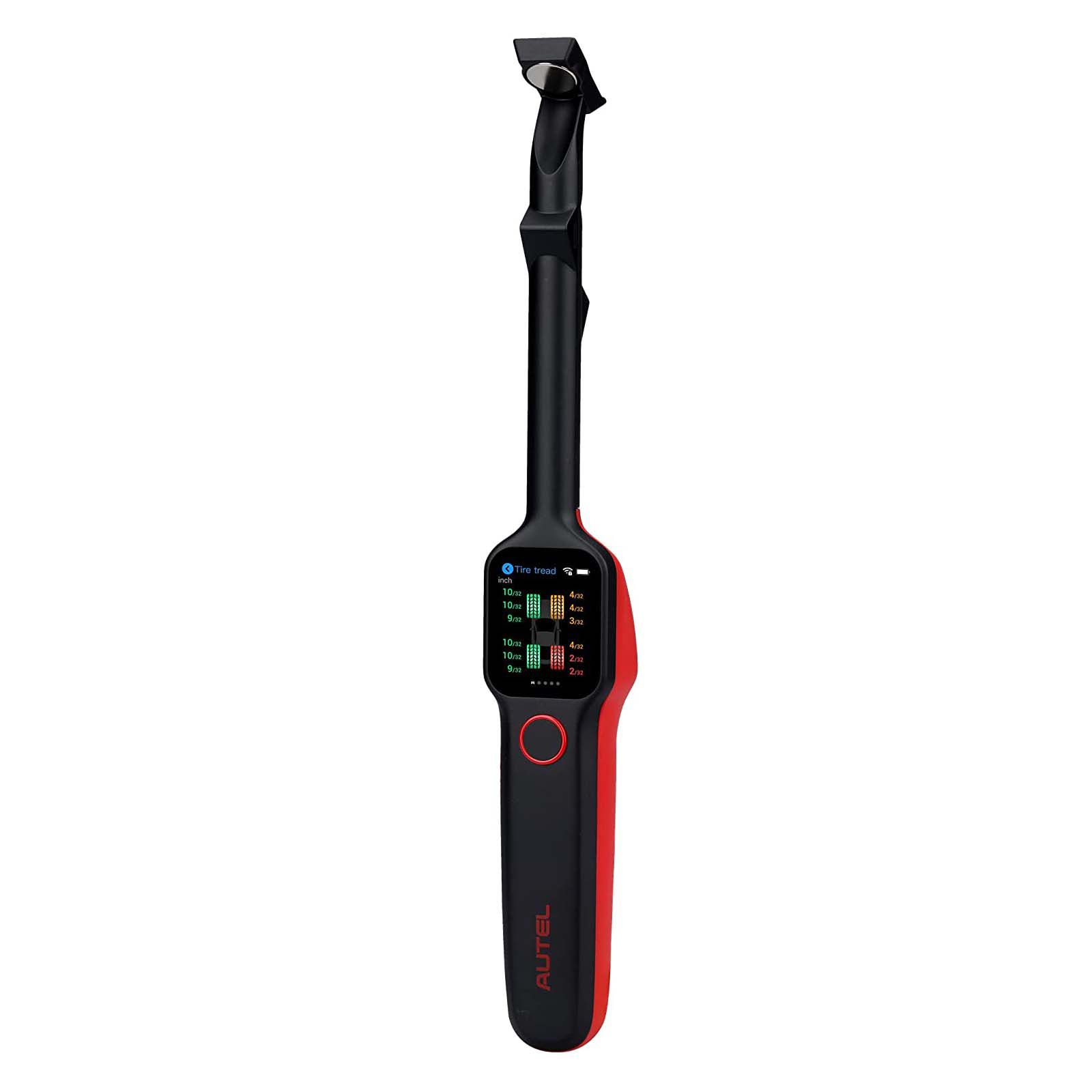

Autel MaxiTPMS TBE200 Tire Brake Examiner – Laser Tire Tread Depth & Brake Disc Wear 2-in-1 Tester (Works with ITS600)

The Autel MaxiTPMS TBE200 is a laser-based 2-in-1 tester that accurately measures both tire tread depth and brake disc wear with 0.1 mm precision. It features a 1.65-inch AMOLED super retina touch screen, a 1-megapixel macro camera, and an 8-megapixel zoom camera to deliver real-time measurement data curves. The dual-camera system allows users to document tire wear and damage and scan the Tire Identification Number (TIN).

Additional capabilities include DOT code scanning, tire expiration alerts, tire recall lookup, and photo capture of tire conditions. With its high-resolution touchscreen, real-time tire health and uneven wear analysis, full tread measurement, and support for nearly all tire brands—including Goodyear, Continental, Bridgestone, and Dunlop—the TBE200 delivers comprehensive diagnostics when paired with the ITS600 (sold separately).

Product Features

Tire Tread Depth & Brake Disc Wear Testing

The Autel MaxiTPMS TBE200 functions as a high-precision laser inspector with 0.1 mm accuracy, displaying measurements graphically without requiring wheel removal. It provides four intuitive visual indicators—Gray, Green, Yellow, and Red—to represent varying degrees of tire or brake disc wear, enabling accurate safety assessments for technicians and repair professionals.

Real-Time Tire Health Analysis

The TBE200 delivers instant wear analysis and displays live measurement curves on its 1.65-inch high-resolution AMOLED super retina touchscreen. Its full-color graphical interface offers actionable service recommendations such as tire or brake disc replacement, tire rotation, and 4-wheel alignment. Integrated DOT scanning, expiration notices, and recall lookup simplify access to critical tire data.

Enhanced Performance with ITS600

When used alongside the ITS600 TPMS tool (sold separately), the TBE200 leverages the ITS600’s larger display to combine tread and brake wear data with TPMS information. This integration generates comprehensive vehicle health reports containing detailed insights for both service areas. Reports can be printed, shared, or archived for future reference.

Wide Vehicle Coverage & One-Year Warranty

The TBE200 supports 99% of vehicles—including passenger cars, off-road, and commercial models—and is compatible with virtually all major tire brands. It comes with a one-year warranty and a 100% risk-free purchase guarantee, making it a reliable choice for professional workshops.

Product Functions

• Laser Measurement: Combines tire tread depth and brake disc wear inspection in one tool—no wheel removal needed.
• 0.1 mm laser measurement accuracy.
• Full tread measurement capability.
• Quick simultaneous check of tread depth and brake disc condition.
• Real-time tire health analysis with on-screen data display.
• Measurement data curve visualization.
• Uneven wear analysis.
• Detailed assessment for individual tire treads or brake discs.
• Personalized maintenance suggestions: tire/brake disc replacement, rotation, and alignment.
• Scan DOT codes, receive tire expiration alerts, and perform recall lookups.
• Capture photos of tire wear and damage.
• Generate comprehensive test reports (requires ITS600): includes TPMS status, tread depth, brake disc wear characteristics, and repair tips.
• QR code report sharing: easily download and share measurement reports via mobile devices.

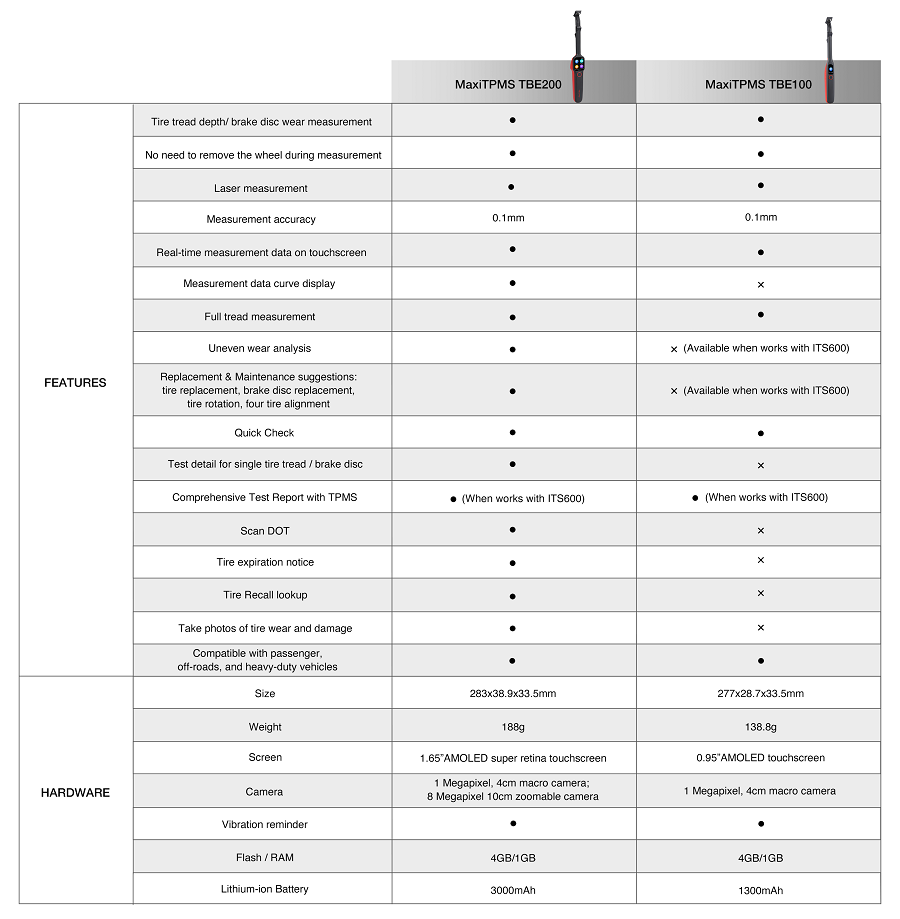

Product Comparison: Autel MaxiTPMS TBE200 vs. TBE100

Product Specifications

Package Includes

• 1 pc × Main unit
• 1 pc × Calibration table
• 1 pc × Power adapter
• 1 pc × Type C USB cable
• 1 pc × Quick reference guide
• 1 pc × Carrying case
