Original Autel MaxiIM IM608 PRO Auto Key Programmer & Diagnostic Tool with XP400 Pro (Upgraded Version of Autel IM608)

Original Autel MaxiIM IM608 PRO Auto Key Programmer & Diagnostic Tool



Autel MaxiIM IM608PRO is a comprehensive key and immobilizer programming package of the MaxiIM IM608 Pro 10.1-inch Android touchscreen tablet, XP400Pro key and chip programmer, the wireless JVCI J2534 pass thru programming device and the Key Programming Adapter kit (optional). The IM608 Pro enables key learning directly through the OBDII port for 85 percent of vehicles in North America. The tablet can read the immobilizer pins and password directly from the vehicle and store this information to use later when learning the newly programmed keys to the vehicle. Autel IM608 Pro is also an advanced diagnostics tablet featuring AutoVIN and AutoSCAN technology to automatically identify the vehicle and perform an all systems scan. The advanced diagnostics functions of the IM608 Pro include the ability to perform active test, coding and adaptations.

Highlights:

1. Upgraded Version of Autel IM608
2. One Year Free Update Online on Autel Official Website
3. Comes with XP400 Pro which adds more functionality for BMW, Mercedes-BENZ, as well as EEPROM reading
4. Could be used with IMKPA Accessories (Need to Buy Separately) Which adds BMW EWS3 key learning, Benz NEC key learning and BENZ ESL_W209 read/write/erase
5. Existing Autel IM508/ IM608 Users Can Upgrade To IM608 Pro by Purchasing Autel XP400 Pro
6. Multi-Language for both Diagnosis and IMMO Menu:
English, French, German, Spanish, Portuguese, Italian, Dutch, Polish, Swedish, Korean, Japanese, Russian and Traditional Chinese

What's the new added function of Autel IM608 Pro?

Autel MaxiIM IM608 Pro comes with XP400 Pro:

Autel MaxiIM IM608 Pro Detail Functions Supported:

1. IMMO Functions

Auto Detect Make/Model/Year/System
Read PIN (All Key Lost)
Key Learning
IMMO ECU Reset/Adaption
IMMO ECU Refresh/Coding
Remote Learning
AUDI Q5/A4/A5 2015-2017 Key Learning
VW MQB Key Learning
BMW FEM/BDC Key Learning and Adaption
BMW CAS4 Key Learning and Adaption
Mercedes Key Learning
2015-2018 Land Rover & Jaguar write key via dump
Volvo Smart Key Learning/knob-style smart key
Advanced Programming Functions

EEPROM Read/Write
MCU Read/Write
Key Programming
Mercedes Key Read/Write
Remote Frequency Detect
OE-Level Diagnostics

2. All system diagnostics and Advanced Service Functions (Work with the MaxiFlash JVCI (J2534 ECU Reprogrammer)

Oil Service Reset
Parking Brake Pad Relearn After Replacement
Steering Angle Sensor Relearn
Battery Registration and Reset
Diesel Particulate Filter Regeneration
Tire Pressure Monitoring System
Active Test
ECU Coding
VW/Audi Component Protection
Complete Service Functions

XP400Pro adds support for following chips:

EEPROM-->>AMD-->>AM29FXXX series chip
EEPROM-->> FUJITSU-->> MB29FXXX series chip
EEPROM-->> ST-->> M29FXXX series chip
Engine control module-->> ST-->> M29FXXX series chip
IMMO-->> BENZ-->> ESL_W209_W906 (Motorola) read/write/erase function
IMMO-->> BMW-->>EWS3 module read/write function
REMOTE_RENEW(renew key)-->> NEC-->> V51 and V5 chip read/write/erase

XP400 Pro adds support for following adaptor board:

APB113 PCF79XXadaptor board
APB114 EWS3 adaptor board
APB115 NEC Adapter board
APB118 NEC ELV adaptor board
APB119 TB28FXXXadaptor board
APB120 TMS370adaptor board
APB121 AM29FXXX Adapter board
APB122 AM29FXXX adaptor board1
APB123 AM29FXXX adaptor board2
APB126 M35080/D80 adaptor board
APB127 MC68HC0(7)05BXX adaptor board
APB128 MC68HC05X32 adaptor board

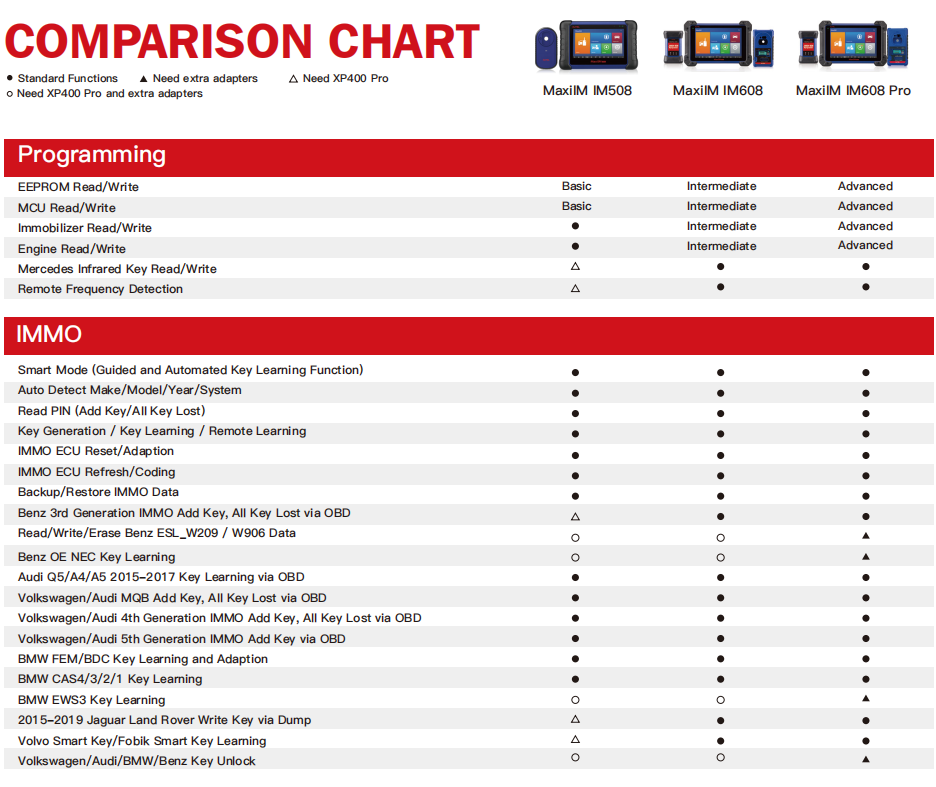

What's the Difference Between IM608 and IM608 Pro?

The only difference between IM608 and IM608 Pro is the programmer that comes with the tablet.
The tablets themselves IM608 and IM608Pro have no difference in terms of hardware and software. All keep the same.
As for the difference of XP400 and XP400Pro, the main difference is the hardware upgrade. XP400PRO is more powerful.
But the good thing is you can buy XP400Pro and optional adaptors together with any Autel Key Programming tool like IM508 and IM608 to have the same features with IM608Pro&XP400Pro and optional adaptors.


XP400Pro programmer upgrade and improvement compare to XP400:

1. Fixed the problem of connecting the XP400 to the vehicle ODB connector causing the burnout of the device.
2. Fixed the stability problem of using APB102 IR key to read/write.
3. Upgrade the hardware of programmer, Chip read/write function is more stable and support more EEPROM chips.
4. Fixed the problem of EERPOM adaptor APB101 can’t read/write EEPROM chip and rename it as APA129.
5. Rename accessories APA104、APA105、APA106 as APA107、APA108、APA109.
6. APA108 and APA109 cable length is shorter than before, reducing the signal interference.
7. XP400 Pro add support for following chips:
(1) EEPROM-->>AMD-->>AM29FXXX series chip;
(2) EEPROM-->> FUJITSU-->> MB29FXXXseries chip;
(3) EEPROM-->> ST-->> M29FXXXseries chip;
(4) Engine control module-->> ST-->> M29FXXXseries chip;
(5) IMMO-->> BENZ-->> ESL_W209_W906(Motorola) read/write/erase function;
(6) IMMO-->> BMW-->>EWS3 module read/write function;
(7) REMOTE_RENEW(renew key)-->> NEC-->> V51 and V57 chip read/write/erase; (Support original dealer key learning with key dump mode.)
XP400 Pro adds support for following adaptor board:
(1) APB113 PCF79XXadaptor
(2) APB114 EWS3 adaptor
(3) APB115 NEC Adapter
(4) APB118 NEC ELV adaptor
(5) APB119 TB28FXXXadaptor
(6) APB120 TMS370adaptor
(7) APB121 AM29FXXX Adaptor
(8) APB122 AM29FXXX adaptor
(9) APB123 AM29FXXX adaptor
(10) APB126 M35080/D80 adaptor board
(11) APB127 MC68HC0(7)05BXX adaptor
(12) APB128 MC68HC05X32 adaptor

400pro supports 12 types of unlocking smart key:

BMW E Chasis remote control
OE 315 remote refresh
OE 868 remote refresh
Aftermarket remote control refresh
BMW F Chasis remote control
315 remote refresh
433 remote refresh
868 remote refresh
Audi--semi smart key
PCB2_8T0959754_433_REMOTE
PCB2_8T0959754D_868_REMOTE
Audi--smart key
PCB3_4H0959754DA_433_SMARTKEY
PCB3_4H0959754DB_315_SMARTKEY
PCB3_4H0959754DD_868_SMART

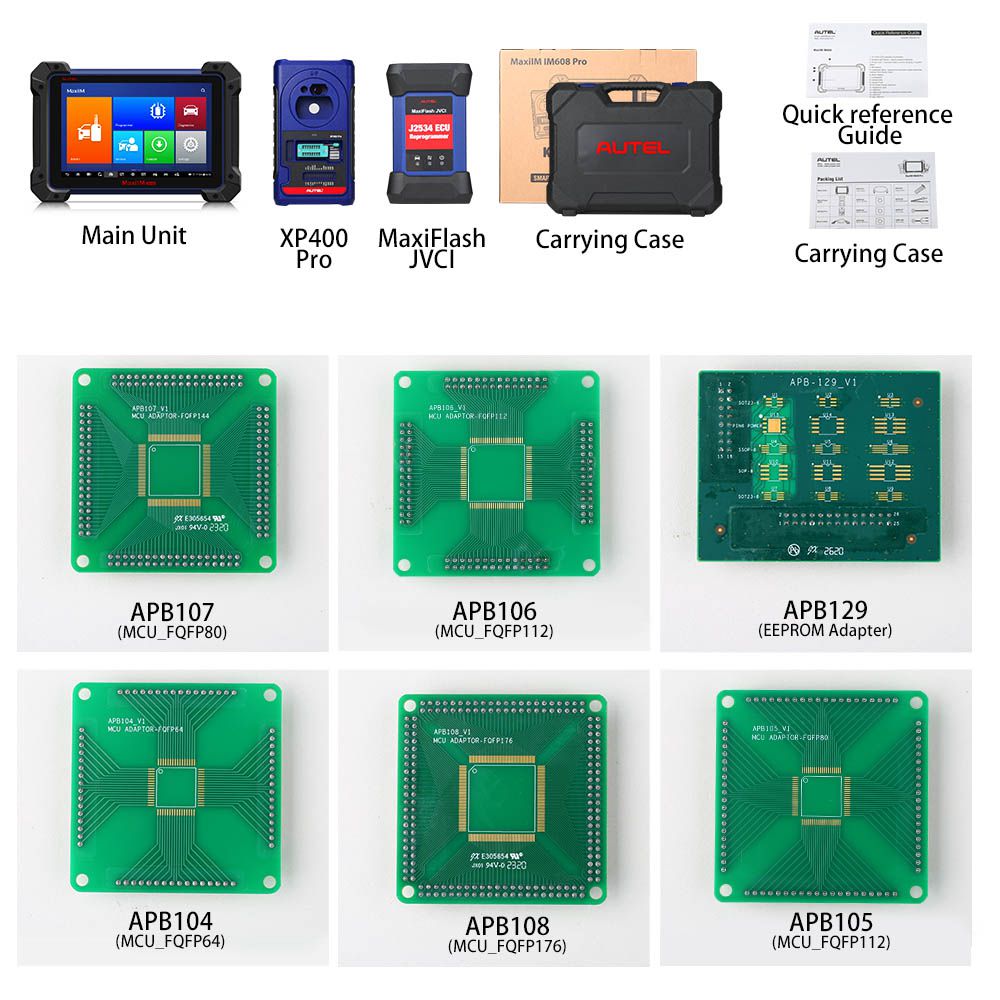

Package List:

1pc x MaxiIM IM608 Tablet
1pc x XP400 Pro Key Programmer
1pc x MaxiFlash JVCI ECU Reprogrammer
1pc x Carry Case
1pc x Main Cable
1pc x USB Cable (2m)
1pc x Mini USB Cable
1pc x AC/DC Adapter (12V)
1pc x Light Fuse - 6*30mm (2pcs)
1pc x Cigarette Lighter
1pc x AAC001
1pc x APC101 (USB Cable)
1pc x APB129 (EEPROM Adapter)
1pc x APB125 (Mercedes Infrared Collector)
1pc x APB103 (MCU_PLCC52)
1pc x APB104 (MCU_FQFP64)
1pc x APB105 (MCU_FQFP80)
1pc x APB106 (MCU_FQFP112)
1pc x APB107 (MCU_FQFP144)
1pc x APB108 (MCU_FQFP176)
1pc x APB109
1pc x APB110 (MCU_FQFP176)
1pc x APB111 (MCU_FQFP176)
1pc x APA002 (EEPROM Socket)
1pc x APA101 (Signal Cable)
1pc x APA103 (EEPROM Clamp)
1pc x APA107 (ECU Clamp)
1pc x APA108 (MCU Clamp)
1pc x APA109 (MC9S12 Clamp)
1pc x Connect Cable
