100% Original Autel Maxivideo MV480 Dual-Camera Digital Videoscope Inspection Camera Endoscope with 8.5mm Head Imager

Product Highlights

• High-Resolution Imaging: Captures images and videos at 1920 x 1080 resolution
• Extended Battery Life: Built-in 2600mAh battery provides up to 4 hours of continuous use
• Multilingual Support: Available in English, Spanish, Portuguese, Italian, Dutch, German, Polish, French, Japanese, and more

Description

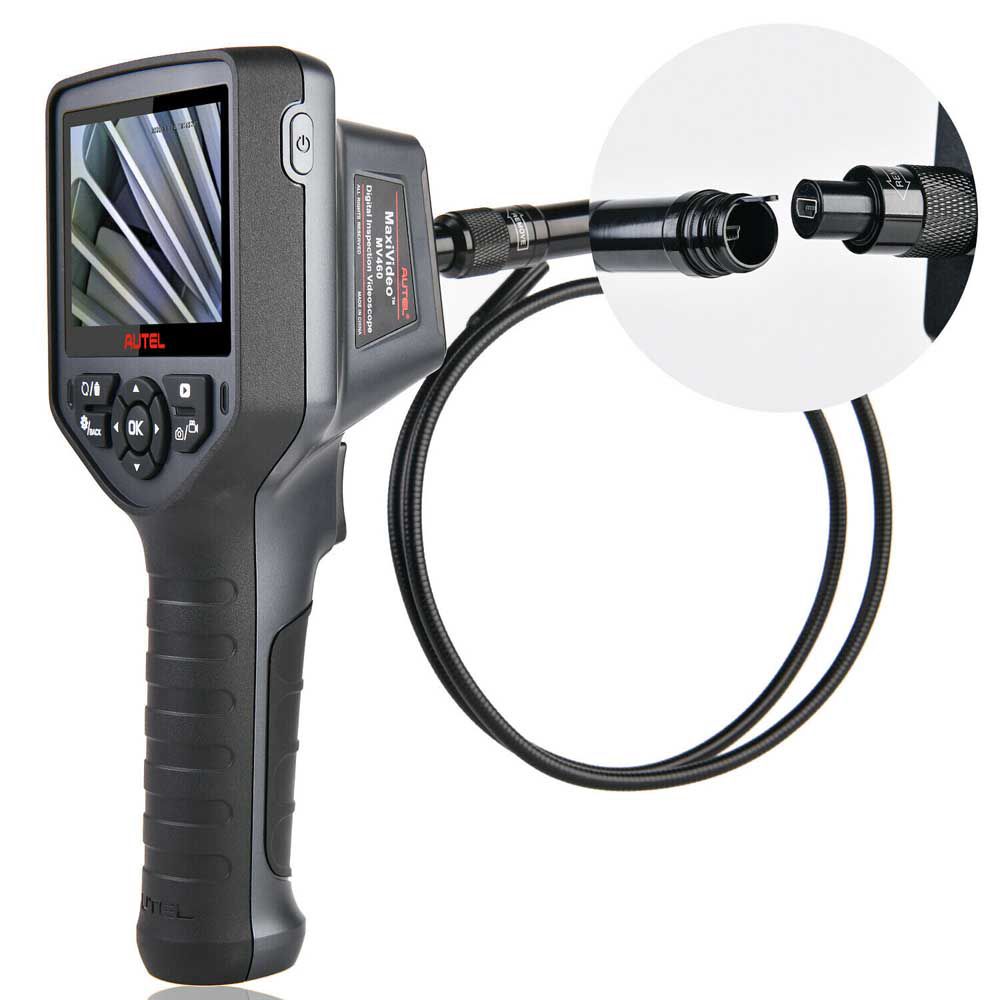

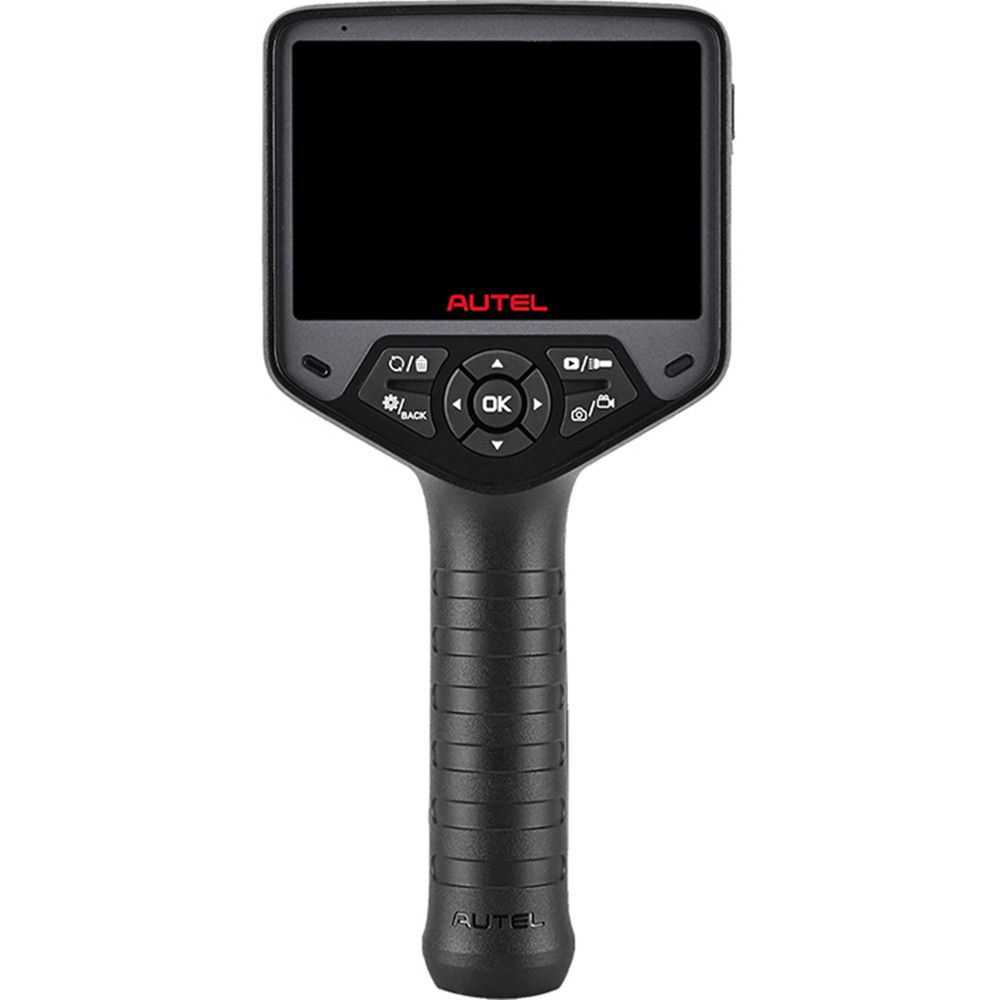

The Autel MaxiVideo MV480 is the next generation of digital videoscopes, designed for inspecting hard-to-reach areas. It features a semi-rigid flexible cable and 10-level adjustable LED lighting. Equipped with dual front and side cameras delivering 1920×1080 high-resolution imaging, a 4.1" full-color LCD display (1200×720), an 8.5mm camera probe, and a built-in 2600mAh rechargeable battery offering up to 4 hours of continuous operation. This versatile videoscope offers a safe, fast, and cost-effective solution for inspecting machinery, facilities, and infrastructure.

Key Features

1. High-resolution images and videos (1920 x 1080)
2. Dual front and side cameras for wider viewing angle
3. 4.1-inch full-color LCD display (1200 x 720)
4. One-button quick image capture and video recording
5. 70-degree field of view for expanded viewing angle
6. Audio annotation capability for detailed review
7. Micro HDMI output for streaming to larger monitors
8. Freeze-frame function for stills or video recording
9. On-screen horizontal/vertical reverse
10. Records and plays back images and video clips
11. 7X digital zoom for enhanced detail
12. Includes 8GB Micro SD card; supports up to 128GB
13. Includes Mini-USB cable for uploading images and videos
14. Over 10,000 lux illumination with 10-level adjustable LED lighting
15. Built-in flashlight for improved visibility in low-light environments
16. Built-in, rechargeable 2,600 mAh battery for 4 hours of continuous use
17. 1m (39.4") semi-rigid, flexible, watertight cable

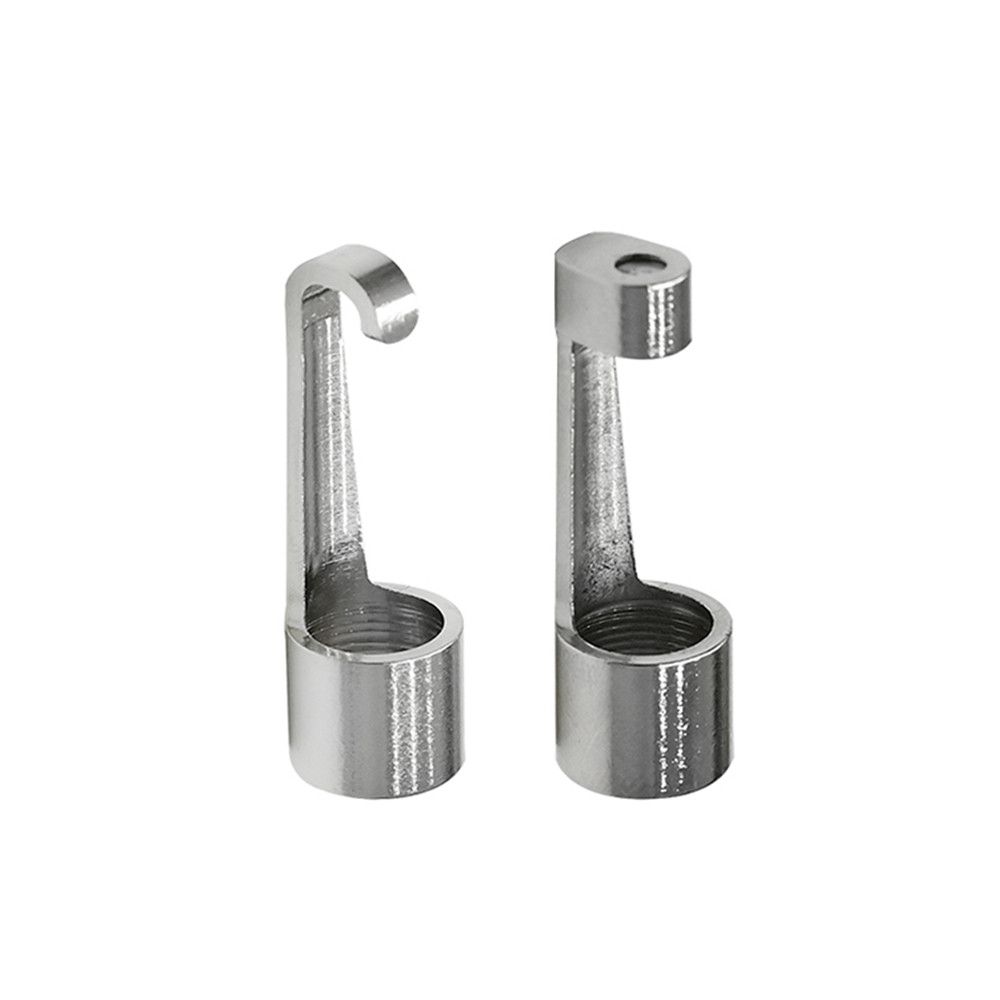

18. Includes magnet and hook cable accessories
19. 8.5mm (0.33") probe fits most spark plug holes
20. Compatible with 5.5mm (0.22") camera head (not included)

Model Comparison: MV400 vs MV500 vs MV480 vs MV460 vs MV160

Specifications

Recommended Use

Indoor

Optimal Viewing Distance

0.79" to 2" (2 cm to 5 cm)

Image Capture

JPG images (1920 x 1080 pixels)
MP4 videos (1920 x 1080 pixels)

Screen Type Display

4.1" TFT LCD

Display Resolution

1200 x 720 pixels

Power Supply

Built-in rechargeable lithium-ion battery pack (3.7V/2600 mAh)

Tested Battery Life

Approximately 4 hours of continuous use

Recording Medium

Micro SD card (8GB Standard / 128GB Max)

Image Controls

Zoom, low light vision

Lighting

Fully adjustable LED, Flashlight

Cable Reach

1m (39.4")

Imager Heads

8.5mm (0.33"), 2 megapixel (1920 x 1080 pixels)

Waterproof

To a depth of 1m (39.4") (Imager heads and cable only)

Additional Ports

TF, Mini USB, Micro HDMI

Operating Temperature

Main unit: 14°F to 122°F (-10°C to 50°C)
Cable: 14°F to 140°F (-10°C to 60°C)

Storage Temperature

-4°F to 158°F (-20°C to 70°C)

Operating Humidity

5% - 95% non-condensing

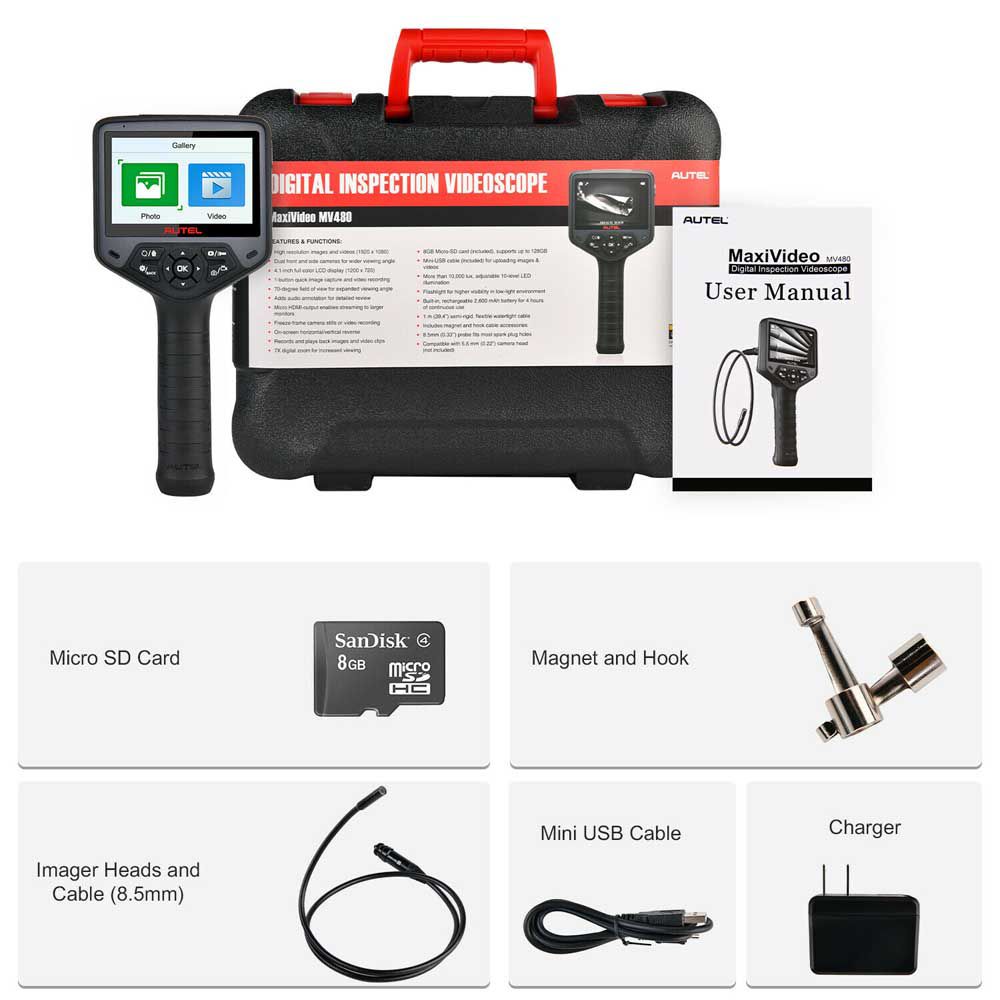

Package Contents

• 1x MV480 main Unit
• 1x Magnet and Hook
• 1x Imager Heads and Cable (8.5 mm)
• 1x User Manual

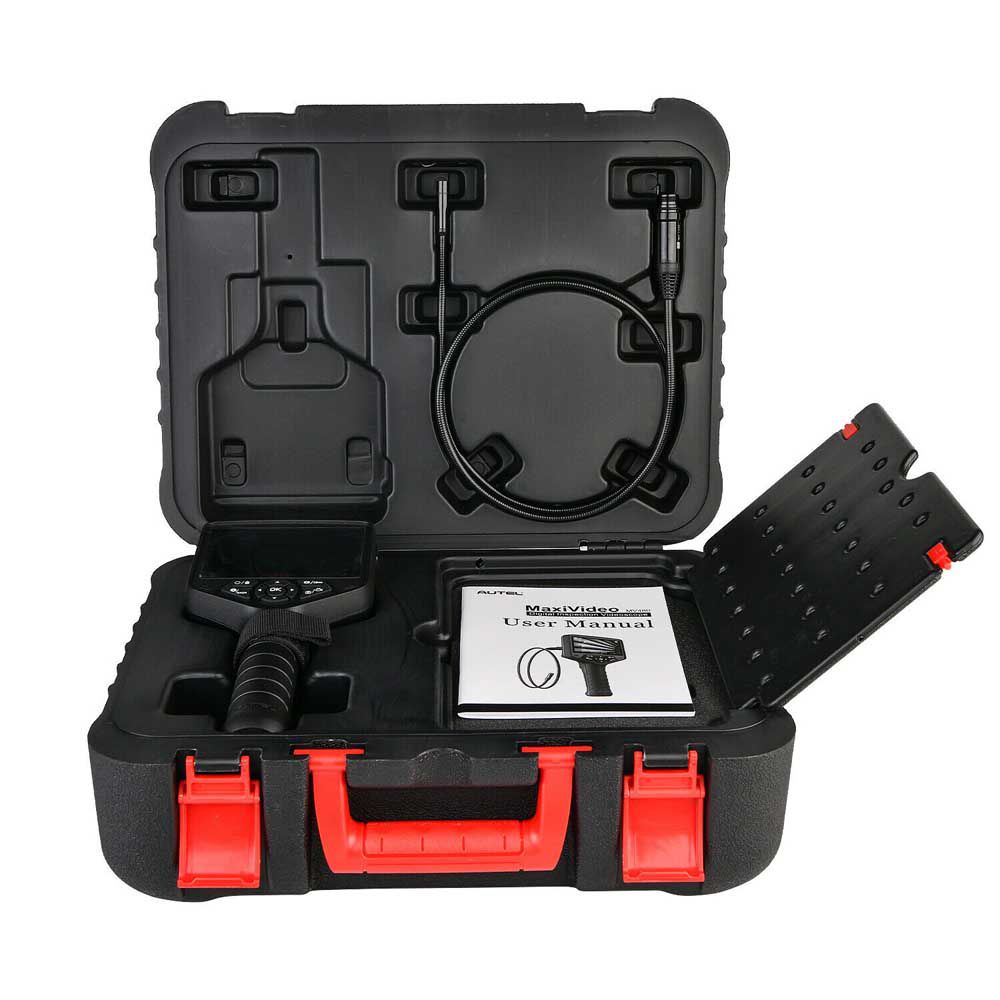

• 1x Protective carrying case
• 1x Micro SD card
• 1x Charger
• 1x RS232 Serial Cable
• 1x Mini USB Cable
