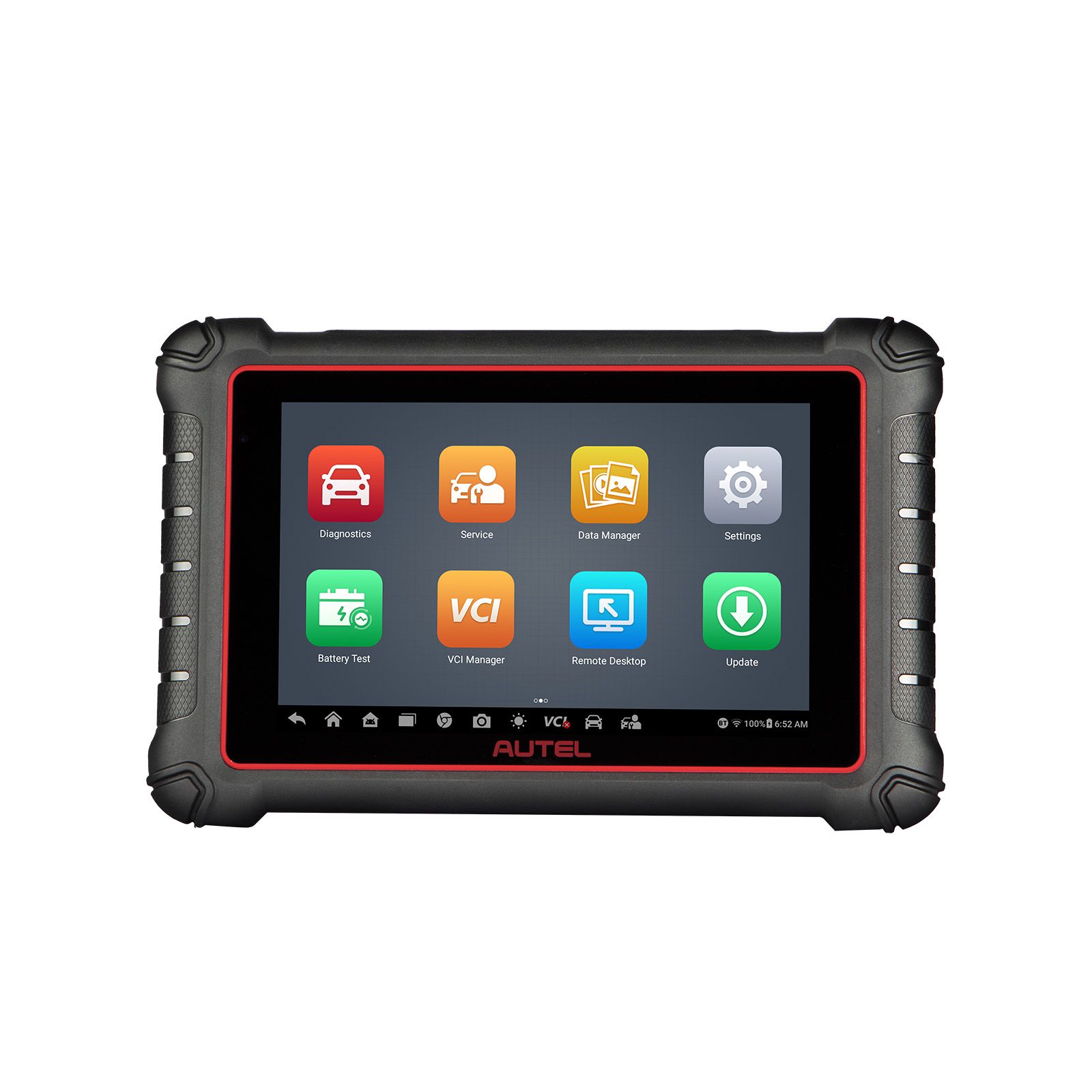

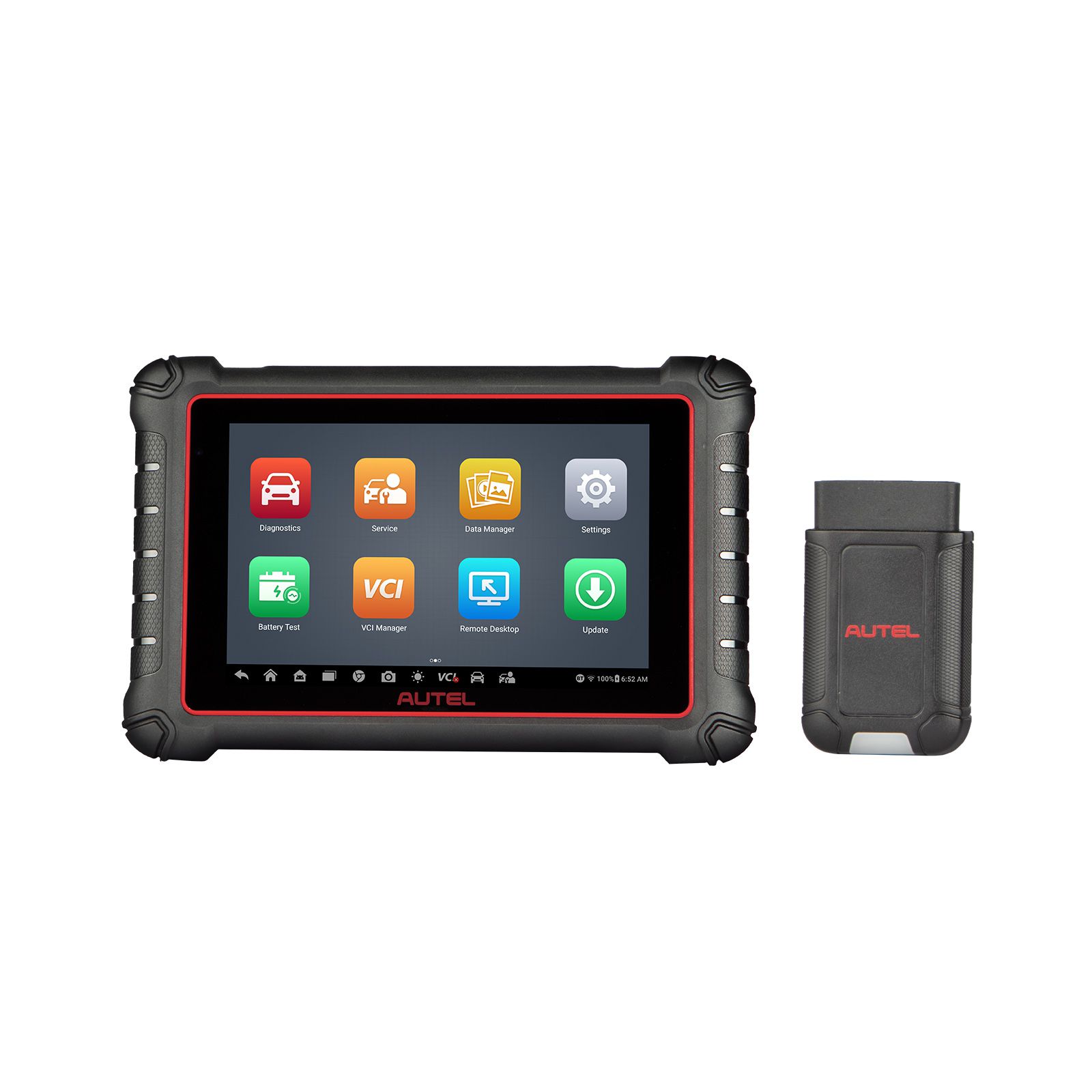

Autel MaxiPro MP900Z BT (MP900 BT) Diagnostic Scanner Supports ECU Coding, Pre & Post Scan, DoIP CAN FD Protocols, Upgraded Ver. Of MP808BT PRO

Autel MaxiPro MP900Z-BT (MP900-BT) Diagnostic Scanner Supports ECU Coding, Pre & Post Scan, DoIP CAN FD Protocols, Upgraded Version Of MP808BT PRO

Autel MaxiPRO MP900BT is Autel 2023 released model. Upgraded from MP808BT, this MaxiPRO MP900BT has more powerful configurations and more functions. Android 11, 8 Megapixel Rear Camera, 4GB RAM & 64GB ROM, 8 inches Screen. It has been updated from 36 service functions to over 40 service functions. While enjoying the original functions including Oil Reset, EPB, BMS, SRS, ABS Bleed, SAS Calibration, DPF Generation, Injector Coding, Throttle Matching, Suspension Matching, TPMS, etc. You can also perform newly added Cylinder, Turbocharging, Clutch, and Trans Adaption when needed. Moreover, Maxipro MP900BT can be constantly upgraded with more functions to meet your various maintenance needs.



Autel MaxiPRO MP900BT Top Highlights:

1. Global Version, No Area Restriction
2. One Year Free Update Online
3. Support Multi-Language: English, Spanish, French, German, Russian, Polish, Portuguese, Swedish, Italian, Dutch, etc
4. Support CAN FD/DoIP Protocols: Access New Communication Protocols of CANFD (Cover MY2020+ GM Models), and DOIP (Compatible with BMW E/F/G Chassis, Jaguar, LandRover Vehicle Makes)
5. Full System Diagnostics + ECU Coding + Reflash Hidden Functions + Guided Functions For VAG & ManLD + 40+ Hot Service Functions
5. Battery Diagnose: Work with Autel BT506 to perform complete battery detection functions, including battery reset, battery registration, in-vehicle and in-vehicle testing, etc.
6. Compatible with MaxiVideo MV108S: you can clearly understand the internal structure of the car, and present it on the tablet in pictures or videos




Autel MaxiPro MP900BT Features:

1. Complete capabilities for codes, live data, ECU information, active tests, special functions, etc.
2. Automatic system and software updates with real-time push message notifications via WiFi
3. Instant remote control tech support anytime, anywhere
4. Convenient Operation, More Intelligent Usage
5. One-click upload, support viewing, sharing, and printing of reports
6. One-click reset, quick maintenance and reset service of the vehicle
7. One-click upgrade, easy to download the latest version of the program
8. One-click feedback, get help from professional and technical personnel

MaxiPRO MP900-BT Come With ECU Coding Function

Same as Autel MaxiSys MS906 Pro, Autel MaxiPRO MP900-BT also enables advanced ECU Coding functions. You can use it to:

ECU Online Coding

Feel that coding is complex, so don't know how to start? Autel online servers will send coding values in automatic your quick and precise procedure. This is developed as a smart coding solution that can be used by any technician or shop, regardless of experience; only available in pro-level Autel scanners like Autel Maxipro MP900BT, Autel MS906BT and MS906PRO. This technology is compatible with Nissan, Infiniti, Renault, Kia, V.W, V.W_Brazil, BM.W, Mini, Peugeot, Citroen, Porsche, etc.



ECU Offline Coding

The Autel Maxipro MP900BT also allows you to manually input coding values for more customized builds. This technology is compatible with Nissan, Infiniti, Nissan GT-R, Toyota, Lexus, Scion, Daihatsu, Be.nz, Maybach, LandRover, Jaguar, Subaru, Ford, Fo.rd-AU, Fo.rd-EU, Mazda, Hyundai, Kia, Chrysler, Au.di, V-W, Skoda, V-W_Brazil, Bentley, Bugatti, Lamborghini, LT3, Seat, V-W_CV, Man_LD, Peugeot, Citroen, DS_EU, Opel, Vauxhall, Porsche, Mitsubishi, etc.; compatible with more models being upgraded from MP808S/MP808Z/MP808BT PRO/MP808BT KIT/MS906.



Reflash Hidden Functions

Most car manufacturers include hidden features that are not available in ordinary car settings. This Autel scanner can simply open or close those hidden features via the OBD2 port and is pretty easy to operate. The application includes: revised fuel consumption calculation, seat belt alarm, automatic sta-rt/st-op, hidden menu, daytime running lights, cruise control, automatic lo-cking and unlo-cking of the central lo-ck, comfortable windscreen washer, welcome light, and others.

This technology is compatible with Nissan, Infiniti, NissanGT-R, Audi, VW, VW_Brazil, BMW, MINI, Toyota, Lexus, Scion, etc.

This feature is also called “Personalized Programming Settings” for LandRover, Jaguar.



Guided Functions For VAG & ManLD

Check out this Autel scanner’s Guided Function (previously only available in Autel MS906BT/MS906PRO) to streamline your process greatly. With it, you can easily skip the Security Access Code and Channel Number for diagnosing the VAG Group and ManLD vehicles, and navigate the steps required for matching, calibration, and basic settings by simply following the provided guidance.



Full Bi-directional Control Automotive Scanner



Full Capability in Bi-directional Control/ Component Tests

MaxiPRO MP900-BT 2024 newest car scanner diagnostic tool features full bi-directional control ability, to send commands to the vehicle's systems/components, to verify system input/output without using the vehicle's controls.

Fuel Injector Balance, Injector Tests
Cylinder Deactivation, A/C Compressor Clutch Relay On/Off
Cycling ABS Pump Motor, EVAP Tests
Switch on/off car wipers, Rolling up/down car windows/doors/sunroof
Cooling fan motor command, Interior lighting test, High beam test

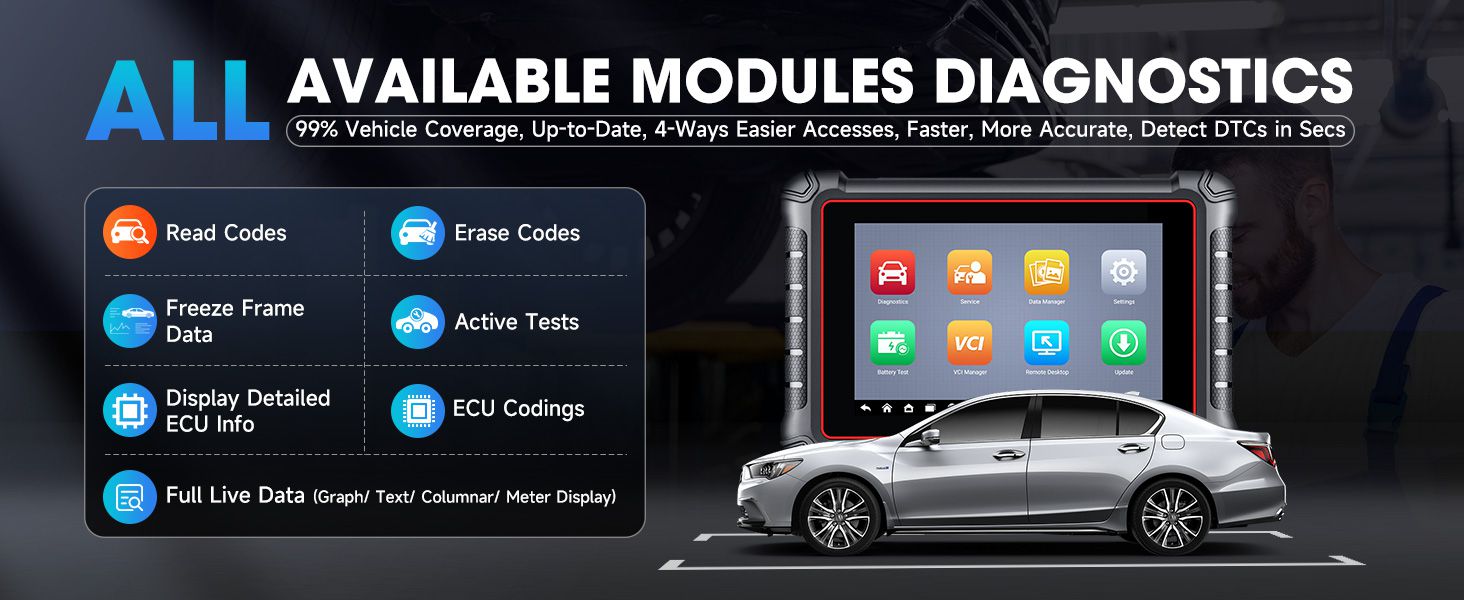

In-Depth Full System Diagnostics

Autel MaxiPRO MP900-BT car diagnosis expert can read DTCs and data streams for all available systems, and perform active test on the most extensive vehicles.

For instance:

Engines/ Auto Transmission/ Airbags/ Immobilizer/ABS/ Cruise Control/Instruments/ Self Leveling Suspension systems/Seats/ Doors/ Gateway/ Steering Angle/ Air Suspension/ Body Systems/ Electronic Parking Brake & Motor Assisted/ Power Steering/ Tyre Pressure / Rain Sensors / Stabilizer/ Intelligent Parking Assist/ Door Motors/ Audio Systems/ Air Conditioning/ Tiptronic/ Anti-Theft/ Soft Top/ Headlamp Leveling/ Automatic Clutch/ Headlights/Wash Wipe/ Cruise Control/ Multi Function Steering Wheel/ Aux Heating/ Clutch Electronics, etc.

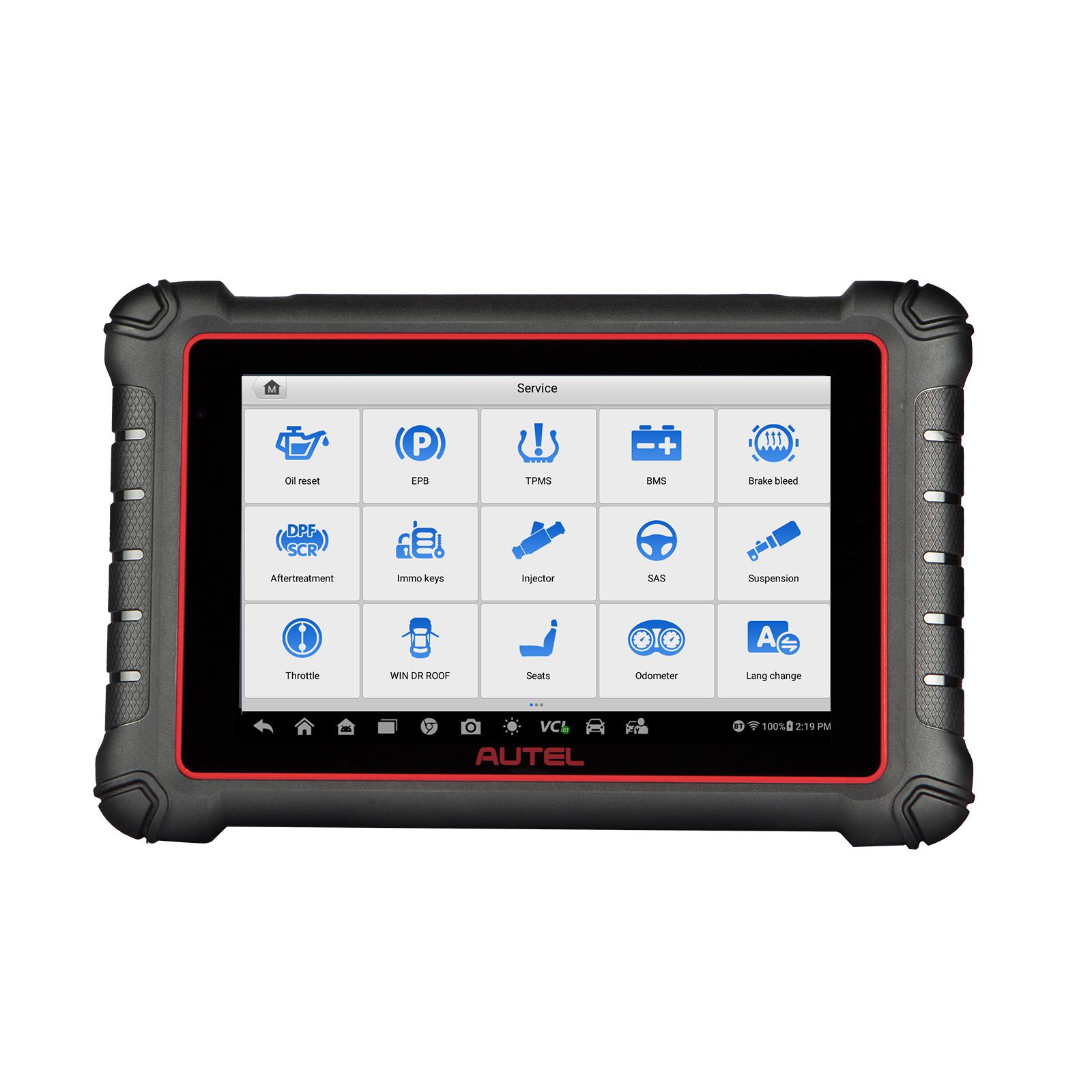

MaxiPRO MP900-BT with 40+ Hot Service Functions

The Autel MaxiPRO MP900-BT OBD2 diagnosis scanner not only has powerful diagnostic functions but also has a vast range of service functions, which will help you easily complete repair work. A money saver for home technicians and money maker for car workshops.

Injector Coding--- Code new injector numbers to replace the previous one when fitting the new injectors or after the replacement is completed;
Brake Reset--- Deactivate and activate the brake control system, assist with brake fluid control, open and close brake pads, etc.;
GEAR Learn--- Perform gear learning for the car when the engine ECU, the crankshaft position sensor, or the crankshaft flywheel is replaced.
Key Coding--- Help ECU to recognize the new keys when you need to add new keys, and delete the lost keys;
Oil Reset--- Reset the oil life systems every time the oil and oil filter are changed;
SAS Reset--- Perform steering angle sensor calibration and clear records;
BMS Reset--- Evaluate the battery charge state, register the battery replacement, etc.
ABS Bleeding--- When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity;
Relearn Throttle--- Initialize the throttle so that the “learned” values stored on ECU are returned to the default state;
DPF REG--- Clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode to stabilize the filter performance;

Note: Services and Reset functions are not universal to all the cars, please check compatibility with your VIN before you order.

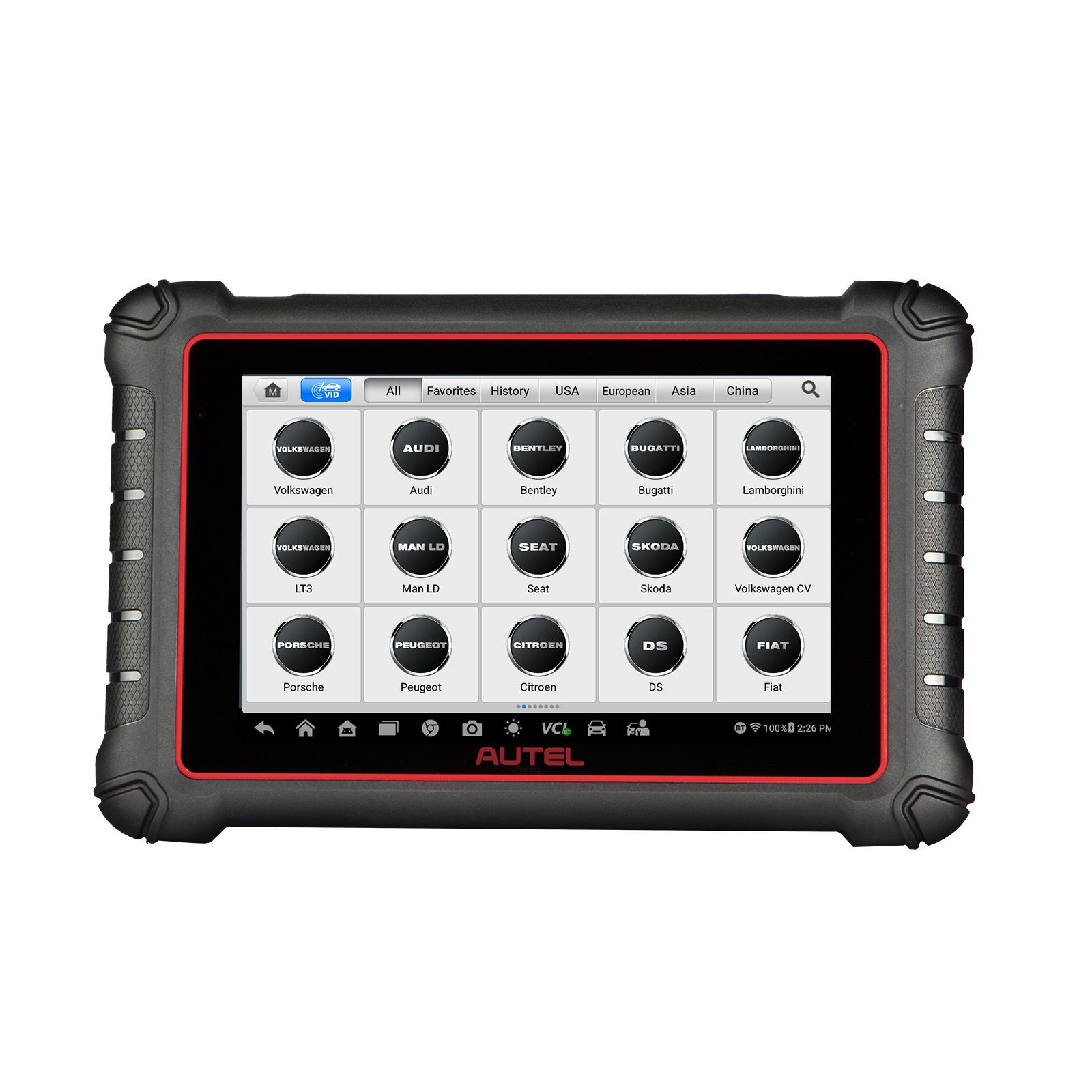

Extensive Vehicle Coverage - More Than 80 Makes

Asia cars after 2008:
for Acura, Honda, Hyundai, Infiniti, Isuzu, Kia, Lexus, Mazda, Mitsubishi, Nissan, Scion, Subaru, Suzuki, Toyota...

EU cars after 2002:
for Abarth, Alfa, Audi, Bentley, Benz, BMW, Bugatti, Citroen, Dacia, EU Ford, Fiat, Jaguar, Lancia, Land Rover, Maybach, Mini, Opel, Peugeot, Porsche, Renault, Saab, Seat, Skoda, Smart, Sprinter, Vauxhall, Volvo, VW...

US cars after 1996:
for Chrysler, Ford, GM.



Product Comparison:

Product Comparison Between MS906S and MaxiPRO MP900BT:

Category	Function	Vehicle Series	MS906S	MaxiPRO MP900BT
	processor		6 Cores	4 Cores
	operating system		Android™ 4.4.2, KitKat	Android 11
	RAM		2 GB	4 GB
	ROM		32 GB	64 GB
	display screen		8.0 inches	8 inches
	Wi-Fi		Wi-Fi (802.11 b/g/n)	Wi-Fi（802.11a/b/g/n/ac）
	BT		BT V5.0 + BR/EDR	No
	USB		USB 2.0：(1 USB HOST Type A, 1 USB mini device)	USB 2.0：(1 USB HOST Type A, 1 USB mini device)
	HDMI		HDMI 1.4a	No
	SD Card		SD Card (support up to 32 GB)	SD Card (Support up to 64GB)
	DB16 DLC		No	DB16 DLC
	headphone plug		Yes	No
	microphone port		1MIC	No
	speaker port		2 ports	No
	GPS		No	No
	light-sensitive		Yes	Yes
	button		1 power button	1 power button
	battery		3.7V 10000 mAh	3.7V 7700 mAh
	camera		Rear: 8.0 Megapixel AF with Flashlight	Rear: 8 Megapixel
	VCI		VCI MINI	built-in
	connection mode		BT/USB
software difference	Auto VIN	All vehicle series	Yes	Yes
	read/clear DTCs	All vehicle series	Yes	Yes
	read data flow	All vehicle series	Yes	Yes
	read freeze frame	All vehicle series	Yes	Yes
	read ECU	All vehicle series	Yes	Yes
	action test	All vehicle series	Yes	Yes
	service	All vehicle series	Yes (36 items)	Yes (40 items)
	special services	All vehicle series	full system special functions	full system special functions
	online coding	Nissan	No	Yes
		Infiniti	No	Yes
		NissanGT-R	No	Yes
		Renault	No	Yes
		Hyundai	No	Yes
		Kia	No	Yes
		Audi	Yes	No
		VW	Yes	Yes
		VW_Brazil	Yes	Yes
		BMW	No	Yes
		MINI	No	Yes
		Peugeot	Yes	Yes
		Citroen	Yes	Yes
		DS_EU	Yes	Yes
		Porsche	No	Yes
		SGMW	Yes	Yes
	Offline coding	Nissan	No	Yes
		Infiniti	No	Yes
		NissanGT-R	No	Yes
		Toyota	No	Yes
		Lexus	No	Yes
		Scion	No	Yes
		Daihatsu	Yes	Yes
		Benz	Yes	Yes
		Maybach	Yes	Yes
		LandRover	Yes	Yes
		Jaguar	Yes	Yes
		Subaru	Yes ( before the year 2017 only)	Yes
		Ford	No	Yes
		FordAU	No	Yes
		FordEU	No	Yes
		Mazda	No	Yes
		Hyundai	No	Yes
		Kia	No	Yes
		Chrysler	Yes	Yes
		Audi	Yes	Yes
		VW	Yes	Yes
		Skoda	Yes	Yes
		VW_Brazil	Yes	Yes
		Bentley	Yes	Yes
		Bugatti	Yes	Yes
		Lamborghini	Yes	Yes
		LT3	Yes	Yes
		Seat	Yes	Yes
		VW_CV	Yes	Yes
		Man_LD	Yes	Yes
		Peugeot	Yes	Yes
		Citroen	Yes	Yes
		DS_EU	Yes	Yes
		Opel	Yes	Yes
		Vauxhall	Yes	Yes
		Porsche	Yes	Yes
		Mitsubishi	Yes	Yes
	hidden functions activation	Nissan	No	Yes
		Infiniti	No	Yes
		NissanGT-R	No	Yes
Benz		No	No
Audi		Yes	Yes
VW		Yes	Yes
VW_Brazil		Yes	Yes
Skoda		Yes	Yes
BMW		No	Yes
MINI		No	Yes
Toyota		No	Yes
Lexus		No	Yes
Scion		No	Yes
guiding function	Benz	No	No
	LandRover	No	No
	Jaguar	No	No
	Audi	Yes	Yes
	VW	Yes	Yes
	VW_Brazil	Yes	Yes
	Skoda	Yes	Yes
	Bentley	Yes	No
	Seat	Yes	Yes
	VW_CV	Yes	No
	Man_LD	Yes	Yes
	MINI	No	No
	BMW	No	No
program personalization	LandRover	Yes	Yes
	Jaguar	Yes	No
smart diagnosis	Topology	No	No
	TSB technical bulletin, fault code guidance, fault prioritization, maintenance videos, etc.	No	No
cloud service	Remote Expert C-side	No	No
	report management	Yes	Yes
	AccuFix	No	No
	Repair Data	No	No
other functions	McLaren diagnostics	No	No
	Tesla diagnostics	No	No
	NIO	No	No
	Pre&Post Scan	Yes	Yes
	SCAN VIN	No	Yes
	SCAN License	No	Yes
	Remote Desk	Yes	Yes
	diagnostic criteriaD-PDU/ RP1210	No	No
	DoIP	No	Yes
	CANFD	No	Yes
scalability	TPMS comprehensive function (sensor programming, sensor activation, etc.)		No	No
	oscilloscope		Yes (optional)	No
	endoscope		Yes (optional)	Yes (optional)
	four-wheel quick inspection		No	No
	ADAS calibration		No	No
	four wheels full version		No	No
	Battery pack test		No	No
	battery test		Yes (optional)	No
	battery registration		No	No
	multimeter		No	No
	IMMO keys		No	No
	Wi-Fi print		No	Yes

MP900 & MP808 series product comparison

Product Type		MP900-TS	MP808TS	MP900Z-BT	MP808BT
Hardware	Operating system	Android 11	Android 4.4.4	Android 11	Android 4.4.4
	CPU	Quad core Processor, 1.8GHz	Quad core Processor, 1.6GHz	Quad core Processor, 1.8GHz	Quad core Processor, 1.6GHz
	Screen	8inches, 800*1280	7inches, 1024*600	8inches, 800*1280	7inches, 1024*600
	RAM	4GB	1GB	4GB	1GB
	ROM	64GB	64GB	64GB	64GB
	Battery	7700mAh	5000mAh	7700mAh	5000mAh
	Camera	Rear: 8M	No	Rear: 8M	No
	DLC	V150	VCI MINI	V150	VCI MINI
	DoIP	√	×	√	×
	CANFD	√	√（optional adapter）	√	√（optional adapter）
Software	Read/clear code	√	√	√	√
	Freeze frame	√	√	√	√
	ECU information	√	√	√	√
	Live data	√	√	√	√
	Active test	√	√	√	√
	Full system special functions	√	√	√	√
	Service functions	√（40 kinds）	√（36 kinds）	√（40 kinds）	√（36 kinds）
	ECU Coding	√	√	√	√
	Pre&Post Scan	√	×	√	×
	TPMS integrated function(such as sensor programming, activation)	√	√	×	×

Product Comparison Between MaxiPRO MP900BT and MaxiPRO MP900TS

Category	Function	Vehicle Series	MaxiPRO MP900BT	MaxiPRO MP900TS
	processor		4 Cores	4 Cores
	operating system		Android 11	Android 11
	RAM		4 GB	4 GB
	ROM		64 GB	64 GB
	display screen		8 inches	8 inches
	Wi-Fi		Wi-Fi（802.11a/b/g/n/ac）	Wi-Fi（802.11a/b/g/n/ac）
	BT		No	No
	USB		USB 2.0：(1 USB HOST Type A, 1 USB mini device)	USB 2.0：(1 USB HOST Type A, 1 USB mini device)
	HDMI		No	No
	SD Card		SD Card (Support up to 64GB)	SD Card (Support up to 64GB)
	DB16 DLC		DB16 DLC	DB16 DLC
	headphone plug		No	No
	microphone port		No	No
	speaker port		No	No
	GPS		No	No
	light-sensitive		Yes	Yes
	button		1 power button	1 power button
	battery		3.7V 7700 mAh	3.7V 7700 mAh
	camera		Rear: 8 Megapixel	Rear: 8 Megapixel
	VCI		built-in	built-in
	connection mode		BT	BT
software difference	Auto VIN	All vehicle series	Yes	Yes
	read/clear DTCs	All vehicle series	Yes	Yes
	read data flow	All vehicle series	Yes	Yes
	read freeze frame	All vehicle series	Yes	Yes
	read ECU	All vehicle series	Yes	Yes
	action test	All vehicle series	Yes	Yes
	service	All vehicle series	Yes (40 items)	Yes (40 items)
	special services	All vehicle series	full system special functions	full system special functions
	online coding	Nissan	Yes	Yes
		Infiniti	Yes	Yes
		NissanGT-R	Yes	Yes
		Renault	Yes	Yes
		Hyundai	Yes	Yes
		Kia	Yes	Yes
		Audi	No	No
		VW	Yes	Yes
		VW_Brazil	Yes	Yes
		BMW	Yes	Yes
		MINI	Yes	Yes
		Peugeot	Yes	Yes
		Citroen	Yes	Yes
		DS_EU	Yes	Yes
		Porsche	Yes	Yes
		SGMW	Yes	Yes
	Offline coding	Nissan	Yes	Yes
		Infiniti	Yes	Yes
		NissanGT-R	Yes	Yes
		Toyota	Yes	Yes
		Lexus	Yes	Yes
		Scion	Yes	Yes
		Daihatsu	Yes	Yes
		Benz	Yes	Yes
		Maybach	Yes	Yes
		LandRover	Yes	Yes
		Jaguar	Yes	Yes
		Subaru	Yes	Yes
		Ford	Yes	Yes
		FordAU	Yes	Yes
		FordEU	Yes	Yes
		Mazda	Yes	Yes
		Hyundai	Yes	Yes
		Kia	Yes	Yes
		Chrysler	Yes	Yes
		Audi	Yes	Yes
		VW	Yes	Yes
		Skoda	Yes	Yes
		VW_Brazil	Yes	Yes
		Bentley	Yes	Yes
		Bugatti	Yes	Yes
		Lamborghini	Yes	Yes
		LT3	Yes	Yes
		Seat	Yes	Yes
		VW_CV	Yes	Yes
		Man_LD	Yes	Yes
		Peugeot	Yes	Yes
		Citroen	Yes	Yes
		DS_EU	Yes	Yes
		Opel	Yes	Yes
		Vauxhall	Yes	Yes
		Porsche	Yes	Yes
		Mitsubishi	Yes	Yes
	hidden functions activation	Nissan	Yes	Yes
		Infiniti	Yes	Yes
		NissanGT-R	Yes	Yes
Benz		No	No
Audi		Yes	Yes
VW		Yes	Yes
VW_Brazil		Yes	Yes
Skoda		Yes	Yes
BMW		Yes	Yes
MINI		Yes	Yes
Toyota		Yes	Yes
Lexus		Yes	Yes
Scion		Yes	Yes
guiding function	Benz	No	No
	LandRover	No	No
	Jaguar	No	No
	Audi	Yes	Yes
	VW	Yes	Yes
	VW_Brazil	Yes	Yes
	Skoda	Yes	Yes
	Bentley	No	No
	Seat	Yes	Yes
	VW_CV	No	No
	Man_LD	Yes	Yes
	MINI	No	No
	BMW	No	No
program personalization	LandRover	Yes	Yes
	Jaguar	No	No
smart diagnosis	Topology	No	No
	TSB technical bulletin, fault code guidance, fault prioritization, maintenance videos, etc.	No	No
cloud service	Remote Expert C-side	No	No
	report management	Yes	Yes
	AccuFix	No	No
	Repair Data	No	No
other functions	McLaren diagnostics	No	No
	Tesla diagnostics	No	No
	NIO	No	No
	Pre&Post Scan	Yes	Yes
	SCAN VIN	Yes	Yes
	SCAN License	Yes	Yes
	Remote Desk	Yes	Yes
	diagnostic criteriaD-PDU/ RP1210	No	No
	DoIP	Yes	Yes
	CANFD	Yes	Yes
scalability	TPMS comprehensive function (sensor programming, sensor activation, etc.)		No	Yes
	oscilloscope		No	No
	endoscope		Yes (optional)	Yes (optional)
	four-wheel quick inspection		No	No
	ADAS calibration		No	No
	four wheels full version		No	No
	Battery pack test		No	No
	battery test		No	No
	battery registration		No	No
	multimeter		No	No
	IMMO keys		No	No
	Wi-Fi print		Yes	No

Package List:

1pc x AUTEL MP900BT main unit
1pc x MaxiVCI V150
1pc x power adapter
1pc x USB type-C cable
1pc x soft cloth
1pc x quick reference guide
1pc x packing list
1pc x carrying case
